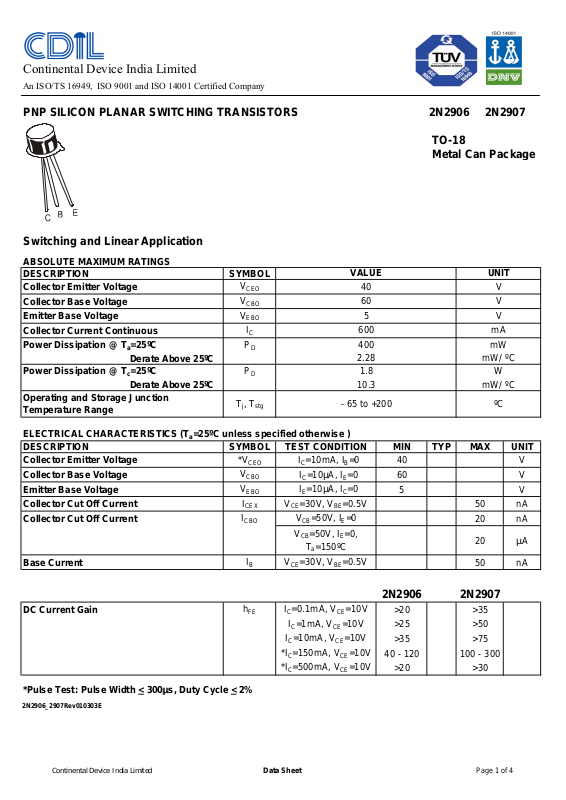

Page 1
PNP SILICON PLANAR SWITCHING TRANSISTORS
2N2906 2N2907
TO-18
Metal Can Package
Switching and Linear Application
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
SYMBOL
Derate Above 25ºC
Derate Above 25ºC
DESCRIPTION
SYMBOL
TEST CONDITION
MIN
TYP
MAX
UNIT
*Pulse Test: Pulse Width
<
300µµs, Duty Cycle
<
2%
Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @ Ta=25ºC P
Power Dissipation @ Tc=25ºC P
Operating and Storage Junction
Temperature Range
V
CEO
V
CBO
V
EBO
I
Tj, T
C
D
D
stg
- 65 to +200
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise )
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Cut Off Current
Collector Cut Off Current
*V
V
V
I
I
CEO
CBO
EBO
CEX
CBO
IC=10mA, IB=0
IC=10µA, IE=0
IE=10µA, IC=0
VCE=30V, VBE=0.5V
VCB=50V, IE=0
VCB=50V, IE=0,
Ta=150ºC
Base Current
I
B
VCE=30V, VBE=0.5V
VALUE
40
60
5
600
400
2.28
1.8
10.3
UNIT
V
V
V
mA
mW
mW/ ºC
W
mW/ ºC
ºC
40 V
60 V
5 V
50 nA
20 nA
20
µA
50 nA
DC Current Gain
2N2906_2907Rev010303E
Continental Device India Limited
h
FE
Data Sheet Page 1 of 4
IC=0.1mA, VCE=10V
IC=1mA, VCE=10V
IC=10mA, VCE=10V
*IC=150mA, VCE=10V
*IC=500mA, VCE=10V
2N2906 2N2907
>20 >35
>25 >50
>35 >75
40 - 120 100 - 300
>20 >30
Page 2
PNP SILICON PLANAR SWITCHING TRANSISTORS 2N2906 2N2907
d
r
Storage Time
t
s
=15mA,
TO-18
Metal Can Package
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
SMALL SIGNAL CHARACTERISTICS
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
Transition Frequency
Output Capacitance
*V
*V
CE (sat)
BE (sat)
**f
T
C
obo
C
ibo
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=50mA, VCE=20V,
f=100MHz
VCB=10V, IE=0,
f=100KHz
VBE=2V, IC=0,
f=100KHz
0.4 V
1.6 V
1.3 V
2.6 V
200 MHz
8.0 pF
30 pF
SWITCHING TIME
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Delay Time
Rise Time
Turn On Time
t
t
t
on
IC=150mA, I
VCC=30V
B1
10 ns
40 ns
45 ns
80 ns
Fall Time
Turn Off Time
t
f
t
off
IC=150mA, IB1=
IB2=15mA, VCC=6V
30 ns
100 ns
*Pulse Test: Pulse Width < 300µµs, Duty Cycle < 2%
** fT is defined as the frequency at which IhfeI extrapolates to unity
2N2906_2907Rev010303E
Continental Device India Limited
Data Sheet Page 2 of 4
Page 3
TO-18 Metal Can Package
E
3
Packing Detail
2N2906 2N2907
TO-18
Metal Can Package
A
DIM MIN MAX
A 5.24 5.84
B
B 4.52 4.97
C 4.31 5.33
D 0.40 0.53
C
E — 0.76
F — 1.27
G
G — 2.97
H 0.91 1.17
K
1
H
3
F
2
J 0.71 1.21
K 12.70 —
L 45 DEG
All diminsions in mm.
L
J
D
PACKAGE
TO-18
Details
1K/polybag
1
2
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
350 gm/1K pcs
3" x 7.5" x 7.5" 5K 17" x 15" x 13.5" 80K
PIN CONFIGURATION
1. EMITTER
2. BASE
3. COLLECTOR
Qty
OUTER CARTON BOX
Qty Gr WtSize Size
34 kgs
2N2906_2907Rev010303E
Continental Device India Limited
Data Sheet Page 3 of 4
Page 4
Customer Notes 2N2906 2N2907
suited
for
individual
or
TO-18
Metal Can Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility
inaccuracies or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or
use of any CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not
designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as
Discrete Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems
applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
[email protected] www.cdilsemi.com
2N2906_2907Rev010303E
Continental Device India Limited
Data Sheet Page 4 of 4
