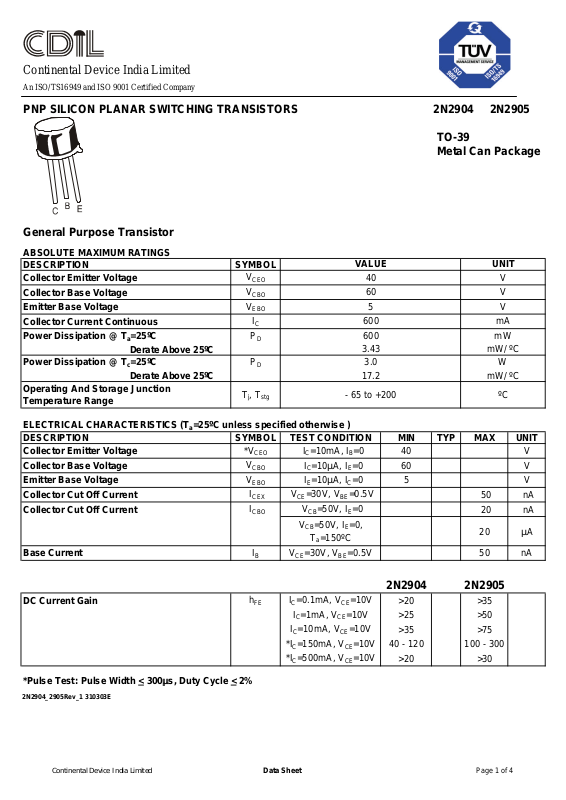

Page 1
PNP SILICON PLANAR SWITCHING TRANSISTORS
2N2904 2N2905
TO-39
Metal Can Package
General Purpose Transistor
ABSOLUTE MAXIMUM RATINGS
DESCRIPTION
SYMBOL
Derate Above 25ºC
Derate Above 25ºC
DESCRIPTION
SYMBOL
TEST CONDITION
MIN
TYP
MAX
UNIT
*Pulse Test: Pulse Width
<
300µµs, Duty Cycle
<
2%
Continental Device India Limited
An ISO/TS16949 and ISO 9001 Certified Company
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @ Ta=25ºC P
Power Dissipation @ Tc=25ºC P
Operating And Storage Junction
Temperature Range
V
CEO
V
CBO
V
EBO
I
Tj, T
C
D
D
stg
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise )
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Cut Off Current
Collector Cut Off Current
*V
CEO
V
CBO
V
EBO
I
CEX VCE
I
CBO VCB
IC=10mA, IB=0
IC=10µA, IE=0
IE=10µA, IC=0
=30V, VBE=0.5V
=50V, IE=0
VCB=50V, IE=0,
Ta=150ºC
Base Current
I
B
VCE=30V, VBE=0.5V
VALUE
40
60
5
600
600
3.43
3.0
17.2
- 65 to +200
UNIT
V
V
V
mA
mW
mW/ ºC
W
mW/ ºC
ºC
40 V
60 V
5 V
50 nA
20 nA
20
µA
50 nA
DC Current Gain
2N2904_2905Rev_1 310303E
Continental Device India Limited
h
FE
Data Sheet Page 1 of 4
IC=0.1mA, VCE=10V
IC=1mA, VCE=10V
IC=10mA, VCE=10V
*IC=150mA, VCE=10V
*IC=500mA, VCE=10V
2N2904 2N2905
>20 >35
>25 >50
>35 >75
40 - 120 100 - 300
>20 >30
Page 2
PNP SILICON PLANAR SWITCHING TRANSISTORS 2N2904 2N2905
d
r
on
Storage Time
t
s
=15mA,
TO-39
Metal Can Package
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
SMALL SIGNAL CHARACTERISTICS
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
Transition Frequency
Output Capacitance
Input Capacitance
*V
*V
CE (sat)
BE (sat)
**f
T
C
obo
C
ibo
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=150mA, IB=15mA
IC=500mA, IB=50mA
IC=50mA, VCE=20V,
f=100MHz
VCB=10V, IE=0,
f=100KHz
VBE=2V, IC=0,
f=100KHz
0.4 V
1.6 V
1.3 V
2.6 V
200 MHz
8.0 pF
30 pF
SWITCHING TIME
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Delay Time
Rise Time
Turn On Time
Fall Time
Turn Off Time
t
t
t
t
t
IC=150mA, I
B1
VCC=30V
f
off
IC=150mA, IB1=
IB2=15mA, VCC=6V
10 ns
40 ns
45 ns
80 ns
30 ns
100 ns
*Pulse Test: Pulse Width < 300µµs, Duty Cycle < 2%
** fT is defined as the frequency at which IhfeI extrapolates to unity.
2N2904_2905Rev_1 310303E
Continental Device India Limited
Data Sheet Page 2 of 4
Page 3
2N2904 2N2905
A
Packing Detail
TO-39
Metal Can Package
TO-39 Metal Can Package
DIM MIN MAX
B
A 8.50 9.39
B 7.74 8.50
C 6.09 6.60
C
E
D 0.40 0.53
E — 0.88
F 2.41 2.66
G 4.82 5.33
K
H 0.71 0.86
J 0.73 1.02
K 12.70 —
L 42 DEG 48 DEG
All dimensions are in mm
D
G
2
1
3
L
H
J
F
2
3
PIN CONFIGURATION
1. EMITTER
2. BASE
3. COLLECTOR
1
PACKAGE
Details
TO-39 500 pcs/polybag 540 gm/500 pcs 3" x 7.5" x 7.5" 20K 17" x 15" x 13.5" 32K 40 kgs
2N2904_2905Rev_1 310303E
Continental Device India Limited
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
Data Sheet Page 3 of 4
OUTER CARTON BOX
Qty
Qty Gr WtSize Size
Page 4
Notes 2N2904 2N2905
suited
for
individual
or
TO-39
Metal Can Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished in the Data Sheet and
on the CDIL Web Site/CD are believed to be accurate and reliable. CDIL however, does not assume responsibility
inaccuracies or incomplete information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or
use of any CDIL product; neither does it convey any license under its patent rights nor rights of others. These products are not
designed for use in life saving/support appliances or systems. CDIL customers selling these products (either as
Discrete Semiconductor Devices or incorporated in their end products), in any life saving/support appliances or systems
applications do so at their own risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
[email protected], www.cdilsemi.com
2N2904_2905Rev_1 310303E
Continental Device India Limited
Data Sheet Page 4 of 4
