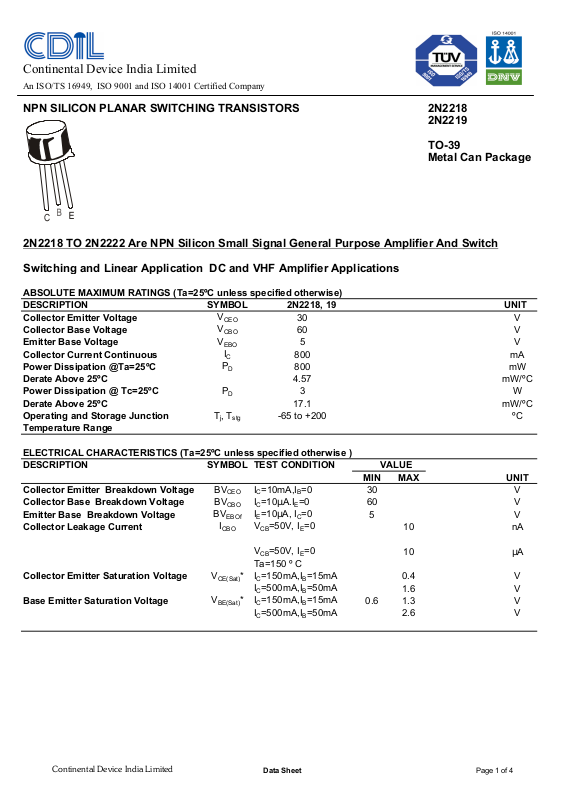

Continental Device India Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company
NPN SILICON PLANAR SWITCHING TRANSISTORS 2N2218
2N2219
TO-39
Metal Can Package
2N2218 TO 2N2222 Are NPN Silicon Small Signal General Purpose Amplifier And Switch
Switching and Linear Application DC and VHF Amplifier Applications
ABSOLUTE MAXIMUM RATINGS (Ta=25ºC unless specified otherwise)
DESCRIPTIONSYMBOL 2N2218, 19 UNIT
Collector Emitter Voltage
Collector Base Voltage
Emitter Base Voltage
Collector Current Continuous
Power Dissipation @Ta=25ºC
Derate Above 25ºC 4.57 mW/ºC
Power Dissipation @ Tc=25ºC
Derate Above 25ºC 17.1 mW/ºC
Operating and Storage Junction
Temperature Range
V
CEO
V
CBO
V
EBO
I
C
P
D
P
D
T
, T
st
30 V
60 V
5V
800 mA
800 mW
3W
-65 to +200 ºC
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise )
DESCRIPTION SYMBOL TEST CONDITION VALUE
MIN MAX UNIT
Collector Emitter Breakdown Voltage
Collector Base Breakdown Voltage
Emitter Base Breakdown Voltage
Collector Leakage Current
BV
CEOIC
BV
CBO
BV
EBOf
I
CBO
=10mA,IB=0
I
=10µA.I
C
I
=10µA, I
E
=0
E
=0
C
VCB=50V, IE=0
V
=50V, IE=0
CB
30 V
60 V
5V
10 nA
10 µA
Ta=150 º C
Collector Emitter Saturation Voltage
Base Emitter Saturation Voltage
V
V
*IC=150mA,IB=15mA
CE(Sat
I
=500mA,IB=50mA
C
*IC=150mA,IB=15mA
BE(Sat
I
=500mA,IB=50mA
C
0.4 V
1.6 V
0.6 1.3 V
2.6 V
Continental Device India Limited
Data Sheet Page 1 of 4
Page 2
NPN SILICON PLANAR SWITCHING TRANSISTORS 2N2218
)
2N2219
TO-39
Metal Can Package
ELECTRICAL CHARACTERISTICS (Ta=25ºC unless specified otherwise)
DESCRIPTION SYMBOL TEST CONDITION UNIT
DC Current Gain
h
IC=0.1mA,VCE=10V*
FE
I
=1mA,VCE=10V
C
I
=10mA,VCE=10V*
C
I
=150mA,VCE=1V*
C
I
=150mA,VCE=1V*
C
I
=500mA,VCE=10V*
C
DYNAMIC CHARACTERISTICS
2N2218 2N2219
MIN MAX MIN MAX
20 35
25 50
35 75
20 50
40 120 100 300
20 30
Transition Frequency
Output Capacitance
Input Capacitance
SWITCHING CHARACTERISTICS
Delay time
Rise time
Storage time
Fall time
*Pulse Condition: Pulse Width <
f
IC=20mA, VCE=20V
T
f=100MHz
C
VCB=10V, IE=0
ob
f=100KHz
C
VEB=0.5V, IC=0
ib
f=100kHz
t
d
=150mA,IB1=15mA
I
C
t
t
t
VCC=30V,V
r
s
=150mA, IB1=15mA
I
C
IB2=15mA, VCC=30V
f
300µs, Duty Cycle <2%
BE(off
=0.5V
250 250 MHz
88pF
30 30 pF
10 ns
25 ns
225 ns
60 ns
Continental Device India Limited
Data Sheet Page 2 of 4
Page 3
TO-39 Metal Can Package
Packing D
il
2N2218
2N2219
TO-39
Metal Can Package
A
B
DIM MIN MAX
A 8.50 9.39
B 7.74 8.50
C 6.09 6.60
C
E
D 0.40 0.53
E—0.88
F 2.41 2.66
G 4.82 5.33
K
H 0.71 0.86
J 0.73 1.02
K12.70 —
L 42 DEG 48 DEG
All dimensions are in mm
D
G
2
1
3
L
H
J
F
2
3
PIN CONFIGURATION
1. EMITTER
2. BASE
3. COLLECTOR
1
eta
PACKAGE
Details
TO-39 500 pcs/polybag 540 gm/500 pcs 3" x 7.5" x 7.5" 20K 17" x 15" x 13.5" 32K 40 kgs
Continental Device India Limited
STANDARD PACK INNER CARTON BOX
Net Weight/Qty
Data Sheet Page 3 of 4
Qty
OUTER CARTON BOX
Qty Gr WtSize Size
Page 4
Notes 2N2218
2N2219
TO-39
Metal Can Package
Disclaimer
The product information and the selection guides facilitate selection of the CDIL's Discrete Semiconductor Device(s) best suited
for application in your product(s) as per your requirement. It is recommended that you completely review our Data Sheet(s) so as
to confirm that the Device(s) meet functionality parameters for your application. The information furnished on the CDIL Web
Site/CD is believed to be accurate and reliable. CDIL however, does not assume responsibility for inaccuracies or incomplete
information. Furthermore, CDIL does not assume liability whatsoever, arising out of the application or use of any CDIL product;
neither does it convey any license under its patent rights nor rights of others. These products are not designed for use in life
saving/support appliances or systems. CDIL customers selling these products (either as individual Discrete Semiconductor
Devices or incorporated in their end products), in any life saving/support appliances or systems or applications do so at their own
risk and CDIL will not be responsible for any damages resulting from such sale(s).
CDIL strives for continuous improvement and reserves the right to change the specifications of its products without prior notice.
CDIL is a registered Trademark of
Continental Device India Limited
C-120 Naraina Industrial Area, New Delhi 110 028, India.
Telephone + 91-11-2579 6150, 5141 1112 Fax + 91-11-2579 5290, 5141 1119
[email protected] www.cdilsemi.com
2N2218_19 Rev101001
Continental Device India Limited
Data Sheet Page 4 of 4
