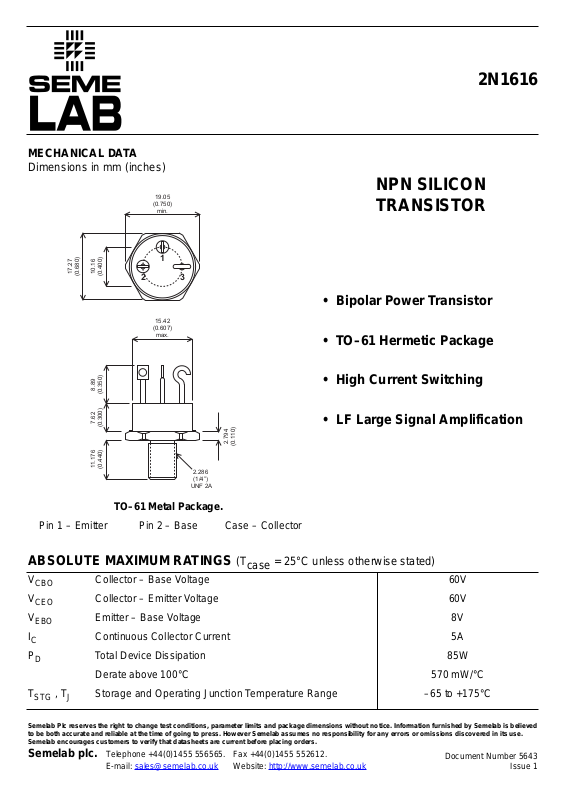

Page 1
2N1616
NPN SILICON
TRANSISTOR
V
CBO
Collector – Base Voltage
V
CEO
Collector – Emitter Voltage
V
EBO
Emitter – Base Voltage
I
C
Continuous Collector Current
P
D
Total Device Dissipation
Derate above 100°C
T
STG
, T
J
Storage and Operating Junction Temperature Range
60V
60V
8V
5A
85W
570 mW/°C
–65 to +175°C

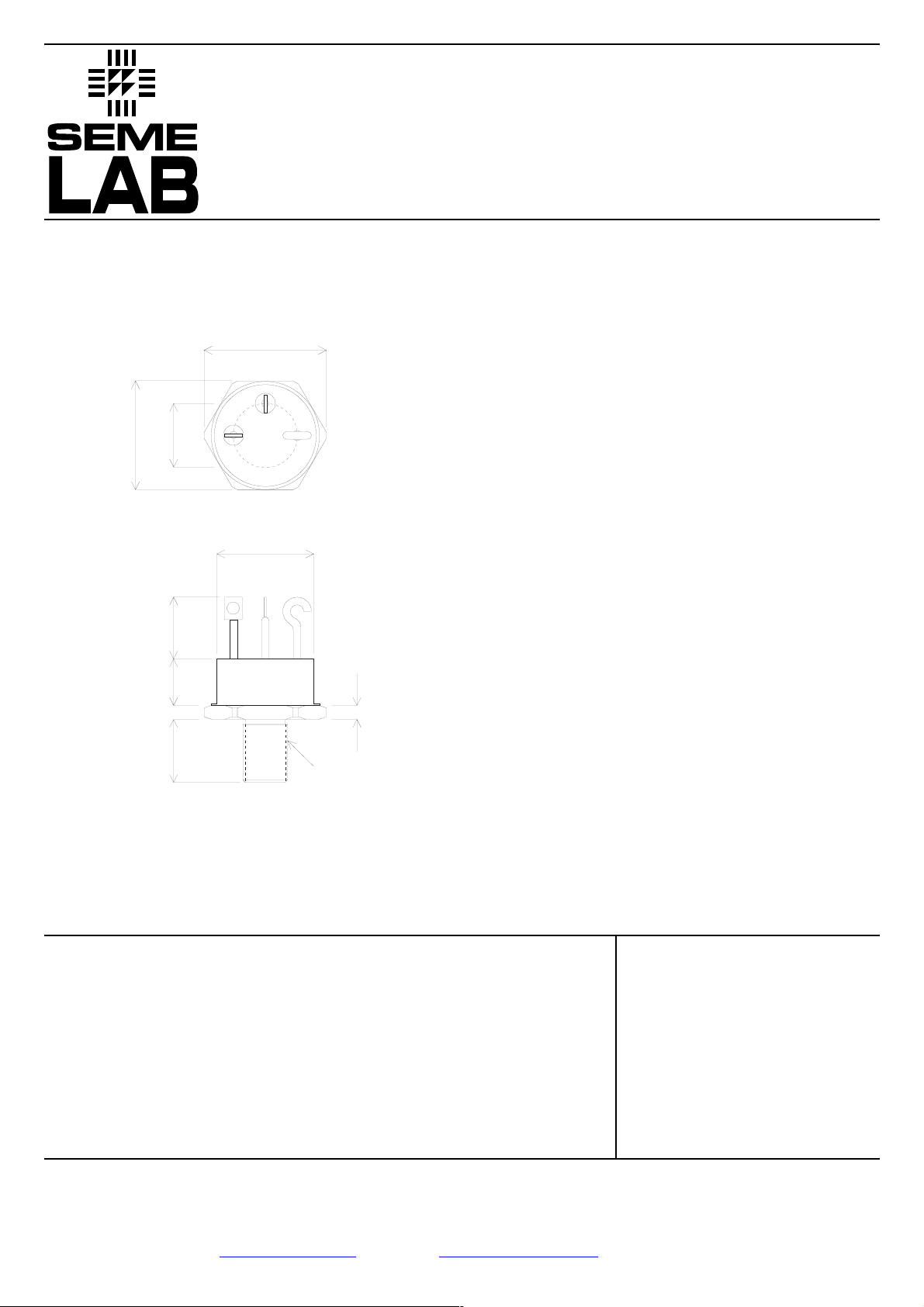

MECHANICAL DATA
Dimensions in mm (inches)
TO–61 Metal Package.
Pin 1 – Emitter Pin 2 – Base Case – Collector
ABSOLUTE MAXIMUM RATINGS (T
case
= 25°C unless otherwise stated)
• Bipolar Power Transistor
• TO–61 Hermetic Package
• High Current Switching
• LF Large Signal Amplification
Semelab plc. Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail: [email protected]
Website: http://www.semelab.co.uk
Document Number 5643
Issue 1
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Semelab encourages customers to verify that datasheets are current before placing orders.
19.05
(0 .7 5 0 )
min.
17.27
10.16
(0 .6 8 0 )
(0 .4 0 0 )
!
15.42
(0 .6 0 7 )
max.
8.89
(0 .3 5 0 )
)
7.62
(0 .3 0 0
2.794
(0 .1 1 0 )
11.176
(0 .4 4 0 )
2.286
(1 /4 )
UNF 2A
Page 2
2N1616
Parameter Test Conditions Min. Typ. Max. Units
I
CBO
Collector-Base cut-off current
T
case
= 150°C
VCB= 60V IE= 0 10
mA
I
CEX
Collector-Emitter cut-off current VCB= 60V VBE= -1V 1
I
EBO
Emitter-Base cut-off current VEB= 8V IC= 0 1
V
(BR)CEO*
Collector-Emitter Breakdown Voltage IC= 100mA IB= 0 60
V
V
(BR)EBO*
Emitter-Base Breakdown Voltage IB= 1mA IC= 0 8
V
(BR)CBO*
Collector-Base Breakdown Voltage IC= 1mA IE= 0 60
h
21E
Static Forward Current Transfer Ratio VCE= 12V IC= 2A 15 75 -
V
CEsat
Collector-Emitter Saturation Voltage IC= 2A IB= 250mA 2
V
V
BE
Base-Emitter Voltage
VCE= 12V IC= 2A 3
f
T
Transition Frequency (f=1MHz) VCE= 30V IC= 300mA 3 MHz
R
th(J-C)
Thermal Resistance (junction to case) 1.75 °C/W
Semelab plc. Telephone +44(0)1455 556565. Fax +44(0)1455 552612.
E-mail: [email protected]
Website: http://www.semelab.co.uk
Document Number 5643
Issue 1
Semelab Plc reserves the right to change test conditions, parameter limits and package dimensions without notice. Information furnished by Semelab is believed
to be both accurate and reliable at the time of going to press. However Semelab assumes no responsibility for any errors or omissions discovered in its use.
Semelab encourages customers to verify that datasheets are current before placing orders.
* Pulse test tp = 300µs , δ ≤ 2%
