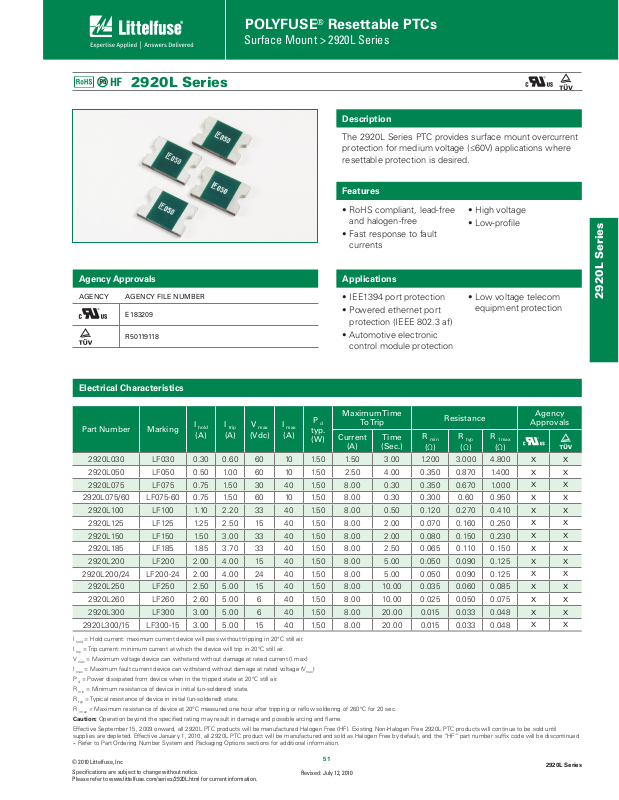

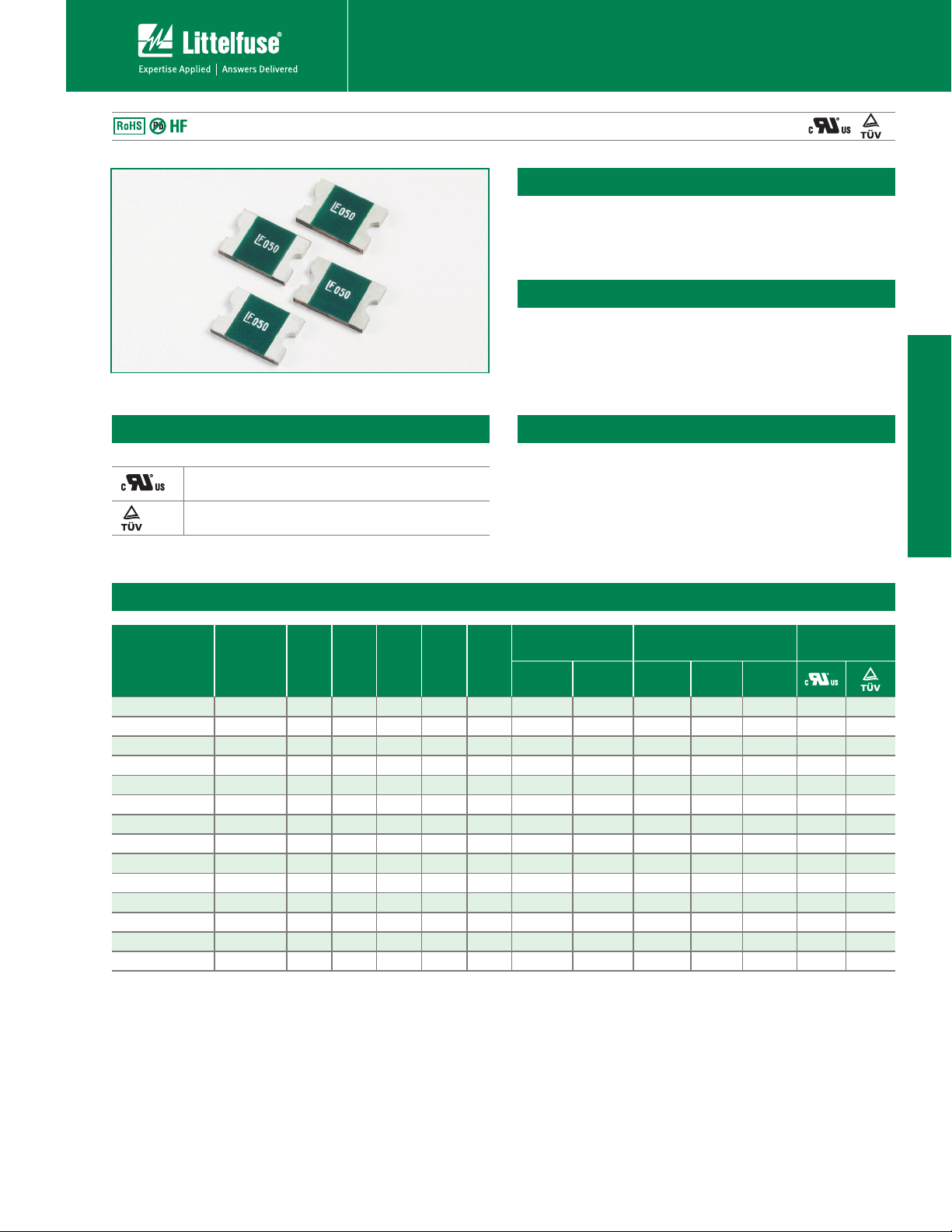

Page 1

2920L Series

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

Description

The 2920L Series PTC provides surface mount overcurrent protection for medium voltage (≤60V) applications where resettable protection is desired.

Features

t3P)4DPNQMJBOUMFBEGSFF

and halogen-free

t)JHIWPMUBHF t-PXQSPmMF

t'BTUSFTQPOTFUPGBVMU

currents

Agency Approvals

AGENCY AGENCY FILE NUMBER

E183209

R50119118

Applications

t*&&QPSUQSPUFDUJPO t1PXFSFEFUIFSOFUQPSU

protection (IEEE 802.3 af)

t"VUPNPUJWFFMFDUSPOJD

t-PXWPMUBHFUFMFDPN

equipment protection

control module protection

Electrical Characteristics

Part Number Marking

hold

(A)

I (A)

Maximum Time

trip

max

(Vdc)

max

(A)

P d

typ. (W)

To Trip

Current

(A)

Time

(Sec.)

min

(Ω)

Resistance

typ

(Ω)

1max

(Ω)

2920L030 LF030 0.30 0.60 60 10 1.50 1.50 3.00 1.200 3.000 4.800

2920L050 LF050 0.50 1.00 60 10 1.50 2.50 4.00 0.350 0.870 1.400

2920L075 LF075 0.75 1.50 30 40 1.50 8.00 0.30 0.350 0.670 1.000

2920L075/60 LF075-60 0.75 1.50 60 10 1.50 8.00 0.30 0.300 0.60 0.950

2920L100 LF100 1.10 2.20 33 40 1.50 8.00 0.50 0.120 0.270 0.410

2920L125 LF125 1.25 2.50 15 40 1.50 8.00 2.00 0.070 0.160 0.250

2920L150 LF150 1.50 3.00 33 40 1.50 8.00 2.00 0.080 0.150 0.230

2920L185 LF185 1.85 3.70 33 40 1.50 8.00 2.50 0.065 0.110 0.150

2920L200 LF200 2.00 4.00 15 40 1.50 8.00 5.00 0.050 0.090 0.125

2920L200/24 LF200-24 2.00 4.00 24 40 1.50 8.00 5.00 0.050 0.090 0.125

2920L250 LF250 2.50 5.00 15 40 1.50 8.00 10.00 0.035 0.060 0.085

2920L260 LF260 2.60 5.00 6 40 1.50 8.00 10.00 0.025 0.050 0.075

2920L300 LF300 3.00 5.00 6 40 1.50 8.00 20.00 0.015 0.033 0.048

2920L300/15 LF300-15 3.00 5.00 15 40 1.50 8.00 20.00 0.015 0.033 0.048

= Hold current: maximum current device will pass without tripping in 20°C still air.

hold

= Trip current: minimum current at which the device will trip in 20°C still air.

trip

= Maximum voltage device can withstand without damage at rated current (I max)

max

= Maximum fault current device can withstand without damage at rated voltage (V

max

= Power dissipated from device when in the tripped state at 20°C still air.

= Minimum resistance of device in initial (un-soldered) state.

min

= Typical resistance of device in initial (un-soldered) state.

typ

= Maximum resistance of device at 20°C measured one hour after tripping or reﬂow soldering of 260°C for 20 sec.

1max

Caution: Operation beyond the speciﬁed rating may result in damage and possible arcing and ﬂame.

Effective September 15, 2009 onward, all 2920L PTC products will be manufactured Halogen Free (HF). Existing Non-Halogen Free 2920L PTC products will continue to be sold until supplies are depleted. Effective January 1, 2010, all 2920L PTC product will be manufactured and sold as Halogen Free by default, and the “HF” part number sufﬁx code will be discontinued

-- Refer to Part Ordering Number System and Packaging Options sections for additional information.

Speciﬁcations are subject to change without notice. Please refer to www.littelfuse.com/series/2920L.html for current information.

)

max

Revised: July 12, 2010

Agency

Approvals

2920L Series

Page 2

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

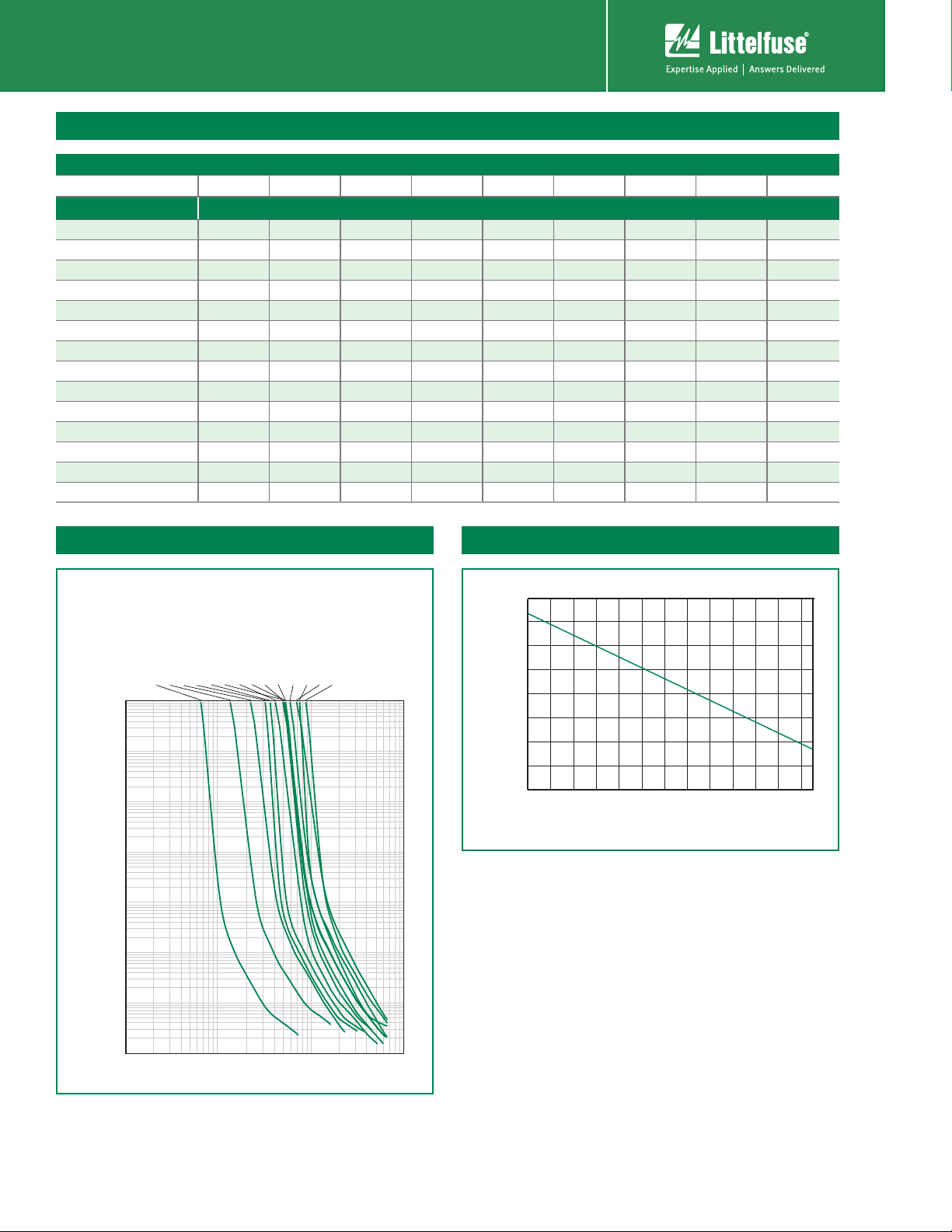

Temperature Rerating

Ambient Operation Temperature

-40°C -20°C 0°C 23°C 40°C 50°C 60°C 70°C 85°C

Part Number

2920L030 0.45 0.40 0.35 0.30 0.25 0.23 0.20 0.17 0.14

2920L050 0.76 0.67 0.59 0.50 0.42 0.38 0.33 0.29 0.23

2920L075 1.13 1.01 0.88 0.75 0.62 0.56 0.50 0.44 0.34

2920L075/60 1.13 1.01 0.88 0.75 0.62 0.56 0.50 0.44 0.34

2920L100 1.66 1.47 1.29 1.10 0.91 0.83 0.73 0.64 0.50

2920L125 1.89 1.68 1.46 1.25 1.04 0.94 0.83 0.73 0.56

2920L150 2.27 2.01 1.76 1.50 1.25 1.13 1.00 0.87 0.74

2920L185 2.80 2.47 2.17 1.85 1.54 1.39 1.22 1.07 0.85

2920L200 3.02 2.68 2.34 2.00 1.66 1.50 1.32 1.16 0.90

2920L200/24 3.14 2.77 2.42 2.00 1.73 1.56 1.38 1.20 0.98

2920L250 3.78 3.35 2.93 2.50 2.08 1.88 1.65 1.45 1.13

2920L260 3.64 3.25 2.91 2.60 2.26 2.08 1.95 1.74 1.48

2920L300 4.53 4.02 3.51 3.00 2.52 2.26 1.99 1.75 1.34

2920L300/15 4.20 3.85 3.44 3.00 2.69 2.50 2.31 2.12 1.83

Hold Current (A)

Average Time Current Curves

0.10A

0.30A

0.50A

0.75A & 0.75A/60

1.00A

1.25A

1.50A

100000

10000

1000

100

Time in Seconds

1.85A

2.00A/24V

2.00A

2.50A

2.60A

3.00A/15V

3.00A

2920L

Temperature Rerating Curve

170%

150%

130%

110 %

90%

70%

50%

Percentage of Rated Current

30%

10%

-40 -30 -20 -10 0 10 20 30 40 506070 8085

Temperature (°C)

0.1

0.01

0.1 1 10 100

Current in Amperes

The average time current curves and Temperature Rerating curve performance is affected by a number or variables, and these curves provided as guidance only. Customer must verify the performance in their application.

2920L Series

Revised: July 12, 2010

Please refer to www.littelfuse.com/series/2920L.html for current information.

Speciﬁcations are subject to change without notice.

Page 3

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

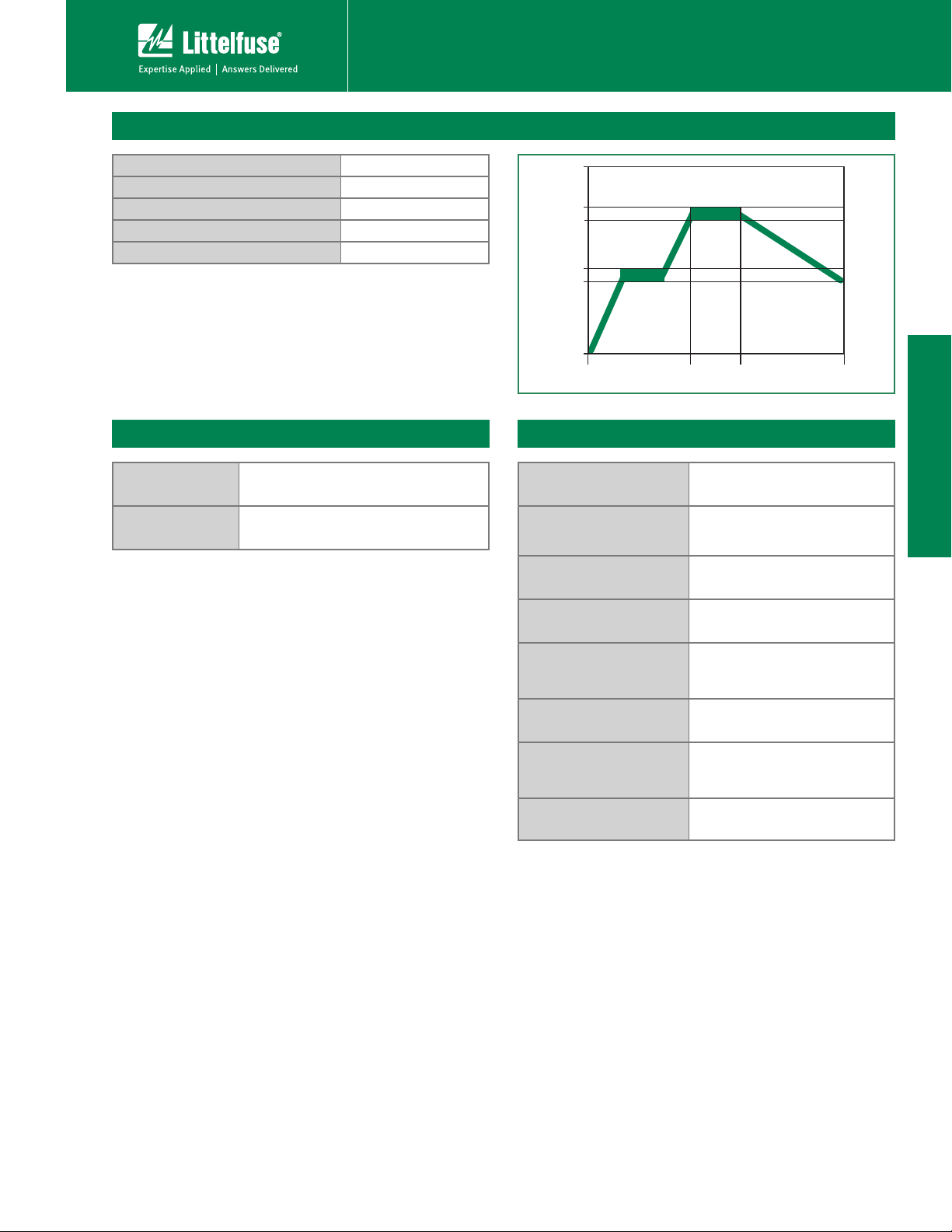

Soldering Parameters

Condition Reﬂow

Peak Temp/ Duration Time 260°C / 10 Sec

Time above liquids (TAL) 220°C 60 Sec ~ 100 Sec

Preheat 120°C~ 180°C 50 Sec ~ 150 Sec

Storage Condition 0°C~35°C,

t3FDPNNFOEFESFnPXNFUIPET*3WBQPSQIBTFPWFOIPUBJS

oven, N2 environment for lead–free

t3FDPNNFOEFENBYJNVNQBTUFUIJDLOFTTJTNNJODI

t%FWJDFTDBOCFDMFBOFEVTJOHTUBOEBSEJOEVTUSZNFUIPETBOE

solvents.

Note: If reﬂow temperatures exceed the recommended proﬁle,

devices may not meet the performance requirements.



70%RH

260

220

180

120

Temperature (°C)

Preheating

50 to 150

Soldering Cooling

60 to 100

Time(s)

120

Physical Speciﬁcations

Terminal Material

Lead Solderability

Solder-Plated Copper (Solder Material: Matte Tin(Sn))

Meets EIA Speciﬁcation RS186-9E, ANSI/ J-STD-002 Category 3.

Environmental Speciﬁcations

Operating/Storage Temperature

Maximum Device Surface Temperature in Tripped State

Passive Aging

Humidity Aging

Thermal Shock

Solvent Resistance MIL–STD–202, Method 215

Vibration

Moisture Sensitivity Level Level 1, J–STD–020C

-40°C to +85°C

125°C

+85°C, 1000 hours

-/+5% typical resistance change

+85°C, 85%,R.H.,1000 hours

-/+5% typical resistance change

MIL-STD-20 2, Method 107G +85°C/-40°C 20 times

-30% typical resistance change

MIL–STD–883C, Method 2007.1, Condition A

2920L Series

Speciﬁcations are subject to change without notice. Please refer to www.littelfuse.com/series/2920L.html for current information.

Revised: July 12, 2010

2920L Series

Page 4

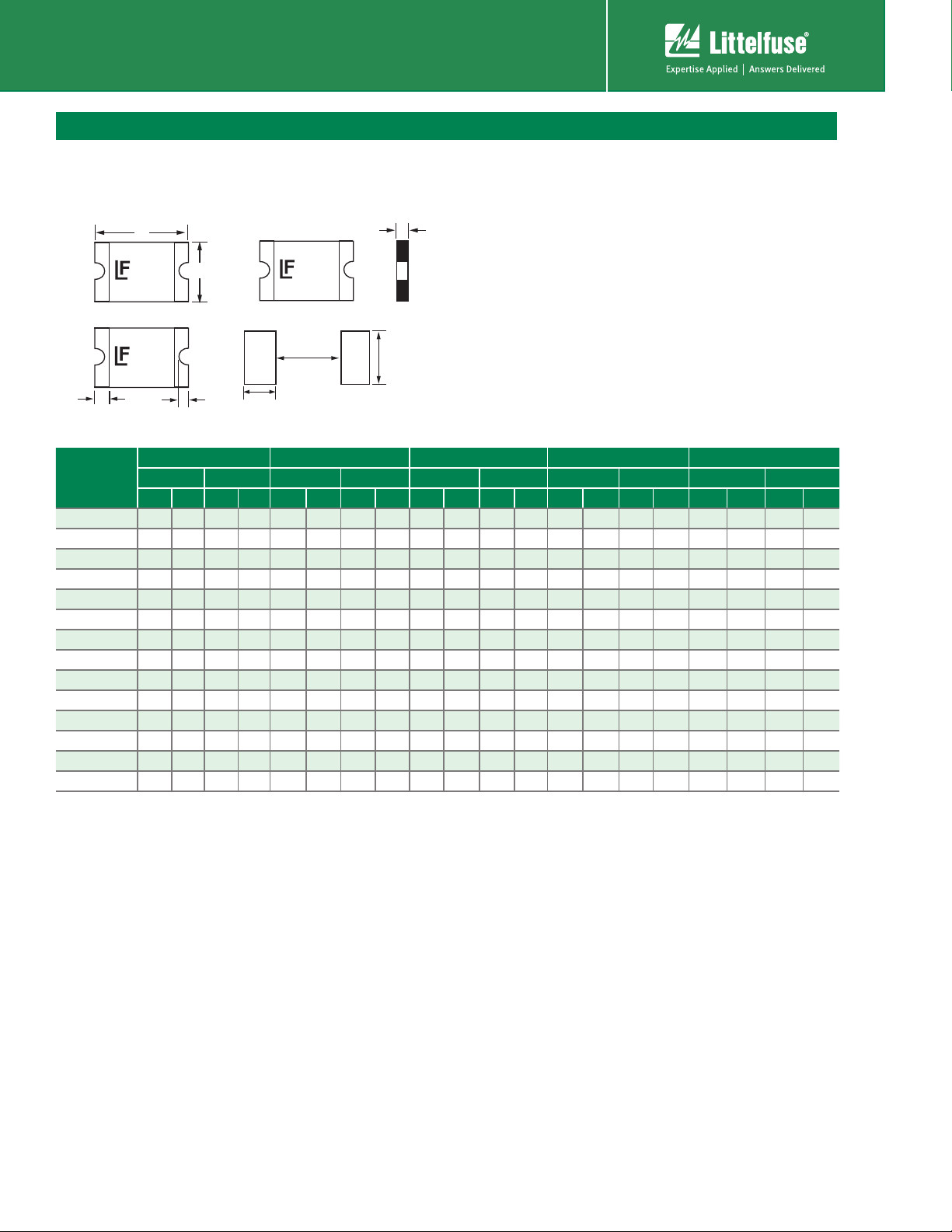

Dimensions (mm)

MARKING CODE VARIES WITH AMPERAGE AND VOLTAGE RATING (SEE ELECTRICAL CHARACTERISTIC TABLE) SHOWN ARE:

- 1.5A/33V RATING (LEFT)

- 2.0A/24V RATING (RIGHT)

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

To p

View

Bottom

View

Number

Part

150

Pad

Layout

2.0mm (.079”)

Inches mm Inches mm Inches mm Inches mm Inches mm

Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min Max

Min

200

-24

4.60 mm (.181”)

Side View

5.30 mm (.209”)

BCD E

2920L030 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L050 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L075 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L075/60 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.05 0.06 1.20 1.80 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L100 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.02 0.04 0.55 1 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L125 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.02 0.04 0.55 1 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L150 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L185 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L200 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L200/24 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L250 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L260 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.02 0.04 0.55 1 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L300 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L300/15 0.26 0.31 6.73 7.98 0.19 0.21 4.8 5.44 0.03 0.05 0.75 1.25 0.01 0.1 0.3 2.5 0.01 0.08 0.25 2

2920L Series

Revised: July 12, 2010

Please refer to www.littelfuse.com/series/2920L.html for current information.

Speciﬁcations are subject to change without notice.

Page 5

Part Ordering Number System

2920 L xxx /xx D R HF

HALOGEN-FREE

Required for some items. See Packaging section.

PACKAGING STYLE

SERIES

HOLD CURRENT CODE

HOLD

(Refer to Electrical Characteristics Table)

L: LITTELFUSE SURFACE MOUNT PPTC

DEVICE SIZE CODE (0.29 x 0.20 inch)

R: Tape & Reel

QUANTITY CODE: D=1500 M=1000 P=2000

SPECIAL VOLTAGE RATING ITEM

(Not applicable to all parts. Refer to Electrical Characteristics Table for additional information)

Packaging

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

Part Number Ordering Number

2920L030

2920L050

2920L075

2920L075/60

2920L100

2920L125

2920L150

2920L185

2920L200

2920L200/24

2920L250

2920L260

2920L300

2920L300/15

* Effective September 15, 2009 onward, all 2920L PTC products will be manufactured Halogen Free (HF). Existing Non-Halogen Free 2920L PTC products will continue to be sold until supplies are depleted. Effective January 1, 2010, all 2920L PTC product will be manufactured and sold as Halogen Free by default, and “HF” part number sufﬁx code will be discontinued.

2920L030DRHF Yes

2920L030DR No

2920L050DRHF Yes

2920L050DR No

2920L075DRHF Yes

2920L075DR No

2920L075/60MRHF Yes

2920L075/60MR No

2920L100PRHF Yes

2920L100PR No

2920L125PRHF Yes

2920L125PR No

2920L150DRHF Yes

2920L150DR No

2920L185DRHF Yes

2920L185DR No

2920L200DRHF Yes

2920L200DR No

2920L200/24DRHF Yes

2920L200/24DR No

2920L250DRHF Yes

2920L250DR No

2920L260PRHF Yes

2920L260PR No

2920L300DRHF Yes

2920L300DR No

2920L300/15DRHF Yes

2920L300/15DR No

Halogen

Free

hold

(A)

hold

Code

Voltage

Option

Packaging

Option

Quantity

Quantity &

Packaging Codes

0.30 030 Tape and Reel 1500 DR

0.50 050 Tape and Reel 1500 DR

0.75 075 Tape and Reel 1500 DR

0.75 075 /60 Tape and Reel 1000 MR

1.10 100 Tape and Reel 2000 PR

1.25 125 Tape and Reel 2000 PR

1.50 150 Tape and Reel 1500 DR

1.85 185 Tape and Reel 1500 DR

2.00 200 Tape and Reel 1500 DR

2.00 200 /24 Tape and Reel 1500 DR

2.50 250 Tape and Reel 1500 DR

2.60 260 Tape and Reel 2000 PR

3.00 300 Tape and Reel 1500 DR

3.00 300 /15 Tape and Reel 1500 DR

2920L Series

Speciﬁcations are subject to change without notice. Please refer to www.littelfuse.com/series/2920L.html for current information.

Revised: July 12, 2010

2920L Series

Page 6

POLYFUSE® Resettable PTCs

Surface Mount > 2920L Series

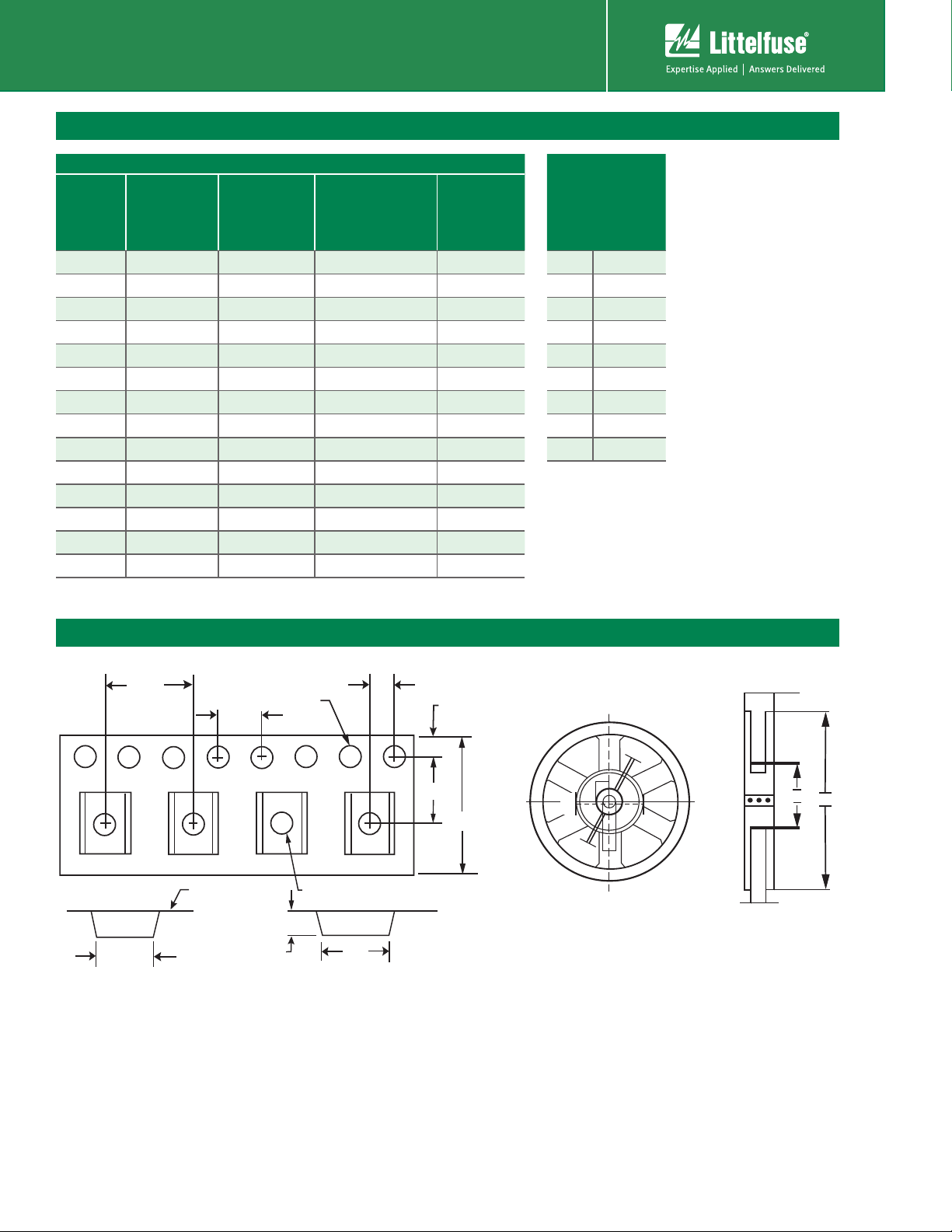

Tape and Reel Speciﬁcations

TAPE SPECIFICATIONS: EIA-481-1 (mm)

2920L030, 2920L050, 2920L075

2920L100, 2920L125,

2920L260

2920L200, 2920L250,

2920L200/24,

2920L300,

2920L075/60

2920L300/15

W 16.0+/- 0.30 16.0+/- 0.30 16.0+/- 0.30 16.0+/- 0.30 H 16.0+/- 0.2

F 7.5+/- 0.05 7.5+/- 0.05 7.5+/- 0.05 7.5+/- 0.10 W 17.0+/- 0.2

2920L150, 2920L185,

1.75+/- 0.10 1.75+/- 0.10 1.75+/- 0.10 1.75+/- 0.10 D Ø 60.2+/−0.5

1.55+/- 0.05 1.55+/- 0.05 1.55+/- 0.05 1.50+/- 0.10 F Ø 13.0+/- 0.5

1.5+/- 0.10 1.5+/- 0.10 1.5+/- 0.10 1.5 (min) C Ø 178+/- 1.0

4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 H

8.0+/- 0.10 8.0+/- 0.10 8.0+/- 0.10 8.0+/- 0.10 W

2.0+/- 0.05 2.0+/- 0.05 2.0+/- 0.05 2.0+/- 0.10 W

5.45+/- 0.10 5.45+/- 0.10 5.45+/- 0.10 5.45+/- 0.10

7.65+/- 0.10 7.65+/- 0.10 7.65+/- 0.10 7.90+/- 0.10

T 0.25+/- 0.10 0.25+/- 0.10 0.25+/- 0.10 0.30+/- 0.05

1.25+/- 0.10 1.00+/- 0.10 1.45+/- 0.10 2.00+/- 0.10

Leader min. 390 390 390 390

Trailer min. 160 160 160 160

REEL DIMENSIONS:

EIA-481-1 (mm)

11+/- 0.5

2.5+0.5

3.0+0.5

4.0+0.5

Tape and Reel Diagram

2920L Series

Revised: July 12, 2010

Please refer to www.littelfuse.com/series/2920L.html for current information.

Speciﬁcations are subject to change without notice.
