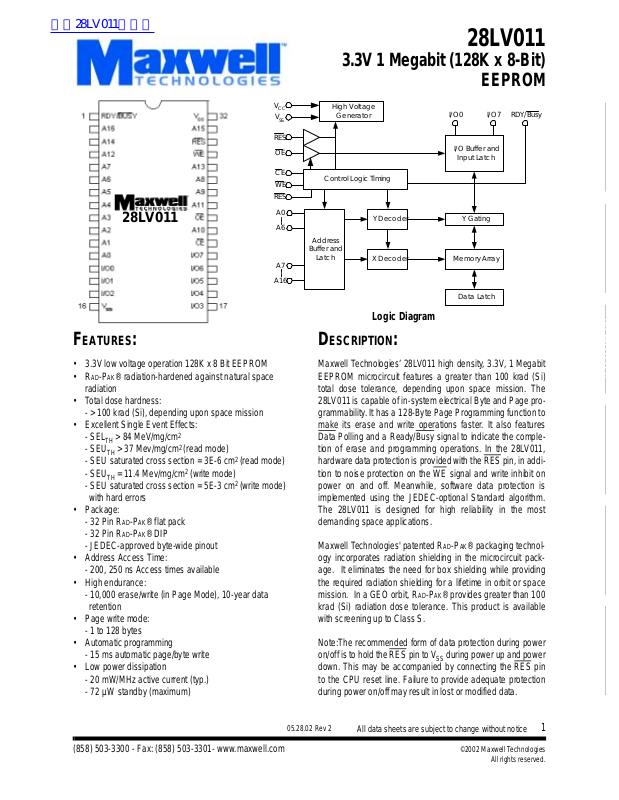

28LV011

3.3V 1 Megabit (128K x 8-Bit) EEPROM

FEATURES:

• 3.3V low voltage operation 128K x 8 Bit EEPROM

•R

AD-PAK® radiation-hardened against natural space

radiation

• Total dose hardness:

- > 100 krad (Si), depending upon space mission

• Excellent Single Event Effects:

- SEL

> 84 MeV/mg/cm

TH

- SEUTH > 37 Mev/mg/cm2 (read mode)

- SEU saturated cross section = 3E-6 cm

- SEU

= 11.4 Mev/mg/cm2 (write mode)

TH

- SEU saturated cross section = 5E-3 cm with hard errors

• Package:

- 32 Pin R

AD-PAK® flat pack AD-PAK® DIP

- JEDEC-approved byte-wide pinout

• Address Access Time:

- 200, 250 ns Access times available

• High endurance:

- 10,000 erase/write (in Page Mode), 10-year data retention

• Page write mode:

- 1 to 128 bytes

• Automatic programming

- 15 ms automatic page/byte write

• Low power dissipation

- 20 mW/MHz active current (typ.)

- 72 µW standby (maximum)

2

(read mode)

2

(write mode)

V

CC

V

SS

RES

OE

CE WE

RES

A0 A6

A7

A16

High Voltage

Generator

Control Logic Timing

Address

Buffer and

Latch

Y Decoder

X Decoder

I/O0 I/O7 RDY/Busy

I/O Buffer and

Input Latch

Y Gating

Memory Array

Data Latch

Logic Diagram

DESCRIPTION:

Maxwell Technologies’ 28LV011 high density, 3.3V, 1 Megabit EEPROM microcircuit features a greater than 100 krad (Si) total dose tolerance, depending upon space mission. The 28LV011 is capable of in-system electrical Byte and Page programmability. It has a 128-Byte Page Programming function to make its erase and write operations faster. It also features Data

Polling and a Ready/Busy signal to indicate the completion of erase and programming operations. In the 28LV011, hardware data protection is provided with the RES tion to noise protection on the WE

signal and write inhibit on power on and off. Meanwhile, software data protection is implemented using the JEDEC-optional Standard algorithm. The 28LV011 is designed for high reliability in the most demanding space applications.

Maxwell Technologies' patented R

AD-PAK® packaging technol-

ogy incorporates radiation shielding in the microcircuit package. It eliminates the need for box shielding while providing the required radiation shielding for a lifetime in orbit or space mission. In a GEO orbit, R

AD-PAK® provides greater than 100

krad (Si) radiation dose tolerance. This product is available with screening up to Class S.

Note:The recommended form of data protection during power on/off is to hold the RES

pin to VSS during power up and power down. This may be accompanied by connecting the RES to the CPU reset line. Failure to provide adequate protection during power on/off may result in lost or modified data.

pin, in addi-

(858) 503-3300 - Fax: (858) 503-3301- www.maxwell.com

05.28.02 Rev 2

All data sheets are subject to change without notice

1

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

TABLE 1. 28LV011A PINOUT DESCRIPTION

PIN SYMBOL DESCRIPTION

28LV011

12-5, 27, 26, 23, 25,

4, 28, 3, 31, 2

13-15, 17-21 I/O0 - I/O7 Input/Output

24 OE 22 CE 29 WE 32 V 16 V

1 RDY/BUSY

30 RES

A0-A16 Address

CC SS

TABLE 2. 28LV011 ABSOLUTE MAXIMUM RATINGS

PARAMETER SYMBOL MIN MAX UNIT

Supply Voltage (Relative to Vss) V Input Voltage (Relative to Vss) V Operating Temperature Range T Storage Temperature Range T

Output Enable Chip Enable Write Enable Power Supply Ground Ready/Busy Reset

CC

IN OPR STG

-0.6 7.0 V

1

-0.5

-55 125 °C

-65 150 °C

7.0 V

1. VIN min = -3.0 V for pulse width < 50 ns.

ICC1 ±10%

2 ±10%

I

CC

3A ±10%

I

CC

I

3B ±10%

CC

TABLE 3. DELTA LIMITS

PARAMETER VARIATION

05.28.02 Rev 2

All data sheets are subject to change without notice

2

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

TABLE 4. 28LV011 RECOMMENDED OPERATING CONDITIONS

PARAMETER SYMBOL MIN MAX UNIT

28LV011

Supply Voltage V Input Voltage

RES

_PIN

Operating Temperature Range T

min = -1.0 V for pulse width < 50 ns.

1. V

IL

2. V

min = 2.2 V for VCC = 3.6 V.

IH

TABLE 5. 28LV011 CAPACITANCE

(TA = 25° C, F = 1MHZ)

P

ARAMETER SYMBOL MIN MAX UNIT

OUT

1

= 0V

1

Input Capacitance: VIN = 0V Output Capacitance: V

1. Guaranteed by design.

TABLE 6. 28LV011 DC ELECTRICAL CHARACTERISTICS

(VCC = 3.3V ± 0.3, TA = -55 TO +125°C UNLESS OTHERWISE SPECIFIED)

CC

V

IL

V

IH

V

H

OPR

C

IN

C

OUT

3.0 3.6 V

1

-0.3

2

2.0

VCC-0.5

0.8 +0.3

V

CC

V

+1

CC

-55 +125 °C

-- 6 pF

-- 12 pF

V

P

ARAMETER TEST CONDITIONS SUBGROUPS SYMBOL MIN MAX UNIT

Input Leakage Current VCC = 3.6V, VIN = 3.6V 1, 2, 3 I Output Leakage Cur-

= 3.6V, V

V

CC

= 3.6V/0.4V 1, 2, 3 I

OUT

rent Standby V

Operating V

Current CE = V

CC

CE = V

Current I

CC

OUT

@ V I

OUT

CC IH

= 0mA, Duty = 100%, Cycle = 1 µs

= 3.3V

CC

= 0mA, Duty = 100%, Cycle = 250 ns @ VCC =

1, 2, 3 I

3.3V

Input Voltage 1, 2, 3 V

Output Voltage I

min = 2.2V for VCC = 3.6V.

1. V

IH

= 2.1 mA

OL

I

= -400 µA

OH

05.28.02 Rev 2

1, 2, 3 V

All data sheets are subject to change without notice

I

V

CC1 CC2

CC3

V

LI

LO

-- 2 µA

--

201µA

mA

6 15mA

--

OL OH

IL IH H

--

2.0

VCC-0.5

--

V

CC

1

x0.8

0.8

--

0.4

--

V

3

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

28LV011

TABLE 7. 28LV011 AC CHARACTERISTICS FOR READ OPERATION

(VCC = 3.3V ± 10%, TA = -55 TO +125 °C UNLESS OTHERWISE SPECIFIED)

P

ARAMETER TEST CONDITIONS SUBGROUPS SYMBOL MIN MAX UNIT

Functional Test Verify Truth Table 7, 8A, 8B All Address Access Time

-200

-250

Chip Enable Access Time

-200

-250

Output Enable Access Time

-200

-250

Output Hold to Address Change

-200

-250

Output Disable to High-Z

2

-200

-250

Output Disable to High-Z

-200

-250 to Output Delay

RES

3

-200

-250

= OE = VIL, WE = V

CE

= VIL, WE = V

OE

= VIL, WE = VIH 9, 10, 11 t

CE

= OE = VIL, WE = V

CE

= VIL, WE = VIH

CE

= OE = VIL, WE = V

= VIL, WE = VIH

CE CE

= OE = VIL, WE = V

= OE = VIL WE = V

CE

IH

9, 10, 11 t

ACC

DFR

CE

OE

OH

DF

RR

1

ns

--

200 250

ns

--

200 250

ns 0 0

110 120

ns 0 0

--

-ns

0 0

50 50

ns

0 0

300 350

ns

0 0

525 550

1. Test conditions: Input pulse levels - 0.4V to 2.4V; input rise and fall times < 20 ns; output load - 1 TTL gate + 100 pF (including scope and jig); reference levels for measuring timing - 0.8V/1.8V.

2. t

DF

and t

is defined as the time at which the output becomes an open circuit and data is no longer driven.

DFR

3. Guaranteed by design.

05.28.02 Rev 2

All data sheets are subject to change without notice

4

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

TABLE 8. 28LV011 AC ELECTRICAL CHARACTERISTICS FOR ERASE AND WRITE OPERATIONS

(VCC = 3.3V ± 10%, TA = -55 TO +125 °C UNLESS OTHERWISE SPECIFIED)

P

ARAMETER SUBGROUPS SYMBOL MIN MAX UNIT

28LV011

Address Setup Time

-200

-250

Chip Enable to Write Setup Time (WE

-200

-250

Write Pulse Width (CE

-200

-250

Write Pulse Width (WE

-200

-250

Address Hold Time

-200

-250

Data Setup Time

-200

-250

Data Hold Time

-200

-250

Chip Enable Hold Time (WE

-200

-250

Write Enable to Write Setup Time (CE

-200

-250

controlled)

9, 10, 11 t

AS

CS

CW

WP

AH

DS

DH

CH

WS

0 0

200 250

125 150

100 100

10 10

0 0

ns

--

-ns

--

-ns

--

-ns

--

-ns

--

-ns

--

-ns

--

-ns

--

-ns

--

Write Enable Hold Time (CE

-200

-250

Output Enable to Write Setup Tim

-200

-250

Output Enable Hold Time

-200

-250

Write Cycle Time

-200

-250

1,2

controlled)

9, 10, 11 t

05.28.02 Rev 2

WH

OES

OEH

WC

All data sheets are subject to change without notice

0 0

--

15 15

ms

ns

5

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

TABLE 8. 28LV011 AC ELECTRICAL CHARACTERISTICS FOR ERASE AND WRITE OPERATIONS

(VCC = 3.3V ± 10%, TA = -55 TO +125 °C UNLESS OTHERWISE SPECIFIED)

P

ARAMETER SUBGROUPS SYMBOL MIN MAX UNIT

28LV011

Byte Load Cycle

-200

-250

Data Latch Time

2

-200

-250

Byte Load Window

-200

-250

Time to Device Busy

-200

-250

Write Start Time

-200

-250

RES

to Write Setup Time

-200

-250 to RES Setup Time

V

CC

-200

-250

9, 10, 11 t

2

9, 10, 11 t

2

9, 10, 11 t

BLC

DL

BL

DB

DW

RP

RES

1 1

700 750

100 100

100 120

250 250

100 100

1 1

30 30

--

µs

ns

µs

ns

µs

must be longer than this value unless polling techniques or RDY/BSY are used. This device automatically completes the

1. t

WC

internal write operation within this value.

2. Guaranteed by design.

TABLE 9. 28LV011 MODE SELECTION

1,2

MODE CE OE WE RES RDY/BUSY I/O Read V

Standby V Write V Deselect V

IL IH IL IL

Write Inhibit X X V

XV

Data Polling V

IL

Program X X X V

V

IL

V

IH

V

H

High-Z D

X X X High-Z High-Z

V

IH

V

IH

IL

V

IL

V

IL

V

IH IH

V

H

V

H

High-Z --> V

OL

High-Z High-Z

X-- --

X X -- --

V

IH

V

H IL

V

OL

Data Out (I/O7)

High-Z High-Z

1. X = Don’t care.

2. Refer to the recommended DC operating conditions.

D

OUT

IN

05.28.02 Rev 2

All data sheets are subject to change without notice

6

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

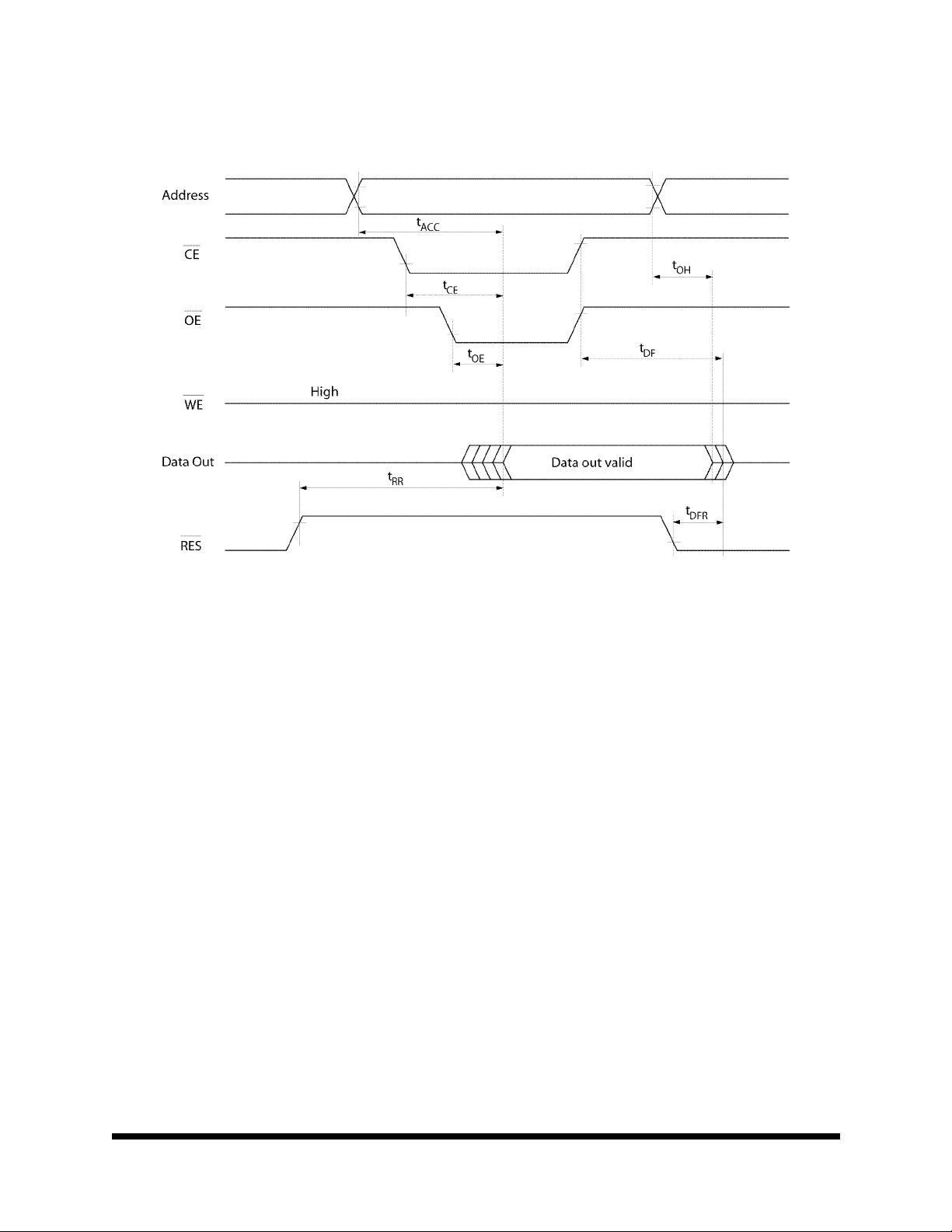

FIGURE 1. READ TIMING WAVEFORM

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

7

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

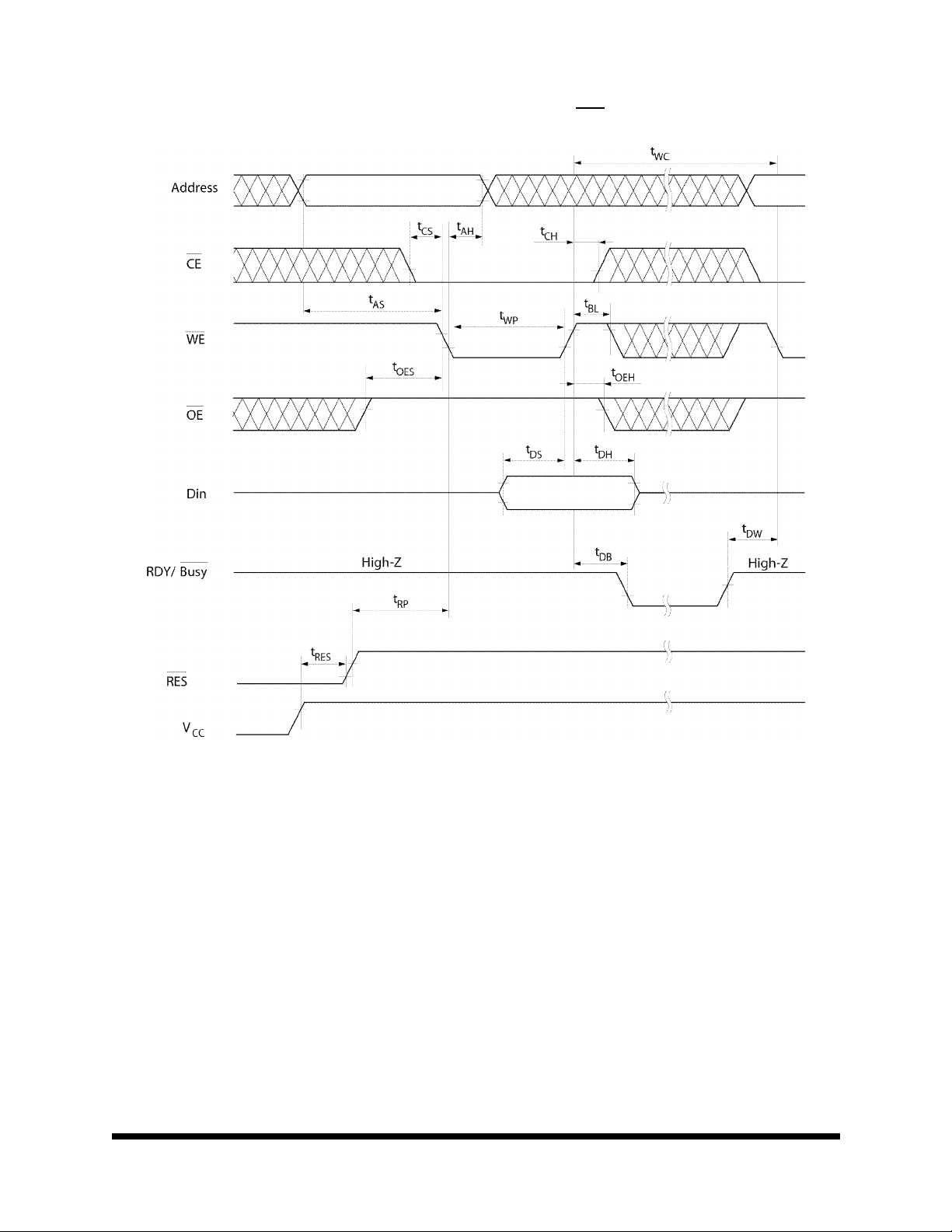

FIGURE 2. BYTE WRITE TIMING WAVEFORM(1) (WE CONTROLLED)

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

8

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

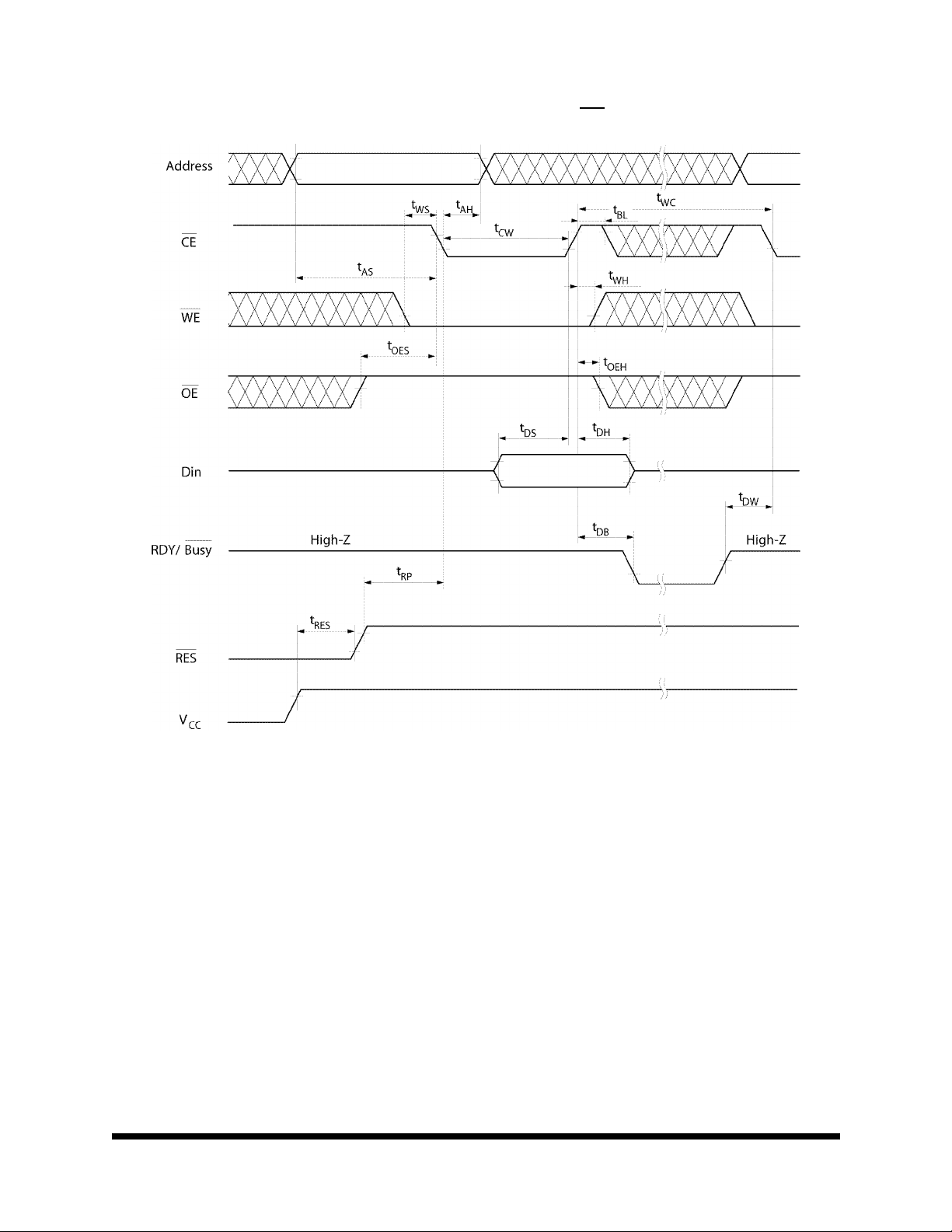

FIGURE 3. BYTE WRITE TIMING WAVEFORM (2) (CE CONTROLLED)

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

9

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

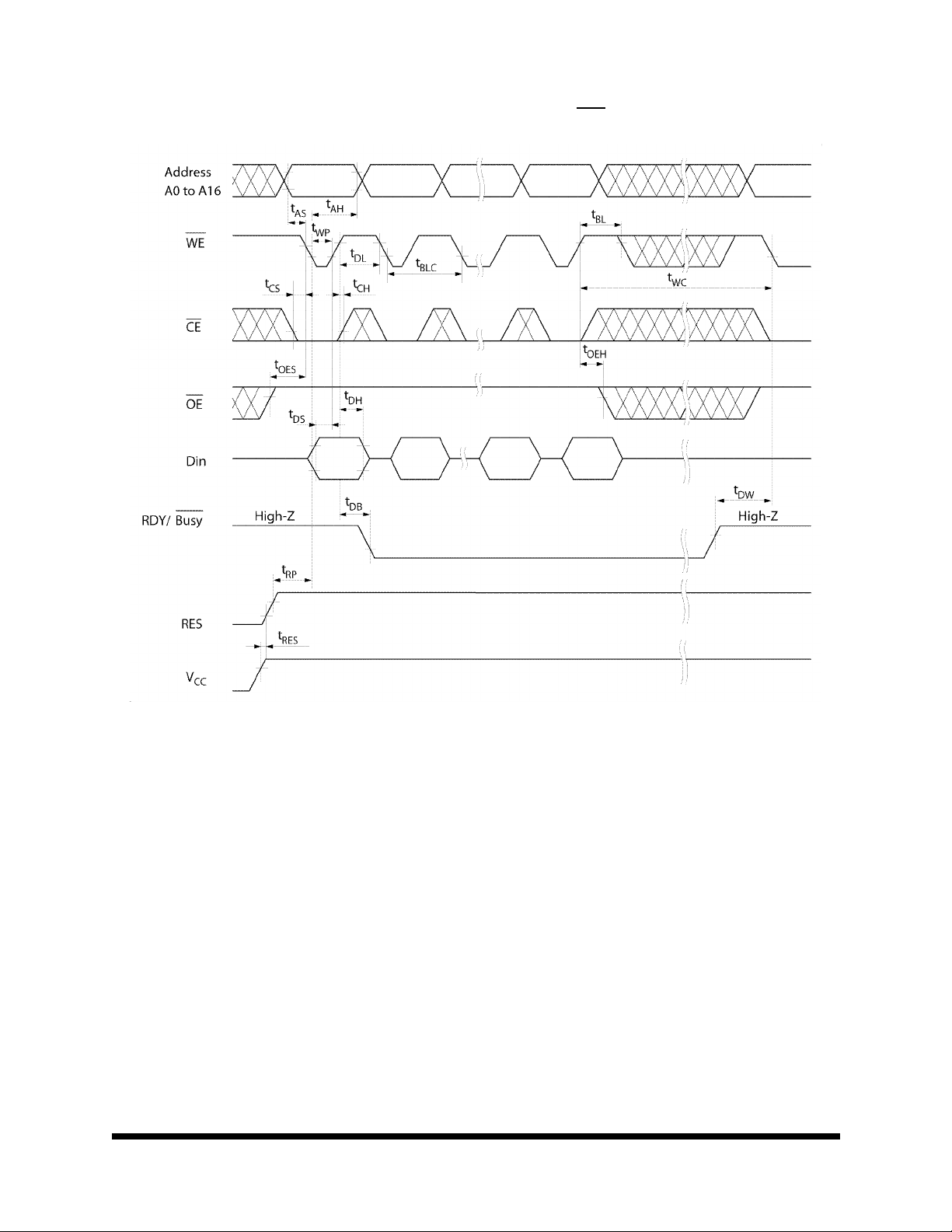

FIGURE 4. PAGE WRITE TIMING WAVEFORM(1) (WE CONTROLLED)

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

10

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

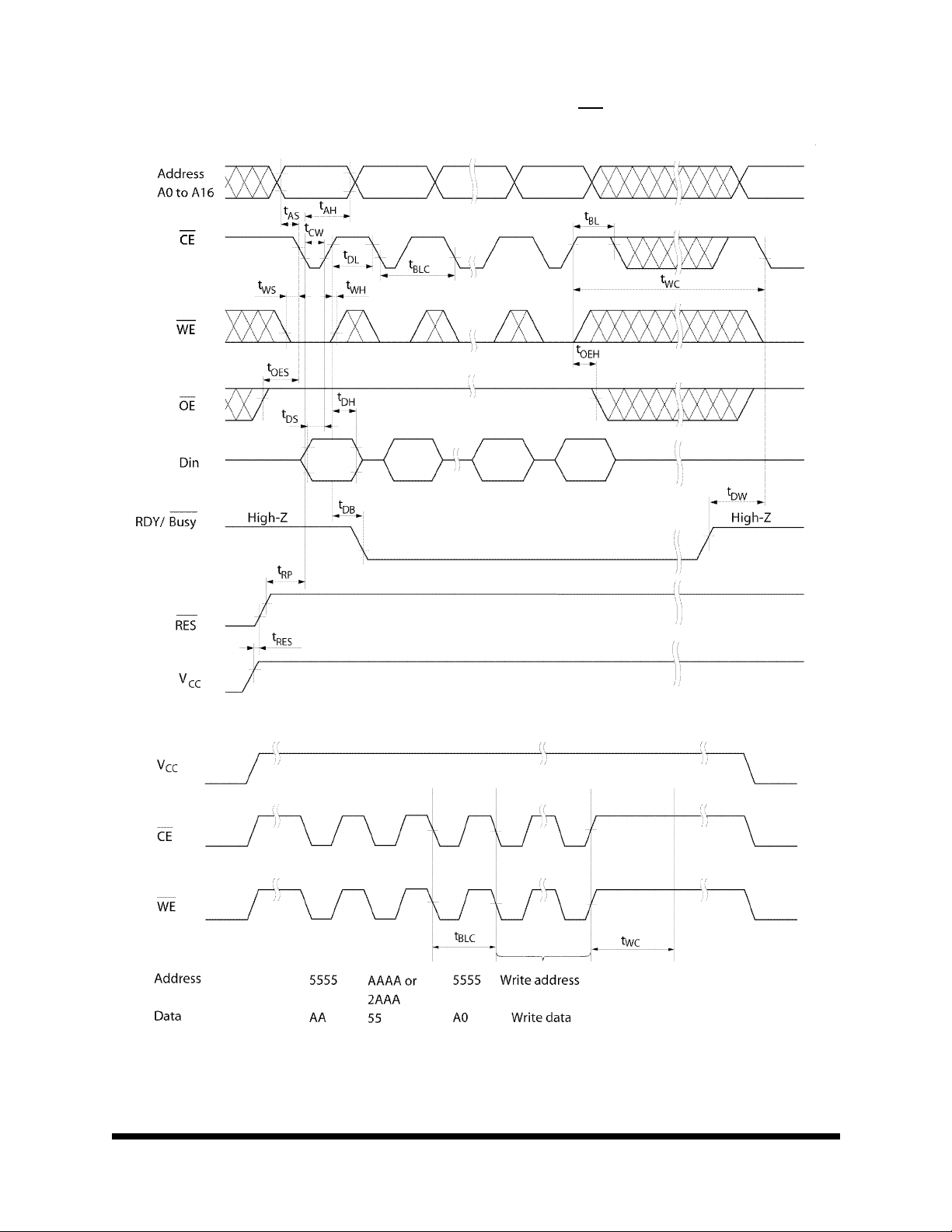

FIGURE 5. PAGE WRITE TIMING W AVEFORM(2) (CE CONTROLLED)

28LV011

IGURE 6. SOFTWARE DATA PROTECTION TIMING WAVEFORM(1) (IN PROTECTION MODE)

F

05.28.02 Rev 2

All data sheets are subject to change without notice

11

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

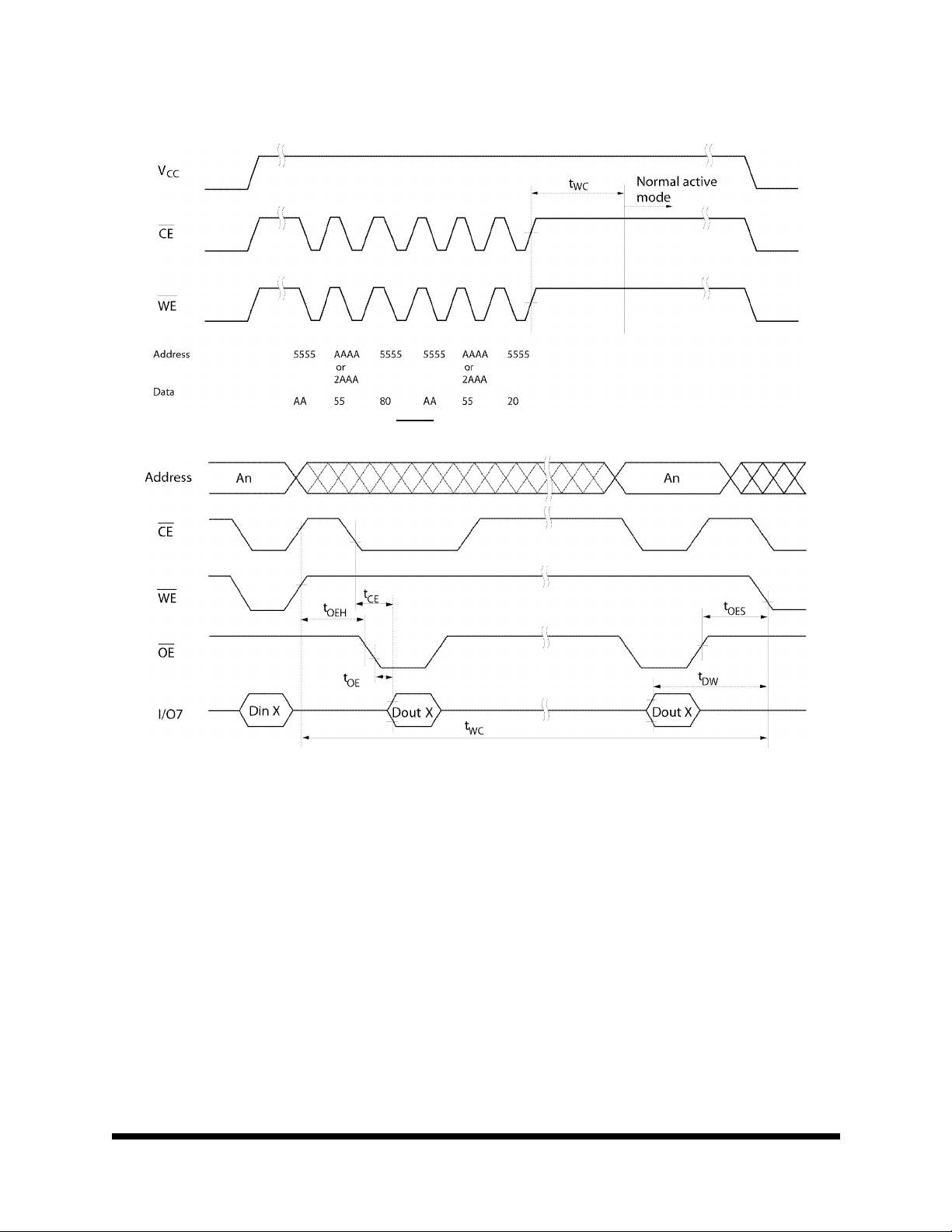

FIGURE 7. SOFTWARE DATA PROTECTION TIMING WAVEFORM(2) ( IN NON-PROTECTION MODE)

IGURE 8. DATA POLLING TIMING WAVEFORM

F

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

12

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

FIGURE 9. TOGGLE BIT WAVEFORM

FIGURE 10. SEU SATURATED CROSS SECTION VALUES IN READ MODE

28LV011

1.00E-02

1.00E-03

1.00E-04

1.00E-05

Cross-section [cm^2]

1.00E-06

1.00E-07

28LV010 Read Mode Cross-section

lv1

lv2

lv5

lv6

0 102030405060708090

LET [Mev-cm^2/mg]

05.28.02 Rev 2

All data sheets are subject to change without notice

13

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

FIGURE 11. SEU SATURATED CROSS SECTION VALUES IN WRITE MODE

28LV010 WRITE MODE AVERAGE CROS S-SECTION

1.00E-01

1.00E-02

1.00E-03

28LV011

1.00E-04

CROSS-SECTION [cm^2]

1.00E-05

1.00E-06 0 102030405060708090

LET [MeV-cm^2/mg]

SL1 SL2 SL3 N4 N5

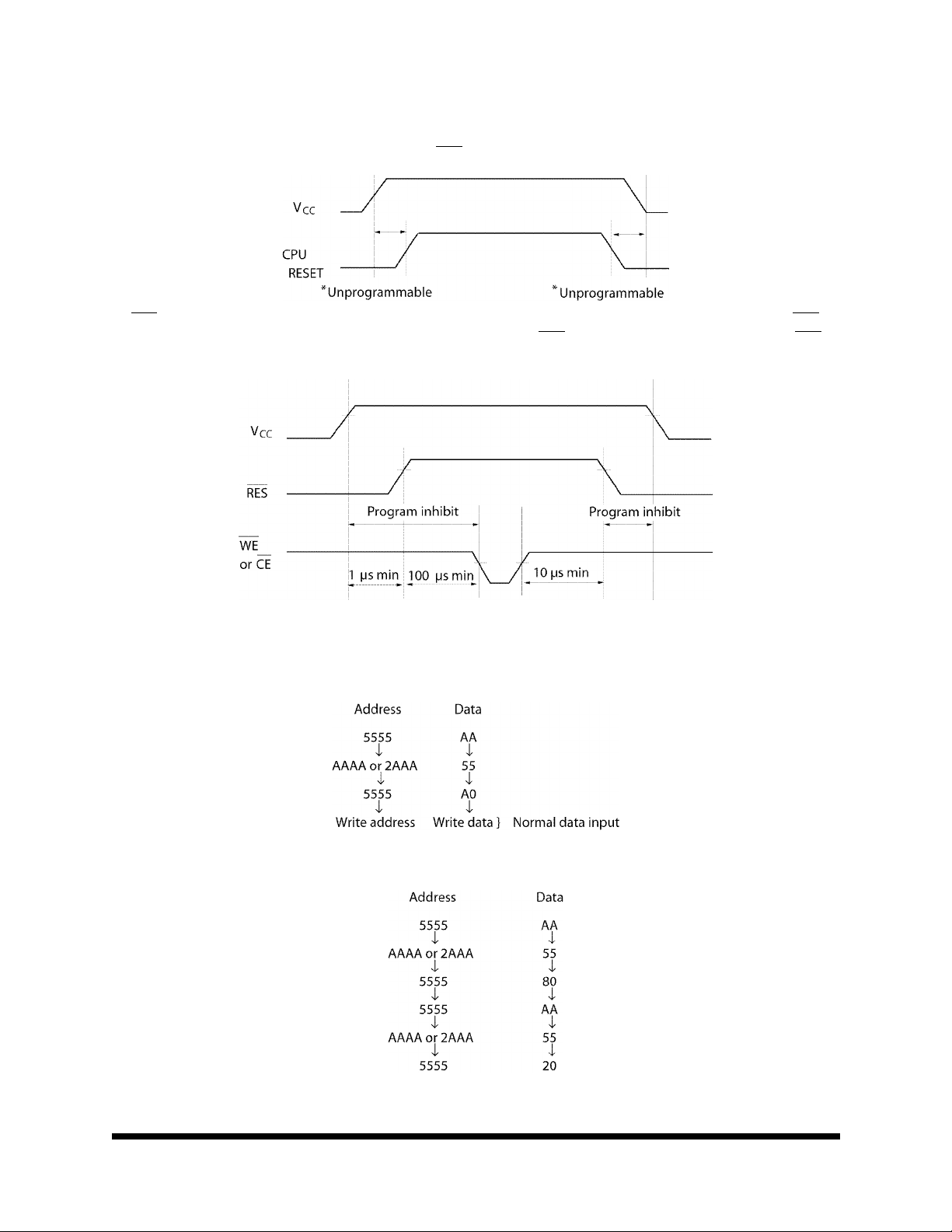

EEPROM APPLICATION NOTES

This application note describes the programming procedures for the EEPROM modules and with details of various techniques to preserve data protection.

Automatic Page Write

Page-mode write feature allows 1 to 128 bytes of data to be written into the EEPROM in a single write cycle, and allows the undefined data within 128 bytes to be written corresponding to the undefined address (A0 to A6). Loading the first byte of data, the data load window opens 30 µs for the second byte. In the same manner each additional by te of data can be loaded withi n 30 µs. In case CE and write mode automatically and only the input data are written into the EEPROM.

and WE are kept high for 10 0s after data input, EEPROM enters eras e

WE CE Pin Operation

During a write cycle, addresses are latched by the falling edge of WE or CE, and data is latched by the rising edge of WE

or CE.

Data Polling

Data Polling function allows the status of the EEPROM to be determined. If EEPROM is set to read mode during a write cycle, an inversion of the last byte of data to be loaded outputs from I/O 7 to indicate that the EEPROM is performing a write operation.

05.28.02 Rev 2

All data sheets are subject to change without notice

14

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

28LV011

RDY/Busy Signal

RDY/Busy signal also allows a comparison operation to determine the status of the EEPROM. The RDY/Busy signal has high impedance except in write cycle and is lowered to V the RDY/Busy

signal changes state to high impedance.

after the first write signal. At the-end of a write cycle,

OL

RES Signal

When RES is LOW, the EEPROM cannot be read and programmed. Therefore, data can be protected by keeping RES

low when VCC is switched. RES should be high during read and programming because it doesn’t provide a latch

function.

Data Protection

To protect the data during operation and power on/off, the EEPROM has the internal functions described below.

1. Data Protection against Noise of Control Pins (CE, OE, WE) during Operation. During readout or standby, noise on the control pins may act as a trigger and turn the EEPROM to programming mode by mis-

take. To prevent this phenomenon, the EEPROM has a noise cancellation function that cuts noise if its width is 20 ns or less in programming mode. Be careful not to allow noise of a width of more than 20 ns on the control pins.

2. Data Protection at V

CC

on/off

05.28.02 Rev 2

All data sheets are subject to change without notice

15

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

When VCC is turned on or off, noise on the control pins generated by external circuits, such as CPUs, may turn the EEPROM to programming mode by mistake. To prevent this unintentional programming, the EEPROM must be kept in unprogrammable state during V

RES

should be kept at VSS level when VCC is turned on or off. The EEPROM breaks off programming operation when RES become low, programming operation doesn’t finish correctly in case that RES should be kept high for 10 ms after the last data input.

on/off by using a CPU reset signal to RES pin.

CC

falls low during programming operation. RES

28LV011

3. Software Data Protection The software data protection function is to prevent unintentional programming caused by noise generated by external circuits.

In software data protection mode, 3 bytes of data must be input before write data as follows. These bytes can switch the nonprotection mode to the protection mode.

Software data protection mode can be canceled by inputting the following 6 bytes. Then, the E EPROM turns to the non-pr otection mode and can write data normally. However, when the data is input in the canceling cycle, the data cannot be written.

05.28.02 Rev 2

All data sheets are subject to change without notice

16

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

28LV011

32-PIN RAD-PAK® FLAT PACKAGE

SYMBOL DIMENSION

MIN NOM MAX

A 0.117 0.130 0.143 b 0.015 0.017 0.022

c 0.003 0.005 0.009 D -- 0.820 0.830 E 0.404 0.410 0.416

E1 -- -- 0.440 E2 0.234 0.240 -E3 0.030 0.085 --

e 0.050BSC L 0.350 0.370 0.390 Q 0.020 0.035 0.045

S1 0.005 0.027 --

N32

F32-01

Note: All dimensions in inches

05.28.02 Rev 2

All data sheets are subject to change without notice

17

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

Important Notice: These data sheets are created using the chip manufacturers published specifications. Maxwell Technologies verifies

functionality by testing key parameters either by 100% testing, sample testing or characterization. The specifications presented within these data sheets represent the latest and most accurate information available to

date. However, these specifications are subject to change without notice and Maxwell Technologies assumes no responsibility for the use of this information.

Maxwell Technologies’ products are not authorized for use as critical components in life support devices or systems without express written approval from Maxwell Technologies.

Any claim against Maxwell Technologies must be made within 90 days from the date of shipment from Maxwell Technologies. Maxwell Technologies’ liability shall be limited to replacement of defective parts.

28LV011

05.28.02 Rev 2

All data sheets are subject to change without notice

18

M

e

m

ory

3.3V 1 Megabit (128K x 8-Bit) EEPROM

C)

Product Ordering Options

Model Number

28LV011

XX

X X

-XX

Feature

Access Time

Screening Flow

Package

Option Details

20 = 200 ns 25 = 250 ns

Monolithic S = Maxwell Class S B = Maxwell Class B I = Industrial (testing @ -55° C, +25°C, +125°C) E = Engineering (testing @ +25°

F = Flat Pa ck

Radiation Feature

Base Product Nomenclature

05.28.02 Rev 2

AD-PAK® package

RP = R

1

RT1

= Guaranteed to 10 krad at

die level

1

RT2

= Guaranteed to 25 krad at

die level

1

RT4

= Guaranteed to 40 krad at

die level

1. No Radiation Guarantee for Class E & I

3.3V 1 Megabit (128K x 8-Bit) EEPROM

All data sheets are subject to change without notice

19

Datasheet 28LV011 Datasheet (Maxwell)

Specifications and Main Features

Frequently Asked Questions

User Manual
