Service Manual Princess/Nova 1(3)
Datum - Date
11/11/2008
Rev
R1d
Article 282988 Silver Ice Cube Maker
This product is in the category :
SWOP, no parts available.
SWOP, parts only available at PWW Hong Kong
SWOP, only commercial parts available.
Repair, limited number of parts available

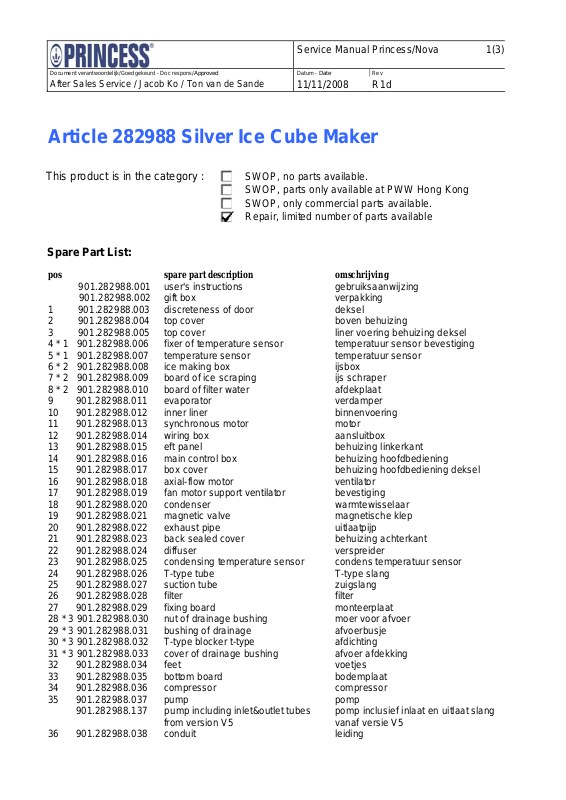

Spare Part List:
pos spare part description omschrijving
901.282988.001 user's instructions gebruiksaanwijzing
901.282988.002 gift box verpakking
1 901.282988.003 discreteness of door deksel
2 901.282988.004 top cover boven behuizing
3 901.282988.005 top cover liner voering behuizing deksel
4 * 1 901.282988.006 fixer of temperature sensor temperatuur sensor bevestiging
5 * 1 901.282988.007 temperature sensor temperatuur sensor
6 * 2 901.282988.008 ice making box ijsbox
7 * 2 901.282988.009 board of ice scraping ijs schraper
8 * 2 901.282988.010 board of filter water afdekplaat
9 901.282988.011 evaporator verdamper
10 901.282988.012 inner liner binnenvoering
11 901.282988.013 synchronous motor motor
12 901.282988.014 wiring box aansluitbox
13 901.282988.015 eft panel behuizing linkerkant
14 901.282988.016 main control box behuizing hoofdbediening
15 901.282988.017 box cover behuizing hoofdbedie ning deksel
16 901.282988.018 axial-flow motor ventilator
17 901.282988.019 fan motor support ventilator bevestiging
18 901.282988.020 condenser warmtewisselaar
19 901.282988.021 magnetic valve magnetische klep
20 901.282988.022 exhaust pipe uitlaatpijp
21 901.282988.023 back sealed cover behuizing achterkant
22 901.282988.024 diffuser verspreider
23 901.282988.025 condensing temperature sensor condens temperatuur sensor
24 901.282988.026 T-type tube T-type slang
25 901.282988.027 suction tube zuigslang
26 901.282988.028 filter filter
27 901.282988.029 fixing board monteerplaat
28 * 3 901.282988.030 nut of drainage bushing moer voor afvoer
29 * 3 901.282988.031 bushing of drainage afvoerbusje
30 * 3 901.282988.032 T-type blocker t-type afdichting
31 * 3 901.282988.033 cover of drainage bushing afvoer afdekking
32 901.282988.034 feet voetjes
33 901.282988.035 bottom board bodemplaat
34 901.282988.036 compressor compressor
35 901.282988.037 pump pomp
901.282988.137 pump including inlet&outlet tubes pomp inclusief inlaat en uitlaat slang
from version V5 vanaf versie V5
36 901.282988.038 conduit leiding
Page 2
Service Manual Princess/Nova 2(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
37 901.282988.039 connector connector
38 * 4 901.282988.040 filter screen filter
39 * 4 901.282988.041 end of water drain waterleiding eindstuk
40 * 4 901.282988.042 sealing washer pakking
41 * 4 901.282988.043 nut of drainage bushing moer voor afvoer
42 901.282988.044 fixer of water inlet pipe bevestiging watertoevoerpijp
43 901.282988.045 sensor of water level sensor water niveau
44 901.282988.046 fixer of wiring bevestiging bedrading
45 901.282988.047 water inlet pipe watertoevoer
46 * 5 901.282988.048 board of spacing switch schakelaar bevestigingsplaat
47 * 5 901.282988.049 spacing switch schakelaar
48 * 5 901.282988.050 axis of water box as van water reservoir
49 901.282988.051 right panel behuizing rechterkant
50 901.282988.052 operation board bedienings print
51 901.282988.053 front board behuizing voorkant
52 901.282988.054 fixing board monteerplaat
53 901.282988.055 sticker of operation board bedienings sticker
54 901.282988.056 basket of ice storing ijs mandje
55 901.282988.057 ice scoop ijs schep
56 901.282988.058 main control board hoofd PCB
57 901.282988.064 check use T-type tube, as from V1 controle T stuk
58 901.282988.065 stainless steel T-type tube, as from V1 rvs T stuk
59 901.282988.066 silica gel straight tube, as from V1 rechte kunststof buis
901.282988.067 outside drain tube, as from V1 afvoerslang
* 1 901.282988.059 temperature sensor assembled temperatuur sensor geassembleerd
* 2 901.282988.060 ice making box assembled ijsbox geassembleerd
* 3 901.282988.061 drainage assembled afvoer geassembleerd
* 4 901.282988.062 filter assembled filter geassembleerd
* 5 901.282988.063 switch assembled schakelaar geassembleerd
******************************************************************************************************************
Parts of new connection structure, as from V3 (fig. A-A)
37 901.282988.039 (it will be not used on the appliance from V3)
57 901.282988.164 check use T-type tube, as from V3(not interchangeable) controle T stuk
58 901.282988.165 stainless steel T-type tube, as from V3(not interchangeable) rvs T stuk
59 901.282988.066 silica gel straight tube, as from V3(interchangeable) rechte kunststof buis
*******************************************************************************************************************
Datum - Date
11/11/2008
Rev
R1d
Page 3
Service Manual Princess/Nova 3(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Datum - Date
11/11/2008
Article 282988 Silver Ice Cube Maker
Rev
R1d

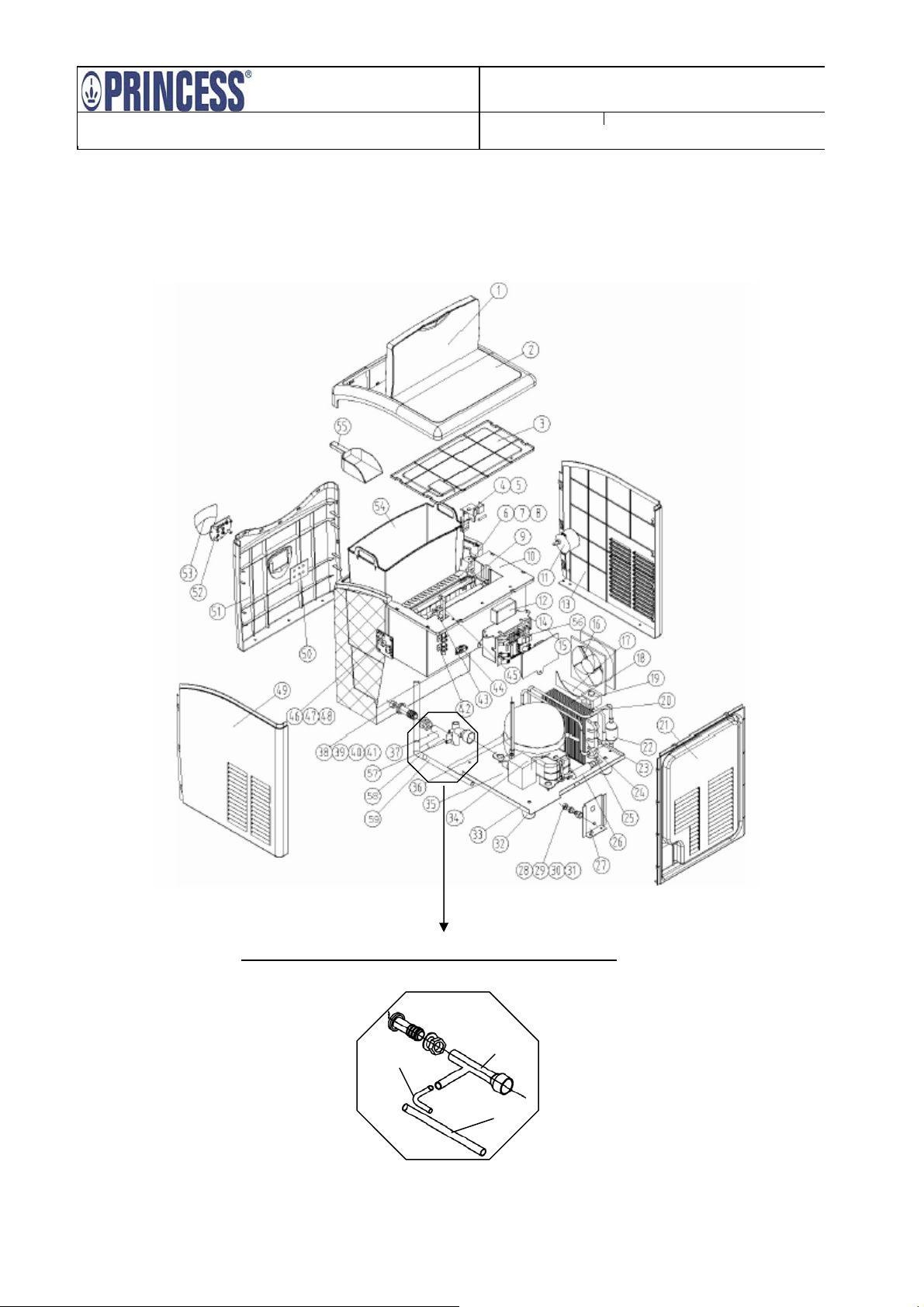

New structure of the connection from V3. Fig. A-A
57
58
○
○
59
○
