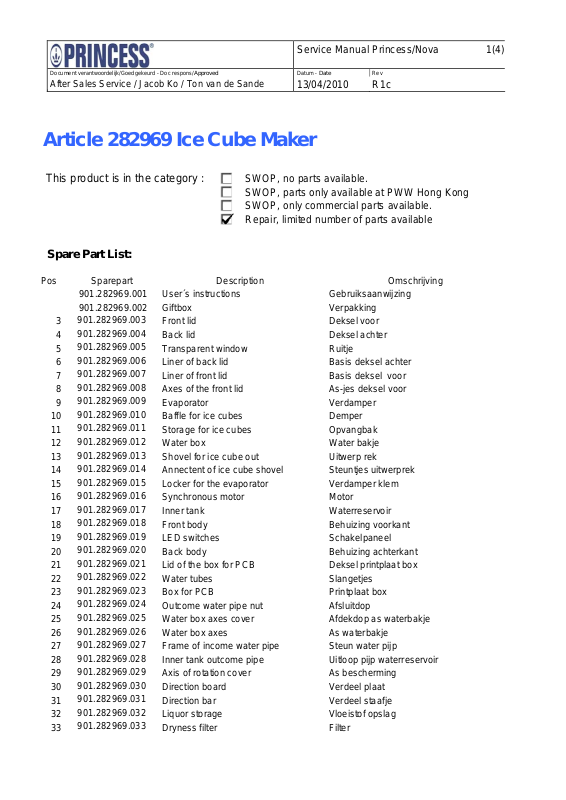

Service Manual Princess/Nova 1(4)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Datum - Date
13/04/2010
Rev
R1c
Article 282969 Ice Cube Maker
This product is in the category :
SWOP, no parts available.
SWOP, parts only available at PWW Hong Kong
SWOP, only commercial parts available.
Repair, limited number of parts available
Spare Part List:
Pos Sparepart Description Omschrijving
901.282969.001 User´s instructions Gebruiksaanwijzing
901.282969.002 Giftbox Verpakking
901.282969.003
3
901.282969.004
4
901.282969.005
5
901.282969.006
6
901.282969.007
7
901.282969.008
8
901.282969.009
9
901.282969.010
10
901.282969.011
11
901.282969.012
12
901.282969.013
13
901.282969.014
14
901.282969.015
15
901.282969.016
16
901.282969.017
17
901.282969.018
18
901.282969.019
19
901.282969.020
20
901.282969.021
21
901.282969.022
22
901.282969.023
23
901.282969.024
24
901.282969.025
25
901.282969.026
26
901.282969.027
27
901.282969.028
28
901.282969.029
29
901.282969.030
30
901.282969.031
31
901.282969.032
32
901.282969.033
33
Front lid Deksel voor
Back lid Deksel achter
Transparent window Ruitje
Liner of back lid Basis deksel achter
Liner of front lid Basis deksel voor
Axes of the front lid As-jes deksel voor
Evaporator Verdamper
Baffle for ice cubes Demper
Storage for ice cubes Opvangbak
Water box Water bakje
Shovel for ice cube out Uitwerp rek
Annectent of ice cube shovel Steuntjes uitwerprek
Locker for the evaporator Verdamper klem
Synchronous motor Motor
Inner tank Waterreservoir
Front body Behuizing voorkant
LED switches Schakelpaneel
Back body Behuizing achterkant
Lid of the box for PCB Deksel printplaat box
Water tubes Slangetjes
Box for PCB Printplaat box
Outcome water pipe nut Afsluitdop
Water box axes cover Afdekdop as waterbakje
Water box axes As waterbakje
Frame of income water pipe Steun water pijp
Inner tank outcome pipe Uitloop pijp waterreservoir
Axis of rotation cover As bescherming
Direction board Verdeel plaat
Direction bar Verdeel staafje
Liquor storage Vloeistof opslag
Dryness filter Filter
Page 2
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
901.282969.034
34
901.282969.035
35
901.282969.036
36
901.282969.037
37
901.282969.038
38
901.282969.039
39
901.282969.040
40
901.282969.041
41
901.282969.042
42
901.282969.043
43
901.282969.044
44
901.282969.045
45
901.282969.046
46
901.282969.047
47
901.282969.048
48
901.282969.049
49
901.282969.050
50
901.282969.051
51
901.282969.052
52
901.282969.053
53
901.282969.054
54
901.282969.055
55
Jiggle switch Schakelaar
Electromagnetism valve Magneet klep
Condensator Warmtewisselaar
Fan Ventilator
Steel wire cover Ventilator afscherm rekje
PU foam injected liner Binnen behuizing
Pump Pomp
Frame for pump Pompsteun
Compressor Compressor
Bottom board Bodem plaat
Feet Pootjes
Spoon Schep
Clamp Schanierklem
Outlet cap + silicone rubber Afsluitdopje waterreservoir
Main PCB Printplaat besturing
PCB board for LCD switches Printplaat LCD en schakelaars
Water inlet of pump Water inlaat pump
Water outlet of pump Water uitlaat pump
‘T’ shape copper tube T stuk koper
Ice full sensor including wires IJsklontjes “vol” sensor incl bedrading
‘L’ shape plate for water outlet tube Steun voor uitlaat water slang
Ice making tray sleeve IJsklontjes tray bus
Service Manual Princess/Nova 2(4)
Datum - Date
13/04/2010
Rev
R1c
Page 3
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Article 282969 Ice Cube Maker

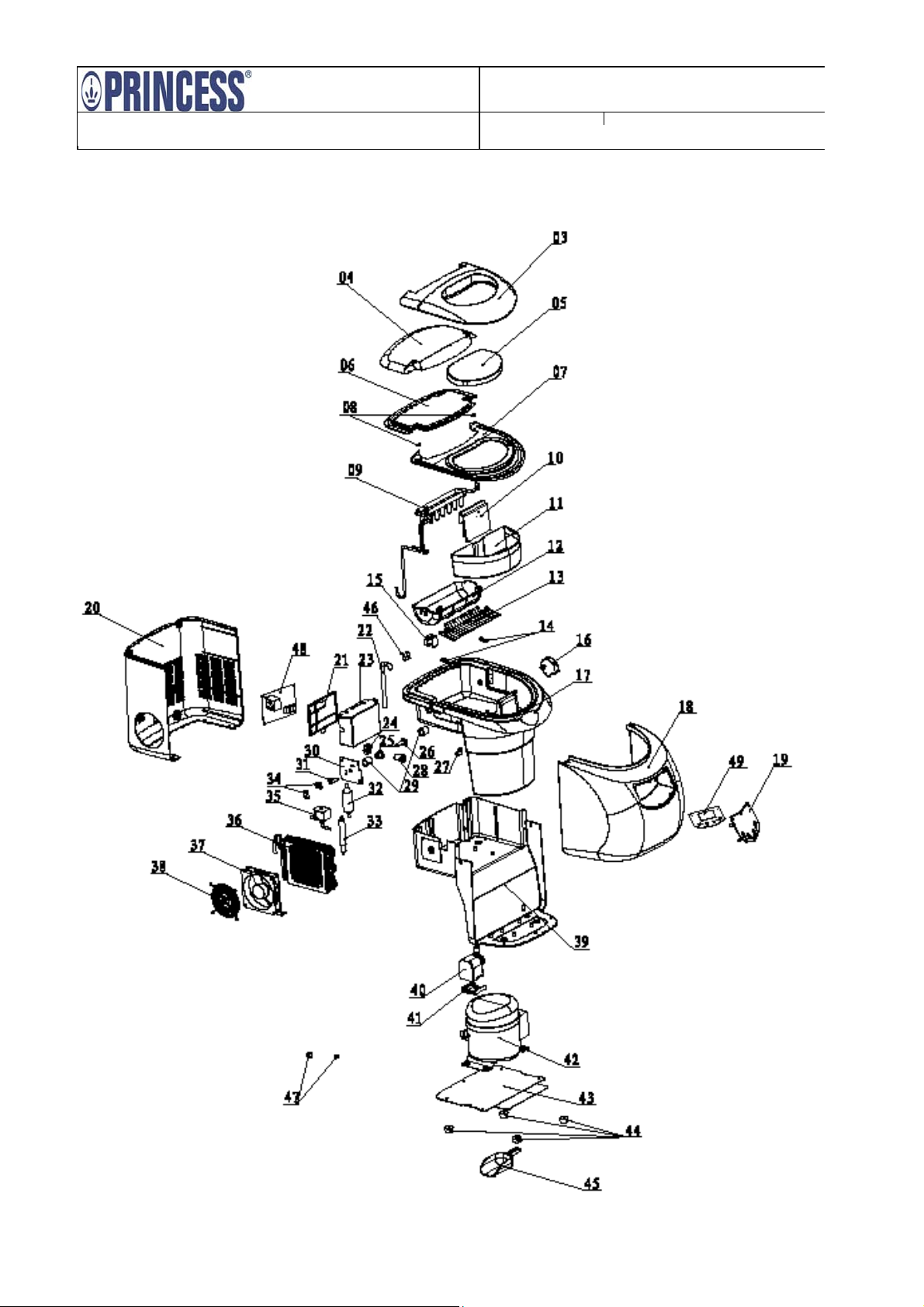

Exploded view:
Service Manual Princess/Nova 3(4)
Datum - Date
13/04/2010
Rev
R1c
Page 4
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande

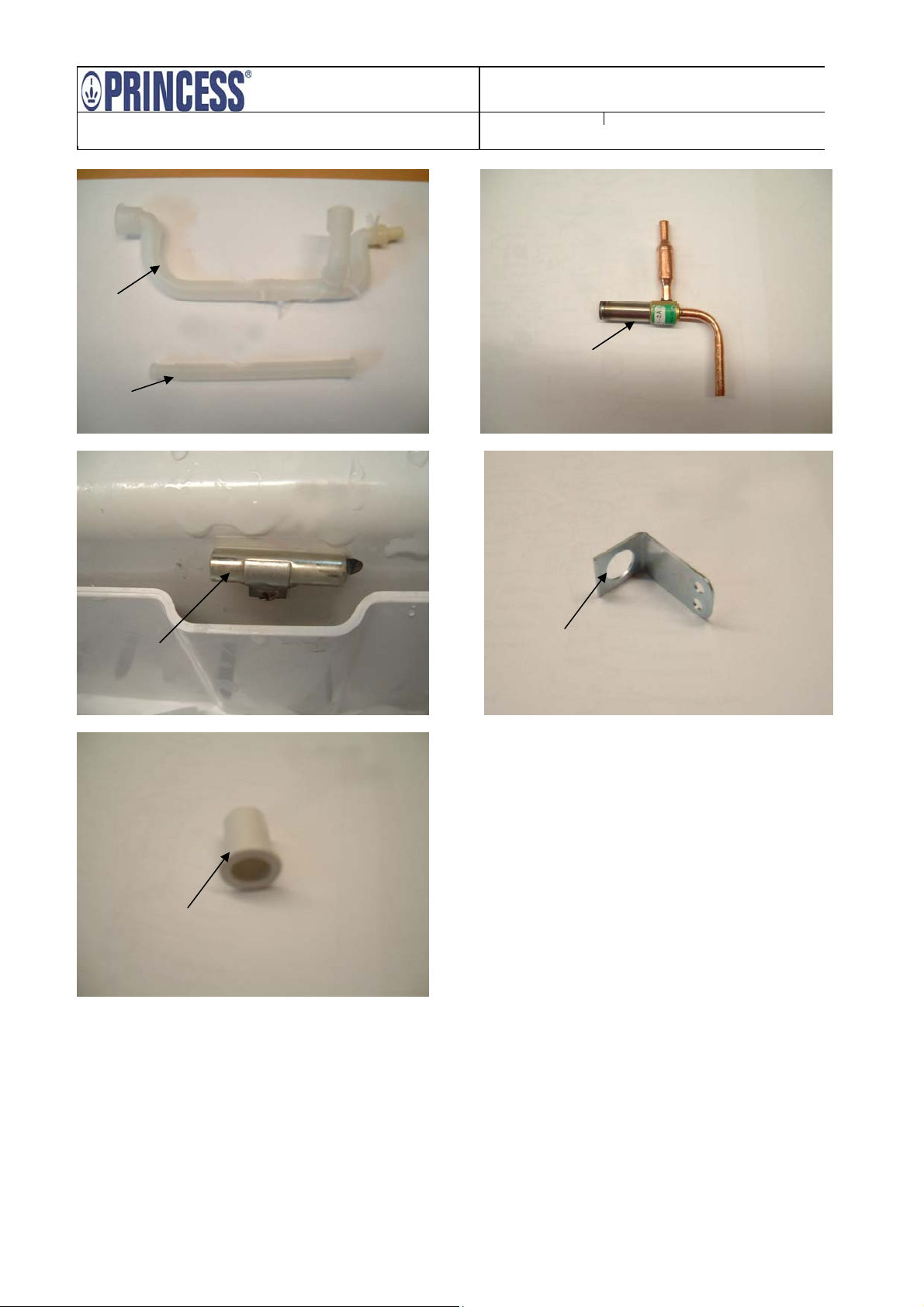

50
51
Service Manual Princess/Nova 4(4)
Datum - Date
13/04/2010
Rev
R1c
52
54
53
55
