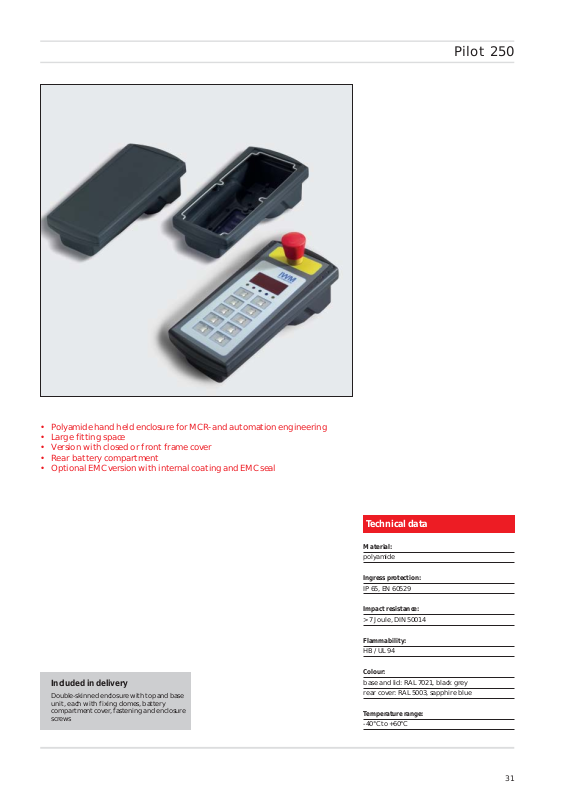

Page 1

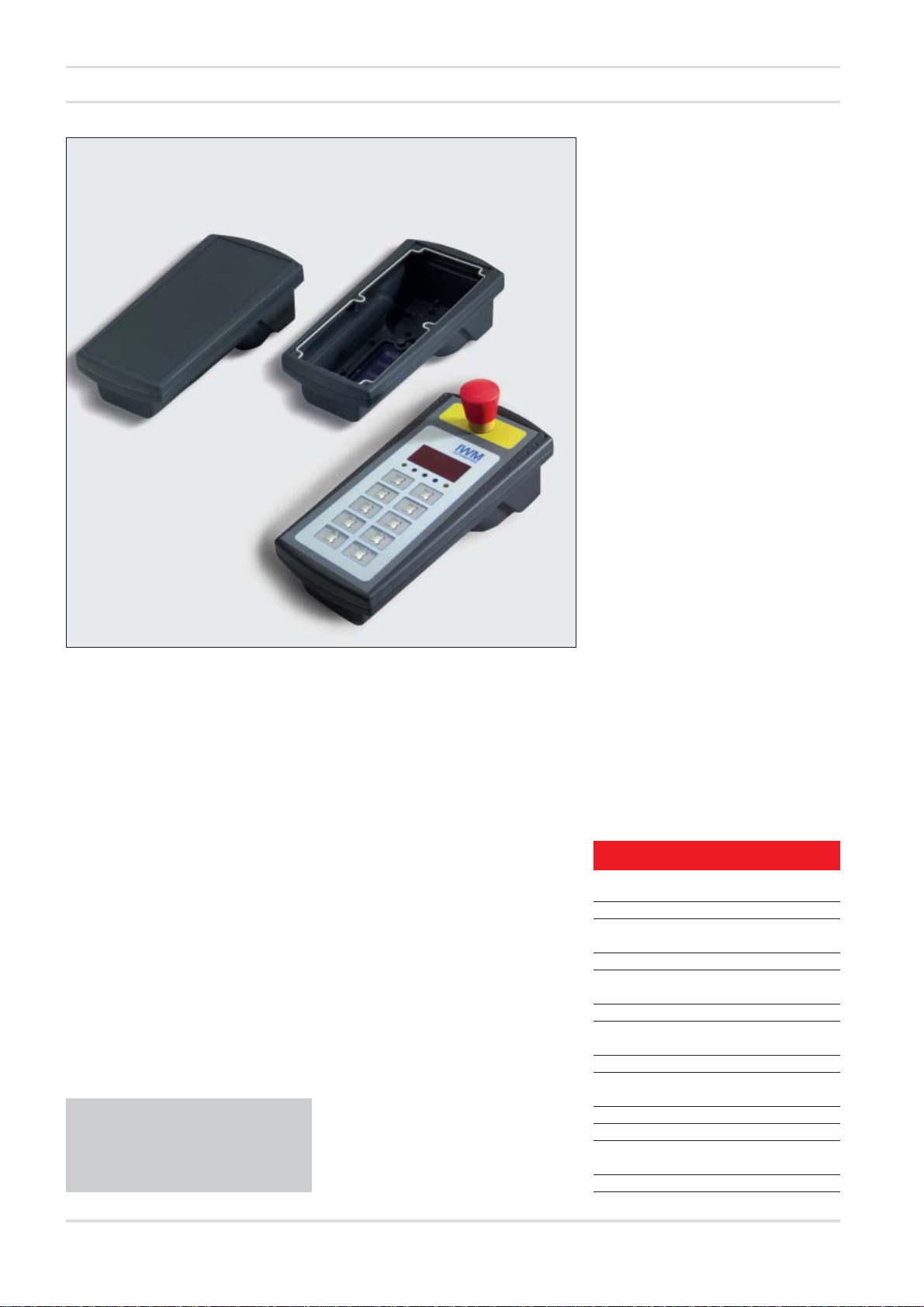

Pilot 250
• Polyamide hand held enclosure for MCR- and automation engineering
• Large fitting space
• Version with closed or front frame cover
• Rear battery compartment
• Optional EMC version with internal coating and EMC seal
Included in delivery
Double-skinned enclosure with top and base
unit, each with fixing domes, battery
compartment cover, fastening and enclosure
screws
T echnical data
Material:
polyamide
Ingress protection:
IP 65, EN 60529
Impact resistance:
> 7 Joule, DIN 50014
Flammability:
HB / UL 94
Colour:
base and lid: RAL 7021, black grey
rear cover: RAL 5003, sapphire blue
T emperature range:
-40°C to +60°C
31
Page 2
Pilot 250
Programme range
Enclosure type Order No. Version Dimensions Weight
upper liner W x L x H (mm) (kg)
Pilot 250/1 29.25 00 01 closed 140/120 x 280 x 86 0.7
Pilot 250/2 29.25 00 02 as frame for front panel mounting 140/120 x 280 x 86 0.46
Accessories
Front panel, aluminium for Pilot 250/2
Magnet holder round
Battery holder for fixing in the enclosure base for 4 round cells
Battery holder for fixing in the enclosure base for 9V battery
Wall fixing (2 hooks, 2 bolts with screws)
Cable gland with bending protection M 16 x 1,5
Cable gland with bending protection M 20 x 1,5
Push button and switches see page 53 - 58
29.25 01 01
29.25 01 02
29.25 01 03
29.25 01 04
29.25 01 05
08.10 01 16
08.10 01 20
on request

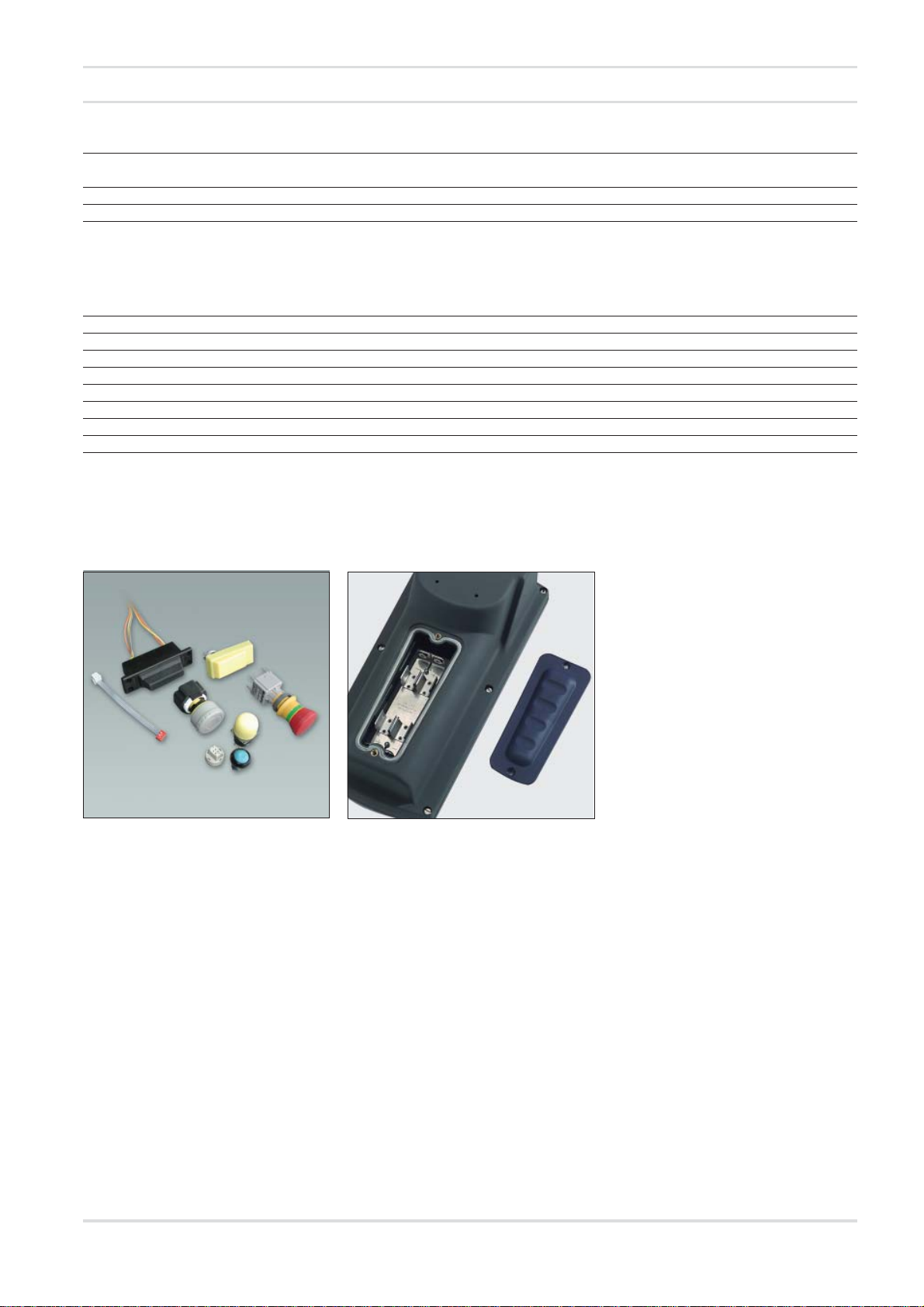

Electromechanical components
On request, we can supply equipment fitted with
electro-mechanical components such as
emergency stop button, acknowledge keys, hand
wheel, switches, display
32
Battery holder
for fixing in enclosure base for 4 micro-cells R6
or 9 V monobloc battery
Page 3

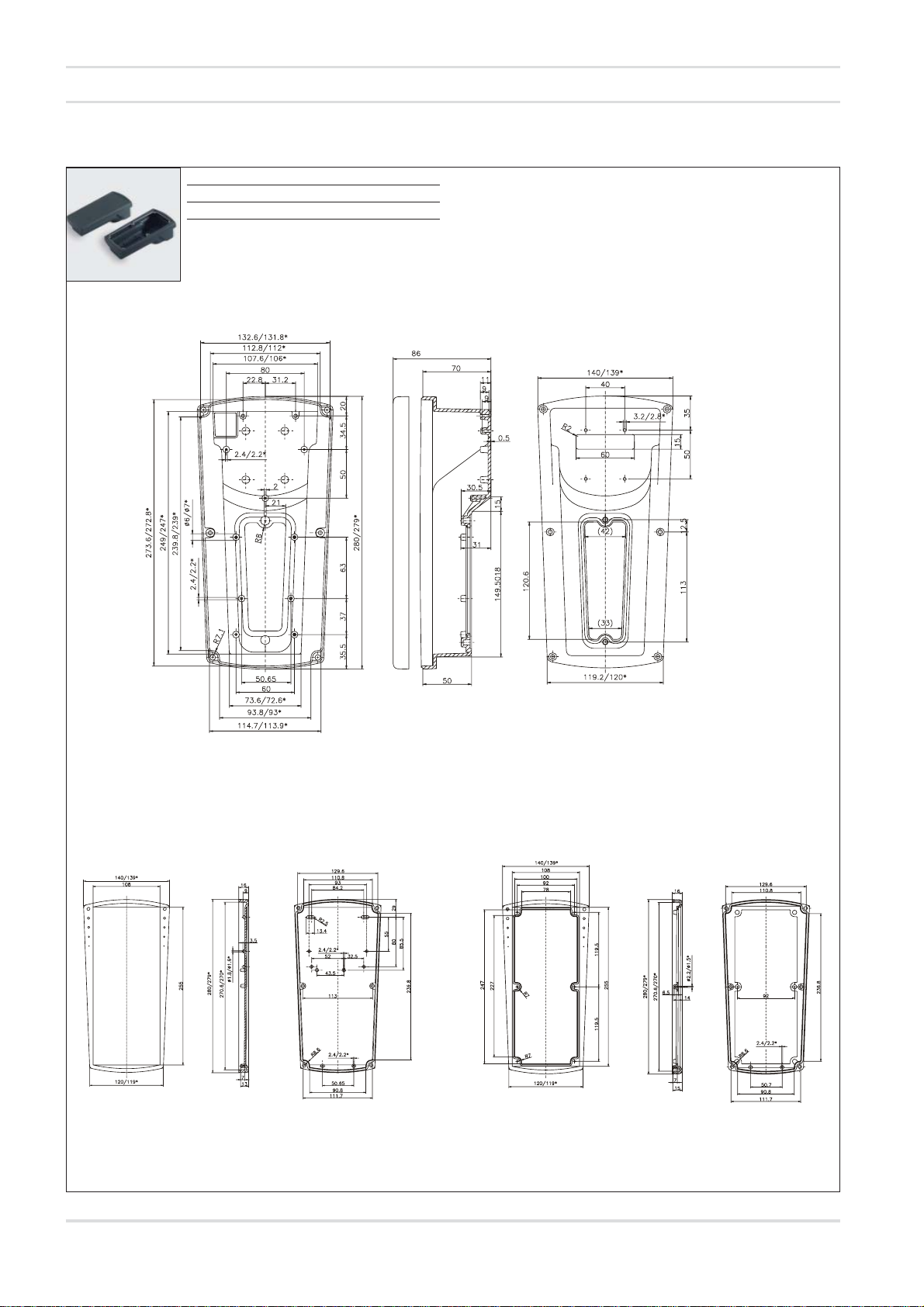

Dimensions
Pilot 250
T ype Version Order No.
Pilot 250/1 closed 29.25 00 01
Pilot 250/2 lid frame 29.25 00 02
(total hight)
* = Concial form tapering downwards
Closed lid Lid frame
Lid
33
Page 4

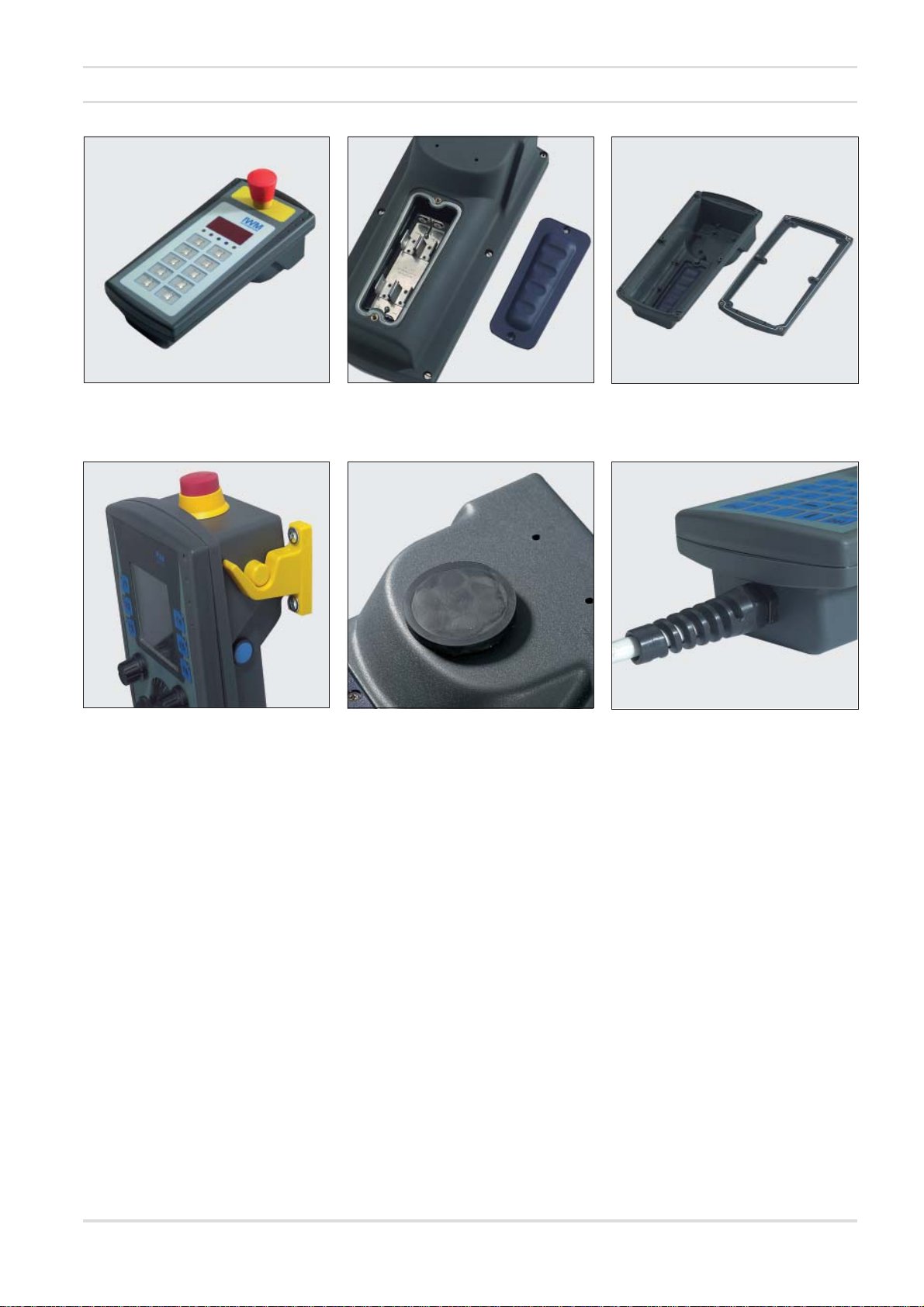

Pilot 250
Pilot with membrane keypad Rear cover
Wall fixing device
Large mounting space for electronic assemblies
Cable glandMagnetic holder
34
