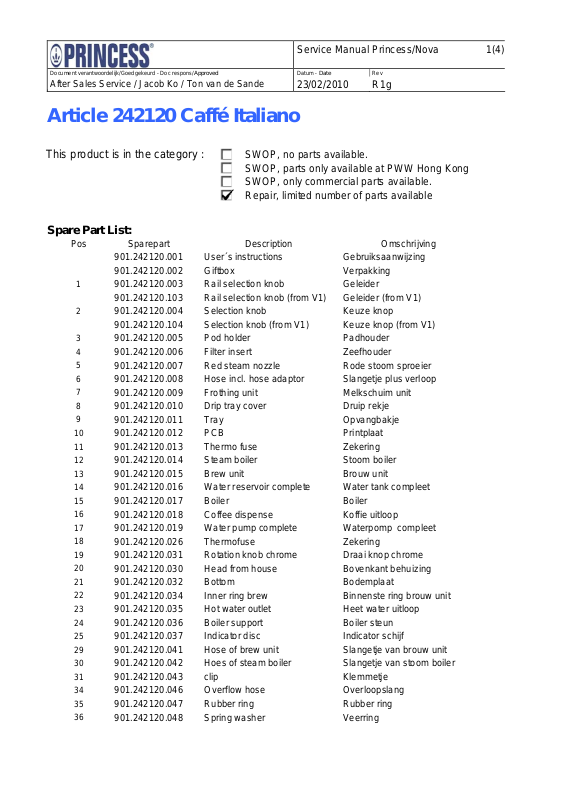

Page 1
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Article 242120 Caffé Italiano
This product is in the category :
SWOP, no parts available.
SWOP, parts only available at PWW Hong Kong
SWOP, only commercial parts available.
Repair, limited number of parts available
Spare Part List:
Pos Sparepart Description Omschrijving
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
29
30
31
34
35
36
901.242120.001 User´s instructions Gebruiksaanwijzing
901.242120.002 Giftbox Verpakking
901.242120.003 Rail selection knob Geleider
901.242120.103 Rail selection knob (from V1) Geleider (from V1)
901.242120.004 Selection knob Keuze knop
901.242120.104 Selection knob (from V1) Keuze knop (from V1)
901.242120.005 Pod holder Padhouder
901.242120.006 Filter insert Zeefhouder
901.242120.007 Red steam nozzle Rode stoom sproeier
901.242120.008 Hose incl. hose adaptor Slangetje plus verloop
901.242120.009 Frothing unit Melkschuim unit
901.242120.010 Drip tray cover Druip rekje
901.242120.011 Tray Opvangbakje
901.242120.012 PCB Printplaat
901.242120.013 Thermo fuse Zekering
901.242120.014 Steam boiler Stoom boiler
901.242120.015 Brew unit Brouw unit
901.242120.016 Water reservoir complete Water tank compleet
901.242120.017 Boiler Boiler
901.242120.018 Coffee dispense Koffie uitloop
901.242120.019 Water pump complete Waterpomp compleet
901.242120.026 Thermofuse Zekering
901.242120.031 Rotation knob chrome Draai knop chrome
901.242120.030 Head from house Bovenkant behuizing
901.242120.032 Bottom Bodemplaat
901.242120.034 Inner ring brew Binnenste ring brouw unit
901.242120.035 Hot water outlet Heet water uitloop
901.242120.036 Boiler support Boiler steun
901.242120.037 Indicator disc Indicator schijf
901.242120.041 Hose of brew unit Slangetje van brouw unit
901.242120.042 Hoes of steam boiler Slangetje van stoom boiler
901.242120.043 clip Klemmetje
901.242120.046 Overflow hose Overloopslang
901.242120.047 Rubber ring Rubber ring
901.242120.048 Spring washer Veerring
Service Manual Princess/Nova 1(4)
Datum - Date
23/02/2010
Rev
R1g
Page 2
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
*
*
* 901.242120.022 Round paper filter (500 pc) Rond papier filter (500pc)
* 901.242120.023 Durgol decalcifier (2x125 ml) Durgol ontkalker (2x 125ml)
* 901.242120.024 Round paper filter(200pc) Rond papier filter(200pc)
* 901.242120.033 Rubber feet Rubber dop
* 901.242120.029 Coffee powder cassetter Gemalen koffie houder
* not showed on exploded view
901.242120.020 Anti Chlorine filter Anti Chloor filter
901.242120.021
Coffee powder cassette incl. 3
packs round paper filter
(3x100 pc)
Service Manual Princess/Nova 2(4)
Datum - Date
23/02/2010
Gemalen koffie houder incl. 3
pakjes ronde papier filters
(3x100pc)
Rev
R1g
Page 3
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Article 242120 Caffé Italiano

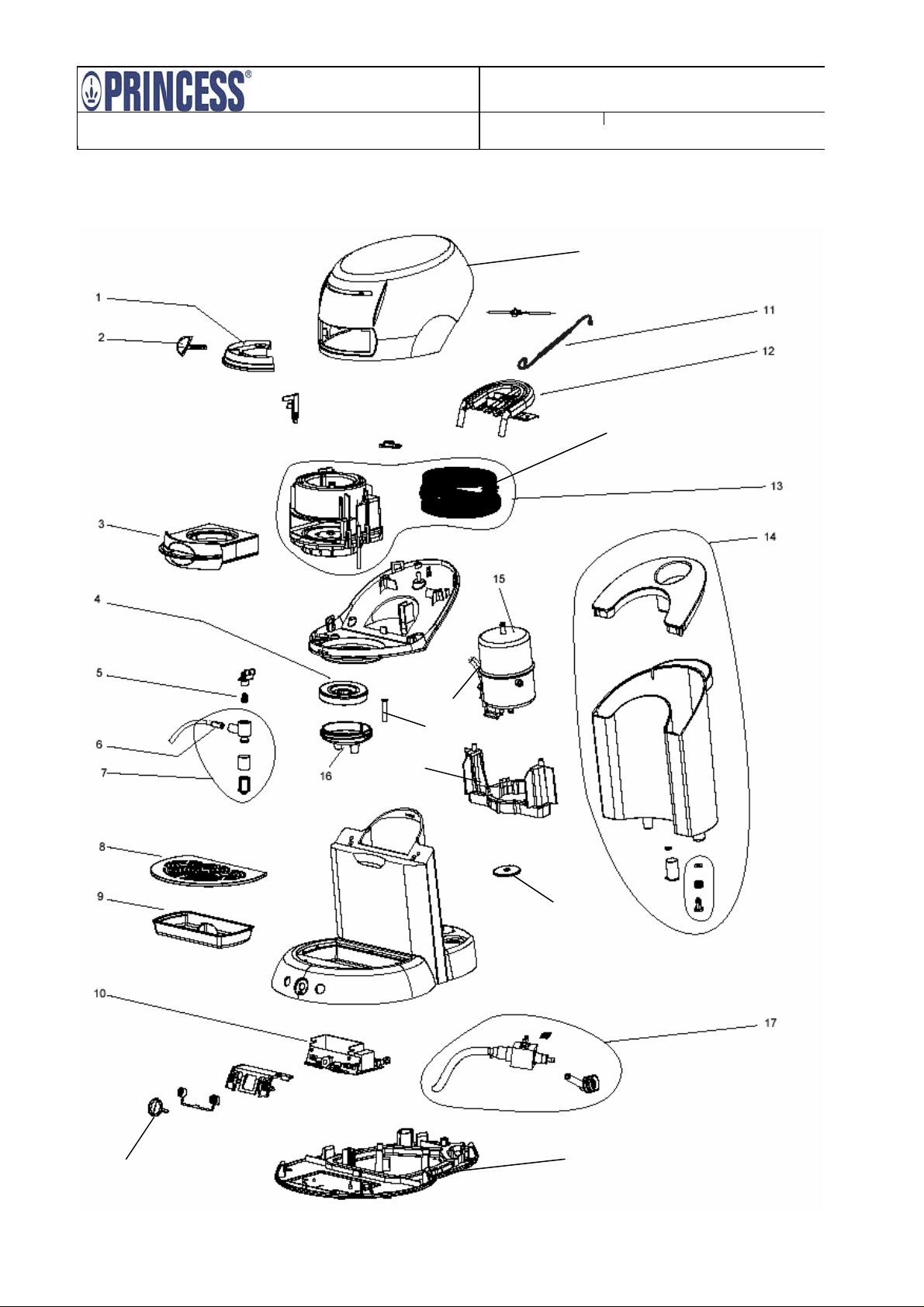

Exploded view:
Service Manual Princess/Nova 3(4)
Datum - Date
23/02/2010
Rev
R1g
20
22
24
18
23
25
19
21

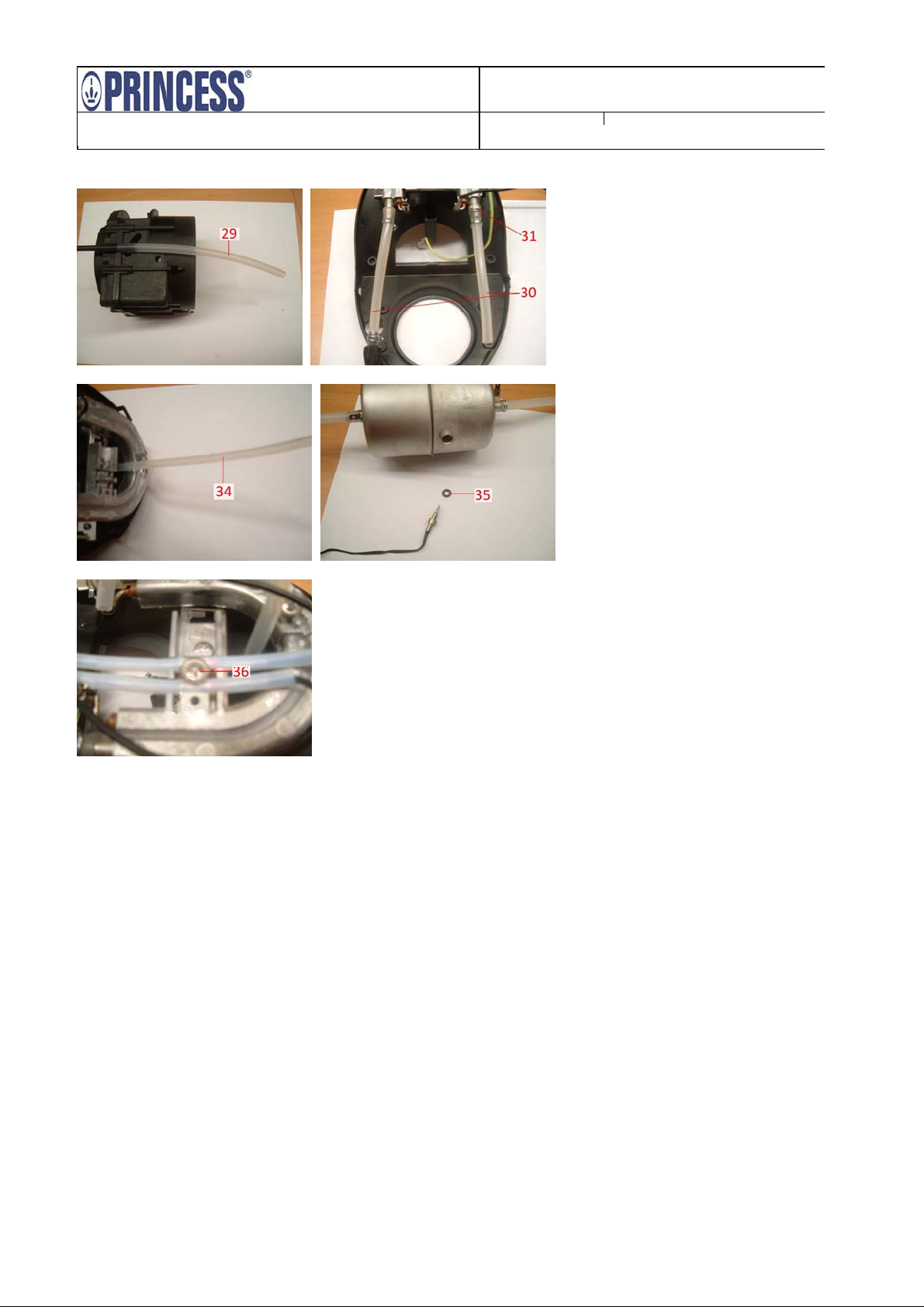

Page 4
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko / Ton van de Sande
Service Manual Princess/Nova 4(4)
Datum - Date
23/02/2010
Rev
R1g
