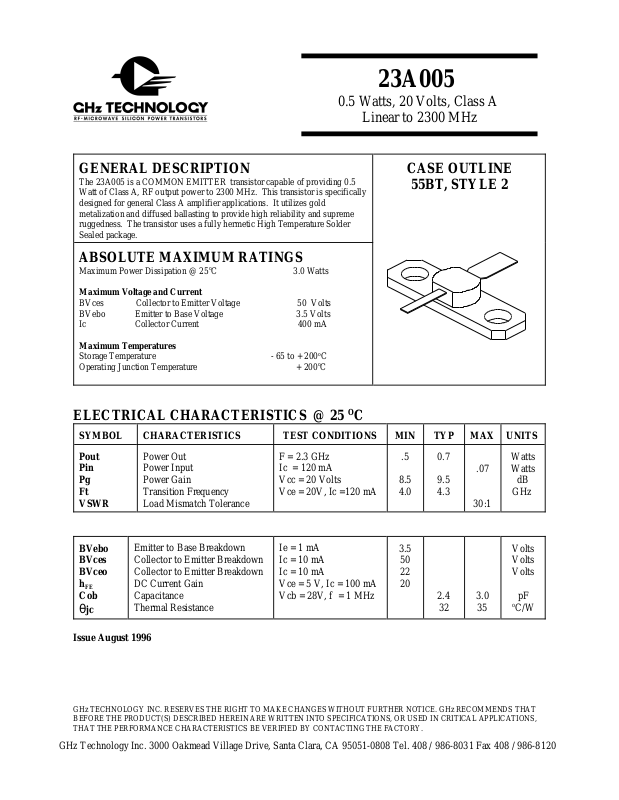

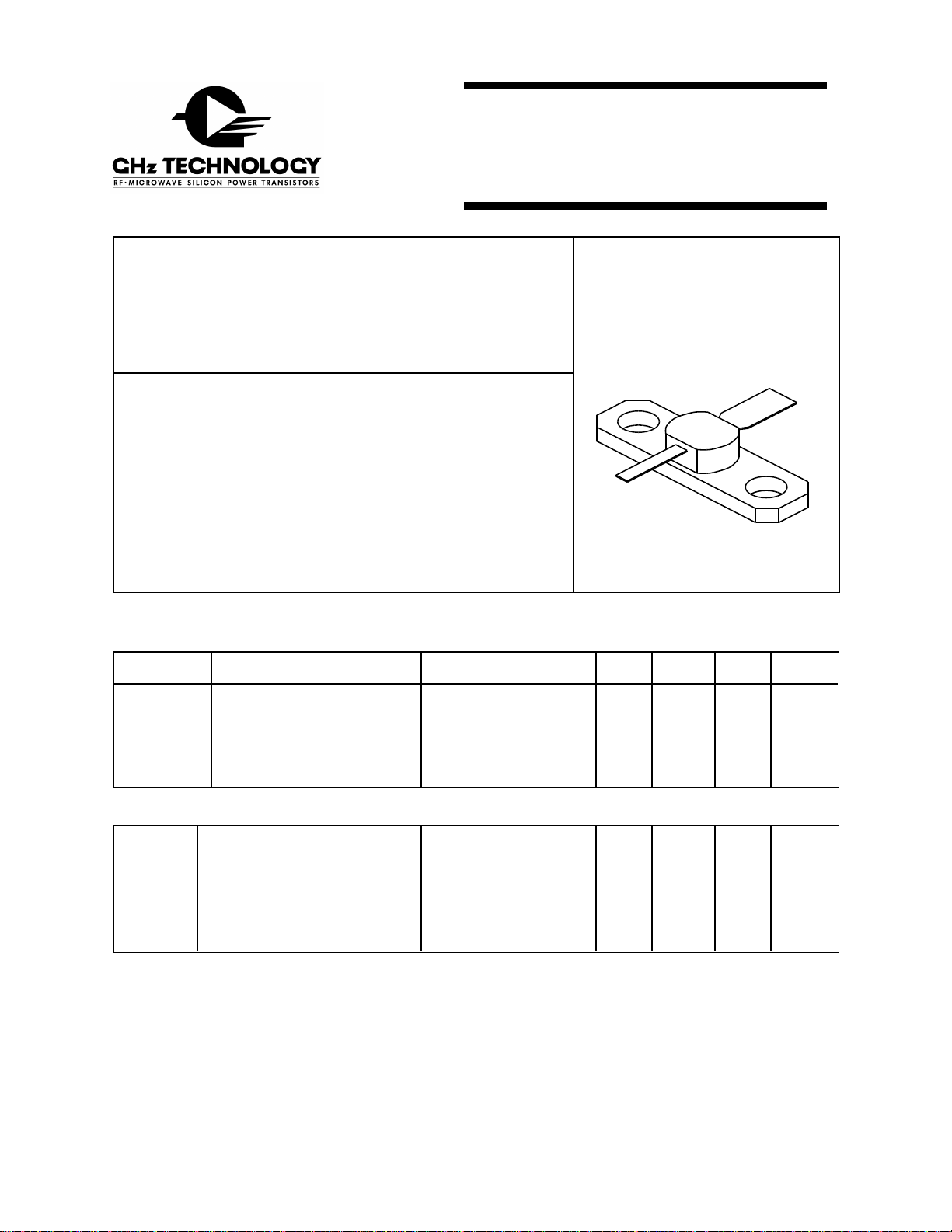

Datasheet 23A005 Datasheet (GHZ)

23A005

0.5 Watts, 20 Volts, Class A
Linear to 2300 MHz

GENERAL DESCRIPTION

The 23A005 is a COMMON EMITTER transistor capable of providing 0.5
Watt of Class A, RF output power to 2300 MHz. This transistor is specifically
designed for general Class A amplifier applications. It utilizes gold
metalization and diffused ballasting to provide high reliability and supreme
ruggedness. The transisto r uses a fully hermetic High Temperature Solder
Sealed package.

ABSOLUTE MAXIMUM RATINGS

Maximum Power Dissipation @ 25 C 3.0 Watts

Maximum Voltage and Current

BVces Collector to Emitter Voltage 50 Volts
BVebo Emitter to Base Voltage 3.5 Volts
Ic Collector Current 400 mA

Ma ximum Temperatures

Storage Temperature - 65 to + 200 C
Operating Junction Temperature + 200 C

ELECTRICAL CHARACTERISTICS @ 25 C

o

o
o

O

CASE OUTLINE

55BT, STYLE 2

SYMBOL CHARACTERISTICS TEST CONDITIONS MIN TYP MAX UNITS
Pout

Pin
Pg
Ft
VSWR

Power Out
Power Input
Power Gain
Transition Frequency
Load Mismatch Tolerance

F = 2.3 GHz
Ic = 120 mA
Vcc = 20 Volts
Vce = 20V, Ic =120 mA

.5

8.5

4.0

0.7

9.5

4.3

Watts

.07

Watts

GHz

30:1

dB

BVebo
BVces
BVceo
h

FE

Cob

θ

jc

Emitter to Base Breakdown
Collector to Emitter Breakdown
Collector to Emitter Breakdown
DC Current Gain
Capacitance
Thermal Resistance

Ie = 1 mA
Ic = 10 mA
Ic = 10 mA
Vce = 5 V, Ic = 100 mA
Vcb = 28V, f = 1 MHz

3.5
50
22
20

2.4
32

3.0
35

Volts
Volts
Volts

pF

o

C/W

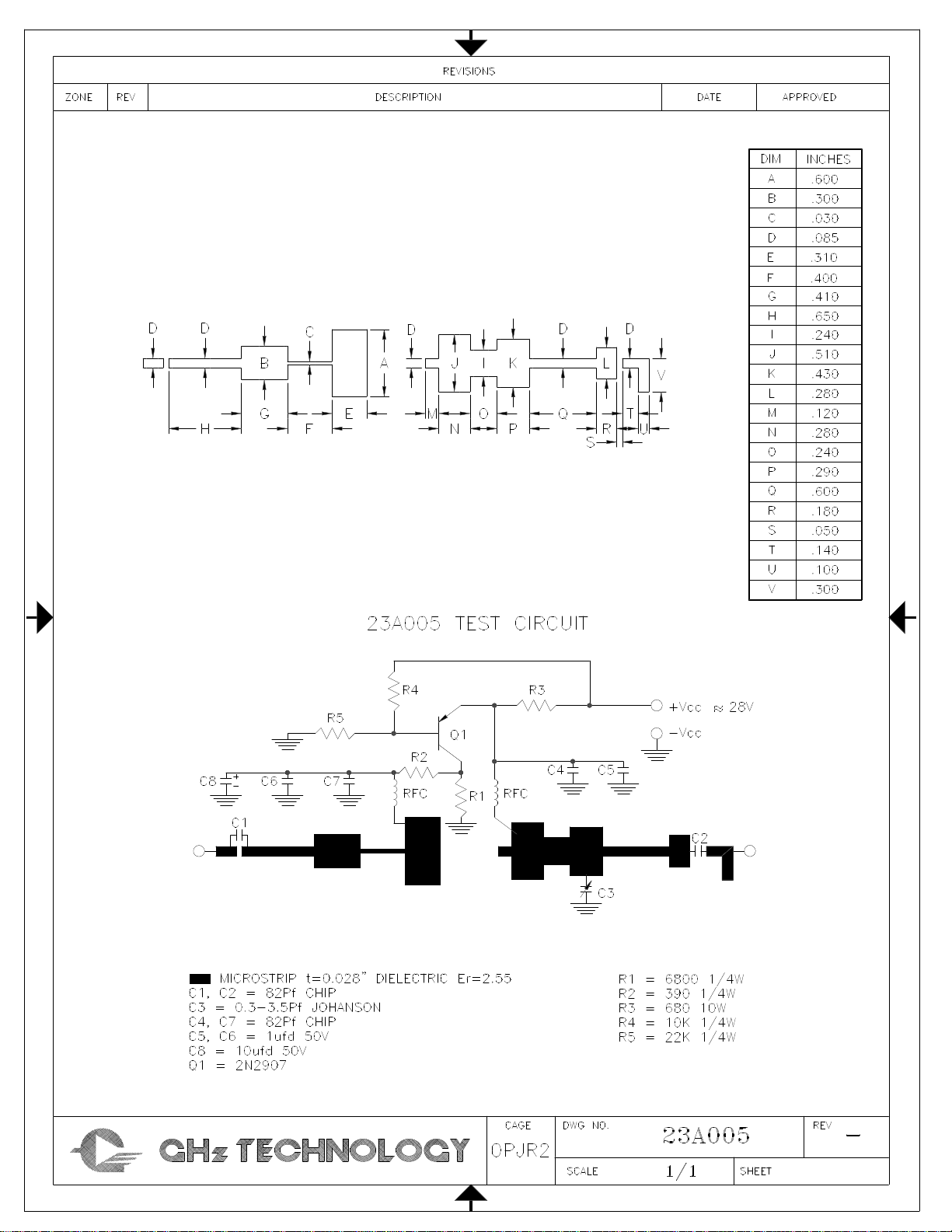

Issue August 1996

GHz TECHNOLOGY INC. RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE. GHz RECOMMENDS THAT
BEFORE THE PRODUCT(S) DESCRIBED HEREIN ARE WRITTEN INTO SPECIFICATIONS, OR USED IN CRITICAL APPLICATIONS,
THAT THE PERFORMANCE CHARACTERISTICS BE VERIFIED BY CONTACTING THE FACTORY.

GHz Technology Inc. 3000 Oakmead Village Drive, Santa Clara, CA 95051-0808 Tel. 408 / 986-8031 Fax 408 / 986-8120

23A005-1 (20V, 120mA)

MMICAD for Windows Thu Jul 07 13:48:04 1994
CIRCUIT: MES

FREQ --- S11 --- --- S21 --- --- S12 --- --- S22 --­ Mhz MAG ANG MAG ANG MAG ANG MAG ANG

0.100 0.47454 -95.2554 18.0671 141.547 0.01787 50.7706 0.82112 -24.5159

0.200 0.63181 -130.521 13.0172 118.293 0.02571 36.5129 0.67334 -37.8388

0.300 0.69167 -147.990 9.72668 100.914 0.02910 28.3304 0.59245 -45.3258

0.400 0.72051 -158.884 7.65963 89.8204 0.03072 24.4892 0.55219 -50.9748

0.500 0.73228 -166.479 6.26404 82.1308 0.03202 22.1256 0.53485 -56.4636

0.600 0.73894 -172.252 5.27796 74.4571 0.03296 20.9634 0.52900 -61.9843

0.700 0.74266 -177.035 4.54919 66.2444 0.03395 19.7881 0.52896 -67.7474

0.800 0.74554 178.854 3.99189 59.6606 0.03491 19.4614 0.53401 -73.4258

0.900 0.74622 174.959 3.55077 53.4625 0.03583 19.0716 0.54160 -79.0932

1.000 0.74692 171.317 3.20045 47.6838 0.03703 19.2090 0.55295 -84.6732

1.100 0.74464 167.896 2.90850 42.0884 0.03827 19.0947 0.56634 -90.1720

1.200 0.74160 164.635 2.66116 36.6646 0.03982 19.0327 0.58110 -95.5511

1.300 0.73992 161.495 2.45228 31.3945 0.04129 18.9103 0.59610 -100.600

1.400 0.73720 158.338 2.27267 26.3059 0.04288 18.6008 0.61238 -105.376

1.500 0.73435 155.149 2.12279 21.3030 0.04478 18.6652 0.62914 -109.844

1.600 0.72845 152.200 1.99847 16.3897 0.04710 18.3814 0.64861 -114.386

1.700 0.73095 149.080 1.88858 10.9611 0.04973 17.1534 0.66492 -119.196

1.800 0.72985 145.038 1.77024 5.55489 0.05163 15.6556 0.67175 -123.798

1.900 0.71838 141.377 1.66141 0.77322 0.05376 14.6299 0.67796 -127.814

2.000 0.71044 138.054 1.57323 -3.89599 0.05605 13.7191 0.68570 -131.792

2.100 0.70403 134.493 1.49428 -8.67506 0.05874 12.4302 0.69513 -135.716

2.200 0.69438 130.751 1.42241 -13.5361 0.06150 10.7884 0.70641 -139.809

2.300 0.68657 127.164 1.35551 -18.2269 0.06417 9.02043 0.71730 -144.002

2.400 0.67829 123.196 1.29522 -22.8819 0.06675 7.16376 0.72636 -147.897

2.500 0.66881 119.053 1.24320 -27.5560 0.06984 5.61929 0.73772 -151.705

2.600 0.65802 115.022 1.19275 -32.3453 0.07267 3.69521 0.74907 -155.491

2.700 0.64868 110.753 1.14423 -37.1372 0.07600 1.56373 0.75577 -159.222

2.800 0.64011 106.195 1.09834 -41.8004 0.07920 -0.51118 0.76098 -162.542

2.900 0.63217 101.321 1.05472 -46.5021 0.08286 -2.93984 0.76375 -165.658

3.000 0.62255 96.1466 1.01424 -51.1387 0.08625 -5.38132 0.76407 -168.562
