Page 1
Service Manual Princess/Nova 1(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
28/08/2008
Rev
R1A

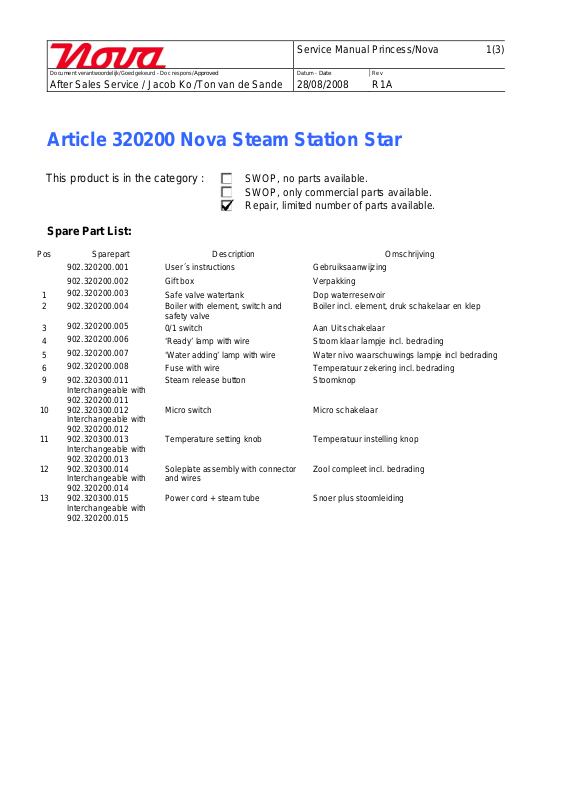

Article 320200 Nova Steam Station Star
This product is in the category :
Spare Part List:
Pos Sparepart Description Omschrijving
902.320200.001 User´s instructions Gebruiksaanwijzing
902.320200.002 Gift box Verpakking
902.320200.003
1
2 902.320200.004 Boiler with element, switch and
902.320200.005
3
902.320200.006
4
902.320200.007
5
902.320200.008
6
9
902.320300.011
Interchangeable with
902.320200.011
10
902.320300.012
Interchangeable with
902.320200.012
11
902.320300.013
Interchangeable with
902.320200.013
12
902.320300.014
Interchangeable with
902.320200.014
13
902.320300.015
Interchangeable with
902.320200.015
Safe valve watertank Dop waterreservoir
safety valve
0/1 switch Aan Uit schakelaar
‘Ready’ lamp with wire Stoom klaar lampje incl. bedrading
‘Water adding’ lamp with wire Water nivo waarschuwings lampje incl bedrading
Fuse with wire Temperatuur zekering incl. bedrading
Steam release button
Micro switch
Temperature setting knob
Soleplate assembly with connector
and wires
Power cord + steam tube
SWOP, no parts available.
SWOP, only commercial parts available.
Repair, limited number of parts available.
Boiler incl. element, druk schakelaar en klep
Stoomknop
Micro schakelaar
Temperatuur instelling knop
Zool compleet incl. bedrading
Snoer plus stoomleiding
Page 2
Service Manual Princess/Nova 2(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
28/08/2008
Article 320200 Nova Steam Station Star
Exploded view:
Rev
R1A
Page 3
Service Manual Princess/Nova 3(3)
Document verantwoordelijk/Goedgekeurd - Doc respons/Approved
After Sales Service / Jacob Ko /Ton van de Sande
Datum - Date
28/08/2008
Article 320200 Nova Steam Station Star
Exploded view:
9
10
Rev
R1A
11
12
13
