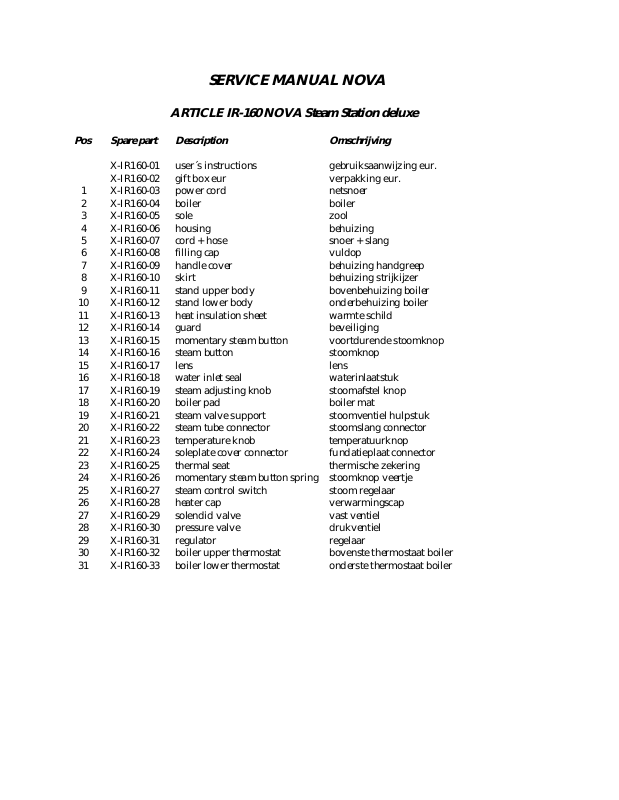

Page 1
Pos
Spare part
Description
Omschrijving
X-IR160-01
user´s instructions
gebruiksaanwijzing eur.
X-IR160-02
gift box eur
verpakking eur.
1
X-IR160-03
power cord
netsnoer
2
X-IR160-04
boiler
boiler
3
X-IR160-05
sole
zool4X-IR160-06
housing
behuizing
5
X-IR160-07
cord + hose
snoer + slang
6
X-IR160-08
filling cap
vuldop
7
X-IR160-09
handle cover
behuizing handgreep
8
X-IR160-10
skirt
behuizing strijkijzer
9
X-IR160-11
stand upper body
bovenbehuizing boiler
10
X-IR160-12
stand lower body
onderbehuizing boiler
11
X-IR160-13
heat insulation sheet
warmte schild
12
X-IR160-14
guard
beveiliging
13
X-IR160-15
momentary steam button
voortdurende stoomknop
14
X-IR160-16
steam button
stoomknop
15
X-IR160-17
lens
lens16X-IR160-18
water inlet seal
waterinlaatstuk
17
X-IR160-19
steam adjusting knob
stoomafstel knop
18
X-IR160-20
boiler pad
boiler mat
19
X-IR160-21
steam valve support
stoomventiel hulpstuk
20
X-IR160-22
steam tube connector
stoomslang connector
21
X-IR160-23
temperature knob
temperatuurknop
22
X-IR160-24
soleplate cover connector
fundatieplaat connector
23
X-IR160-25
thermal seat
thermische zekering
24
X-IR160-26
momentary steam button spring
stoomknop veertje
25
X-IR160-27
steam control switch
stoom regelaar
26
X-IR160-28
heater cap
verwarmingscap
27
X-IR160-29
solendid valve
vast ventiel
28
X-IR160-30
pressure valve
drukventiel
29
X-IR160-31
regulator
regelaar
30
X-IR160-32
boiler upper thermostat
bovenste thermostaat boiler
31
X-IR160-33
boiler lower thermostat
onderste thermostaat boiler

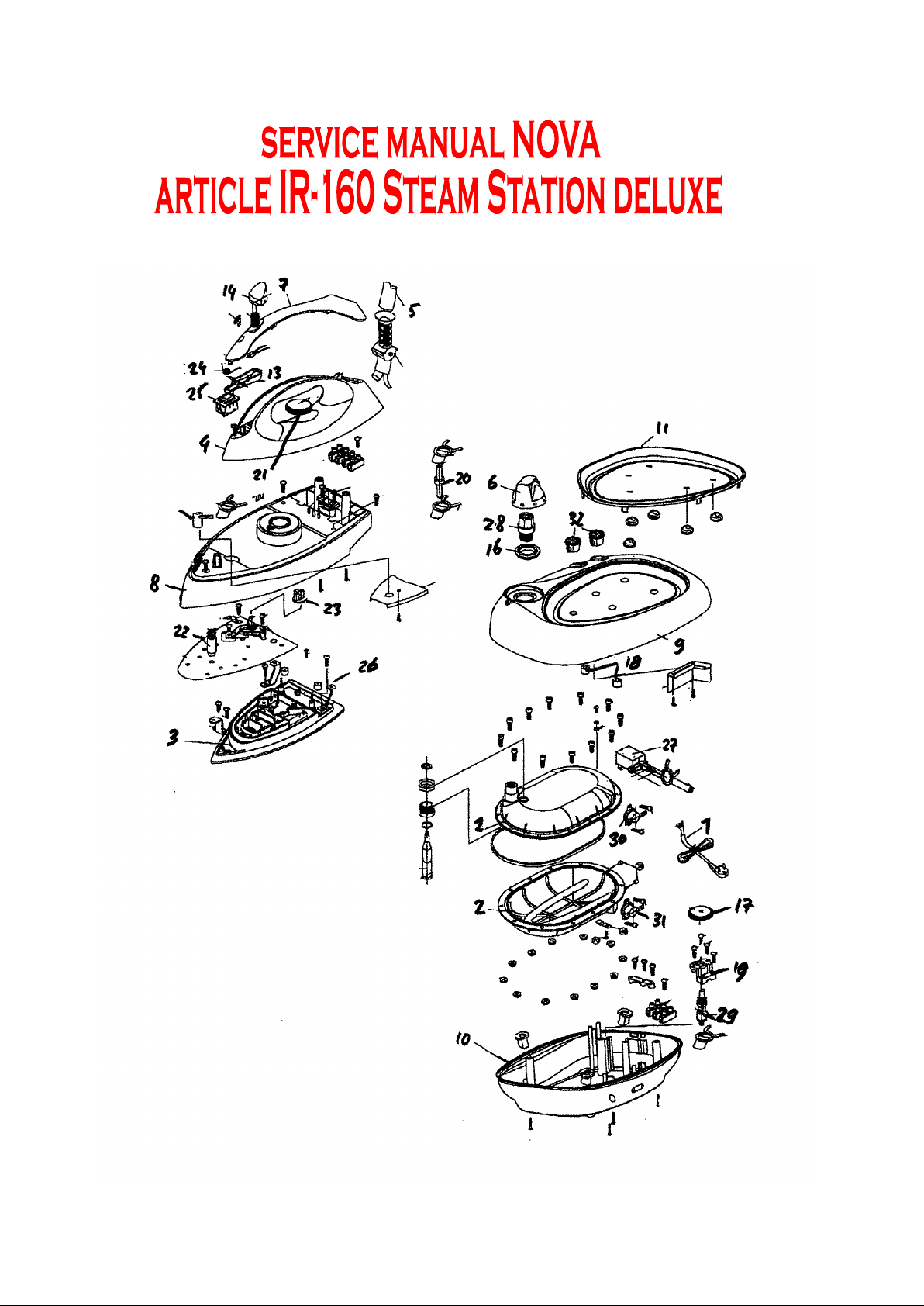

SERVICE MANUAL NOVA
ARTICLE IR-160 NOVA Steam Station deluxe
