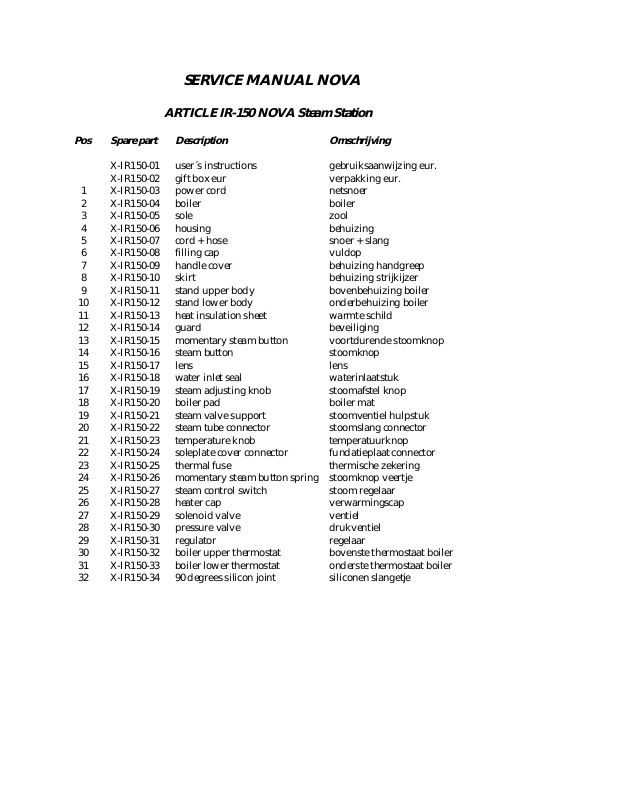

Pos
Spare part
Description
Omschrijving
X-IR150-01
user´s instructions
gebruiksaanwijzing eur.
X-IR150-02
gift box eur
verpakking eur.
1
X-IR150-03
power cord
netsnoer
2
X-IR150-04
boiler
boiler
3
X-IR150-05
sole
zool4X-IR150-06
housing
behuizing
5
X-IR150-07
cord + hose
snoer + slang
6
X-IR150-08
filling cap
vuldop
7
X-IR150-09
handle cover
behuizing handgreep
8
X-IR150-10
skirt
behuizing strijkijzer
9
X-IR150-11
stand upper body
bovenbehuizing boiler
10
X-IR150-12
stand lower body
onderbehuizing boiler
11
X-IR150-13
heat insulation sheet
warmte schild
12
X-IR150-14
guard
beveiliging
13
X-IR150-15
momentary steam button
voortdurende stoomknop
14
X-IR150-16
steam button
stoomknop
15
X-IR150-17
lens
lens16X-IR150-18
water inlet seal
waterinlaatstuk
17
X-IR150-19
steam adjusting knob
stoomafstel knop
18
X-IR150-20
boiler pad
boiler mat
19
X-IR150-21
steam valve support
stoomventiel hulpstuk
20
X-IR150-22
steam tube connector
stoomslang connector
21
X-IR150-23
temperature knob
temperatuurknop
22
X-IR150-24
soleplate cover connector
fundatieplaat connector
23
X-IR150-25
thermal fuse
thermische zekering
24
X-IR150-26
momentary steam button spring
stoomknop veertje
25
X-IR150-27
steam control switch
stoom regelaar
26
X-IR150-28
heater cap
verwarmingscap
27
X-IR150-29
solenoid valve
ventiel
28
X-IR150-30
pressure valve
drukventiel
29
X-IR150-31
regulator
regelaar
30
X-IR150-32
boiler upper thermostat
bovenste thermostaat boiler
31
X-IR150-33
boiler lower thermostat
onderste thermostaat boiler
32
X-IR150-34
90 degrees silicon joint
siliconen slangetje

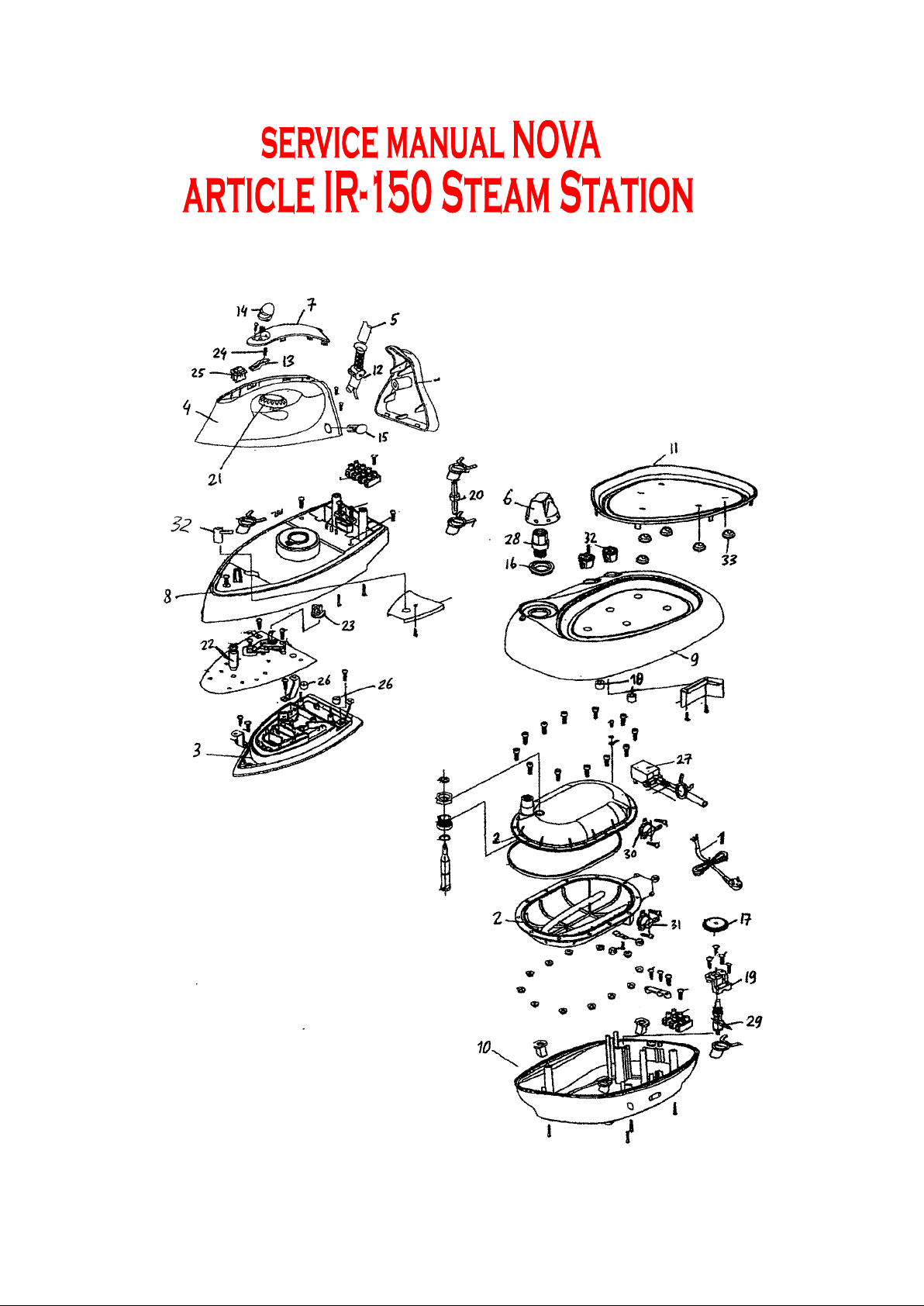

ARTICLE IR-150 NOVA Steam Station
SERVICE MANUAL NOVA
