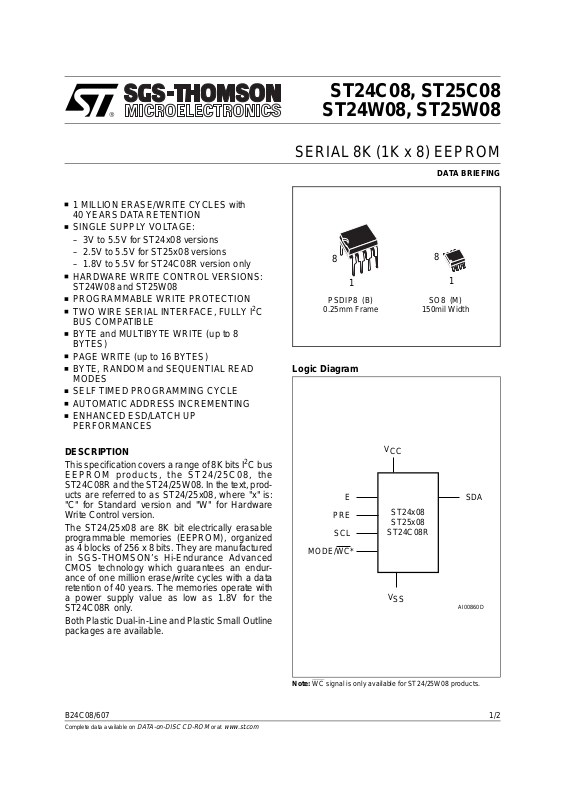

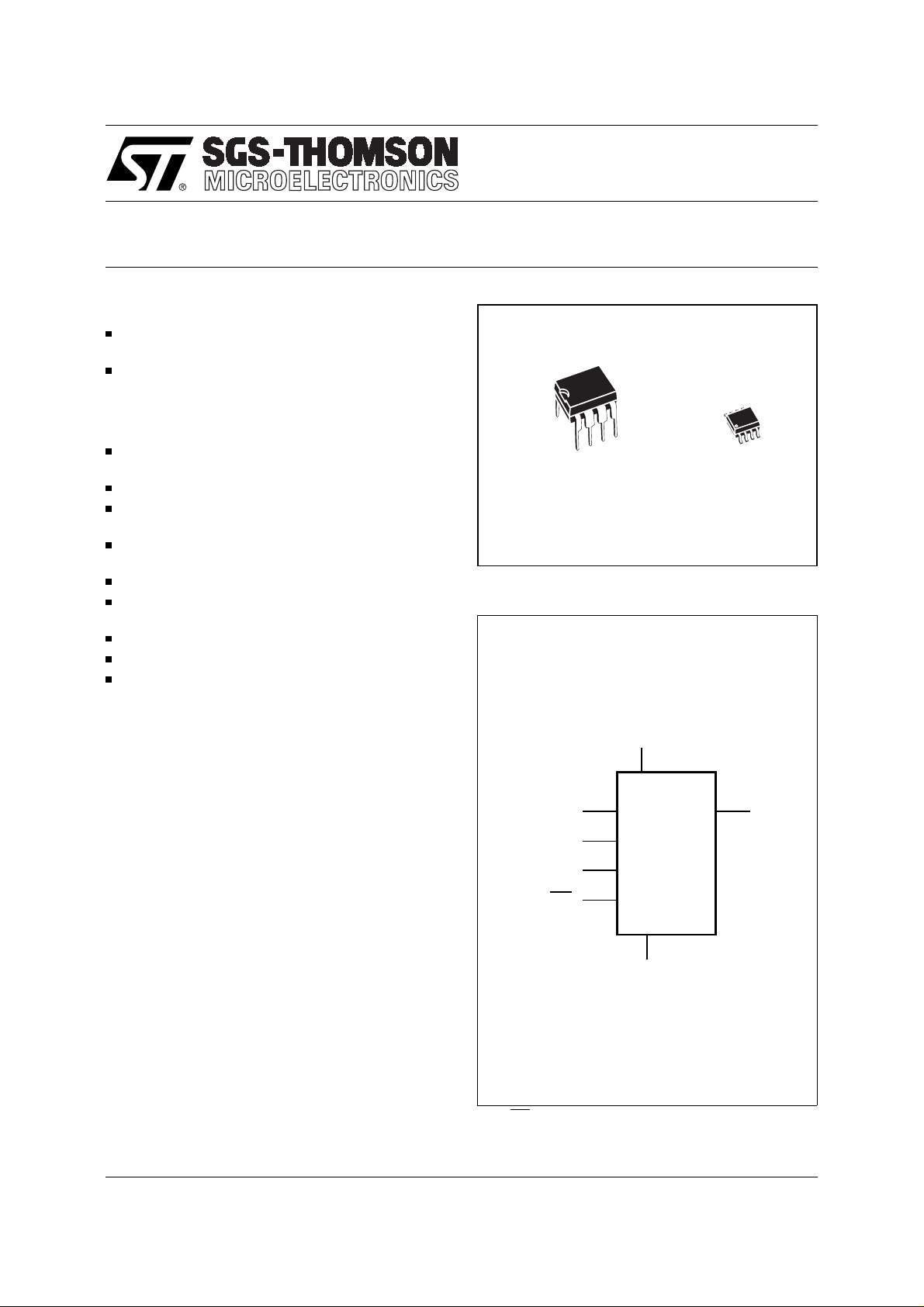

Page 1
1 MILLION ERASE /WRI T E CYCLES with
40 YEARS DATA RETENTION
SINGL E SUPPLY VOLTAGE:
– 3V to 5.5V for ST24x08 v ersions
– 2.5V to 5.5V for ST25x08 versions
– 1.8V to 5.5V for ST24C08R version only
HARDWARE WRITE CONTROL VERSIONS:
ST24W08 and ST25W08
PROGRAMMABLE WRITE PROTECTION
TWO WIRE SERIAL INTERFACE, FULLY I2C
BUS COMPATIBLE
BYTE and MULTIBYTE WRITE (up to 8
BYTES)
P A GE WRIT E (up to 16 BYTES )
BYTE, RANDOM and SEQ UE NTIA L READ
MODES
SELF TIME D PRO G RA MM ING CY C LE
AUTOMATIC ADDRESS INCREMENTING
ENHANCED ESD /LATCH UP
PERFORMA NCES
ST24C08, ST25C08
ST24W08, ST25W08
SERIAL 8K (1K x 8) EEPROM
DATA BRIEFING
8
1
PSDIP8 (B)
0.25mm Frame
Logic Diagra m
8
1
SO8 (M)
150mil Width
V
DESCRIP TION
This specification cov ers a range of 8K bits I
2
C bus
CC
EEPROM products, the ST24/25C08, the
ST24C08R and the ST24/ 25W08. In the tex t, products are referred to as ST24/25x08, where "x" is:
"C" for Standard version and "W" for Hardware
Write Control version.
The ST24/25x08 are 8K bit electrically erasable
programmable memories (EEPROM), organized
as 4 blocks of 256 x 8 bits. They are manufacture d
in SGS-THOMSON’s Hi-Endurance Advanced
MODE/WC*
E SDA
PRE
SCL
ST24x08
ST25x08
ST24C08R
CMOS technology which guarantees an endurance of one million erase/write cycles with a data
retention of 40 years. The memories operate with
a power supply value as low as 1.8V for the
ST24C08R only.
V
SS
AI00860D
Both Plastic Dual- in-Line and Plastic Small Out line
packages are available.
Note: WC signal is only available for ST24/25W08 products.
B24C08/607 1/2
Complete data available on
DATA-on-DISC CD-ROM
or at
www.st.com

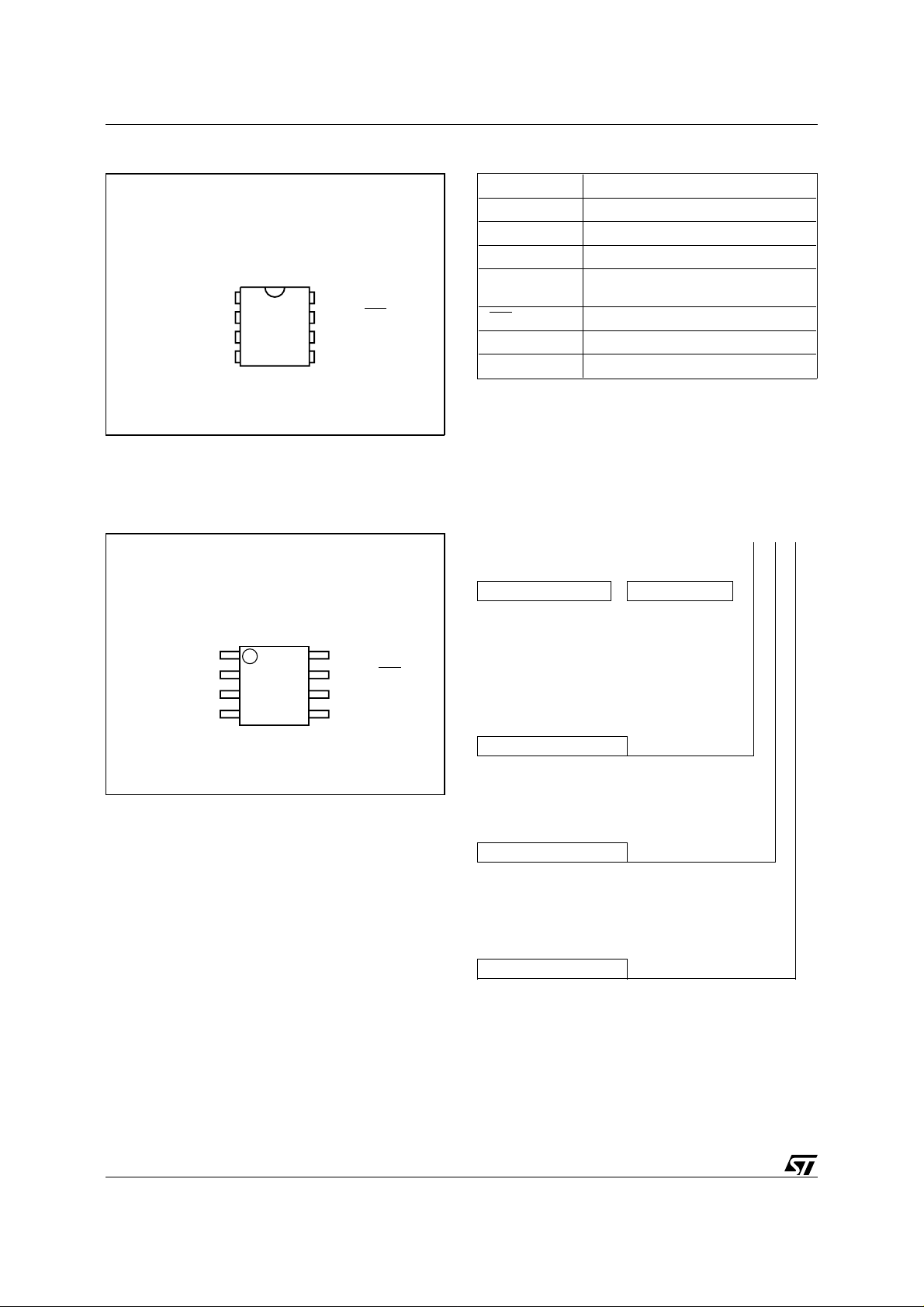

Page 2
ST24/25C08, ST24C08R, ST24/25W08
DIP Pin Connections
ST24x08
ST25x08
ST24C08R
1
PRE V
2
3
E
4
SS
AI00861D
Warning: NC = Not Connected.
SO Pin Connections
ST24x08
ST25x08
ST24C08R
PRE V
SS
Warning: NC = Not Connected.
1
2
3
E
4
AI01073D
Signal Names
PRE Write Protect Enable
E Chip Enable Input
SDA Serial Data Address Input/Output
SCL Serial Clock
8
CC
7
MODE/WCNC
6
SCL
5
SDAV
MODE
WC Write Control (W version)
V
CC
V
SS
Multibyte/Page Write Mode
(C version)
Supply Voltage
Ground
Ordering Inf orm atio n Sch eme
For a list of available options or for fur ther inform ation on any aspect of this device, please contact
the SGS-THOMSON Sales Office nearest to you.
Example: ST24C08 M 1 TR
Operating Voltage Range
24C08 3V to 5.5V Standard
24W08 3V to 5.5V HW Write Control
8
CC
7
MODE/WCNC
6
SCL
5
SDAV
25C08 2.5V to 5.5V Standard
25W08 2.5V to 5.5V HW Write Control
24C08R 1.8V to 5.5V Standard
Package
B PSDIP8
0.25mm Frame
M SO8
150mil Width
2/2
Temp. Range
1 0 to 70 °C
(1)
5
–20 to 85 °C
6 –40 to 85 °C
(2)
3
–40 to 125 °C
Option
TR Tape & Reel
Packing
Notes: 1. Temperature range on special request only.
2. Temperature range for ST24C08R only.
Devices are shipped from the factory with the memory
content set at all "1’s" (FFh).
