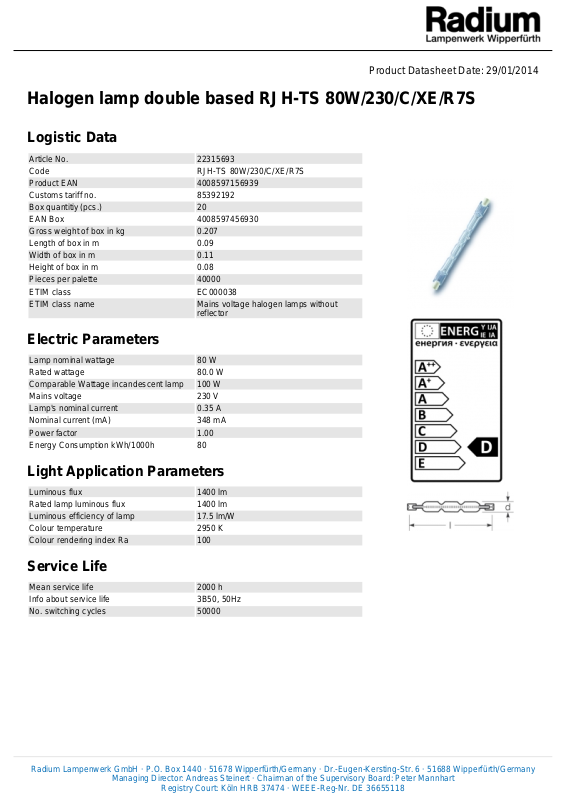

Product Datasheet Date: 29/01/2014
Halogen lamp double based RJH-TS 80W/230/C/XE/R7S
Logistic Data
Article No. 22315693
Code RJH-TS 80W/230/C/XE/R7S
Product EAN 4008597156939
Customs tariff no. 85392192
Box quantitiy (pcs.) 20
EAN Box 4008597456930
Gross weight of box in kg 0.207
Length of box in m 0.09
Width of box in m 0.11
Height of box in m 0.08
Pieces per palette 40000
ETIM class EC000038
ETIM class name Mains voltage halogen lamps without
reflector
Electric Parameters
Lamp nominal wattage 80 W
Rated wattage 80.0 W
Comparable Wattage incandescent lamp 100 W
Mains voltage 230 V
Lamp's nominal current 0.35 A
Nominal current (mA) 348 mA
Power factor 1.00
Energy Consumption kWh/1000h 80
Light Application Parameters
Luminous flux 1400 lm
Rated lamp luminous flux 1400 lm
Luminous efficiency of lamp 17.5 lm/W
Colour temperature 2950 K
Colour rendering index Ra 100
Service Life
Mean service life 2000 h
Info about service life 3B50, 50Hz
No. switching cycles 50000
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 2
Specification
Diameter max. 12 mm
Length max. 74.9 mm
Contact distance 74.9 mm
Lamp dimmable Yes
dimmable ja
Energylabel from 2013 D
Ignition time 0 s
Mercury content 0.0 mg
Base R7s
Lamp shape Tube, two bases
Design clear
Notes on Operation
recommended lead fuse 2 A
Burning position any
Miscellaneous
EU Directive DIM1
ILCOS name HDG/C/UB-80-230-R7s-74,9
LBS name QT-DE12 80W R7s
Notes:
Mains voltage halogen lamp EcoPlus; shockproof due to pinching technology.
Do not touch lamp bulb with bare fingers.
Please, refer to www.radium.de/recycling for notes on disposal of burned-out lamps as well as lamp breakage.
The field 'info about service life' contains the frame conditions according to standards based on which the specific service
life has been determined. So, for example, "12B50, 50Hz" means that the mean service life (B50) has been determined
with a 12h switching cycle at mains (frequency 50Hz), "3B50, HF" is based on a 3h switching cycle at electronic control
gear (high frequency).
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 3
Notes
Base
R7s
IEC/EN 60061-1
sheet 7004-92A-4
Spectrum
As daylight is a mixture of direct sunlight and light from the sky, the spectral distribution changes all the time
due to the time of the day and the weather. The standard illuminant D65 corresponds to daylight with colour
temperature of about 6500K.
Incandescent lamps have got a continouus red-dominated spectrum as the light is generated by heating up a
tungsten filament. The addition of halogens to the filling gas enhance the efficiency and prevents blackening.
Further increase in effiency can be achieved by adding Xenon and/or IRC-coating.
Visible region from 380 to 780 nm; height of graph corresponding with relative spectral emission
(400mW/klm)per 10nm.
light of incandescent lamps daylight(D 65)
Special features
With a simple change from standard halogen lamps to innovative Xenon technology you can save up to 30%
energy.
Radium Lampenwerk GmbH · P.O. Box 1440 · 51678 Wipperfürth/Germany · Dr.-Eugen-Kersting-Str. 6 · 51688 Wipperfürth/Germany
Managing Director: Andreas Steinert · Chairman of the Supervisory Board: Peter Mannhart
Registry Court: Köln HRB 37474 · WEEE-Reg-Nr. DE 36655118
Page 4
General notes
The technical design data in accordance with DIN and IEC. The producer does not take any responsibility for
damage to persons or property in case of unsuitable operation or handling of the product. Operating data and
dimensions are valid within the usual tolerances. Related lamp types (different bases, mains voltages) may be
available on request. Sale and delivery are effected in accordance with the Radium Terms of Delivery and
Payment valid on the day of conclusion of contract. Packing units offer economical advantages to the purchase
and logistic department. Please match your quantity volume accordingly. For orders of a minimum quantity
(clefts) with a lamp model the amount lower than the volume of each packaging unit, we will invoice 10 %
additional charge per lamp type. Technical changes and terms of delivery are reserved. Manipulation of any
kind to packaging or product is not permissible as this will violate Radium brand rights. Furthermore, technical
properties of the product can change to its disadvantage or even destruction. Therefore, Radium cannot be
responsible for consequential damages. Subject to change without notice. Errors and omissions excepted. ® =
Registered trademark
All technical data without guarantee.
