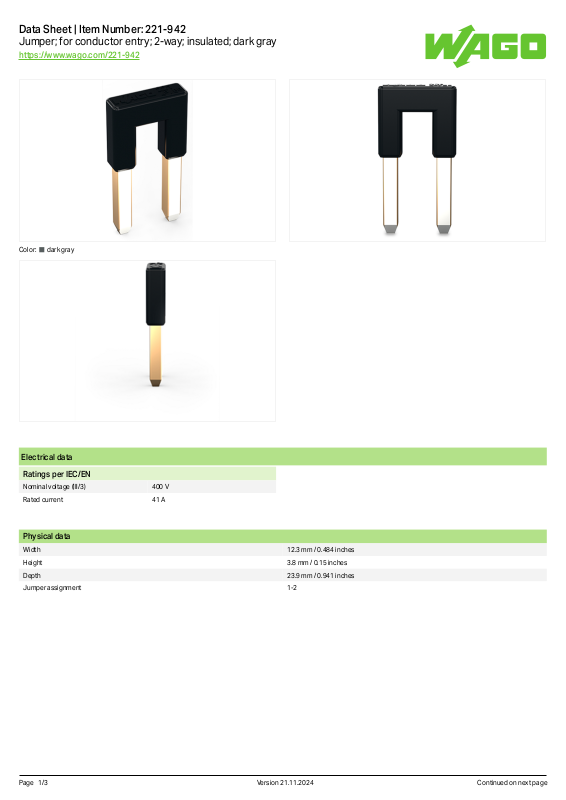

Page 1
Data Sheet | Item Number: 221-942
Jumper; for conductor entry; 2-way; insulated; dark gray
https://www.wago.com/221-942
Color:dark gray
Electrical data
Ratings per IEC/EN
Nominal voltage (III/3)400 V
Rated current41 A
.
Physical data
Width12.3 mm / 0.484 inches
Height3.8 mm / 0.15 inches
Depth23.9 mm / 0.941 inches
Jumper assignment1-2
.
Continued on next page Version 21.11.2024 Page1/3
Page 2
Data Sheet | Item Number: 221-942
https://www.wago.com/221-942
Material data
Note (material data)
Colordark gray
Insulation material (main housing)Polyamide (P A66)
Fire load0 MJ
Weight of insulation material0.28 g
Weight2.7 g
.
Environmental requirements
Continuous operating temperature-60 … +105 °C
.
Commercial data
ETIM 9.0EC000489
ETIM 8.0EC000489
PU (SPU)5 pcs
Packaging typeBag
Country of originCN
GTIN4055144067965
Customs tariff number85366990990
.
Information on material specifications can be found her e
Environmental Product Compliance
RoHS Compliance StatusCompliant,No Exemption
.
Downloads
Environmental Product Compliance
Compliance Search
Environmental Product
Compliance 221-942
.
Documentation
Bid T ext
221-942docx
221-942xml
.
27.51 KB
2.96 KB
Page2/3
Continued on next page Version 21.11.2024
Page 3
Data Sheet | Item Number: 221-942
https://www.wago.com/221-942
CAD/CAE-Data
CAD data
2D/3D Models 221-942
.
Installation Notes
Commoning
Extending the N and PE (ground) distributi
on via jumper
.
Commoning
Insert the jumper without a locking functi
on into open clamping units.
.
Commoning
Without a locking function:
The jumper without a locking function is
plugged into the splicing connectors.
.
Commoning
Remove the jumper from open clamping
units.
.
Subject to changes. Please also observe the further product documentation!
Current addresses can be found at:: www.wago. com
