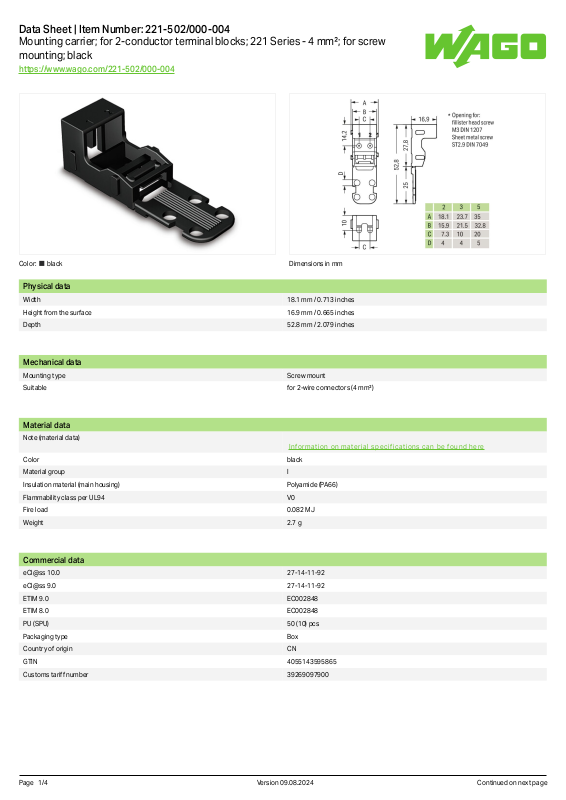

Data Sheet | Item Number: 221-502/000-004
Mounting carrier; for 2-conductor terminal blocks; 221 Series - 4 mm²; for screw
mounting; black
https://www.wago.com/221-502/000-004
Color:blackDimensions in mm
Physical data
Width18.1 mm / 0.713 inches
Height from the surface16.9 mm / 0.665 inches
Depth52.8 mm / 2.079 inches
.
Mechanical data
Mounting typeScrew mount
Suitablefor 2-wire connectors (4 mm²)
.
Material data
Note (material data)
Colorblack
Material groupI
Insulation material (main housing)Polyamide (P A66)
Flammability class per UL94V0
Fire load0.082 MJ
Weight2.7 g
.
Information on material specifications can be found her e
Commercial data
eCl@ss 10.027-14-11-92
eCl@ss 9.027-14-11-92
ETIM 9.0EC002848
ETIM 8.0EC002848
PU (SPU)50 (10) pcs
Packaging typeBox
Country of originCN
GTIN4055143595865
Customs tariff number39269097900
.
Continued on next page Version 09.08.2024 Page1/4
Page 2
Data Sheet | Item Number: 221-502/000-004
https://www.wago.com/221-502/000-004
Environmental Product Compliance
RoHS Compliance StatusCompliant,No Exemption
.
Downloads
Environmental Product Compliance
Compliance Search
Environmental Product
Compliance
221-502/000-004
.
Documentation
Bid T ext
221-502/000-004
19.02.2019
xml
2.71 KB
221-502/000-004
04.01.2018
.
CAD/CAE-Data
CAD data
2D/3D Models
221-502/000-004
.
1 Compatible Products
1.1 Optional Accessories
1.1.1 Marking
1.1.1.1 Marking strip
Item No.: 210-833
Marking strips; 25 m on roll; 6 mm wide;
plain; Self-adhesive; white
.
doc
24.00 KB
CAE data
ZUKEN Portal
221-502/000-004
.
Installation Notes
Inserting a connector into the mounting
carrier.
.
Page2/4
Removing a connector from the mounting
carrier.
Continued on next page Version 09.08.2024
Page 3
Data Sheet | Item Number: 221-502/000-004
https://www.wago.com/221-502/000-004
Conductor termination
Inserting a conductor.
.
Horizontal screw mountingVertical screw mountingHorizontal mounting via snap-in footVertical mounting via snap-in foot
.
Strain relief
Use a cable tie to secure the conductors
to the strain relief plate.
.
T esting
T esting a connector mounted on the carri
er via test slot.
.
Application
Connecting a light to the mains.
.
The strain relief plate can be removed.
Page3/4
Continued on next page Version 09.08.2024
Page 4
Data Sheet | Item Number: 221-502/000-004
https://www.wago.com/221-502/000-004
Marking
Labeling the mounting carrier.
.
Subject to changes. Please also observe the further product documentation!
