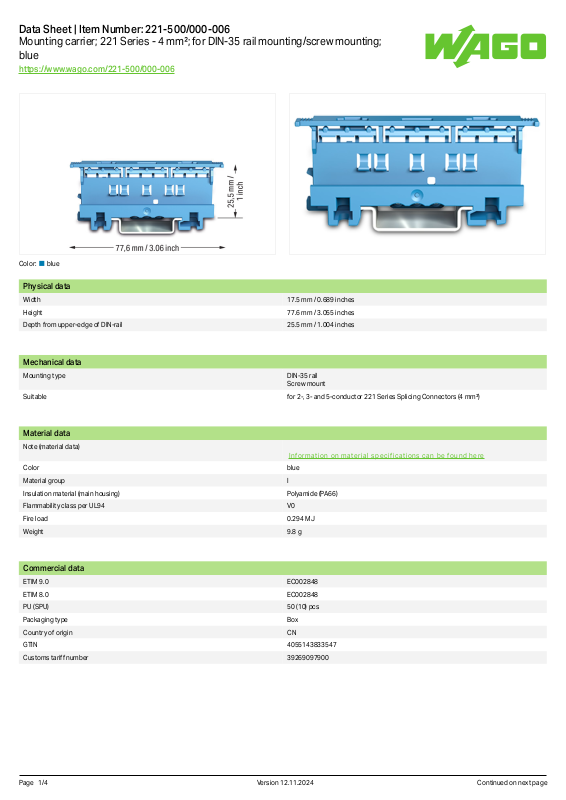

Data Sheet | Item Number: 221-500/000-006
Mounting carrier; 221 Series - 4 mm²; for DIN-35 rail mounting/screw mounting;
blue
https://www.wago.com/221-500/000-006
Color:blue
Physical data
Width17.5 mm / 0.689 inches
Height77.6 mm / 3.055 inches
Depth from upper-edge of DIN-rail25.5 mm / 1.004 inches
.
Mechanical data
Mounting typeDIN-35 rail
Suitablefor 2-, 3- and 5-conductor 221 Series Splicing Connectors (4 mm²)
.
Screw mount
Material data
Note (material data)
Colorblue
Material groupI
Insulation material (main housing)Polyamide (P A66)
Flammability class per UL94V0
Fire load0.294 MJ
Weight9.8 g
.
Information on material specifications can be found her e
Commercial data
ETIM 9.0EC002848
ETIM 8.0EC002848
PU (SPU)50 (10) pcs
Packaging typeBox
Country of originCN
GTIN4055143833547
Customs tariff number39269097900
.
Continued on next page Version 12.11.2024 Page1/4
Page 2
Data Sheet | Item Number: 221-500/000-006
https://www.wago.com/221-500/000-006
Environmental Product Compliance
RoHS Compliance StatusCompliant,No Exemption
.
Downloads
Environmental Product Compliance
Compliance Search
Environmental Product
Compliance
221-500/000-006
.
Documentation
Bid T ext
221-500/000-006xml
3.16 KB
221-500/000-006docx
.
CAD/CAE-Data
CAD data
2D/3D Models
221-500/000-006
.
1 Compatible Products
1.1 Optional Accessories
1.1.1 Marking
1.1.1.1 Marking strip
Item No.: 210-833
Marking strips; 25 m on roll; 6 mm wide;
plain; Self-adhesive; white
.
30.29 KB
CAE data
ZUKEN Portal
221-500/000-006
.
1.1.2 Mounting adapter
1.1.2.1 Mounting accessories
Item No.: 222-510
Angled DIN-rail adapter; in combination
with mounting carrier; 221-500 or
222-500; for DIN-35 rail mounting; gray
.
Page2/4
Item No.: 222-505
Strain relief plate; for mounting carrier;
221 or 222 Series, can be snapped
Continued on next page Version 12.11.2024
Page 3
Data Sheet | Item Number: 221-500/000-006
https://www.wago.com/221-500/000-006
Installation Notes
Conductor termination
CAGE CLAMP® connection:
Conductor termination with connectors
fitted in a mounting carrier
.
Inserting a connector into the mounting
carrier.
.
Securing a strain relief plate (222-505) to
the mounting carrier.
Removing a conductor .
Inserting a connector into the mounting
carrier.
Snapping the angled DIN-rail adapter
(222-510) onto the mounting carrier.
Removing a connector from the mounting
carrier.
Horizontal mounting on DIN-35 rail using
an angled DIN-rail adapter
Horizontal mounting on DIN-35 rail using
an angled DIN-rail adapter
Horizontal screw mounting with strain reli
ef plate on a flat surface
Mounting carrier on a DIN-35 rail
.
T esting
T esting connectors via test slots on top of
the carrier.
.
Vertical mounting with strain relief plate
on DIN-35 rail
Strain relief via cable ties on the moun
ting carrier (transverse to the connectors'
wiring direction) – clamping units labeled
via marking strips (210-334)
Vertical screw mounting with strain relief
plate on a flat surface
Page3/4
Continued on next page Version 12.11.2024
Page 4
Data Sheet | Item Number: 221-500/000-006
https://www.wago.com/221-500/000-006
Ex application
Carriers with a blue insulated housing are
suitable for Ex i applications. Both clearan
ces and creepage distances for the pro
tection type “intrinsic safety Ex i” must be
observed.
.
Subject to changes. Please also observe the further product documentation!
Current addresses can be found at:: www.wago. com
Page4/4
Version 12.11.2024
