PRODUCT INFORMATION PACKET

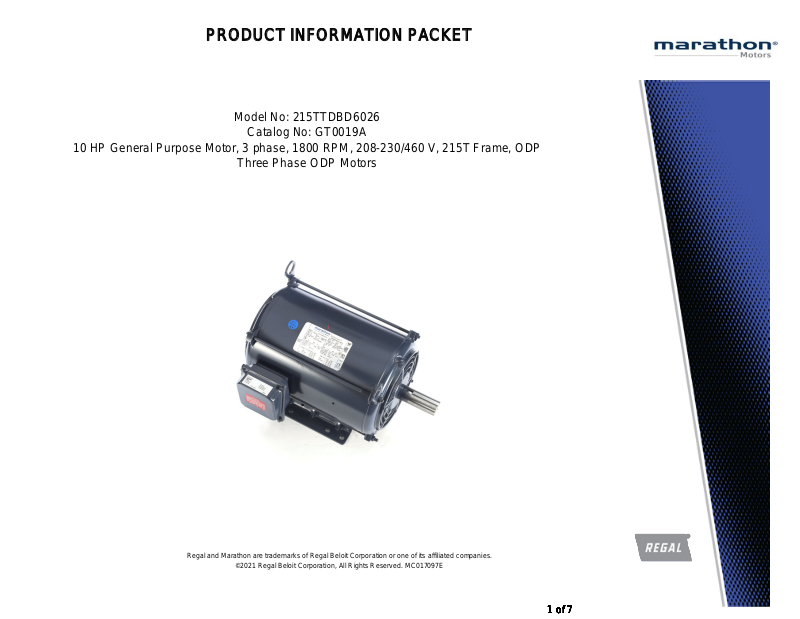

Model No: 215TTDBD6026
Catalog No: GT0019A
10 HP General Purpose Motor, 3 phase, 1800 RPM, 208-230/460 V, 215T Frame, ODP
Three Phase ODP Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2021 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 71 of 7
Page 2
Product Information Packet: Model No: 215TTDBD6026, Catalog No:GT0019A 10 HP General Purpose Motor, 3 phase, 1800 RPM, 208-230/460 V,
215T Frame, ODP
Nameplate Specifications
Output HP 10 Hp Output KW 7.5 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 27.7-25.4/12.7 A Speed 1768 rpm
Service Factor 1.15 Phase 3
Efficiency 91.7 % Power Factor 80.1
Duty Continuous Insulation Class F
Design Code B KVA Code H
Frame 215T Enclosure Drip Proof
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6307 Opp Drive End Bearing Size 6206
UL Recognized CSA Y
CE Y IP Code 22
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Resistance Main 1.217 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type T Overall Length 17.52 in
Shaft Diameter 1.375 in Shaft Extension 3.38 in
Assembly/Box Mounting F1/F2 CAPABLE

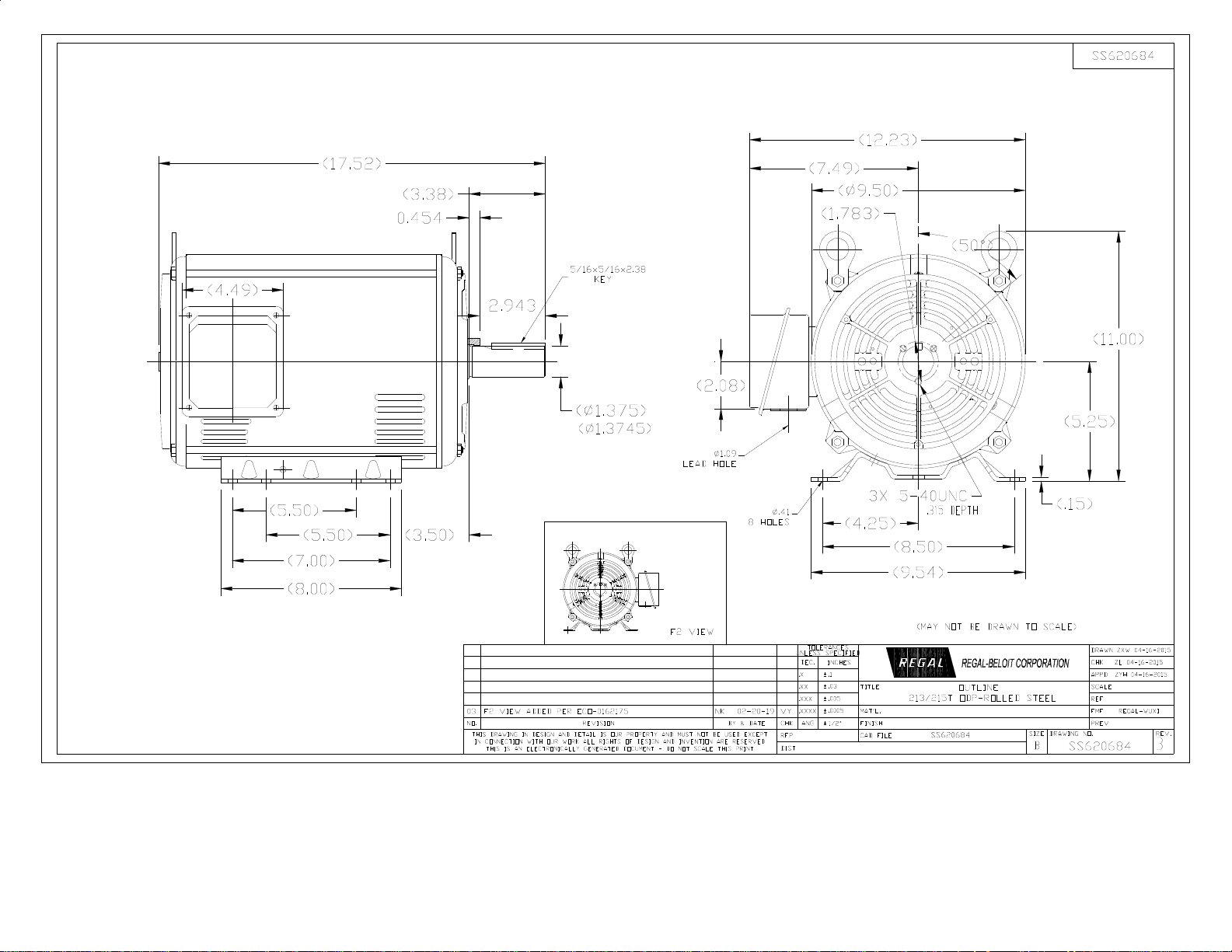

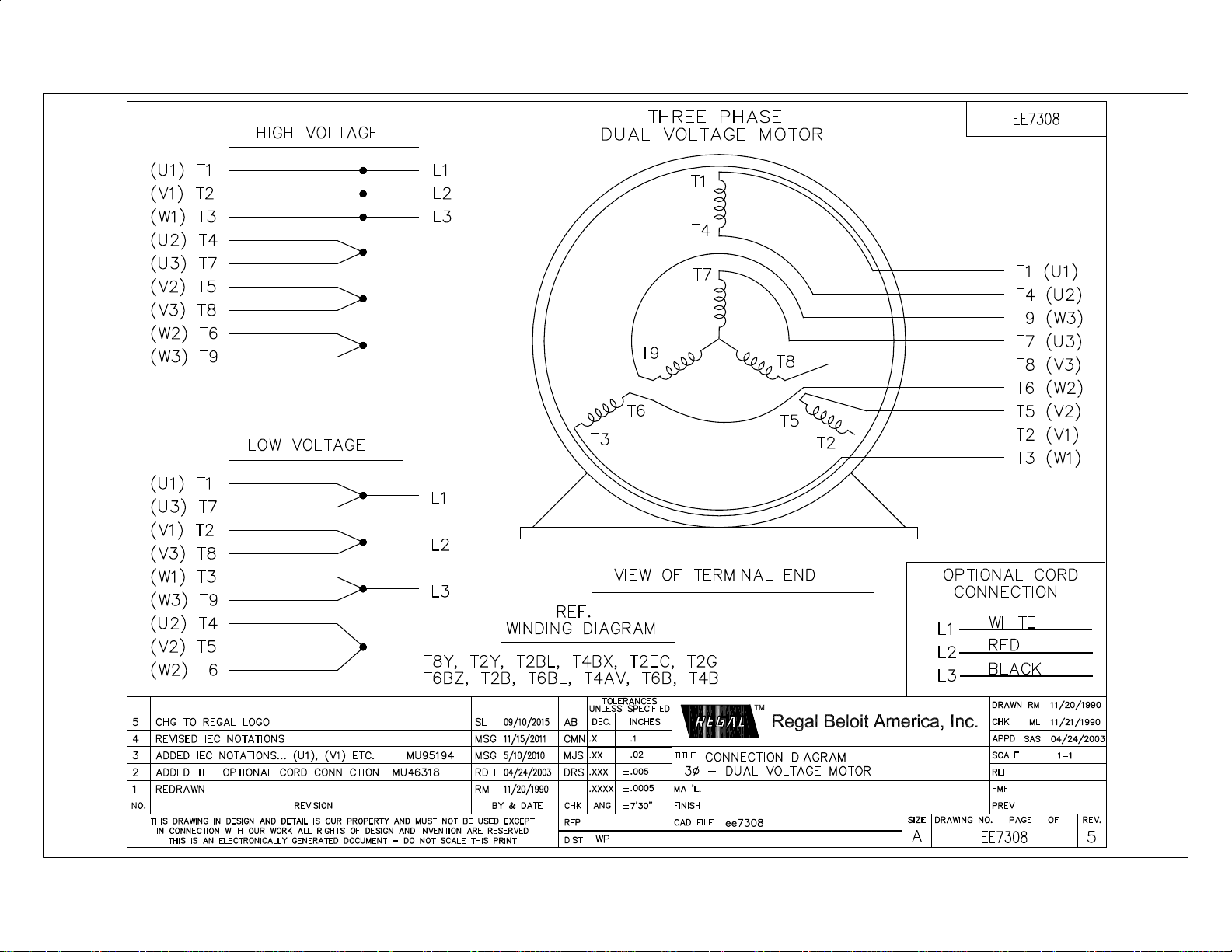

Connection Drawing EE7308 Outline Drawing SS620684
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:06/01/2021
2 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 72 of 7
Page 3
Uncontrolled Copy
3 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 73 of 7
Page 4
Uncontrolled Copy
4 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 74 of 7
Page 5
Uncontrolled Copy
5 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 75 of 7
Page 6
P.O. BOX 8003
WAUSAU, WI 54401-8003
PH. 715-675-3311
CERTIFICATION DATA SHEET
CUSTOMER:
CUSTOMER
PO#:
ORDER #:
MODEL #: 215TTDBD6026 BB
CONN. DIAGRAM: A-EE7308
CUSTOMER PART
#:
OUTLINE: SS620684
MOUNTING:
F1/F2 CAPABLE
WINDING #: HE31324016 2
TYPICAL MOTOR PERFORMANCE DATA
HPkWSYNC. RPM
F.L. RPM
FRAME
ENCLOSURE
KVA CODE
DESIGN
10&7 1/2
7.50&5.60
1800
1768&1470
215T DPG
B
PH HzVOLTS
AMPS
START TYPE
DUTY
INSL
S.F.
AMB°C
3
60/50
230/460&190/380
25.4/12.7&23.4/11.7
LINE OR INVERTER
CONTINUOUS
F7
1.15/1.15
40
FULL LOAD EFF: 91.7&91
3/4 LOAD EFF: 91.9
1/2 LOAD EFF: 90.9
GTD. EFF
ELEC. TYPE
FULL LOAD PF: 80.1&80
3/4 LOAD PF: 75.8
1/2 LOAD PF: 65.1
91
SQ CAGE INV RATED
F.L. TORQUE
LOCKED ROTOR AMPS
L.R. TORQUE
B.D. TORQUE
F.L. RISE°C
29.8 LB-FT
158 / 79
61 LB-FT 205 %
73 LB-FT 246 %
50
SOUND PRESSURE
@ 3 FT.
SOUND POWER
ROTOR WK^2
MAX. WK^2
SAFE STALL TIME
STARTS /
HOUR
APPROX.
MOTOR WGT
47 dBA
57 dBA
1 LB-FT^2
79 LB-FT^2
15 SEC.
2
144 LBS.
*** SUPPLEMENTAL INFORMATION ***
DE BRACKET
TYPE
ODE BRACKET
TYPE
MOUNT
TYPE
ORIENTATION
SEVERE
DUTY
HAZARDOUS
LOCATION
DRIP
COVER
SCREENS
PAINT
STANDARD
STANDARD
RIGID
HORIZONTAL
FALSE
NONE
FALSE
NONE
BLUE (ENAMEL)
BEARINGS
GREASE
SHAFT TYPE
SPECIAL DE
SPECIAL ODE
SHAFT
MATERIAL
FRAME
MATERIAL
DE
ODE
BALL
BALL
POLYREX EM
T
NONE
NONE
1045 HOT ROLLED (C-204)
ROLLED STEEL
6307
6206
THERMO-PROTECTORS
THERMISTORS
CONTROL
SPACE HEATERS
THERMOSTATS
PROTECTORS
WDG RTDs
BRG RTDs
NONE
NOT
NONE
NONE
NONE
FALSE
NONE VOLTS
*
N
O
T
E
S
*
PREPARED BY: Anusha Muthyala
DATE:
FORM 3531 REV.3 02/07/99
** Subject to change without notice.
09/24/2019 12:48:25 AM
INVERTER
TORQUE:
INV. HP SPEED RANGE:
CONSTANT 2:1/VARIABLE 10:1
NONE
ENCODER:
PPR
NONE
NONE
NONE
NONE
NONE
BRAKE:
P/N
FT-LB V Hz
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
Page 1 of 1
Generic Customer Submittal Report
9/24/2019
http://rbweb.corp.regalbeloit.com/msa/customerSubmittalReport.do?invoke=viewCusto...
Uncontrolled Copy
