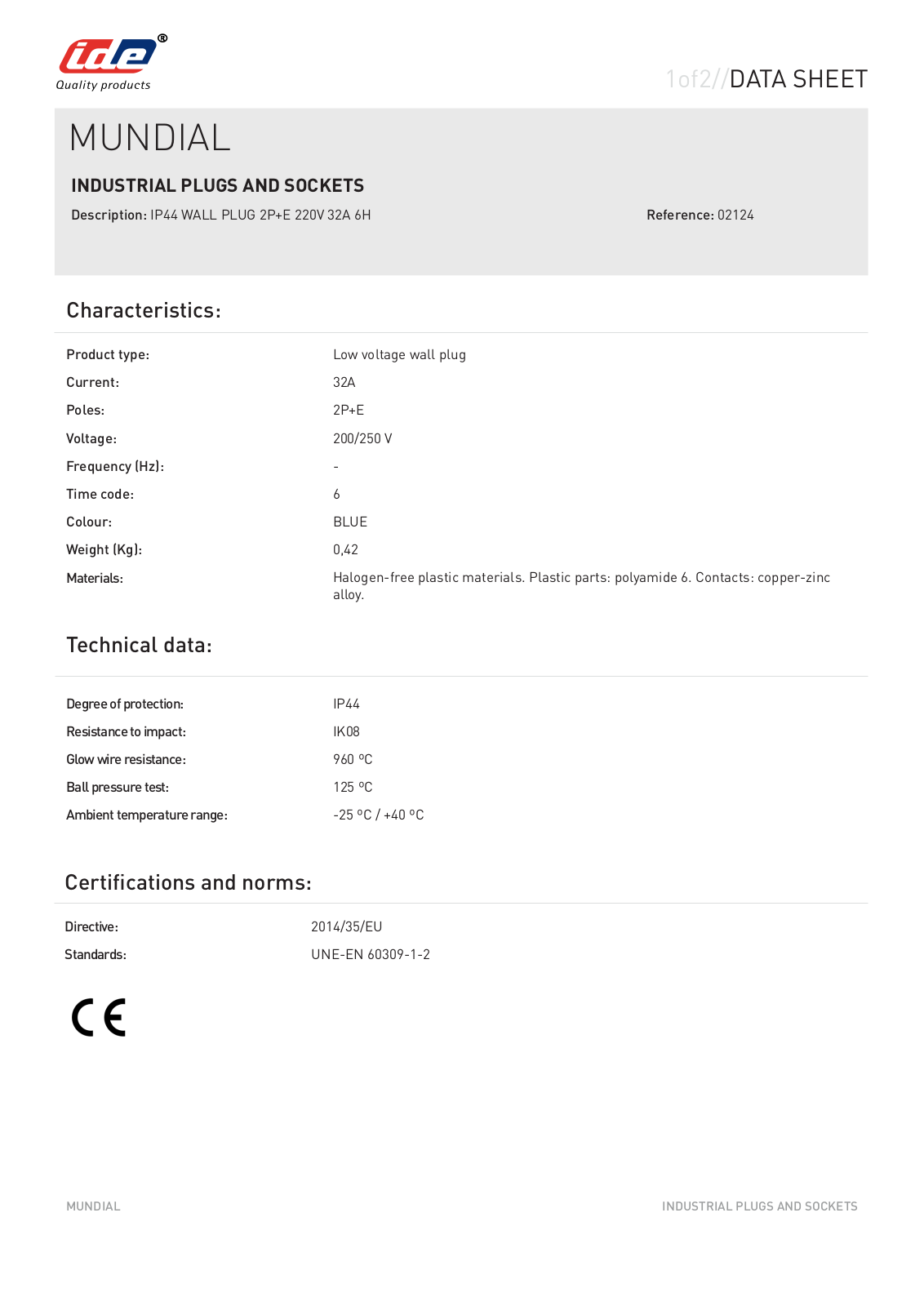

Page 1
MUNDIAL
INDUSTRIAL PLUGS AND SOCKETS
1of2//DATA SHEET
Description:
Characteristics:
Product type:
Current:
Poles:
Voltage:
Frequency (Hz):
Time code:
Colour:
Weight (Kg):
Materials:
Technical data:
Reference:IP44 WALL PLUG 2P+E 220V 32A 6H
Low voltage wall plug
32A
2P+E
200/250 V
-
6
BLUE
0,42
Halogen-free plastic materials. Plastic parts: polyamide 6. Contacts: copper-zinc
alloy.
02124
Degree of protection:
Resistance to impact:
Glow wire resistance:
Ball pressure test:
Ambient temperature range:
Certifications and norms:
Directive:
Standards:
IP44
IK08
960 ºC
125 ºC
-25 ºC / +40 ºC
2014/35/EU
UNE-EN 60309-1-2
MUNDIAL INDUSTRIAL PLUGS AND SOCKETS

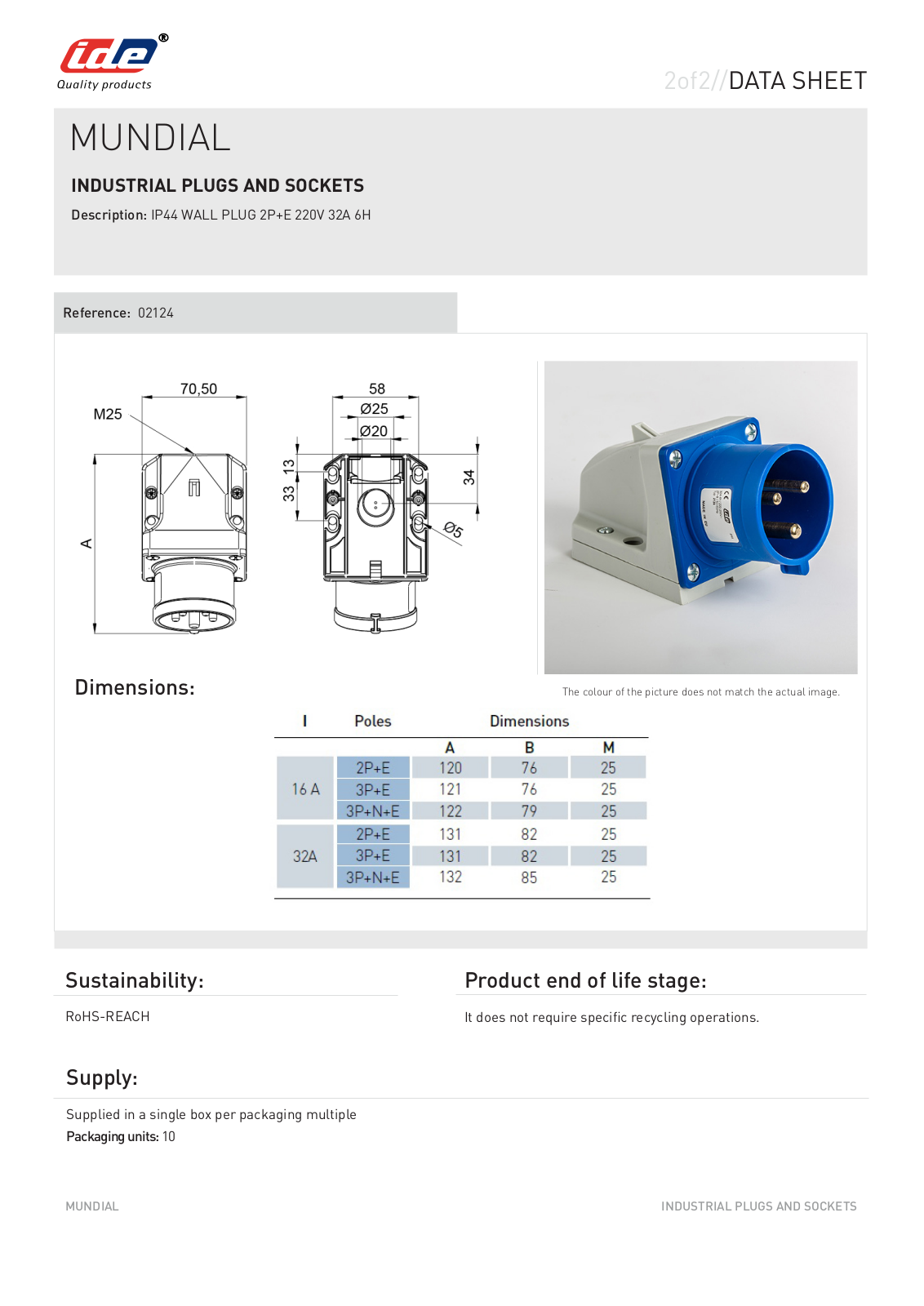

Page 2
MUNDIAL
INDUSTRIAL PLUGS AND SOCKETS
2of2//DATA SHEET
Description:
IP44 WALL PLUG 2P+E 220V 32A 6H
02124Reference:
Dimensions:
Sustainability:
RoHS-REACH
Supply:
Supplied in a single box per packaging multiple
Packaging units: 10
The colour of the picture does not match the actual image.
Product end of life stage:
It does not require specific recycling operations.
MUNDIAL INDUSTRIAL PLUGS AND SOCKETS
