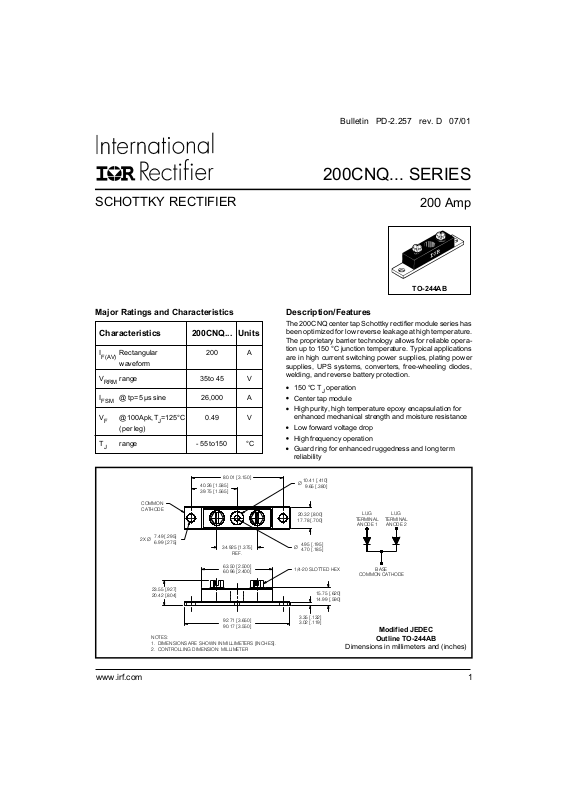

Page 1
Bulletin PD-2.257 rev. D 07/01
200CNQ... SERIES
SCHOTTKY RECTIFIER
Major Ratings and Characteristics
Characteristics 200CNQ... Units
I
Rectangular 200 A
F(AV)
waveform
V
range 35 to 45 V
RRM
I
@ tp = 5 µs sine 26,000 A
FSM
VF@ 100Apk, TJ=125°C 0.49 V
(per leg)
TJrange - 55 to 150 °C
80.01 [3. 150]
40.26 [1. 585]
39.75 [1. 565]
COMMON
CATHODE
7.49 [.295]
2X Ø
6.99 [.275]
23.55 [.927]
20.42 [.804]
34.925 [1.375]
REF.
63.50 [2. 500]
60.96 [2. 400]
200 Amp
TO-244AB
Description/Features
The 200CNQ center tap Schottky rectifier module series has
been optimized for low reverse leakage at high temperature.
The proprietary barrier technology allows for reliable operation up to 150 °C junction temperature. Typical applications
are in high current switching power supplies, plating power
supplies, UPS systems, converters, free-wheeling diodes,
welding, and reverse battery protection.
150 °C TJ operation
Center tap module
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
10.41 [.410]
Ø
9.65 [.380]
20.32 [.800]
17.78 [.700]
4.95 [.195]
Ø
4.70 [.185]
1/4-20 SLOTTED HEX
15.75 [.620]
14.99 [.590]
LUG
TERMINAL
ANODE 1
COMMON CATHODE
BASE
LUG
TERMINAL
ANODE 2
www.irf.com
92.71 [3. 650]
90.17 [3. 550]
NOTES:
1. DIMENSIONS ARE SHOWN IN MILLIMET ERS [INCHES].
2. CONTROLLING DIMENSION: MILLIMETER
3.35 [.132]
3.02 [.119]
Modified JEDEC
Outline TO-244AB
Dimensions in millimeters and (inches)
1
Page 2
200CNQ... Series
Bulletin PD-2.257 rev. D 07/01
Voltage Ratings
Part number 200CNQ035 200CNQ040 200CNQ045
VRMax. DC Reverse Voltage (V)
V
Max. Working Peak Reverse Voltage (V)
RWM
35 40 45
Absolute Maximum Ratings
Parameters 200CNQ Units Conditions
I
Max. Average Forward (Per Leg) 100 A 50% duty cycle @ TC = 114 °C, rectangular wave form
F(AV)
Current * See Fig. 5 (Per Device) 200
I
Max. Peak One Cycle Non-Repetitive 26,000 5µs Sine or 3µs Rect. pulse
FSM
Surge Current (Per Leg) * See Fig. 7 1550 10ms Sine or 6ms Rect. pulse
EASNon-Repetitive Avalanche Energy 135 mJ T
(Per Leg)
I
Repetitive Avalanche Current 20 A Current decaying linearly to zero in 1 µsec
AR
(Per Leg) Frequency limited by TJ max. VA = 1.5 x VR typical
A
= 25 °C, I
J
= 20 Amps, L = 0.67 mH
AS
Following any rated
load condition and with
rated V
RRM
applied
Electrical Specifications
Parameters 200CNQ Units Conditions
VFMMax. Forward Voltage Drop 0.54 V @ 100A
(Per Leg) * See Fig. 1 (1) 0.68 V @ 200A
0.49 V @ 100A
0.64 V @ 200A
I
Max. Reverse Leakage Current 10 mA TJ = 25 °C
RM
(Per Leg) * See Fig. 2 (1) 500 mA TJ = 125 °C
V
Threshold Voltage 0.32 V TJ = TJ max.
F(TO)
r
Forward Slope Resistance 0.81 mΩ
t
CTMax. Junction Capacitance (Per Leg) 5200 pF VR = 5VDC, (test signal range 100Khz to 1Mhz) 25°C
LSTypical Series Inductance (Per Leg) 7.0 nH From top of terminal hole to mounting plane
dv/dt Max. Voltage Rate of Change 10000 V/ µs
(Rated VR)
Thermal-Mechanical Specifications
Parameters 200CNQ Units Conditions
TJMax. Junction Temperature Range - 55 to 150 °C
T
Max. Storage Temperature Range - 55 to 150 °C
stg
R
Max. Thermal Resistance Junction 0.40 °C/W DC operation * See Fig. 4
thJC
to Case (Per Leg)
R
Max. Thermal Resistance Junction 0.20 °C/W DC operation
thJC
to Case (Per Package)
R
Typical Thermal Resistance, Case 0.10 °C/W Mounting surface , smooth and greased
thCS
to Heatsink
wt Approximate Weight 79 (2.80) g (oz.)
T Mounting Torque Base Min. 24 (20)
Max. 35 (30)
Mounting Torque Center Hole Typ. 13.5 (12)
Terminal Torque Min. 35 (30)
Max. 46 (40)
Case Style TO - 244AB Modified JEDEC
Kg-cm
(Ibf-in)
TJ = 25 °C
TJ = 125 °C
VR = rated V
(1) Pulse Width < 300µs, Duty Cycle <2%
R
2
www.irf.com
Page 3
200CNQ... Series
Bulletin PD-2.257 rev. D 07/01
1000
10000
R
1000
100
10
T = 150 C
J
125 C
100 C
75 C
1
100
F
Reverse Current - I (mA)
0.1
0.01
T = 150 C
J
T = 125 C
J
T = 25 C
10
In st ant a n eous Fo rw ard C urre n t - I (A )
J
10000
T
50 C
25 C
0 5 10 15 20 25 30 35 40 45
Reverse Voltage - V (V)
R
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage (Per Leg)
T = 25 C
J
1
0 0.2 0.4 0.6 0.8 1
Fig. 1 - Max. Forward Voltage Drop Characteristics
Thermal Impedance Z ( C/W)
www.irf.com
Junction Capacitance - C (pF)
1000
0 1020304050
Forward V olta ge D rop - V (V )
FM
Reverse Voltage - V (V)
Fig. 3 - Typical Junction Capacitance
(Per Leg)
1
D = 0.75
D = 0.50
D = 0.33
D = 0.25
0.1
thJC
D = 0.20
Single Pu lse
0.01
(Therm al Re sistance)
Notes:
1. Duty factor D = t / t
2. Peak T = P x Z + T
0.001
0.00001 0.0001 0.001 0.01 0.1 1 10
t , Rectang ular Pulse Dura tion (Second s)
1
Fig. 4 - Max. Thermal Impedance Z
Characteristics (Per Leg)
thJC
Vs. Reverse Voltage (Per Leg)
P
DM
t
1
t
2
1
DM
thJC
J
R
2
C
3
Page 4
200CNQ... Series
Bulletin PD-2.257 rev. D 07/01
160
150
140
130
DC
120
110
Square wave (D = 0.50)
100
80% Rated V a pplied
90
R
80
70
Allowable Case Temperature - ( C)
see note (2)
60
0 306090120150
Averag e Fo rwa rd C urrent - I (A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current (Per Leg)
100000
FSM
10000
F(AV)
At Any Rated Load Condition
An d W ith Rated V Ap plied
Fo llowing S urg e
RRM
80
D = 0.20
70
D = 0.25
D = 0.33
60
D = 0.50
D = 0.75
50
40
RMS Limit
DC
30
20
Average Power Loss - (Watts)
10
0
0 306090120150
Averag e Fo rward C urrent - I (A)
Fig. 6 - Forward Power Loss Characteristics
(Per Leg)
F(AV)
DUT
CURRENT
MONITOR
(2) Formula used: TC = TJ - (Pd + Pd
Pd = Forward Power Loss = I
Pd
= Inverse Power Loss = VR1 x IR (1 - D); IR @ V
REV
F(AV)
4
Non-Re petitive S urge Curren t - I (A)
1000
10 100 1000 10000
Square W a ve Pulse D uration - t (m ic rosec)
p
Fig. 7 - Max. Non-Repetitive Surge Current (Per Leg)
L
HIGH-SPEED
IRFP460
Rg = 25 ohm
SW ITCH
FREE-WHEEL
DIO D E
40HFL40S02
Fig. 8 - Unclamped Inductive Test Circuit
) x R
thJC
;
F(AV)
/ D) (see Fig. 6);
= 80% rated V
R1
R
REV
x VFM @ (I
Vd = 25 Volt
+
www.irf.com
Page 5
200CNQ... Series
Bulletin PD-2.257 rev. D 07/01
This product has been designed and qualified for Industrial Level.
Data and specifications subject to change without notice.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 07/01
www.irf.com
5
