Datasheet 2008Catalog Datasheet

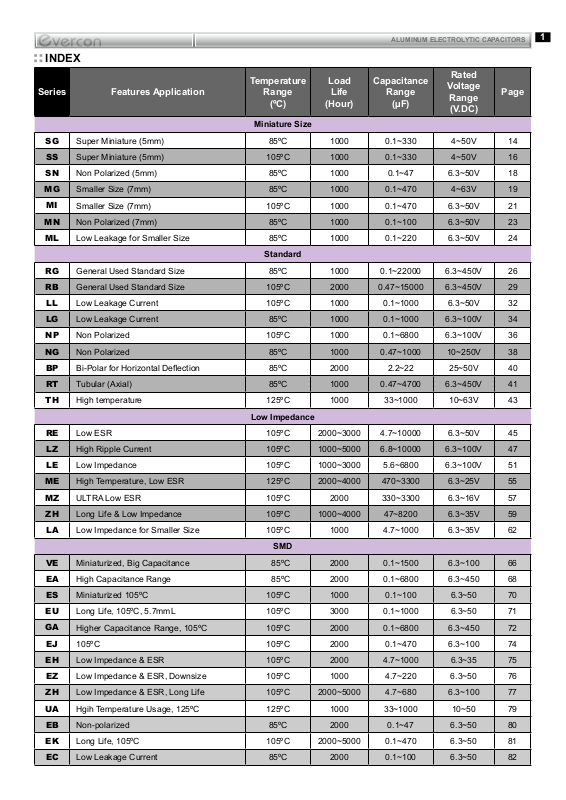

INDEX

Series Features Application

Temperature

Range

(ºC)

Miniature Size

Load

Life

(Hour)

ALUMINUM ELECTROLYTIC CAPACITORS

Capacitance

Range

(µF)

Rated

Voltage

Range
(V.DC)

1

Page

SG

SS

SN

MG

MI

MN

ML

RG

RB

LL

LG

NP

NG

BP

RT

TH

Super Miniature (5mm) 85ºC 1000 0.1~330 4~50V 14

Super Miniature (5mm) 105ºC 1000 0.1~330 4~50V 16

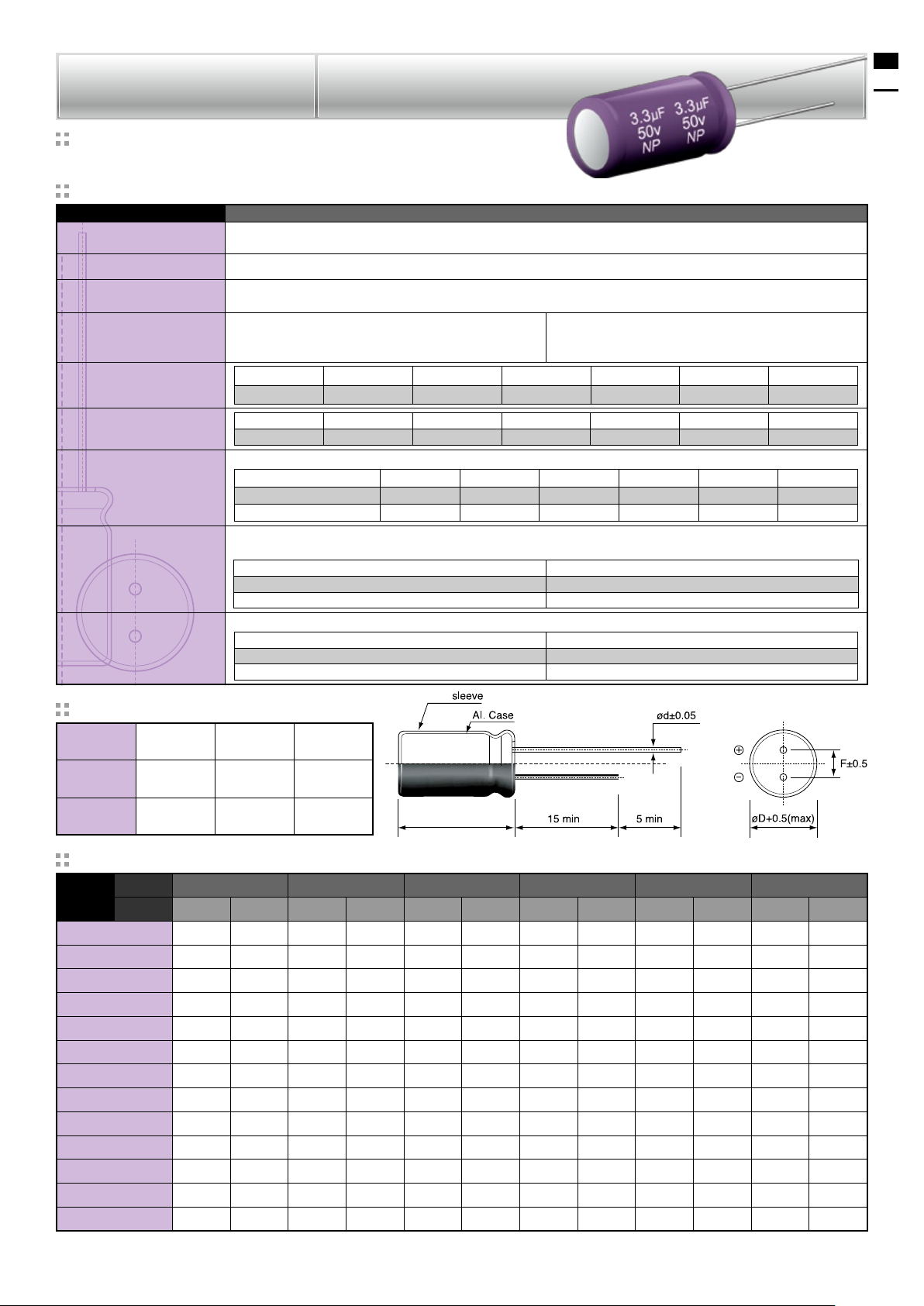

Non Polarized (5mm) 85ºC 1000 0.1~47 6.3~50V 18

Smaller Size (7mm) 85ºC 1000 0.1~470 4~63V 19

Smaller Size (7mm) 105ºC 1000 0.1~470 6.3~50V 21

Non Polarized (7mm) 85ºC 1000 0.1~100 6.3~50V 23

Low Leakage for Smaller Size 85ºC 1000 0.1~220 6.3~50V 24

Standard

General Used Standard Size 85ºC 1000 0.1~22000 6.3~450V 26

General Used Standard Size 105ºC 2000 0.47~15000 6.3~450V 29

Low Leakage Current 105ºC 1000 0.1~1000 6.3~50V 32

Low Leakage Current 85ºC 1000 0.1~1000 6.3~100V 34

Non Polarized 105ºC 1000 0.1~6800 6.3~100V 36

Non Polarized 85ºC 1000 0.47~1000 10~250V 38

Bi-Polar for Horizontal Deection 85ºC 2000 2.2~22 25~50V 40

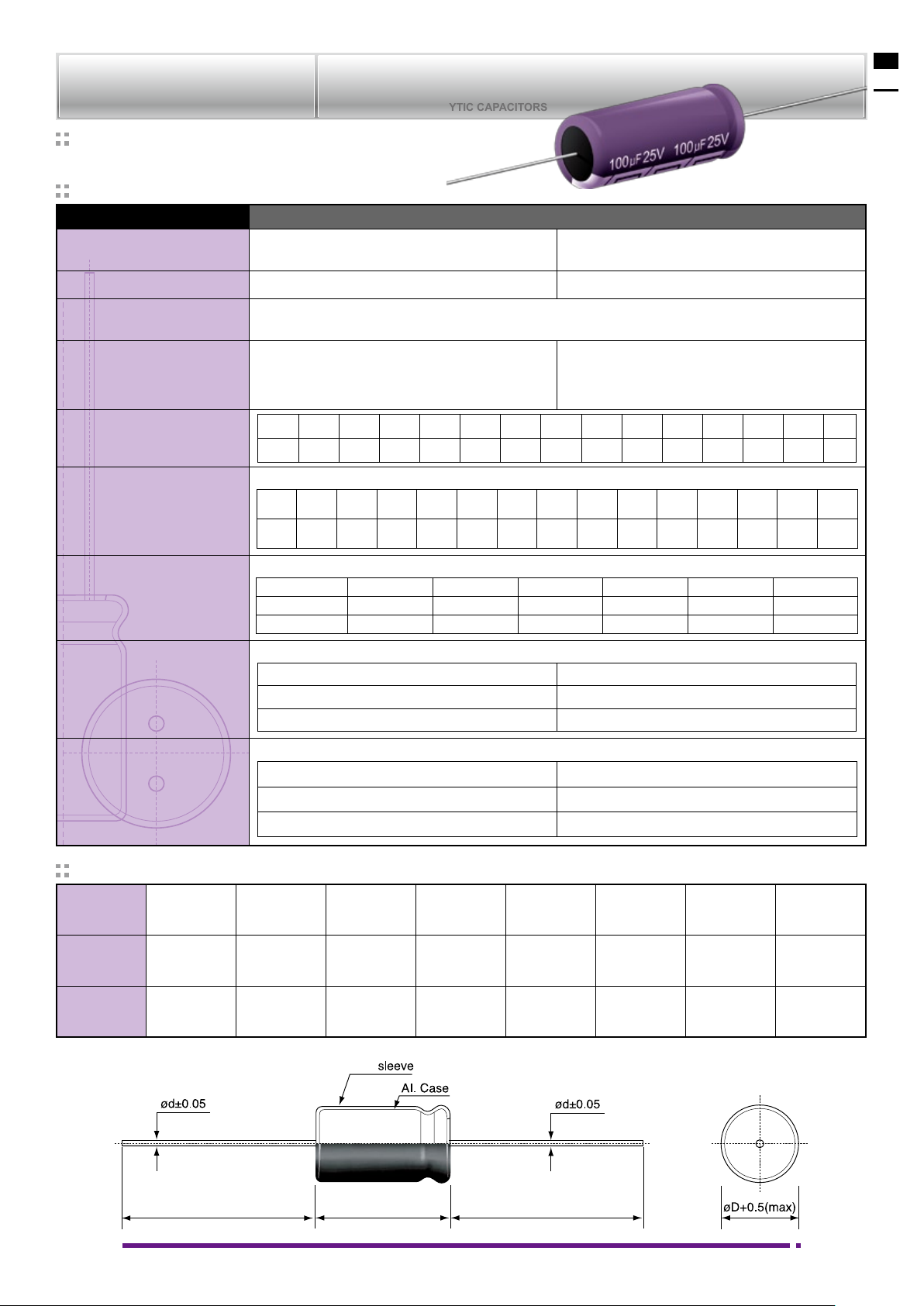

Tubular (Axial) 85ºC 1000 0.47~4700 6.3~450V 41

High temperature 125ºC 1000 33~1000 10~63V 43

RE

LZ

LE

ME

MZ

ZH

LA

VE

EA

ES

EU

GA

EJ

EH

EZ

Low Impedance

Low ESR 105ºC 2000~3000 4.7~10000 6.3~50V 45

High Ripple Current 105ºC 1000~5000 6.8~10000 6.3~100V 47

Low Impedance 105ºC 1000~3000 5.6~6800 6.3~100V 51

High Temperature, Low ESR 125ºC 2000~4000 470~3300 6.3~25V 55

ULTRA Low ESR 105ºC 2000 330~3300 6.3~16V 57

Long Life & Low Impedance 105ºC 1000~4000 47~8200 6.3~35V 59

Low Impedance for Smaller Size 105ºC 1000 4.7~1000 6.3~35V 62

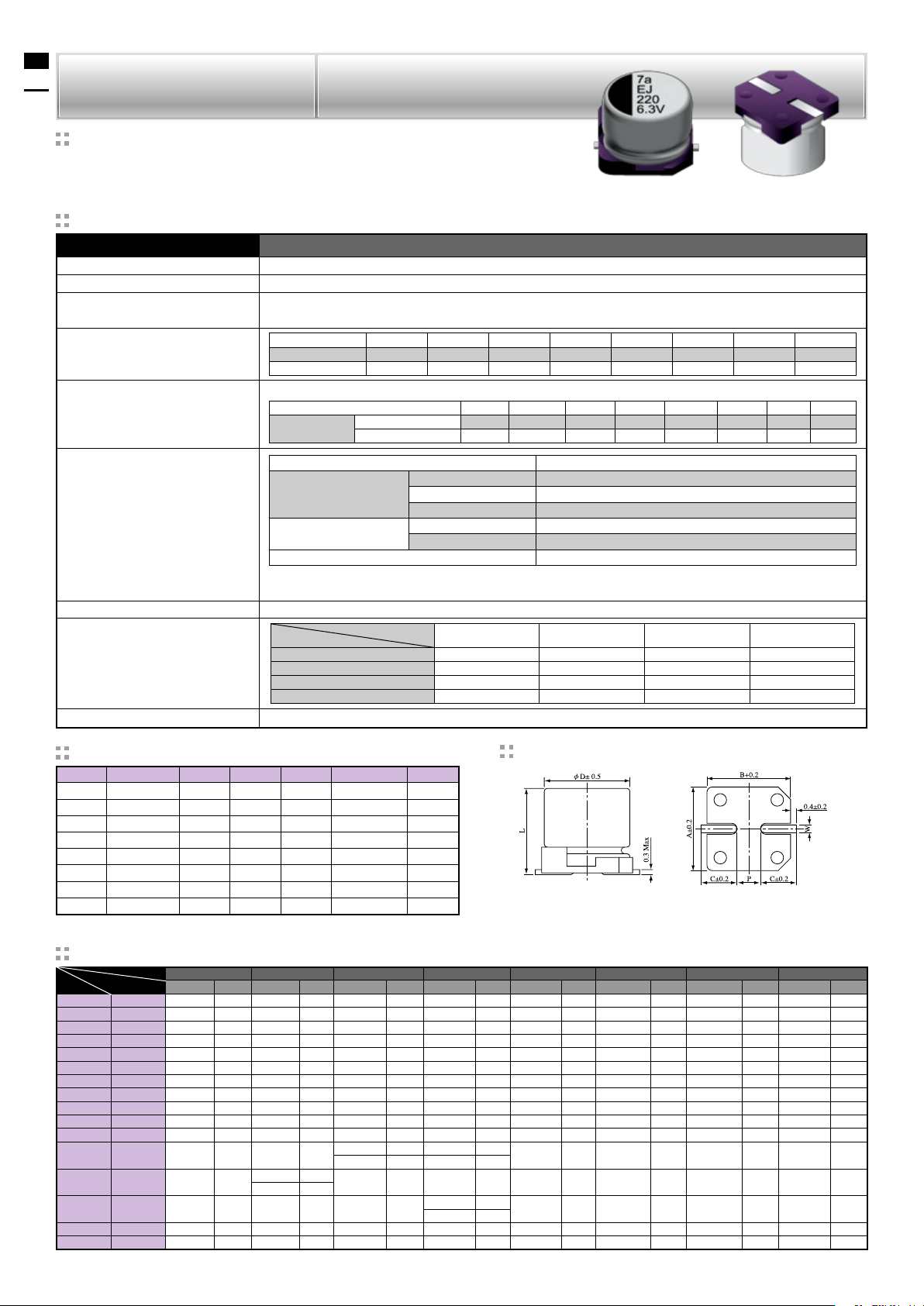

SMD

Miniaturized, Big Capacitance 85ºC 2000 0.1~1500 6.3~100 66

High Capacitance Range 85ºC 2000 0.1~6800 6.3~450 68

Miniaturized 105ºC 105ºC 1000 0.1~100 6.3~50 70

Long Life, 105ºC, 5.7mmL 105ºC 3000 0.1~1000 6.3~50 71

Higher Capacitance Range, 105ºC 105ºC 2000 0.1~6800 6.3~450 72

105ºC 105ºC 2000 0.1~470 6.3~100 74

Low Impedance & ESR 105ºC 2000 4.7~1000 6.3~35 75

Low Impedance & ESR, Downsize 105ºC 1000 4.7~220 6.3~50 76

ZH

UA

EB

EK

EC

Low Impedance & ESR, Long Life 105ºC 2000~5000 4.7~680 6.3~100 77

Hgih Temperature Usage, 125ºC 125ºC 1000 33~1000 10~50 79

Non-polarized 85ºC 2000 0.1~47 6.3~50 80

Long Life, 105ºC 105ºC 2000~5000 0.1~470 6.3~50 81

Low Leakage Current 85ºC 2000 0.1~100 6.3~50 82

ALUMINUM ELECTROLYTIC CAPACITORS

2

CAUTION FOR PROPER USE OF ALUMINUM ELECTROLYTIC CAPACITORS I

Upon using Aluminum Electrolytic Capacitors, please pay attention to the points listed below.

When the following types of electrical loads indicated below are applied to Aluminum Electrolytic Capacitors, rapid deterioration of electrical property
occurs:

• Reverse voltage

• Voltage exceeds rated working voltage

• Rated ripple current is exceeded

• Severe charging / discharging

At such times, severe heat is generated, gas is emitted, then electrolyte leaks from the sealing area, and pressure relief vent operates due to inter-

nal pressure.

In the worst case, explosion or ignition may occur, and along with destruction of the capacitor combustibles may burst out.

1. CAUTION DURING CIRCUIT DESIGN

1-1 OPERATIONAL ENVIRONMENT, MOUNTING ENVIRONMENT AND CONDITIONS.

►Ensure that operational and mounting conditions follow the specified conditions detailed in the catalog and specification sheets.

1-2 OPERATING TEMPERATURE, RIPPLE CURRENT AND LOAD LIFE

►Operating temperature and applied ripple current should be within the specied value in the catalog or specication sheets

1-2-1 Do not use Aluminum Electrolytic Capacitors at temperature which exceeds the specied category temperature range.
1-2-2 Do not apply excessive current to the capacitors, which exceeds the specied rated ripple current. During circuit design, please ensure that

capacitors are selected to match with the lifetime requirements of the application.

1-3 APPLICATION

►Aluminum Electrolytic Capacitors are normally polarized. Reverse voltage or AC voltage should not be applied. When polarity of applied voltage

is uncertain or when the polarity may ip over, non - polar type capacitors should be used, but the non - polar type cannot be used for AC circuit.

►Standard Aluminum Electrolytic Capacitors are not suitable for rapid charge and discharge applications.

1-4 APPLIED VOLTAGE

►Do not exceed the rated voltage of capacitors.

1-5 INSULATION

►Aluminum Electrolytic Capacitors should be electrically isolated from the aluminum case, cathode lead wire, anode lead wire and circuit pattern.
►The PVC sleeve of Aluminum Electrolytic Capacitors is not recognized as an insulator, and therefore, the standard capacitor should not be used

in a place where insulation function is needed. Please consult with Gen Sales should you require a higher grade of insulating sleeve.

1-6 CONDITIONS OF USE

►The following environment should be avoided when using Aluminum Electrolytic Capacitors.

1-6-1 Damp conditions such as water, salt water spray, or oil spray or fumes. High humidity or humidity condensation situations.
1-6-2 Hazardous gas / fumes such as hydrogen sulde, sulfurous acid gas, nitrous acid, chlorine gas, ammonia or bromine gas.
1-6-3 Exposure to ozone, ultraviolet rays or radiation.
1-6-4 Severe vibration or shock which exceeds the condition specied in the catalog or specication sheets.

1-7 CONSIDERATION TO ASSEMBLY CONDITION.

►In designing a circuit, the following matters should be ensured in advance to the capacitors assembly on the printed Wiring board (PW board).

1-7-1 Design the appropriate hole spacing to match the lead pitch of capacitors.
1-7-2 Do not locate any wiring and circuit patterns directly above the capacitor’s vent.
1-7-3 Ensure enough free space above the capacitor’s vent. The recommended space is specied in the catalog or specication sheets.
1-7-4 In case the capacitor’s vent is facing the PW board, make a gas release hole on PW board.

1-8 CONSIDERATION TO CIRCUIT DESIGN

►Any copper lines or circuit patterns should not be laid under the capacitor.
►Parts which radiate heat should not be placed close to or reverse side of the Aluminum Electrolytic Capacitors on the PW board.

1-9 OTHERS

►Performance of electrical characteristics Of Aluminum Electrolytic Capacitors are affected by variation of operating temperature and frequency.

Consider this variation when designing the circuit.

►Excessive holes and connection hole between both sides on the PW board should be avoided around or under the mounting area of the

Aluminum Electrolytic Capacitors on double sided or multilayer PW board.

►Consider current balance when 2 or more Aluminum Electrolytic Capacitors are connected in parallel.
►Use bleeder resistors when 2 or more Aluminum Electrolytic Capacitors are connected in series. In this case, the resistors should be connected

parallel to the capacitors.

2. CAUTION FOR ASSEMBLING CAPACITORS

2-1 CAUTION BEFORE ASSEMBLY

►Aluminum Electrolytic Capacitors can not be recycled after mounting and applying electricity in unit. The capacitors which are removed from PW

board for the purpose of measuring electrical characteristics at the periodical inspection should only be recycled for the same position.

►Aluminum Electrolytic Capacitors may accumulate charge naturally during storage. In this case, discharge through a 1kΩ resistor before use.
►Leakage current of Aluminum Electrolytic Capacitors may be increased during long storage time. In this case, the capacitors should be subject

to voltage treatment through a 1kΩ resistor before use.

2-2 IN THE ASSEMBLY PROCESS - 1

►Ensure rated voltage and capacitance of the capacitors before mounting.
►Ensure the capacitor’s polarity before mounting.
►Do not use a capacitor which has been dropped onto a hard Surface.
►Do not use capacitors with damaged or dented cases or seals.

2-3 IN THE ASSEMBLY PROCESS - 2

ALUMINUM ELECTROLYTIC CAPACITORS

3

►Capacitors should be mounted after conrmation that hole spacing on PW board matches the lead pitch of the capacitors.
►Avoid excessive force when clinching lead wire during auto-insertion process.
►Avoid excessive shock to capacitors by automatic insertion machine, during mounting, parts inspection or centering operations.
►Please utilize supporting material such as strap or adhesive to mount capacitors to PC board when it is anticipated that vibration or shock is

applied.

2-4 SOLDERING

►Soldering conditions (temperatures, times) should be within the specied conditions which are described in the catalog or specication sheets.
►In case lead wire reforming is needed due to inappropriate pitch between capacitor and holes on PW board, stress to the capacitor should be

avoided.

►In case soldered capacitor has to be withdrawn from the PW board by soldering irons, the capacitor should be removed after solder has melted

sufciently in order to avoid stress to the capacitor or lead wires.

►Soldering iron should never touch the capacitor’s body.

2-5 FLOW SOLDERING

►Do not dip capacitor’s body into melted solder

Soldering condition (preheat, soldering temperature, dipping time) should be within the specied standard which is described in the catalog or
specication sheets.

►Flux should not be adhered to capacitor’s body but only to its terminals.
►Other devices which are mounted near capacitors should not touch the capacitors.

2-6 REFLOW SOLDERING

►Reow soldering conditions (preheat, soldering temperature, reow time) should follow the specied standard which are described in the catalog

or specication sheets.

►Heating standard should depend on surface of the capacitor color or materials when infrared rays are used because the capacitor’s heat ab-

sorption depends on the surface color or materials. Check heat condition.

►Standard Aluminum Electrolytic Capacitors can not withstand two or more reow processes. Consult with Gen Sales when two or more reow

processes are needed.

2-7 HANDLING AFTER SOLDERING

►Do not bend or twist the capacitor’s body after soldering on PW board.
►Do not pick-up or move PW board by holding the soldered capacitors.
►Do not hit the capacitors and isolate capacitors from the PW board or other device when stacking PW boards in store.

2-8 PW BOARD CLEANING

►Standard Aluminum Electrolytic Capacitors should be free from halogenated solvents during PW board cleaning after soldering. Use solvent

proof capacitors and follow the specied cleaning condition when halogenated solvents are used.

►Solvents should have well controlled conductivity, pH, specic gravity and Water contents during the cleaning of solvent proof capacitors.
►Cleaned PW board with capacitors should not be kept in solvent environment or nonventilated places. Let PW board containing capacitors after

cleaning dry with hot blast fully. The temperature of such breeze should be under the Upper category temperature of capacitors.

2-9 ADHESIVES AND COATING MATERIALS.

►Do not use halogenated adhesives and coating materials to x Aluminum Electrolytic Capacitors.
►Flux between the Surface of the PW board and sealing of capacitors should be cleaned before using adhesives or coating materials.
►Solvents should be dried up before using adhesives or coating materials. Do not cover up all the sealing area of capacitors with adhesives or

coating materials, make coverage only partial.

3. CAUTION DURING USE OF CAPACITORS IN SETS

►Do not touch the terminals of capacitors.
►Do not connect electrical terminals of the capacitor. Keep the capacitors free from conductive solution, such as acid, alkali and so on.
►Ensure the operational environment of the equipment in which the capacitor has been built is within the specied condition mentioned in the

catalog or specication sheets.

4. MAINTENANCE

►Periodical inspection should be carried out for the capacitors, which are used with industrial equipment. Check the following points at the

inspection.

4-1 Visual inspection to check pressure relief open or leakage of electrolyte.
4-2 Electrical characteristics: leakage current, capacitance, dissipation factor and the other points which are mentioned in the catalog or specica-

tion sheets.

5. EMERGENCY ACTION

►When the pressure relief vent is open and some gas blows out from the capacitor, please turn the main switch of the equipment off or pull out

the plug from the power outlet immediately.

►During pressure relief vent operation, extremely hot gas (over 100˚C) may blow out from the capacitors. Do not stand close to the capacitors. In

case of eye contact, ush the open eye (s) with large amount of clean water immediately. In case of ingestion, gargle with water immediately, do
not swallow, do not touch electrolyte but wash skin with soap and water in case of skin contact.

6. STORAGE CONDITION

►Aluminum Electrolytic Capacitors should not be stored in high temperatures or where there is a high level of humidity. The suitable storage

condition is 5˚C ~ 35˚C and less than 75% in relative humidity.

►Aluminum Electrolytic Capacitors should not be stored in damp conditions such as water, saltwater spray or oil spray.
►Do not store Aluminum Electrolytic Capacitors in an environment full of hazardous gas (hydrogen sulde, sulfurous acid gas, nitrous acid, chlo-

rine gas and ammonia or bromine gas).

►Aluminum Electrolytic Capacitors should not be stored under exposure to ozone, ultraviolet rays or radiation.

7. DISPOSAL

►Please take either of the following actions in case of disposal.

7-1 Incineration ( high temperature of more than 800˚) after crushing the capacitor’s body
7-2 Consignment to specialists of industrial waste.

ALUMINUM ELECTROLYTIC CAPACITORS

4

CAUTION FOR PROPER USE OF ALUMINUM ELECTROLYTIC CAPACITORS II

1. POLARITY MARKING OF ELECTROLYTIC CAPACITORS

Please conrm the polarity to avoid applying any reverse voltage or AC voltage to the capacitors.

2. MOUNTING CAPACITORS

Aluminum Electrolytic Capacitors are designed to open the pressure relief vent and release hot gas including electrolyte through it, in abnormal
cases such as when reverse voltage or excess voltage was applied, or when ripple current exceeding the permissible value has own into capaci-

tors .

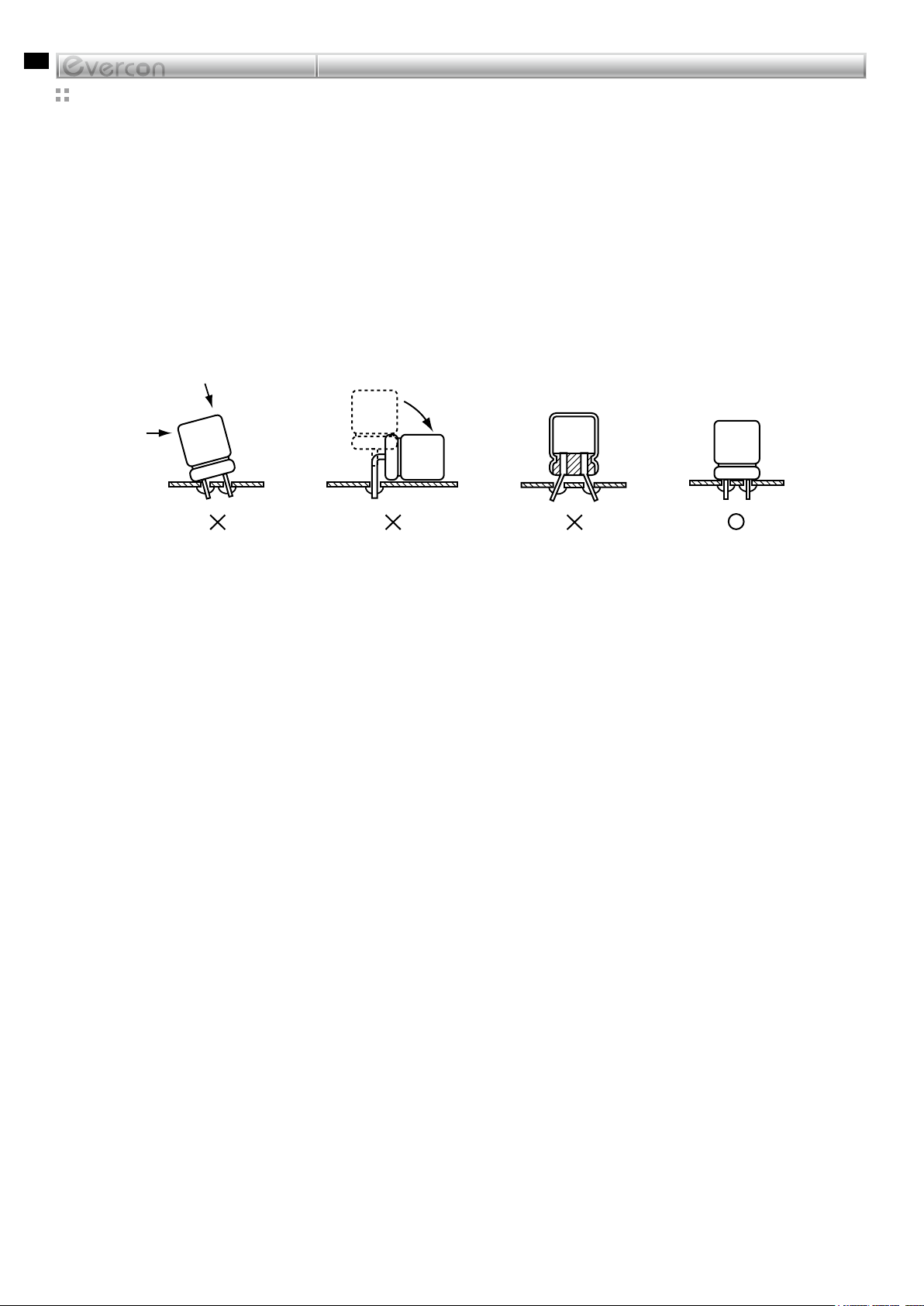

►Do not design to locate any wiring or circuit pattern around the capacitor’s pressure relief vent.
►The pressure relief vent bulges right before the vent operation. Ensure enough free space directly above the capacitor’s vent as shown in the

below table so that bulged vent never touches to an object such as the case on cover of the set. The pressure relief vent will not open without the
appropriate free space.

►The distance between the terminals holes on the circuit board should be the same as that between the lead wires or terminals of the capacitor.

Excessive force in mounting on circuit boards should be avoided.
Improper insertion of the lead wires in circuit board may cause electrolyte leakage, break the lead wires or impair their connection with the internal

elements.

When the distance between the two terminals holes on the circuit board cannot be reduced to that between the lead wires, lead formed capacitors
are recommended.

3. VOLTAGE TREATMENT

The following voltage treatment should be done on the capacitors that have been stored for a long time.

►Voltage Treatment

Prior to the initial measurement , the capacitors shall be applied with a DC Voltage Which is equal to the Rated Voltage of the capacitor through
a resistor of about 1 kΩ in series for 1 hour , and then discharged through a resistor of about 1Ω/ Volt.

4. RIPPLE CURRENT

4-1 The combined value of D.C. voltage and the peak A.C. voltage shall not exceed the rated voltage and shall not be reverse voltage.
4-2 Use of aluminum electrolytic capacitor under ripple voltage with wide amplitude is equivalent to quick charge- discharge operation.

If ripple voltage with the amplitude over 70Vp-p is expected, please contact us.

5. PW BOARD CLEANING

5-1 PW board can be immersed or ultrasonically cleaned using suitable cleaning solvents for up to 5 minutes (5L and 7L is up to 3 minutes) and

up to 60˚C maximum temperatures about 100wv following.
The board should be thoroughly rinsed and dried. Recommended cleaning solvent include Pine Alpha ST-100S, Clean-thru 750H, IPA (isopropyl
alcohol)

►The use of ozone depleting cleaning agents are not recommended in the interest of protecting the environment.
►Please consult us for additional information about acceptable cleaning solvents or cleaning methods.

5-2 Avoid using the following solvent groups unless specically allowed for in the specication;

►Halogenated cleaning solvents: except for solvent resistant capacitor types, halogenated solvents can permeate the seal and cause internal

capacitor corrosion and failure. For solvent resistant capacitors, carefully follow the temperature and time requirements of the specication. 1-1-1
trichloroethane should never be used on any aluminum electrolytic capacitor.

►Alkali solvents: could attack and dissolve the aluminum case.
►Petroleum based solvents: deterioration of the rubber seal could result.
►Xylene: deterioration of the rubber seal could result.
►Acetone: removal of the ink markings on the vinyl sleeve could result.

5-3 A thorough drying after cleaning is required to remove residual cleaning solvents which may be trapped between the capacitor and the circuit

board. Avoid drying temperatures which exceed the upper category temperature of the capacitor.

5-4 Monitor the contamination levels of the cleaning solvents during use by electrical conductivity, pH, specic gravity, or water content. Chlorine

levels can rise with contamination and adversely affect the performance of the capacitor.

6.ELECTROLYTE AND SEPARATOR PAPER ARE FLAMMABLE

Electrolyte and separator paper used in Aluminum Electrolytic Capacitors are ammable. Also, Electrolyte is electrically conductive. Therefore, in
case Electrolyte gets contact with PC board, it may cause corrosion of circuit pattern, or tracking or short circuit between patterns, and may lead to
smoke generation or ignition at the worst cases.
Please make considerations to the above risk in designing circuit patterns and determining the mounting method and mounting location of capaci-

tors.

7. FUMIGATION AND HALOGENATED FLAME RETARDANT

It may cause corrosion of internal electrodes, aluminum cases and terminal surface when the following conditions exist.

7-1 Fumigation of wooden pallets before shipment to disinfect vermin.
7-2 Existence of components or parts that contain halogenated ame retardant agent (bromine etc.) together with capacitors.

ALUMINUM ELECTROLYTIC CAPACITORS

5

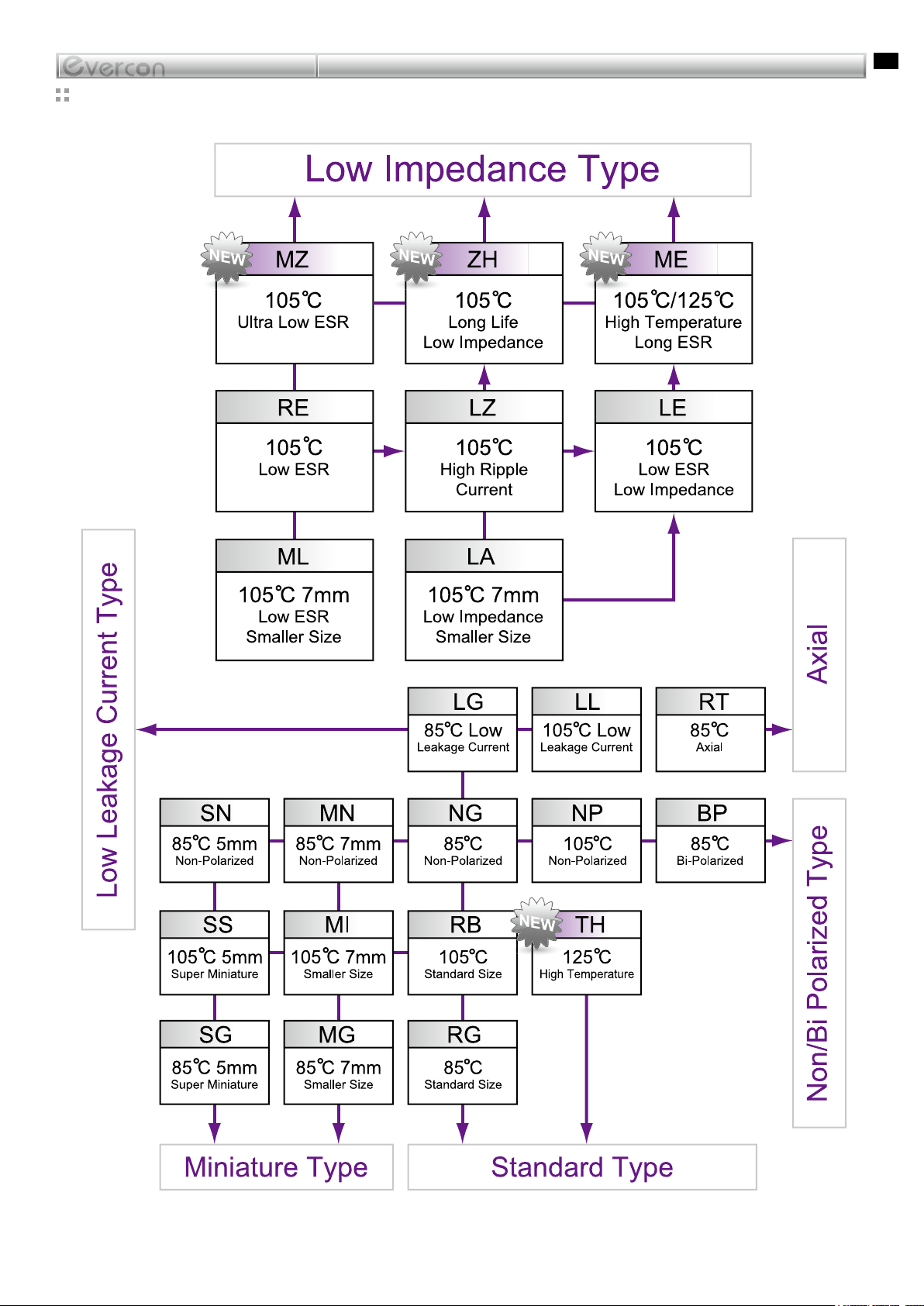

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS SERIES CHART

6

PARTS NUMBER SYSTEM FOR THE RADIAL TYPE

987654321

Product Series Capacitance Capacitance

Product Code

Electrolytic
Capacitors

Classication Code

Miniature Type

Standard Type

Impedance

EC

Low

Cap.(μF) Code

0.1 0R1

0.22 R22

1 010

4.7 4R7

10 100

47 470

100 101

470 471

1000 102

4700 472

10000 103

Cap. Tolerance Code

SG

SS

SN

MG

MI

MN

ML

RG

RB

LL

LG

NP

NG

BP

RT

TH

ME

LE

MZ

ZH

LZ

RE

LA

Tolerance

Voltage(V) Code

±5% J

±10% K

±20% M

+20-0% N

+20-10% V

+30-10% Q

+50-10% T

+80-20% Z

Special S

Rated

Voltage

2.5 2R5

3.3 3R3
4 004

6.3 6R3

10 010
16 016
25 025
35 035
50 050

63 063
100 100
160 160
330 330
450 450

Case Size Code

3x5 0305

4x5 0405

4x7 0407

5x5 0505

5x7 0507

5x11 0511

6.3(6)x5 0605

6.3(6)x7 0607

6.3(6)x11 0611

8x5 0805

8x7 0807

8x9 0809

8x10 0810

8x11 0811

8x12 0812

8x14 0814

8x16 0816

8x20 0820

10x10.5 1010

10x12 1012

10x15 1015

10x16 1016

10x20 1020

10x25 1025

10x30 1030

13x16 1316

13x21 1321

13x26 1326

16x16 1616

16x26 1626

16x32 1632

Case Size

ø(DxL)mm

Logo Color Option

This code depends

on the customers

request. It could be

identied the logo

on the sleeve.

Color Code

Black/Gold B

Black/White W

Green/Gold G

Green/White H

Purple/Gold P

Purple/White U

Orange 0

Navy-Blue/Gold N

Navy-Bule/Black A

Navy-Blue/While V

Coffee/White C

Hyal-Blue L

HyaI-Yellow Y

Hyal-White T

Hyal-Orange R

Description Code

Bulk B

Taped T

Lead cut C

Other O

TYPICAL FAILURE MODES AND THEIR FACTORS

ALUMINUM ELECTROLYTIC CAPACITORS

7

Failure mode

故障型式

Short circuit

短路

Open

開路

Electrolyte leakage

漏電解液

Failure mechanism

內部現象

Shot circuit between elec-

trodes

電極間短路

Breakdown of lead tab

導針斷線

Insufcient sealing

密閉不完全

Corrosion

腐蝕

Causes 發生原因

Production factor 製造時 Application factor 使用時

Electrode-cutting burrs

(metal particles)

電極切割時的金屬微粒

Abnormal

mechanical stress

異常的機械壓力

Mechanical stress

機械的壓力

Insuffcient connection of

lead tab

導針接觸不完全

Deterioration of

sealant material

封口材料老化

Improper sealing

封口不完全

Use of halogenated solvent

使用含滷化物的清洗劑

Halogen inltration

滷化物滲入

Use of coating material

使用塗料

Capacitance reduction

tanδ increase

靜電容量減少，tanδ增加

Vent Operation

壓力閥動作

Electrolyte deterioration

and reduction

電解液老化、減少

Reduced anode foil

capacitance

陽極箔的靜電容量減少

Reduced cathode foil

capacitance

陰極箔的靜電容量減少

Internal pressure increase

內壓上升

Shortage of electrolyte

電解液不足

Use of adhesive

使用黏著劑

Usage for a long

period of time

長時間的使用

Excessive ripple current

過大的濾波電流

Usage at a high temperature

超過額定溫度的使用

Reverse voltage applied

逆電壓的使用

Severe charging

/ discharging

過渡激烈的充放電

Leakage current increase

漏電流增加

Deterioration of oxide lm

氧化膜的劣化

Excessive voltage applied

超過額定電壓的使用

AC voltage applied

使用交流電

ALUMINUM ELECTROLYTIC CAPACITORS

8

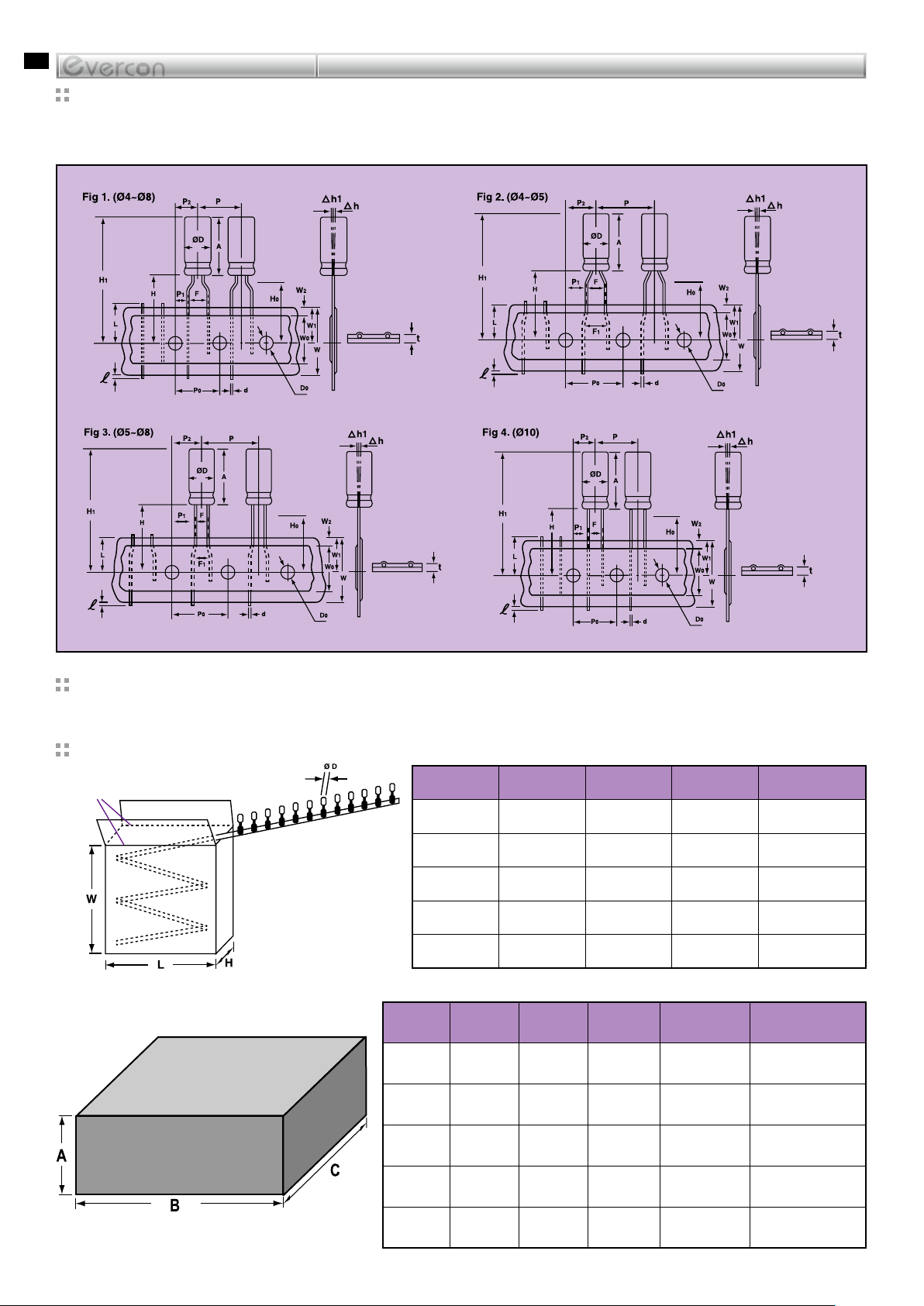

TAPING SPECIFICATIONS

Lead taping is designed for automatic insertion equipment. Capacitors with case size of 10mm x 16mm or smaller are available in taping
type.

PACKING (TAPING)

Available for various automatic insertion equipment. Choosing the ordinal polarity of lead of capacitors depends on customer’s request.

Ammo

Line for tear off

Inner Box

D5(mm) W±5(mm) L±5(mm) H±5(mm) Quantity(PCS)

4 245 340 50 2500

5 245 340 50 2000

6.3 245 340 50 1500

8 245 340 50 1000

10(L≤16) 245 340 50 600

D(mm) A±5(mm) B±5(mm) C±5(mm) Inner Box Quantity(PCS)

4 245 340 50 10 2500

5 245 340 50 10 2000

6.3 245 340 50 10 1500

8 245 340 50 10 1000

10(L≤16) 245 340 50 10 600

ALUMINUM ELECTROLYTIC CAPACITORS

9

SPECIFICATION TABLE

Item

項目

Symbol

Case Size

外殼尺寸

符號

4x5 5x5 6.3x5 8x5 4x7 5x7 6.3x7 8x7 5x11 6.3x11 8x11 10x12 10x16 10x20

Tolerance

誤差範圍

Remark

備註

Lead wire diameter

導針線徑

Intervals of bodies

電容主體間的距離

Intervals of punches holes

孔洞間的距離

Distance between holes and lead wire

孔洞與導針的距離

Distance between holes and bodies

孔洞與主體的距離

Distance between lead and lead

導針與導針的距離

Base tape width

帶子基底的寬度

Adhesive tape width

熱溶膠帶的寬度

d 0.45 0.5 0.6 ±0.05

p 12.7 ±1.0

P0 12.7 ±0.2

3.85

5.35

P1

P2 6.35 ±1.0

F

W 18.0 ±0.5

W0 12.5 Min

5.1

5.1 5.6 Fig2. F1=5.0 ±1.0

5.6 5.35 5.1 5.1 5.6 5.35 5.1 4.6 5.35 5.1 4.6 Fig3. F1=5.0 ±1.5

2.0

2.5

2.5 2.5

1.5 2.0 2.5 2.5 1.5 2.0 2.5 3.5 2.0 2.5 3.5

5.35

5.1 5.1

2.0

2.5 2.5

5.0

±0.7

+0.8

-0.2

Fig1.Fig4.

Fig2. F1=5.0 ±0.5

Fig1.Fig4.

Fig2:

Deviation between holes and base tape

孔洞與帶緣的距離

Distance between body button and tape center

主體底部到帶子中心點的距離

Distance between body bottom and tape center

主體底部到帶子中心點的距離

Lead wire clinched height

導針彎折的高度

Distance between body top and tape center

主體上端到帶子中心點的距離

Punched hole diameter

孔洞的直徑

Lead wire protrusion

導針突出部分

Length of not good lead slit

不良導針裁切長度

Base and adhesive tape thickness

熱溶膠帶的厚度

W1 9.0 ±0.5

W2 1.5 Max

H 17.5 18.5 ±0.75

H0 16.0 ±0.5 Fig1.2

H1 24.5 27.5 32.5 33.0 36.0 38.0 Max

D0 4.0 ±0.3

ℓ 1.0 Max

L 11.0 Max

t 0.7 ±0.3

Deviation of body alignment

主體排列的偏差度

Deviation of body alignment

主體排列的偏差度

Δh 0 ±2.0

Δh1 0 ±1.0

ALUMINUM ELECTROLYTIC CAPACITORS

10

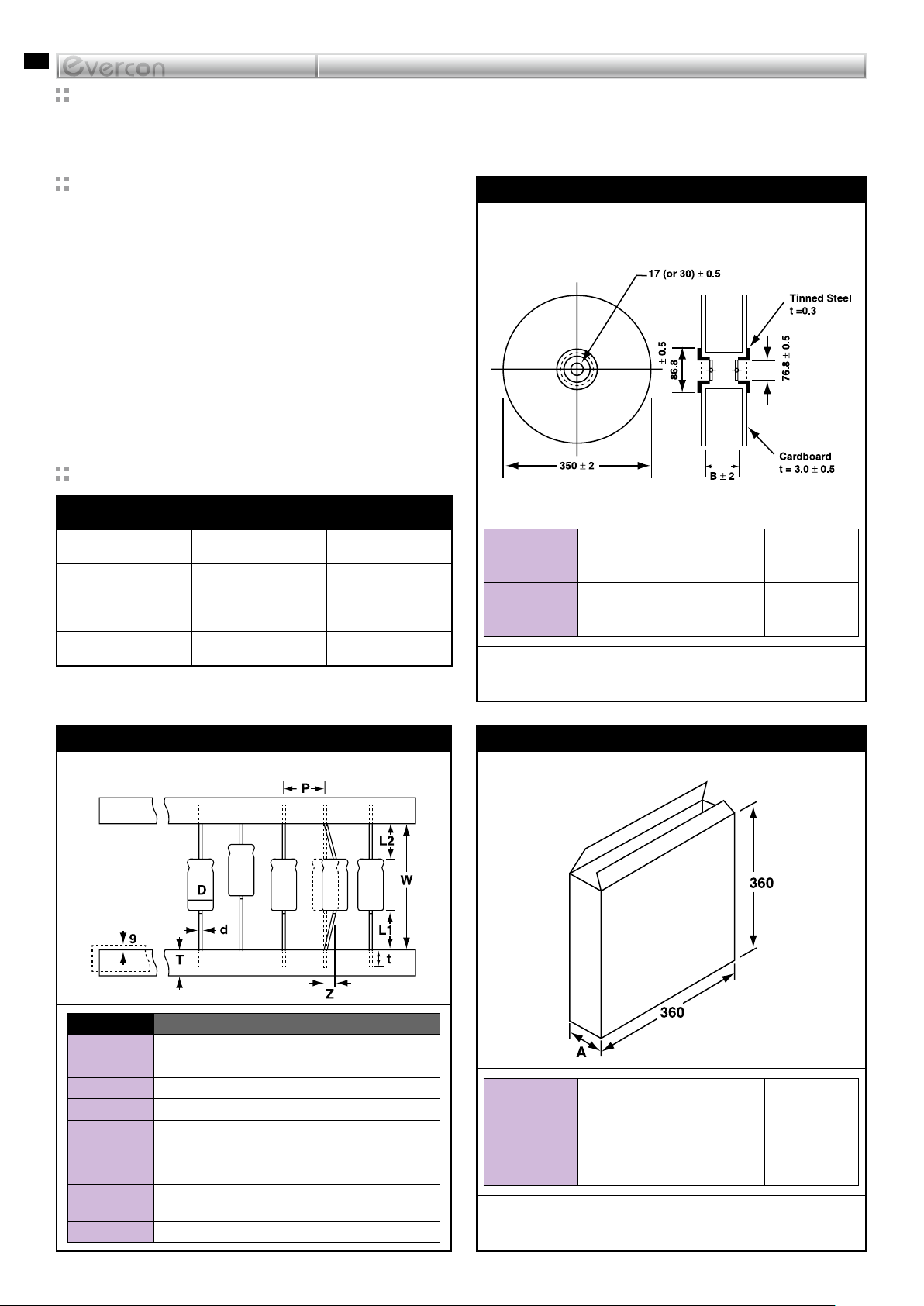

TAPED AND REELED (AXIAL)

This specication describes the lead taping packaging for electrolytic capacitor with axial lead and radial lead for automatic insertion

systems.

TAPING SPECIFICATIONS

1.Taping dimensions are indicated if Figure 1.

2.To identify the orientation, the cathode tape shall be blue and the an-

node tape shall be white.

3.A minimum 350mm leader tape shall be provided before the rst and
after the last capacitor on reel.

4.Taped capacitors shall be wound on a packing reel shown on Figure 2.

5.Finished reel shall be packaged in the packaging box shown on

Figure 3.

QUANTITY OF PACKAGING

Dia. of capacitor (mm) Reel(pcs) Ammo.(pcs)

5 2000 1500

6 1500 1000

8 1000 1000

Figure 2 Reel

W 52 63 73

B 68 80 90

10 500 500

Note : Above quantities principle.
Some difference may be provided.

Figure 1 Taping

Symbol Dimension(mm)

D 5, 6, 8, 10

d 0.5, 0.6

P 10 (For Dia. 5, 6, 8), 15 (For Dia. 10)

W 52+1.5-1.0, 63+1.5-1.0, 73±1.5

g 0.6 max

L-1 ~ L-2 1.0 max

Z 1.2 max

t

T 6.0±0.5

3.2 min (Lead ends shall not extend beyond the

tape.)

W : Inside distance between tapes.

B : Inside distance between anges.

Figure 3 Packing Box

W 52 63 73

A 81 93 103

W : Inside distance between tapes.

A : Width of packaging box. Unit(mm)

ALUMINUM ELECTROLYTIC CAPACITORS

11

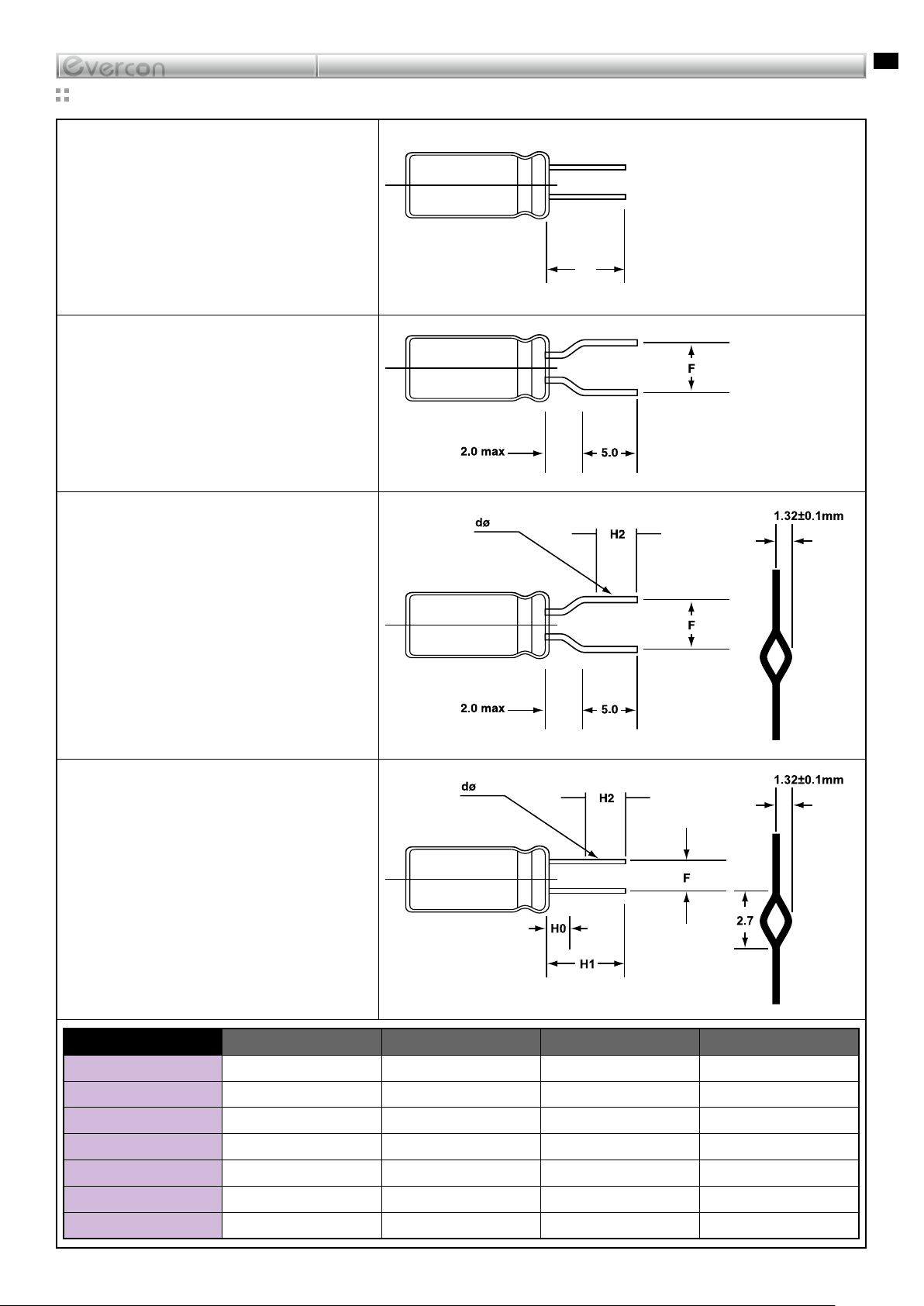

LEAD CUT AND FORMING

Straight lead cut: Lead cut for radial lead type is
available Standard cut lead length is 3.0±0.5mm

Hockey stick lead forming Available for less than
8mm Dia. Products only.

3.0

Self-mounting radial lead type
(a). Case Dia. 5Ø, 6Ø and 8Ø

Self-mounting radial lead type
(b).Case Dia 10Ø, 13Ø, 16Ø, and 18Ø

Case Dia. D H1±0.5 H2 F±0.5 d

5 5.0 2.7 5.0 0.5

6 5.0 2.7 5.0 0.5

8 5.0 2.7 5.0 0.5

10 5.0 2.7 5.0 0.6

13 5.0 2.7 5.0 0.6

16 5.0 2.7 7.5 0.8

18 5.0 2.7 7.5 0.8

ALUMINUM ELECTROLYTIC CAPACITORS

12

PACKING SPECIFICATION (BULK)

CAPACITOR

CASE SIZE

(mm)

Ø4x5 2000 20 40000 80000 19x22

Ø4x7 2000 20 40000 80000 19x22

Ø5x5 2000 15 30000 60000 19x22

Ø5x7 2000 15 30000 60000 19x22

Ø5x11 1000 15 20000 40000 19x22

Ø6x5 2000 10 20000 40000 23x23

Ø6.3x7 2000 10 20000 40000 23x23

Ø6.3x11 1000 15 15000 30000 19x22

Ø8x9 1000 8 8000 16000 18x30

Ø8x11 500 12 6000 12000 18x30

INNER BAG

Q’TY

NUMBER of

BAGS

(PER INNER

BOX)

INNER BOX

Q’TY

OUTER BOX

Q’TY

BAG SIZE

(cm)

INNER BOX

SIZE (cm)

OUTER

CARTON

SIZE
(cm)

Ø8x12 1000 6 6000 12000 18x30

Ø8x14 500 12 6000 12000 18x30

Ø8x15 500 12 6000 12000 18x30

Ø8x20 500 10 5000 10000 18x30

Ø10x12 500 10 5000 10000 18x30

Ø10x15 500 8 4000 8000 18x30

Ø10x16 400 10 4000 8000 18x30

Ø10x20 300 10 3000 6000 18x30

Ø10x25 250 10 2500 5000 18x30

Ø12.5x20 200 9 1800 3600 18x30

Ø13x15~18 500 8 4000 8000 19x22

Ø13x21 150 10 1500 3000 18x30

Ø13x25 150 10 1500 3000 18x30

29x18x23 39x32x25

Ø13x31 80 15 1200 2400 18x30

Ø16x26 100 12 1200 2400 18x30

Ø18x32 40 20 800 1600 18x30

Ø18x36 40 20 600 1200 18x30

Ø18x41 40 20 600 1200 18x30

ALUMINUM ELECTROLYTIC CAPACITORS

13

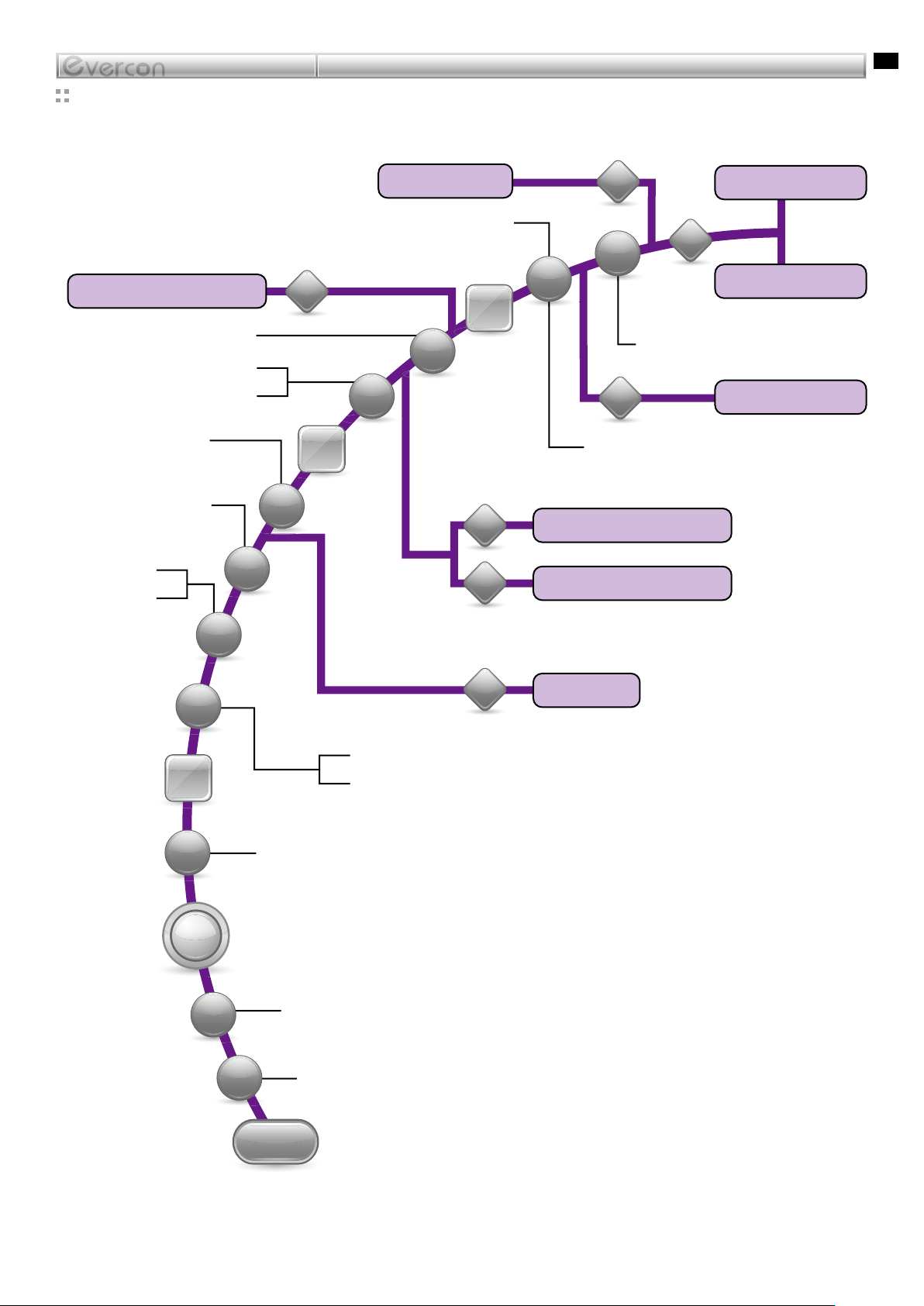

ELECTROLYTIC CAPACITORS FLOW CHART

IQC

ELECTROLYTE

IMPREGNATION

WASH

SLEEVING

LOADING

AGING

SEAL

ASSEMBLY

IQC

IPQC

SEPARATOR

STITCHING

IPQC

IQC

IQC

CATHODE FOIL

IQC

ANODE FOIL

SLITTING

IQC

LEAD WIRE

WINDING

RUBBER BUNG

ALUMINUM CAN

IPQC

QA

SLEEVE

IQC

TESTING

APPEARANCE INSPECTION

LEAD CUTTING OR TAPING

PACKING

COMPLETION

OQC

DELIVERY

14

SG

SG

SG

FEATURES

Super Miniature - 5mm

SPECIFICATION

Operation Temperature -40 ~ 85°C

Rated Working Voltage 4 ~ 50 V.DC

Series

Item Characteristic

ALUMINUM ELECTROLYTIC CAPACITORS

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C)(tan δ)

Low Temperature Stability

Endurance (Load Life)

±20% (M)

I ≤ 0.01CV or 3 (μA) max

Whichever is greater after 2 minutes

WV 4 6.3 10 16 25 35 50

SV 5 8 13 20 32 44 63

WV 4 6.3 10 16 25 35 50

tanδ 0.35 0.24 0.20 0.16 0.14 0.12 0.10

Impedance ratio at 120Hz

Rated Votage (V) 4 6.3 10 16 25 35 50

-25°C/+25°C 7 4 3 2 2 2 2

-40°C /+25°C 15 8 6 4 4 3 3

After 1000 hours application WV at +85°C, the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Leakage Current ≤ initial specied value

After 500 hours application of WV at +85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

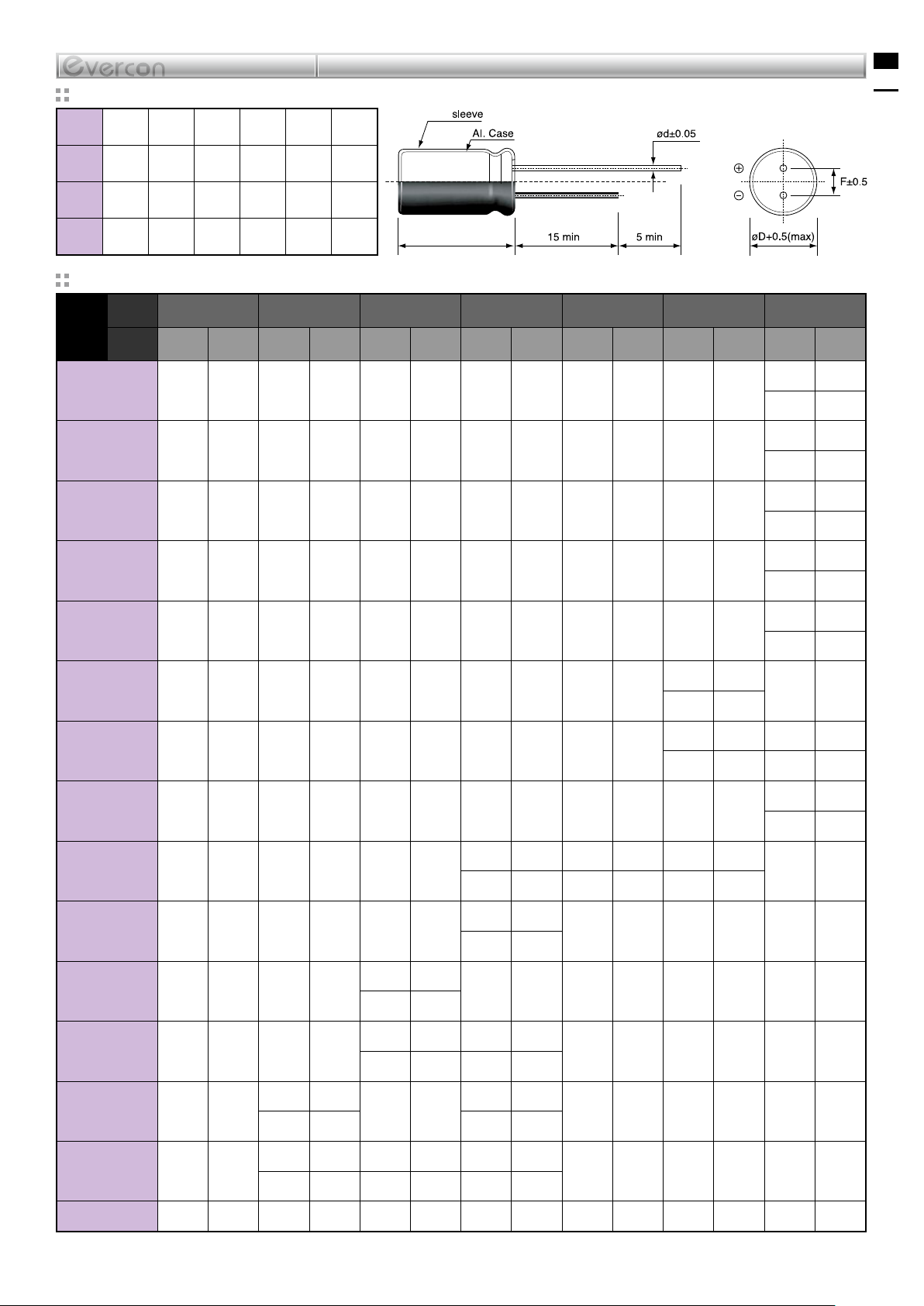

DIMENSIONS (mm)

D 4 5 6.3 8

F 1.5 2.0 2.5 3.5

d 0.45 0.45 0.45 0.50

α 1.5 1.5 1.5 1.5

L + α(max)

ALUMINUM ELECTROLYTIC CAPACITORS

CASE SIZE & MAX RIPPLE CURRENT

WV 4 / 0G 63 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H

µF

ITEM DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C. DxL R.C.

0.1 → 4x5 3

0.15 → 4x5 4

0.22 → 4x5 4

0.33 → 4x5 5

0.47 → 4x5 6

0.68 → 4x5 8

1.0 → 4x5 9

1.5 → 4x5 12

15

SG

2.2 → 4x5 13 4x5 14

3.3 → 4x5 14 4x5 16 4x5 17

4.7 → 4x5 16 4x5 17 4x5 19 4x5 20

6.8 → 4x5 17 4x5 19 4x5 21 5x5 26 6.3x5 32

4x5 25

10 → 4x5 19 4x5 21 4x5 24

5x5 28

15 → 4x5 24 4x5 26 5x5 33 5x5 35 6.3x5 44 6.3x5 48

4x5 31 4x5 33 5x5 43

22 4x5 24 4x5 29

5x5 36 5x5 40 6.3x5 55 8x7 70

4x5 35 4x5 38 5x5 49

33 4x5 29

5x5 40 5x5 44 6.3x5 55 8x7

5x5 50 5x5 50 6.3x5 70

47 4x5 35 5x5 48

6.3x5 60 6.3x5 65 8x7 85

6.3x5 60

5x5 31 6.3x5 39

6.3x7 60

6.3x5 55

6.3x5

65 8x7 85

8x7 75

68 5x5 47 6.3x5 65 6.3x5 70 6.3x5 80 8x7 100

6.3x5 90 6.3x5 100

100 6.3x5 65 6.3x5 80

8x7 100 8x7 110

200 6.3x5 100 8x7 140 8x7 150

330 8x7 140 8x7 170

8x7 120

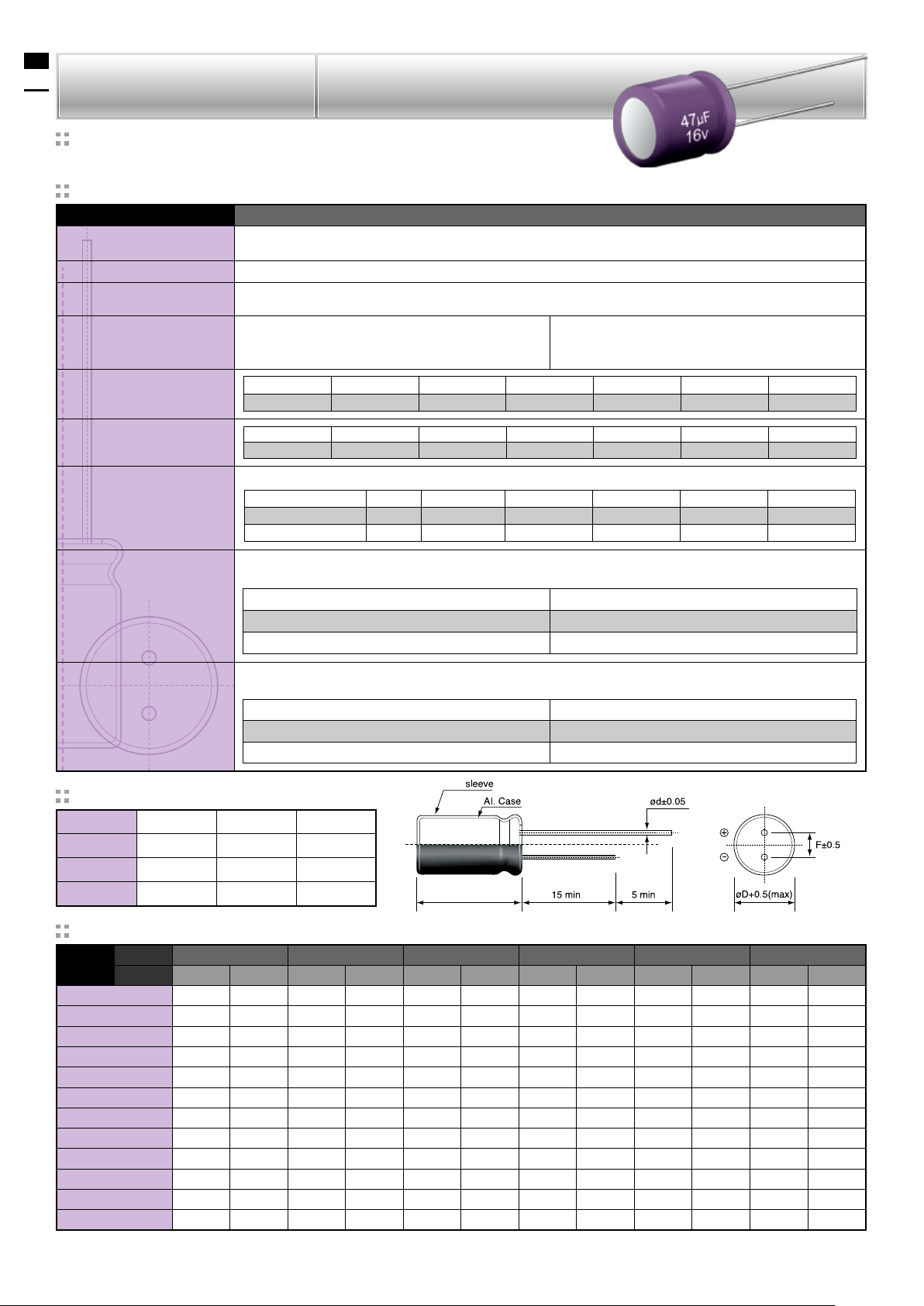

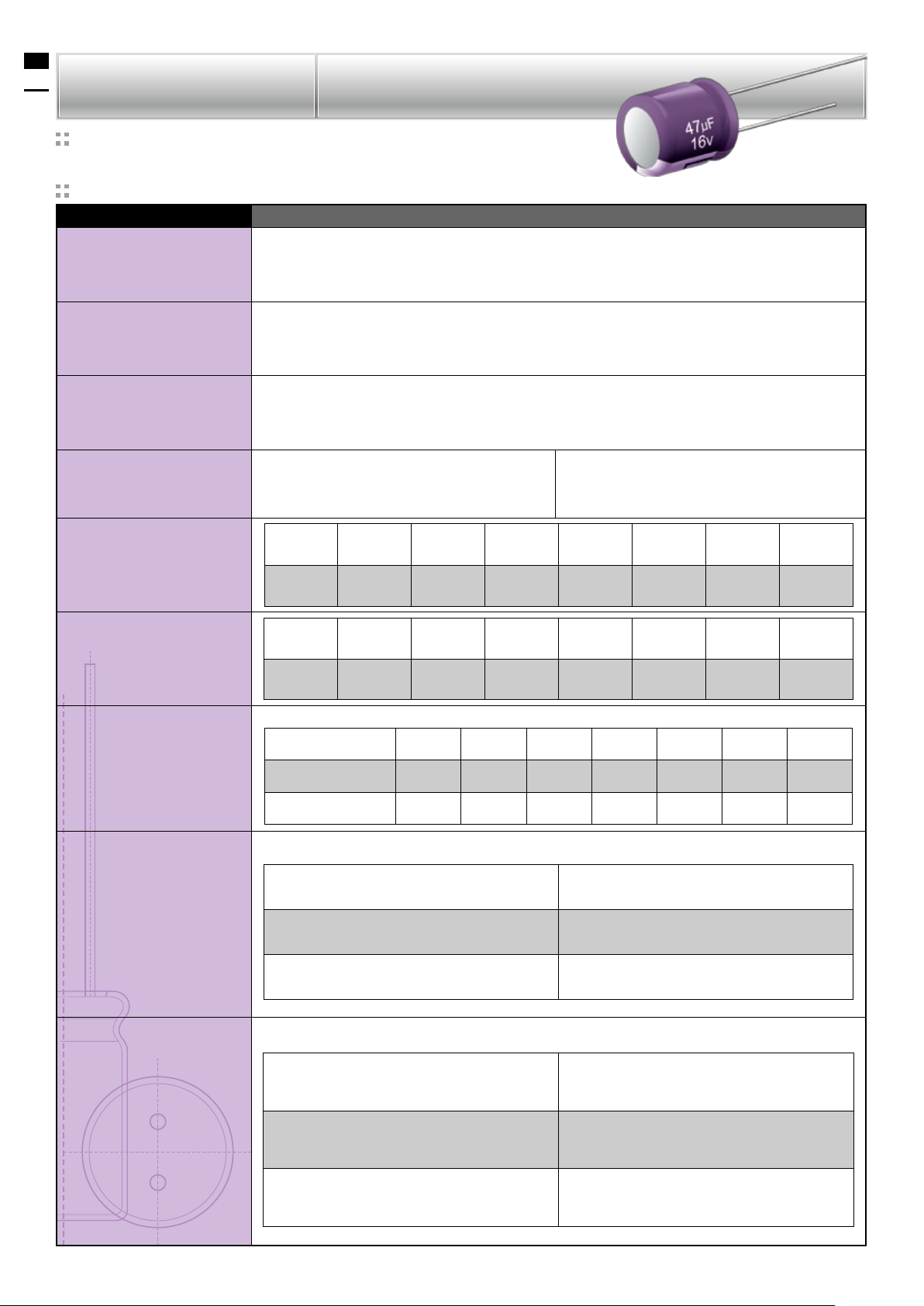

16

SS

SS

SS

Series

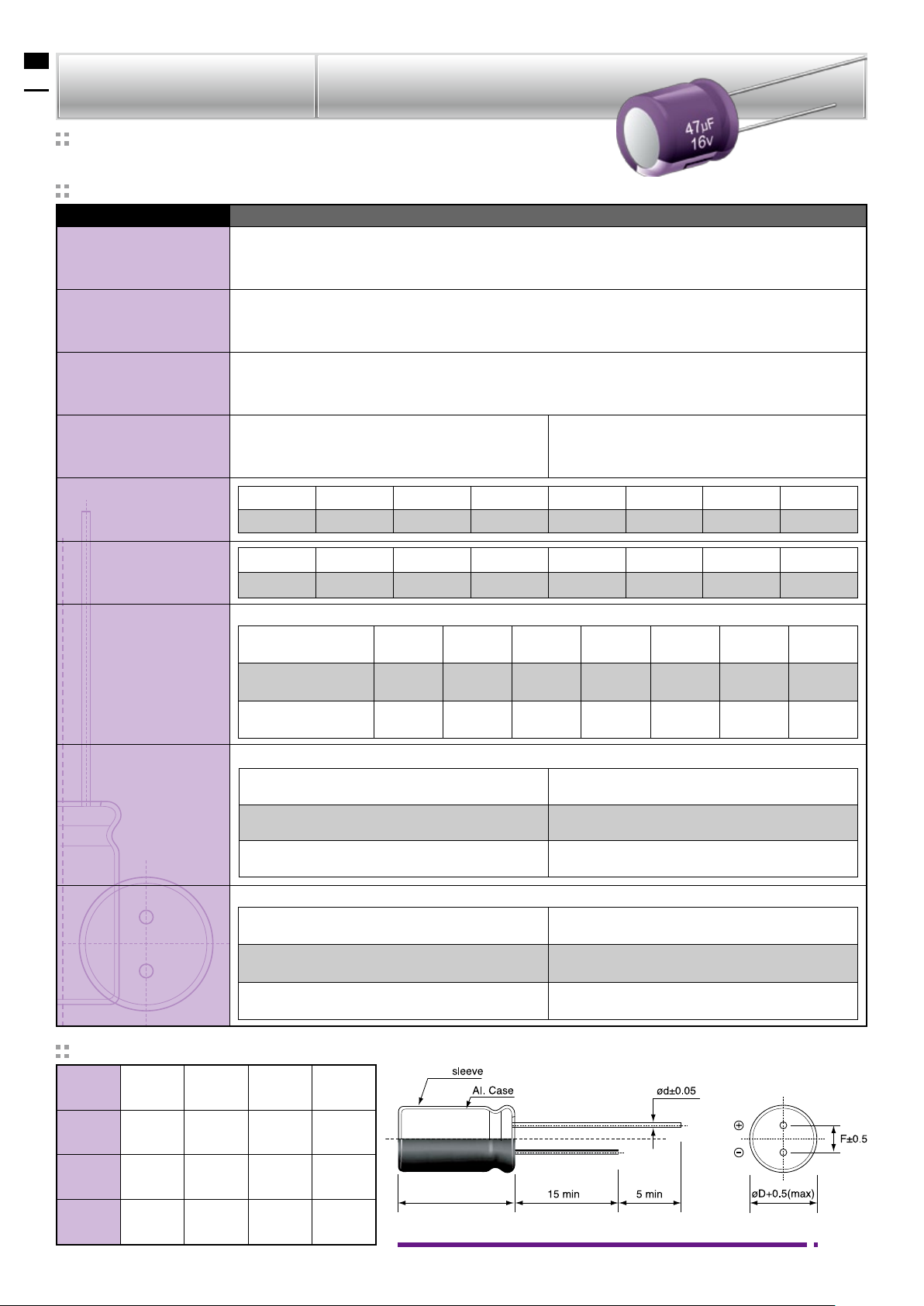

FEATURES

Super Miniature Height 5mm for 105˚C

SPECIFICATION

Item Characteristic

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 4 – 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

tanδ 0.37 0.28 0.24 0.20 0.16 0.13 0.12

I ≤ 0.01CV or 3 (μA) max

Whichever is greater after 2 minutes

WV 4 6.3 10 16 25 35 50

SV 5 8 13 20 32 44 63

WV 4 6.3 10 16 25 35 50

-40 to +105°C

±20% (M)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Low Temperature Stability

Load Life

Shelf Life

Impedance ratio at 120Hz

Rated Voltage (V) 4 6.3 10 16 25 35 50

-25°C/ +25°C 6 3 3 2 2 2 2

-40°C / +25°C 12 8 5 4 3 3 3

After 1000 hours application of WV at +105°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

After 500 hours application of WV at + 105°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 3 4 5 6.3 8x5 8x7

F 1.0 1.5 2.0 2.5 3.5 3.5

d 0.40 0.45 0.45 0.45 0.45 0.50

ALUMINUM ELECTROLYTIC CAPACITORS

17

SS

α 1.0 1.0 1.2 1.3 1.5 1.5

L + α(max)

CASE SIZE & MAX RIPPLE CURRENT

WV 4 / 0G 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H

µF

ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.1 →

0.22 →

0.33 →

0.47 →

1.0 →

2.2 →

3x5 7

4x5 10

3x5 1

4x5 2

3x5 2

4x5 4

3x5 2.8

4x5 4

3x5 4

4x5 5

3x5 7

4x5 8

4x5 11

3.3 → 3x5 10

4.7 → 3x5 11 4x5 14 4x5 15

10 → 3x5 13

22 4x5 19 4x5 23 5x5 29

33 5x5 26 5x5 32

47 5x5 32 5x5 38

5x5 48

100 6.3x5 55

6.3x5 65 8x5 99

6.3x5 75 8x5 120 8x5 110

220 6.3x5 68

8x5 104 8x7 132 8x7 140

4x5 32

5x5 35

5x5 42 5x5 46

6.3x5 48 6.3x5 50

6.3x5 72

3x5 14 4x5 20 5x5 25

4x5 19 5x5 23 6x5 28

4x5 28

6.3x5 39 6.3x5 42

5x5 32

6.3x5 45 6.3x5 48 8x5 66

6.3x5 50 8x5 72

6.3x5 80
8x5 99

8x7 155

3x5 11 3x5 11

4x5 13 4x5 14

4x5 25

5x5 19

6.3x5 31

330 8x5 110 8x5 115 8x7 120

All blank voltage on sleeve marking is the same voltage as “→” point to.

ALUMINUM ELECTROLYTIC CAPACITORS

18

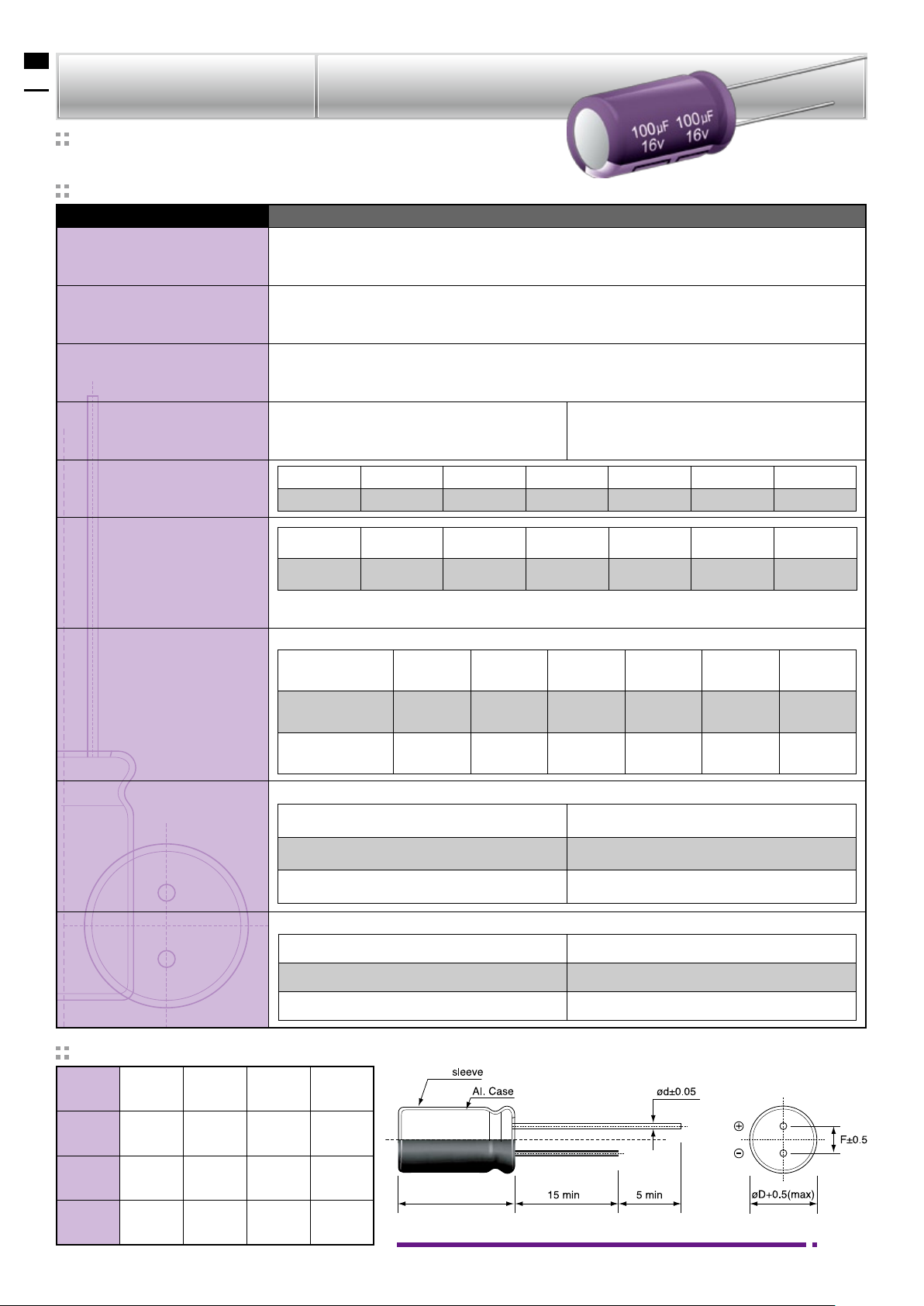

SN

SN

SN

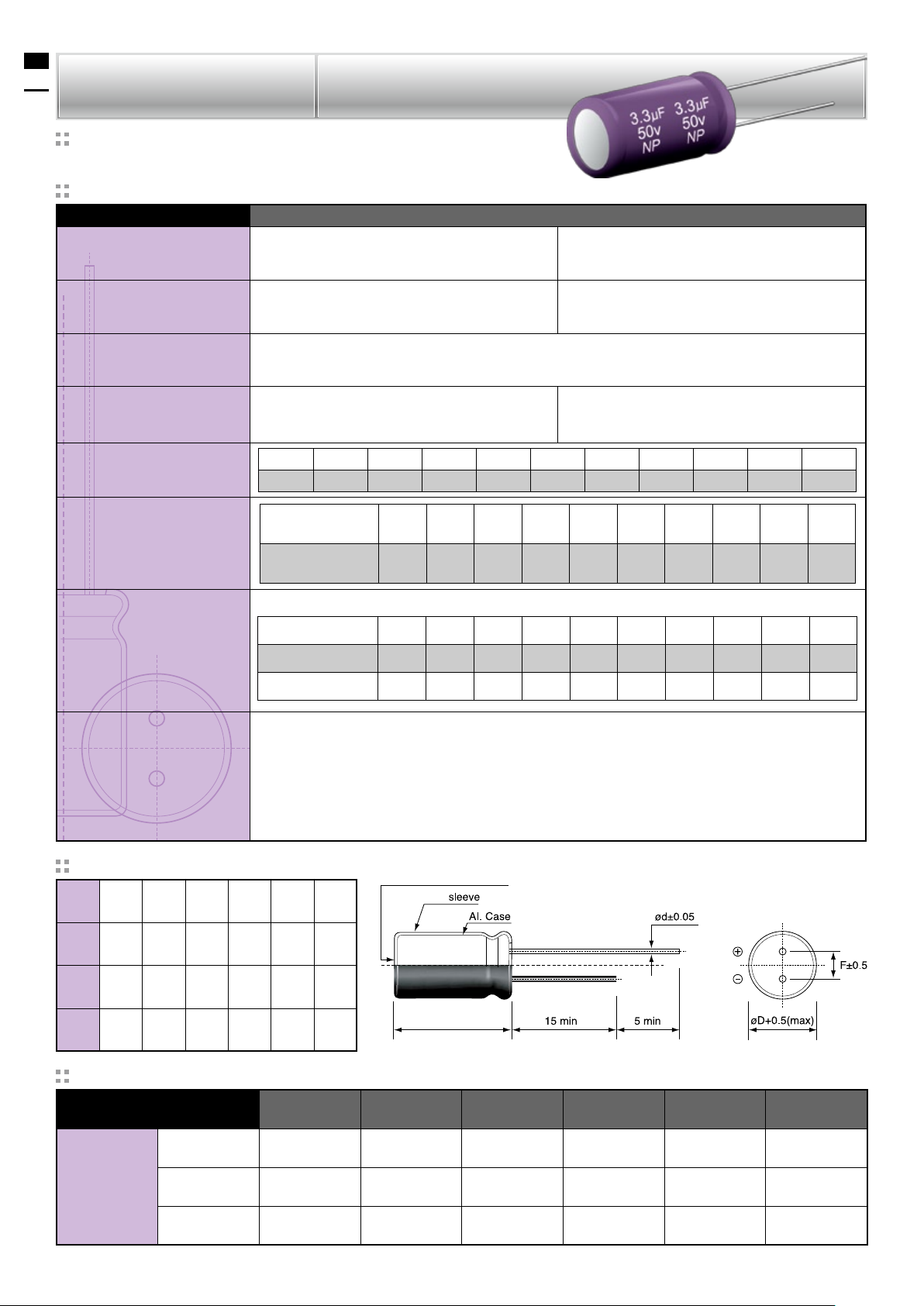

FEATURES

Non-Polarized Hight 5mm For 85°C

SPECIFICATION

Item Characteristic

Operation

Temperature Range

Rated Working Voltage 6.3 – 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Series

I ≤ 0.05CV or 10 (μA) max

Whichever is greater after 2 minutes

-40 to +85°C

±20% (M)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Working Voltage(V)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Load Life

Shelf Life

DIMENSIONS (mm)

D

F

d

α

4 5 6.3

1.5 2.0 2.5

0.45 0.45 0.45

1.0 1.2 1.3

WV 6.3 10 16 25 35 50

SV 8 13 20 32 44 63

WV 6.3 10 16 25 35 50

tanδ 0.24 0.20 0.17 0.17 0.15 0.15

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50

-25°C / +25°C 4 3 2 2 2 2

-40°C / +25°C 10 8 6 4 3 3

After 1000 hours application of WV at +85°C the capacitor shall meet the following limits. (The polarity needs to
exchange every 250 hours)

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

After +85°C no voltage application after 1000 hours and then through the aging treatment (reference JIS C
5101-1), the capacitor shall meet the limits for load life characteristics.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

L + α(max)

CASE SIZE & MAX RIPPLE CURRENT

µF

All blank voltage on sleeve marking is the same voltage as “→” point to.

WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H

ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.1 → 4x5 1

0.22 → 4x5 2

0.33 → 4x5 2.8

0.47 → 4x5 4

1.0 → 4x5 8.4

2.2 → 4x5 8.4 5x5 13

3.3 → 5x5 12 5x5 16 5x5 17

4.7 → 4x5 12 5x5 16 5x5 18 6.3x5 20

10 4x5 14 4x5 17 5x5 23 6.3x5 27 6.3x5 29

22 5x5 28 6.3x5 33 6.3x5 37

33 6.3x5 37 6.3x5 41 6.3x5 49

47 6.3x5 45

ALUMINUM ELECTROLYTIC CAPACITORS

19

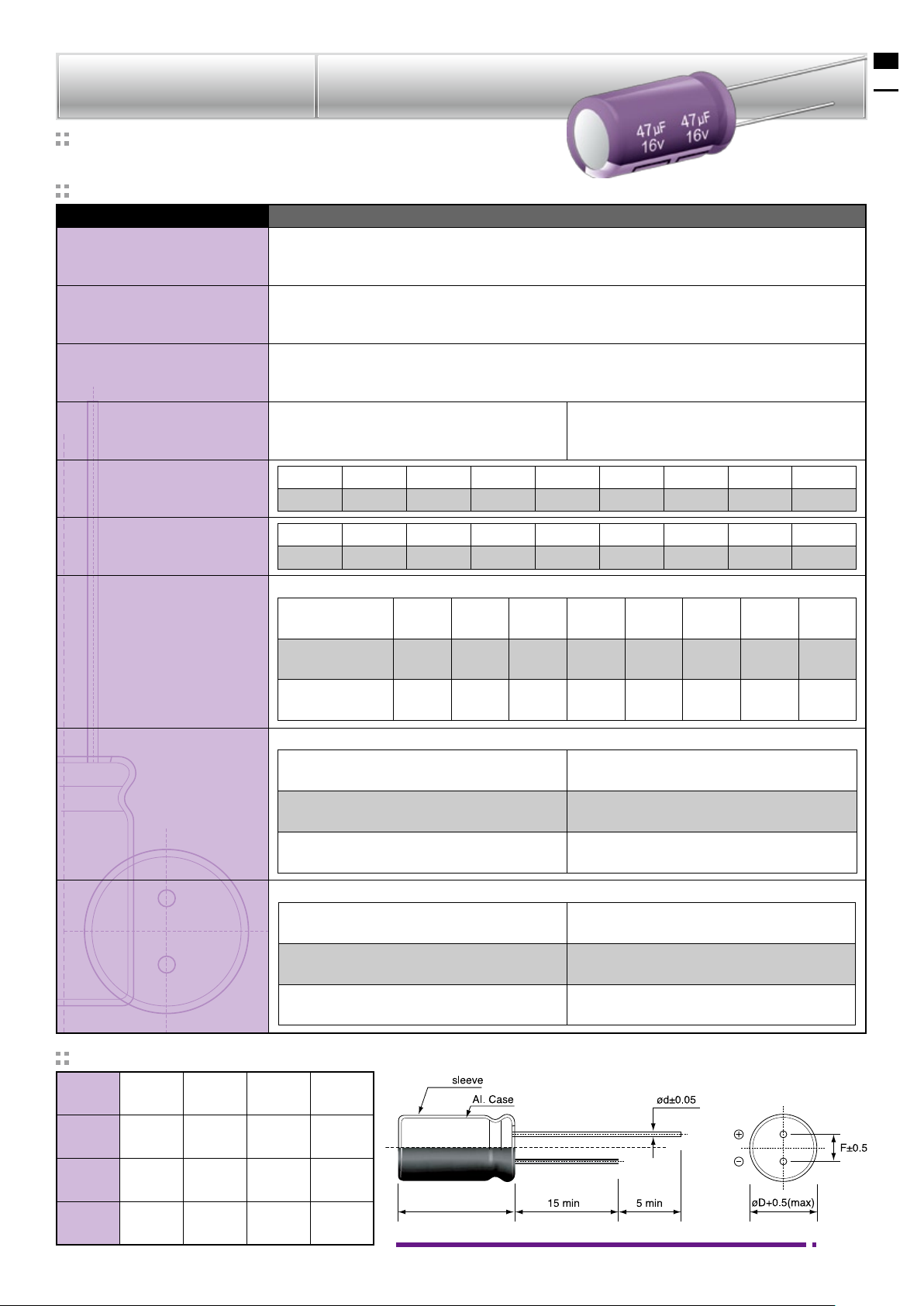

MG

MG

Series

FEATURES

Smaller Size - 7mm

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 to +85°C

Rated Working Voltage 4 - 63 V.DC

MG

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Load Life

±20% (M)

I ≤ 0.01CV or 3 (μA) max

Whichever is greater after 2 minutes

WV 4 6.3 10 16 25 35 50 63

SV 5 8 13 20 32 44 63 79

WV 4 6.3 10 16 25 35 50 63

tanδ 0.35 0.24 0.20 0.17 0.15 0.12 0.10 0.10

Impedance ratio at 120Hz

Rated Voltage (V) 4 6.3 10 16 25 35 50 63

-25°C / +25°C 6 4 3 2 2 2 2 2

-40°C / +25°C 12 8 6 4 4 3 3 3

After 1000 hours application of W V at +85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Working Voltage(V)

Leakage Current ≤ initial specied value

After 500 hours application of W V at +85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 4 5 6.3 8

F 1.5 2.0 2.5 3.5

d 0.45 0.50 0.50 0.50

α 1.0 1.3 1.3 1.5

L + α(max)

20

MG

ALUMINUM ELECTROLYTIC CAPACITORS

CASE SIZE & MAX RIPPLE CURRENT

WV 4 / 0G 6.3 / 0J 10 / 1A 16 / 1C

µF

ITEM DxL R. C. DxL R. C. DxL R.C. DxL R. C.

10 4x7 28

22 4x7 34 4x7 38 4x7 42

33 4x7 33 4x7 42 4x7 46 5x7 62

47 4x7 39 4x7 50 5x7 66 5x7 73

100 5x7 65 5x7 87 6.3x7 99 6.3x7 110

220 6.3x7 110 6.3x7 133 8x7 165 8x7 145

330 8x7 165 8x7 180 8x7 210

470 8x7 190

WV 25 / 1E 35 / 1V 50/ 1H 63 / 1J

µF

ITEM DxL R. C. DxL R. C. DxL R.C. DxL R. C.

0.1 4x7 1.3 4x7 1.3

0.22 4x7 3.0 4x7 3.0

0.33 4x7 4.4 4x7 4.4

0.47 4x7 6.3 4x7 6.3

1 4x7 12 4x7 12

2.2 4x7 16 4x7 16

3.3 4x7 118 4x7 19 5x7 24

4.7 4x7 21 4x7 22 4x7 24 6.3x7 33

10 4x7 31 5x7 32 5x7 42 6.3x7 45

22 5x7 55 6.3x7 60 6.3x7 64

33 6.3x7 66 6.3x7 73 8x7 75

47 6.3x7 80 8x7 95 8x7 85

100 8x7 115 8x7 115

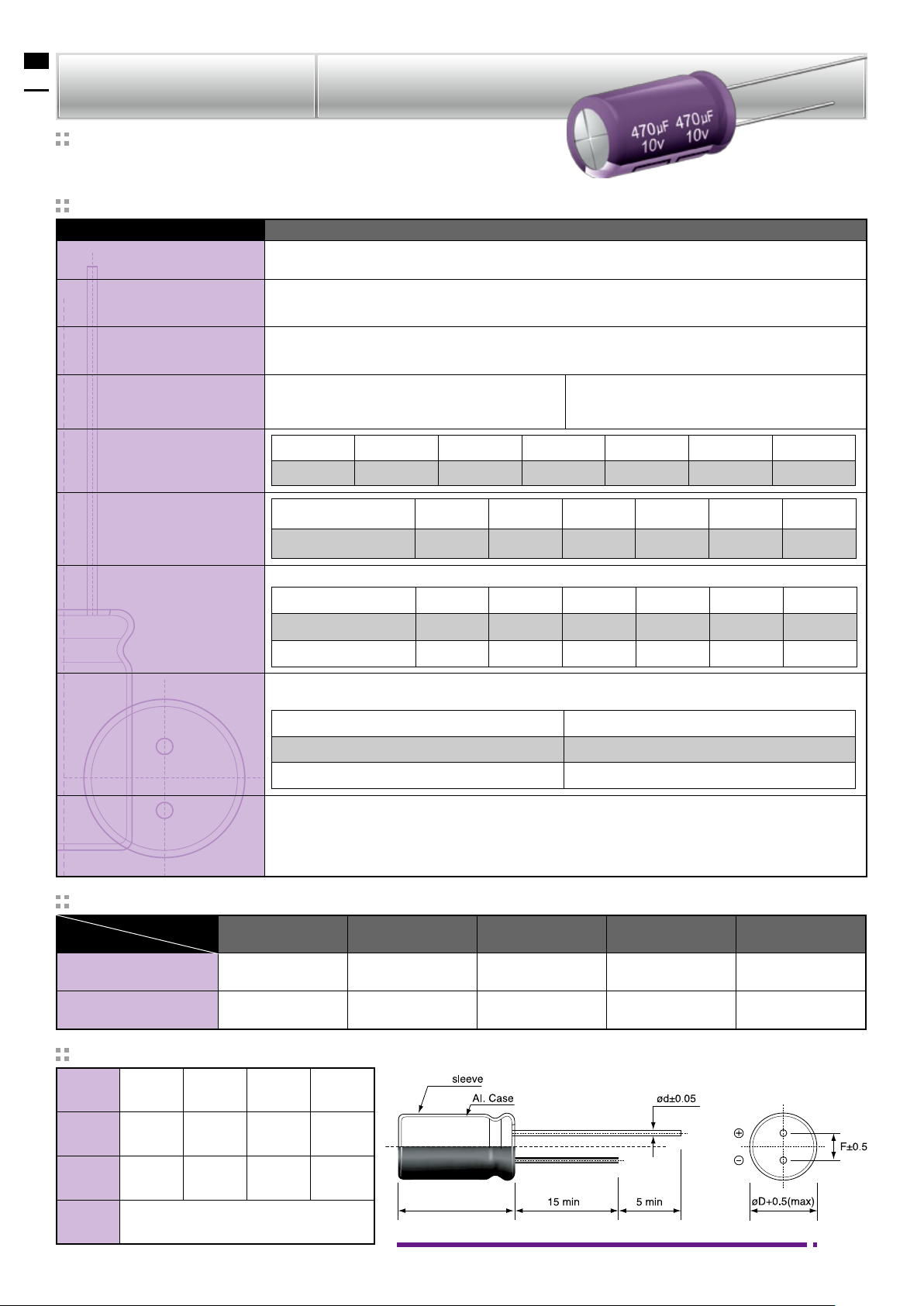

MI

MI

Series

FEATURES

General Used Height 7mm For 105°C

SPECIFICATION

Item Characteristic

21

M I

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 – 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

WV 6.3 10 16 25 35 50

SV 8 13 20 32 44 63

WV 6.3 10 16 25 35 50

tanδ 0.24 0.20 0.17 0.15 0.12 0.10

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50

-25°C / +25°C 3 2 2 2 2 2

-40°C / +25°C 6 5 4 3 3 3

I ≤ 0.01CV or 3 (uA) max

Whichever is greater after 2 minutes

-40 to +105°C

±20% (M)

I : Leakage Current(uA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

After 1000 hours application of W V at + 105°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Load Life

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

After 500 hours application of W V at + 105°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 4 5 6.3 8

F 1.5 2.0 2.5 3.5

d 0.45 0.50 0.50 0.50

L + α(max)

α 1.0 1.3 1.3 1.5

22

M I

CASE SIZE & MAX RIPPLE CURRENT

µF

WV 6.3 / 0J 10 / 1A 16 / 1C

ITEM D×L R.C. D×L R.C. D×L R.C.

0.1

0.22

0.33

0.47

1.0

2.2

3.3

4.7

10 → 4x7 29

22 4x7 34

33

47

68 6.3x7 65

100

150 6.3x7 85 6.3x7 85

220 6.3x7 77

330 6.3x7 80 8x7 110 8x7 120

470 8x7 120 8x9 190

4x7 34 4x7 38 5x7 44

5x7 42 5x7 47 6.3x7 60

4x7 34 4x7 38

5x7 50 5x7 47

4x7

5x7

ALUMINUM ELECTROLYTIC CAPACITORS

4x7 34 4x7 32

5x7 38 5x7 42

5x7 60

50 5x7 70 6.3x7 70

6.3x7

8x7 8x9 140

87

6.3x7 97

µF

WV 25 / 1E 35 / 1V 50 / 1H 63 / 1J

ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.1 → 4x7 1

0.22 → 4x7 2.3

0.33 → 4x7 3.5

0.47 → 4x7 5

1.0 → 4x7 10 6.3x7 55

2.2 → 4x7 19

3.3 → 4x7 24

4.7 → 4x7 24

10 4x7 29

22 5x7 36

33

47

100

220 8x9 140

5x7 43 5x7 45 6.3x7 64

6.3x7 51 6.3x7 72 8x7 75

5x7

6.3x7

6.3x7

8x9

65 6.3x7 70 8x7 85

125

4x7 30 5x7 40

5x7 36 6.3x7 44

5x7 39

6.3x7 60

4x7 25

5x7 29

6.3x7 65

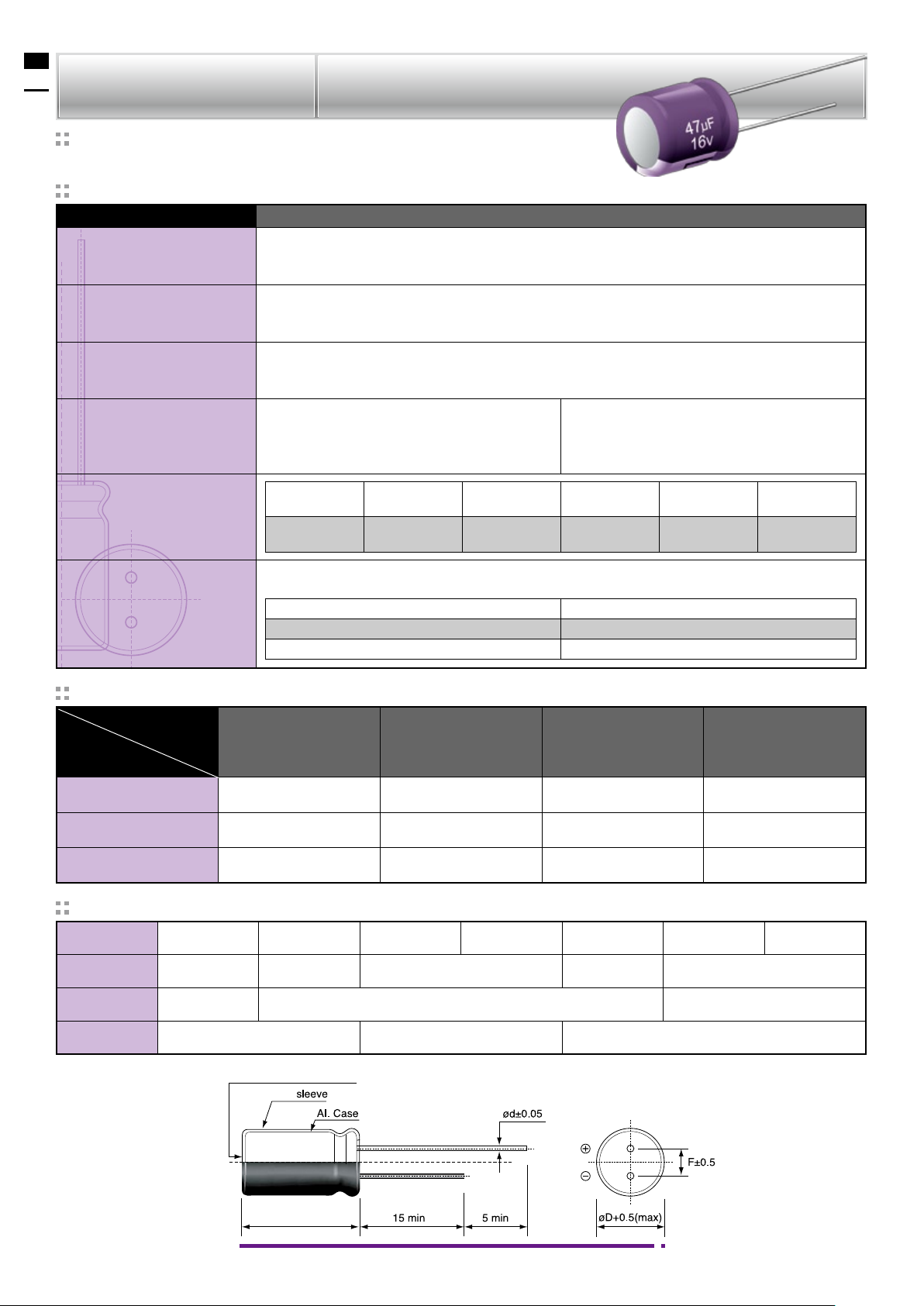

MN

MN

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

Non-Polarized Hight 7mm For 85°C

SPECIFICATION

Item Characteristic

Operation

Temperature Range

Rated Working Voltage 6.3 – 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Load Life

Shelf Life

W.V. 6.3 10 16 25 35 50

W.V. 6.3 10 16 25 35 50

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50

After 1000 hours application of WV at +85°C the capacitor shall meet the following limits. (The polarity needs to
exchange every 250 hours)

Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 150% of initial specied value
Leakage Current ≤ initial specied value

After 500 hours application of WV at + 85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value
Dissipation Factor ≤ 200% of initial specied value
Leakage Current ≤ initial specied value

I ≤ 0.05CV or 10 (µA) max

Whichever is greater after 2 minutes

S.V. 8 13 20 32 44 63

tanδ 0.24 0.20 0.17 0.15 0.12 0.12

-25°C / +25°C 4 3 2 2 2 2

-40°C / +25°C 10 8 6 4 3 3

-40 to +85°C

±20% (M)

23

MN

I : Leakage Current(µA)
C : Rated Capacitance(µF)
V : Rated Voltage(V)

DIMENSIONS (mm)

D 4 5 6.3

F 1.5 2.0 2.5

d 0.45 0.50 0.50

L + 2(max)

CASE SIZE & MAX RIPPLE CURRENT

µF

All blank voltage on sleeve marking is the same voltage as “→” point to.

WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H

ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.1 → 4x7 3

0.22 → 4x7 4

0.33 → 4x7 5

0.47 → 4x7 6

1.0 → 4x7 9

2.2 → 4x7 14 5x7 16

3.3 → 4x7 15 5x7 19 5x7 19

4.7 → 4x7 17 5x7 20 5x7 23 6.3x7 26

10 → 4x7 23 5x7 28 6.3x7 34 6.3x7 38 8x7 44

22 5x7 35 5x7 38 6.3x7 47 6.3x7 50 8x7 65 8x7 65

33 5x7 43 6.3x7 55 6.3x7 60 8x7 70 8x7 80

47 6.3x7 60 6.3x7 65 6.3x7 70 8x7 85

100 8x7 100 8x7 110 8x7 120

24

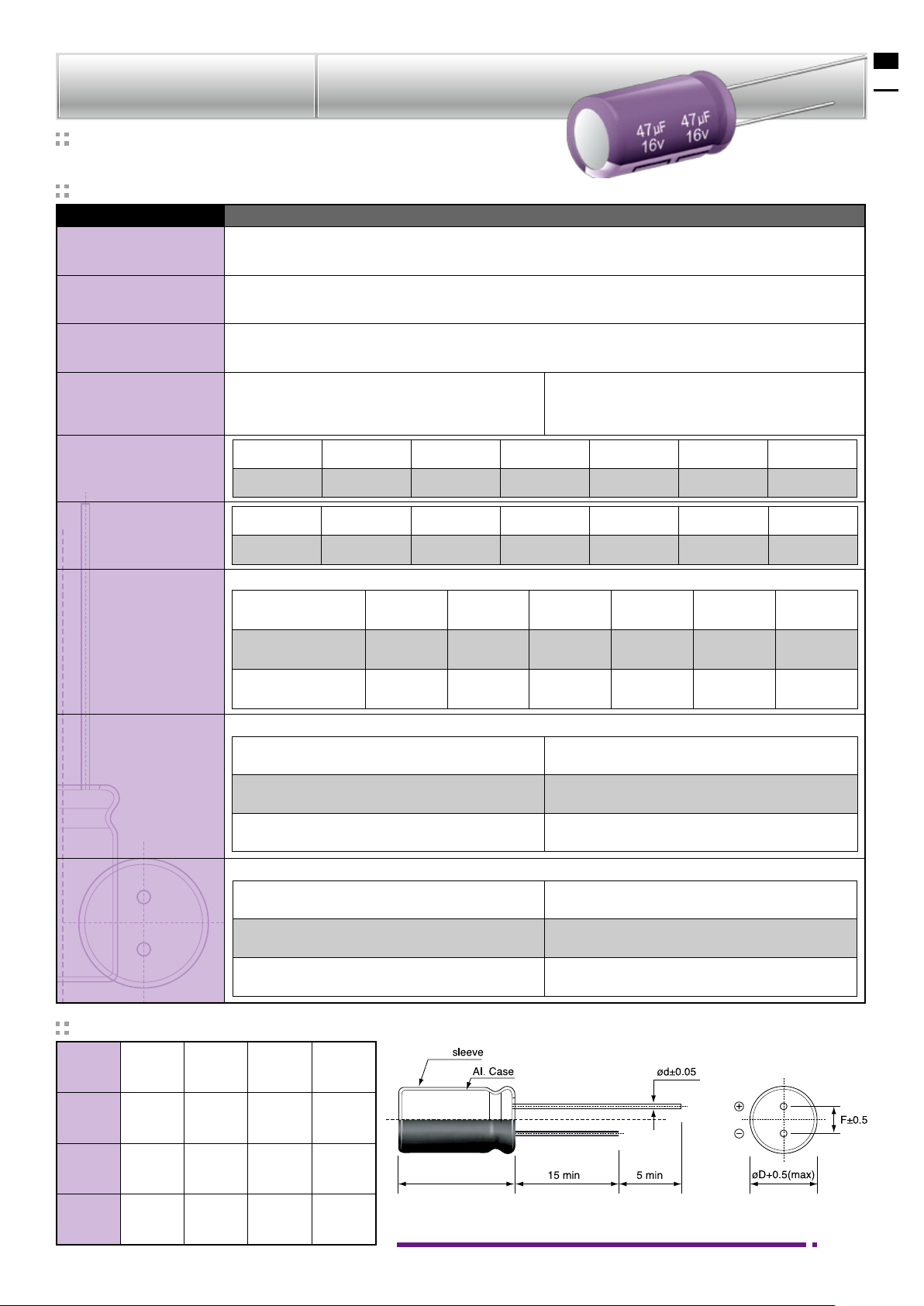

ML

ML

ML

FEATURES

Low Leakage For Smaller Size

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 to +85°C

Rated Working Voltage 6.3 ~ 50 V.DC

Series

ALUMINUM ELECTROLYTIC CAPACITORS

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

±20% (M)

I ≤ 0.02CV or 0.4 (μA) max

Whichever is greater after 2 minutes

WV 6.3 10 16 25 35 50

SV 8 13 20 32 44 63

WV 6.3 10 16 25 35 50

tanδ 0.22 0.19 0.16 0.14 0.12 0.10

When rated capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with increase of every
1000µF.

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50

-25°C / +25°C 4 3 2 2 2 2

-40°C / +25°C 8 6 4 4 3 3

After 1000 hours application of W V at +85°C the capacitor shall meet the following limits.

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Working Voltage(V)

Capacitance Change ≤ ±25% of initial value

Load Life

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

After 500 hours application of W V at +85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 4 5 6.3 8

F 1.5 2.0 2.5 3.5

d 0.45 0.50 0.50 0.50

α 1.5 1.5 1.5 1.5

L + α(max)

MULTIPLIER FOR RIPPLE CURRENT

Frequency (Hz) 60(50) 125 500 1k 100k

0.1~1µF 0.50 1.00 1.20 1.30 1.50

2.2~4.7µF 0.65 1.00 1.20 1.30 1.50

ALUMINUM ELECTROLYTIC CAPACITORS

25

ML

Coefcient

10~47µF 0.80 1.00 1.20 1.30 1.50

100~1000µF 0.80 1.00 1.10 1.15 1.20

2200µF 0.80 1.00 1.05 1.10 1.15

CASE SIZE & MAX RIPPLE CURRENT

WV 6.3(0J) 10(1A) 16(1C) 25(1E) 35(1V) 50(1H)

µF

ITEM Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

0.1 4x7 1.0

022 4x7 2.3

033 4x7 3.5

047 4x7 5.0

1 4x7 10

2.2 4x7 16

3.3 4x7 19

4.7 4x7 21 4x7 22 5x7 29

10 4x7 28 5x7 33 5x7 32 6.3x7 44

22 4x7 34 5x7 38 5x7 44 6.3x7 55 6.3x7 60 8x7 65

33 5x7 42 5x7 47 6.3x7 62 6.3x7 65 8x7 73

47 5x7 50 6.3x7 66 6.3x7 73 8x7 80

100 6.3x7 87 8x7 99 8x7 110

220 8x7 133

26

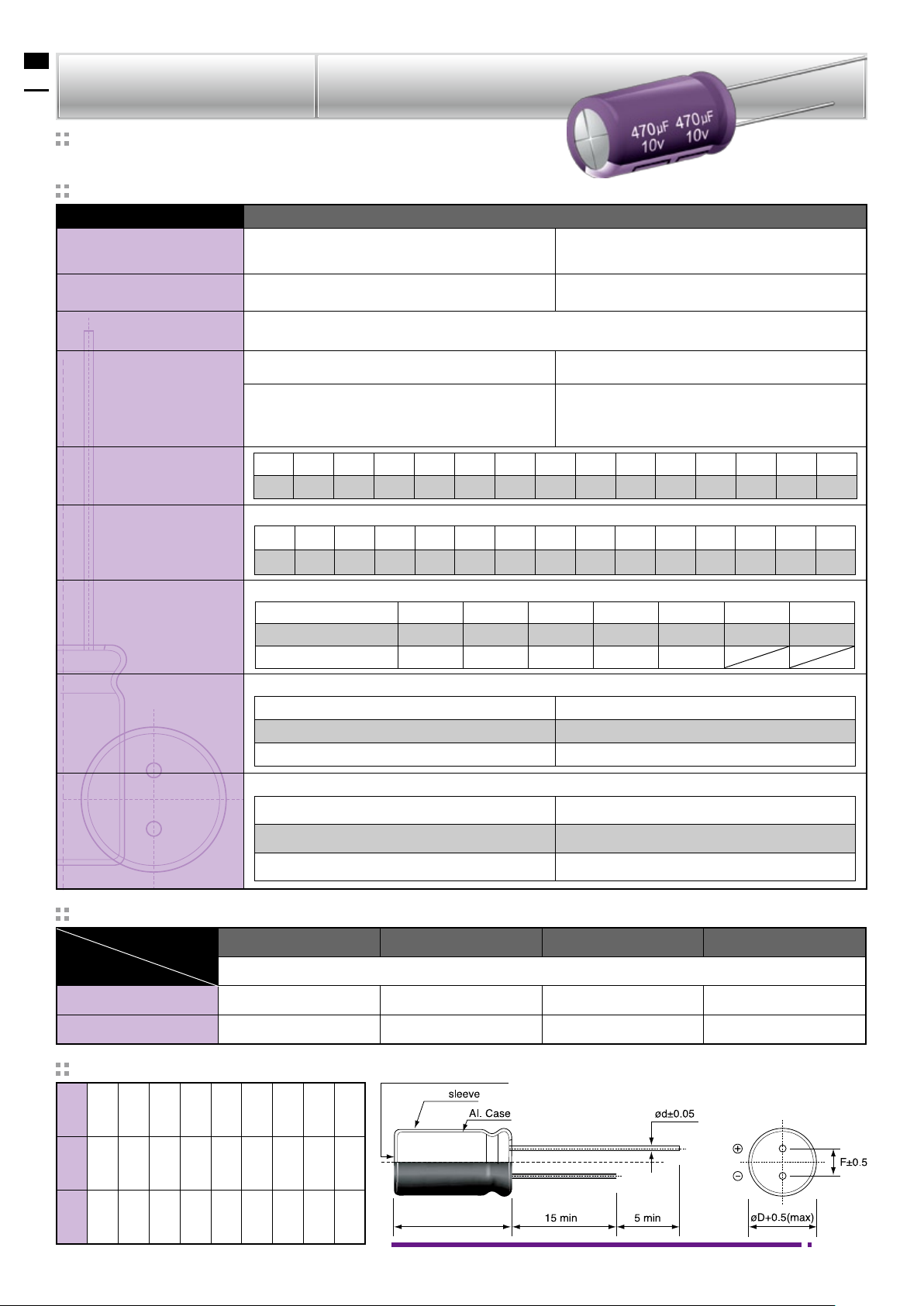

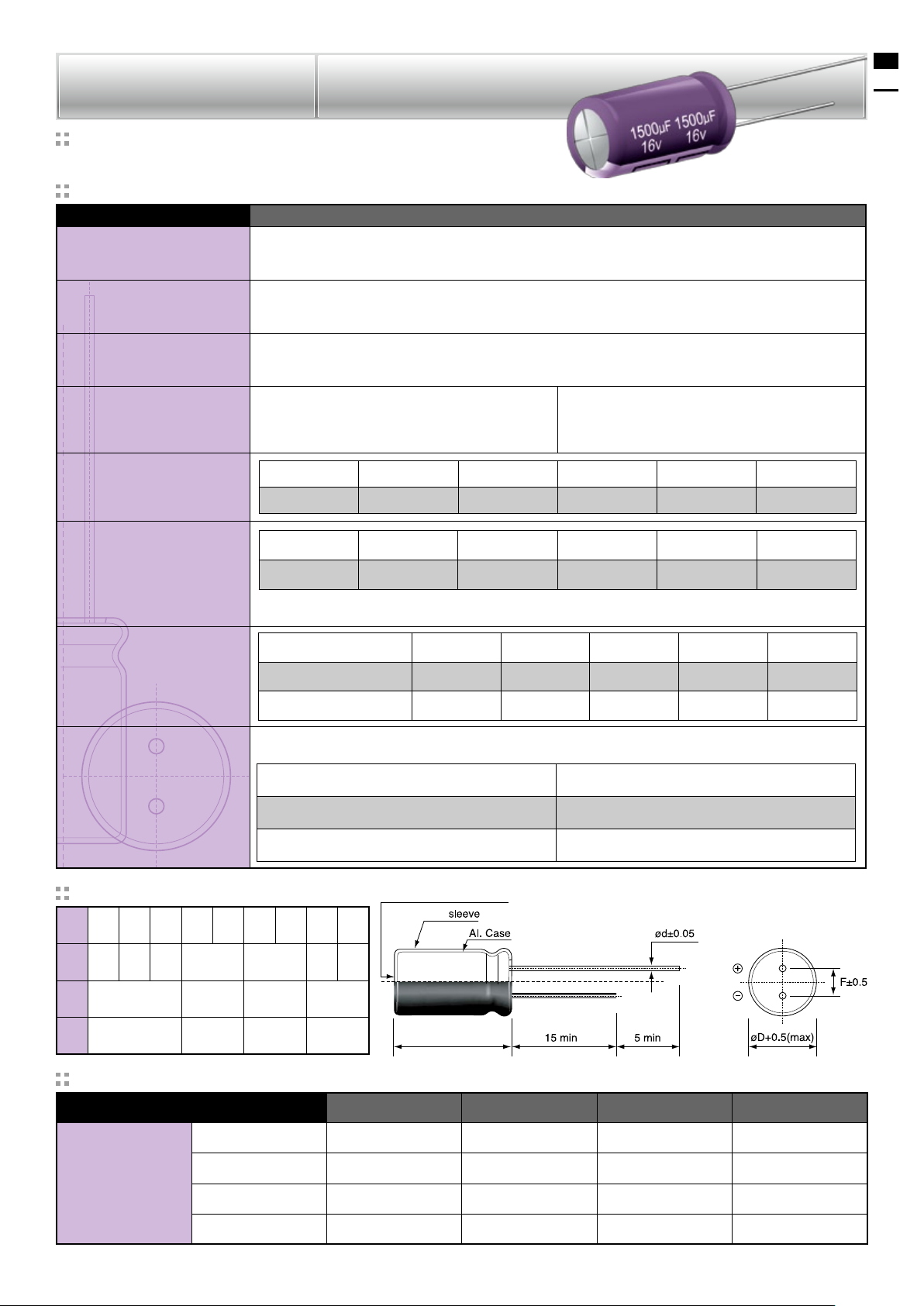

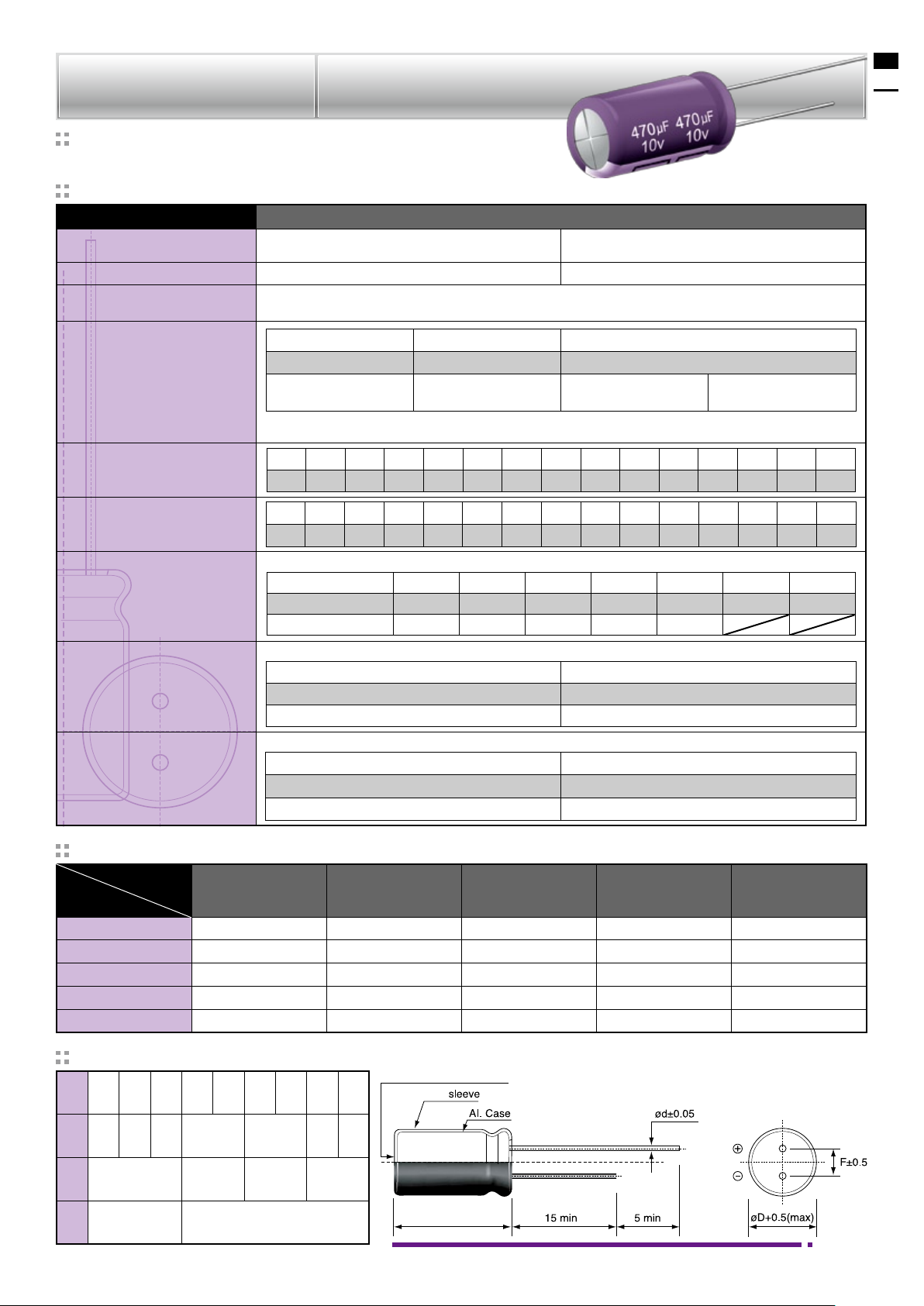

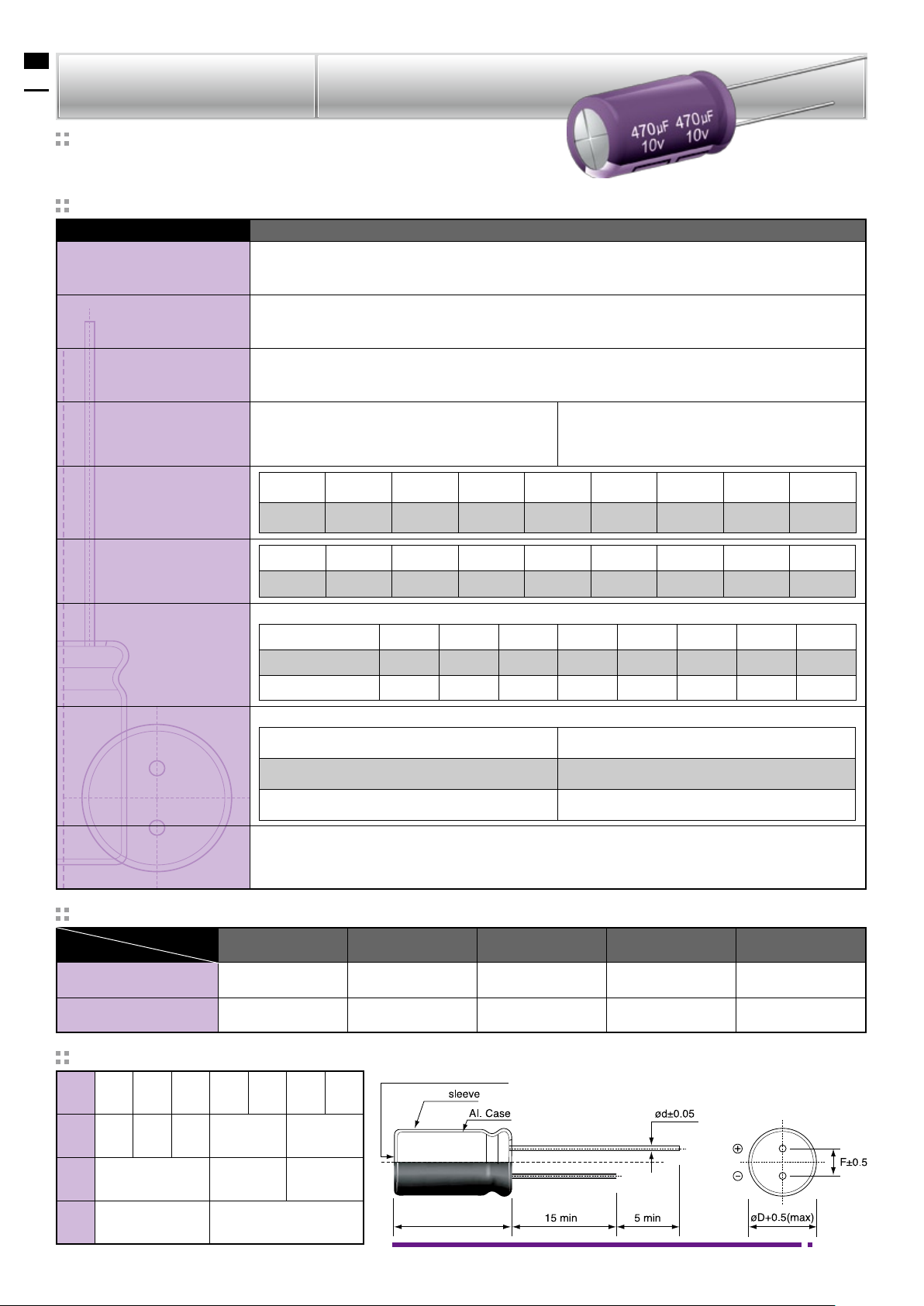

RG

RG

RG

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

General Used Standard Size

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 to + 85°C -25 to + 85°C

Rated Working Voltage 6.3 - 100 V.DC 160 - 450 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Load Life

±20% (M)

I ≤ 0.01CV or 4 (μA) I ≤ 0.03CV + 40 (μA) max

Whichever is greater after 3 minutes

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

SV 8 13 20 32 44 63 79 125 200 250 300 400 450 500

Add 0.02 per 1000μF for more than 1000μF

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

tanδ 0.22 0.19 0.16 0.14 0.12 0.10 0.10 0.08 0.15 0.20 0.20 0.25 0.25 0.25

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35-100 160-250 350-450

-25°C / +25°C 4 3 2 2 2 8 12

-40°C / +25°C 8 6 4 3 3

After 1000 hours application of W V at + 85°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

After 500 hours application of W V at + 85°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% of initial specied value

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz) 60 120 1K ≥ 10K

CAP(μF) Multiplier

6.3-25V 0.85 1.00 1.10 1.20

35-100V 0.80 1.00 1.15 1.25

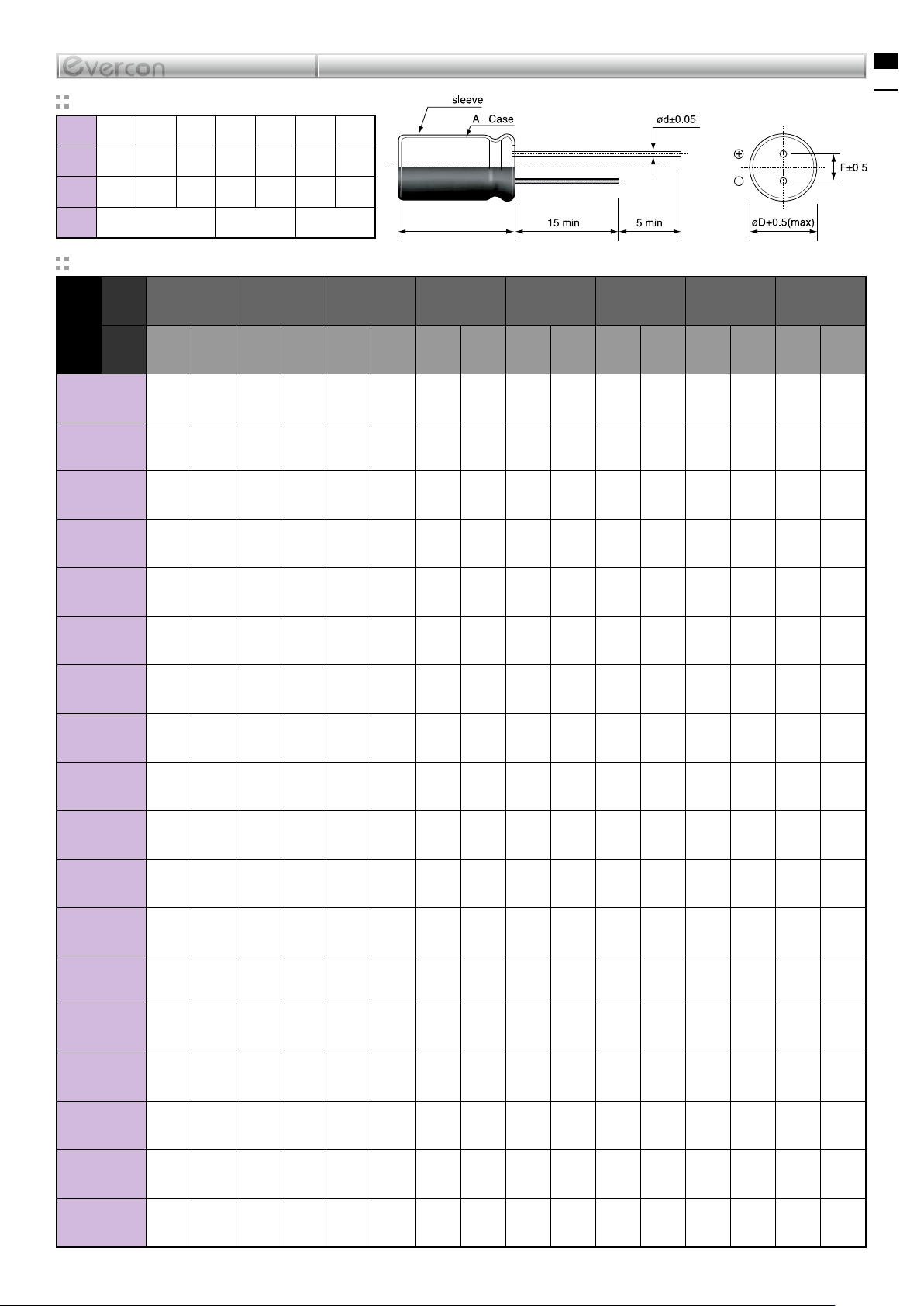

CASE SIZE OF RADIAL TYPE

D 5 6.3 8 10 13 16 18 22 25

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10.0 12.5

d 0.5 0.5 0.5 0.6 0.6 0.8 0.8 0.8 0.8

Vent (except Ø5 & Ø6.3)

L + 2(max)

CASE SIZE & MAX RIPPLE CURRENT

ALUMINUM ELECTROLYTIC CAPACITORS

27

RG

WV

µF

6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

0.1 5x11 1

0.22 5x11 2

0.33 5x11 3

0.47 5x11 5 5x11 5

1.0 5x11 10 5x11 10

2.2 5x11 23 5x11 29

3.3 5x11 35 5x11 40

4.7 5x11 20 5x11 25 5x11 30 5x11 35 5x11 40 5x11 45

10 5x11 35 5x11 40 5x11 50 5x11 60 5x11 65 5x11 70

Ripple

Current

(mA)

22 5x11 35 5x11 55 5x11 75 5x11 90 5x11 95 5x11 100 6.3x11 115

140
150

230
250

380
440

490
580

610
760

6.3x11
8x11

8x11 190

10x12 300

10x15
10x20

10x20
13x21

13x25 880

16x26
16x32

1310
1550

18x42 2200

22x42 2500

33 5x11 55 5x11 80 5x11 110 5x11 115 5x11 120 6.3x11 125

47 5x11 75 5x11 95 5x11 130 5x11 135

100 5x11 130 5x11 180

220

330

470

1000

2200

3300

4700

5x11

6.3x11

6.3x11
8x11

6.3x11
8x11

8x11

10x12

10x20
13x21

10x20
13x21

13x21
16x26

200
240

260
300

330
380

460
580

840

1050

1000
1250

1300
1700

6.3x11 250

8x11 330 8x11 360

8x11 400

10x12
10x15

10x20
13x21

13x21
13x25

13x25
16x26

580
630

880

1100

1250
1400

1500
1800

5x11

6.3x11

6.3x11
8x11

8x11

10x12

10x15
10x20

13x21
13x25

13x25
16x26

16x26
16x32

185 6.3x11 200 8x11 230

320

8x11

10x12

8x15

10x12

400
470

630
790

1100
1350

1400
1700

1800
2100

10x12
10x15

10x20
13x21

13x25
16x26

16x26
16x32

16x32
18x36

1300
1550

1660
1950

1950
2360

290
340

380
420

460
540

760
950

5x11

6.3x11

8x11

10x12

10x12
10x15

10x20
13x21

13x21
13x25

16x26
16x32

16x36
18x36

18x36 2400 22x35 2500

120
140

290
370

420
490

510
640

950

1100

1600
1800

1970
2220

6.3x11
8x11

8x11

10x12

10x12
10x15

10x15
10x20

10x20
13x21

13x25
16x26

16x36
18x36

18x36
18x42

1100
1350

1850
2090

2170
2400

130
140

410
490

540
680

6800 16x26 1900

10000

15000

16x26
16x32

16x36
18x36

1900
2250

2500
2880

16x26
16x32

16x36
18x36

18x36 2950 22x42 3150 22x42 3200

1900
2150

16x36
18x36

2200
2500

2500 18x36 2700 22x42 2800

22000 18x42 3650 22x42 3700 22x42 3800

18x36 2550 22x42 2600

28

RG

ALUMINUM ELECTROLYTIC CAPACITORS

WV

µF

100 / 2A 160 / 2C 200 / 2D 250 / 2E 350 / 2V 400 / 2G 450 / 2W

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Current

0.47 5x11 10 5x11 12 5x11 14 5x11 14 5x11 14 6.3x11 14 6.3x11 14

1.0 5x11 21 5x11 17 5x11 19 6.3x11 19 6.3x11 19 6.3x11 19 8x11 19

2.2 5x11 30 6.3x11 26

3.3 5x11 45

4.7 5x11 50

6.3x11
8x11

6.3x11
8x11

30
35

32
40

6.3x11
8x11

6.3x11
8x11

8x11

10x12

22
27

30
37

36
45

6.3x11
8x11

8x11

10x12

8x11

10x12

24
30

30
38

36
45

8x11 33

8x11

10x12

10x12
10x15

8x11

10x12

33

10x12 40 10x15 42

39

39

10x15 45 10x15 50

45

26
33

10x12 33

Ripple

(mA)

10 6.3x11 75

8x11

10x12

50
65

10x12
10x15

57

10x15 70 10x15 70

70

22 8x11 130 10x15 110 10x15 120 10x20 130 13x21 130

33

47

8x11

10x12

10x12
10x15

100 10x20 400

220 13x25 710

330

13x25
16x26

140
170

190
230

720
860

10x20 150 10x20 160

13x21 180

13x25
16x26

16x32
16x36

18x36
18x42

250
300

450
510

540
600

13x21
13x25

16x26 330 16x32 310 18x36 360 18x36 360 22x42 370

18x32
18x36

18x36
18x42

160
190

600 18x42 600

800

13x21
13x25

140
160

13x25 170 16x26 170

13x25 210 16x26 220

10x20
13x21

13x25
16x26

16x26
16x32

56
70

110

130

180
220

13x21
13x25

60
75

16x26 130

16x32
16x36

18x36
18x42

160
180

200
230

470 16x26 1100 22x42 900 18x42 1000

1000 18x42 1350

2200 22x42 2300

RB

RB

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

General Used Standard Size

SPECIFICATION

Item Characteristic

Operation

Temperature Range

Rated Working Voltage 6.3 - 100 V.DC 160 – 450 V.DC

Capacitance Tolerance

(120Hz 20°C)

Rated voltage ≤100V >100V

Leakage Current

(120Hz 20°C)

Leakage Current

-40 to + 105°C -25 to + 105°C

±20% (M)

Time After 2 minutes After 5 minutes

I=0.01CV or 3(μA)

Whichever is greater

C = Rated Capacitance (μF) V =Rated Voltage (V)

CV ≤ 1000

I = 0.03CV+15(μA)

29

RB

CV > 1000

I = 0.02CV+25(μA)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Endurance
(Load Life)

Shelf Life

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

SV 8 13 20 32 44 63 79 125 200 250 300 400 450 500

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

tanδ 0.24 0.20 0.17 0.15 0.12 0.10 0.10 0.08 0.20 0.20 0.20 0.25 0.25 0.25

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35-100 160-250 350-450

-25°C/ +25°C 4 3 2 2 2 8 12

-40°C/ +25°C 10 8 6 4 3

After 2000 hours application of W V at + 105°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% specied value

After 1000 hours application of W V at + 105°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% of initial specied value

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz)

CAP(μF)

0.1-47 0.75 1.00 1.35 1.57 2.00

100-470 0.80 1.00 1.23 1.34 1.50

1000-15000 0.85 1.00 1.10 1.13 1.15

0.47-220 0.80 1.00 1.25 1.40 1.60

330 0.90 1.00 1.10 1.13 1.15

50 120 300 1K 10K

DIMENSIONS (mm)

D 5 6.3 8 10 13 16 18 22 25

F 2.0 2.5 3.5 5.0 7.5 10 12

d 0.5 0.6 0.8 0.8

α 1.5 2.0

Vent (except Ø5 & Ø6.3)

L + α(max)

ALUMINUM ELECTROLYTIC CAPACITORS

30

RB

CASE SIZE & MAX RIPPLE CURRENT

WV

µF

0.47 5x11 7 5x11 8

1.0 5x11 12 5x11 13

2.2 5x11 18 5x11 20

3.3 5x11 25 5x11 27

4.7 5x11 20 5x11 25 5x11 30 5x11 34

6.8 5x11 25 5x11 30 5x11 32 5x11 37

10 5x11 25 5x11 30 5x11 40 5x11 50 5x11 55

15 5x11 40 5x11 45 5x11 50 5x11 60 5x11 65

22 5x11 45 5x11 55 5x11 60 5x11 65 5x11 75 6.3x11 90

33 5x11 60 5x11 70

47 5x11 60 5x11 75 5x11 85 5x11 90

56 5x11

68 5x11 75 5x11 80 5x11 100 6.3x11 125 8x11 130 8x11 159 10x12 198

100 5x11 100 5x11 110

120 6.3x11

150 5x11 120 6.3x11 130 8x11 180 8x11 200 10x12 240 10x12 289 10x15 330

220

330

470

560 10x12

680 10x12 320

1000

1500 10x15 600 10x20 750

2200

3300

3900 10x25

4700

6800

10000

15000 18x36 2280

6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J

Case

Size

(mm)

4x11

6.3x11 8x11 235 10x12 250 10x12 315 10x20 450

6.3x11 160 6.3x11

8x11 200 8x11 355 10x15 440 10x20 535

6.3x11 220 6.3x11 240

8x11 280 8x11 305 10x12 395

8x11

8x12 10x12 10x15 13x20 13x21

10x12 470 10x15 570 10x20 700 13x21 855 13x25 995 16x26 1110 16x32 1200

10x20 740 10x20 800 13x21 990 13x25 1030 13x21 1230 16x36 1360

13x21 930 13x21 1010 13x25 1150

10x20 880 13x21 1050 13x25 1140 16x26 1230 16x36 1470

13x21 1100 13x25 1220 16x26 1350 16x32 1450 18x36 1660

13x25 1100 13x25 1190 16x26 1330

16x26 1320 16x26 1410 16x32 1560

13x25 1300 16x26 1370 16x36 1590

16x26 1350 16x32 1600 18x36 1790

16x26 1560 16x36 1760

16x32 1830 18x36 1980

Ripple

Current

(mA)

Case

Size

(mm)

140 6.3x11 180

8x11

10x12 16x26 1000

370

8x14

Ripple

Current

(mA)

255 8x11 285

420 10x15 530 10x20 650 13x21 730 13x25 860

490

Case

Size

(mm)

5x11 110 6.3x11 145 6.3x11 150

Ripple

Current

(mA)

Case

Size

(mm)

5x11

6.3x11 8x11 120

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case
Size

(mm)

75 5x11 85 6.3x11 105

5x11 95 6.3x11 100

6.3x11 115 8x11 125

6.3x11

Ripple

Current

(mA)

Case
Size

(mm)

Current

6.3x11 110

8x11 155

160 8x14 230

Ripple

(mA)

8x11

6.3x11 135 8x11 180 8x11 190 210 10x12 260

6.3x11 180 8x11 200 8x14 280

8x11

320 10x12 380 10x15 450

10x12

10x15 400

10x15 400

13x21 650 8x15

10x12

8x11

8x12 10x12 10x15

310

8x14

10x15

10x20

400

10x15

490 10x20

13x21 700

730

470 13x21 580 13x21 13x25 800

13x25 840

10x12

590

10x20 680

13x21 860 16x36 1450

13x16

680

13x16

850 13x25 930 16x26 1020

13x25 1020 16x26 1110 16x32 1350

16x15

16x26

1230

16x26

13x21 18x36

1450

16x32

1530

16x32 1300

18x42 1700

16x26

16x32

16x36

18x32

18x36

1380

1420

1570

1690

18x36 1580

22x35 1900

18x42 1750

18x36 1850

18x36 2100

ALUMINUM ELECTROLYTIC CAPACITORS

31

RB

WV

100 / 2A 160 / 2C 200 / 2D 250 / 2E 350 / 2V 400 / 2G 450 / 2W

µF

Case

Size

(mm)

0.47 5x11 10 5x11 12 5x11 14 5x11 14 5x11 14 6.3x11 14 6.3x11 14

1.0 5x11 15 5x11 17 5x11 19 6.3x11 19 6.3x11 20

2.2 5x11 22 6.3x11 25

3.3 5x11 29

4.7 5x11 37

6.8 5x11 46 10x12 54 10x12 60

5x11 55 8x11 56 10x12 69

10

6.3x11 65 10x12 70 10x15 80 13x21 97 13x25 100

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

Case

Size

(mm)

Ripple

Current

(mA)

6.3x11 16

8x11 20

6.3x11 22 6.3x11 23

8x11 28

8x11 35

8x11 28 8x11 29 10x12 35

6.3x11 30 6.3x11 32 8x11 33 8x11 37 8x11 38

8x11 36 8x11 40 10x12 42 10x12 47 10x12 50

6.3x11 34 8x11 40 8x11 41 10x12 47 10x12 49

8x11 43 10x12 50 10x12 52 10x15 55 10x15 57

8x15 62

10x15 65 10x20 72 10x20 80

10x12 60

10x20 77 13x21 85

10x15 88 10x15 95

Case
Size

(mm)

8 x11 20

10x12 35

10x15 54

10x15 60

Ripple

Current

(mA)

15 8x11 82 10x1S 90 10x15 110 10x15 120 10x20 140

6.3x11

22

115 10x15 130 10x15 140 10x20 155 13x21 165

8x11 13x25 175 16x32 180

33

10x20 180 10x20 190

8x11 120

13x21 170

13x25 220

10x12 160 13x25 200 16x26 230 16x36 240

47

10x12 180

13x21 270

13x21 240 13x21

330 16x26 340

10x15 210 13x25 290 13x25 16x36 350 18x42 360

68 10x15 241 13x25 300 13x25 330 16x26 350 16x32 370

10x16 250 13x25 330

100

16x26 410 16x32 430 18x36 460 18x36 480

10x20 385 16x26 400

150 13x25 414 16x32 435 16x36 450 18x42 460 22x42 480

16x32 550 18x36 580

220 13x25 590

22x42 680

16x36 620 18x42 650

10x20 100

16x26 160

13x25 150

13x21 150 16x26 150

13x25 190 16x26 190

16x26 280 16x36 300

16x32

380 22x42 400

18x36

330

13x25 600 18x36 770 18x42 780

16x26 720 18x42 850 22x42 920

16x26 740

470

16x23 875

680 16x36 1200

18x42 1340

1000

22x42 1500

22x42 980

32

LL

LL

LL

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

105°C Standard size: For low leakage current
Load life: 105°C 1000 hours

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 ~ +105°C

Rated Working Voltage 6.3 ~ 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(Max) at 20°C

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

Endurance
(Load Life)

±20% (M)

I ≤ 0.002CV or 0.4 (μA) After

2 minutes

WV 6.3 10 16 25 35 50

SV 8 13 20 32 44 63

Rated Voltage (V) 6.3 10 16 25 35 50

tanδ 0.24 0.19 0.16 0.14 0.12 0.10

Impedance ratio at 120Hz

Rated Vdtage(V) 6.3 10 16 25 35 50

Z-25°C /Z+20°C 4 3 2 2 2 2

Z-40°C /Z+20°C 8 6 4 4 3 3

Test conditions- Duration time : l000Hrs, Ambient temperature : +105°C
Applied voltage : Rated DC working voltage

capacitance change Within ±20% of the initial value.

Dissipation Factor Not more than 200% of the specied value.

Leakage Current Not more than the specied value.

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Shelf Life

The following specication shall be satised when the capacitors are stored to 20°C after exposing them
for 1000 hours at 105°C without voltage applied. The capacitors meet the specied value for load life
characteristics listed above.

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

CAP(μF)

Frequency (Hz)

0.1 ~ 47μF 0.80 1.00 1.20 1.30 1.50

100 ~ 1000μF 0.80 1.00 1.10 1.15 1.20

60(50) 120 500 1K 10K≤

DIMENSIONS (mm)

D 5 6.3 8 10

F 2.0 2.5 3.5 5.0

d 0.5 0.5 0.5 0.6

L + α(max)

α 1.0(L≤20)

ALUMINUM ELECTROLYTIC CAPACITORS

CASE SIZE & MAX RIPPLE CURRENT

6.3V / 0J 10V / 13 16V / 20 25V / 32 35V / 44 50V / 63

µF

Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

0.1 5x11 1

0.22 5x11 2

0.33 5x11 3

0.47 5x11 5

1 5x11 10

33

LL

2.2 5x11 20

3.3 5x11 30

4.7 5x11 25 5x11 30 5x11 35

10 5x11 30 5x11 45 5x11 50 5x11 55

22 5x11 40 5x11 45 5x11 60 5x11 80 5x11 85 6.3x11 90

33 5x11 50 5x11 65 5x11 80 5x11 90 6.3x11 110 6.3x11 120

47 5x11 70 5x11 80 5x11 90 6.3x11 120 6.3x11 130 8x12 170

100 5x11 90 6.3x11 130 6.3x11 160 8x12 200 8x12 230 10x12 280

220 6.3x11 200 8x12 270 8x12 280 10x12 350 10x16 400 10x20 460

330 8x12 300 8x12 350 10x12 380 10x16 460 10x20 520

470 8x12 360 10x12 450 10x16 500 10x20 590

680 10x16 470 10x20 570

1000 10x16 640 10x20 730

34

LG

LG

LG

Series

FEATURES

85°C Standard size: For low leakage current
Load life: 85°C 1000 hours

SPECIFICATION

Item Characteristic

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 - 100 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50 63 100

Low Temperature Stability

I ≤ 0.002CV or 0.4 (μA) After

2 minutes

WV 6.3 10 16 25 35 50 63 100

SV 8 13 20 32 44 63 79 125

WV 6.3 10 16 25 35 50 63 100

tanδ 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

-25°C / +25°C 4 3 2 2 2 2 2 2

-40°C / +25°C 8 6 4 4 3 3 3 3

-40 to + 85°C

±20% (M)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

After 1000 hours application of WV at +85°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±20% of initial value

Load Life

Shelf Life

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

The following specication shall be satised when the capacitors are stored to 20°C after exposing them for
1000 hours at 85°C without voltage applied. The capacitors meet the specied value for load life
characteristics listed above.

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

CAP(μF)

Frequency (Hz)

0.1 ~ 47μF 0.80 1.00 1.20 1.30 1.50

100 ~ 1000μF 0.80 1.00 1.10 1.15 1.20

60(50) 120 500 1K 10K≤

DIMENSIONS (mm)

Vent (except Ø5 & Ø6.3)

D 5 6.3 8 10 13 16 18

F 2.0 2.5 3.5 5.0 7.5

d 0.5 0.6 0.8

α 1.0 2.0

L + α(max)

ALUMINUM ELECTROLYTIC CAPACITORS

CASE SIZE & MAX RIPPLE CURRENT

WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J 100 / 2A

µF

ITEM

Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

35

LG

01

0.22

0.33

0.47

1

2.2

3.3

4.7

5x11 1 5x11 2

5x11 2 5x11 4

5x11 3 5x11 7

5x11 5 5x11 10

5x11 10 5x11 18

5x11 20 5x11 25

5x11 35 5x11 45

5x11 30 5x11 35 5x11 40 5x11 50

10

22

33

47

100

220

330

470

5x11 40 5x11 50 5x11 55 5x11 60 6.3x11 75 8x12 90

5x11 45 5x11 50 5x11 70 5x11 85 5x11 90 6.3x11 100 8x12 110 10x12 130

5x11 55 5x11 70 5x11 90 5x11 100 6.3x11 120 6.3x11 130 8x12 160 10x16 180

5x11 75 5x11 90 5x11 110 6.3x11 130 6.3x11 140 8x12 180 10x12 200 10x20 220

5x11 100 6.3x11 140 6.3x11 180 8x12 210 8x12 240 10x12 290 10x20 330 13x21 370

6.3x11 220 8x12 280 8x12 300 10x12 360 10x16 410 10x20 480 13x21 540 16x26 580

8x12 310 8x12 360 10x12 400 10x16 470 10x20 530 13x21 600 13x26 700 16x32 730

8x12 380 10x12 460 10x16 520 10x20 600 13x21 670 16x26 750 16x26 840 18x36 910

680

1000

10x16 480 10x20 590 13x21 720 13x26 800 16x26 830 16x26 900 16x32 1050

10x16 650 10x20 750 13x21 900 13x26 1000 16x26 1100 16x32 1140 18x36 1320

36

NP

NP

NP

FEATURES

General Used Standard Size

SPECIFICATION

Item Characteristic

Series

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 ~ 100 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C)(tanδ)

WV 6.3 10 16 25 35 50 63 100

SV 8 13 20 32 44 63 79 125

Add 0.02 per 1000µF for more than 1000µF

WV 6.3 10 16 25 35 50 63 100

tanδ 0.26 0.24 0.22 0.20 0.16 0.14 0.12 0.10

I ≤ 0.03CV or3 (µA) max

After 3 minutes

-40 to +105°C

±20% (M)

I : Leakage Current( µA)
C : Rated Capacitance( µF)
V : Rated Voltage(V)

Low Temperature Stability

Load Life

Shelf Life

Impedance ratio at 120Hz

Rated Voltage (V) 6.3 10 16 25 35 50 63 100

-25°C / +25°C 4 3 2 2 2 2 2 2

-40°C / +25°C 10 8 6 5 4 4 3 3

After 1000 hours application of W V at +105°C the capacitor shall meet the following limits. The polarity needs
to exchange every 250hours.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

At 105°C no voltage applied after 1000 hours and then through the aging treatment (reference JIS C-5102)
the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% of initial specied value

DIMENSIONS (mm)

D 5 6.3 8 10 13 16 18

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5

d 0.5 0.5 0.5 0.6 0.6 0.8 0.8

ALUMINUM ELECTROLYTIC CAPACITORS

37

NP

α 1.5 2.0 2.0

L + α(max)

CASE SIZE & MAX RIPPLE CURRENT

WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J 100 / 2A

µF

ITEM Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

0.1 ~ 0.47 5x11 11 5x11 14

1 5x11 17 5x11 21

2.2 5x11 25 6.3x11 34

3.3 5x11 27 5x11 28 6.3x11 39

4.7 5x11 34 5x11 34 5x11 34 6.3x11 34 6.3x11 47

10 5x11 42 5x11 42 511 43 6.3x11 52 6.3x11 57 8x11 71

22 5x11 57 5x11 57 6.3x11 65 6.3x11 73 8x11 89 8x11 95 10x16 135

33 5x11 64 5x11 64 5x11 70 6.3x11 80 8x11 100 8x11 105 10 x12 135 13x21 220

47 5x11 76 5x11 76 6.3x11 95 6.3x11 95 8x11 120 10x12 150 10x16 180 13x21 240

100 6.3x11 125 6.3x11 125 8x11 160 8x11 160 10x16 230 10x20 265 13x21 320 16x26 425

220 8x11 215 8x11 215 10x12 275 10x16 305 13x21 410 13x26 480 16x26 575 18x36 720

330 8x11 265 10x12 345 10x16 375 13x21 450 13x21 505 16x26 650 16 x31 655

470 10x12 370 10x16 410 10x20 485 13x21 540 13x25 655 16x32 835 18x36 965

1000 10x20 650 13x21 720 13x25 855 16x32 950 16x32 1140

2200 13x25 1160 16x26 1280 16x32 1510 18x36 1620

3300 16x26 1570 16x32 1690 18x36 1980

4700 16x32 2020 18x36 2160

6800 18x36 2600

38

NG

NG

NG

FEATURES

Non-Polarized 85ºC

SPECIFICATION

Series

Item Characteristic

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 10 ~ 100V.DC 160 ~ 250V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C)

Impedance ratio max.

Low Temperature Stability

I ≤ 0.03CV or 3 (µA) After 1 minute

whichever s greater measured with rated working

WV 10 16 25 35 50 63 100 160 200 250

SV 13 20 32 44 63 79 125 200 250 300

Rated Voltage (V) 10 16 25 35 50 63 100 160 200 250

tanδ 25 20 15 15 13 10 10 15 15 20

Rated Voltage (V) 10 16 25 35 50 63 100 160 200 250

-25°C / +25°C 3 2 2 2 2 2 2 2 2 3

-40°C / +20°C 6 4 3 3 3 3 3

-40° ~ +85°C -25º ~ +85ºC

±20% (M)

I : Leakage Current(μA)

votage applied.

C : Rated Capacitance(μF)
V : Rated Voltage(V)

Test conditions Duration time : l000Hrs
Ambient temperature : +85°C

Endurance

(Load Life)

Applied voltage : Rated DC working voltage

After test requirements at +20°C
Capacitance change : ≤±20% of the initial measured value
Dissipation factor : ≤150% of the initial specied value
Leakage current : ≤The initial specied value

DIMENSIONS (mm)

D 5 6.3 8 10 13 16

F 2.0 2.5 3.5 5.0 5.0 7.5

d 0.5 0.5 0.5 0.6 0.6 0.8

α 1.5 1.5 1.5 2.0 2.0 2.0

MULTIPLIER FOR RIPPLE CURRENT

Frequency(Hz) 50(60) 120 400 1k 10k 100k≤

5.6 ~ 33µF 0.8 1 1 .30 1.45 1.65 1.70

Vent (except Ø5 & Ø6.3)

L + α(max)

Mutiplier

39 ~ 270µF 0.8 1 1.23 1.36 1.48 1.53

330 ~ 680µF 0.8 1 1.16 1.25 1.35 1.38

ALUMINUM ELECTROLYTIC CAPACITORS

CASE SIZE & MAX RIPPLE CURRENT

WV 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H

µF

ITEM Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

0.47 5x11 11

1 5x11 17

2.2 5x11 25

3.3 5x11 27

4.1 5x11 34

10 5x11 34 5x11 43 6.3x11 52

22 5x11 57 6.3x11 65 6.3x11 73 8x11 89

33 5X11 64 6.3x11 70 6.3x11 80 8x11 100 10x12 105

47 5X11 76 6.3x11 95 6.3x11 95 8x11 120 10x12 150

39

NG

100 6.3X11 125 8x11 160 8x11 160 10x12 230 10x20 265

220 8x11 215 10x12 275 10x12 305 10x20 410 13x25 480

330 10x12 345 10x12 375 10x16 450 13x20 505 16x25 650

470 10x12 410 10x16 485 13x20 540 13x25 655

1000 10x20 720 13x20 855

WV 63 / 1J 100 / 2A 160 / 2C 200 / 2D 250 / 2E

µF

ITEM Size R.C. Size R.C. Size R.C. Size R.C. Size R.C.

0.47 5x11 12 5x11 14 5x11 17 6.3x11 21 6.3x11 28

1 5x11 18 5x11 21 6.3x11 25 8x11 28 8x11 34

2.2 5x11 26 5x11 34 8x11 38 8x11 42 10x12 50

3.3 6.3x11 28 6.3x11 39 8x11 43 10x12 47 10x16 57

4.7 6.3x11 34 8x11 47 10x12 52 10x16 56 10x20 89

10 6.3x11 57 8x11 71 10x16 89 10x20 95 10x20 135

22 8x11 95 10xl6 135 10x20 150 13x20 180 13x25 220

33 10x12 135 10x20 220 13x20 230 13x25 265 16x25 320

47 10x16 180 13x20 240 13x25 265

100 13x20 320 16x25 425

220 13x25 575

All blank voltage on sleeve marking is the same voltage as “→”

ALUMINUM ELECTROLYTIC CAPACITORS

40

BP

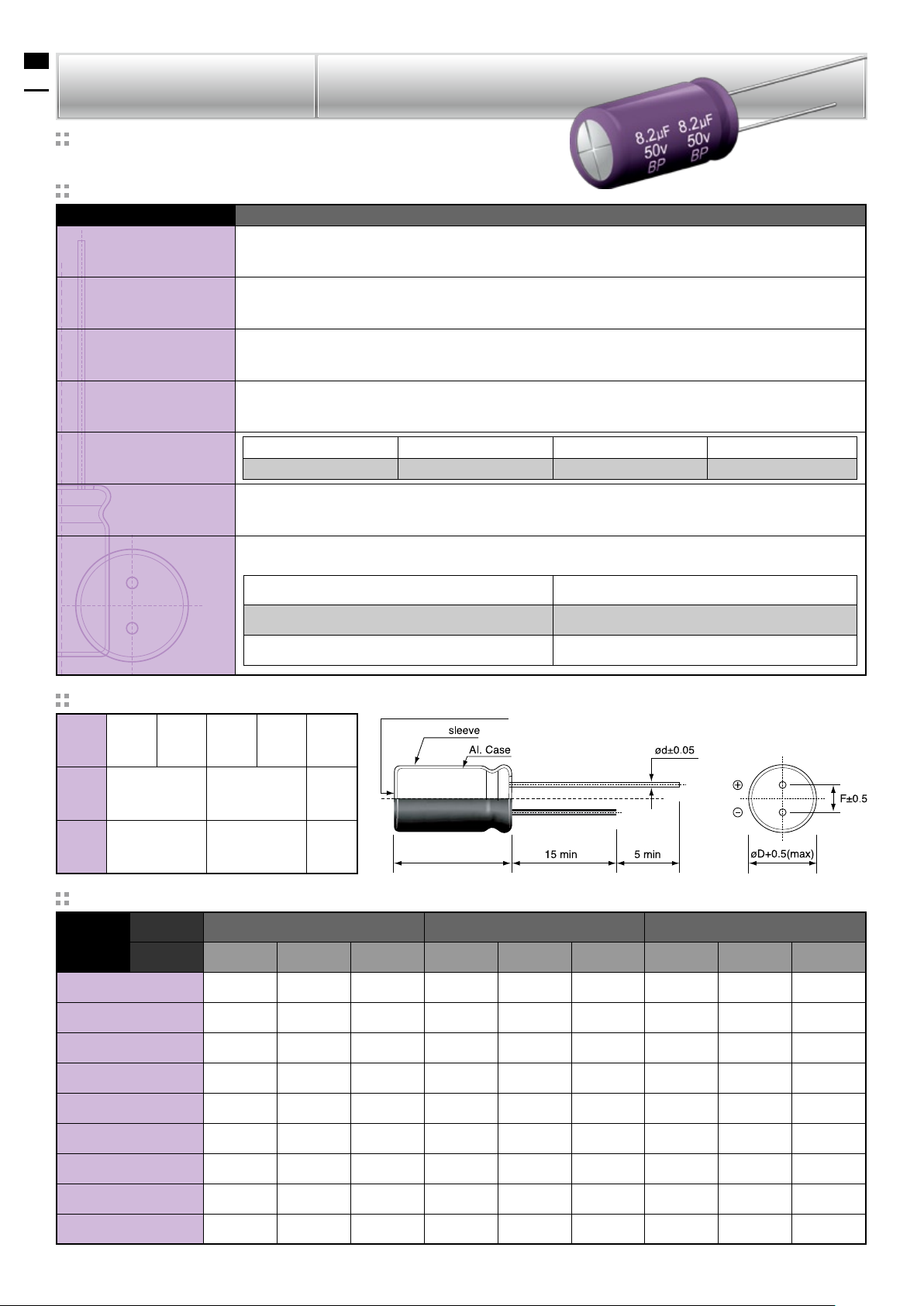

BP

BP

FEATURES

Bi-Polarized For Horizontal Deflection

SPECIFICATION

Item Characteristic

Series

Operation

Temperature Range

Rated Working Voltage 25 – 50 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C)(tanδ)

Load Life

WV 25 35 50

SV 32 44 63

After 2000 hours application WV at +85°C, the capacitor shall meet the following limits.
(The polarity needs to exchange every 250 hours)

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

100 (mA) After 5 minutes in both directions.

-40 to +85°C

±20% (M) ±10% (K)

tanδ ≤ 0.05

DIMENSIONS (mm)

D 10 13 16 18 22

F 5.0 7.5 10

d 0.6 0.8 0.8

CASE SIZE & MAX RIPPLE CURRENT

WV 25 / 1E 35 / 1V 50 / 1H

µF

ITEM D×L E.S.R. R.C. D×L E.S.R. R.C. D×L E.S.R. R.C.

2.2 10x20 30.14 2.8 13x26 30.14 3.5 13x26 30.14 3.5

3.3 13x26 20.10 4.5 13x26 20.10 4.8 16x26 20.10 4.8

4.7 13x26 14.11 5.5 13x26 14.11 6.5 16x32 14.11 6.5

6.8 16x26 9.75 7.5 16x26 9.75 8.0 16x36 9.75 8.0

8.2 16x32 8.09 8.5 16x32 8.09 9.5 18x36 8.09 9.5

10 18x32 6.63 10.0 18x32 6.63 10.5 18x36 6.63 10.5

Vent

L + 2(max)

12 18x32 5.53 11.5 18x32 5.53 12.0 22x41 5.53 12.0

18 18x32 3.68 13.0 18x32 3.68 13.0

22 18x32 2.83 14.5 18x32 2.83 14.5

ALUMINUM ELECTROLYTIC CAPACITORS

41

RT

RT

Series

FEATURES

Axial Type For 85°C

SPECIFICATION

Item Characteristic

Operation

Temperature Range

Rated Working Voltage 6.3 - 100 V.DC 160 - 450 V.DC

-40 to + 85°C -25 to +85°C

RT

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C)(tanδ)

Low Temperature Stability

Load Life

Shelf Life

±20% (M)

I ≤ 0.03CV or 3µA Whichever is greater,

after 3 minutes

I ≤ 0.01CV + 10, after 3 minutes

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

SV 8 13 20 32 44 63 79 125 200 250 300 400 450 500

Add 0.02 per 1000μF for more than 1000μF

WV 6.3 10 16 25 35 50 63 100 160 200 250 350 400 450

Tanδ 0.24 0.20 0.16 0.14 0.12 0.10 0.10 0.10 0.20 0.20 0.20 0.24 0.24 0.24

Impedance ratio at 120Hz

Rated Voltage 6.3 10 16-35 50-100 160-350 400-450

-25°C / +25°C 4 3 2 2 3 4

-40°C / +25°C 8 6 4 3

After 1000 hours application of WV at+85°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

After 500 hours application of WV at+85°C the capacitor shall meet the following limits

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

I : Leakage Current(µA)
C : Rated Capacitance(µF)
V : Rated Voltage(V)

DIMENSIONS (mm)

D 6.3 8 10 13 16 18 22 25

d 0.5 0.5 0.6 0.6 0.8 0.8 0.8 0.8

α 1.5 1.5 2.0 2.0 2.0 2.0 2.0 2.0

30 min

L + α(max)

30 min

42

RT

CASE SIZE & MAX RIPPLE CURRENT

WV 6.3 / 0J 10 / 1A 16 / 1C 25 / 1E 35 / 1V 50 / 1H 63 / 1J

µF

ITEM D×L R.C D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.47 5x12 5

1.0 5x12 10

2.2 5x12 23

3.3 5x12 28 5x12 31

4.7 5x12 34 5x12 37

10 5x13 37 5x12 40 5x12 45 5x12 50 5x12 55

22 5x12 60 5x12 65 5x12 70 6.3x12 85 6.3x12 90

33 5x12 65 5x12 70 5x12 80 6.3x12 90 6.3x16 110 6.3x16 120

47 5x12 80 5x12 85 6.3x12 100 6.3x16 120 6.3x16 130 8x16 160

100 5x12 110 6.3x12 130 6.3x16 160 6.3x16 170 8x16 210 8x16 220 8x20 260

220 6.3x16 220 6.3x16 210 8x13 257 8x16 280 8x20 340 10x21 410 10x26 480

330 6.3x16 250 8x16 300 8x16 320 8x20 380 10x21 460 10x26 560 13x26 650

ALUMINUM ELECTROLYTIC CAPACITORS

470 8x15 330 8x16 350 10x17 430 10x21 510 10x26 610 13x36 730 13x32 840

1000 10x21 600 10x21 640 10x26 770 13x26 900 13x32 1060 16x32 1260 16x32 1330

2200 13x26 1020 13x26 1090 16x28 1180 16x32 1480 16x32 1580 18x41 1920 22x40 2160

3300 13x26 1200 13x32 1390 16x32 1620 16x41 1710 16x41 2050 22x40 2340 22x52 2470

4700 16x32 1500 16x32 1730 16x41 1840 18x41 2170 22x40 2470 22x52 2650 25x61 2710

WV 100 / 2A 160 / 2C 200 / 2D 250 / 2E 350 / 2V 400 / 2G 450 / 2W

µF

ITEM D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C. D×L R.C.

0.47 5x12 10

1.0 5x12 18 6.3x12 13 6.3x12 13 6.3x16 14 6.3x16 12 8x16 14 8x16 14

2.2 5x12 28 6.3x16 23 6.3x16 23 8x16 27 8x16 24 8x20 28 10x21 31

3.3 5x12 34 8x16 33 8x16 33 8x16 33 8x20 32 10x21 38 10x21 38

4.7 5x12 40 8x16 39 8x16 39 8x20 45 10x21 46 10x21 46 10x26 50

10 6.3x12 60 8x20 60 10x21 70 10x21 70 13x26 85 13x26 85 13x26 85

22 8x16 120 10x26 120 13x26 140 13x26 140 13x32 140 16x32 150 16x32 150

33 8x16 150 13x26 170 13x26 170 13x32 190 16x32 190 16x41 210 18x41 230

47 8x20 190 16x32 230 13x32 230 16x32 260 16x41 260 18x41 290 22x40 310

100 10x26 340 16x41 430 16x41 430 16x41 430 22x40 420 22x52 460 22x52 540

220 13x26 560 22x40 680 22x40 680 22x40 680

330 13x32 750 22x52 940 25x52 1010

470 16x32 970 25x52 1200

1000 22x40 1540

2200 25x61 2430

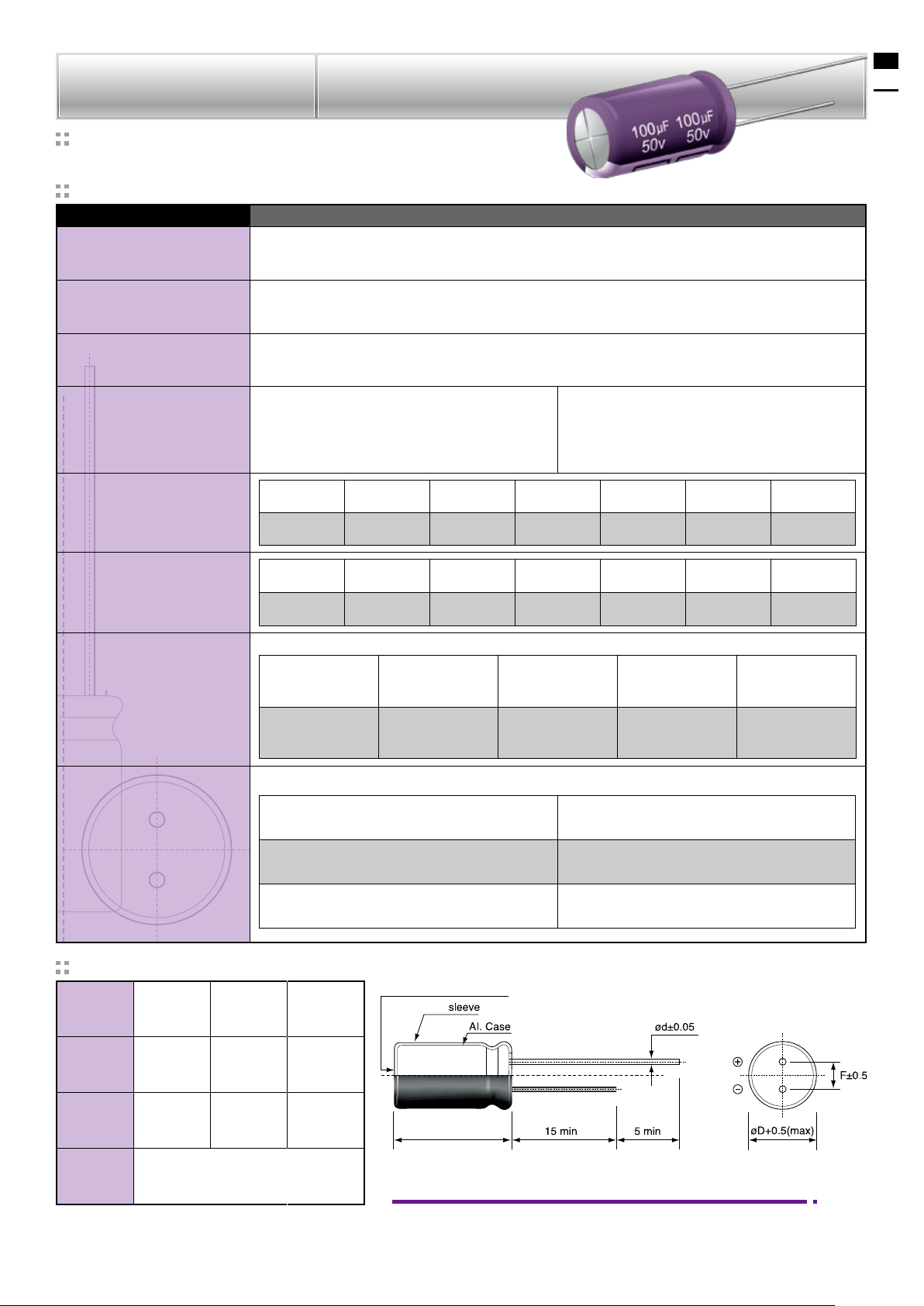

TH

TH

Series

FEATURES

High Temperature For 125°C

SPECIFICATION

Item Characteristic

43

TH

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 10 - 63 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Impedance ratio at 120Hz

Rated Voltage (V) 10 16 25 35 ~ 63

Low Temperature Stability

I ≤ 0.002CV or 0.4 (μA) After

5 minutes

WV 10 16 25 35 50 63

SV 13 20 32 44 63 79

WV 10 16 25 35 50 63

tanδ 0.35 0.22 0.20 0.17 0.15 0.12

-25 to +125°C

±20% (M)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

After 1000 hours application of WV at +125°C the capacitor shall meet the following limits.

Capacitance Change ≤ ±25% of initial value

Endurance

(Load Life)

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 8 10 13

F 3.5 5.0 5.0

d 0.5 0.6 0.6

α 2.0

-25°C / +25°C 8 6 4 3

Vent

L + α(max)

44

TH

CASE SIZE & MAX RIPPLE CURRENT

Rate Voltage 10(1A) 16(1C) 25(1E)

µF DXL R.C. DXL R.C. DXL R.C.

33 → 8X12 110

47 → 8X12 117 8X12 117

100 8X12 123 10X12 158 10X16 203

220 10X16 214 10X20 275 10X20 279

330 10X16 224 13X20 360 13X25 425

470 10X20 292 13X25 462

ALUMINUM ELECTROLYTIC CAPACITORS

Size øDXL(mm), Ripple Current (mA r.m.s./125˚C, 120Hz)

1000 13X20 474

Rate Voltage 35(1V) 50(1H) 63(1J)

µF DXL R.C. DXL R.C. DXL R.C.

0.47 → 8X12 5

1 → 8X12 10

2.2 → 8X12 23

3.3 → 8X12 35 8X12 44

4.7 → 8X12 50 8X12 66

10 → 10X12 121 10X12 121

22 8X12 101 8X12 87 8X12 87

33 10X12 138 10X12 138 10X16 169

47 10X12 149 10X16 188 10X20 218

100 10X20 268 13X20 311 13X25 379

All blank voltage on sleeve marking is the same voltage as “→”

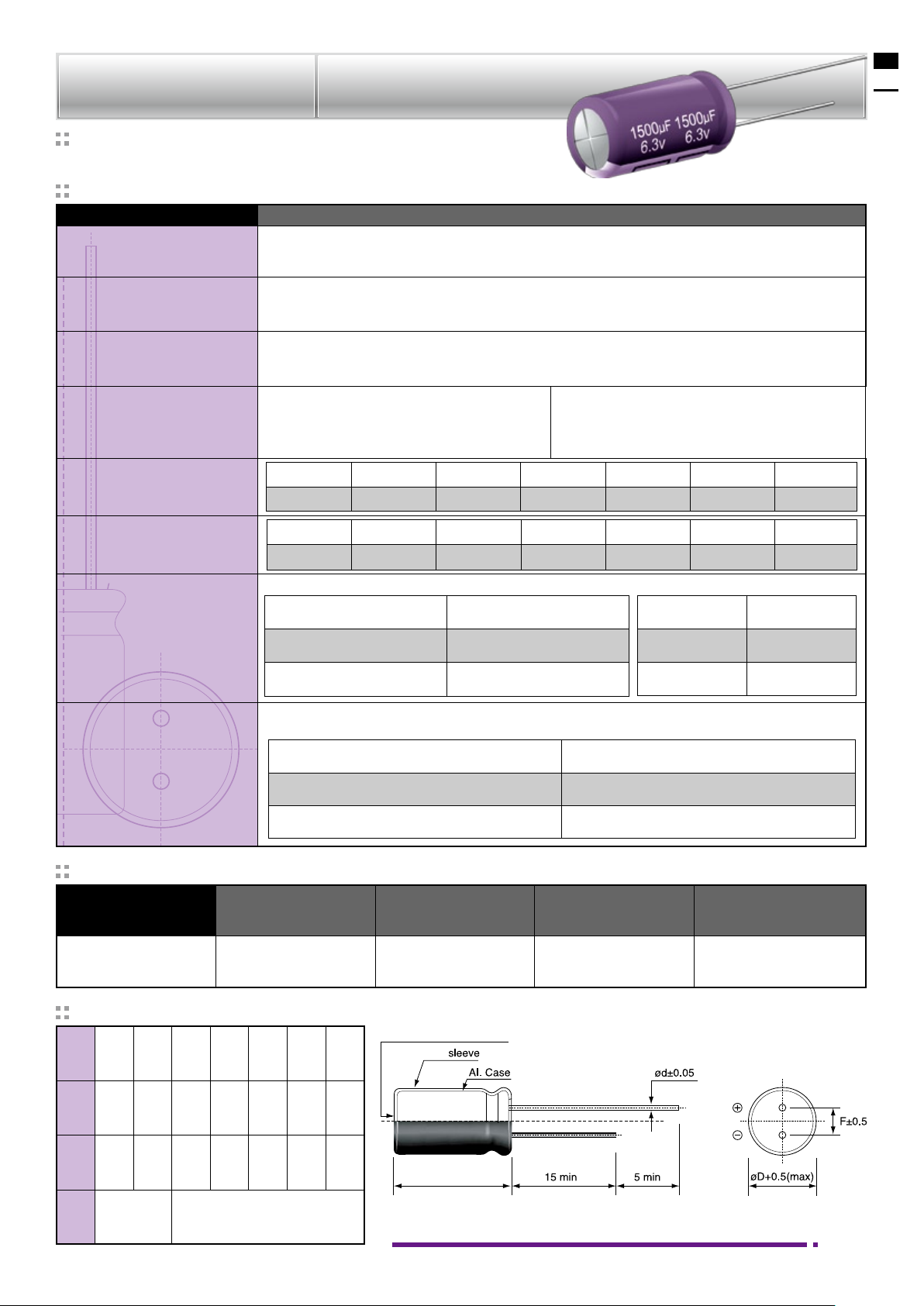

RE

RE

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

Low Impedance

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 to + 105°C

Rated Working Voltage 6.3 - 50 V.DC

45

RE

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Load Life

Shelf Life

±20% (M)

I ≤ 0.01CV After 2 minutes

WV 6.3 10 16 25 35 50

SV 8 13 20 32 44 63

WV 6.3 10 16 25 35 50

tanδ 0.22 0.19 0.16 0.14 0.12 0.10

After life test at conditions stated in the table below, the capacitors shall meet the following requirement.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

At 105°C no voltage applied after (ØD5mm~ØD6mm 500Hrs, ≤ ØD8mm 1000Hrs) the capacitor shall meet

the following limits.

Capacitance Change ≤ 25% of initial value

tanδ ≤ 200% of initial specied value

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Case Dia Life Time (hrs)

Ø D ≤ 8 2000

Ø D ≤ 10 3000

Leakage Current ≤ 200% of initial specied value

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz) 120 1K 10K 100K

Coefcient 0.4 0.7 0.85 1.0

DIMENSIONS (mm)

Vent (except Ø5 & Ø6.3)

D 5 6.3 8 10 13 16 18

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5

d 0.5 0.5 0.5 0.6 0.6 0.8 0.8

α 1.5 2.0

L + α(max)

46

RE

CASE SIZE & MAX RIPPLE CURRENT

6.3 / 0J 10 / 1A 16 / 1C

µF

47 5x11 180 0.750

100 5x11 180 0.750

220 6.3x11 277 0.400

270 6.3x11 277 0.400 8x11 479 0.170 8x12 539 0.140

330

470

680 8x14 634 0.110 10x12 713 0.100 10x12 713 0.100

1000

1200

1500

2200 10x25 1456 0.040

3300 13x21 1585 0.038 13x25 1917 0.030

4700 13x30 2149 0.028 13x36 2423 0.026 16x36 2742 0.025

6800 16x26 2239 0.028 16x36 2742 0.025

10000 16x36 2742 0.025

Case Size (mm)

6.3x7

6.3x11 8x14 634 0.110

6.3x11 277 0.400

8x7 380 0.220 8x12 539 0.140

8x11 479 0.170 8x14 634 634 10x12 713 0.100

8x11 479 0.170

8x12 539 0.140

8x14 634 0.110 10x15 927 0.070 10x15 927 0.070

10x12 713 0.100

10x15 927 0.070

8x14 927 0.070

10x15 927 0.070

Ripple Current

(mA)

230 0.480 8x11 479 0.170

Impedance (Ω) Case Size (mm)

8x11 479 0.170

10x12 713 0.100 8x20 980 0.050

10x20 1189 0.050 13x21 1585 0.038

10x20 1189 0.050 10x20 1189 0.0508x20 980 0.050

10x25 1456 0.040 10x20 1189 0.050

13x21 1585 0.038 13x25 1917 0.030

Ripple Current

(mA)

ALUMINUM ELECTROLYTIC CAPACITORS

Size øDXL(mm), Ripple Current (mA r.m.s./105˚C, 100kHz)

Impedance (Ω) Case Size (mm)

5x11 180 0.750

6.3x11 277 0.400

6.3x11 277 0.400

8x11 479 0.170

8x11 479 0.170

8x11 479 0.170

13x36 2423 0.026

16x16 1940 0.042

Ripple Current

(mA)

Impedance (Ω)

25 / 1E 35 / 1V 50 / 1H 63 / 1J 100 / 2A

Case

Ripple

µF

4.7 5x11 180 0.750 5x11 78 2.000

10 5x11 180 0.750 5x11 95 1.700 6.3x11 175 0.082

22 5x11 180 0.750 5x11 140 0.700 8x11 261 0.520

33 5x11 180 0.750 5x11 150 0.650

47 5x11 180 0.750 6.3x11 277 0.400 6.3x11 180 0.520 8x11 10x12

100 6.3x11 277 0.400 8x11 479 0.170 8x14 430 0.270 10x12

220

330

470

560 10x15

1000

1200 13x25 1917 0.030 13x30 2149 0.028 16x32 2150 0.025

1500 13x30 2149 0.028 16x26 2239 0.028 16x36 2250 0.025

2200

3300 16x36 2742 0.025 18x36 2742 0.024

Size

(mm)

8x11 479 0.170

10x12 634 0.110

8x14 634 0.110

10x15 927 0.070

8x14 634 0.110

10x12 713 0.100

10x15 927 0.070

10x20 1189 0.050

10x16 927 0.070

13x21 1585 0.038 13x25 1917 0.030

13x25 1917 0.030

16X16 1940 0.042

Current

(mA)

Impedance

Case

Size

(Ω)

(mm)

10x12 713 0.100 10x15 550 0.2008x14 713 0.100

10x20 1189 0.050 10x25 820 0.07210x11 684 0.130

10x15 927 0.070

10x25 1456 0.040

13x16 1030 0.065

16x32 2547 0.026

Ripple

Current

(mA)

Impedance

(Ω)

Case

Ripple

Current

(mA)

Impedance

(Ω)

Size

(mm)

13x21 950 0.065

16x26 1650 0.03913x16 1030 0.065

Case

Size

(mm)

Ripple

Current

(mA)

Impedance

(Ω)

Case Size

(mm)

Ripple

Current

(mA)

Impedance

(Ω)

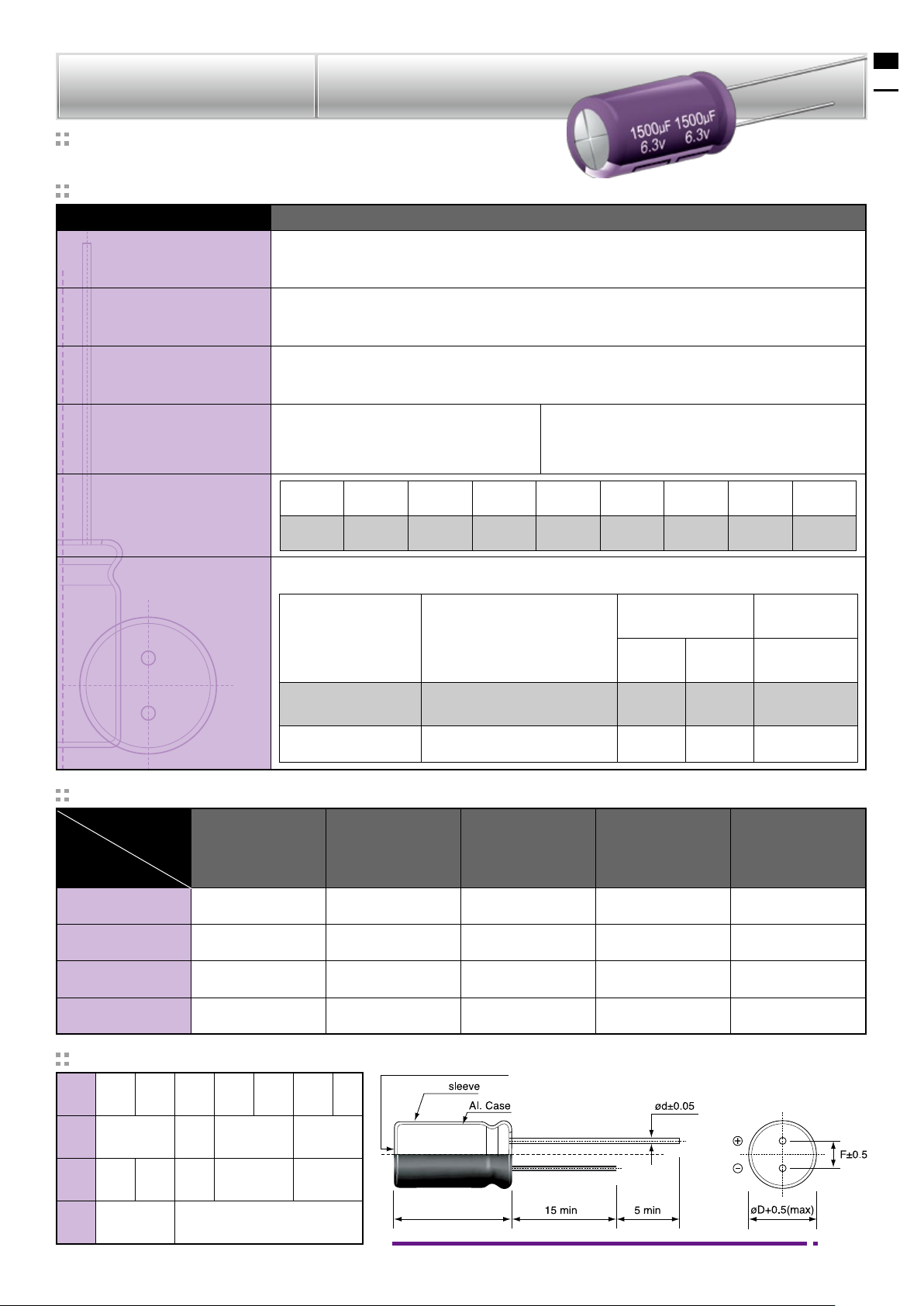

LZ

LZ

FEATURES

High Ripple Current

SPECIFICATION

Item Characteristic

Series

47

LZ

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 - 100 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

After 1000 hours application of WV at +105°C the capacitors shall meet the following requirement. Other
life test at conditions stated in the table below.

Capacitance Change ≤ ±25% of initial value

Load Life

I ≤ 0.01CV After 2 minutes

WV 6.3 10 16 25 35 50 63 100

tanδ 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

-40 to + 105°C

±20% (120Hz)

I : Leakage Current(μA)

C : Rated Capacitance(μF)

V : Rated Voltage(V)

Case Dia Life Time (hrs)

L ≥ 11 Ø D=6.8 2000

Dissipation Factor ≤ 200% of initial specied value L ≥ 16 Ø D=10 3000

Leakage Current ≤ initial specied value L ≥ 21 Ø D=13 4000

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz)

60 120 1K 10K 100K

CAP(μF)

6.8-33 0.45 0.55 0.75 0.90 1.00

39-330 0.60 0.70 0.85 0.95 1.00

390-1000 0.65 0.75 0.90 0.98 1.00

1200-18000 0.75 0.80 0.95 1.00 1.00

DIMENSIONS (mm)

D 5 6.3 8 10 13 16 18

d 0.5 0.5 0.6 0.8

Vent(except Ø5 & Ø6.3)

F 2.0 2.5 3.5 5.0 7.5

α 1.5 2.0

L + α(max)

ALUMINUM ELECTROLYTIC CAPACITORS

48

LZ

CASE SIZE & MAX RIPPLE CURRENT

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

150 5x11 210 0.580
330 6.3x11 340 0.220
470 6.3x11 350 0.240
680 8x11 640 0.130
820 10x12 865 0.080

1000 8x12 / 8x12 840 0.087

1200

1500 10x20 1400 0.046
1800 13x16 1450 0.049
2200 10x25 1650 0.042

2700

3300 13x21 1900 0.035
3900 13x25 2230 0.027
4700 13x30 2650 0.024
5600 13x35 2880 0.020

6800

8200 16x32 3450 0.017

10000 16x36 3610 0.015

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

100 5x11 210 0.580

220 6.3x7 / 6.3x11 245 / 340 0.400 / 0.220

470 8x11 640 0.130

680

1000

1200 10x20 1400 0.046

1500 10x25 1650 0.042

2200

2700 18x16 2210 0.043

3300 13x25 2230 0.027

3900 13x30 2650 0.024

4700 13x35 2880 0.020

5600

6800 16x32 3450 0.017

8200 16x36 3610 0.015

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

56 5x11 210 0.580

100 6.3x11 340 0.220

120 6.3x11 340 0.220

220 6.3x11 340 0.220

330 8x11 640 0.130

470

680

1000

1200 10x25 1650 0.042

1500

2200 13x25 2230 0.027

2700 13x30 2650 0.024

3300 13x35 2880 0.020

3900 13x41 3350 0.017

4700

5600 16x36 3610 0.015

6800 16x42 4080 0.013
8200 18x36 4220 0.014

Size øDXL(mm), Ripple Current (mA r.m.s./105˚C, 100kHz)

Rated voltage 6.3V / 0J

8x20 1050 0.069

10x16 1210 0.060

10x25 1910 0.031
16x16 1940 0.042

13x40 3350 0.017
16x26 2930 0.021

Rated voltage 10V / 1A

8x14 840 0.087

10x12 865 0.080

8x20 / 10x12 1050 0.069

10x16 1210 0.060

10x25 1910 0.031

13x21 1900 0.035

13x40 3350 0.017

16x26 2930 0.021

Rated voltage 16V / 1C

8x12 / 8x14 596 / 840 0.110 / 0.087

10x12 865 0.080

8x20 1050 0.069

10x16 1210 0.060

10x20 1400 0.046

13x16 1450 0.049

10x25 1910 0.031

13x21 1900 0.035

16x16 1940 0.042

16x32 3450 0.017

18x25 3140 0.019

ALUMINUM ELECTROLYTIC CAPACITORS

49

Rated voltage 25V / 1E

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

47 5x11 210 0.580

100 6.3x11 340 0.220

220 8x11 640 0.130

330

470

680

820 10x25 1650 0.042

1000

1200 18x16 2210 0.043

1500 10x25 / 13x25 1910 / 2230 0.031 / 0.027

1800 13x30 2650 0.024

2200 13x35 / 16x16 2880 0.020

2700 13x41 3350 0.017

3300 16x32 3450 0.017

3900 16x36 3610 0.015

4700

5600 18x42 4280 0.012

8X14 840 0.087

10x16 865 0.080

8X20 1050 0.069

10x15 1210 0.060

10x20 1400 0.046

13X16 1450 0.049

10x25 1910 0.031

13X21 1900 0.035

16x42 4080 0.013

18X36 4220 0.014

Rated voltage 35V / 1V

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

33 5x11 210 0.580

56 6.3x11 340 0.220

150 8x11 640 0.130

220

270 8x20 1050 0.069

330 10x16 1210 0.060

470

560 10x25 1650 0.042

680

1000 13x16 / 13x25 2230 0.027

1200 13x30 2650 0.024

1500 13x35 2880 0.020

1800

2200 16x32 3450 0.017

2700 16x36 3610 0.015

3300 16x42 4080 0.013

8x14 840 0.087

10x12 865 0.080

10x20 1400 0.046

13x16 1450 0.049

10x25 1910 0.031

13x21 1900 0.035

13x41 3350 0.017

16x26 2930 0.021

Rated voltage 50V / 1H

Cap (µF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

22 5x11 180 0.70

56 6.3x11 295 0.30

100 8x11 555 0.17

120 8x14 730 0.12

150 10x12 760 0.12

180 8x20 910 0.091

220 10x16 1050 0.084

270

330 10x25 1440 0.055

470

560 13x25 1950 0.034

680 13x30 2310 0.030

820 13x35 2510 0.025

1000

1200 16x32 3010 0.022

1500 16x36 3150 0.019

1800 16x42 3710 0.016

10x20 1220 0.060

13x16 1260 0.061

10x25 1690 0.043

13x21 1660 0.045

16x16 1690 0.055

13x41 2920 0.021

16x26 2555 0.025

LZ

50

LZ

ALUMINUM ELECTROLYTIC CAPACITORS

Rated voltage 63V / 1J

Cap (µF) Case Size (mm) Ripple Current (mA)

15 5x11 55 2.300

33 6.3x11 115 1.200

56 8x11 232 0.630

82

120

180

220 10x25 531 0.200

270

330 13x25 784 0.120

470

560 13x35 1050 0.083

680 13x41 1180 0.071

820 16x32 1570 0.054

1000 16x36 1790 0.045

1200 16x42 2020 0.040

8x14 300 0.450

10x12 288 0.430

8x20 362 0.330

10x16 357 0.310

10x20 466 0.210

13x16 466 0.230

10x25 663 0.150

13x21 690 0.160

16x16 795 0.140

13x30 905 0.100

16x21 1040 0.091

Impedance 20°C 100kHz (Ω Max.)

Rated voltage 100V / 2A

Cap (µF) Case Size (mm) Ripple Current (mA)

6.8 5x11 55 2.300

15 6.3x11 115 1.200

27 8x11 232 0.630

39 8x14 300 0.450

47 10x12 288 0.430

56 8x20 362 0.330

10x20 466 0.210

82

13x16 466 0.230

100 10x25 531 0.200

120 13x21 690 0.160

150 16x16 795 0.140

180 13x25 784 0.120

220 13x30 905 0.100

13x35 1050 0.083

270

16x26 1250 0.073

Impedance 20°C 100kHz (Ω Max.)

330 13x41 1180 0.071

390 16x32 1570 0.054

470 16x36 1790 0.045

560 16x42 2020 0.040

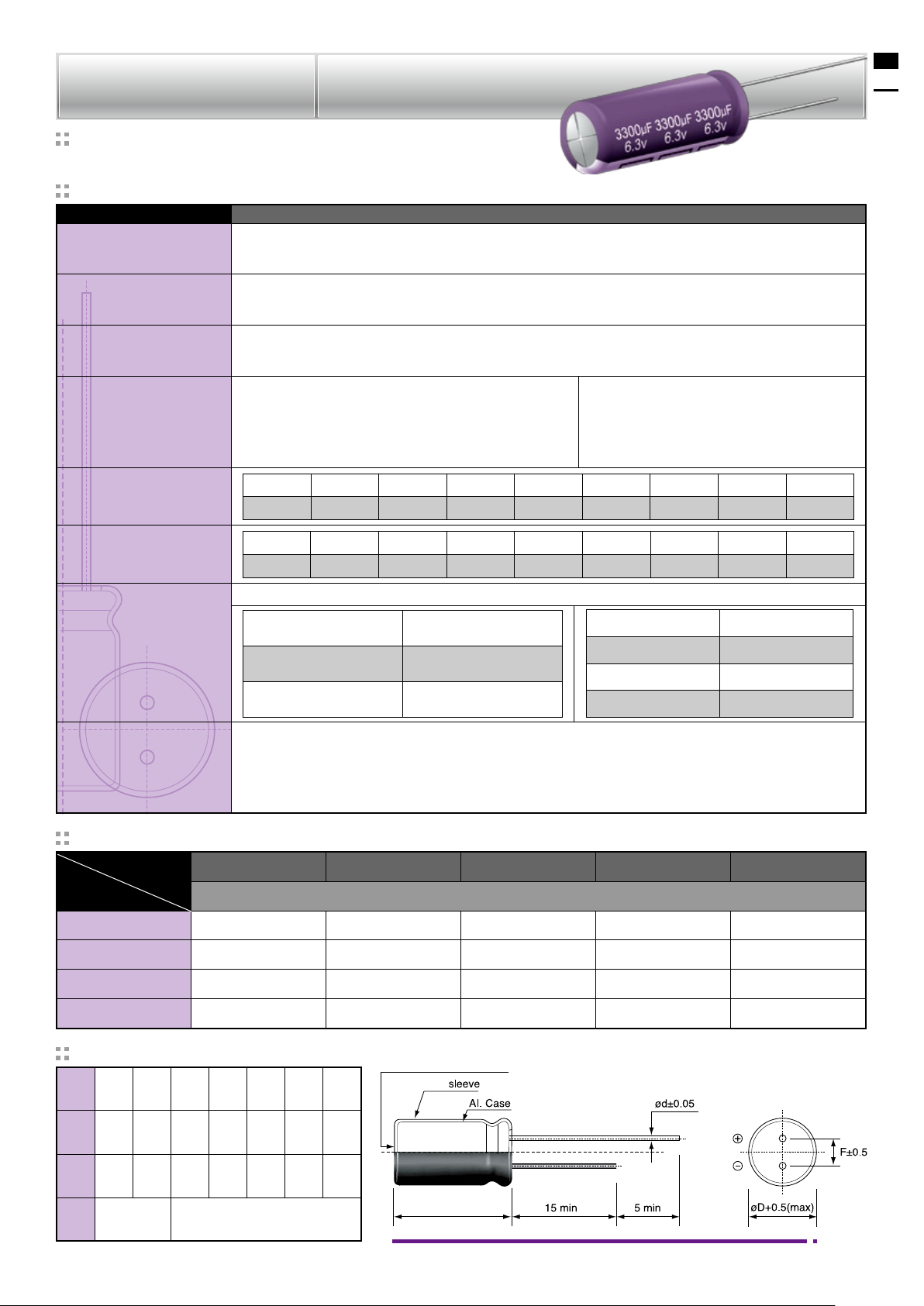

LE

LE

FEATURES

Low ESR

SPECIFICATION

Item Characteristic

Series

51

LE

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 - 100 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current (120Hz

20°C)

Surge Voltage (120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Load Life

WV 6.3 10 16 25 35 50 63 100

SV 8 13 20 32 44 63 79 125

WV 6.3 10 16 25 35 50 63 100

tanδ 0.22 0.19 0.16 0.14 0.12 0.10 0.09 0.08

After life test at conditions stated in the table below, the capacitors shall meet the following requirement.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor

Leakage Current ≤ initial specied value

I ≤ 0.01CV After 2 minutes

≤ 200% of initial specied

value

-40 to + 105°C

±20% (120Hz)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Case Dia Life Time (hrs)

Ø D=8 1000

Ø D=10 2000

Ø D=13 3000

Shelf Life

After leaving capacitors under no load of 105°C for 1000 hours and applying voltage, they meet the specied
value for load life characteristics listed above.

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz) 60(50) 120 1K 10K 100K

CAP(μF) Multiplier

6.8-33 0.45 0.55 0.75 0.90 1.00

69-330 0.60 0.70 0.85 0.95 1.00

390-1000 0.65 0.75 0.90 0.98 1.00

1200-18000 0.75 0.80 0.95 1.00 1.00

DIMENSIONS (mm)

D 5 6.3 8 10 13 16 18

F 2.0 2.5 3.5 5.0 5.0 7.5 7.5

d 0.5 0.5 0.5 0.6 0.6 0.8 0.8

α 1.5 2.0

Vent (except Ø5 & Ø6.3)

L + α(max)

ALUMINUM ELECTROLYTIC CAPACITORS

52

LE

CASE SIZE & MAX RIPPLE CURRENT

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

39 4x7 130 0.85

68 5x7 210 0.43

150

220 8x7 380 0.15

330

560 8x11 760 0.072

680 6.3x11 740 0.065

820

1000

1200

1500

2200

3300

3900 13x25 2770 0.018

4700 13x30 2650 0.018

5600

6800 16x26 3460 0.016

Size øDXL(mm), Ripple Current (mA r.m.s./105˚C, 100kHz)

Rated Voltage 6.3V / 0J

5x11 250 0.30

6.3x7 300 0.23

6.3x11 405 0.130

8x9 380 0.150

8x14 995 0.056

8x20 1250 0.041

8x11 780 0.060

8x12 840 0.055

8x14 1000 0.050

8x20 1200 0.035

10x12 1030 0.053

8x20 1250 0.041

10x16 1430 0.038

8x20 1450 0.020

10x12 / 10x15 1030 / 1250 0.053 / 0.045

10x20 2000 0.020

10x20 1750 0.025

10x25 2250 0.017

10x25 2250 0.017

13x21 2360 0.021

13x35 3400 0.015

16x21 3140 0.018

Rated Voltage 10V / 1A

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

27 4x7 130 0.89

56 5x7 210 0.44

100 5x11 250 0.30

120 6.3x7 300 0.23

180 8x11 380 0.15

220 6.3x11 405 0.13

470 8x11 720 0.076

680

1000

1200 10x20 1820 0.023

1500 10x25 2150 0.022

2200 13x21 2360 0.021

3300

3900

4700 13x35 3400 0.015

5600 16x26 3460 0.016

8x14 950 0.060

10x12 1030 0.053

8x14 940 0.042

8x20 1250 0.041

10x16 1430 0.038

10x30 2360

13x25 2770

13x30 3290 0.016

16x21 3140 0.018

0.018

ALUMINUM ELECTROLYTIC CAPACITORS

53

Rated Voltage 16V / 1C

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

18 4x7 130 0.92

33 5x7 210 0.45

56 5x11 250 0.30

68 6.3x7 300 0.24

100 6x11 250 0.30

120

220 6.3x11 340 0.220

330 8x12 760 0.072

470

680

1000

1200 10x25 2150 0.022

1500

2200

3300 13x35 3400 0.015

3900 16x26 3460 0.016

6800 16x32

6.3x11 405 0.13

8x11 380 0.15

8x12 / 8x14 760 / 995 0.072 / 0.056

10x12 1020 0.045

8x20 1350 0.025

10x16 1430 0.038

8x20 1400 0.028

10x20 1820 0.023

10x20 2250 0.022

10x25 2550 0.019

12x21 2360 0.021

13x21 2360 0.021

10x25 2150 0.021

13x25 2770 0.019

Rated voltage 25V / 1E

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

15 4x7 130 0.94
27 5x7 210 0.46
47 5x11 250 0.30
56 6.3x7 300 0.24

100

220 8x12 760 0.072

330

470

680 10x20 1820 0.023

820 10x25 2150 0.022
1000 13x21 2360 0.021
1500 13x25 2770 0.018

1800

2200 13x35 3400 0.015
2700 16x26 3460 0.016

6.3x11 405 0.13
8x7 380 0.15

8x16 995 0.056

10x12 1030 0.053

8x20 1250 0.041

10x16 1430 0.038

13x31 3290 0.016
16x21 3140 0.018

Rated Voltage 35V / 1V

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

10 4x7 130 0.96

18 5x7 210 0.47

33 5x11 250 0.30

39 6.3x7 300 0.25

56

150 8x11 760 0.072

220

270 8x20 1250 0.041

330 10x16 1430 0.038

470 10x20 1820 0.023

560 10x23 2150 0.022

680 10x25 / 13x21 1570 / 2360 0.030 / 0.021

1000 13x25 2770 0.018

1200

1500 13x35 3400 0.015

1800 16x26 3460 0.016

8x7 380 0.16

6.3x11 405 0.13

8x16 995 0.056

10x12 1030 0.053

13x31 3290 0.016

16x21 3140 0.018

LE

54

LE

ALUMINUM ELECTROLYTIC CAPACITORS

Rated Voltage 50V / 1H

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

5.6 4x7 130 1.0

10 5x7 210 0.50

22

33 8x11 380 0.17

56 6.3x11 385 0.14

100 8x11 724 0.074

120 8x16 950 0.061

150 10x12 979 0.061

180 8x20 1190 0.046

220 10x16 1370 0.042

270 10x20 1580 0.030

330 10x25 1870 0.028

470 13x21 2050 0.027

560 13x26 2410 0.023

680 13x31 2860 0.021

820

1000 16x26 3010 0.021

5x11 238 0.34

6.3x7 300 0.26

13x35 2960 0.019

16x21 2730 0.023

Rated Voltage 63V / 1J

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

33 6.3x11 265 0.35

56 8x11 500 0.22

82

120

180

220 10x25 1300 0.073

270 13x21 1495 0.060

330 13x25 1850 0.043

470

560

680

820

1000

1200

1500 18x42 3420 0.018

8x14 665 0.16

10x12 685 0.15

8x20 820 0.12

10x16 945 0.11

10x20 1100 0.080

13x16 1135 0.082

13x30 2250 0.039

16x21 1990 0.045

13x35 2450 0.033

16x26 2550 0.032

13x41 2780 0.029

18x20 2450 0.038

16x32 2810 0.026

18x25 2780 0.031

16x36 2835 0.021

18x32 3270 0.025

16x42 3340 0.019

18x36 3310 0.020

Rated Voltage 100V / 2A

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 20°C 100kHz (Ω Max.)

6.8 5x11 125 1.40
15 6.3x11 205 0.57
27 8x11 355 0.36
39 8x14 450 0.25
47 10x12 450 0.24
56 8x20 565 0.19
68 10x16 580 0.18

82

100 10x25 880 0.12
120 13x21 1045 0.094
180 13x25 1195 0.071

220

270

330 13x40 1700 0.046
390 16x32 1750 0.041

470

560 16x42 2080 0.030
680 18x42 2570 0.028

10x20 750
13x16 735

13x30 1410 0.063
16x21 1295 0.071
13x35 1560
16x26 1600 0.053

16x36 1890 0.033
18x32 1775 0.039

0.13

0.052

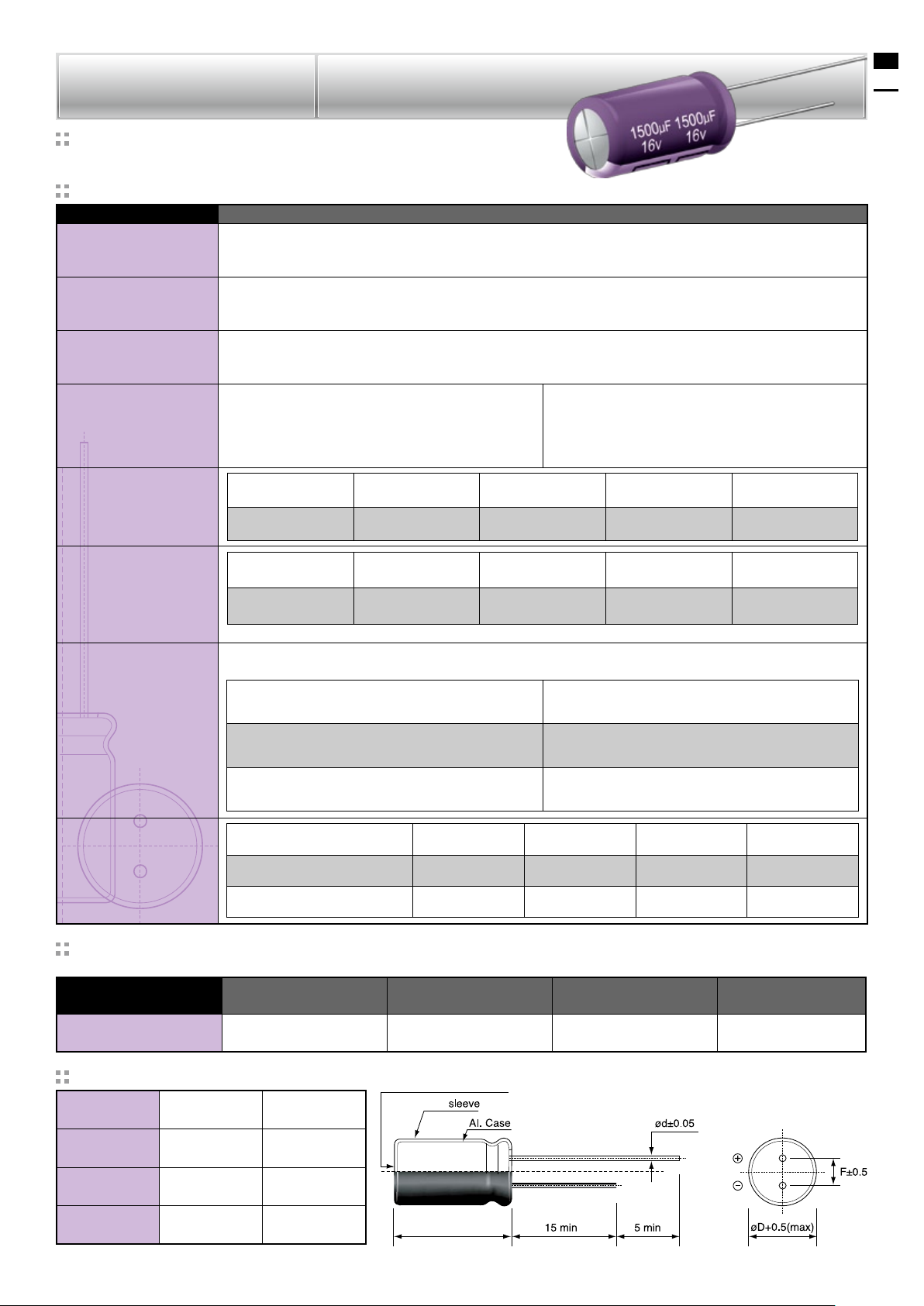

ME

ME

Series

FEATURES

High Ripple Current and Long Life

SPECIFICATION

Item Characteristic

55

ME

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Voltage Range 6.3 ~ 25V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current (25°C) I = 0.03CV, (After 2 minutes)

Surge Voltage (120Hz

20°C)

Dissipation Factor

(25°C, 120Hz)

When rated capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every 1000μF.

After applying rate voltage with rated ripple current (Case size ≤ Ø8, 1500Hrs. ≥ Ø10, 2000Hrs.) at 105°C, 1000Hrs
at 125°C the capacitors shall meet the following requirement.

WV 6.3 10 16 25

SV 8 13 20 32

Rated Voltage (V) 6.3 10 16 25

tanδ 0.22 0.19 0.16 0.14

-40 ~ +125°C

±20% (M)

I = Leakage Current (μA)
C = Rated Capacitance (μF)

V = Rated Voltage (V)

Capacitance Change ≤ ±25% of initial value

Endurance
(Load Life)

Low Temperature

Stability

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% specied value

Rated Voltage(V) 6.3 10 16 25

Z(-25°C) / Z (120Hz 20°C) 2 2 2 2

Z(-40°C) / Z (120Hz 20°C) 3 3 3 3

MULTIPLIER FOR RIPPLE CURRENT

Frequency Coefficient

Frequency (Hz) 120 1K 10K 100K

Coefcient 0.50 0.80 0.90 1.00

DIMENSIONS(mm)

D 8 10

F 3.5 5.0

Vent (except Ø5 & Ø6.3)

d 0.5 0.6

α 1.5 2.0

L + α(max)

56

ME

CASE SIZE & MAX RIPPLE CURRENT

Rated voltage 6.3V / 0J

Cap (µF)

820 8x12 1140 36

1000

1200 8x16 1490 28

1500

1800

2200

3300

Cap (µF)

680 8x14 1140 38

1000

1500

1800 10x20 2550 16

2200 10x25 2800 14

Case Size (mm)

D×L

8x12 1010 40

8x14 1120 35

8x20 1870 16

10x12 / 10x15 1540 26

10x20 2000 20

8x20 1870 20

10x20 2000 20

10x20

10x25

10x25

10x30

Rated voltage 10V / 1A

Case Size (mm)

D×L

8x20 1490 29

10x16 1540 26

8x20 1870 20

10x20 2000 20

ALUMINUM ELECTROLYTIC CAPACITORS

Size øDXL(mm), Ripple Current (mA r.m.s./125˚C, 100kHz)

Ripple Current (mA)

2550 16

2800 14

Ripple Current (mA)

ESR (mΩMAX)

20°C, 100kHz

ESR (mΩMAX)

20°C, 100kHz

Rated voltage 16V / 1C

Cap (μF)

470

680

1000

1500

1800 10x25 2800 14

2200

Cap (µF)

470 10x20 2000 22

Case Size (mm)

D×L

8x12 910 0.048

8x14 1140 37

8x20 1490 29

10x15 1540 27

8x20 1870 22

10x15 1386 0.028

10x20 2000 22

10x20 1413 0.032

10x25 2550 18

10x25 1645 0.028

13x25 2012 0.026

Rated voltage 25V / 1E

Case Size (mm)

D×L

Ripple Current (mA)

Ripple Current (mA)

ESR (mΩMAX)

20°C, 100kHz

ESR (mΩMAX)

20°C, 100kHz

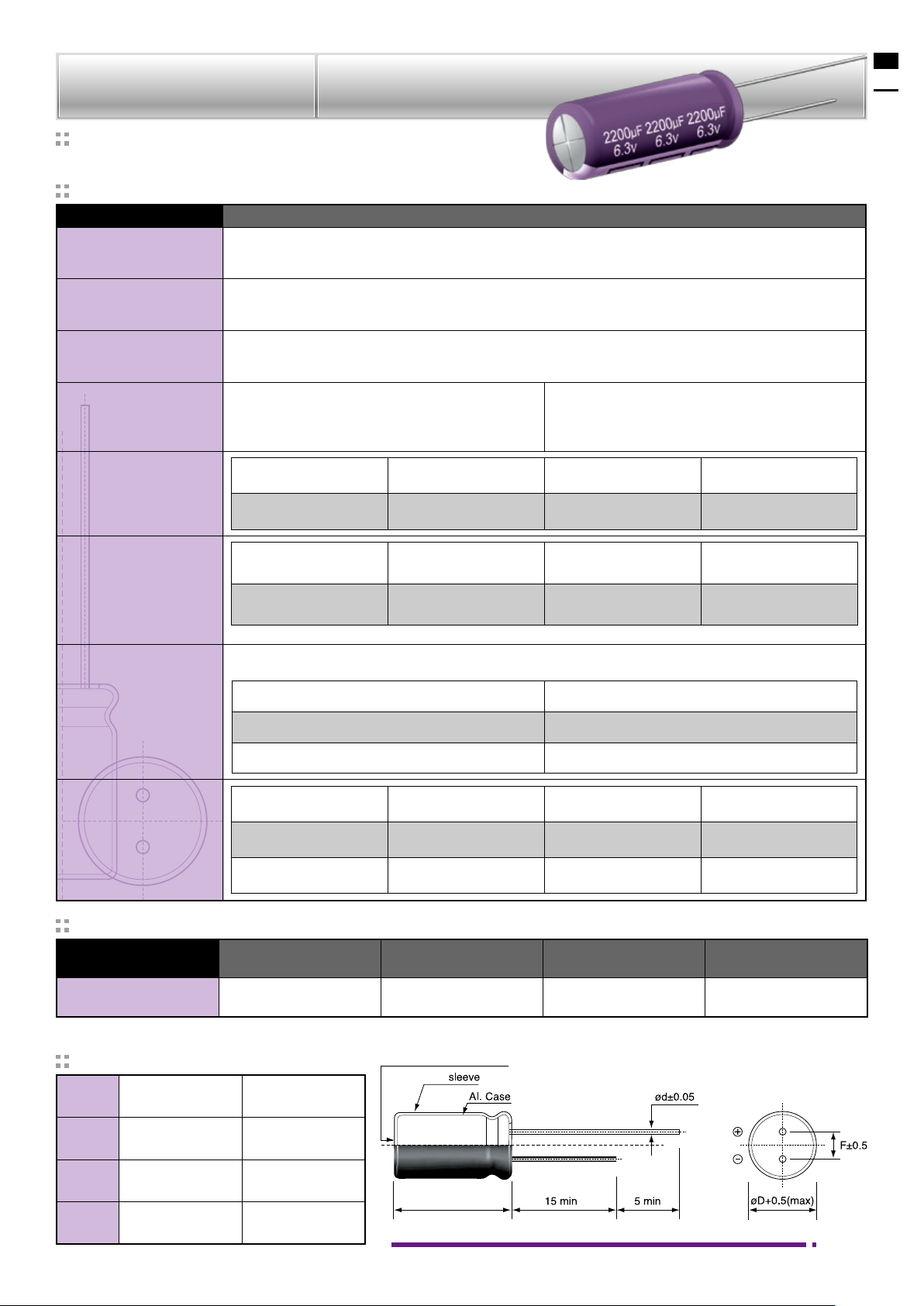

MZ

MZ

FEATURES

105°C Ultra Low ESR

SPECIFICATION

Item Characteristic

Series

57

MZ

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 – 16 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

When rated capacitance is over 1000μF, tanδshall be added 0.02 to the listed value with increase of every 1000 μF.

After applying rated voltage with rated ripple current for 2000 Hrs at 105°C the capacitors shall meet the following
requirements.

I ≤ 0.03CV (After 2 minutes)

WV 6.3 10 16

SV 8 13 20

Rated Voltage (V) 6.3 10 16

tanδ 0.22 0.19 0.16

-40 ~ +105°C

±20% (M)

I : Leakage Current(uA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Endurance
(Load Life)

Low Temperature Stability

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ 200% specied value

Rated Voltage (V) 6.3 10 16

Z(-25°C) / Z(+20°C) 2 2 2

Z(-40°C) / Z(+20°C) 3 3 3

MULTIPLIER FOR RIPPLE CURRENT

Frequency 120 1k 10k 100k

Coefcient 0.5 0.80 0.90 1.00

Specifications subject to change without notice.

DIMENSIONS (mm)

D 8 10

F 3.5 5.0

Vent

d 0.5 0.6

α 1.5 2.0

L + α(max)

58

MZ

CASE SIZE & MAX RIPPLE CURRENT

µF DxL R.C. E.S.R.(100kHz mΩ)(Max)

820 8x11 1340 22

1200 8x16 1850 18

1500 10x16 2460 16

1800 8x20 2350 12

1800 10x16 2460 13

2200 10x20 2770 11

3300 10x25 3230 10

ALUMINUM ELECTROLYTIC CAPACITORS

Size øDXL(mm), Ripple Current (mA r.m.s./105˚C, 100kHz)

Rated Voltage 6.3V / 0J

Rated Voltage 10V / 1A

µF DxL R.C. E.S.R.(100kHz mΩ)(Max)

680 8x12 1340 22

1000 8x16 1850 18

1000 10x15 1960 16

1500 8x20 2350 12

1500 10x16 2460 12.5

1800 10x20 2770 11

2200 10x25 3230 10

Rated Voltage 16V / 1C

µF DxL R.C. E.S.R.(100kHz mΩ)(Max)

470 8x12 1340 22

680 8x16 1850 18

680 10x15 1960 16

1000 8x20 2350 12

1000 10x16 2460 15

1500 10x20 2770 12

1800 10x25 3230 10

ZH

ZH

Series

FEATURES

Long Life, Low Impedance

SPECIFICATION

Item Characteristic

59

ZH

ALUMINUM ELECTROLYTIC CAPACITORS

Operation

Temperature Range

Rated Working Voltage 6.3 ~35 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Surge Voltage

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Low Temperature Stability

I ≤ 0.001CV or 3μA Whichever is greater.

(After 2 minutes)

WV 6.3 10 16 25 35

SV 8 13 20 32 44

WV 6.3 10 16 25 35

tanδ 0.22 0.19 0.16 0.14 0.12

When rated capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with increase of every
1000µF.

Rated Voltage (V) 6.3 10 16 25 35

Z(-25°C) / Z(+25°C) 2 2 2 2 2

-40 to +105°C

±20% (M)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

Z(-40°C) / Z(+25°C) 3 3 3 3 3

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the
following requirements.

Endurance

(Load Life)

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

DIMENSIONS (mm)

D 5 6.3 8 10 13 16 18 22 25

F 2.0 2.5 3.5 5.0 7.5 10 12

d 0.5 0.6 0.8 0.8

α 1.5 2.0 2.0 2.0

MULTIPLIER FOR RIPPLE CURRENT

Frequency 120 1k 10k 100k

47~270µF 0.50 0.73 0.92 1.00

Vent

L + α(max)

Coefcient

330~680µF 0.55 0.77 0.94 1.00

820~1800µF 0.60 0.80 0.96 1.00

2200~8200µF 0.70 0.85 0.98 1.00

ALUMINUM ELECTROLYTIC CAPACITORS

60

ZH

CASE SIZE & MAX RIPPLE CURRENT

µF DxL(mm) Ripple Current(mA)

220 5x11 330 240

470 6.3x11 500 110

820 8x12 900 65

1200 8x16 1210 50

1200 10x12 1240 47

1500 8x20 1410 35

1800 10x16 1650 34

2200 10x20 1960 20

2700 10x23 2250 18

3900 13x21 2480 18

Rated voltage 6.3V / 0J

Impedance 25°C

100kHz(mΩ Max)

4700 13x25 2900 16

5600 13x30 3450 15

6800 16x20 3250 17

6800 13x36 3570 15

8200 16x25 3630 15

Rated voltage 10V / 1A

µF DxL(mm) Ripple Current(mA)

150 5x11 330 240

330 6.3x11 500 110

680 8x12 900 65

1000 8x16 1210 50

1000 10x12 1240 47

1500 8x20 1410 35

1500 10x16 1650 34

Impedance 25°C

100kHz(mΩ Max)

1800 10x20 1960 20

2200 10x23 2250 18

3300 13x21 2480 18

3900 13x25 2900 16

4700 13x30 3450 15

4700 16x20 3250 17

5600 13x36 3570 15

6800 16x25 3630 15

ALUMINUM ELECTROLYTIC CAPACITORS

61

Rated voltage 16V / 1C

µF DxL(mm) Ripple Current(mA)

100 5x11 330 240

220 6.3x11 500 110

470 8x12 900 65

680 8x16 1210 50

680 10x12 1240 47

1000 8x20 1410 35

1000 10x16 1650 34

1500 10x20 1960 20

1800 10x23 2250 18

2200 13x21 2480 18

2700 13x25 2900 16

3300 13x30 3450 15

3300 16x20 3250 17

3900 13x36 3570 15

4700 16x25 3630 15

Rated voltage 25V / 1E

µF DxL(mm) Ripple Current(mA)

68 5x11 330 240

150 6.3x11 500 110

330 8x12 900 65

390 8x16 1210 50

470 10x12 1240 47

560 8x20 1410 35

680 10x16 1650 34

820 10x20 1960 20

1000 10x23 2250 18

1500 13x20 2480 18

1800 13x25 2900 16

2200 13x30 3450 15

2200 16x20 3250 17

2700 13x35 3570 15

3300 16x25 3630 15

Impedance 25°C

100kHz(mΩ Max)

Impedance 25°C

100kHz(mΩ Max)

ZH

Rated voltage 35V / 1V

µF DxL(mm) Ripple Current(mA)

47 5x11 330 240

100 6.3x11 500 110

220 8x11 900 65

270 8x16 1210 50

330 10x12 1240 47

390 8x20 1410 35

470 10x16 1650 34

560 10x20 1960 20

680 10x23 2250 18

1000 13x20 2480 18

1200 13x25 2900 16

1500 13x30 3450 15

1500 16x20 3250 17

1800 13x35 3570 15

2200 16x25 3630 15

Impedance 25°C

100kHz(mΩ Max)

62

LA

LA

LA

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

Low Impedance For Small Size

SPECIFICATION

Item Characteristic

Operation Temperature Range -40 to + 105°C

Rated Working Voltage 6.3 – 35 V.DC

Capacitance Tolerance

(120Hz 20°C)

Leakage Current

(120Hz 20°C)

Dissipation Factor

(120Hz 20°C) (tanδ)

Load Life

After 1000 hours application of WV at +105°C the capacitors shall meet the following requirement. Other life
test at conditions stated in the table below.

Capacitance Change ≤ ±25% of initial value

Dissipation Factor ≤ 200% of initial specied value

Leakage Current ≤ initial specied value

I ≤ 0.01CV After 2 minutes

W V 6.3 10 16 25 35

tanδ 0.15 0.13 0.12 0.10 0.10

RIPPLE CURRENT FOR FREQUENCY MULTIPLIERS

Frequency (Hz)

120 1K 10K 100K

CAP(μF)

4.7~ 33 0.40 0.68 0.90 1.00

±20% (120Hz)

I : Leakage Current(μA)
C : Rated Capacitance(μF)
V : Rated Voltage(V)

47~330 0.47 0.75 0.95 1.00

470~1000 0.55 0.85 0.98 1.00

DIMENSIONS

D 4x7 5x7 6.3x7 6.3x11 8x11 10x12 10x16

F 1.5 2.0 2.5 3.5 5.0

d 0.45 0.50 0.60

α 1.0 1.5 2.0

Vent (except Ø8 & Ø10)

L + α(max)

CASE SIZE & MAX RIPPLE CURRENT

Rated Voltage 6.3V / 0J

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 25˚C (Ω Max)

22 5x7 230 0.52

33 5x7 350 0.48

47 6.3x7 480 0.26

100 6.3x11 640 0.15

220 8x11 910 0.077

330 8x11 1000 0.043

470 8x11 1000 0.043

1000 10x16 1650 0.025

Rated Voltage 10V / 1A

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 25˚C (Ω Max)

10 4x7 190 0.60

22 5x1 230 0.49

33 6.3x7 350 0.26

47 6.3x7 350 0.26

100 6.3x11 480 0.15

220 8x11 1000 0.044

330

470 10x12 1300 0.035

8x11

10x12

ALUMINUM ELECTROLYTIC CAPACITORS

Size øDXL(mm), Ripple Current (mA r.m.s./105˚C, 100kHz)

1000 0.043

63

LA

Rated Voltage 16V / 1C

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 25˚C (Ω Max)

22 5x7 350 0.27

33 5x7 350 0.26

47 6.3x7 480 0.15

100 6.3x11 670 0.078

220 8x12 1000 0.044

330 10x12 1300 0.030

470 10x16 1740 0.025

Rated Voltage 25V / 1E

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 25˚C (Ω Max)

10 4x7 230 0.52

22 5x7 350 0.27

33 6.3x7 480 0.16

47 6.3x7 480 0.15

100 6.3x11 670 0.078

220 10x12 1300 0.031

330 10x16 1140 0.026

Rated Voltage 35V / 1V

Cap (μF) Case Size (mm) Ripple Current (mA) Impedance 25˚C (Ω Max)

4.7 4x7 230 0.64

10 5x7 350 0.33

22 6.3x7 480 0.17

33 6.3x7 480 0.16

47 6.3x11 670 0.089

100 8x12 1000 0.048

220 10x16 1740 0.026

64

PARTS NUMBER SYSTEM FOR THE SMD TYPE

E2 Series

E2

16V

16V

10 μF

100

± 20%

M

4 Ø x 5.3L

D55

Carrier tape

R

V

1

Series Name

1. Series:

Series is represented by a two digit code. If there are 2 digits only for series code, keep blank on the third digit.

2. Rated Voltage:

Voltage on volts (V) is represented by two digit code showing the real working voltage.

3. Capacitance:

Rated capacitance in μF is represented by a three digit number. The rst two digits are the signicant gures of the nominal capacitance and the
third digit indicates the number of zeros following these gures. The decimal point is represent by the capital letter R. Please refer to the follow
ing example:

μF 0.1 0.47 1 4.7 10 47 100 470 1000

Part number 0R1 R47 010 4R7 100 470 101 471 102

4. Tolerance:

Symbol of W, T, Q, V, M, K and show special capacitance tolerance which are listed are follows:

W = -10% ~ +100% M = -20% ~ +20%

T = -10% ~ +50% K = -10% ~ +10%

Q = -10% ~ +30% J = -5% ~ +5%

v = -10% ~ +20%

2

Rated Voltage

3

Capacitance

4

Capacitance

Tolerance

5

Symbol of
Case Size

6

Package type

5. Case Size:

Symbol of case size are listed as follows:

Ø DxL (mm) Symbol Ø DxL (mm) Symbol Ø DxL (mm) Symbol Ø DxL (mm) Symbol

3x5.3 B55 6.3X5.3 F55 8X6.5 G68 10X10.0 H10

4x5.3 D55 6.3X5.7 F60 8X7.0 G72 10X13.0 H13

4x5.7 D60 6.3X6.0 F62 8X10.0 G10 12.5X13.5 K14

5x5.3 E55 6.3X7.0 F72 8X12.0 G12 12.5X16.0 K16

5x5.7 E60 6.3X7.7 F80 10X8.0 H82 16X16.0 L17

6. Package type:

R Taping polarity symbol with reel package in 380 mm

M Taping polarity symbol with reel package in 450 mm

T Tray

SMD TYPE

Case Q’ ty / Reel Q’ ty / Box

4 Ø 2,000 10,000

5 Ø 1,000 5,000

6.3 Ø 1,000 5,000

8 Ø x 6.5 ~ 7 L 1,000 5,000

8 Ø x 10 L 500 2,000

8 Ø x 11.8 L 400 2,000

10 Ø x 8 ~ 10 L 500 2,000

10 Ø x 12.7 L 400 2,000

12.5 Ø x 13.5 L 200 / 350* 800 / 1,400*

12.5 Ø x 16 L 150 / 300* 600 / 1,200*

16 Ø x 16.5 L 125 / 200* 500 / 800*

“ * “ Suitable for reel packing is 450 mm

Unit: pcs

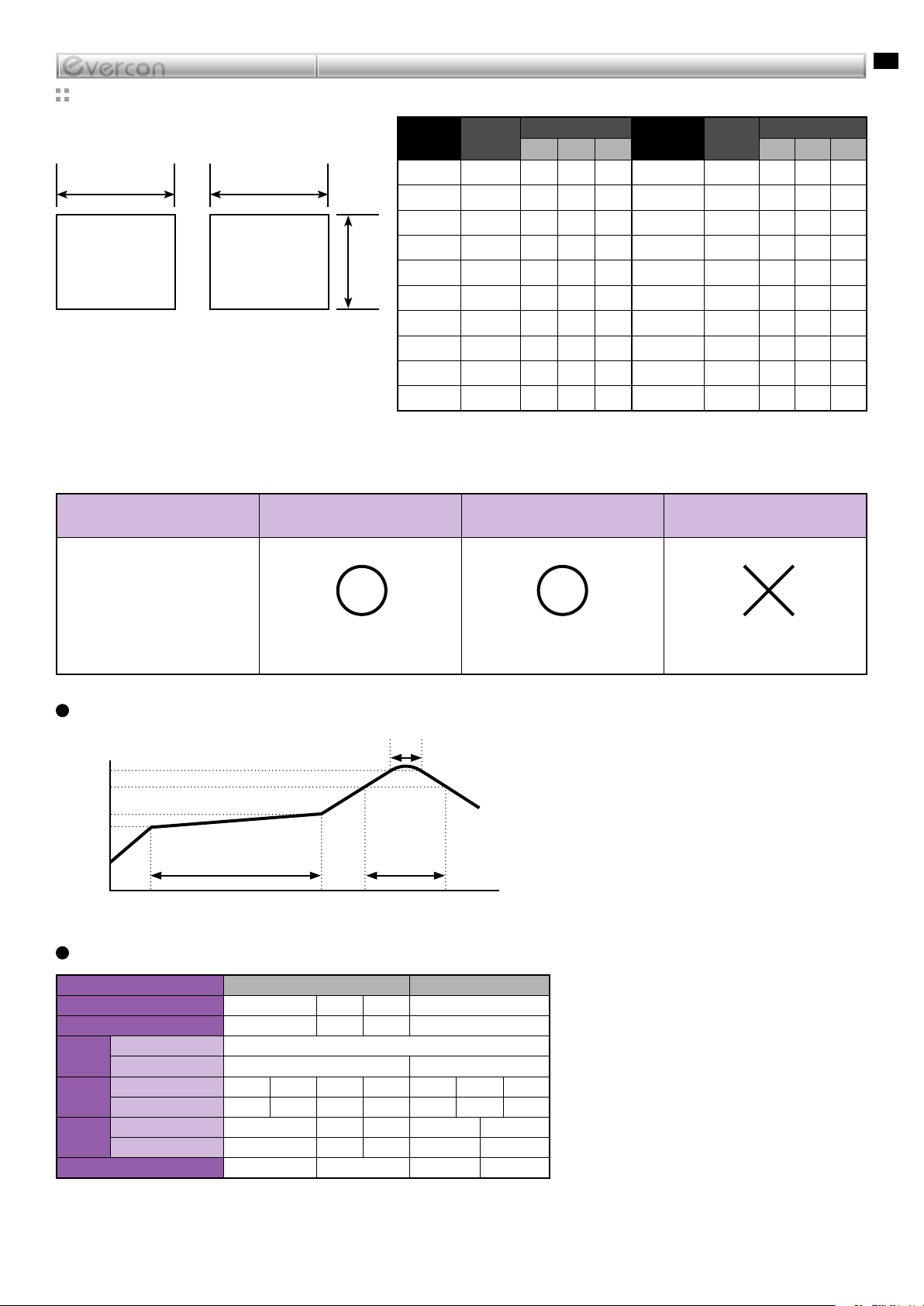

SMD ALUMINUM ELECTROLYTIC CAPACITORS

REFLOW CONDITION

RECOMMENDED PAD PATTERN AND SIZE

Y Y

W

X

Case

size

3x5.3 B55 1.6 2.2 0.8 8x6.5 G68 1.6 4.0 2.1

4x5.3 D55 1.6 2.6 1.0 8x7.0* G72 2.5 3.5 3.0

4x5.7 D60 1.6 2.6 1.0 8x10 G10 2.5 3.5 3.0

5x5.3 E55 1.6 3.0 1.4 8x12.0* G12 2.5 3.5 3.0

5x5.7 E60 1.6 3.0 1.4 10x8.0* H82 2.5 4.4 4.3

6.3x5.3 F55 1.6 3.5 1.9 10x10.0 H10 2.5 4.0 4.0

6.3x5.7 F60 1.6 3.5 1.9 10x13.0* H13 2.5 4.4 4.3

6.3x6.0* F62 1.6 3.5 2.1 12.5x13.5 K14 4.0 7.5 7.0

6.3x7.0* F72 1.6 3.5 2.1 12.5x16 K16 4.0 7.5 7.0

6.3x7.7 F80 1.6 3.5 1.9 16x16.5 L17 6.0 8.5 9.5

Case
code

Land size

X Y W X Y W

Case size

Case

code

Case size in mark of “ * “ is for OC-CON capacitors application.

RECOMMENDED SOLDERING METHODS

65

Land size

Method Reow soldering Soldering iron Flow soldering

Advisability

Recommended Recommended Not Recommended

LEAD-FREE TYPE

Temperature (°C)

T4
T3

T2
T1

t1 t2

t3

LEAD-FREE TYPE

Type Non-solid capacitor OC-CON

WV 4 ~50V 63V ~ 4V ~ - - -

Case size (Ø) 4 ~ 6.3 4 ~ 6.3 8 ~ 16 - - -

Preheat

Duration

Peak

Temp.(T1 ~ T2, °C) 150 ~ 180

Time(t1)(Max, secs) 100 90

Temp.(T3, °C) 217 230 217 217 200 217 230

Time(t2)(Max, secs) 90 60 60 40 60 50 40

Temp.(T4, °C) 260 250 240 250 260

Time(t3, secs) 5 5 5 5 5

Reow cycles 1 2 or less 2 1

(1) Method is as follow.

Reow soldering condition.
The following temperature prole condition should
be observed for soldering. (For high temperature,
pleases contact us after measuring the capacitor’s
product temperature prole at your side.)
Product temperature will rise slower as the product
size gets bigger. It is not necessary to adjust the
reow furnace temperature setting according to the
product size, for example, Φ4 and Φ10 products
can be mixed on one PCB forreowing.

Time

(2) Soldering precautions.

1. Elements related to the reow soldering
temperature
* Product size: The temperature rises slower as
the size gets bigger.
* Product location: The center part of the PCB
tends to have a lower temperature than the
PCB edges.
* Product size: The PCB temperature rises

slower as the area and/or thickness of the

PCB gets greater.

2. Repeated reowing
* Avoid reowing twice if possible.
* If repeated reowing is unavoidable, contact us
after measuring the rst and second reow
proles and reow interval at your side.
* Do not attempt to reow three times.

3. Soldering with soldering iron
Observe the follwing conditions.
* The iron tip temperature: 350 ± 5°C
* Soldering item: 3+1 / -0 seconds.

66

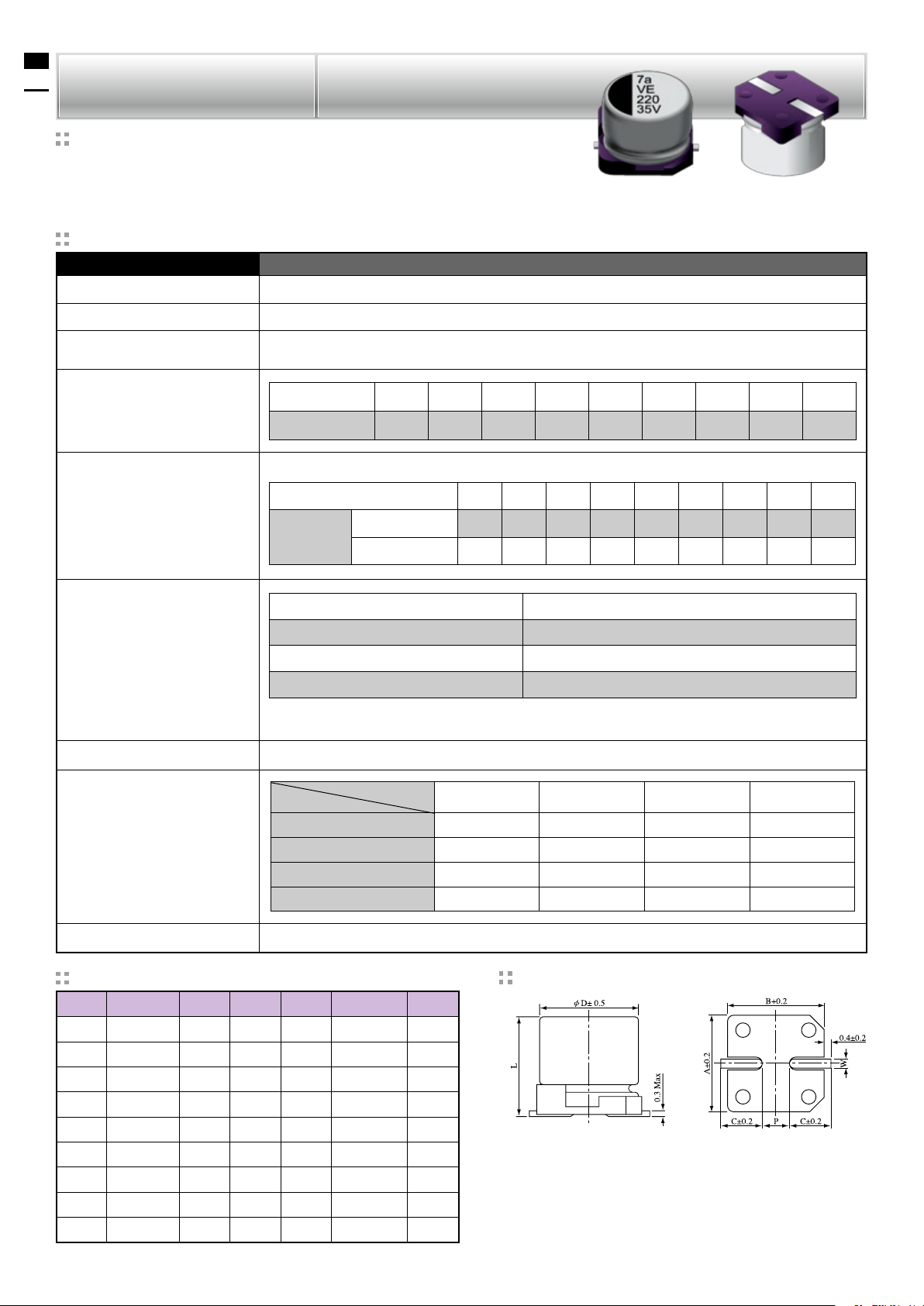

VE

VE

VE

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 3~10Ø, 85°C, 2,000 hours assured.

. Chip type large capacitance capacitors.

. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +85°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Rated Voltage 4 6.3 10 16 25 35 50 63 100

Tan δ(max) 0.42 0.28 0.24 0.20 0.14 0.12 0.10 0.10 0.10

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance

Ratio

Capacitance Change

Dissipation Factor Less than 200% 0f specied value (4WV; ±300%)

Leakage Current Within specied value

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.

V.DC (V)

Freg. (Hz)

Under 16 0.8 1.0 1.15 1.25

25 ~ 35 0.8 1.0 1.25 1.40

50 ~ 63 0.8 1.0 1.35 1.50

100 0.7 1.0 1.35 1.50

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

4 6.3 10 16 25 35 50 63 100

Z(-25°C)Z(+20°C) 7 4 3 2 2 2 2 2 2

Z(-40°C)Z(+20°C) 15 8 5 4 3 3 3 3 3

Test Time 2,000 Hrs

Within

50 120 1K 10K up

±20% of initial value (4WV; ±30%)

Other Standards JIS C 5101-1,-18

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

3 5.3±0.2 3.3 3.3 1.5 0.45~0.75 0.8

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0

8 6.5±0.3 8.4 8.4 3.4 0.5 to 1.1 2.3

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

DIAGRAM OF DIMENSIONS

SMD ALUMINUM ELECTROLYTIC CAPACITORS

Dimension: Ø D x L(mm)

DIMENSION & PERMISSIBLE RIPPLE CURRENT

4V(0G) 6.3V(0J) 10V(1A) 16V(1C) 25V(1E)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

4.7 47 4x5.3 19

10 100 4x5.3 23 4(3)x5.3 26(14) 5x5.3 32

22 220 3x5.3 14 4x5.3 23 5x5.3 39

33 330 4x5.3 31 4x5.3 31

47 470 4x5.3 34

68 680 5x5.3 54 6.3x5.3 89

100 101

220 221 6.3x5.3 110

330 331 * 8x6.5 155(139) 8x10 252 8x10 252 10x10 458

470 471 8x10 252 10x10 458 10x10 458

1000 102 10x10 458 10x10 458

1500 152 10x10.3 458

V.DC

Content

4x5.3 33

5x5.3 48 6.3x5.3 67

4x5.3 37

5x5.3 50 6.3x5.3 75 * 8x6.5 155(98)

5x5.3 58 5x5.3 63 5x5.3 65 6.3x5.3 110 6.3x7.7 124

6.3x5.3 89 6.3x5.3 98

6.3x5.3 110 6.3x7.7 124

* 8x6.5 155(123) * 8x6.5 155(130)

6.3x5.3 67

5x5.3 63

6.3x5.3 98 * 8x6.5 155(109)

6.3x5.3 110

* 8x6.5 155(108)

Ripple Current: mA/rms at 120 Hz,85°C

4x5.3 30

5x5.3 44

6.3x5.3 63

5x5.3 52 6.3x5.3 75

6.3x5.3 98

* 8x6.5 155(108) * 8x6.5 155(124)

* 8x10 252(124) 8x10 252

6.3x5.3 55

5x5.3 54

6.3x5.3 103

67

VE

35V(1V) 50V(1H) 63V(1J) 100V(1V)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

0.1 0R1 4x5.3 3

0.22 R22 4x5.3 5

0.33 R33 4x5.3 6

0.47 R47 4x5.3 7

1 010 4x5.3 10

2.2 2R2 4x5.3 15

3.3 3R3 3x5.3 8 4x5.3 19

4.7 4R7 4x5.3 20

10 100

22 220

33 330

47 470 * 8x6.5 155(98)

68 680

100 101 * 8x10 252

220 221 10x10 458 10x10 458

V.DC

Content

4x5.3 20

5x5.3 26

4x5.3 27 5x5.3 34

8x6.5 75 8x10 94

5x5.3 34 6.3x5.3 44

5x5.3 47 6.3x5.3 59

8x10 139 10x10 189

6.3x5.3 59 * 8x6.5 155(65)

6.3x5.3 67 6.3x7.7 82
8x10 139 10x10 189

* 8x6.5 155(85) * 8x6.5 155(82)

6.3x7.7 98

10x10 226

* 8x10 252(98)

6.3x7.7 109

8x10 252 10x10 226

* 8x6.5 155(109)

8x10 252

10x10 226

10x10 458

* 6.3x7.7 is available and ( ) is its ripple current.

68

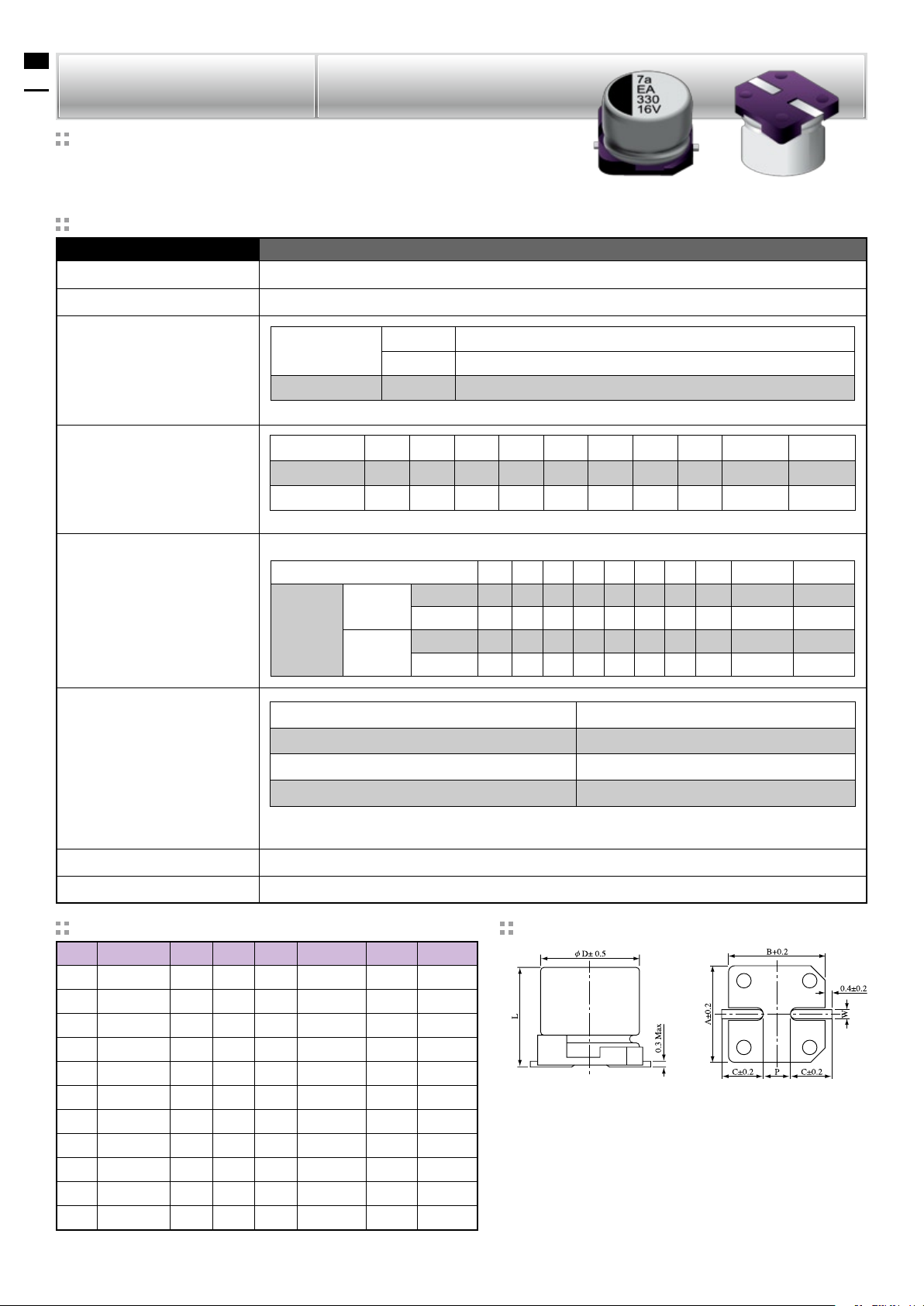

EA

EA

EA

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 4~16Ø 85°C, 2,000 hours assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +85°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

6.3~100V

160~450V 12.5~16Ø I=0.04CV+100

Where I = leakage current C=rated capacitance in μF. V=rated DC working voltage in V.

Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450

4~10

Ø

12.5~16

Ø

When the capacitance exceeds 1,000μF ,0.02 shall be added every 1,000μF increase.

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450

Impedance

Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.

/Z(+20°C)

/Z(+20°C)

4~10Ø I=0.01CV or 3

12.5~16Ø I=0.03CV or 4

0.35 0.30 0.26 0.16 0.14 0.12 0.12 0.12 - -

0.38 0.34 0.30 0.26 0.22 0.18 0.14 0.10 0.20 0.25

Z(-25°C)

Z(-40°C)

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

4~10Ø 4 4 3 2 2 2 2 3 - -

12.5~16Ø - 5 4 2 3 2 2 2 3 6

4~10Ø 17 10 8 4 3 3 3 4 - -

12.5~16Ø - 12 10 5 4 3 3 3 6 10

Test Time 2,000 Hrs

μA,whichever is greater,after 2 minutes at 20°C

μA,whichever is greater,after 2 minutes at 20°C

μA after 5 minutes at+20°C

Within

±20% of initial value

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Other Standards JIS C 5101-1,-18

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2 Fig.No.

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0 1

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5 1

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0 1

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2

DIAGRAM OF DIMENSIONS

SMD ALUMINUM ELECTROLYTIC CAPACITORS

Dimension: Ø D x L(mm)

DIMENSION & PERMISSIBLE RIPPLE CURRENT

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H) 63V(1J)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

V.DC

Content

Ripple Current: mA/rms at 120 Hz,85°C

69

EA

0.1 0R1

0.22 R22

0.33 R33

0.47 R47

1 010

2.2 2R2

3.3 3R3

4.7 4R7

10 100

22 220

33 330

47 470

68 680

100 101

220 221

4x5.3 3 4x5.3 1.3

4x5.3 5 4x5.3 3

4x5.3 6 4x5.3 4

4x5.3 7 4x5.3 5

4x5.3 10 4x5.3 8

4x5.3 15 4x5.3 12

4x5.3 15 5x5.3 17

4x5.3 19 4x5.3 18 4x5.3 18 5x5.3 20

4x5.3 26 4x5.3 26 4x5.3 24 4x5.3 24 5x5.3 30 6.3x.3 32

4x5.3 30 4x5.3 26 4x5.3 26 5x5.3 41 5x5.3 41 6.3x5.3 47 6.3x7.7 60

4x5.3 30 5x5.3 30 5x5.3 37 5x5.3 47 6.3x5.3 54 6.3x7.7 70 6.3x7.7 60

4x5.3 33 6.3x5.3 44 5x5.3 44 6.3x5.3 60 6.3x5.3 64 6.3x7.7 85 8x10 130

5x5.3 40 6.3x5.3 60 6.3x5.3 60 6.3x7.7 100 6.3x7.7 100 8x10 11 0 10x10 170

5x5.3 40 6.3x5.3 60 6.3x5.3 60 6.3x7.7 100

6.3x5.3 88 6.3x7.7 130 6.3x7.7 130 8x10 260

6.3x7.7 120

8x10 130 12.5x13.5 380

8x10 280

8x10.3 280

10x10 170 12.5x13.5 580

10x10 360

330 331

470 470

1000 102

2200 222

1300 332

4700 472

6800 682

100V(2A) 160V(2C) 200V(2D) 250V(2E) 400V(2G) 450V(2W)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

Content

4.7 4R7

10 100

22 220

33 330

47 470

6.3x7.7 135 8x10 270 8x10 270 8x10.3 280 10x10.3 360 12.5x13.5 600 12.5x16 720

8x10 280 8x10 280 8x10 280 10x10 400 12.5x13.5 600 12.5x16 740 16x16.5 950

8x10.3 430 10x10 430 12.5x13.5 710 12.5x13.5 820 16x16.5 1100

12.5x13.5 890 12.5x13.5 960 16x16.5 1150 16x16.5 1450

12.5x16 1000 16x16.5 1300 16x16.5 1150

16x16.5 1400 16x16.5 1300

16x16.5 1700

V.DC

12.5x13.5 120 12.5x13.5 120

8x10 90 12.5x13.5 150 12.5x13.5 120 12.5x16 130

8x10 90 12.5x13.5 240 12.5x13.5 150 16x16.5 140 16x16.5 140

10x10 120 12.5x13.5 240 12.5x16 310 12.5x16 240 16x16.5 140

10x10 120 12.5x16 370 16x16.5 340 16x16.5 340

68 680

100 101

220 221

12.5x13.5 380 16x16.5 500 16x16.5 340

12.5x13.5 380

16x16.5 500

SMD ALUMINUM ELECTROLYTIC CAPACITORS

70

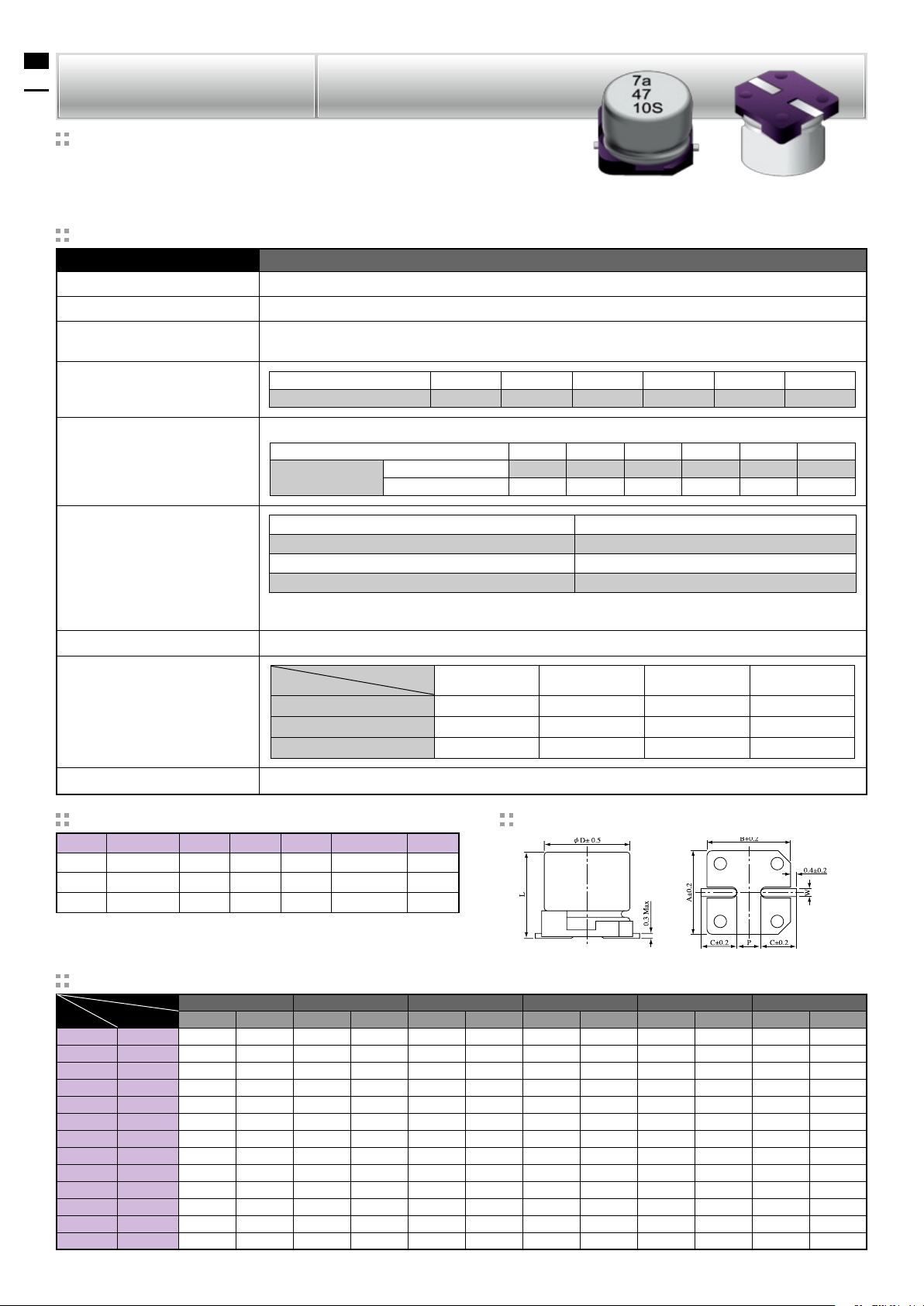

ES

ES

ES

Series

FEATURES

. 4~6.3Ø 105°C, 1,000 hours assured.
. Vertical chip type miniaturized forv 5.5mm high capacitor.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -55°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Rated Voltage 6.3 10 16 25 35 50

Tan δ(max) 0.30 0.26 0.22 0.16 0.13 0.12

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 1,000 hrs at 105°C.

Freg. (Hz)

V.DC (V)

Under 16 0.8 1.0 1.15 1.25

25~35 0.8 1.0 1.25 1.40

50 0.8 1.0 1.35 1.50

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

6.3 10 16 25 35 50
Z(-25°C)Z(+20°C) 4 3 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3

Test Time 1,000 Hrs

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

50 120 1K 10K up

Within

±20% of initial value

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

DIMENSION & PERMISSIBLE RIPPLE CURRENT

µF Ø DxL

0.1 OR1

0.22 R22

0.33 R33

0.47 R47
1 010

2.2 2R2

3.3 3R3

4.7 4R7
10 100
22 220
33 330
47 470

100 101

V.DC

Content

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

mA

4x5.3 21 5x5.3 25 5x5.3 28 6.3x5.3 36 6.3x5.3 50 6.3x5.3 51
5x5.3 30 5x5.3 31 6.3x5.3 40 6.3x5.3 44
5x5.3 36 6.3x5.3 43 6.3x5.3 47 6.3x5.3 60

6.3x5.3 61 6.3x5.3 65 6.3x5.3 70

Ø DxL

4x5.3 15 4x5.3 16 5x5.3 21 5x5.3 23 6.3x5.3 26

mA

Ø DxL

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 120 Hz, 105°C

mA

Ø

DxL mA

4x5.3 12 4x5.3 14 5x5.3 17

Ø

DxL mA

Ø

DxL mA

4x5.3 2
4x5.3 3
4x5.3 4
4x5.3 5
4x5.3 7
4x5.3 10
4x5.3 12

71

SMD ALUMINUM ELECTROLYTIC CAPACITORS

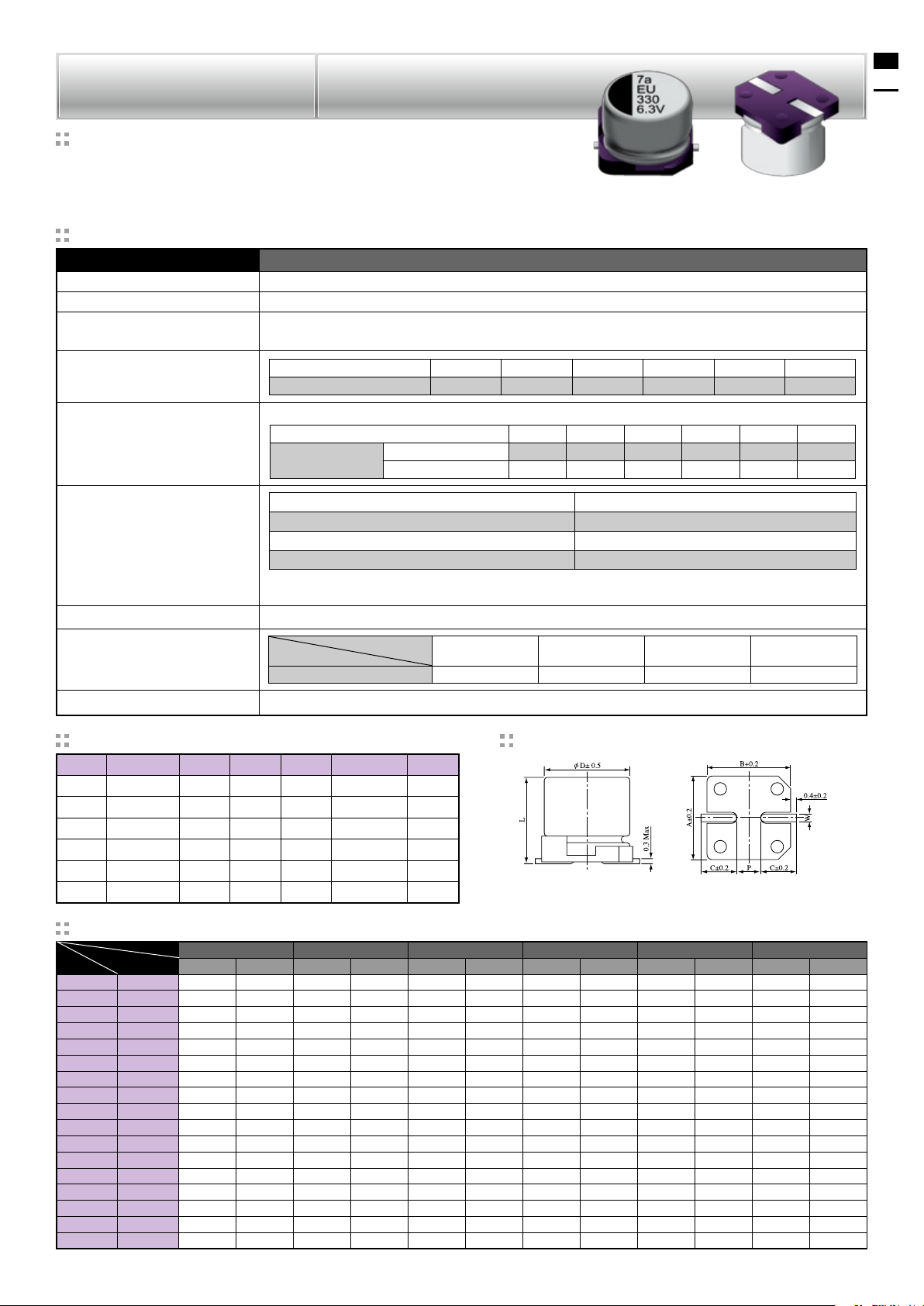

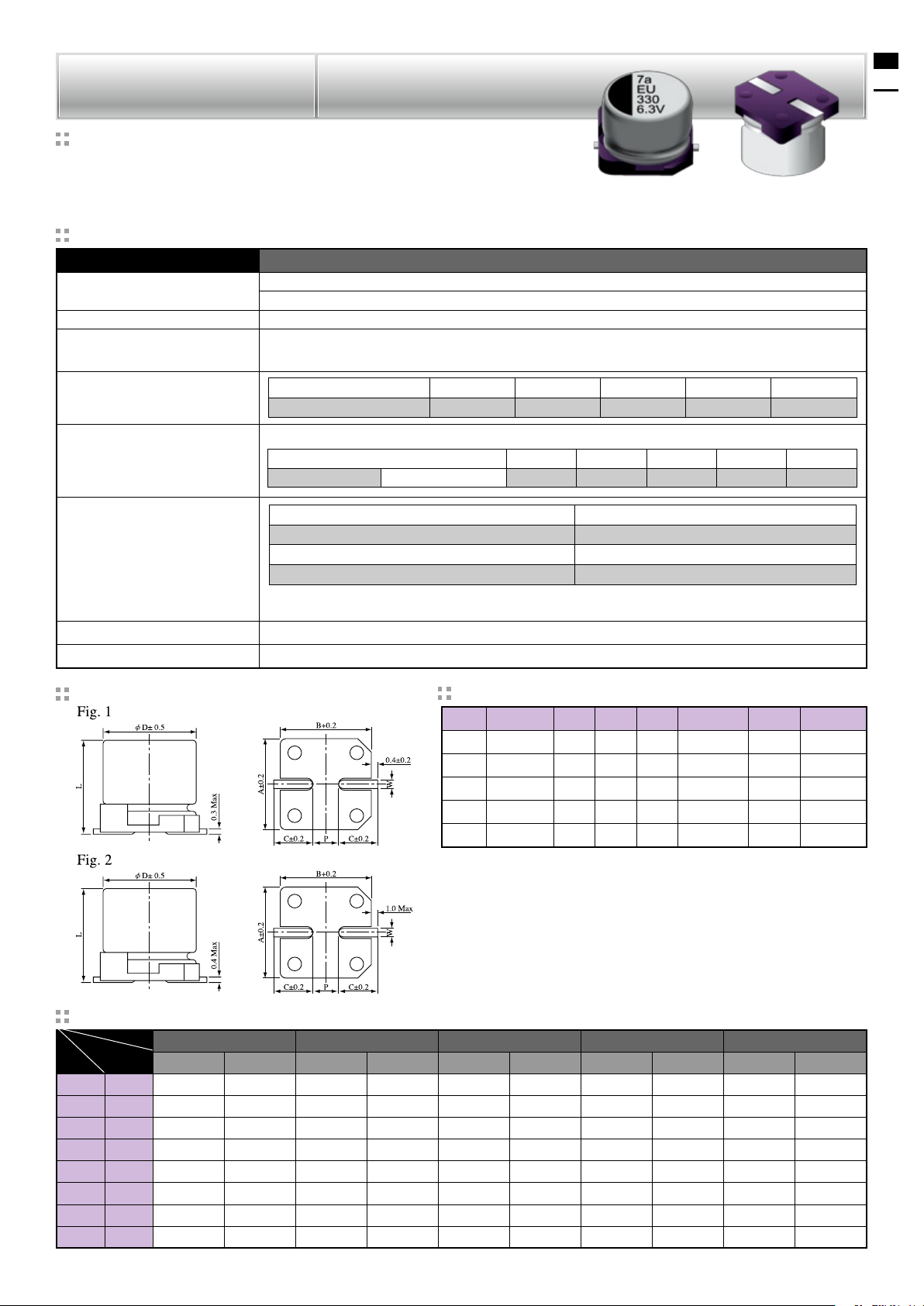

EU

EU

Series

FEATURES

. 4~10Ø 105°C, 3,000 hours assured.
. Long life assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

EU

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Rated Voltage 6.3 10 16 25 35 50

Tan δ(max) 0.30 0.24 0.20 0.16 0.13 0.12

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 3,000 hrs at 105°C.

Freg. (Hz)

V.DC (V)

6.3 ~ 50 0.70 1.00 1.36 1.50

Z(-25°C)Z(+20°C) 4 3 2 2 2 2
Z(-40°C)Z(+20°C) 10 7 5 3 3 3

Test Time 3,000 Hrs

Capacitance Change

Dissipation Factor Less than 300% 0f specied value

Leakage Current Within specied value

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

DIMENSION & PERMISSIBLE RIPPLE CURRENT

µF

0.1 OR1

0.22 R22

0.33 R33

0.47 R47

2.2 2R2

3.3 3R3

4.7 4R7

100 101
220 221
330 331
470 471

1000 102

Content

1 010

10 100
22 220
33 330
47 470

V.DC

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

Ø DxL

4x5.7 22 4x5.7 30 5x5.7 30 6.3x5.7 44 6.3x5.7 44 6.3x7.7 58
5x5.7 35 5x5.7 35 6.3x5.7 48 6.3x5.7 50 6.3x7.7 57 8x10 130
5x5.7 38 6.3x5.7 50 6.3x5.7 50 6.3x7.7 63 8x10 141 8x10 141

6.3x5.7 69 6.3x7.7 81 6.3x7.7 81 8x10 141 10x10 290 10x10 310

6.3x7.7 120 8x10 141 8x10 141 10x10 290 10x10 320

8x10 290 10x10 290 10x10 290 10x10 320
10x10 320 10x10 320 10x10 320
10x10 410

mA

Ø DxL

mA

Ø DxL

4x5.7 18 5x5.7 27 5x5.7 27 6.3x5.7 32

6.3 10 16 25 35 50

Within

±30% of initial value

50 120 1K 10K up

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 120 Hz, 105°C

mA

Ø

DxL mA

Ø

DxL mA

4x5.7 16 5x5.7 22

Ø

DxL mA

4x5.7 1
4x5.7 2.6
4x5.7 3.2
4x5.7 5
4x5.7 8
4x5.7 12
4x5.7 17

72

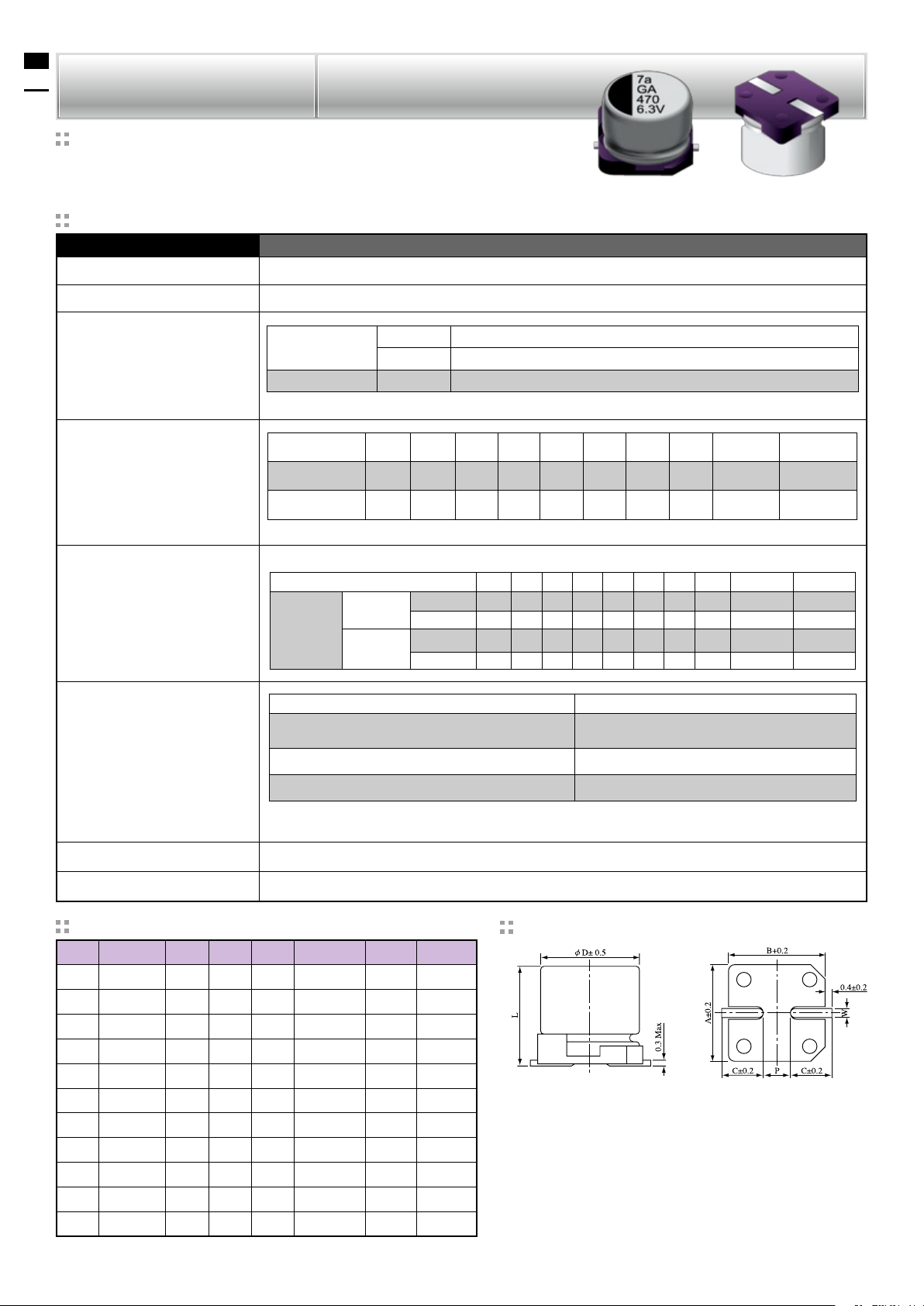

GA

GA

GA

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 4~16Ø 105°C, 2,000 hours assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +85°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

6.3~100V

160~450V 12.5~16Ø I=0.04CV+100

Where I = leakage current C=rated capacitance in μF. V=rated DC working voltage in V.

Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450

4~10

φ

12.5~16

φ

When the capacitance exceeds 1,000μF ,0.02 shall be added every 1,000μF increase.

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage 6.3 10 16 25 35 50 63 100 160~250 400~450

Impedance

Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 105°C.

4~10Ø I=0.01CV or 3

12.5~16Ø I=0.03CV or 4

0.45 0.35 0.28 0.18 0.16 0.14 0.12 0.12 - -

0.40 0.38 0.34 0.26 0.22 0.18 0.14 0.10 0.20 0.25

Z(-25°C)

/Z(+20°C)

Z(-40°C)

/Z(+20°C)

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

4~10Ø 4 3 2 2 2 2 2 3 - -

12.5~16Ø 5 4 3 2 2 2 2 2 3 6

4~10Ø 12 8 6 4 3 3 3 4 - -

12.5~16Ø 10 8 6 4 3 3 3 3 6 10

Test Time 2,000 Hrs

μA,whichever is greater,after 2 minutes at +20°C

μA,whichever is greater,after 2 minutes at +20°C

μA after 5 minutes at+20°C

4~6.3Ø : Within

8~16Ø : Within

±25% of initial value

±20% of initial value

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Other Standards JIS C 5101-1,-18

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2 Fig.No.

4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0 1

5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5 1

6.3 5.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2

DIAGRAM OF DIMENSIONS

SMD ALUMINUM ELECTROLYTIC CAPACITORS

Dimension: Ø D x L(mm)

DIMENSION & PERMISSIBLE RIPPLE CURRENT

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H) 63V(1J)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

V.DC

Content

Ripple Current: mA/rms at 120 Hz,85°C

73

GA

0.1 0R1

0.22 R22

0.33 R33

0.47 R47

1 010

2.2 2R2

3.3 3R3

4.7 4R7

10 100

22 220

33 330

47 470

100 101

4x5.7 2

4x5.7 3

4x5.7 4

4x5.7 5 4x5.7 5

4x5.7 10 4x5.7 8

4x5.7 16 4x5.7 12

4x5.7 18 5x5.7 17

4x5.7 13 4x5.7 16 5x5.7 20 6.3x5.7 22

4x5.7 17 5x5.7 23 5x5.7 27 6.3x5.7 32 6.3x5.7 32

5x5.7 30 6.3x5.7 38 6.3x5.7 44 6.3x5.7 47 6.3x7.7 58

5x5.7 30 6.3x5.7 45 6.3x5.7 50 6.3x5.7 54 6.3x7.7 65 8x10 140

5x5.7 30 6.3x5.7 48 6.3x5.7 48 6.35.7 60 6.3x7.7 80 6.3x7.7 80

8x10 230

6.3x5.7 69 6.3x5.7 69 6.3x5.7 69 6.3x7.7 100 8x10 320

10x10 375

8x10 170

10x10 310

10x10.3 310

220 221

330 331

470 471

1000 102

2200 222

3300 332

4700 472

6800 682

100V(2A) 160V(2C) 200V(2D) 250V(2E) 400V(2G) 450V(2W)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

Content

3.3 3R3

4.7 4R7

10 100

22 220

6.3x7.7 120 6.3x7.7 120 6.3x7.7 120 8x10 320 10x10 375 10x10.3 375 12.5x13.5 470

8x10 290 8x10 290 8x10 290 10x10 375 10x10.3 410 12.5x13.5 500 16x16.5 700

8x10 320

10x10 410 10x10.3 410 12.5x13.5 550 12.5x16 550 16x16.5 750

12.5x13.5 680 12.5x16 750 16x16.5 950 16x16.5 820

12.5x16 850 16x16.5 1000 16x16.5 950

16x16.5 1,000 16x16.5 1000

16x16.5 1,000

8x10 320

8x10 320 10x10 410 12.5x13.5 520 12.5x16 550 16x16.5 700

10x10 410

V.DC

12.5x13.5 65 12.5x13.5 40

12.5x13.5 68 12.5x13.5 50 12.5x13.5 50

12.5x13.5 80 12.5x13.5 72 12.5x13.5 65 12.5x16 55

8x10 100 12.5x13.5 90 12.5x13.5 90 16x16.5 85 16x16.5 85

33 330

47 470

100 101

220 221

10x10 150 12.5x13.5 95 12.5x16 110 16x16.5 180

12.5x13.5 250 12.5x16 11 0 16x16.5 220 16x16.5 180

12.5x13.5 380 16x16.5 190

16x16.5 450

74

EJ

EJ

EJ

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 4~10Ø,105°C, 2,000 hours assured.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -55°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tanδat 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Standards JIS C 5101-1,-18

Rated Voltage 6.3 10 16 25 35 50 63 100

4 - 6.3Ø 0.32 0.28 0.24 0.18 0.15 0.14 - -

8 - 10Ø 0.30 0.26 0.22 0.16 0.13 0.12 0.11 0.10

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance

Ratio

Capacitance Change

Dissipation Factor

Leakage Current Within specied value

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 105°C.

V.DC (V)

Freg. (Hz)

Under 16 0.8 1.0 1.15 1.25

25 ~ 35 0.8 1.0 1.25 1.40
50 ~ 63 0.8 1.0 1.35 1.50

100 0.7 1.0 1.35 1.50

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

6.3 10 16 25 35 50 63 100
Z(-25°C)Z(+20°C) 4 3 2 2 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3 3 3

Test Time 2,000 Hrs

6.3V

10 ~ 16V

25 ~100V

6.3V ~16V Less than 300% 0f specied value
25 ~ 100V Less than 200% 0f specied value

50, 60 120 1K 10K up

Within

±30% of initial value

Within

±25% of initial value

Within

±20% of initial value

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0
5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.7±0.3 6.3 6.3 2.7 0.5 to 0.8 2.0

8 6.5±0.3 8.4 8.4 3.4 0.5 to 0.8 2.3
8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1

8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1
10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7
10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

DIMENSION & PERMISSIBLE RIPPLE CURRENT

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H) 63V(1J) 100V(2A)
µF

0.1 OR1

0.22 R22

0.33 R33

0.47 R47
1 010

2.2 2R2

3.3 3R3

4.7 4R7
10 100
22 220
33 330

47 470

100 101

220 221

330 331
470 471

V.DC

Content

Ø

DxL

mAØ DxL

4x5.7 13 5x5.7 27 5x5.7 30 6.3x5.7 38 6.3x5.7 50 8x6.5 65 8x10 99 10x10
5x5.7 30 5x5.7 30 6.3x5.7 40 6.3x5.7 50 8x6.5 11 0 8x10 99 10x10 160 133

5x5.7 36 6.3x5.7 50

6.3x5.7 61

8x10 178 8x10 178 10x10 324

8x10 178 10x10 324 10x10 324 10x10.3 324

10x10 324 10x10 324 10x10 324

6.3x5.7 61

mAØ DxL

4x5.7 13 4x5.7 16 5x5.7 30 5x5.7 30 6.3x5.7 30 8x10 67

6.3x5.7 50 6.3x5.7 50

8x6.5 11 0

8x10.3

mA

Ø

DxL mAØ DxL mAØ DxL mA

4x5.7 13 4x5.7 13 4x5.7 13 5x5.7 22

8x10 178 8x6.5 11 0

178 8x10 178 10x10 324 10x10 160 10x10 160

8x10 178

10x10 324

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 120 Hz, 105°C

Ø

4x5.7 2
4x5.7 3
4x5.7 4
4x5.7 5
4x5.7 10
4x5.7 16
4x5.7 18

8x10 178 8x10 99 10x10 160

10x10 324

DxL mAØ DxL mA

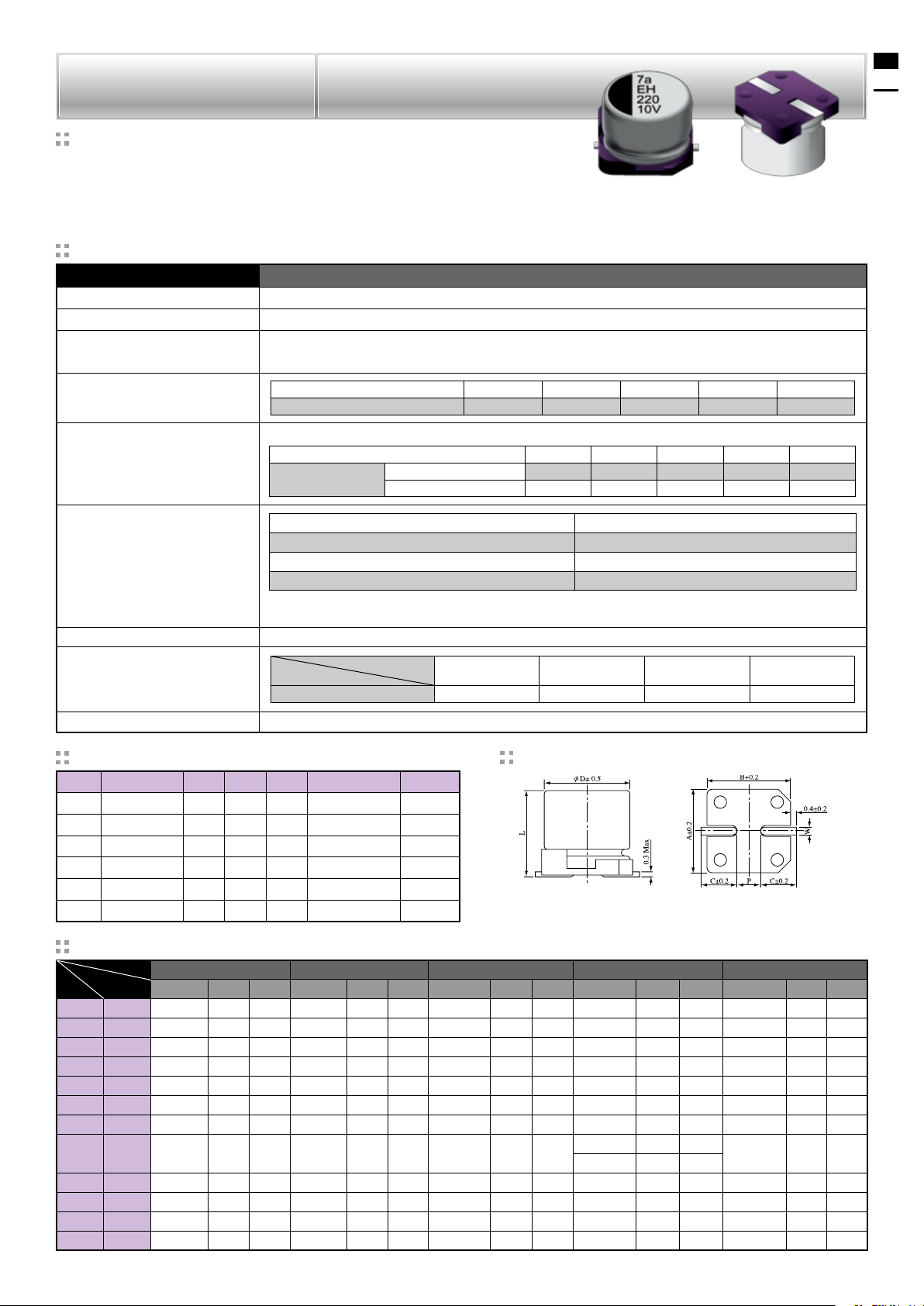

EH

EH

Series

ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 4~10Ø, 105°C, 2,000 hours assured.
. Vertical chip type miniaturized.
. Low impedance capacitors.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -55°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

75

EH

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Impedance ratio shall not exceed the values given in the table below.

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Impedance Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 105°C.

Freg. (Hz)

V.DC (V)

Rated Voltage 6.3 10 16 25 35

Tan δ(max) 0.30 0.26 0.22 0.16 0.13

6.3 ~ 35 0.64 0.8 0.93 1.0

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.3±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.3 6.3 6.3 2.7 0.5 to 0.8 2.0

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7

DIMENSION & PERMISSIBLE RIPPLE CURRENT

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V)

µF Ø DxL lmp. mA Ø DxL lmp. mA Ø DxL lmp. mA Ø DxL lmp. mA Ø DxL lmp. mA

4.7 4R7

10 100

22 220

33 330

47 470

100 101

150 151

220 221

330 331

470 471

820 821

1000 102

V.DC

Content

4x5.7 3.2 65 5x5.7 1.5 110 6.3x5.7 0.85 170 6.3x5.7 0.85 170 6.3x5.7 0.85 170

5x5.7 1.5 110 6.3x5.7 0.85 170 6.3x5.7 0.85 170 6.3x5.7 0.85 170 8x10 0.45 450

6.3x5.7 0.85 170 6.3x5.7 0.85 170 8x10 0.45 450 8x10 0.45 450 8x10 0.45 450

6.3x5.7 0.85 170 6.3x5.7 0.85 170 8x10 0.45 450 8x10 0.45 450 8x10 0.45 450

6.3x5.7 0.85 170 8x10 0.45 450 8x10 0.45 450

8x10 0.45 450 8x10 0.45 450 8x10 0.45 450 10x10.3 0.25 670

8x10 .0.45 450 8x10 0.45 450 10x10 0.25 670

10x10 0.25 670 10x10 0.25 670

10x10 0.25 670

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

Rated Voltage

Z(-25°C)Z(+20°C) 4 3 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3

Test Time 2,000 Hrs

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

50, 60 120 1K 10K up

6.3 10 16 25 35

Within

±20% of initial value (Ø ≤6.3: ±25%)

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 100k Hz, 105°C
Impedance: Ω / at 100k Hz, 20°C

4x5.7 3.2 65 4x5.7 3.2 65

4x5.7 3.2 65 5x5.7 1.5 11 0 5x5.7 1.5 110

5x5.7 1.5 110 6.3x5.7 0.85 170 6.3x5.7 0.85 170

8x10 0.45 450

10X10 0.25 670

10x10 0.25 670

SMD ALUMINUM ELECTROLYTIC CAPACITORS

76

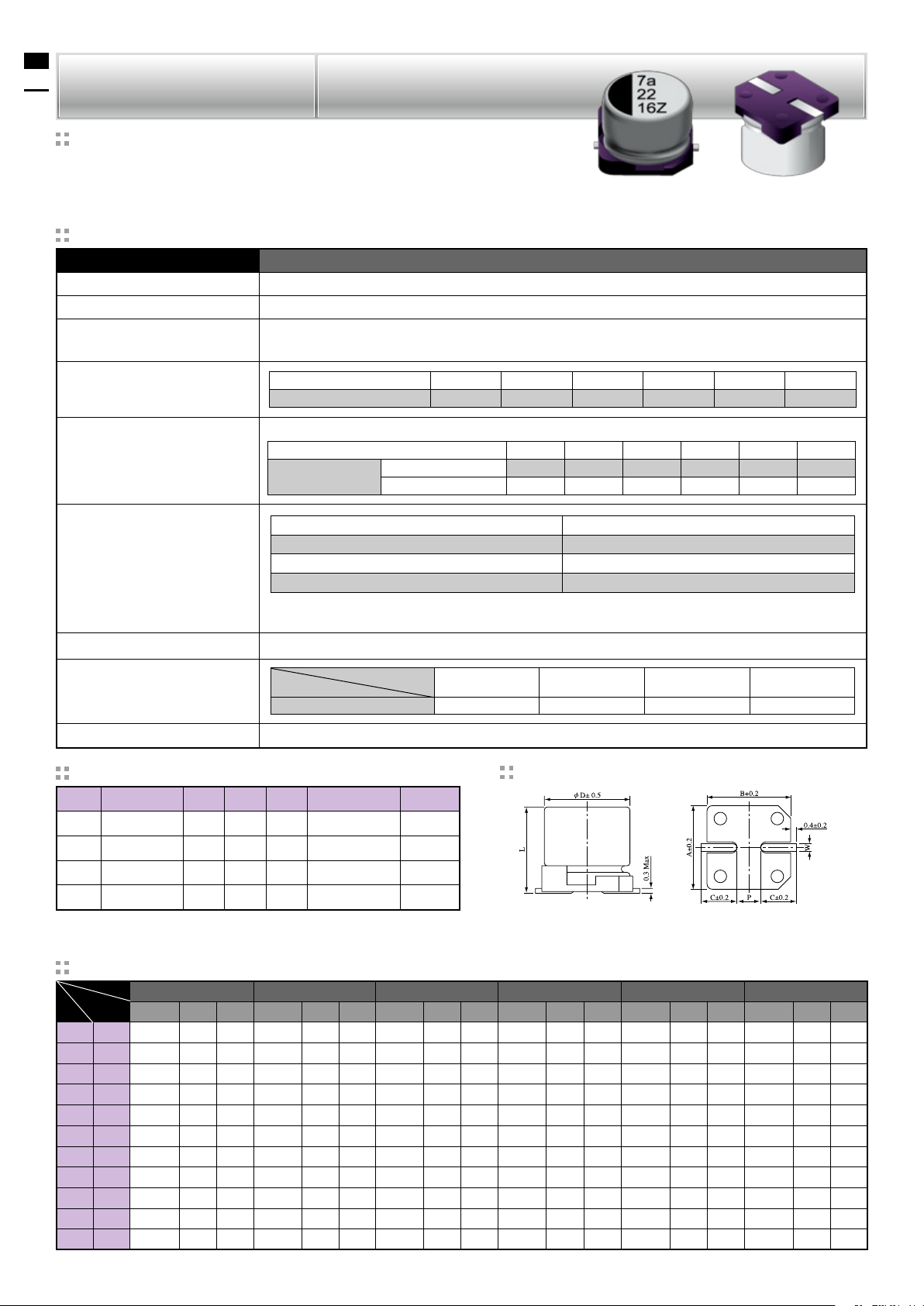

EZ

EZ

EZ

Series

FEATURES

. 4~6.3Ø, 105°C, 1,000 hours assured.
. Low impedance capacitors.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -55°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Rated Voltage 6.3 10 16 25 35 50

Tan δ(max) 0.28 0.24 0.20 0.16 0.14 0.12

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 1,000 hrs at 105°C.

Freg. (Hz)

V.DC (V)

6.3 ~ 50 0.64 0.8 0.93 1.0

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

Z(-25°C)Z(+20°C) 4 3 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3

Test Time 1,000 Hrs

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0

6.3 10 16 25 35 50

Within

±25% of initial value

50, 60 120 1K 10K up

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 100k Hz, 105°C

DIMENSION & PERMISSIBLE RIPPLE CURRENT

V.DC

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

Content

µF Ø DxL lmp. R.C. Ø DxL lmp. R.C. Ø DxL lmp. R.C. Ø DxL lmp. R.C. Ø DxL lmp. R.C. Ø DxL lmp. R.C.

1.0 010

2.2 2R2

3.3 3R3

4.7 4R7

10 100

22 220

33 330

47 470

100 101

150 151

220 221

4x5.3 3.20 65 4x5.3 3.20 65 5x5.3 1.50 11 0 5x5.3 1.50 11 0 6.3x5.3 2.0 70

4x5.3 3.20 65 5x5.3 1.50 110 5x5.3 1.50 110 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x5.3 2.0 70

5x5.3 1.50 11 0 5x5.3 1.50 110 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x7.7 1.0 170

5x5.3 1.50 11 0 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x7.7 0.50 255

6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x5.3 0.85 170 6.3x7.7 0.50 255

6.3x7.7 0.50 255 6.3x7.7 0.50 255 6.3x7.7 0.50 255

6.3x7.7 0.50 255 6.3x7.7 0.50 255 6.3x7.7 0.50 255

4x5.3 3.20 65 4x5.3 3.20 65 5x5.3 3.0 50

Impedance: Ω at 100k Hz, 20°C

4x5.3 5.0 30

4x5.3 5.0 30

4x5.3 5.0 30

77

SMD ALUMINUM ELECTROLYTIC CAPACITORS

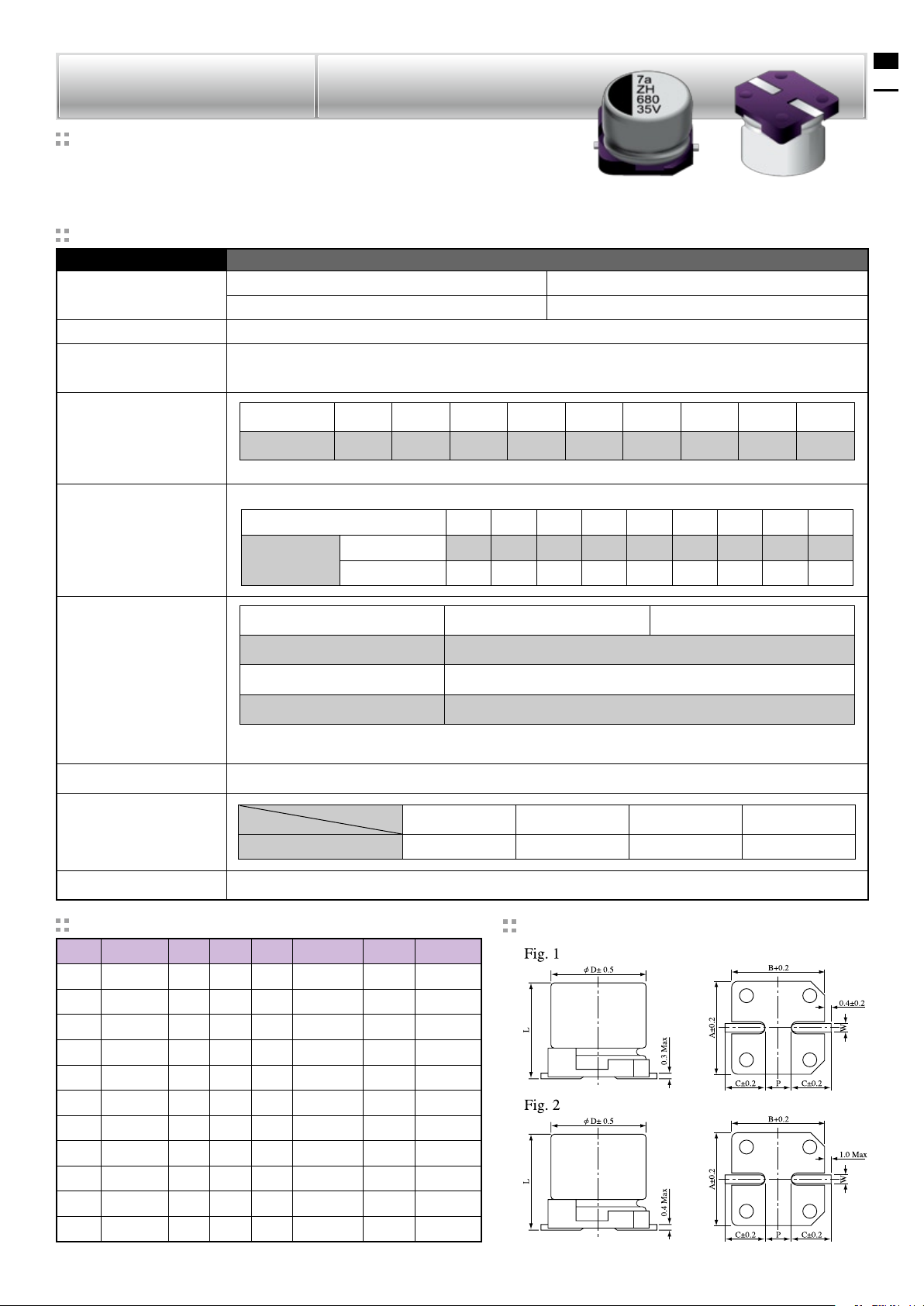

ZH

ZH

Series

FEATURES

. 4~ 16Ø, 105°C,2,000~5,000 hours assured
.Large capacitance with ultra low impedance capacitors
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature

Range

Capacitance Tolerance ±20% (at 120Hz,20

6.3~63V 80~100V

°

C ~ +105°C -40° ~ +105°C

-55

ZH

°

C)

Leakage Current (at 20°C)

Dissipation Factor

(Tanδ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Rated Voltage 6.3 10 16 25 35 50 63 80 100

Tanδ (max) 0.30 0.26 0.22 0.16 0.13 0.10 0.08 0.08 0.07

When the capacitance exceeds1,000μF ,0.02shall be added every 1,000μF increase

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance

Ratio

Capacitance Change Within ± 30% of initial value

Dissipation Factor Less than 300% 0f specied value

Leakage Current Within specied value

* The above specications shall be satised when the capacitors are restored to 20°C after the rated voltage
applied for 2,000 ~ 5,000 hrs at 105°C.

Z(-25°C)Z(+20°C) 4 3 2 2 2 2 2 2 2

Z(-40°C)Z(+20°C) 8 5 4 3 3 3 3 3 3

Test Time 2,000 Hrs for 4 ~ 6.3Ø 5,000 Hrs for 8 ~ -16Ø

I=0.01CV or 3μA, whichever is greater (after 2minutes)

Wher, C=rated capacitance in μF. V=rated DC working voltage in V.

6.3 10 16 25 35 50 63 80 100

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Freg. (Hz)

V.dc (V)

6.3~100 0.64 0.8 0.93 1.0

LEAD SPACING AND DIAMETER Unit:mm

Ø D

4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0 1

5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5 1

6.3 5.7±0.3 6.3 6.3 2.7 0.5 to 0.8 2.0 1

6.3 7.7±0.3 6.6 6.6 2.7 0.5 to 0.8 2.0 1

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

8 10.3±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

10 10.3±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2

L A B C W P±0.2 Fig. No.

50, 60 120 1K 10K up

DIAGRAM OF DIMENSIONS

78

ZH

DIMENSION & PERMISSIBLE RIPPLE CURRENT

V.DC

µF Ø DxL lmp mA Ø DxL lmp mA Ø DxL lmp mA Ø DxL lmp mA Ø DxL lmp mA

Content

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V)

SMD ALUMINUM ELECTROLYTIC CAPACITORS

Dimension: Ø D x L(mm)

Ripple Current: mA/rms at 100 Hz,105°C
Impedance: Ω / at 100k Hz, 20°C

4.7 4R7

10 100

22 220

33 330

47 470

100 101

150 151

220 221

330 331

470 471

680 681

1000 102

1500 152

2200 222

4x5.7 1.35 80

4x5.7 1.35 80 4x5.7 1.35 80 5x5.7 0.80 150

4x5.7 1.35 80 4x5.7 1.35 80 5x5.7 0.80 150 5x5.7 0.80 150 6.3x5.7 0.44 230

4x5.7 1.35 80 5x5.7 0.80 150 6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x5.7 0.44 230

5x5.7 0.80 150 6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x5.7 0.44 230

6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x7.7 0.36 280 8x10 0.17 450

6.3x5.7 0.44 230 6.3x5.7 0.44 230 6.3x7.7 0.36 280 8x10 0.17 450 8x10 0.17 450

6.3x7.7 0.36 280 6.3x7.7 0.36 280 6.3x7.7 0.36 280 8x10 0.17 450 10x10 0.09 670

8x10 0.17 450 8x10 0.17 450 8x10 0.17 450 8x10.3 0.17 450 12.5x13.5 0.070 820

8x10 0.17 450 8x10 0.17 450

8x10.3 0.17 450 10x10 0.09 670 10x10.3 0.09 670 12.5x13.5 0.070 820 12.5x16 0.060 950

8x10.3 0.17 450 10x10 0.09 670 12.5x13.5 0.070 820 12.5x16 0.060 950 16x16.5 0.054 1,260

10x10.3 0.09 670 12.5x13.5 0.070 820 12.5x16 0.060 950 16x16.5 0.054 1,260

12.5x13.5 0.070 820 12.5x16 0.060 950 16x16.5 0.054 1,260 16x16.5 0.054 1,260

8x10 0.17 450

10x10 0.09 670 12.5x16 0.060 950

10x10 0.09 670

3300 332

4700 472

6.3V(0J) 10V(1A) 16V(1C) 25V(1E)

Content

µF Ø DxL lmp mA Ø DxL lmp mA Ø DxL lmp mA Ø DxL lmp mA

1 010

2.2 2R2

3.3 3R3

4.7 4R7

10 100

22 220

33 330

47 470

68 68

100 101

150 151

12.5x16 0.060 950 16x16.5 0.054 1,260 16x16.5 0.054 1,260

16x16.5 0.054 1,260 16x16.5 0.054 1,260

V.DC

4x5.7 2.9 60

4x5.7 2.9 60

4x5.7 2.9 60

5x5.7 1.52 85 5x5.7 1.52 85

6.3x5.7 0.88 165 6.3x5.7 0.88 165

6.3x5.7 0.88 165 6.3x7.7 0.68 185

6.3x7.7 0.68 185 8x10 0.34 369

6.3x7.7 0.68 185 8x10 0.34 369 10x10 0.7 200 10x10 0.7 200

8x10 0.34 369 10x10 0.18 553 10x10.3 0.7 200 12.5x13.5 0.32 450

8x10 0.34

369 10x10 0.18 553 12.5x13.5 0.32 450 12.5x16 0.26 550

10x10 0.18

10x10.3 0.18 553 12.5x13.5 0.12 650 12.5x13.5 0.32 450 16x16.5 0.17 650

220 221

330 331

470 471

680 681

10x10.3 0.18 553 12.5x13.5 0.12 650 12.5x16 0.26 550

12.5x13.5 0.12 650 16x16.5 0.082 900 16x16.5 0.17 650

16x16.5 0.082 900 16x16.5 0.082 900

16x16.5 0.082 900

UA

UA

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 8~16Ø, 125°C, 1,000 hours assured.
. Chip type high temperature range, for +125°C use.
. For automobile modules and other high temperature applications.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

I=0.03CV or 4(μA), whichever is greater (after 1 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

10 ~ 50V

-40°C ~ +125°C

79

UA

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Other Standards JIS C 5101-1,-18

LEAD SPACING AND DIAMETER Unit:mm

DIAGRAM OF DIMENSIONS

Impedance ratio shall not exceed the values given in the table below.

Impedance Ratio

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 1,000 hrs at 125°C.

Rated 10 16 25 35 50

Tan δ(max) 0.32 0.24 0.21 0.18 0.18

Rated Voltage

Z(-25°C)Z(+20°C) 5 4 3 3 3

Test Time 1,000 Hrs

Capacitance Change

Dissipation Factor Less than 300% 0f specied value

Leakage Current Within specied value

Ø D

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1 1

10 10±0.5 10.4 10.4 3.3 0.7 to 1.1 4.7 1

12.5 13.5±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

12.5 16±0.5 12.8 12.8 4.9 1.1 to 1.4 4.2 2

16 16.5±0.5 16.3 16.3 5.8 1.1 to 1.4 6.0 2

10 16 25 35 50

Within

±30% of initial value

L A B C W P±0.2 Fig. No.

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 100k Hz, 105°C

DIMENSION & PERMISSIBLE RIPPLE CURRENT

10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

33 330 8x10 46

47 470 8x10 52 10x10 58

100 101 8x10 66 8x10 74 10x10 80 12.5x13.5 357

220 221 8x10 90 10x10 102 10x10 116 12.5x13.5 357 16x16.5 552

330 331 10x10 112 12.5x13.5 480 12.5x13.5 480 16x16.5 650 16x16.5 552

470 471 12.5x13.5 480 12.5x13.5 480 16x16.5 650 16x16.5 650

680 681 12.5x16 585 16.16.5 650

1000 102 12.5x16 585

V.DC

Content

Impedance: Ω at 100k Hz, 20°C

SMD ALUMINUM ELECTROLYTIC CAPACITORS

80

EB

EB

EB

Series

FEATURES

. 4~6.3Ø, 85°C, 2,000 hours assured.
. Vertical chip type miniaturized
. Non-polar capacitors for 5.5mm high capacitors
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +85°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Impedance ratio shall not exceed the values given in the table below.

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

(with the polarity inverted

every 250 hours)

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Freg. (Hz)

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

V.DC (V)

Rated Voltage 6.3 10 16 25 35 50

Tan δ(max)

Rated Voltage

Impedance

Ratio

Under 16 0.8 1.0 1.15 1.25

25~35 0.8 1.0 1.25 1.40

50 0.8 1.0 1.35 1.50

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

4Ø 0.35 0.30 0.25 0.25 0.25 0.25

5~6.3Ø 0.30 0.25 0.20 0.15 0.15 0.15

6.3 10 16 25 35 50
Z(-25°C)Z(+20°C) 3 3 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3

Test Time 2,000 Hrs

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

50 120 1K 10K up

Within

±20% of initial value

LEAD SPACING AND DIAMETER Unit:mm

Ø D

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

L A B C W P±0.2

DIMENSION & PERMISSIBLE RIPPLE CURRENT

µF

0.1 0R1

0.22 R22

0.33 R33

0.47 R47

2.2 2R2

3.3 3R3

4.7 4R7

Content

1 010

10 100

22 220

33 330

47 470

V.DC

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

4x5.3 14 5x5.3 20 5x5.3 21 6.3x5.3 24

4x5.3 18 5x5.3 26 6.3x5.3 35 6.3x5.3 35

5x5.3 27 6.3x5.3 40 6.3x5.3 45

6.3x5.3 45 6.3x5.3 50 6.3x5.3 55

6.3x5.3 54

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm), Ripple Current: mA/rms at 120 Hz,85°C

4x5.3 2.3

4x5.3 3.3

4x5.3 4.1

4x5.3 4.9

4x5.3 7.2

4x5.3 10 5x5.3 14

4x5.3 13 5x5.3 17 5x5.3 17

81

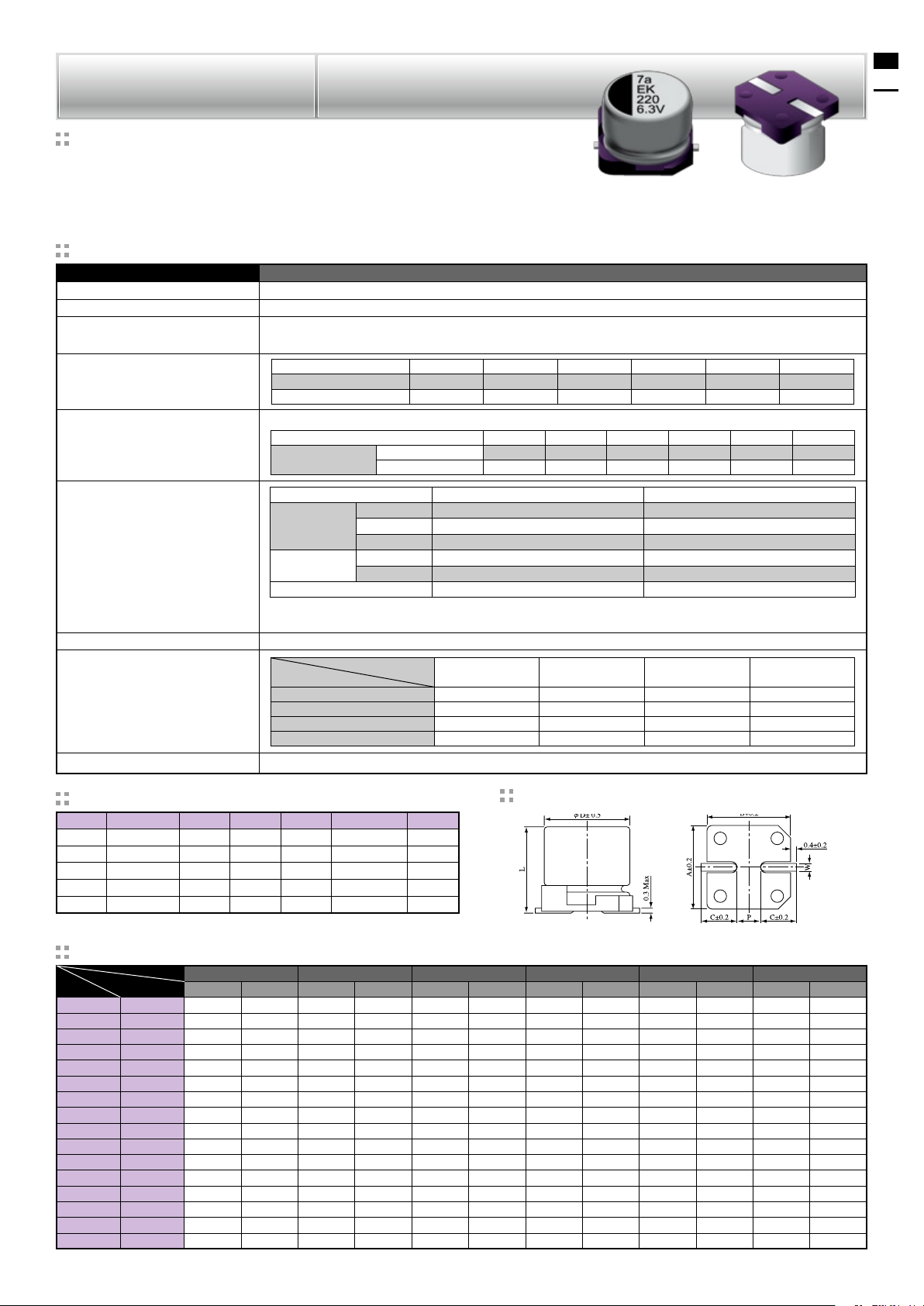

SMD ALUMINUM ELECTROLYTIC CAPACITORS

EK

EK

Series

FEATURES

. 4~10Ø, 105°C, 2,000 hours assured.
. Vertical chip type miniaturized
. Low impedance capacitors
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -55°C ~ +105°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

Rated Voltage 6.3 10 16 25 35 50

4~6.3Ø 0.32 0.28 0.24 0.18 0.15 0.14
8~10Ø 0.30 0.26 0.22 0.16 0.13 0.12

Impedance ratio shall not exceed the values given in the table below.

Rated Voltage

Impedance

Ratio

Test Time 2,000 Hrs (4~6.3Ø) 5,000 Hrs (8~10Ø)

Capacitance

Change

Dissipation

Factor

Leakage Current Within specied value Within specied value

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 105°C.

Freg. (Hz)

V.DC (V)

Under 16 0.8 1.0 1.15 1.25

25~35 0.8 1.0 1.25 1.40
50~63 0.8 1.0 1.35 1.50

100 0.7 1.0 1.35 1.50

I=0.01CV or 3(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

Z(-25°C)Z(+20°C) 4 3 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3

6.3V
10 ~ 16V
25 ~100V

6.3V ~16V Less than 300% 0f specied value Less than 300% 0f specied value
25 ~ 100V Less than 200% 0f specied value Less than 300% 0f specied value

6.3 10 16 25 35 50

Within

±30% of initial value

Within

±25% of initial value

Within

±20% of initial value

50, 60 120 1K 10K up

Within

±30% of initial value

Within

±30% of initial value

Within

±30% of initial value

EK

LEAD SPACING AND DIAMETER Unit:mm

Ø D L A B C W P±0.2

4 5.7±0.3 4.3 4.3 2.0 0.5 to 0.8 1.0
5 5.7±0.3 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.7±0.3 6.3 6.3 2.7 0.5 to 0.8 2.0

8 10±0.5 8.4 8.4 3.0 0.7 to 1.1 3.1

10 10±0.5 10.4 10.4 2.3 0.7 to 1.1 4.7

DIMENSION & PERMISSIBLE RIPPLE CURRENT

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)
µF Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA Ø DxL mA

0.1 0R1

0.22 R22

0.33 R33

0.47 R47
1 010

2.2 2R2

3.3 3R3

4.7 4R7
10 100
22 220
33 330
47 470

100 101
220 221
330 331
470 471

V.DC

Content

4x5.7 13 4x5.7 13 4x5.7 13 5x5.7 22

4x5.7 13 4x5.7 16 4x5.7 23 5x5.7 25 6.3x5.7 30
4x5.7 13 5x5.7 30 5x5.7 30 6.3x5.7 38 6.3x5.7 50 8x10 178
5x5.7 30 5x5.7 30 6.3x5.7 40 6.3x5.7 48 8x10 178 8x10 178
5x5.7 36 6.3x5.7 43 6.3x5.7 50 8x10 178 8x10 178 8x10 178

6.3x5.7 61 8x10 178 8x10 178 8x10 178 10x10 324 10x10 160

8x10 178 8x10 178 8x10 178 8x10 240 10x10 324
8x10 178 10x10 324 10x10 324 10x10 324

10x10 324 10x10 324 10x10 324

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm)
Ripple Current: mA/rms at 120 Hz, 105°C

4x5.7 2
4x5.7 3
4x5.7 4
4x5.7 5
4x5.7 10
4x5.7 16
4x5.7 18

82

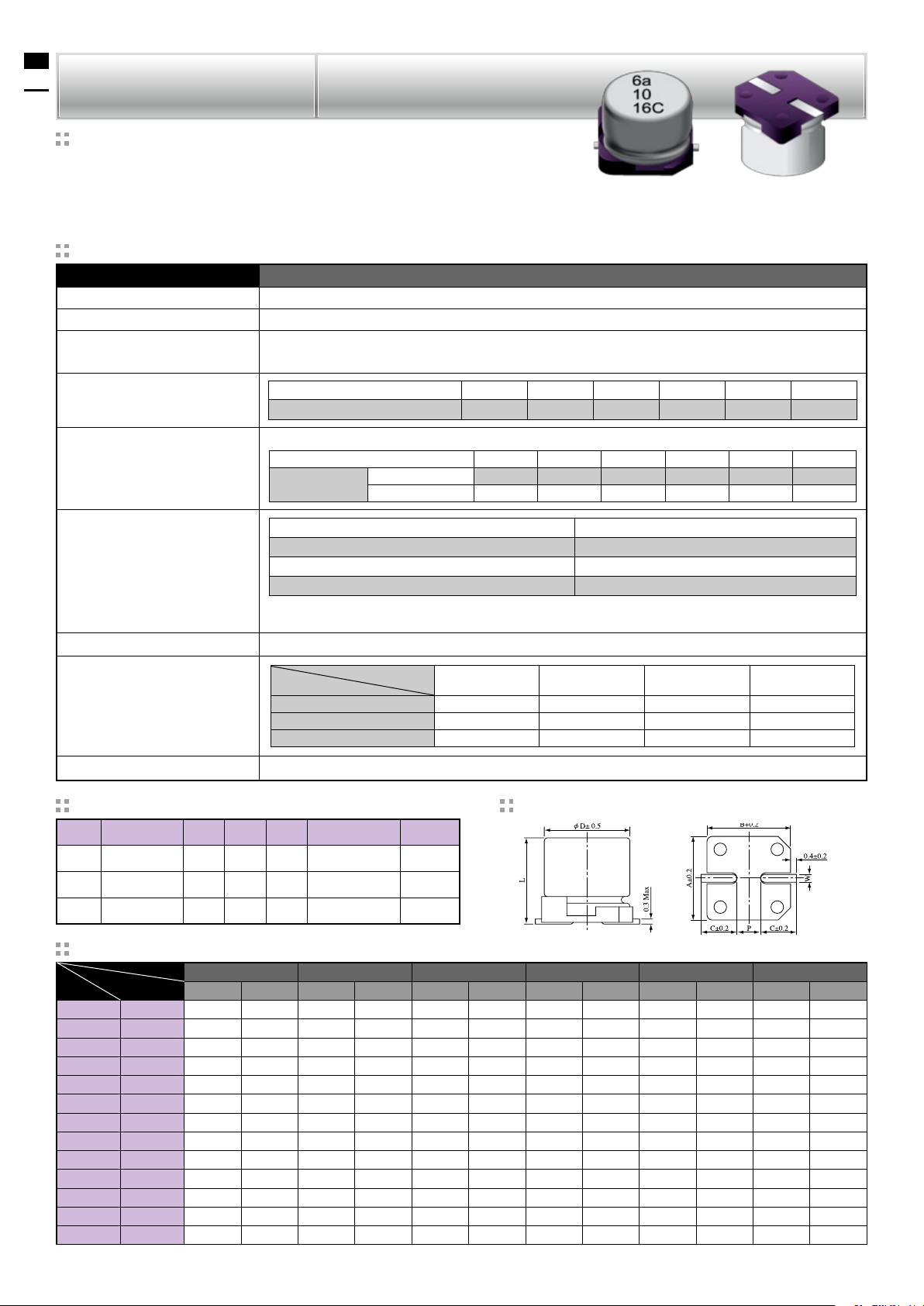

EC

EC

EC

Series

SMD ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

. 4~6.3Ø, 85°C, 2,000 hours assured.
. Vertical chip type miniaturized for 5.5mm, high capacitors.
. Low Leakage Current Lead free reflow soldering is available.
. Designed for surface mounting on high density PC board.
. RoHS Compliance

SPECIFICATIONS

Items Performance

Operating Temperature Range -40°C ~ +85°C

Capacitance Tolerance ±20°% (at 120Hz,20°C)

Leakage Current (at 20°C)

Dissipation Factor

(Tan δ at 120Hz, 20°C)

Impedance ratio shall not exceed the values given in the table below.

Low Temperature

Characteristics (ar 120Hz)

Load Life Test

*The above specications shall be satised when the capacitors are restored to 20°C after the rated
voltage applied for 2,000 hrs at 85°C.

Shelf Life Test Test time: 1,000 hrs; other items are the same as those for the load life test

Freg. (Hz)

Ripple Current &

Frequency Multipliers

Other Standards JIS C 5101-1,-18

V.DC (V)

Rated Voltage 6.3 10 16 25 35 50

Tan δ(max) 0.28 .24 0.20 0.14 0.12 0.10

Rated Voltage

Impedance

Ratio

Under 16 0.8 1.0 1.15 1.25

25~35 0.8 1.0 1.25 1.40

50 0.8 1.0 1.35 1.50

I=0.002CV or 0.5(μA), whichever is greater (after 2 minutes)

Where, C=rated capacitance in μF. V=rated DC working voltage in V.

6.3 10 16 25 35 50
Z(-25°C)Z(+20°C) 3 3 2 2 2 2
Z(-40°C)Z(+20°C) 8 5 4 3 3 3

Test Time 2,000 Hrs

Capacitance Change

Dissipation Factor Less than 200% 0f specied value

Leakage Current Within specied value

50 120 1K 10K up

Within

±20% of initial value

LEAD SPACING AND DIAMETER Unit:mm

Ø D

4 5.3±0.2 4.3 4.3 2.0 0.5 to 0.8 1.0

5 5.3±0.2 5.3 5.3 2.3 0.5 to 0.8 1.5

6.3 5.3±0.2 6.6 6.6 2.7 0.5 to 0.8 2.0

L A B C W P±0.2

DIMENSION & PERMISSIBLE RIPPLE CURRENT

µF

0.1 OR1

0.22 R22

0.33 R33

0.47 R47

2.2 2R2

3.3 3R3

4.7 4R7

100 101

Content

1 010

10 100

22 220

33 330

47 470

V.DC

6.3V(0J) 10V(1A) 16V(1C) 25V(1E) 35V(1V) 50V(1H)

Ø DxL

4x5.3 31 5x5.3 39 5x5.3 44 6.3x5.3 55 6.3x5.3 59

5x5.3 44 5x5.3 48 6.3x5.3 63 6.3x5.3 67

5x5.3 52 6.3x5.3 67 6.3x5.3 75

6.3x5.3 89 6.3x5.3 98

mA

Ø DxL

4x5.3 23 4x5.3 26 5x5.3 32 5x5.3 34 6.3x5.3 44

mA

Ø DxL

DIAGRAM OF DIMENSIONS

Dimension: Ø D x L(mm), Ripple Current: mA/rms at 120 Hz,85°C

mA

Ø

DxL mA

4x5.3 19 4x5.3 20 5x5.3 26

Ø

DxL mA

Ø

DxL mA

4x5.3 3

4x5.3 5

4x5.3 6

4x5.3 7

4x5.3 10

4x5.3 15

4x5.3 19

memo

ALUMINUM ELECTROLYTIC CAPACITORS

83

84

ALUMINUM ELECTROLYTIC CAPACITORS

memo
