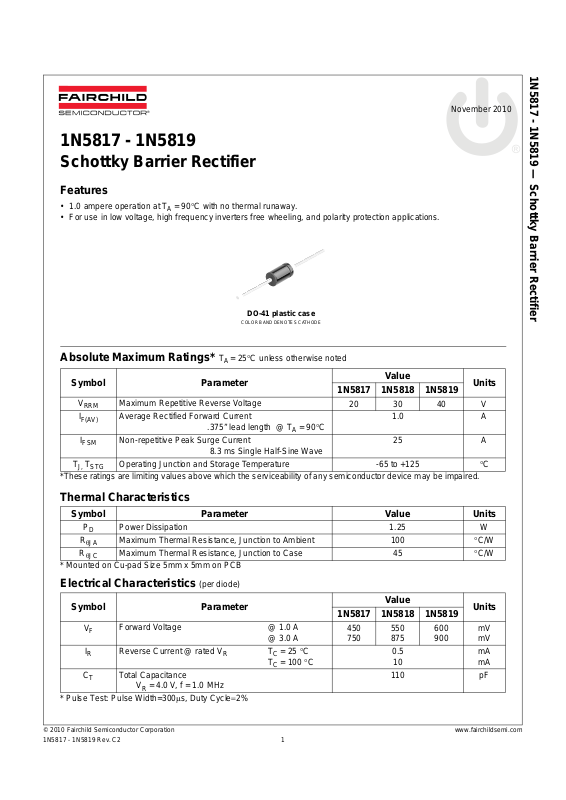

Page 1

1N5817 - 1N5819

Schottky Barrier Rectifier

Features

• 1.0 ampere operation at TA = 90°C with no thermal runaway.

• For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.

DO-41 plastic case

COLOR BAND DENOTES CATHODE

1N5817 - 1N5819 — Schottky Barrier Rectifier

November 2010

Absolute Maximum Ratings* T

Symbol Parameter

RRM

F(AV)

FSM

J, TSTG

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

Maximum Repetitive Reverse Voltage Average Rectified Forwa r d C urrent

.375” lead length @ T Non-repetitive Peak Surge Current

8.3 ms Single Half-Sine Wave Operating Junction and Storage Temperature -65 to +125 °C

= 25°C unless otherwise noted

= 90°C

Value

1N5817 1N5818 1N5819

20 30 40 V

1.0 A

25 A

Thermal Characteristics

Symbol Parameter Value Units

θJA

θJC

* Mounted on Cu-pad Size 5mm x 5mm on PCB

Power Dissipation 1.25 W Maximum Thermal Resistance, Junction to Ambient 100 °C/W Maximum Thermal Resistance, Junction to Case 45 °C/W

Electrical Characteristics (per diode)

Symbol Parameter

* Pulse Test: Pulse Width=300μs, Duty Cycle=2%

Forward Voltage @ 1.0 A

Reverse Current @ rated VR TC = 25 °C

Total Capacitance VR = 4.0 V, f = 1.0 MHz

@ 3.0 A

= 100 °C

1N5817 1N5818 1N5819

450 750

Value

550 875

0.5 10

110 pF

600 900

Units

mV mV

mA mA

Page 2

Typical Performance Characteristics

1N5817 - 1N5819 — Schottky Barrier Rectifier

[A]

0.75

SINGLE PHASE

HALF WAVE

0.5

0.25

Average Rectified Forward Current, I

60HZ

RESISTIVE OR

INDUCTIVE LOAD

.375" 9.5 mm L EAD

LENGTHS

0 20 40 60 80 100 120 140

Lead Temperature [ºC]

Figure 1. Forward Current Derating Curve

[A]

FSM

Peak Forward Surge Current, I

12 51020 50100

Number of Cycles at 60Hz

8.3ms Single Half Sine-Wave

JEDEC Method

20 10

1N5817

[A]

Forward Current, I

0.1

0.2 0.4 0.6 0.8 1 1.2 1.4 1.6 1.8 2

1N5818

1N5819

T = 25 C

Pulse Width = 300 1% Duty Cycle

μμμμ

Forward Voltage, VF [V]

Figure 2. Forward Voltage Characteristics

400

200

[pF]

100

80 60

Total Capacitance, C

0.1 0.5 1 5 10 40 60 100

Reverse Voltage, VR [V]

T = 25 C

Figure 3. Non-Repetitive Surge Current

Figure 4. Total Capacitance
