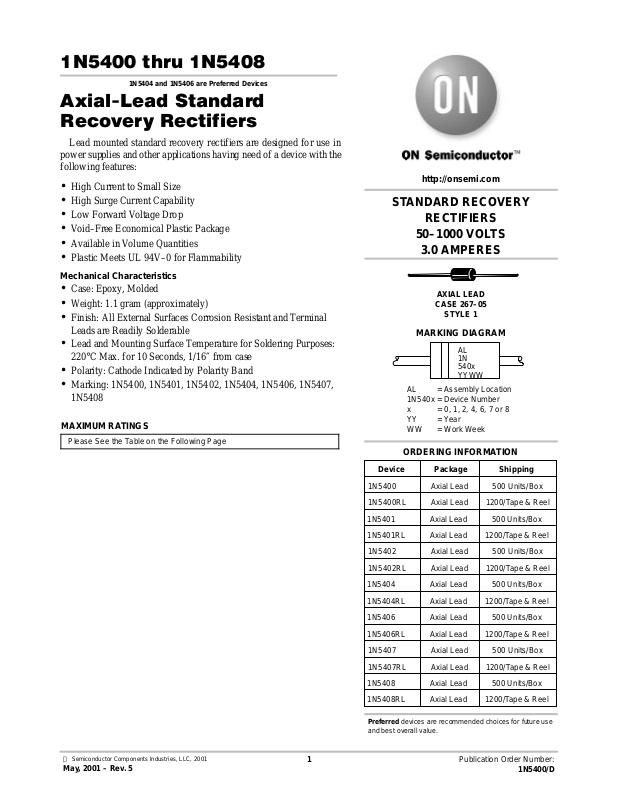

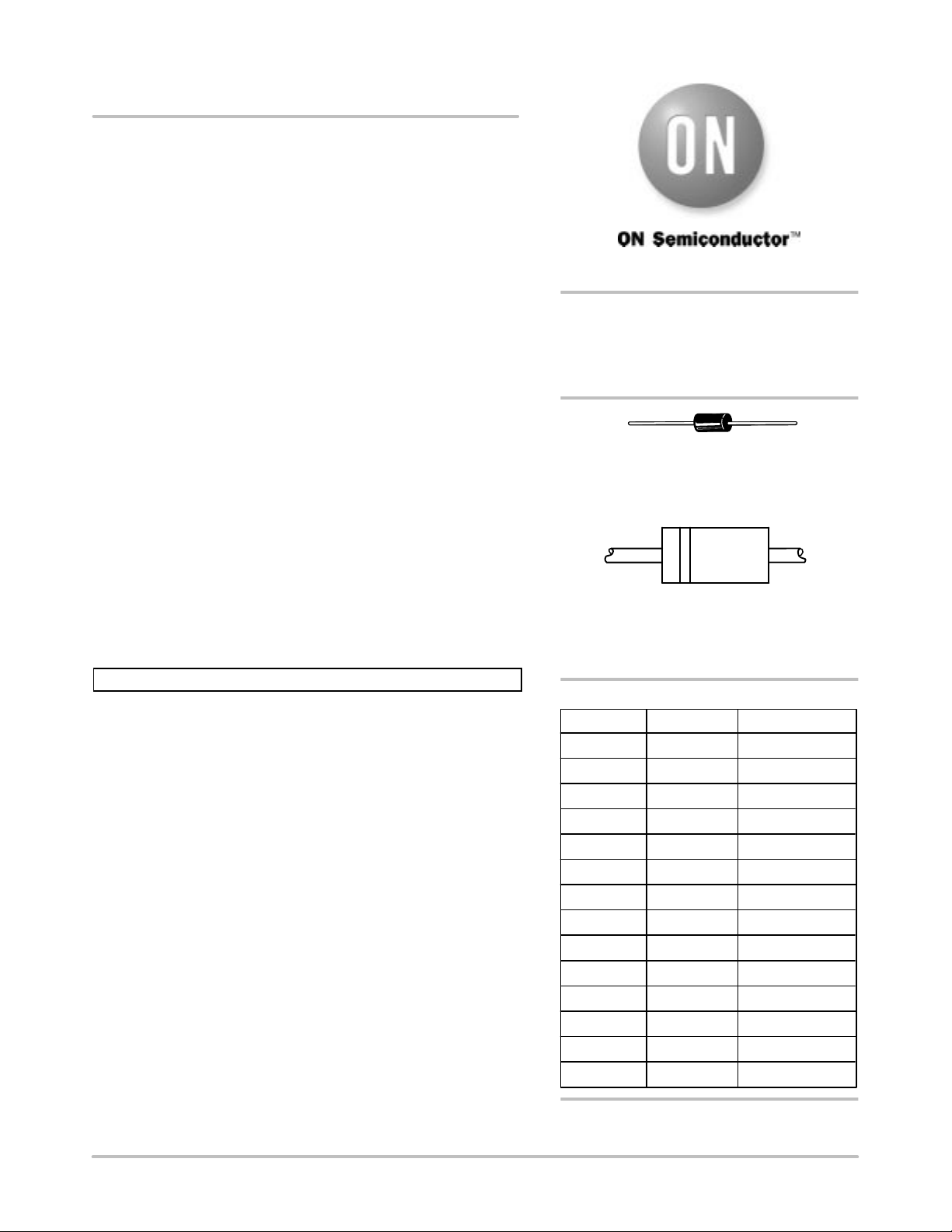

1N5400 thru 1N5408

1N5404 and 1N5406 are Preferred Devices

Axial-Lead Standard Recovery Rectifiers

Lead mounted standard recovery rectifiers are designed for use in power supplies and other applications having need of a device with the following features:

• High Current to Small Size

• High Surge Current Capability

• Low Forward Voltage Drop

• Void–Free Economical Plastic Package

• Available in Volume Quantities

• Plastic Meets UL 94V–0 for Flammability

Mechanical Characteristics

• Case: Epoxy, Molded

• Weight: 1.1 gram (approximately)

• Finish: All External Surfaces Corrosion Resistant and Terminal

Leads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes:

220°C Max. for 10 Seconds, 1/16″ from case

• Polarity: Cathode Indicated by Polarity Band

• Marking: 1N5400, 1N5401, 1N5402, 1N5404, 1N5406, 1N5407,

1N5408

MAXIMUM RATINGS

Please See the Table on the Following Page

http://onsemi.com

STANDARD RECOVERY

RECTIFIERS

50–1000 VOLTS

3.0 AMPERES

AXIAL LEAD

CASE 267–05

STYLE 1

MARKING DIAGRAM

AL 1N 540x YYWW

AL = Assembly Location 1N540x = Device Number x = 0, 1, 2, 4, 6, 7 or 8 YY = Year WW = Work Week

ORDERING INFORMATION

Device Package Shipping

1N5400 Axial Lead 500 Units/Box

1N5400RL Axial Lead 1200/Tape & Reel 1N5401 Axial Lead 500 Units/Box 1N5401RL Axial Lead 1200/Tape & Reel

1N5402 Axial Lead 500 Units/Box

1N5402RL Axial Lead 1200/Tape & Reel 1N5404 Axial Lead 500 Units/Box 1N5404RL Axial Lead 1200/Tape & Reel 1N5406 Axial Lead 500 Units/Box 1N5406RL Axial Lead 1200/Tape & Reel

1N5407 Axial Lead 500 Units/Box

1N5407RL Axial Lead 1200/Tape & Reel 1N5408 Axial Lead 500 Units/Box 1N5408RL Axial Lead 1200/Tape & Reel

 Semiconductor Components Industries, LLC, 2001

May, 2001 – Rev. 5

Preferred devices are recommended choices for future use

and best overall value.

1 Publication Order Number:

1N5400/D

Page 2

1N5400 thru 1N5408

MAXIMUM RATINGS

Rating Symbol 1N5400 1N5401 1N5402 1N5404 1N5406 1N5407 1N5408 Unit

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage Non–repetitive Peak Reverse Voltage V Average Rectified Forward Current

(Single Phase Resistive Load,

1/2″ Leads, T

= 105°C)

Non–repetitive Peak Surge Current

(Surge Applied at Rated Load

Conditions) Operating and Storage Junction

Temperature Range

THERMAL CHARACTERISTICS

Characteristic Symbol Typ Unit

Thermal Resistance, Junction to Ambient (PC Board Mount, 1/2″ Leads) R

ELECTRICAL CHARACTERISTICS

Characteristic Symbol Min Typ Max Unit

Forward Voltage (IF = 3.0 Amp, TA = 25°C) v Reverse Current (Rated dc Voltage)

= 25°C

= 150°C

Ratings at 25°C ambient temperature unless otherwise specified. 60 Hz resistive or inductive loads. For capacitive load, derate current by 20%.

RRM

RWM

RSM

FSM

50 100 200 400 600 800 1000 Volts

100 200 300 525 800 1000 1200 Volts

stg

3.0 Amp

200 (one cycle) Amp

– 65 to +170 – 65 to +175

– – 1.0 Volts

– –

53 °C/W

– –

100

°C

µA

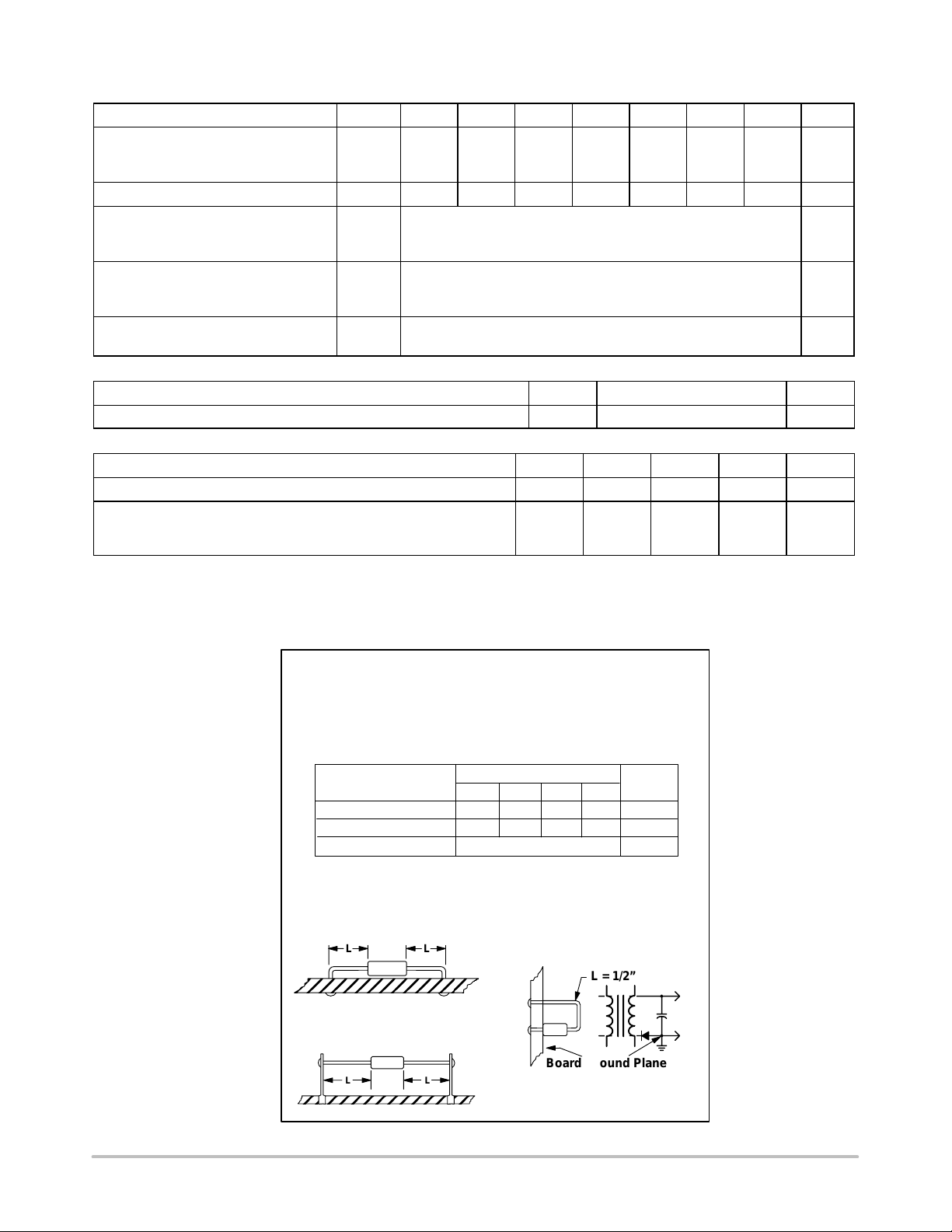

NOTE 1 — AMBIENT MOUNTING DATA

Data shown for thermal resistance junction–to–ambient (R

for the mountings shown is to be used as typical guideline values for preliminary engineering or in case the tie point temperature cannot be measured.

TYPICAL VALUES FOR R

Mounting

Method

1 2 3

MOUNTING METHOD 1

P.C. Board Where Available

Copper Surface area is small

L L

MOUNTING METHOD 2

Vector Push–In Terminals T–28

L L

Lead Length, L (IN)

1/8

50 58

IN STILL AIR

1/4 1/2

51 53 59 61

3/4

55 63

MOUNTING METHOD 3

P.C. Board with

1–1/2” x 1–1/2”

Copper Surface

L = 1/2”

Board Ground Plane

°C/W °C/W °C/W

)

http://onsemi.com

Page 3

1N5400 thru 1N5408

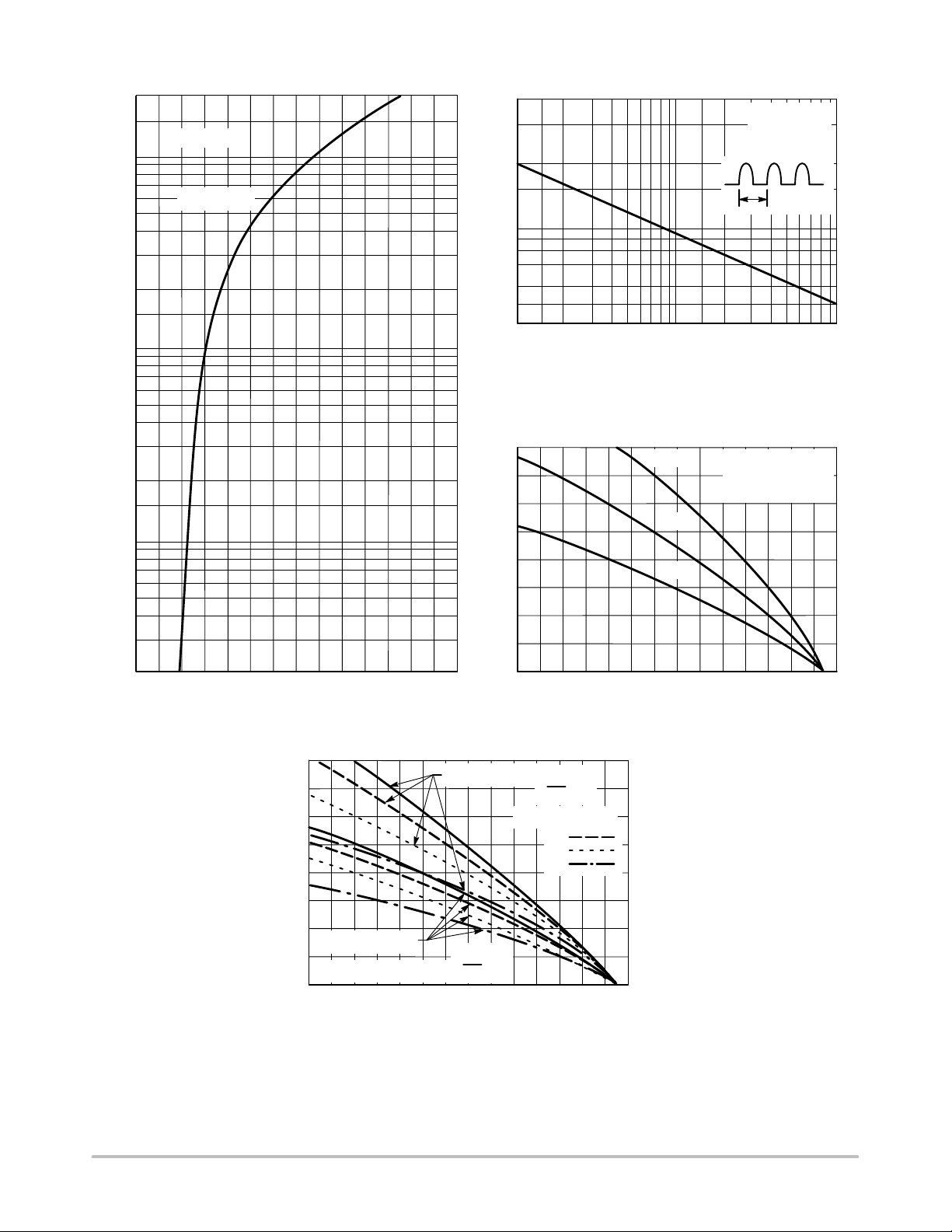

200

100

7.0

5.0

3.0

2.0

, INSTANTANEOUS FORWARD CURRENT (AMPS)

1.0

0.7

0.5

0.3

= 25°C

TYPICAL

400 300

200

100

90 80

70 60 50

, PEAK HALF WAVE CURRENT (AMPS)

FSM

1.0

2.0 3.0 5.0 10

7.0 20 30 50 70

NUMBER OF CYCLES

Figure 2. Maximum Nonrepetitive Surge Current

8.0

7.0

6.0

5.0

4.0

3.0

2.0

1.0

L = 1/32”

1/4”

1/2”

Resistive Load Both Leads to Heat Sink with Lengths

as Shown

Surge Applied at Rated Load Conditions

f = 60Hz

1 CYCLE

100

0.2

0.4 1.6 2.4

0.8 2.01.2 2.8 v

INSTANTANEOUS VOLTAGE (VOLTS)

Figure 1. Forward Voltage

4.0

3.5

3.0

2.5

2.0

1.5

1.0

0.5 Note for Resistive Load

40 60 80 100 120 140 160 180

Figure 4. Current Derating PC Board Mounting

= 50°C/W

A, AMBIENT

3.2

40 60 80 100 120 140 160 180

Figure 3. Current Derating Various Lead Lengths

= 28°C/W

(PK)

= π

(AV)

TEMPERATURE (°C)

(PK)

(AV)

Capacitive Loads

5.0 10

LEAD TEMPERATURE (°C)

= π

http://onsemi.com

Page 4

1N5400 thru 1N5408

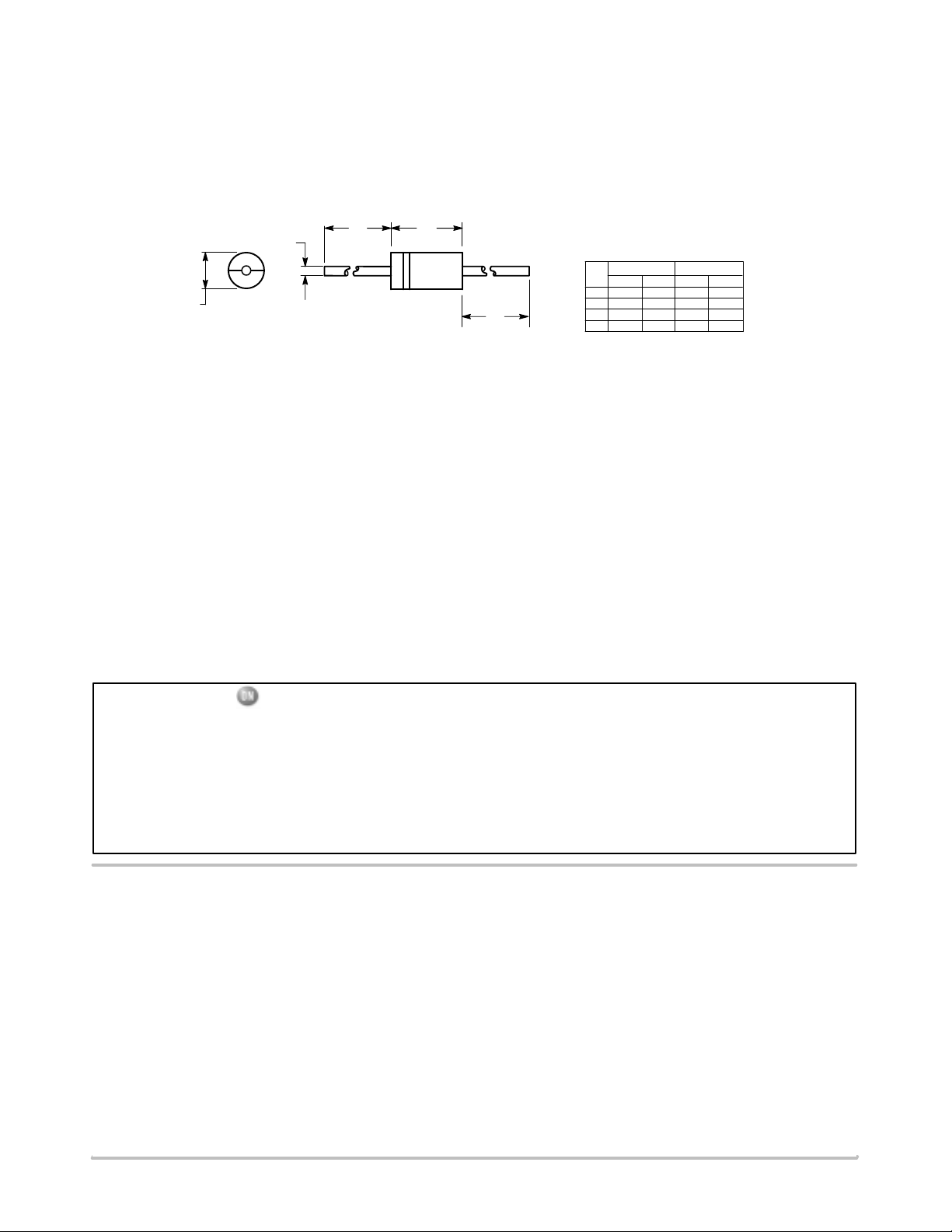

PACKAGE DIMENSIONS

AXIAL LEAD

CASE 267–05

ISSUE G

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

DIM MIN MAX MIN MAX

A 0.287 0.374 7.30 9.50 B 0.189 0.209 4.80 5.30 D 0.047 0.051 1.20 1.30 K 1.000 --- 25.40 ---

STYLE 1:

PIN 1. CATHODE (POLARITY BAND)

2. ANODE

MILLIMETERSINCHES
