R
RECTIFIER SPECIALISTS
1N4001G
THRU
1N4007G

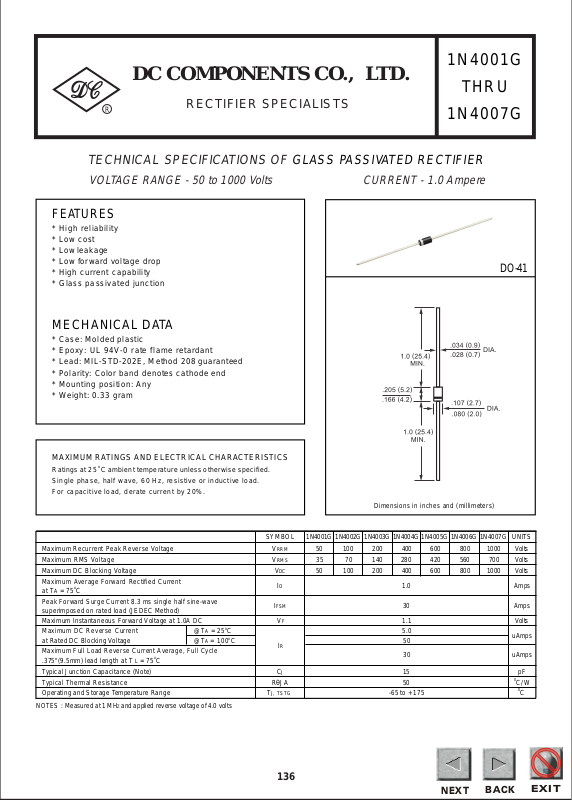

TECHNICAL SPECIFICATIONS
OF
VOLTAGE RANGE - 50 to 1000 Volts
FEATURES
* High reliability
* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* Glass passivated junction
MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.33 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25oC ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
GLASS PASSIVATED RECTIFIER
CURRENT - 1.0 Ampere
Dimensions in inches and (millimeters)
DO-41
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
A
= 75oC
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC Method)
Maximum Instantaneous Forward Voltage at 1.0A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Maximum Full Load Reverse Current Average, Full Cycle
.375"(9.5mm) lead length at TL = 75oC
Typical Junction Capacitance (Note)
Typical Thermal Resistance
Operating and Storage Temperature Range
NOTES :
Measured at 1 MHZ and applied reverse voltage of 4.0 volts
@TA= 25oC
@TA= 100oC
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
V
F
I
R
C
J
RθJA
T
J, TSTG
136
1N4001G 1N4002G 1N4003G 1N4004G 1N4005G 1N4006G 1N4007G
50 100 200 400 600 800 1000
7035 140 280 420 700560
50 200 400 600 800 1000100
30 Amps
1.1
5.0
50
30 uAmps
15
50
-65 to + 175
UNITS
Volts
Volts
Volts
Amps1.0
Volts
uAmps
pF
0
C/W
0
C
Page 2

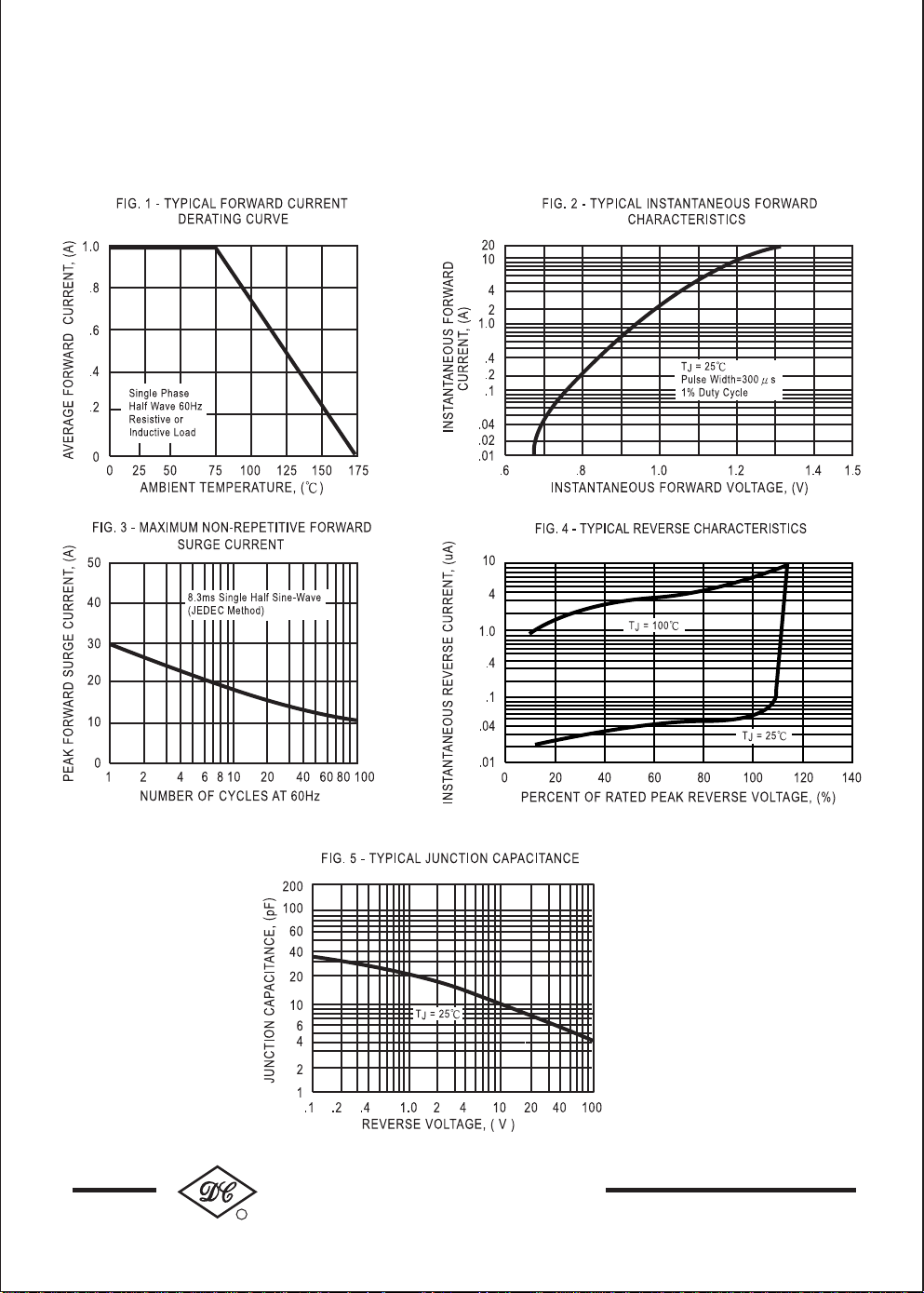

RATING AND CHARACTERISTIC CURVES (1N4001G THRU 1N4007G)
