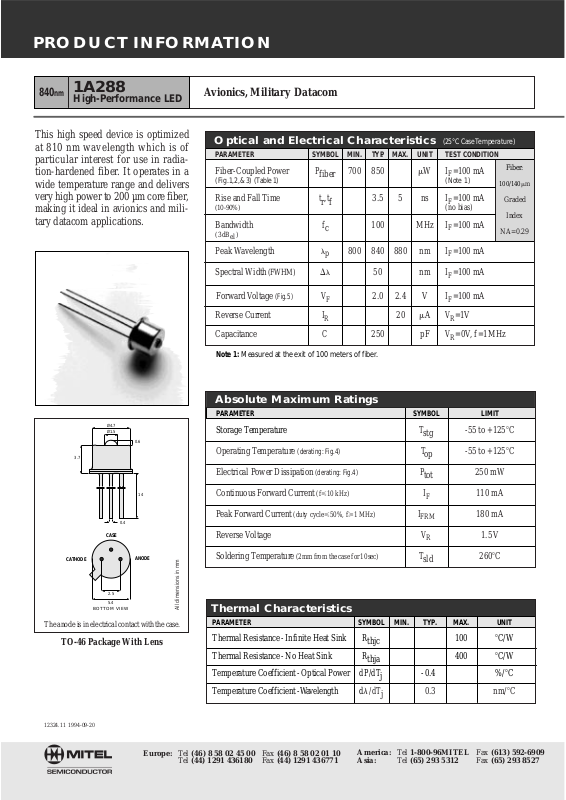

Datasheet 1A288 Datasheet (MITEL)

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

12324.11 1994-09-20

840nm

1A288

High-Performance LED

Avionics, Military Datacom

0.6

14

Ø1.5

Ø4.7

3.7

0.4

5.4

2.5

CASE

ANODE

CATHODE

BOTTOM VIEW

The anode is in electrical contact with the case.

TO-46 Package With Lens

All dimensions in mm

This high speed device is optimized
at 810 nm wavelength which is of
particular interest for use in radia­tion-hardened fiber. It operates in a
wide temperature range and delivers
very high power to 200 µm core f iber ,
making it ideal in avionics and mili­tary datacom applications.

Thermal Characteristics

Fiber:

100/140mm

Graded

Index

NA=0.29

Optical and Electrical Characteristics

(25°C Case Temperature)

Absolute Maximum Ratings

Note 1: Measured at the exit of 100 meters of fiber.

PARAMETER SYMBOL LIMIT

Storage Temperature T

stg

-55 to +1258C

Operating Temperature (derating: Fig.4) T

op

-55 to +1258C

Electrical Power Dissipation(derating: Fig.4) P

tot

250 mW

Continuous Forward Current (f<10 kHz) I

F

110 mA

Peak Forward Current (duty cycle<50%, f>1 MHz) I

FRM

180 mA

Reverse Voltage V

R

1.5V

Soldering Temperature (2mm from thecase for10sec) T

sld

2608C

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thjc

100 8C/W

Thermal Resistance- No Heat Sink R

thja

400 8C/W

Temperature Coefficient- Optical Power dP/dT

j

-0.4 %/8C

Temperature Coefficient-Wavelength dl/dT

j

0.3 nm/8C

PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITION

Fiber-Coupled Power P

fiber

700 850 mW IF=100 mA

(Fig.1,2,&3) (Table1) (Note 1)

Rise and Fall Time tr,t

f

3.5 5 ns IF=100 mA

(10-90%)

(no bias)

Bandwidth f

c

100 MHz IF=100 mA

(3dBel)

Peak Wavelength l

p

800 840 880 nm IF=100 mA

Spectral Width(FWHM) Dl 50 nm IF=100 mA

Forward Voltage (Fig.5) V

F

2.0 2.4 V IF=100 mA

Reverse Current I

R

20 mA VR=1V

Capacitance C 250 pF VR=0V, f=1MHz

840nm

1A288

High-Performance LED

Core Diameter/Cladding Diameter

Numerical Aperture

50/125mm 62.5/125mm 100/140 m m

0.20 0.275 0.29

Table 1

Typical Fiber-Coupled Power

150mW 400 mW 850 mW

FORWARD VOLTAGE

FORWARD CURRENT

mA

200

100

0

0

1 2

3

V

FIGURE 5

0

20

40

60

80

100

%

0

40 80

120

160

200

mA

RELATIVE FIBER-COUPLED POWER

FORWARD CURRENT

50% DUTY CYCLE

DC

HEAT SINKED

FIGURE 3

FIGURE 4

mW

300

200

100

0

0 50 100

150¡

C

NO HEAT SINK

OPERATING TEMPERATURE

MAX. ELECTRICAL POWER DISSIPATION

INFINITE
HEAT SINK

0

20

40

60

80

100

%

0.5

1.0 1.5

2.0

2.5

3.0

mm

z - AXIAL DISPLACEMENT OF FIBER

RELATIVE FIBER-COUPLED POWER

r

r = opt.

Øc = 100µm

z

FIGURE 1

0

20

40

60

80

100

%

0

40 80

120

160

200

µm

r - RADIAL DISPLACEMENT OF FIBER

RELATIVE FIBER-COUPLED POWER

r

z = opt.

Øc = 100

µm

z

FIGURE 2

5.6000

3.3000

Clip for SC-2A

R 1.00

80,000

0.5000

20.8200

10,2500

10.3000

4.9500

0.5000

4.5000

5.0800

3.6450

Clip for Pigtail-3A

0.50

10.70

10.25

10.30

4.95

0.50

4.50

0.85

5.08

3.65

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

103326 1994-09-20

ST-2A

Package

Emitter or Detector in ST®Package

Mitel emitters and detectors can be
provided in this low-profile ST

®

package. The device is electrically
isolated from the ST

®

receptacle to
facilitate electrical connection. And
optimum fiber-coupled power or
responsivity is ensured by active
alignment against the fiber.

Mechanical Outline of Diode in ST-2A Housing

(ST is a registered trademark of AT&T)

All Dimensions in mm

*The fiber-coupled power/responsivity is guaranteed to meet the LED/PIN data sheet - provided a ferrule meeting this specification is used.

Absolute Maximum Ratings

Thermal Characteristics

Note 2: Add R

thjc

for emitter or detector to estimate the total thermal resistance.

Note 1: Temperature range can be extended to -55° to +125°C on request.

12.7

MARKING SIDE

SLOT SIDE

9.5

7.89

2-56 UNC - 2B

max.0.5

min.12 20.1

3.9

5.4

7.6

3/8"-32 UNEF

0.006

FIBER

END

Ø2.5

Ø2.502

+0.01
0

+0

-0.004

MATING FERRULE*

(not included)

PARAMETER SYMBOL LIMIT

Operating & Storage Temperature T

stg

, T

op

-40 to +858 C

ST-2A (Note 1)

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thcc

40 8C/W

(Note 2)

Thermal Resistance- No Heat Sink R

thca

200 8C/W

(Note 2)

Thermal Resistance - On PC Board Rthca 80 8C/W

(Note 2)

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

SMA-2A

Package

Emitter or Detector in SMA Package

103325 1994-09-20

Mitel emitters and detectors can be
provided in this low-profile SMA
package. The device is electrically
isolated from the SMA receptacle to
facilitate electrical connection. And
optimum fiber-coupled power or
responsivity is ensured by active
alignment against the fiber.

MARKING SIDE

9.5

12.7

max.0.5

2-56 UNC - 2B

3.9

5.7

15.2

min.12

7.2

1/4"-36UNS

Ø3.176
+0.01

0

9.8 ± 0.03

FIBER

END

0.006

Ø3.174

+0

-0.004

MATING FERRULE*

(not included)

Mechanical Outline of Diode in SMA-2A Housing

All Dimensions in mm

*

The fiber-coupled power/responsivity is guaranteed to meet the LED/PIN data sheet - provided a ferrule meeting this specification is used.

Absolute Maximum Ratings

Thermal Characteristics

Note 2: Add

R

thjc

for emitter or detector to estimate the total thermal resistance.

Note 1: Temperature range can be extended to -55° to +125°C on request.

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thcc

40 8C/W

(Note 2)

Thermal Resistance- No Heat Sink R

thca

200 8C/W

(Note 2)

Thermal Resistance - On PC Board Rthca 80 8C/W

(Note 2)

PARAMETER SYMBOL LIMIT

Operating & Storage Temperature

SMA-2A (Note 1)

T

stg

, T

op

-40 to +858 C

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

105967 1994-09-20

Ø2.3

Ø7.5

MARKING / SLOT SIDE

22

8.9

1.4 x 4

18

min. 12

12

2.5

7.95

0.006

FIBER

END

Ø2.5

+0

-0.004

MATING FERRULE*

(not included)

13

18

Mechanical Outline of Diode in SC-2A Housing

All Dimensions in mm * The fiber-coupled power/responsivity is guaranteed to meet the LED/PIN data sheet - provided a ferrule meeting this specification is used.

Mitel emitters and detectors can be
provided in this low-profile SC pack­age. The device is electrically isolat­ed from the SC receptacle to facil­itate electrical connection. And opti­mum fiber-coupled po wer or respon­sivity is ensured by active alignment
against the fiber..

Absolute Maximum Ratings

Thermal Characteristics

Note 1: Add

R

thjc

for emitter or detector to estimate the total thermal resistance.

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thcc

40 8C/W

(Note 1)

Thermal Resistance- No Heat Sink R

thca

200 8C/W

(Note 1)

Thermal Resistance - On PC Board Rthca 125 8C/W

(Note 1)

PARAMETER SYMBOL LIMIT

Operating & Storage Temperature T

stg

, T

op

-40 to +858 C

SC-2A

Package

Emitter or Detector in SC Package

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

105429 1997-07-03

Mitel emitters and detectors can be
provided in this pigtail package with
a wide selection of fiber types. The
device is electrically isolated from
the pigtail receptacle to facilitate
electrical connection. And optimum
fiber-coupled power or responsivity
is ensured by active alignment
against the fiber. A special design
maximizes the return loss for detec­tors in this package.

Note 3: Add

R

thjc

for LED to estimate the total thermal resistance.

Absolute Maximum Ratings

PARAMETER SYMBOL LIMIT

Operating & Storage Temperature

(Note 1 & 2)

T

stg

, T

op

-40 to +858C

Ø 6

min.12

MARKING

13

Ø6.00

Mechanical Outline of Diode in PIGTAIL-3A Housing

Note 1: Temperature range can be extended to -55/+125

8C on request.

Note 2: Temperature range may be limited by the specification of the fiber.

Thermal Characteristics

All Dimensions in mm

Optical Characteristics

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thcc

25 8C/W

(Note 3)

Thermal Resistance- No Heat Sink R

thca

250 8C/W

(Note 3)

Thermal Resistance- On PC-Board R

thca

120 8C/W

(Note 3)

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Return Loss 10/125mm fiber RL 40 55 dB
(PIN only)

Pigtail-3A

Package

Emitter or Detector in Pigtail Package

PRODUCT INFORMATION

Europe: Tel [phone] Fax [phone]

Tel [phone] Fax [phone]

America: Tel 1-800-96MITEL Fax [phone]
Asia: Tel [phone] Fax [phone]

105515 1994-09-20

FC-2A

Package

Emitter or Detector in FC Package

19

Ø 2.2

MARKING/ SLOT SIDE

13.4

9.2

M8x0.75 Thread

Ø 2.5

5.50

2.0

5.6min.12

7.95

0.006

FIBER

END

Ø2.5

+0

-0.004

max. 0.5

08

MATING FERRULE*

(not included)

Mitel emitters and detectors can be
provided in this low-profile FC pack­age. The device is electrically isolat­ed from the FC receptacle to facil­itate electrical connection. And opti­mum fiber-coupled power or respon­sivity is ensured by active alignment
against the fiber.

Mechanical Outline of Diode in FC-2A Housing

Absolute Maximum Ratings

Thermal Characteristics

Note 2: Add

R

thjc

for emitter or detector to estimate the total thermal resistance.

All Dimensions in mm

* The fiber-coupled power/responsivity is guaranteed to meet the LED/PIN data sheet - provided a ferrule meeting this specification is used.

Note 1: Temperature range can be extended to -55° to +125°C on request.

PARAMETER SYMBOL MIN. TYP. MAX. UNIT

Thermal Resistance- Infinite Heat Sink R

thcc

40 8C/W

(Note 2)

Thermal Resistance- No Heat Sink R

thca

200 8C/W

(Note 2)

Thermal Resistance - On PC Board Rthca 80 8C/W

(Note 2)

PARAMETER SYMBOL LIMIT

Operating & Storage Temperature T

stg

, T

op

-40 to +858 C

FC-2A (Note 1)

http://www.mitelsemi.com

World Headquarters - Canada

Tel: [phone]

Fax: [phone]

North America Asia/Pacific Europe, Middle East,

Tel: [phone] Tel: [phone] and Africa (EMEA)

Fax: [phone] Fax: [phone] Tel: [phone]

Fax: [phone]

Information relating to products and services furnished herein by Mitel Corporation or its subsidiaries (collectively “Mitel”) is believed to be reliable. However, Mitel assumes no
liability for errors that may appear in this publication, or for liability otherwise arising from the application or use of any such information, product or service or for any infringement of
patents or other intellectual property rights owned by third parties which may result from such application or use. Neither the supply of such information or purchase of product or
service conveys any license, either express or implied, under patents or other intellectual property rights owned by Mitel or licensed from third parties by Mitel, whatsoever.
Purchasers of products are also hereby notified that the use of product in certain ways or in combination with Mitel, or non-Mitel furnished goods or services may infringe patents or
other intellectual property rights owned by Mitel.

This publication is issued to provide information only and (unless agreed by Mitel in writing) may not be used, applied or reproduced for any purpose nor form part of any order or
contract nor to be regarded as a representation relating to the products or services concerned. The products, their specifications, services and other information appearing in this
publication are subject to change by Mitel without notice. No warranty or guarantee express or implied is made regarding the capability, performance or suitability of any product or
service. Information concerning possible methods of use is provided as a guide only and does not constitute any guarantee that such methods of use will be satisfactory in a specific
piece of equipment. It is the user’s responsibility to fully determine the performance and suitability of any equipment using such information and to ensure that any publication or
data used is up to date and has not been superseded. Manufacturing does not necessarily include testing of all functions or parameters. These products are not suitable for use in
any medical products whose failure to perform may result in significant injury or death to the user. All products and materials are sold and services provided subject to Mitel’s
conditions of sale which are available on request.

M Mitel (design) and ST-BUS are registered trademarks of MITEL Cor poration
Mitel Semiconductor is an ISO 9001 Registered Company
Copyright 1999 MITEL Corporation
All Rights Reserved
Printed in CANADA

TECHNICAL DOCUMENTATION - NOT FOR RESALE
