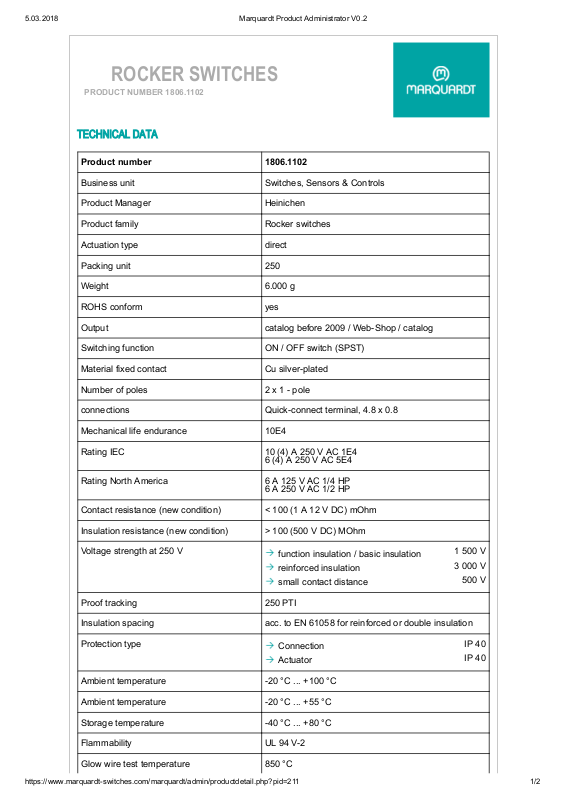

Page 1
5.03.2018 Marquardt Product Administrator V0.2
TECHNICAL DATA
Product number 1806.1102
Business unit Switches, Sensors & Controls
Product Manager Heinichen
Product family Rocker switches
Actuation type direct
Packing unit 250
Weight 6.000 g
ROHS conform yes
Output catalog before 2009 / Web-Shop / catalog
Switching function ON / OFF switch (SPST)
Material fixed contact Cu silver-plated
Number of poles 2 x 1 - pole
connections Quick-connect terminal, 4.8 x 0.8
Mechanical life endurance 10E4
Rating IEC 10 (4) A 250 V AC 1E4
6 (4) A 250 V AC 5E4
Rating North America 6 A 125 V AC 1/4 HP
6 A 250 V AC 1/2 HP
Contact resistance (new condition) < 100 (1 A 12 V DC) mOhm
Insulation resistance (new condition) > 100 (500 V DC) MOhm
Voltage strength at 250 V
function insulation / basic insulation
1 500 V
reinforced insulation
3 000 V
small contact distance
500 V
Proof tracking 250 PTI
Insulation spacing acc. to EN 61058 for reinforced or double insulation
Protection type
Connection
IP 40
Actuator
IP 40
Ambient temperature -20 °C ... +100 °C
Ambient temperature -20 °C ... +55 °C
Storage temperature -40 °C ... +80 °C
Flammability UL 94 V-2
Glow wire test temperature 850 °C
ROCKER SWITCHES
PRODUCT NUMBER 1806.1102
https://www.marquardt-switches.com/marquardt/admin/productdetail.php?pid=211 1/2
Page 2
5.03.2018 Marquardt Product Administrator V0.2
Actuators and additional actuators rocker: PA, black
rocker: PA, black
Housing description housing: PA, black
Connection surface
bearing connection
silver plated
external connection
silver plated
Contact material Ag
Contact distance ≥ 3 mm
Rating Code UL R 30
Contact type lifting contact
Plug force of the terminals ≤ 80 N
Approval marks CSA / UL / ENEC 05
Suitable for appliances of protection class II
Additional labeling site, year, week of manuf. acc. to DIN EN 60062
Type of fastening Snap fastening
Degree of pollution 3
Type of connection 1.3 Double pole, single load (all-pole disconnection)
Stock version
Technical changes reserved. Dimensions are not binding.
Detailed specifications available on request.
Marquardt GmbH · Schloss-Straße 16 · 78604 Rietheim-Weilheim · Germany
Phone: +49 (0) 7424 / 99-0 ·Fax: +49 (0) 7424 / 99-2399 · www.marquardt.com ·[email protected]
https://www.marquardt-switches.com/marquardt/admin/productdetail.php?pid=211 2/2
