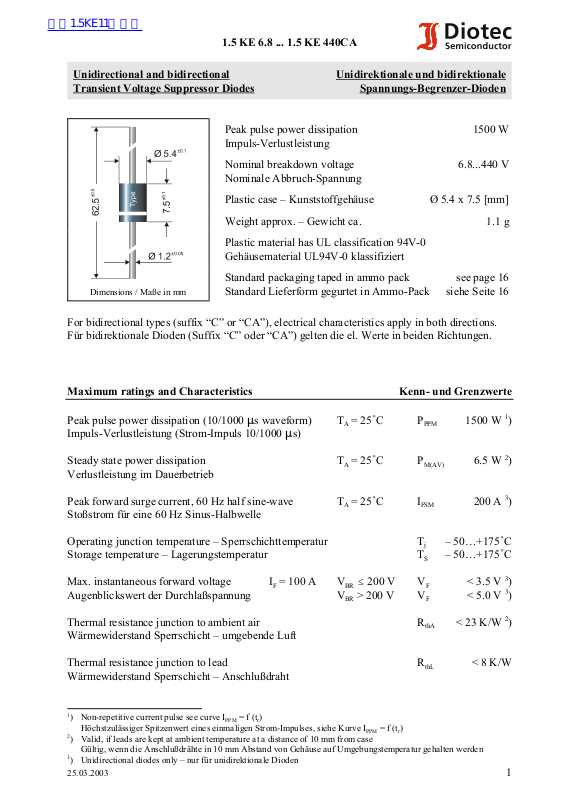

1.5 KE 6.8 ... 1.5 KE 440CA
Unidirectional and bidirectional Unidirektionale und bidirektionale
Transient Voltage Suppressor Diodes Spannungs-Begrenzer-Dioden
Peak pulse power dissipation 1500 W
Impuls-Verlustleistung
Nominal breakdown voltage 6.8...440 V
Nominale Abbruch-Spannung
Plastic case – Kunststoffgehäuse Ø 5.4 x 7.5 [mm]
Weight approx. – Gewicht ca. 1.1 g
Plastic material has UL classification 94V-0
Gehäusematerial UL94V-0 klassifiziert
Standard packaging taped in ammo pack see page 16
Dimensions / Maße in mm
Standard Lieferform gegurtet in Ammo-Pack siehe Seite 16
For bidirectional types (suffix “C” or “CA”), electrical characteristics apply in both directions.
Für bidirektionale Dioden (Suffix “C” oder “CA”) gelten die el. Werte in beiden Richtungen.
Maximum ratings and Characteristics Kenn- und Grenzwerte
Peak pulse power dissipation (10/1000 :s waveform) TA = 25/CP
PPM
1500 W 1)
Impuls-Verlustleistung (Strom-Impuls 10/1000 :s)
Steady state power dissipation TA = 25/CP
M(AV)
6.5 W 2)
Verlustleistung im Dauerbetrieb
Peak forward surge current, 60 Hz half sine-wave TA = 25/CI
FSM
200 A 3)
Stoßstrom für eine 60 Hz Sinus-Halbwelle
Operating junction temperature – Sperrschichttemperatur T
Storage temperature – Lagerungstemperatur T
Max. instantaneous forward voltage IF = 100 A VBR # 200 V V
Augenblickswert der Durchlaßspannung VBR > 200 V V
– 50…+175/C
j
– 50…+175/C
S
F
F
< 3.5 V 3)
< 5.0 V 3)
Thermal resistance junction to ambient air R
thA
Wärmewiderstand Sperrschicht – umgebende Luft
Thermal resistance junction to lead R
thL
Wärmewiderstand Sperrschicht – Anschlußdraht
1

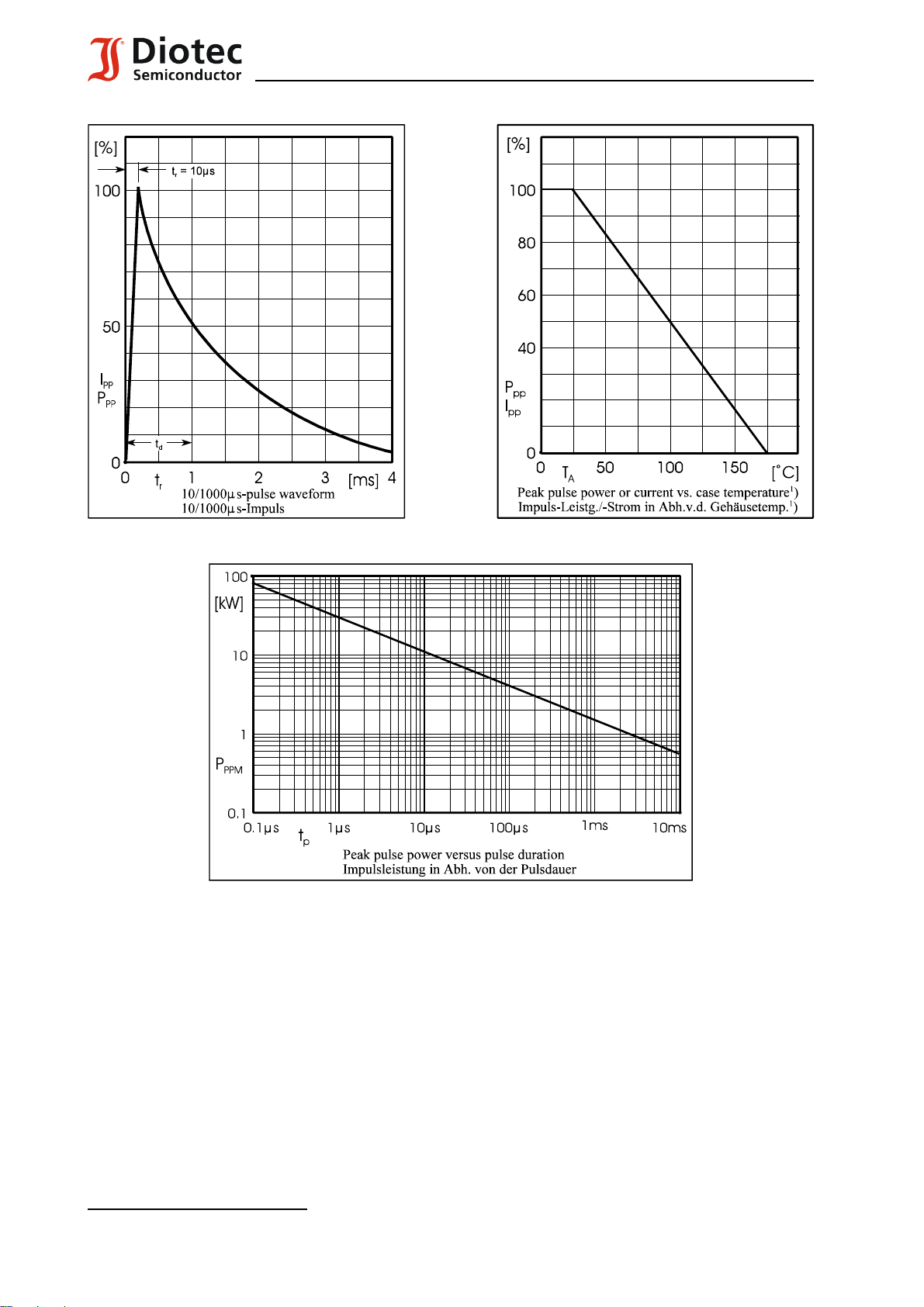

) Non-repetitive current pulse see curve I
Höchstzulässiger Spitzenwert eines einmaligen Strom-Impulses, siehe Kurve I
2
) Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlußdrähte in 10 mm Abstand von Gehäuse auf Umgebungstemperatur gehalten werden
3
) Unidirectional diodes only – nur für unidirektionale Dioden
25.03.2003
PPM
= f (tr)
PPM
= f (tr)
< 23 K/W 2)
< 8 K/W
1
Page 2
1.5 KE 6.8 ... 1.5 KE 440CA
Maximum ratings Grenzwerte
Type
Typ
Breakdown voltage at IT = 1 mA
Abbruch-Spanng. bei I
*) at / bei I
[V] VWM [V] ID [:A] VC [V] I
V
BR
T
= 10 mA
T
= 1 mA
Stand-off
voltage
Sperrspg.
Max. rev. current
Max. Sperrstrom
at / bei V
WM
Max. clamping voltage
Max. Begrenzerspanng.
at / bei I
(10/1000:s)
PPM
PPM
[A]
1.5 KE6.8 6.8 ± 10% 6.12...7.48 *) 5.5 1000 10.8 145
1.5 KE6.8A 6.8 ± 5% 6.45...7.14 *) 5.8 1000 10.5 150
1.5 KE7.5 7.5 ± 10% 6.75...8.25 *) 6.0 500 11.7 134
1.5 KE7.5A 7.5 ± 5% 7.13...7.88 *) 6.4 500 11.3 139
1.5 KE8.2 8.2 ± 10% 7.38...9.02 *) 6.6 200 12.5 126
1.5 KE8.2A 8.2 ± 5% 7.79...8.61 *) 7.0 200 12.1 130
1.5 KE9.1 9.1 ± 10% 8.19...10.0 7.3 50 13.8 114
1.5 KE9.1A 9.1 ± 5% 8.65...9.55 7.7 50 13.4 117
1.5 KE10 10 ± 10% 9.0...11.0 8.1 10 15.0 105
1.5 KE10A 10 ± 5% 9.5...10.5 8.5 10 14.5 108
1.5 KE11 11 ± 10% 9.9...12.1 8.9 5 16.2 97
1.5 KE11A 11 ± 5% 10.5...11.6 9.4 5 15.6 100
1.5 KE12 12 ± 10% 10.8...13.2 9.7 5 17.3 91
1.5 KE12A 12 ± 5% 11.4...12.6 10.2 5 16.7 94
1.5 KE13 13 ± 10% 11.7...14.3 10.5 5 19.0 82
1.5 KE13A 13 ± 5% 12.4...13.7 11.1 5 18.2 86
1.5 KE15 15 ± 10% 13.5...16.5 12.1 5 22.0 71
1.5 KE15A 15 ± 5% 14.3...15.8 12.8 5 21.2 74
1.5 KE16 16 ± 10% 14.4...17.6 12.9 5 23.5 67
1.5 KE16A 16 ± 5% 15.2...16.8 13.6 5 22.5 70
1.5 KE18 18 ± 10% 16.2...19.8 14.5 5 26.5 59
1.5 KE18A 18 ± 5% 17.1...18.9 15.3 5 25.5 60
1.5 KE20 20 ± 10% 18.0...22.0 16.2 5 29.1 54
1.5 KE20A 20 ± 5% 19.0...21.0 17.1 5 27.7 56
1.5 KE22 22 ± 10% 19.8...24.2 17.8 5 31.9 49
1.5 KE22A 22 ± 5% 20.9...23.1 18.8 5 30.6 51
1.5 KE24 24 ± 10% 21.6...26.4 19.4 5 34.7 45
1.5 KE24A 24 ± 5% 22.8...25.2 20.5 5 33.2 47
1.5 KE27 27 ± 10% 24.3...29.7 21.8 5 39.1 40
1.5 KE27A 27 ± 5% 25.7...28.4 23.1 5 37.5 42
1.5 KE30 30 ± 10% 27.0...33.0 24.3 5 43.5 36
1.5 KE30A 30 ± 5% 28.5...31.5 25.6 5 41.4 38
1.5 KE33 33 ± 10% 29.7...36.3 26.8 5 47.7 33
1.5 KE33A 33 ± 5% 31.4...34.7 28.2 5 45.7 34
1.5 KE36 36 ± 10% 32.4...39.6 29.1 5 52.0 30
1.5 KE36A 36 ± 5% 34.2...37.8 30.8 5 49.9 31
1.5 KE39 39 ± 10% 35.1...42.9 31.6 5 56.4 27
1.5 KE39A 39 ± 5% 37.1...41.0 33.3 5 53.9 29
1.5 KE43 43 ± 10% 38.7...47.3 34.8 5 61.9 25
1.5 KE43A 43 ± 5% 40.9...45.2 36.8 5 59.3 26
1.5 KE47 47 ± 10% 42.3...51.7 38.1 5 67.8 23
1.5 KE47A 47 ± 5% 44.7...49.4 40.2 5 64.8 24
1.5 KE51 51 ± 10% 45.9...56.1 41.3 5 73.5 21
2
F:\Data\WP\DatBlatt\Einzelblätter\1.5ke6.8.wpd
Page 3
1.5 KE 6.8 ... 1.5 KE 440CA
Maximum ratings Grenzwerte
Type
Typ
Breakdown voltage at IT = 1 mA
Abbruch-Spanng. bei I
*) at / bei I
[V] VWM [V] ID [:A] VC [V] I
V
BR
T
= 10 mA
T
= 1 mA
Stand-off
voltage
Sperrspg.
Max. rev. current
Max. Sperrstrom
at / bei V
WM
Max. clamping voltage
Max. Begrenzerspanng.
at / bei I
(10/1000:s)
PPM
PPM
[A]
1.5 KE51A 51 ± 5% 48.5...53.6 43.6 5 70.1 22
1.5 KE56 56 ± 10% 50.4...61.6 45.4 5 80.5 19
1.5 KE56A 56 ± 5% 53.2...58.8 47.8 5 77.0 20
1.5 KE62 62 ± 10% 55.8...68.8 50.2 5 89.0 17
1.5 KE62A 62 ± 5% 58.9...65.1 53.0 5 85.0 18
1.5 KE68 68 ± 10% 61.2...74.8 55.1 5 98.0 16.0
1.5 KE68A 68 ± 5% 64.6...71.4 58.1 5 92.0 17.0
1.5 KE75 75 ± 10% 67.5...82.5 60.7 5 108 14.0
1.5 KE75A 75 ± 5% 71.3...78.8 64.1 5 103 15.0
1.5 KE82 82 ± 10% 73.8...90.2 66.4 5 118 13.0
1.5 KE82A 82 ± 5% 77.9...86.1 70.1 5 113 13.9
1.5 KE91 91 ± 10% 81.9...100 73.7 5 131 12.0
1.5 KE91A 91 ± 5% 86.5...95.5 77.8 5 125 12.6
1.5 KE100 100 ± 10% 90.0...110 81.0 5 144 10.9
1.5 KE100A 100 ± 5% 95.0...105 85.5 5 137 11.4
1.5 KE110 110 ± 10% 99.0...121 89.2 5 158 9.9
1.5 KE110A 110 ± 5% 105...116 94.0 5 152 10.3
1.5 KE120 120 ± 10% 108...132 97.2 5 173 9.1
1.5 KE120A 120 ± 5% 114...126 102 5 165 9.5
1.5 KE130 130 ± 10% 117...143 105 5 187 8.4
1.5 KE130A 130 ± 5% 124...137 111 5 179 8.7
1.5 KE150 150 ± 10% 135...165 121 5 215 7.3
1.5 KE150A 150 ± 5% 143...158 128 5 207 7.6
1.5 KE160 160 ± 10% 144...176 130 5 230 6.8
1.5 KE160A 160 ± 5% 152...168 136 5 219 7.1
1.5 KE170 170 ± 10% 153...187 138 5 244 6.4
1.5 KE170A 170 ± 5% 162...179 145 5 234 6.7
1.5 KE180 180 ± 10% 162...198 146 5 258 6.1
1.5 KE180A 180 ± 5% 171...189 154 5 246 6.4
1.5 KE200 200 ± 10% 180...220 162 5 287 5.4
1.5 KE200A 200 ± 5% 190...210 171 5 274 5.7
1.5 KE220 220 ± 10% 198...242 175 5 344 4.5
1.5 KE220A 220 ± 5% 209...231 185 5 328 4.8
1.5 KE250 250 ± 10% 225...275 202 5 360 4.3
1.5 KE250A 250 ± 5% 237...263 214 5 344 4.5
1.5 KE300 300 ± 10% 270...330 243 5 430 3.6
1.5 KE300A 300 ± 5% 285...315 256 5 414 3.8
1.5 KE350 350 ± 10% 315...385 284 5 504 3.1
1.5 KE350A 350 ± 5% 332...368 300 5 482 3.2
1.5 KE400 400 ± 10% 360...440 324 5 574 2.7
1.5 KE400A 400 ± 5% 380...420 342 5 548 2.8
1.5 KE440 440 ± 10% 396...484 356 5 631 2.4
1.5 KE440A 440 ± 5% 418...462 376 5 602 2.6
25.03.2003
3
Page 4
1.5 KE 6.8 ... 1.5 KE 440CA
The order of type numbers is graded to the international E 24 standard. The standard tolerance of
the breakdown voltage for each type is ± 10%. Suffix “A” denotes a tolerance of ± 5%.
1
e.g.: 1.5KE160CA = bidirectional diode, VBR = 160 V (± 5%), VWM $ 136 V at ID = 5 :A
1.5KE7.5A = unidirectional diode, VBR = 7.5 V (± 5%), VWM $ 6.4 V at ID = 500 :A
Die Abstufung der Typen innerhalb der Reihe entspricht dem internationalen E 24-Standard. Die
Toleranz der Arbeitsspannung jedes einzelnen Typs beträgt in der Standardausführung ± 10%.
Suffix “A” kennzeichnet eine Toleranz ± 5%.
z.B.: 1.5KE160CA = bidirectionale Diode, VBR = 160 V (± 5%), VWM $ 136 V at ID = 5 :A
1.5KE7.5A = unidirectionale Diode, VBR = 7.5 V (± 5%), VWM $ 6.4 V at ID = 500 :A
1
) Valid, if leads are kept at ambient temperature at a distance of 10 mm from case
Gültig, wenn die Anschlußdrähte in 10 mm Abstand von Gehäuse auf Umgebungstemperatur gehalten werden
4
