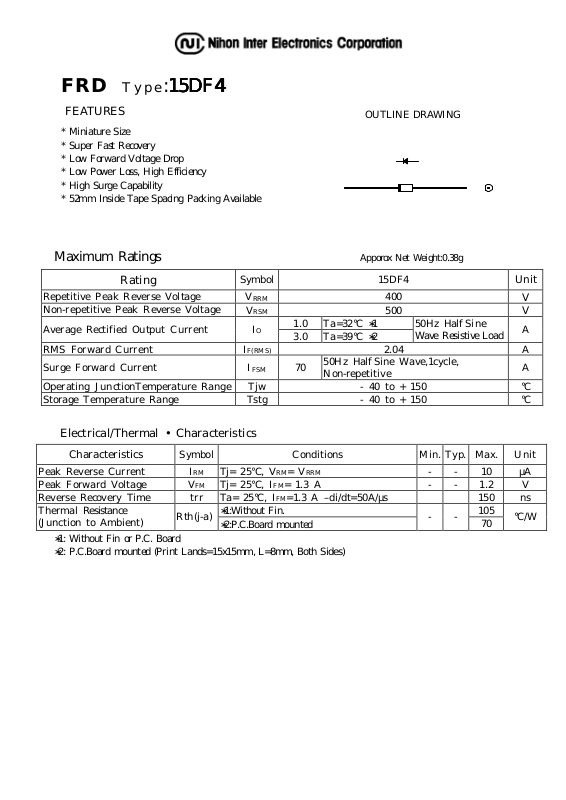

FRD Type:15DF4
15DF4
15DF415DF4
FEATURES
* Miniature Size
* Super Fast Recovery
* Low Forward Voltage Drop
* Low Power Loss, High Efficiency
* High Surge Capability
* 52mm Inside Tape Spacing Packing Available
OUTLINE DRA WING
Maximum Ratings Apporox Net Weight:0.38g
Rating
Repetitive Peak Reverse Voltage
Non-repetitive Peak Reverse Voltage
Average Rectified Output Current IO
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
Symbol 15DF4
V
400
RRM
V
500
RSM
1.0
3.0
2.04 A
F(RMS)
70
FSM
Tjw - 40 to + 150
Tstg - 40 to + 150
Ta=32°C ∗1
Ta=39°C ∗2
50Hz Half Sine Wave,1cycle,
Non-repetitive
50Hz Half Sine
Wave Resistive Load
Unit
V
V
A
A
°C
°C
Electrical/Thermal • Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance
(Junction to Ambient)
∗1: Without Fin or P.C. Board
∗2: P.C.Board mounted (Print Lands=15x15mm, L=8mm, Both Sides)
Symbol Conditions Min. Typ. Max. Unit
I
RM
V
FM
trr
Rth(j-a)
Tj= 25°C, V
Tj= 25°C, I
Ta= 25°C, I
∗1:Without Fin.
∗2:P.C.Board mounted
= V
RM
FM
FM
RRM
= 1.3 A
=1.3 A –di/dt=50A/µs
- - 10
- - 1.2 V
150 ns
- -
105
70
µA
°C/W
Page 2

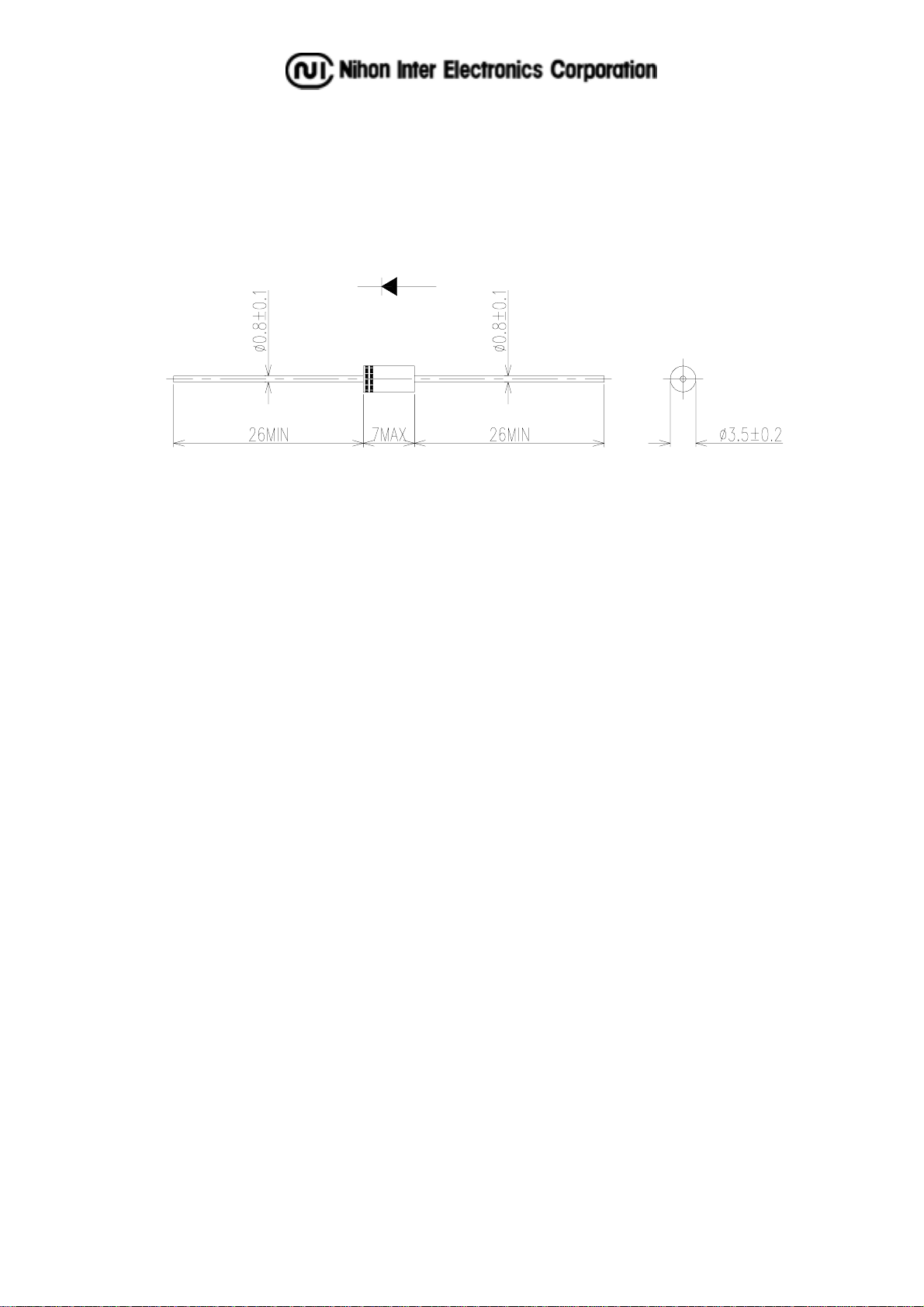

15DF4 OUTLINE DRAWING (Dimensions in mm)
