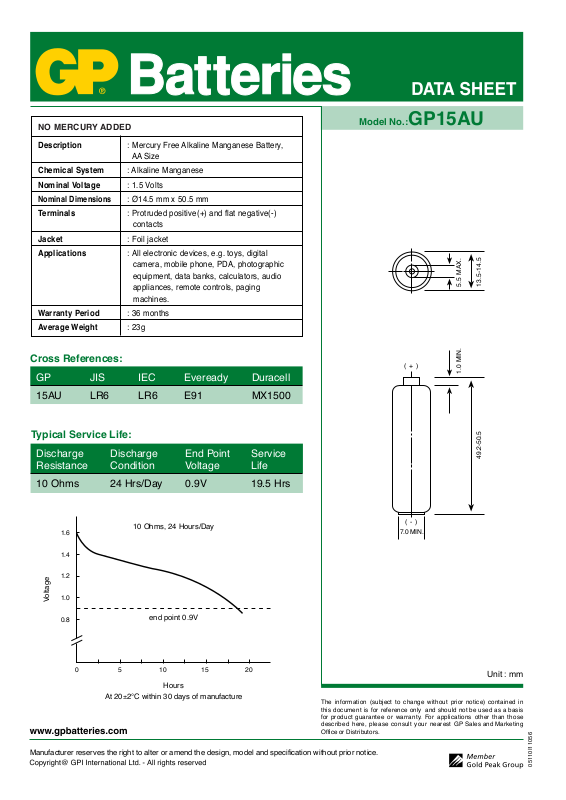

Page 1
NO MERCURY ADDED
Description : Mercury Free Alkaline Manganese Battery,
AA Size
Chemical System : Alkaline Manganese
Nominal Voltage : 1.5 Volts
Nominal Dimensions
: Ø14.5 mm x 50.5 mm
Terminals : Protruded positive(+) and flat negative(-)
contacts
Jacket : Foil jacket
Applications : All electronic devices, e.g. toys, digital
camera, mobile phone, PDA, photographic
equipment, data banks, calculators, audio
appliances, remote controls, paging
machines.
Warranty Period : 36 months
Average Weight : 23g
Model No.:GP15AU
5.5 MAX.
13.5-14.5
Cross References:
GP JIS IEC Eveready Duracell
15AU LR6 LR6 E91 MX1500
Typical Service Life:
Discharge Discharge End Point Service
Resistance Condition Voltage Life
10 Ohms 24 Hrs/Day 0.9V 19.5 Hrs
1.6
1.4
1.2
egatloV
1.0
0.8
10 Ohms, 24 Hours/Day
end point 0.9V
( + )
( - )
7.0 MIN.
1.0 MIN.
49.2-50.5
0 5 10
Hours
At 20±2°C within 30 days of manufacture
Manufacturer reserves the right to alter or amend the design, model and specification without prior notice.
15
20
The information (subject to change without prior notice) contained in
this document is for reference only and should not be used as a basis
for product guarantee or warranty. For applications other than those
described here, please consult your nearest GP Sales and Marketing
Office or Distributors.
Unit : mm
