2
87.07
[3.428]
72.70
36.25
[1.427]
43.50
57.87
[1.713]
B B
[2.279]
[2.862]
50.20
[1.976]
A
30.50
[1.201]
AVERAGE WALL THICKNESS
2.00
[.079]

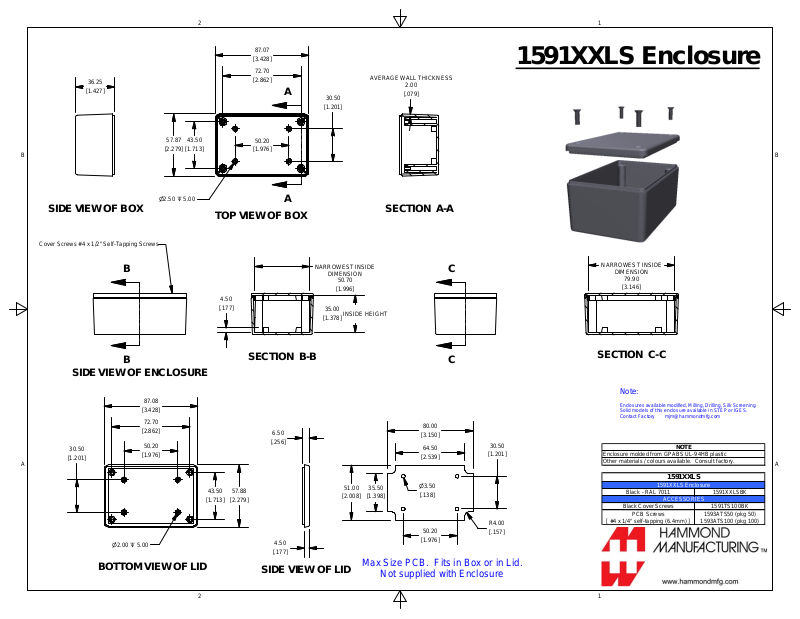

1591XXLS Enclosure
1
n2.50 x 5.00
SIDE VIEW OF BOX
Cover Screws #4 x 1/2" Self-Tapping Screws
TOP VIEW OF BOX
B
4.50
[.177]
B
SECTION B-B
SIDE VIEW OF ENCLOSURE
87.08
[3.428]
72.70
[2.862]
30.50
A A
[1.201]
n2.00 x 5.00
50.20
[1.976]
43.50
[1.713]
57.88
[2.279]
BOTTOM VIEW OF LID
2
A
NARROWEST INSIDE
DIMENSION
[1.996]
35.00
[1.378]
6.50
[.256]
4.50
[.177]
SIDE VIEW OF LID
SECTION A-A
C
50.70
INSIDE HEIGHT
C
80.00
[3.150]
64.50
[2.539]
51.00
[2.008]
35.50
[1.398]
n3.50
[.138]
50.20
[1.976]
Max Size PCB. Fits in Box or in Lid.
Not supplied with Enclosure
30.50
[1.201]
R4.00
[.157]
EXPLODED VIEW OF ENCLOSURE
EXPLODED VIEW OF ENCLOSURE
NARROWEST INSIDE
DIMENSION
79.90
[3.146]
SECTION C-C
Note:
Enclosures available modified, Milling, Drilling, Silk Screening.
Solid models of this enclosure available in STEP or IGES.
Contact Factory mjm@hammondmfg.com
Enclosure molded from GPABS UL-94HB plastic
Other material s / colours available. Consult factory.
Black - RAL 7011 1591XXLSBK
Black Cover Screws 1591TS100BK
PCB Screws 1593ATS50 (pkg 50)
[ #4 x 1/4" self -tapping (6.4mm) ] 1593ATS100 (pkg 100)
1
NOTE
1591XXLS
1591XXLS Enclosure
ACCESSORIES
