Page 1
(Pkg
)
2
87.07
[3.428]
72.70
36.25
[1.427]
43.50
57.87
[1.713]
B B
[2.279]
[2.862]
50.20
[1.976]
A
30.50
[1.201]
AVERAGE WALL THICKNESS
2.00
[.079]

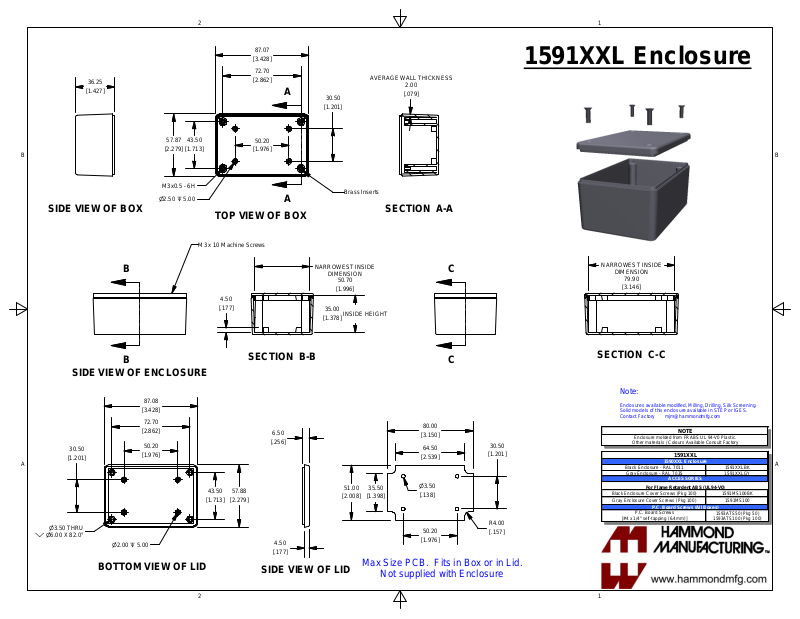

1591XXL Enclosure
1
M3x0.5 - 6H
SIDE VIEW OF BOX
n2.50 x 5.00
TOP VIEW OF BOX
M3 x 10 Machine Screws
A
B
4.50
[.177]
B
SIDE VIEW OF ENCLOSURE
SECTION B-B
87.08
[3.428]
72.70
[2.862]
30.50
A A
w n6.00 X 82.0°
[1.201]
n3.50 THRU
n2.00 x 5.00
50.20
[1.976]
43.50
[1.713]
57.88
[2.279]
BOTTOM VIEW OF LID
2
6.50
[.256]
4.50
[.177]
SIDE VIEW OF LID
Brass Inserts
NARROWEST INSIDE
DIMENSION
50.70
[1.996]
35.00
INSIDE HEIGHT
[1.378]
51.00
[1.398]
[2.008]
Max Size PCB. Fits in Box or in Lid.
SECTION A-A
C
C
80.00
[3.150]
64.50
[2.539]
35.50
n3.50
[.138]
50.20
[1.976]
Not supplied with Enclosure
30.50
[1.201]
R4.00
[.157]
EXPLODED VIEW OF ENCLOSURE
EXPLODED VIEW OF ENCLOSURE
NARROWEST INSIDE
DIMENSION
79.90
[3.146]
SECTION C-C
Note:
Enclosures available modified, Milling, Drilling, Silk Screening.
Solid models of this enclosure available in S TEP or IGES.
Contact Factory [email protected]
Enclosure molded from FRABS UL 94-V0 Plastic.
Other materials / Colours Available Consult Factory
Black Enclosure - RAL 7011
Gray Enclosure - RAL 7035
Black Enclosure Cover Screws (Pkg 100) 1591MS100BK
1
For Flame Retardent ABS (UL94-V0)
P.C. Board Screws
[#4 x 1/4" self-tapping (6.4mm)]
NOTE
1591XXL
1590XXL Enclosure
ACCESSORIES
P.C. Board Screws (All Boxes)
1591XXLBK
1591XXLGY
1591MS100Gray Enclosure Cover Screws (Pkg 100)
1593ATS50 (Pkg 50)
1593ATS100
100
