Page 1
2
1

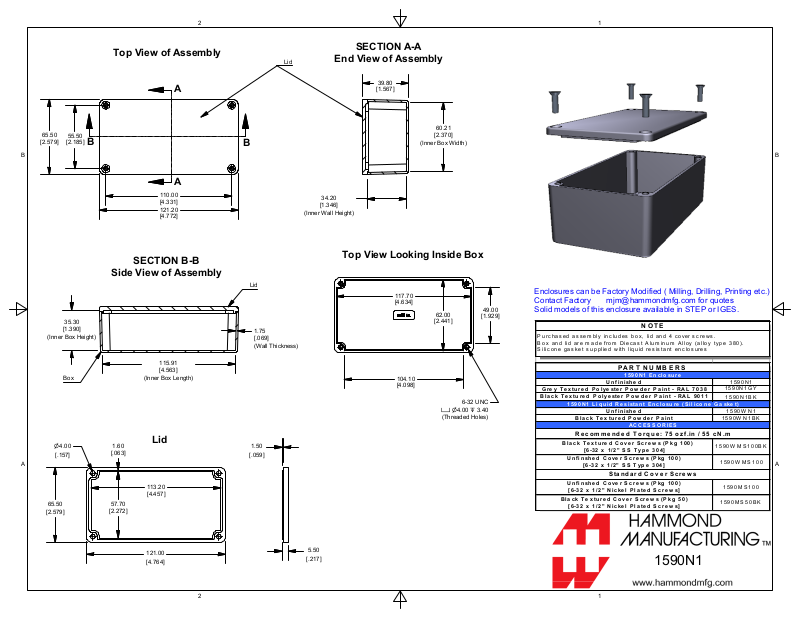

Top View of Assembly
Lid
A
65.50
55.50
[2.579]
[2.185]
B
B B
B
SECTION A-A
End View of Assembly
39.80
[1.567]
[2.370]
(Inner Box Width)
Lid
60.21
Cover Screw
A
110.00
[4.331]
121.20
[4.772]
SECTION B-B
34.20
[1.346]
(Inner Wall Height)
Top View Looking Inside Box
Box
Side View of Assembly
Lid
117.70
[4.634]
62.00
35.30
[1.390]
(Inner Box Height)
115.91
[4.563]
Box
4.00
[.157]
A A
65.50
[2.579]
1.60
[.063]
57.70
[2.272]
(Inner Box Length)
Lid
113.20
[4.457]
1.75
[.069]
(Wall Thickness)
1.50
[.059]
104.10
[4.098]
[2.441]
4.00 3.40
(Threaded Holes)
6-32 UNC
49.00
[1.929]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
Purchased as sem bly includes box, lid and 4 cover sc rews.
Box and lid are made from D iecast Alum inum A lloy (alloy type 380).
S ilic one gasket s upplied with liquid resistant enclosures
Gre y Te xture d Po lyester Po w de r Pa int - RAL 7038
Black Textured Polyester Powder Paint - RAL 9011
1590N1 Liqu id Re sistan t Enclosure (Silicone G a sket)
Black Textured Powder Paint
R e c o mm e n d e d T o r qu e : 75 o z f.in / 55 c N .m
Black T ex tured Cove r Scre w s (Pkg 100)
Unfinshed C ove r Screw s (Pkg 100)
Unfinshed C ove r Screw s (Pkg 100)
[6-32 x 1/2" Nicke l Pla ted S crew s]
Black T ex tured Cove r Scre w s (Pkg 50)
[6-32 x 1/2" Nicke l Pla ted S crew s]
Unfinished
Unfinished
[6-32 x 1/2" S S Typ e 304]
[6-32 x 1/2" S S Typ e 304]
Standard Cover Screws
NOTE
PART NUMBERS
1590N1 Enclosure
ACCESSORIES
1590N1
1590N1GY
1590N1BK
1590W N1
1590W N1B K
1590W M S 100BK
1590W M S 100
1590MS 100
1590MS 50B K
121.00
[4.764]
5.50
[.217]
2
1
1590N1
