Page 1
2
1

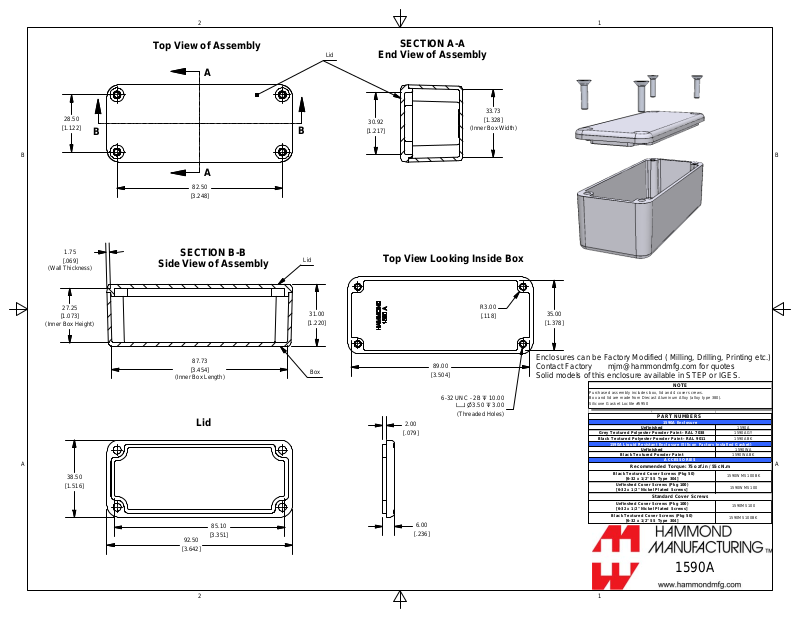

Top View of Assembly
Lid
SECTION A-A
End View of Assembly
A
28.50
[1.122]
B B
B
B
30.92
[1.217]
33.73
[1.328]
(Inner Box Width)
A
82.50
[3.248]
1.75
[.069]
(Wall Thickness)
27.25
[1.073]
(Inner Box Height)
SECTION B-B
Side View of Assembly
Lid
[1.220]
31.00
Top View Looking Inside Box
R3.00
[.118]
35.00
[1.378]
87.73
[3.454]
(Inner Box Length)
Box
Lid
A A
38.50
[1.516]
85.10
[3.351]
92.50
[3.642]
2.00
[.079]
89.00
[3.504]
6-32 UNC - 2B x 10. 00
6.00
[.236]
v n3.50 x 3.00
(Threaded Holes)
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
Purchased as s em bly inc ludes box , lid and 4 c over screws.
Box and lid are made from Diec ast A lum inum A lloy (alloy ty pe 380).
Silicone Gas ket Loc tite #5950
Grey Textured Polyester Powder Paint - RAL 7038
Black Textured Polyester Powder Paint - RAL 9011
1590A Liquid Re sistant Enclosure (Silicon Fa ctory Installed Ga sket)
Black Te xtured Cove r Screw s (Pkg 50)
Unfinished
Unfinished
Black Textured Powder Paint
Recommended T o rque: 75 ozf.in / 55 cN.m
[6-32 x 1/2" SS T ype 304]
Unfinshed Cove r S cre ws (Pkg 100)
[6-32 x 1/2" Nickel Plated Screws]
Unfinshed Cove r S cre ws (Pkg 100)
[6-32 x 1/2" Nickel Plated Screws]
Black Te xtured Co ve r S cre w s (Pkg 50)
[6-32 x 1/2" SS T ype 304]
NOTE
\
PART NUMBERS
1590A Enclosure
ACCESSORIES
Standard Cover Scre ws
1590A
1590AGY
1590ABK
1590WA
1590WA B K
1590WM S 100B K
1590WM S 100
1590MS100
1590MS100B K
1590A
2
1
