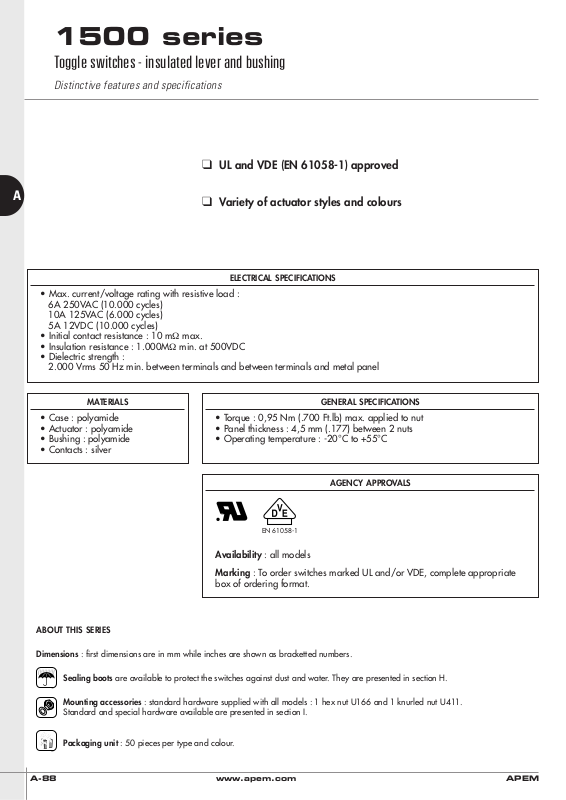

Page 1
A-88 APEM www.apem.com
1500 series
Toggle switches - insulated lever and bushing
Distinctive features and specifications
A
❑
UL and VDE (EN 61058-1) approved
❑ Variety of actuator styles and colours
MATERIALS
• Case : polyamide
• Actuator : polyamide
• Bushing : polyamide
• Contacts : silver
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
6A 250VAC (10.000 cycles)
10A 125VAC (6.000 cycles)
5A 12VDC (10.000 cycles)
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000MΩ min. at 500VDC
• Dielectric strength :
2.000 Vrms 50 Hz min. between terminals and between terminals and metal panel
GENERAL SPECIFICATIONS
• Torque : 0,95 Nm (.700 Ft.lb) max. applied to nut
• Panel thickness : 4,5 mm (.177) between 2 nuts
• Operating temperature : -20°C to +55°C
AGENCY APPROVALS
Availability : all models
Marking : To order switches marked UL and/or VDE, complete appropriate
box of ordering format.
EN 61058-1
Dimensions : first dimensions are in mm while inches are shown as bracketted numbers.
Sealing boots are available to protect the switches against dust and water. They are presented in section H.
Mounting accessories : standard hardware supplied with all models : 1 hex nut U166 and 1 knurled nut U411.
Standard and special hardware available are presented in section I.
Packaging unit : 50 pieces per type and colour.
ABOUT THIS SERIES

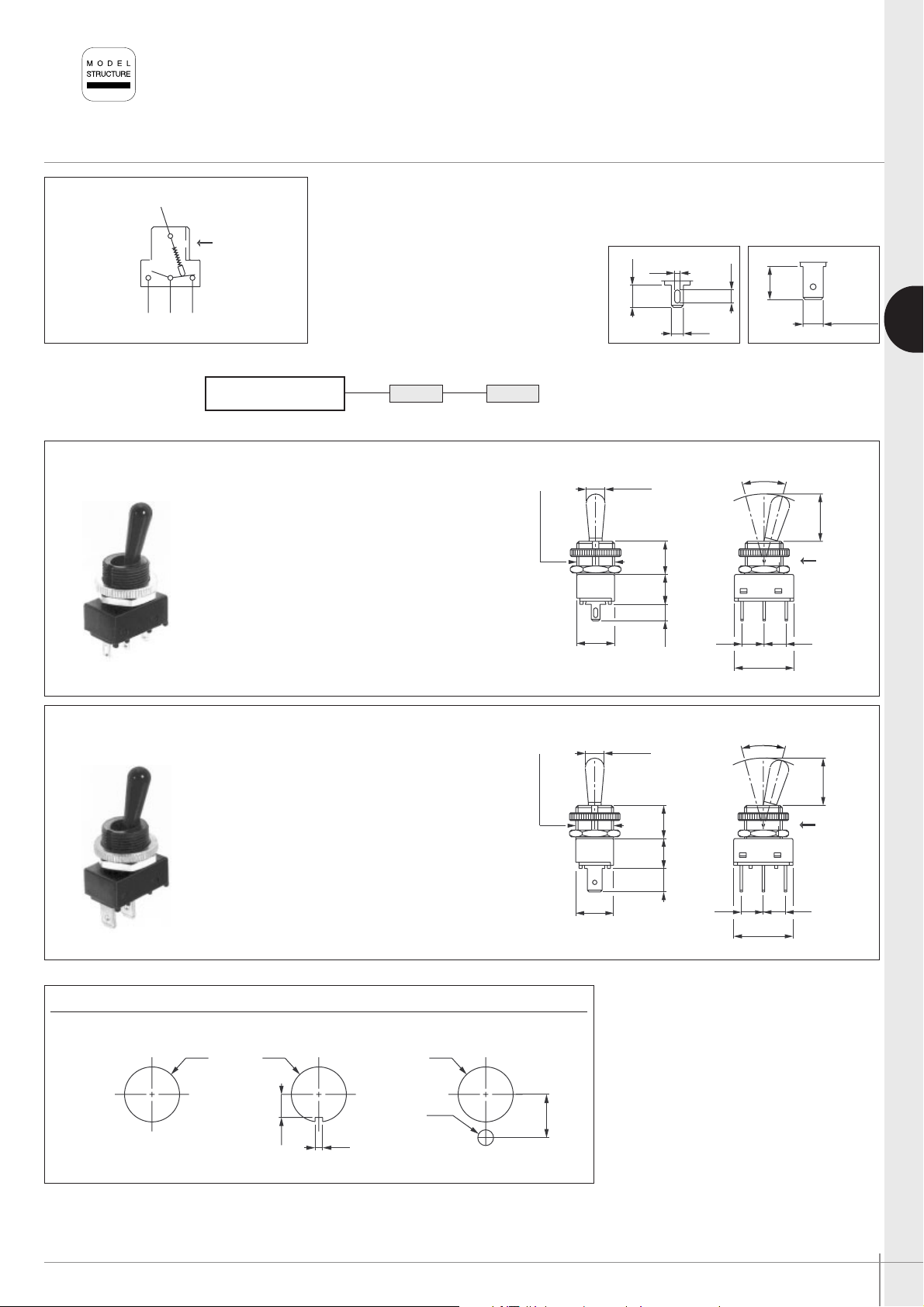

Page 2
APEM www.apem.com A-89
1500 series
Toggle switches - insulated lever and bushing
Solder lug or quick-connect terminals
A
Quick-connect terminals 4,7 x 0,8 (.185 x .031)
Solder lug terminals
MODEL
STRUCTURE
IIIIII
1531A2 ON - OFF
1536A2 ON - ON
1539A2 ON OFF ON
IIIIII
1531A8 ON - OFF
1536A8 ON - ON
1539A8 ON OFF ON
• 2 and 3 maintained positions
• Silver contacts standard
• Single pole configurations
➞
Keyway
➞
Keyway
➞
Keyway
PANEL CUT-OUT
(.472DIAx0.75 IS)
Ø12.00x0.75 SI
(.472)
12.00
5.20
(.204)
Ø6.00
(.236DIA)
1.30
(.051)
10.50
9.50
5.20
(.413)
(.374)
(.204)
2.80x0.80
(.11x.031)
7.00
(.275)
3.10
(.122)
7.00
30˚
18.80
(.74)
(.275)
IIIIII
7.00
(.275)
15.00
(.59)
4.70x0.80
(.185x.031)
Ø12.20
(.48DIA)
Ø12.20
(.48DIA)
5.10
(.20)
1.70
(.066)
Ø12.50
(.492DIA)
Ø3.50
(.137DIA)
(.472DIAx0.75 IS)
Ø12.00x0.75 SI
9.60
(.377)
12.00
(.472)
Ø6.00
(.236DIA)
10.50
9.50
7.00
(.413)
(.374)
(.275)
7.00
(.275)
30°
18.80
(.74)
III III
7.00
(.275)
15.00
(.59)
Page 3
A-90 APEM www.apem.com
1500 series
Toggle switches - insulated lever and bushing
A

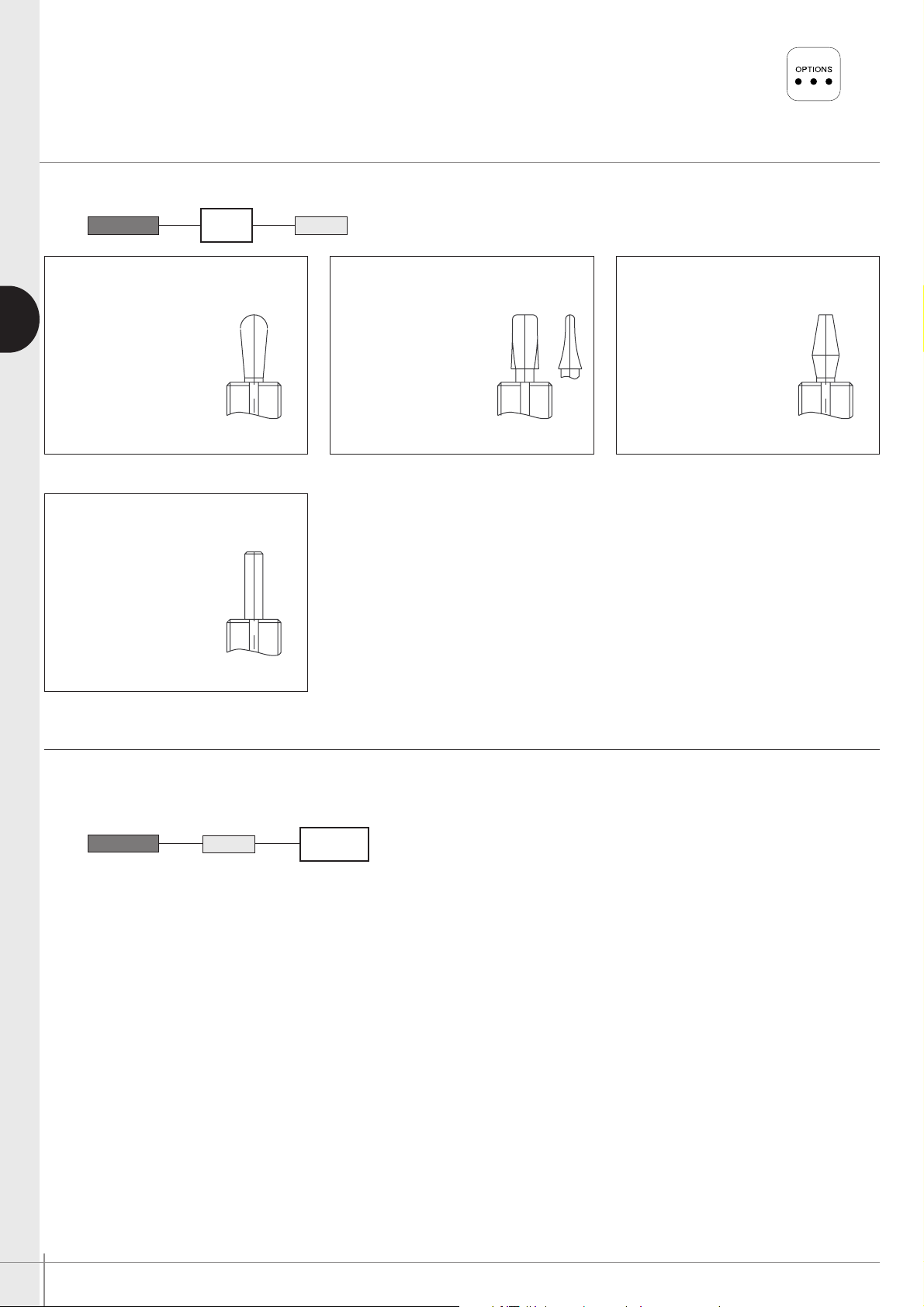

ACTUATORS
Polyamide
Black L12
Red L16
White L17
Orange L19
Brass,
nickel plated L1N
Polyamide
Black L22
Red L26
White L27
Orange L29
Polyamide
Black L32
Red L36
White L37
Orange L39
Polyamide
Black L42
Red L46
White L47
Orange L49
Standard Flat Dual cone
Cylindrical
AGENCY APPROVALS
UL
VDE
Availability : all models.
Marking : to order switches marked UL and/or VDE, complete above box with desired approvals.
