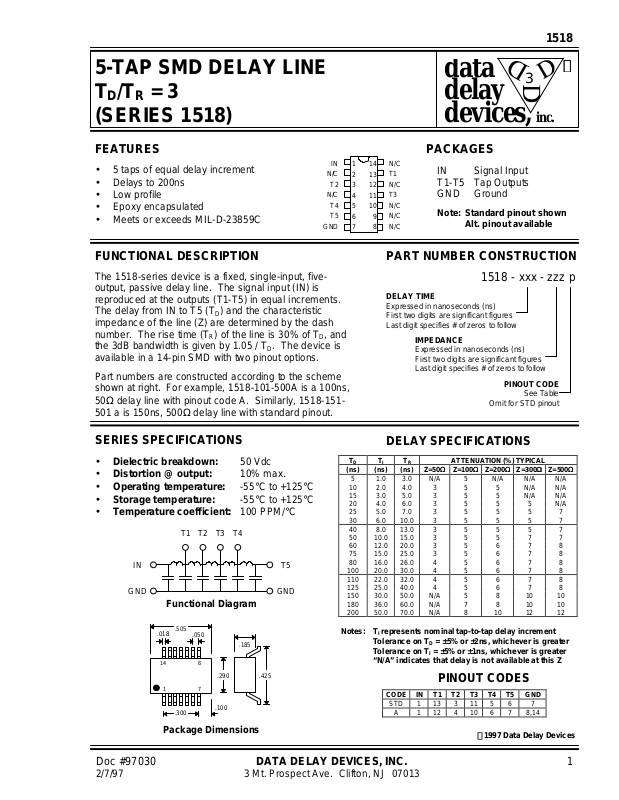

Datasheet 1518 Datasheet (data delay devices)

1518

5-TAP SMD DELAY LINE

.300

.100

.505

.050

.185

data



3

PART NUMBER CONSTRUCTION

TD/TR = 3
(SERIES 1518)

delay
devices, inc.

FEATURES PACKAGES

• 5 taps of equal delay increment

• Delays to 200ns

• Low profile

• Epoxy encapsulated

• Meets or exceeds MIL-D-23859C

N/C

N/C

GND

IN

1
2

T2

3
4

T4

5

T5

6
7

N/C

14

T1

13

N/C

12

T3

11

N/C

10

N/C

9

N/C

8

IN Signal Input
T1-T5 Tap Outputs
GND Ground

Note: Standard pinout shown

Alt. pinout available

FUNCTIONAL DESCRIPTION

The 1518-series device is a fixed, single-input, five­output, passive delay line. The signal input (IN) is
reproduced at the outputs (T1-T5) in equal increments.
The delay from IN to T5 (TD) and the characteristic
impedance of the line (Z) are determined by the dash
number. The rise time (TR) of the line is 30% of TD, and
the 3dB bandwidth is given by 1.05 / TD. The device is
available in a 14-pin SMD with two pinout options.

Part numbers are constructed according to the scheme
shown at right. For example, 1518-101-500A is a 100ns,
50Ω delay line with pinout code A. Similarly, 1518-151­501 a is 150ns, 500Ω delay line with standard pinout.

DELAY TIME

Expressed in nanoseconds (ns)
First two digits are significant figures
Last digit specifies # of zeros to follow

IMPEDANCE

Expressed in nanoseconds (ns)
First two digits are significant figures
Last digit specifies # of zeros to follow

1518 - xxx - zzz p

PINOUT CODE

See Table

Omit for STD pinout

SERIES SPECIFICATIONS

• Dielectric breakdown: 50 Vdc

• Distortion @ output: 10% max.

• Operating temperature: -55°C to +125°C

• Storage temperature: -55°C to +125°C

• Temperature coefficient: 100 PPM/°C

T1 T2 T3 T4

IN T5

GND

Functional Diagram

.018

814

.290

1 7

Package Dimensions

GND

.425

DELAY SPECIFICATIONS

T

T

D

(ns) (ns) (ns)

5 1.0 3.0 N/A 5 N/A N/A N/A
10 2.0 4.0 3 5 5 N/A N/A
15 3.0 5.0 3 5 5 N/A N/A
20 4.0 6.0 3 5 5 5 N/A
25 5.0 7.0 3 5 5 5 7
30 6.0 10.0 3 5 5 5 7
40 8.0 13.0 3 5 5 5 7
50 10.0 15.0 3 5 5 7 7
60 12.0 20.0 3 5 6 7 8
75 15.0 25.0 3 5 6 7 8
80 16.0 26.0 4 5 6 7 8

100 20.0 30.0 4 5 6 7 8
110 22.0 32.0 4 5 6 7 8
125 25.0 40.0 4 5 6 7 8
150 30.0 50.0 N/A 5 8 10 10
180 36.0 60.0 N/A 7 8 10 10
200 50.0 70.0 N/A 8 10 12 12

Notes: TI represents nominal tap-to-tap delay increment

Tolerance on TD = ±±5% or ±±2ns, whichever is greater
Tolerance on TI = ±±5% or ±±1ns, whichever is greater
“N/A” indicates that delay is not available at this Z

T

I

R

ATTENUATION (%) TYPICAL

Z=50ΩΩ Z=100ΩΩ Z=200ΩΩ Z=300ΩΩ Z=500ΩΩ

PINOUT CODES

CODE IN T1 T2 T3 T4 T5 GND

STD 1 13 3 11 5 6 7

A 1 12 4 10 6 7 8,14

1997 Data Delay Devices

Doc #97030 DATA DELAY DEVICES, INC. 1

2/7/97 3 Mt. Prospect Ave. Clifton, NJ 07013

1518

PASSIVE DELAY LINE TEST SPECIFICATIONS

10%

10%

50%

50%

90%

90%

50%

50%

10%

10%

90%

90%INT1

OUT

TRIGINTRIG

OSCILLOSCOPE

T2T3T4

T5

TEST CONDITIONS

INPUT: OUTPUT:
Ambient Temperature: 25oC ± 3oC R
Input Pulse: High = 3.0V typical C

Low = 0.0V typical Threshold: 50% (Rising & Falling)
Source Impedance: 50Ω Max.
Rise/Fall Time: 3.0 ns Max. (measured

at 10% and 90% levels)

Pulse Width (TD <= 75ns): PWIN = 100ns
Period (TD <= 75ns): PERIN = 1000ns
Pulse Width (TD > 75ns): PWIN = 2 x T
Period (TD > 75ns): PERIN = 10 x T

D

D

NOTE: The above conditions are for test only and do not in any way restrict the operation of the device.

PER

PW

IN

T

RISE

: 10MΩ

load

: 10pf

load

IN

T

FALL

INPUT
SIGNAL

OUTPUT
SIGNAL

PULSE

GENERATOR

R

50 Ω

V

IH

T

RISE

T

RISE

V

OH

Timing Diagram For Testing

IN

DEVICE UNDER

TEST (DUT)

RIN = R

OUT

= Z

LINE

T

FALL

V

IL

T

FALL

V

OL

R

OUT

Doc #97030 DATA DELAY DEVICES, INC. 2

2/7/97 Tel: [phone] Fax: [phone] http://www.datadelay.com

Test Setup
