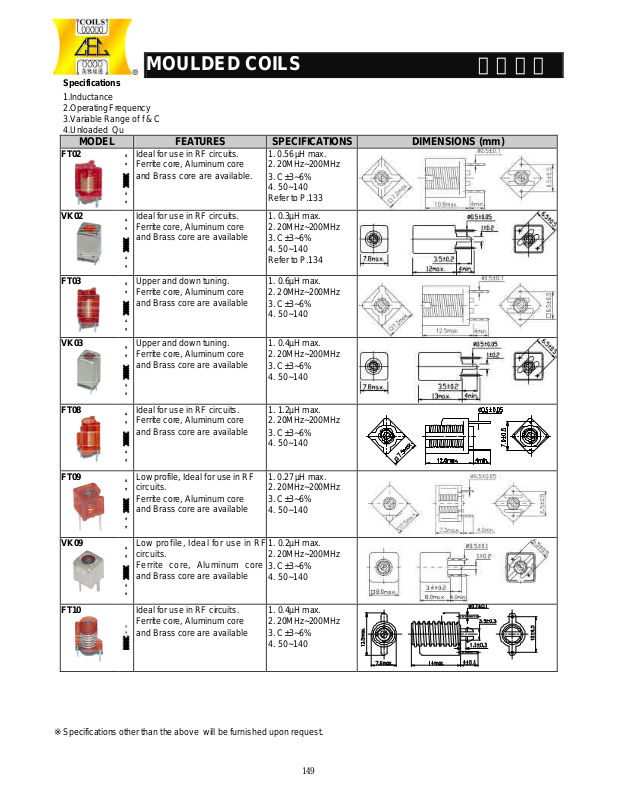

Page 1
149
Low profile, Ideal for use in RF
Ferrite core, Aluminum core
MOULDED COILS
Specifications
1.Inductance
2.Operating Frequency
3.Variable Range of f & C
4.Unloaded Qu

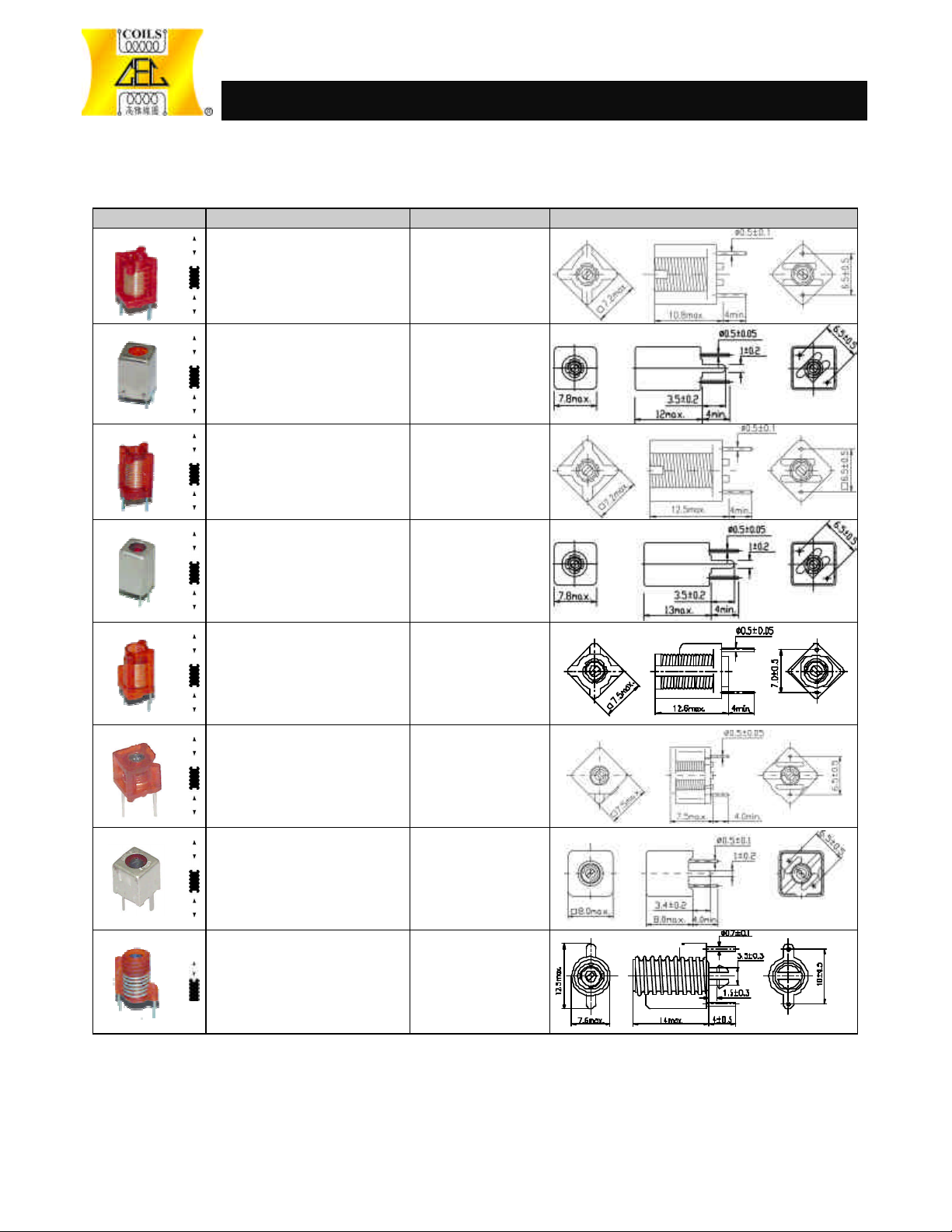

MODEL FEATURES SPECIFICATIONS DIMENSIONS (mm)
FT02
VK02
FT03
VK03
Ideal for use in RF circuits.
Ferrite core, Aluminum core
and Brass core are available.
Ideal for use in RF circuits.
Ferrite core, Aluminum core
and Brass core are available
Upper and down tuning.
Ferrite core, Aluminum core
and Brass core are available
Upper and down tuning.
Ferrite core, Aluminum core
and Brass core are available
1. 0.56µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
Refer to P.133
1. 0.3µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
Refer to P.134
1. 0.6µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.4µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
注塑線圈
FT08
FT09
VK09
FT10
Ideal for use in RF circuits.
Ferrite core, Aluminum core
and Brass core are available
Low profile, Ideal for use in RF
circuits.
Ferrite core, Aluminum core
and Brass core are available
circuits.
and Brass core are available
Ideal for use in RF circ uits.
Ferrite core, Aluminum core
and Brass core are available
1. 1.2µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.27µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.2µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.4µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
※Specifications other than the above will be furnished upon request.
Page 2

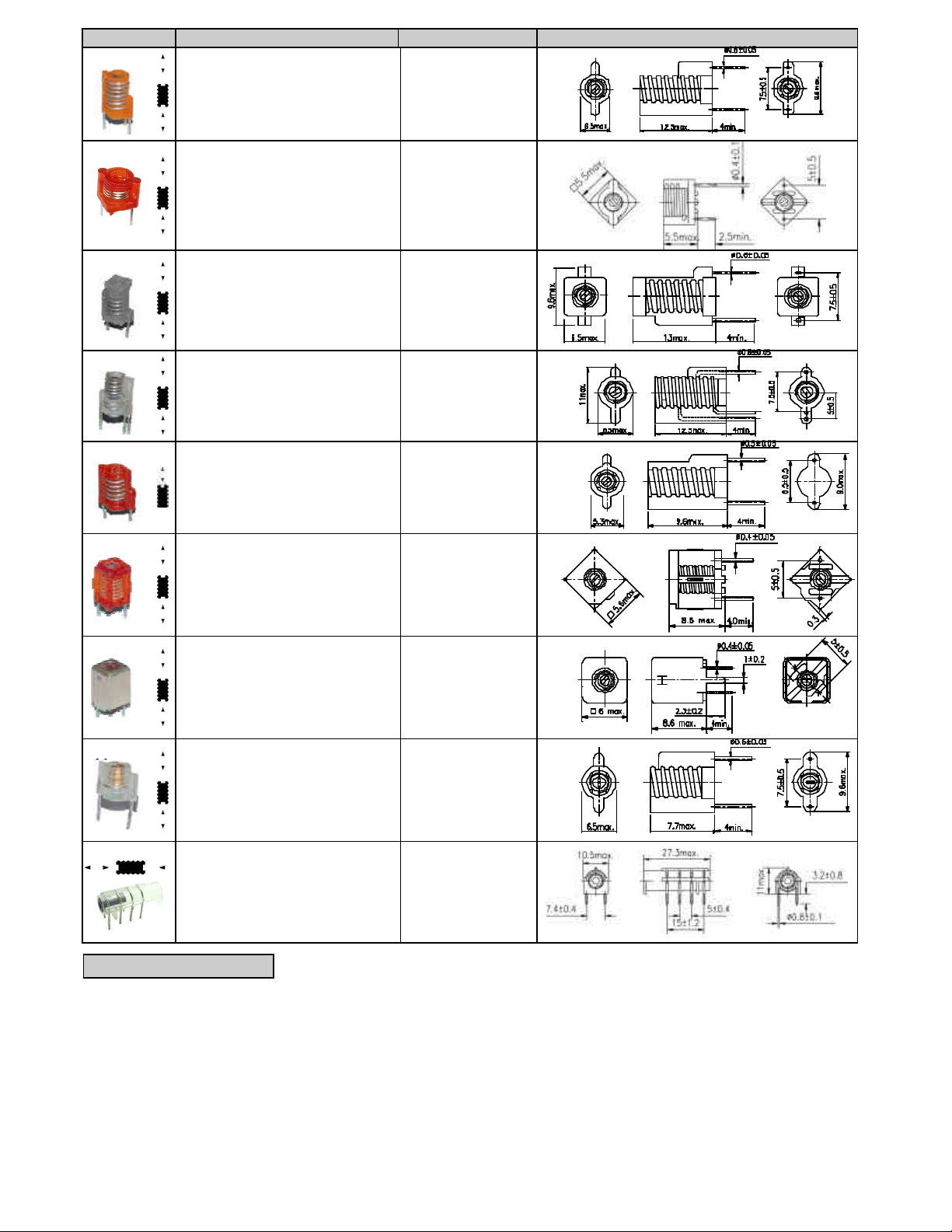

MODEL FEATURES SPECIFICATIONS DIMENSIONS (mm)
ile, Suitable for devices
Ferrite core, Aluminum core and
FT11
FT12
FT14
FT22
FT33
Ideal for use in RF circuits.
Ferrite core, Aluminum core and
Brass core are available
Low prof
with severe space limitations.
Brass core are available
Upper and bottom tuning.
Ferrite core, Aluminum core and
Brass core are available
Ideal for use in RF circuits.
Ferrite core, Aluminum core and
Brass core are available
Ferrite core, Aluminum core and
Brass core are available
FT39
Low profile, Suitable for devices
with severe space limitations.
Ferrite core, Aluminium core and
Brass core are available
1. 0.3µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 30~126
Refer to P.135
1. 0.05uH max
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.2µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.04µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.18µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
Refer to P.136
1. 0.18µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
Refer to P.137
VK39
FT44
FT8F
Low profile, Suitable for devices
with severe space limitations.
*Ferrite core, Aluminum core and
Brass core are available
Low profile, Suitable for devices
with severe space limitations.
Ferrite core, Aluminum core and
Brass core are available
Two sides tunable.
Special design for special use.
Ideal for use in RF Circuit.
1. 0.1µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.05µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
1. 0.05µH max.
2. 20MHz~200MHz
3. C±3~6%
4. 50~140
General Characteristics:
1. Dielectric Strength :: No apparent at 100V D.C.for 1 minute between Coil and Bobbin.
2. Core Torque : 50~250 gf.cm
3. Humidity Test : Frequency (or inductance) deviation within±0.5%(1%); lowering of Q
within 20% after 8 hours with 90~95% relative humidity at 400C and 60
minutes drying under normal condition.
※Specifications other than the above will be furnished upon request.
Page 3
151
MOULDED COILS
Specification table of Moulded coils FT02
LF – LOW FREQUENCY HF – HIGH FREQUENCY
COILS PART NO.
FT02~0215~HF~813425 1.5 85 70 ±6% 100MHz
FT02~0225~HF~813426 2.5 90 42 ±6% 100MHz
FT02~0235~HF~813427 3.5 95 28 ±6% 100MHz
FT02~0245~HF~813428 4.5 100 20 ±6% 100MHz
FT02~0255~HF~813429 5.5 100 15 ±6% 100MHz
FT02~0265~LF~813430 6.5 80 48 ±6% 50MHz
FT02~0275~LF~813431 7.5 75 39 ±6% 50MHz
FT02~0285~LF~813432 8.5 75 32 ±3% 50MHz
FT02~0295~LF~813433 9.5 75 27±3% 50MHz
FT02~02105~LF~813434 10.5 75 24± 3% 50MHz
TURNS
(T)
FERRITE SCREW CORE
ALUMINIUM SCREW CORE
UNLOADED
Q (MIN.)
TUN. CAPACITY
(pF)
注塑線圈
MEASURING
FREQUENCY
FT02~0215~A~711518 1.5 60 84 ±6% 100MHz
FT02~0225~A~711519 2.5 50 56 ±6% 100MHz
FT02~0235~A~711520 3.5 50 42 ±6% 100MHz
FT02~0245~A~711521 4.5 50 31 ±6% 100MHz
FT02~0255~A~711522 5.5 50 25 ±6% 100MHz
FT02~0265~A~711523 6.5 35 89 ±6% 50MHz
FT02~0275~A~711524 7.5 35 76 ±6% 50MHz
FT02~0285~A~711525 8.5 35 66 ±3% 50MHz
FT02~0295~A~711526 9.5 35
3% 50MHz
60 ±
FT02~02105~A~711527 10.5 35 5 5±3% 50MHz
BRASS SCREW CORE
FT02~0215~B~711528 1.5 65 82 ±6% 100MHz
FT02~0225~B~711529 2.5 55 56 ±6% 100MHz
FT02~0235~B~711530 3.5 50 39 ±6% 100MHz
FT02~0245~B~711531 4.5 50 31 ±6% 100MHz
FT02~0255~B~711532 5.5 50 24 ±6% 100MHz
FT02~0265~B~711533 6.5 35 88 ±6% 50MHz
FT02~0275~B~711534 7.5 35 74 ±6% 50MHz
FT02~0285~B~711535 8.5 35 66 ±3% 50MHz
FT02~0295~B~711536 9.5 35 59 ±3% 50MHz
FT02~02105~B~711537 10.5 35 54± 3% 50MHz
※Specifications other than the above will be furnished upon request.
Page 4
152
MOULDED COILS
注塑線圈
Specification table of Moulded coils VK02
LF – LOW FREQUENCY HF – HIGH FREQUENCY
COILS PART NO.
TURNS
(T)
FERRITE SCREW CORE
VK02~0215~HF~813435 1.5 55 79±6% 100MHz
VK02~0225~HF~813436 2.5 75 51±6% 100MHz
VK02~0235~HF~813437 3.5 75 36±6% 100MHz
VK02~0245~HF~813438 4.5 75 26±6% 100MHz
VK02~0255~HF~813439 5.5 75 20±6% 100MHz
VK02~0265~HF~813440 6.5 70 16±6% 100MHz
VK02~0275~LF~813441 7.5 50 55±6% 50MHz
VK02~0285~LF~813442 8.5 50 45±3% 50MHz
VK02~0295~LF~813443 9.5 50 41±3% 50MHz
VK02~02105~LF~813444 10.5 50 37±3% 50MHz
ALUMINIUM SCREW CORE
VK02~0215~A~711538 1.5 50 87±6% 100MHz
VK02~0225~A~711539 2.5 50 62±6% 100MHz
VK02~0235~A~711540 3.5 45 46±6% 100MHz
UNLOADED
Q (MIN.)
TUN.
CAPACITY
(pF)
MEASURING
FREQUENCY
VK02~0245~A~711541 4.5 45 37±6% 100MHz
VK02~0255~A~711542 5.5 45 30±6% 100MHz
VK02~0265~A~711543 6.5 45 25±6% 100MHz
VK02~0275~A~711544 7.5 35 90±6% 50MHz
VK02~0285~A~711545 8.5 35 83±3% 50MHz
VK02~0295~A~711546 9.5 35 72±3% 50MHz
VK02~02 105~A~711547 10.5 35 65 ±3% 50MHz
BRASS SCREW CORE
VK02~0215~B~711548 1.5 50 88 ±6% 100MHz
VK02~0225~B~711549 2.5 50 62±6% 100MHz
VK02~0235~B~711550 3.5 50 47±6% 100MHz
VK02~0245~B~711551 4.5 50 37±6% 100MHz
VK02~0255~B~711552 5.5 50 30±6% 100MHz
VK02~0265~B~711553 6.5 40 26 ±6% 100MHz
VK02~0275~B~711554 7.5 35 88±6% 50MHz
VK02~0285~B~711555 8.5 35 78±3% 50MHz
VK02~0295~B~711556 9.5 30 72 ±3% 50MHz
VK02~02105~B~711557 10.5 30 65±3% 50MHz
※Specifications other than the above will be furnished upon request.
Page 5
153
MOULDED COILS
注塑線圈
Specification table of Moulded coils FT11
LF – LOW FREQUENCY HF – HIGH FREQUENCY
COILS PART NO.
LOW FREQUENCY FERRITE SCREW CORE
FT11~1115~L F~819435 1.5 70
FT11~1125~LF~819436 2.5 70 130±6% 50MHz
FT11~1135~LF~819437 3.5 90
FT11~1145~LF~819438 4.5 90
FT11~1155~LF~819439 5.5 90
FT11~1165~LF~819440 6.5 90 40±3% 50MHz
FT11~1175~LF~819441 7.5 95
HIGH FREQUENCY FERRITE SCREW CORE
FT11~1115~HF~819442 1.5 80
FT11~1125~HF~819443 2.5 110
FT11~1135~HF~819444 3.5 110
FT11~1145~HF~819445 4.5 110
FT11~1155~HF~819446 5.5 120
FT11~1165~HF~819447 6.5 120
FT11~1175~HF~819448 7.5 120
FT11~1115~A~819449 1.5 60
FT11~1125~A~819450 2.5 55
FT11~1135~A~819451 3.5 55
FT11~1145~A~819452 4.5 55
FT11~1155~A~819453 5.5 50
FT11~1165~A~819454 6.5 50
FT11~1175~A~819455 7.5 50
FT11~1115~B~819456 1.5 55
FT11~1125~B~819457 2.5 55
FT11~1135~B~819458 3.5 55
FT11~1145~B~819459 4.5 55
FT11~1155~B~819460 5.5 50
FT11~1165~B~819461 6.5 50
FT11~1175~B~819462 7.5 45
W~SHAPE ALUMINIUM SCREW CORE
FT11~1115~W~819463 1.5 60
FT11~1125 ~W~819464 2.5 55
FT11~1135~W~819465 3.5 55
FT11~1145~W~819466 4.5 55
FT11~1155~W~819467 5.5 55
FT11~1165~W~819468 6.5 55
FT11~1175~W~819469 7.5 55
※Specifications other than the above will be furnished upon request.
TURNS
(T)
ALUMINIUM SCREW CORE
BRASS SCREW CORE
UNLOADED
Q (Min.)
TUN.
CAPACITY
(pF)
200±6%
90 ±6%
65 ±6%
55 ±6%
34 ±3%
60 ±6%
40 ±6%
26 ±6%
18 ±6%
15 ±6%
11.5 ±3%
9. 5± 3%
77 ±6%
56 ±6%
45 ±6%
38 ±6%
32 ±6%
27 ±3%
25 ±3%
78 ±6%
58 ±6%
47 ±6%
36 ±6%
33 ±6%
27 ±3%
25 ±3%
75 ±6%
58 ±6%
46 ±6%
35 ±6%
31 ±6%
27 ±3%
24 ±3%
MEASURING
FREQUENCY
50MHz
50MHz
50MHz
50MHz
50MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
100MHz
Page 6
154
MOULDED COILS
注塑線圈
Specification table of Moulded coils FT33
LF – LOW FREQUENCY HF – HIGH FREQUENCY
COILS PART NO.
LOW FREQUENCY FERRITE SCREW CORE
FT33~3315~L F~819480 1.5 65 240± 6% 50MHz
FT33~3325~L F~819481 2.5 70 140± 6% 50MHz
FT33~3335~L F~819482 3.5 75 90 ±6% 50MHz
FT33~3345~L F~819483 4.5 60 75 ±3% 50MHz
FT33~3355~L F~819484 5.5 60 55 ±3% 50MHz
HIGH FREQUENCY FERRITE SCREW CORE
FT33~3315~HF~819485 1.5 8 0 72 ±6% 100MHz
TURNS
(T)
UNLOADED
Q (MIN.)
TUN.
CAPACITY
(pF)
MEASURING
FREQUENC
Y
FT33~3325~HF~819486 2.5 90 45 ±6% 100MHz
FT33~3335~HF~819487 3.5 100 30±6% 100MHz
FT33~3345~HF~819488 4.5 110 22 ±3% 100MHz
FT33~3355~HF~819489 5.5 110 17 ±3% 100MHz
ALUMINIUM SCREW CORE
FT33~3315~A~819470 1.5 60 89 ±6% 100MHz
FT33~3325~A~81947 1 2.5 5 0 71 ±6% 100MHz
FT33~3335~A~819472 3.5 45 5 6±6% 100MHz
FT33~3345~A~819473 4.5 45 47 ±3% 100MHz
FT33~3355~A~819474 5.5 45 42 ±3% 100MHz
BRASS SCREW CORE
FT33~3315~B~819475 1.5 55 8 8±6% 100MHz
FT33~3325~B~819476 2.5 45 70 ±6% 100MHz
FT33~3335~B~819 477 3.5 45 5 5±6% 100MHz
FT33~3345~B~819478 4.5 45 47 ±6% 100MHz
FT33~3355~B~819479 5.5 40 41 ±3% 100MHz
※Specifications other than the above will be furnished upon request.
Page 7
155
MOULDED COILS
Specification table of Moulded coils FT39
LF – LOW FREQUENCY HF – HIGH FREQUENCY
COILS PART NO.
FT39~3915~LF~839981 1.5 70 83 ±3% 100MHz
FT39~3925~LF~839982 2.5 80 55 ±3% 100MHz
FT39~3935~LF~839983 3.5 90 37 ±3% 100MHz
FT39~3945~LF~839984 4.5 90 27 ±3% 100MHz
FT39~3955~LF~839985 5.5 90 21 ±3% 100MHz
FT39~3965~LF~839986 6.5 90 17 ±3% 100MHz
FT39~3915~A~839987 1.5 50 94 ±3% 100MHz
TURNS
(T)
FERRITE SCREW CORE
ALUMINIUM SCREW CORE
UNLOADED
Q (MIN.)
TUN.
CAPACITY
(pF)
注塑線圈
MEASURING
FREQUENC
Y
FT39~3925~A~839988 2.5 50 64 ±3% 100MHz
FT39~3935~A~839989 3.5 50 48 ±3% 100MHz
FT39~3945~A~839990 4.5 50 39 ±3% 100MHz
FT39~3955~A~839991 5.5 50 3 2±3% 100MHz
FT39~39 65~A~839992 6.5 50 27±3% 100MHz
FERRITE SCREW CORE
VK39~3915~HF~839993 1.5 40 95 ±3% 100MHz
VK39~3925~HF~839994 2.5 40 67±3% 100MHz
VK39~3935~HF~839995 3.5 40 50±3% 100MHz
VK39~3945~HF~839996 4.5 40 39±3% 100MHz
VK39~3955~HF~839997 5.5 40 3 2±3% 100MHz
VK39~39 65~HF~839998 6.5 40 28 ±3% 100MHz
ALUMINIUM SCREW CORE
VK39~3915~A~842792 1.5 40 102± 3% 100MHz
VK39~3925~A~842793 2.5 40 76 ±3% 100MHz
VK39~3935~A~842794 3.5 40 58±3% 100MHz
VK39~3945~A~842795 4.5 40 49±3% 100MHz
VK39~3955~A~842796 5.5 40 41±3% 100MHz
VK39~39 65~A~842797 6.5 40 36 ±3% 100MHz
※Specifications other than the above will be furnished upon request.
Loading...
