Page 1

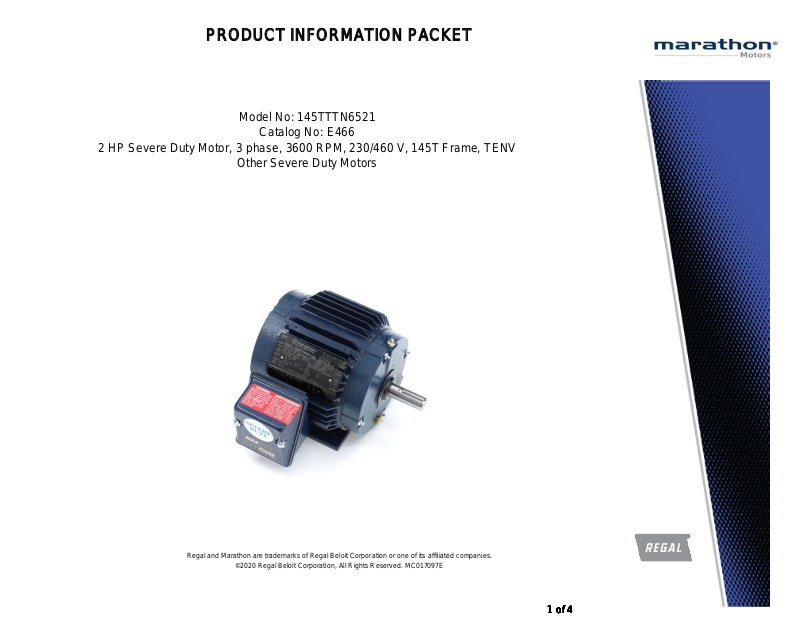

PRODUCT INFORMATION PACKET
Model No: 145TTTN6521
Catalog No: E466
2 HP Severe Duty Motor, 3 phase, 3600 RPM, 230/460 V, 145T Frame, TENV
Other Severe Duty Motors
Regal and Marathon are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 41 of 4
Page 2
Product Information Packet: Model No: 145TTTN6521, Catalog No:E466 2 HP Severe Duty Motor, 3 phase, 3600 RPM, 230/460 V, 145T Frame, TENV
Nameplate Specifications
Output HP 2 Hp Output KW 1.5 kW
Frequency 60 Hz Voltage 230/460 V
Current 5.0/2.5 A Speed 3500 rpm
Service Factor 1.15 Phase 3
Efficiency 85.5 % Power Factor 88
Duty Continuous Insulation Class F
Design Code B KVA Code L
Frame 145T Enclosure Totally Enclosed Non Ventilated
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 54
Hazardous Location DIVISION 2 T2B
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 2 Rotation Reversible
Resistance Main 6.5 Ohms Mounting Rigid Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Cast Iron
Shaft Type T Overall Length 11.43 in
Frame Length 6.25 in Shaft Diameter 0.875 in
Shaft Extension 2.56 in Assembly/Box Mounting F1/F2 CAPABLE

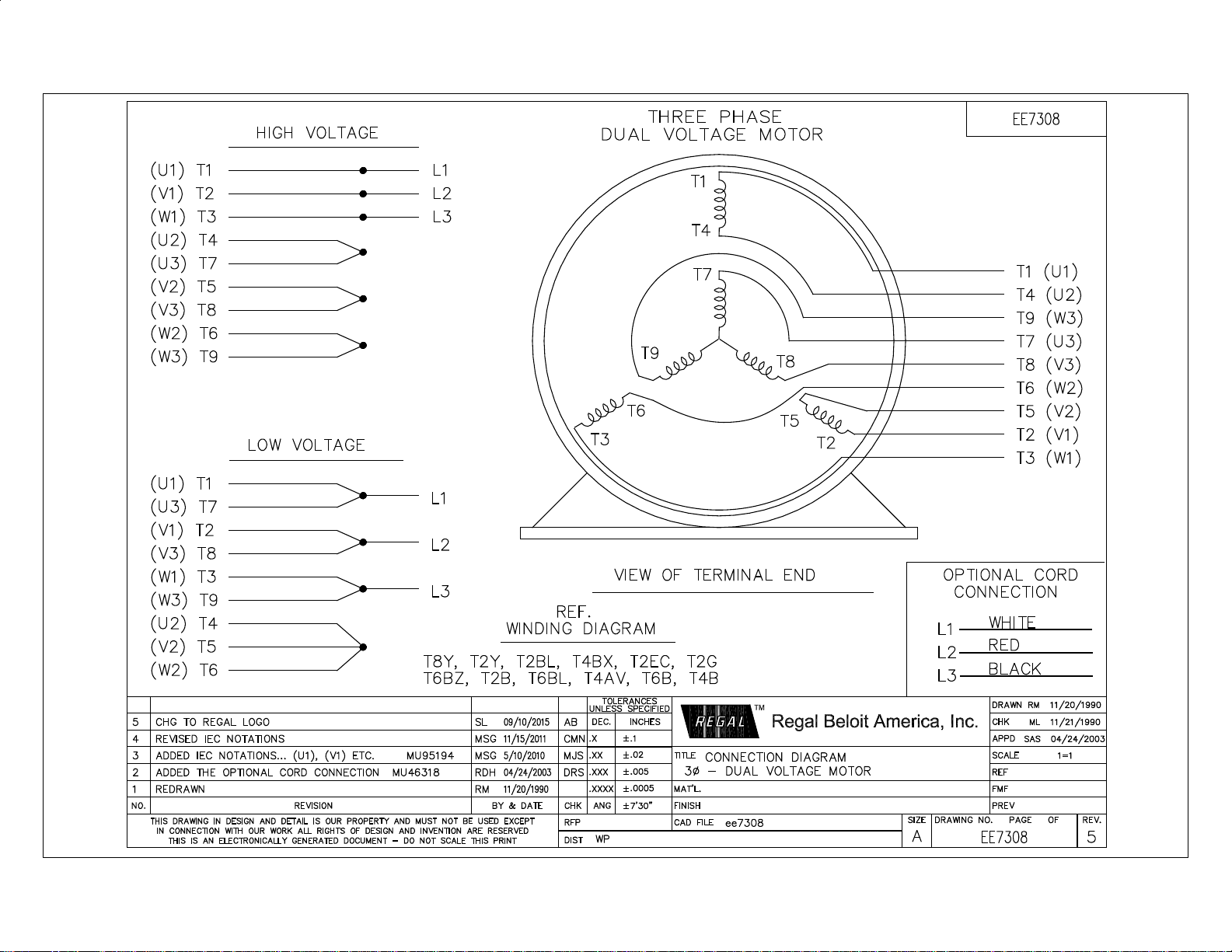

Connection Drawing A-EE7308 Outline Drawing A-100658-625
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:18/06/2020
2 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 42 of 4
Page 3
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
100658
RM
10/27/1992
JA
11/02/1992
C H. ADIKE 06/25/2018
ECO-0147607 PST 06/25/2018
THE GREASE ZERK ROTATED TO 1 O'CLOCK POSITION

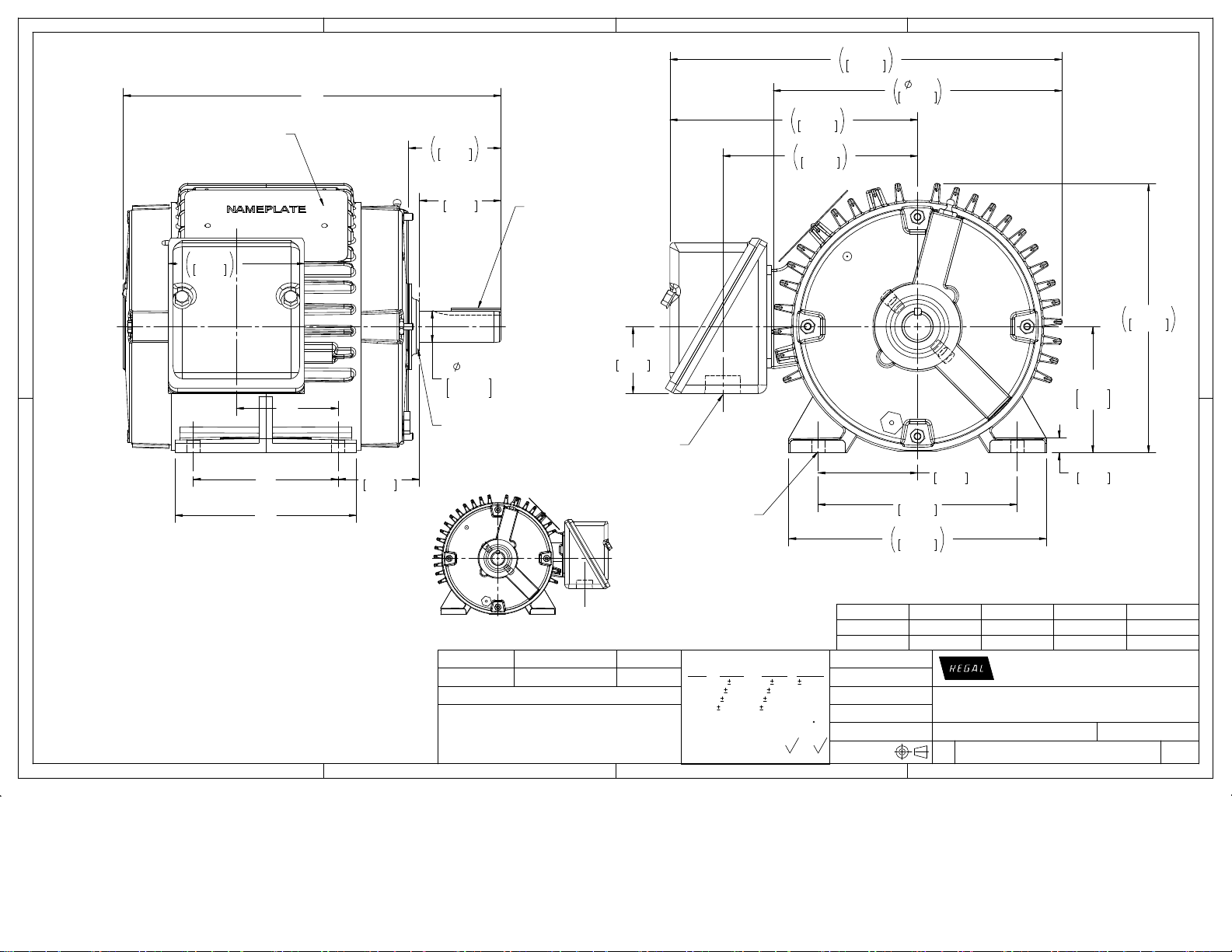

OUTLINE
100658
140T FR. - BB- TS - TENV
NOTES:
1. BOX CAN BE ROTATED IN 90° STEPS.
2. BOX CAN BE MOUN TED ON OPPOSITE SIDE BY REMOVING BR AC KETS
AND TURNING FRAME 180°.
3. FRONT G R EASE HOLE LOCATIO N SH OWN WITH HI D D EN L INES.
DASH B C BS 2F
525 5.00 [127.00] 10.43 [264.92] 2.81 [71.37] 4.00 [101.60]
625 6.00 [152.4] 11.43 [29.32] 3.81 [96.77] 5.00 [127.00]
(C)
2.56
65.00
(B)
2F
.8750
.8745
22.2237
22.2110
BS
3.75
95.25
2.25
57.15
2.25
57.07
SLINGER
(WHEN SPECIFIED )
.19[4.82] SQ x 1.38[35.05]
KEY
NAMEPLATE READ
FROM CONDUIT BOX
SIDE
F2 MOUNTING
10.83
274.96
6.84
173.68
5.38
136.65
7.44
188.86
1.85
47.09
7.12
180.85
5.50
139.70
2.75
69.85
3.50
3.44
89.01
87.49
.41
10.52
7.97
202.56
3/4-14 NPT
1 HOLE
Ø
0.34[8.63]
0.39[9.90]
THRU- 4 HOLES
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 7' 30"
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
200 5.1
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
100658
RM
10/27/1992
JA
11/02/1992
C H. ADIKE 06/25/2018
ECO-0147607 PST 06/25/2018
THE GREASE ZERK ROTATED TO 1 O'CLOCK POSITION
OUTLINE
100658
140T FR. - BB- TS - TENV
NOTES:
1. BOX CAN BE ROTATED IN 90° STEPS.
2. BOX CAN BE MOUN TED ON OPPOSITE SIDE BY REMOVING BR AC KETS
AND TURNING FRAME 180°.
3. FRONT G R EASE HOLE LOCATIO N SH OWN WITH HI D D EN L INES.
DASH B C BS 2F
525 5.00 [127.00] 10.43 [264.92] 2.81 [71.37] 4.00 [101.60]
625 6.00 [152.4] 11.43 [29.32] 3.81 [96.77] 5.00 [127.00]
Uncontrolled Copy
3 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 43 of 4
Page 4
Uncontrolled Copy
4 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 44 of 4
