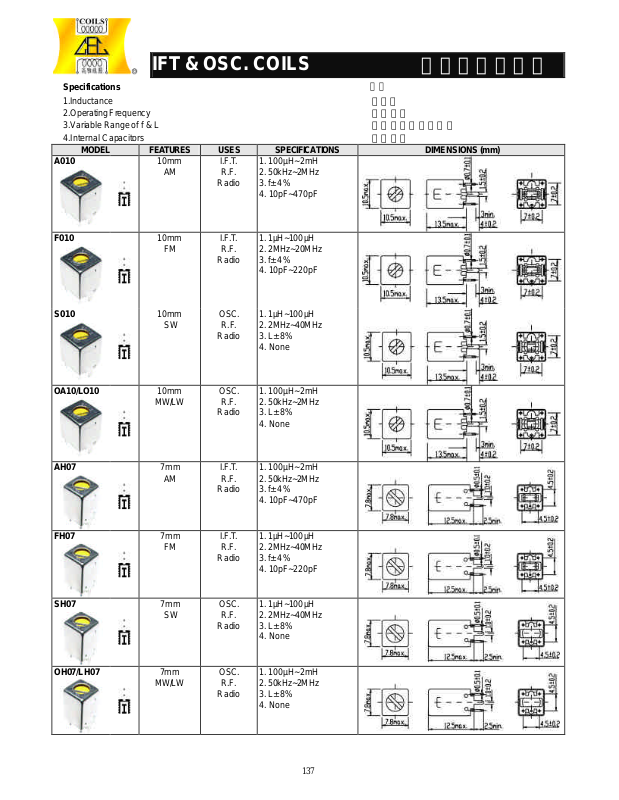

Page 1
137
IFT & OSC. COILS
Specifications 規格
1.Inductance 電感量
2.Operating Frequency 工作頻率
3.Variable Range of f & L 頻率或電感調制範圍
4.Internal Capacitors 內付電容
MODEL FEATURES USES SPECIFICATIONS DIMENSIONS (mm)
A010
F010
S010
10mm
AM
10mm
FM
10mm
SW
I.F.T.
R.F.
Radio
I.F.T.
R.F.
Radio
OSC.
R.F .
Radio
1. 100µH~2mH
2. 50kHz~2MHz
3. f±4%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~20MHz
3. f±4%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±8%
4. None
中周及振蕩線圈
OA10/LO10
AH07
FH07
SH07
OH07/LH07
10mm
MW/LW
7mm
AM
7mm
FM
7mm
SW
7mm
MW/LW
OSC.
R.F.
Radio
I.F.T.
R.F.
Radio
I.F.T.
R.F.
Radio
OSC.
R.F.
Radio
OSC.
R.F.
Radio
1. 100µH~2mH
2. 50kHz~2MHz
3. L±8%
4. None
1. 100µH~2mH
2. 50kHz~2MHz
3. f±4%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~40MHz
3. f±4%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±8%
4. None
1. 100µH~2mH
2. 50kHz~2MHz
3. L±8%
4. None
Page 2
138
IFT & OSC. COILS
中周及振蕩線圈
Specifications
1.Inductance
2.Operating Frequency
3.Variable Range of f & L
4.Internal Capacitors
MODEL FEATURES USES SPECIFICATIONS DIMENSIONS (mm)
AHK7
FHK7
SHK7
7mm
AM
W/O Holder
High Stability
7mm
FM
W/O Holder
High Stability
7mm
SW
W/O Holder
High Stability
I.F.T.
R.F.
Car Radio
T.V.
I.F.T.
R.F.
Car Radio
Transceiver
OSC.
R.F.
Car Radio
T.V.
1. 100µH~2mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%4
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
OHK7/LHK7
AHK8
FHK8
SHK8
OHK8/LHK8
7mm
MW/LW
W/O Holder
High Stability
OSC.
R.F.
T.V.
Car Radio
Tape Recorder
1. 100µH~2mH
2. 50kHz~2MHz
3. L±6%
4. None
7mm
AM
W/O Holder
High Stability
I.F.T.
R.F.
T.V.
Car Radio
Transceiver
1. 100µH~2mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
7mm
FM
W/O Holder
High Stability
7MM
SW
W/O Holder
High Stability
7MM
MW/LW
W/O Holder
High Stability
I.F.T.
R.F.
T.V.
Car Radio
Transceiver
OSC.
R.F.
Car Radio
T.V.
OSC.
R.F.
T.V.
Car Radio
Tape Recorder
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
1. 10 µH~2mH
2. 50kHz~2MHz
3. L±6%
4. None
※Specifications other than the above will be furnished upon request.
Page 3
139
IFT & OSC. COILS
中周及振蕩線圈
Specifications
1.Inductance
2.Operating Frequency
3.Variable Range of f & L
4.Internal Capacitors
MODEL FEATURES USES SPECIFICATIONS DIMENSIONS (mm)
AS06
FS06
SS06
6mm
AM
6mm
FM
6mm
SW
I.F.T.
R.F.
Radio
I.F.T.
R.F.
Radio
Transceiver
OSC.
R.F.
Radio
T.V.
1. 100µH~1.5mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
OS06/LS06
6mm
MW/LW
OSC.
R.F.
Radio
T.V.
1. 100µH~1.5mH
2. 50kHz~2MHz
3. L±6%
4. None
ASK6
W/O Holder
High Stability
6mm
AM
I. F.T.
R.F.
Radio
1. 100µH~1.5mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
FSK6
6mm
FM
W/O Holder
High Stability
I.F.T.
R.F.
Radio
Transceiver
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%
4. 10pF~100pF
SSK6
6mm
SW
W/O Holder
High Stability
OSC.
R.F.
Radio
T.V .
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
OSK6/LSK6
※Specifications other than the above will be furnished upon request.
6mm
MW/LW
W/O Holder
High Stability
OSC.
R.F.
Radio
T.V.
1. 100µH~1.5mH
2. 50kHz~2MHz
3. L±6%
4. None
Page 4
140
IFT & OSC. COILS
中周及振蕩線圈
Specifications
1.Inductance
2.Operating Frequency
3.Variable Range of f & L
4.Internal Capacitors
MODEL FEATURES USES SPECIFICATIONS DIMENSIONS (mm)
AS45
6mm
AM
4.5mm Pitch
I.F.T.
R.F.
Radio
1. 100µH~1.5mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
FS45
6mm
FM
4.5mm Pitch
I.F.T.
R.F.
Radio
Transceiver
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%
4. 10pF~220pF
SS45
6mm
SW
4.5mm Pitch
OSC.
R.F.
Radio
T.V.
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
OS45/LS45
6mm
MW/LW
4.5mm Pitch
OSC.
R.F.
Radio
T.V.
1. 100µH~1.5mH
2. 50kHz~2MHz
3. L±6%
4. None
AF05
FF05
SF05
OF05/LF05
5mm
AM
5mm
FM
5mm
SW
5mm
MW/LW
I.F.T.
R.F.
Radio
I.F.T.
R.F.
Radio
Transceiver
OSC.
R.F.
Radio
T.V.
OSC.
R.F.
Radio
T.V.
1. 100µH~1mH
2. 50kHz~2MHz
3. f ±3%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~40MHz
3. f ±3%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
1. 100µH~1mH
2. 50kHz~2MHz
3. L±6%
4. None
※Specifications other than the above will be furnished upon request.
Page 5
141
IFT & OSC. COILS
Specifications
1.Inductance
2.Operating Frequency
3.Variable Range of f & L
4.Internal Capacitors
MODEL FEATURES USES SPECIFICATIONS DIMENSIONS (mm)
AFK5
FFK5
SFK5
OFK5/LFK5
5mm
AM
W/O Holder
High
Stability
5mm
FM
W/O Holder
High
Stability
5mm
SW
W/O Holder
High
Stability
5mm
MW/LW
W/O Holder
High
Stability
I.F.T.
R.F.
Radio
I.F.T.
R.F.
Radio
Transceiver
OSC.
R.F.
Radio
T.V.
OSC.
R.F.
Radio
T.V.
1. 100µH~1mH
2. 50kHz~2MHz
3. f±3%
4. 10pF~470pF
1. 1µH~100µH
2. 2MHz~40MHz
3. f±3%
4. 10pF~220pF
1. 1µH~100µH
2. 2MHz~40MHz
3. L±6%
4. None
1. 100µH~1.0mH
2. 50kHz~2MHz
3. L±6%
4. None
中周及振蕩線圈
BIAS COILS
錄音偏磁線圈
MODEL FEATURES USES SPECIFICATIONS DIMENSION S (mm)
OD12
12mm
BIAS
OOD8/AOD8
7mm
BIAS
W/O Holder
High Stability
FM MPX
Bias OSC.
Trap
Radio
FM MPX
Bias Coil
Trap
Radio
1. 100µH~50mH
2. 2.10kHz~500kHz
3. L±8%
4. None
1. 100µH~50mH
2. 2.10kHz~500kHz
3. L±8%
4. None or one
※
Specifications other than the above will be furnished upon request.
Page 6
142
AUDIO FILTER
MODEL DIMENSION (mm) ELECTRIC CHARACTERISTICS
KD12/KD1C
音頻濾波器
KD2C
Frequency Range : 10~200kHz
LOD8
1. External Capacitors
2. Internal Capacitors (1pcs or 2pcs)
1.External Capacitors
MODEL DIMENSION (mm) MEASUREMENT CIRCUIT
YS8N
2.Internal Capacitors (1pcs or 2pcs)
FM ANT BAND-PASS FILTER
Frequency Range : 10~200kHz
帶通濾波器
1.External Capacitors
2.Internal Capacitors (2pcs)
AM CERAMIC FILTERS WITH MATCHING COIL
MODEL DIMENSION (mm) MEASUREMENT CIRCUIT
Frequency Range: 88~108MHz
AHKB
GENERAL CHARACTERISTICS FEATURES
Center Frequency (Fo) : 451kHz ±1.2kHz
Bandwidth at 6dB : 5.0 kHz Min
Input level (0.6mV output) : 91±3.0 dB
Selectivity at Fo±9kHz
Ripple in Pass Band (6dB ) : 1.0 Max
Stopband Attenuation (Fo ~ 2.5 MHz) : 40.0 dB Min.
: 18.0 dB Min.
l Low temperature coefficient.
l Excellent anti-humidity.
l
Excellent overall characteristic.
※
Specifications other than the above will be furnished upon request.
濾波器
