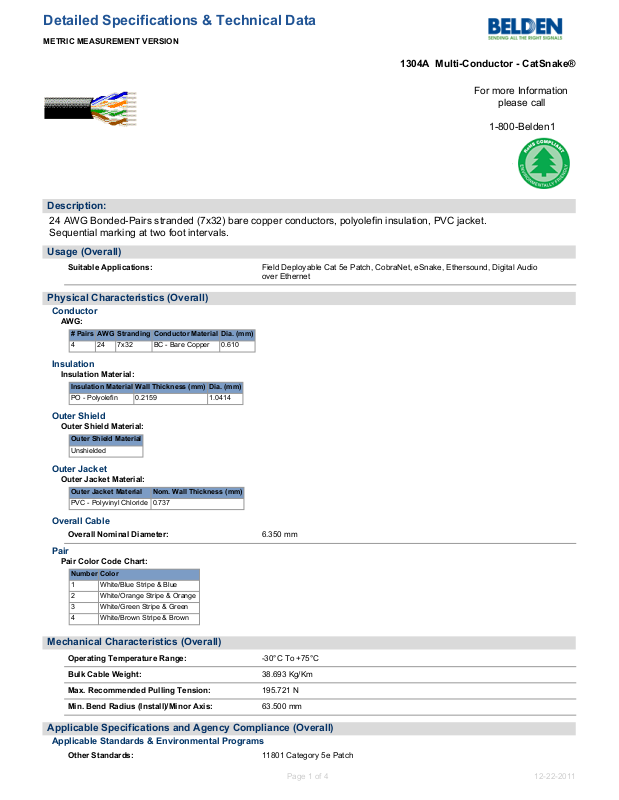

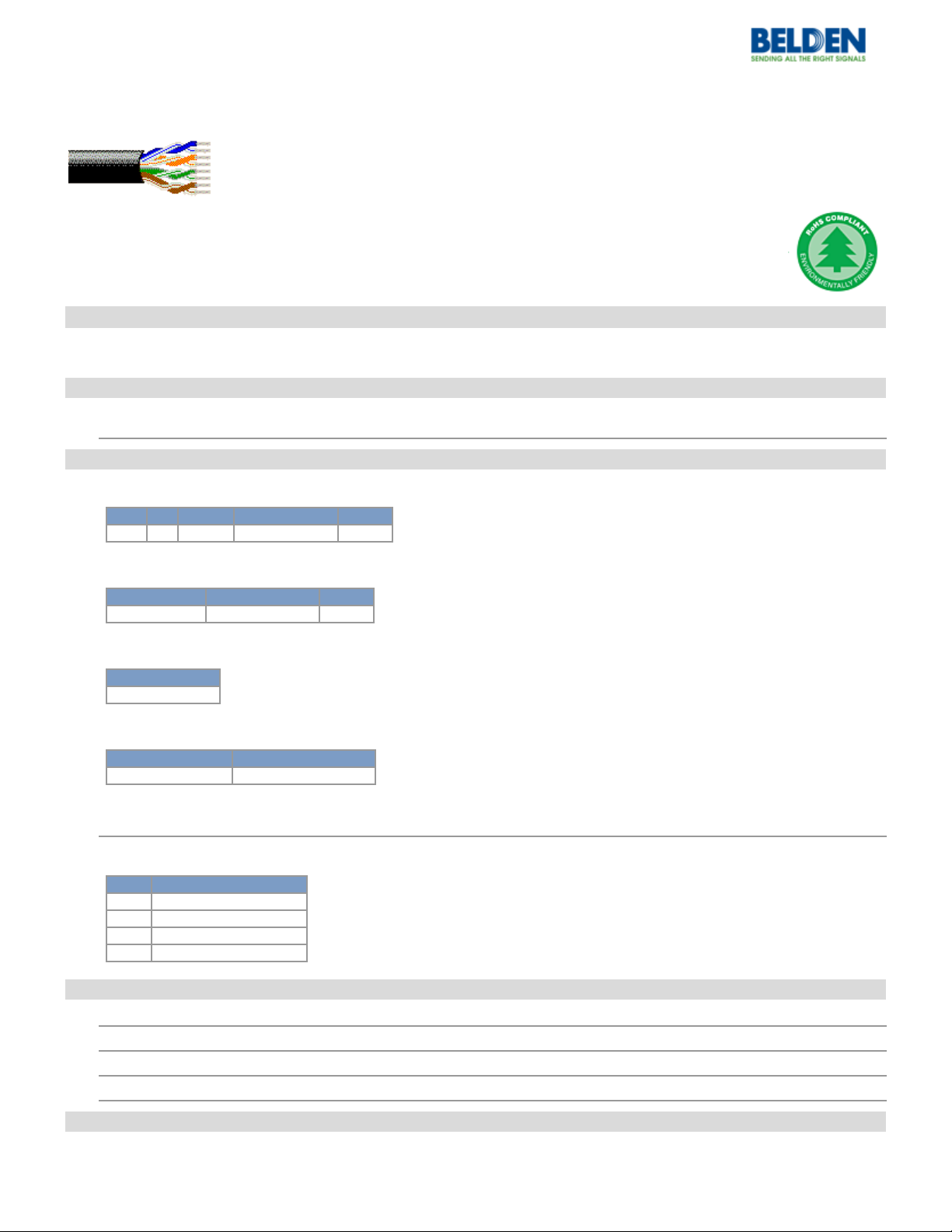

Page 1
For more Information
please call
1-800-Belden1
Description:
24 AWG Bonded-Pairs stranded (7x32) bare copper conductors, polyolefin insulation, PVC jacket.
Sequential marking at two foot intervals.
Usage (Overall)
Suitable Applications: Field Deployable Cat 5e Patch, CobraNet, eSnake, Ethersound, Digital Audio
over Ethernet
Physical Characteristics (Overall)
Conductor
AWG:
# Pairs AWG Stranding Conductor Material Dia. (mm)
4 24 7x32 BC - Bare Copper 0.610
Insulation
Insulation Material:
Insulation Material Wall Thickness (mm) Dia. (mm)
PO - Polyolefin 0.2159 1.0414
Outer Shield
Outer Shield Material:
Outer Shield Material
Unshielded
Outer Jacket
Outer Jacket Material:
Outer Jacket Material Nom. Wall Thickness (mm)
PVC - Polyvinyl Chloride 0.737
Overall Cable
Overall Nominal Diameter: 6.350 mm
Pair
Pair Color Code Chart:
Number Color
1 White/Blue Stripe & Blue
2 White/Orange Stripe & Orange
3 White/Green Stripe & Green
4 White/Brown Stripe & Brown
Mechanical Characteristics (Overall)
Operating Temperature Range: -30°C To +75°C
Bulk Cable Weight: 38.693 Kg/Km
Max. Recommended Pulling Tension: 195.721 N
Min. Bend Radius (Install)/Minor Axis: 63.500 mm
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
Other Standards: 11801 Category 5e Patch
Page 1 of 4 12-22-2011
Detailed Specifications & Technical Data
METRIC MEASUREMENT VERSION
1304A Multi-Conductor - CatSnake®
Page 2
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2002/95/EC (RoHS): Yes
EU RoHS Compliance Date (mm/dd/yyyy): 02/20/2006
EU Directive 2002/96/EC (WEEE): Yes
EU Directive 2003/11/EC (BFR): Yes
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes
Telecommunications Standards: 568-B.2 Category 5e Patch
Other Specification: NEMA WC-63.1 Category 5, ICEA 661, Category 5e Patch, TIA/EI-568-B.2,
Category 5e
Suitability
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Plenum/Non-Plenum
Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Mutual Capacitance:
Capacitance (pF/m)
49.215
Maximum Capacitance Unbalance (pF/100 m): 66
Nominal Velocity of Propagation:
VP (%)
70
Maximum Delay:
Delay (ns/100 m)
510
Typical Delay Skew:
Delay Skew (ns/m)
49.215
Max. Delay Skew:
Delay Skew (ns/100 m)
25
Nom. Conductor DC Resistance:
DCR @ 20°C (Ohm/km)
82.025
Maximum Conductor DC Resistance:
DCR @ 20°C (Ohm/100 m)
9
Max. Operating Voltage - UL:
Voltage
300 V RMS
Maximum DCR Unbalanced:
DCR Unbalance @ 20°C (%)
3
Electrical Characteristics-Premise (Overall)
Premise Cable Electrical Table 1:
Freq. (MHz) Max. Attenuation (dB/100 m) Min. NEXT (dB) Min. PSNEXT (dB) Min. PSACR (dB) Min RL (dB)
1 2.400 65.3 65.3 62.9 20.000
Page 2 of 4 12-22-2011
Detailed Specifications & Technical Data
METRIC MEASUREMENT VERSION
1304A Multi-Conductor - CatSnake®
Page 3
4 4.800 56.3 56.3 51.5 23.000
6 5.900
8 6.800 51.8 51.8 45.0 24.500
10 7.700 50.3 50.3 42.6 25.000
12 8.400
16 9.700 47.3 47.3 37.5 25.000
20 11.000 45.8 45.8 34.8 25.000
25 12.400 44.3 44.3 31.9 24.300
31.25 13.900 42.9 42.9 29.0 23.600
62.5 20.200 38.4 38.4 18.3 21.500
100 26.000 35.3 35.3 9.2 20.100
155 33.200 32.5 32.5 0 19.000
200 38.400 30.8 30.8 19.000
250 43.700 29.3 29.3 18.000
300 48.600 28.2 28.2 18.000
310 49.500 27.9 27.9 18.000
350 53.200 27.2 27.2 17.000
Premise Cable Electrical Table 2:
Freq. (MHz) Input (Unfitted) Imp. (Ohms) Fitted Impedance Min. ELFEXT (dB) Min. PSELFEXT (dB)
1 100 ± 12 105 ± 10 63.8 60.8
4 100 ± 12 100 ± 10 51.7 48.7
8 100 ± 12 100 ± 10 45.7 42.7
10 100 ± 12 100 ± 10 43.8 40.8
16 100 ± 12 100 ± 10 39.7 36.7
20 100 ± 12 100 ± 10 37.7 34.7
25 100 ± 15 100 ± 10 35.8 32.8
31.25 100 ± 15 100 ± 10 33.9 30.9
62.5 100 ± 15 100 ± 10 27.8 24.8
100 100 ± 18 100 ± 10 23.8 20.8
155 100 ± 18 100 ± 10 19.9 16.9
200 100 ± 20 100 ± 10 17.7 14.7
250 100 ± 20 100 ± 10 15.8 12.8
300 100 ± 20 100 ± 10 14.2 11.2
310 100 ± 20 100 ± 10 13.9 10.9
350 100 ± 22 100 ± 10 12.9 9.9
Notes (Overall)
Notes: US Patents 5606151; 5734126; 5763823. EtherNet/IP is a trademark of ControlNet Internation, Ltd. under license by Open
DeviceNet Vendor Association, Inc. Operating temperatures are subject to length de-rating.
Related Documents:
No related documents are available for this product
Put Ups and Colors:
Item # Putup Ship Weight Color Notes Item Desc
1304A B591000 305 MT 12.701 KG BLACK, MATTE 4 PR #24 PP FRPVC
1304A B59500 152 MT 6.577 KG BLACK, MATTE 4 PR #24 PP FRPVC
Revision Number: 6 Revision Date: 03-19-2010
© 2011 Belden, Inc
All Rights Reserved.
Although Belden makes every reasonable effort to ensure their accuracy at the time of this publication, information and specifications
described herein are subject to error or omission and to change without notice, and the listing of such information and specifications does not
ensure product availability.
Belden provides the information and specifications herein on an "AS IS" basis, with no representations or warranties, whether express,
statutory or implied. In no event will Belden be liable for any damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Belden has been advised of the possibility of such damages, whether in an action under contract,
negligence or any other theory, arising out of or in connection with the use, or inability to use, the information or specifications described herein.
All sales of Belden products are subject to Belden's standard terms and conditions of sale.
Page 3 of 4 12-22-2011
Detailed Specifications & Technical Data
METRIC MEASUREMENT VERSION
1304A Multi-Conductor - CatSnake®
Page 4
Belden believes this product to be in compliance with EU RoHS (Directive 2002/95/EC, 27-Jan-2003). Material manufactured prior to the
compliance date may be in stock at Belden facilities and in our Distributor’s inventory. The information provided in this Product Disclosure, and
the identification of materials listed as reportable or restricted within the Product Disclosure, is correct to the best of Belden’s knowledge,
information, and belief at the date of its publication. The information provided in this Product Disclosure is designed only as a general guide
for the safe handling, storage, and any other operation of the product itself or the one that it becomes a part of. This Product Disclosure is not
to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for
determining the applicability of legislation and regulations based on their individual usage of the product.
Page 4 of 4 12-22-2011
