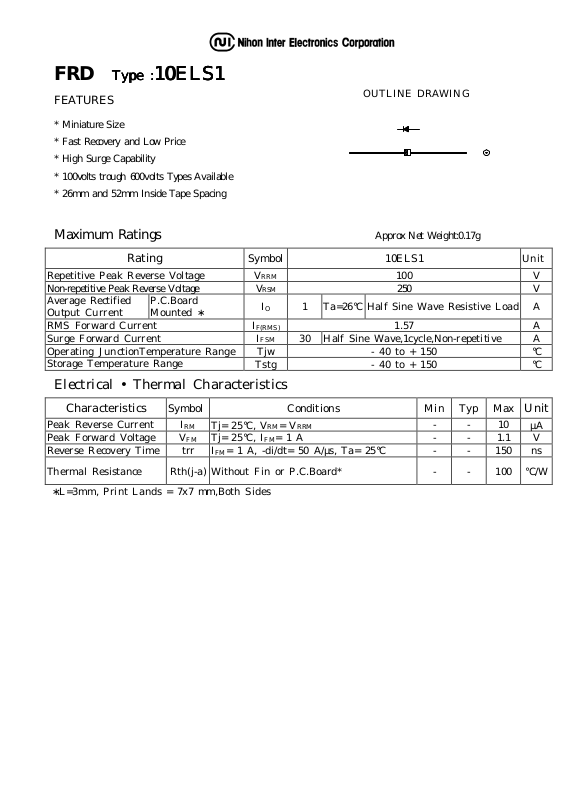

Page 1
FRD T
Type :
TT
ype :10ELS
ype :ype :
10ELS1111
10ELS10ELS
FEATURES
* Miniature Size
* Fast Recovery and Low Price
* High Surge Capability
* 100volts trough 600volts Types Available
* 26mm and 52mm Inside Tape Spacing
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage V
Non-repetitive Peak Reverse Voltage V
Average Rectified
Output Current
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range
Storage Temperature Range
P.C.Board
Mounted ∗
Symbol 10ELS1
100 V
RRM
250 V
RSM
1
I
O
1.57 A
F(RMS)
30 Half Sine Wave,1cycle,Non-repetitive A
FSM
Tjw - 40 to + 150
Tstg - 40 to + 150
Ta=26°C
OUTLINE DRAWING
Approx Net Weight:0.17g
Unit
Half Sine Wave Resistive Load A
°C
°C
Electrical • Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Reverse Recovery Time
Thermal Resistance Rth(j-a) Without Fin or P.C.Board* - - 100
∗:L=3mm, Print Lands = 7x7 mm,Both Sides
Symbol Conditions Min Typ Max
I
V
trr
RM
FM
Tj= 25°C, V
Tj= 25°C, I
= 1 A, -di/dt= 50 A/µs, Ta= 25°C
I
FM
= V
RM
= 1 A
FM
RRM
- - 10
- - 1.1 V
- - 150 ns
Unit
µA
°C/W
Page 2

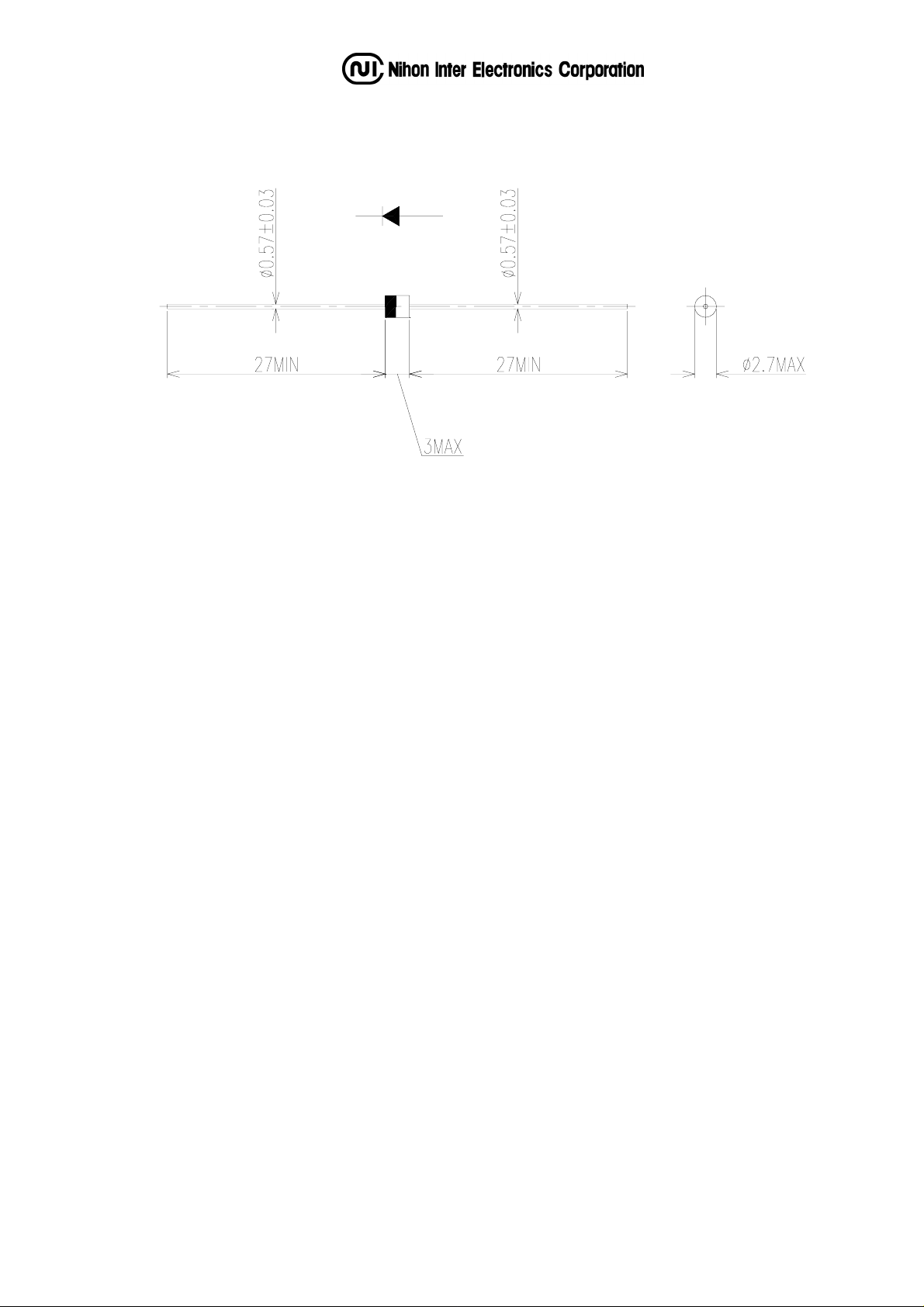

10ELS1 OUTLINE DRAWING (Dimensions in mm)
