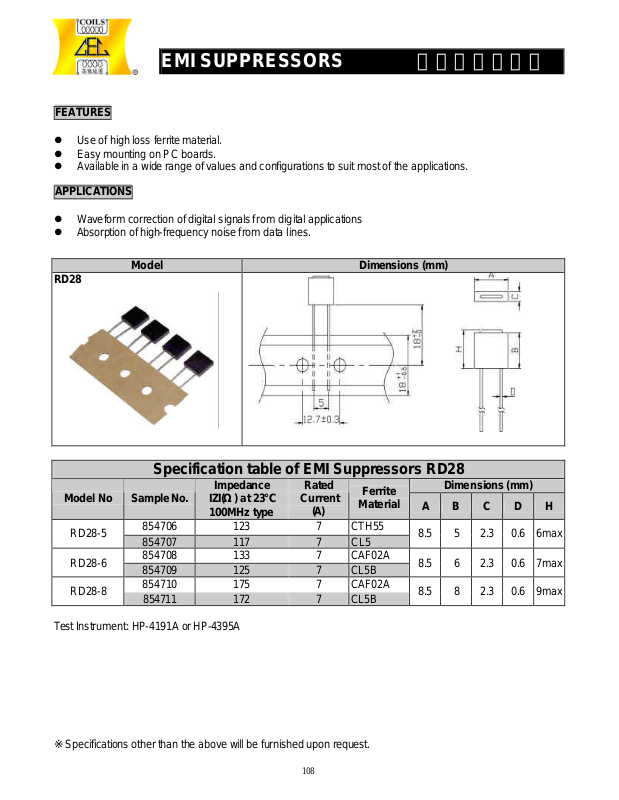

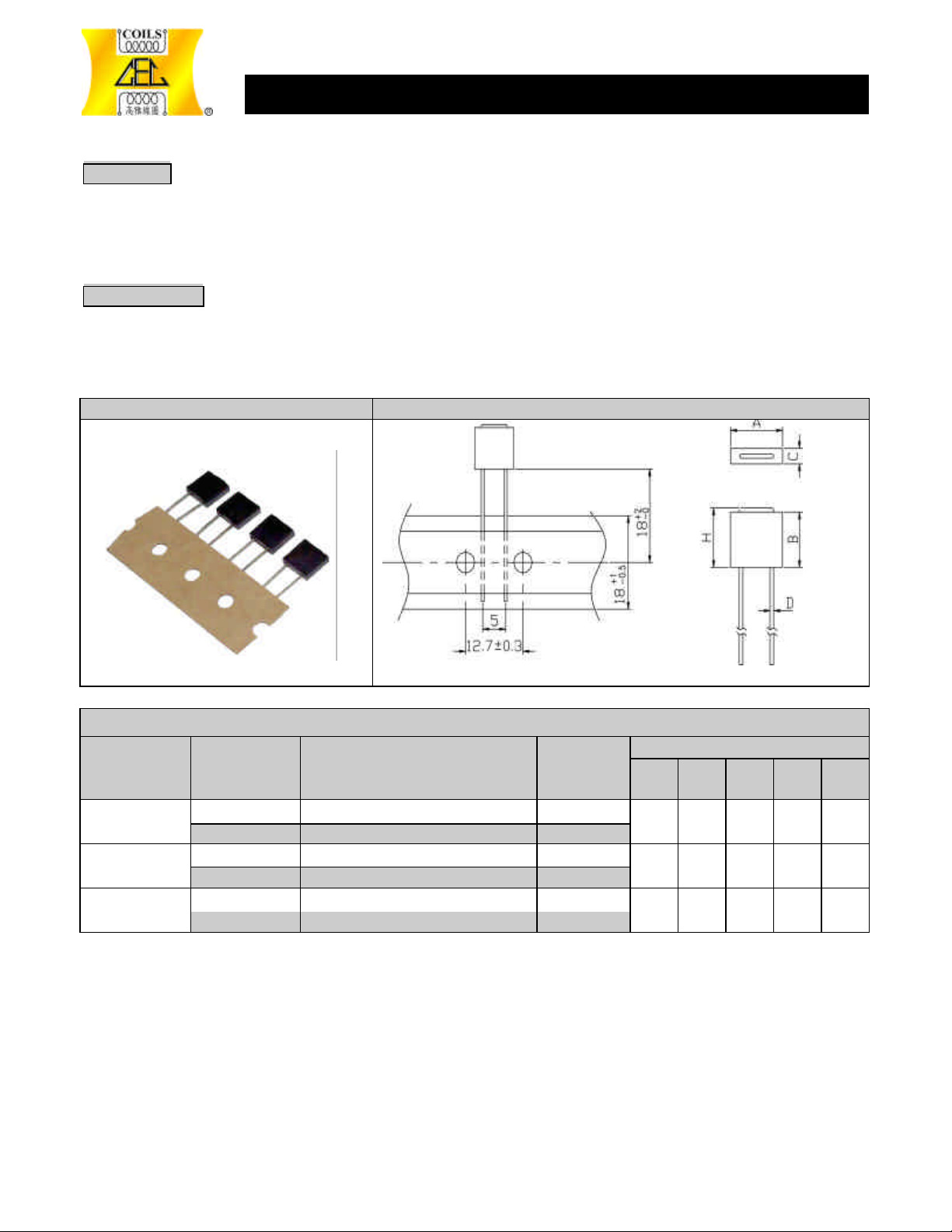

Page 1
108
FEATURES
l Use of high loss ferrite material.
l Easy mounting on PC boards.
l Available in a wide range of values and configurations to suit most of the applications.
APPLICATIONS
l Waveform correction of digital signal s from digital applications
l Absorption of high -frequency noise from data lines.
RD28
EMI SUPPRESSORS
Model Dimensions (mm)
電磁干擾 抑制器
Specification table of EMI Suppressors RD28
Impedance
Model No Sample No.
RD28-5
RD28-6
RD28-8
Test Instrument: HP-4191A or HP-4395A
※Specifications other than the above will be furnished upon request.
854706 123 7 CTH55
854707 117 7 CL5
854708 133 7 CAF02A
854709 125 7 CL5B
854710 175 7 CAF02A
854711 172 7 CL5B
IZI(Ω) at 23℃
100MHz type
Rated
Current
(A)
Ferrite
Material
Dimensions (mm)
A B C D H
8.5 5 2.3 0.6 6max
8.5 6 2.3 0.6 7max
8.5 8 2.3 0.6 9max
Page 2
109
EMI SUPPRESSORS

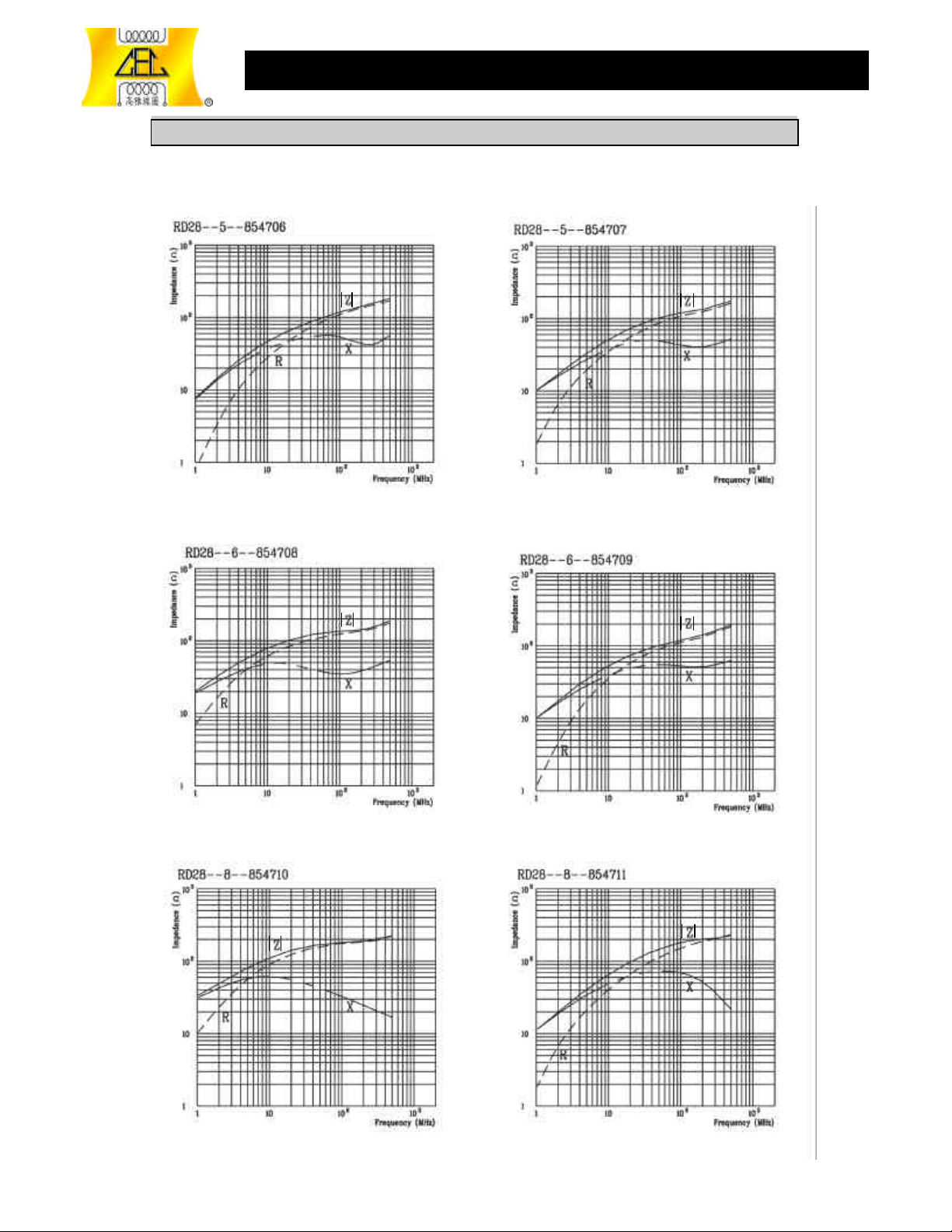

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RD28
TYPICAL ELECTRICAL CHARACTERISTICS
|Z| , R, X
※Specifications other than the above will be furnished upon request.
FREQUENCY CHARACTERISTICS
VS.
電磁干擾 抑制器

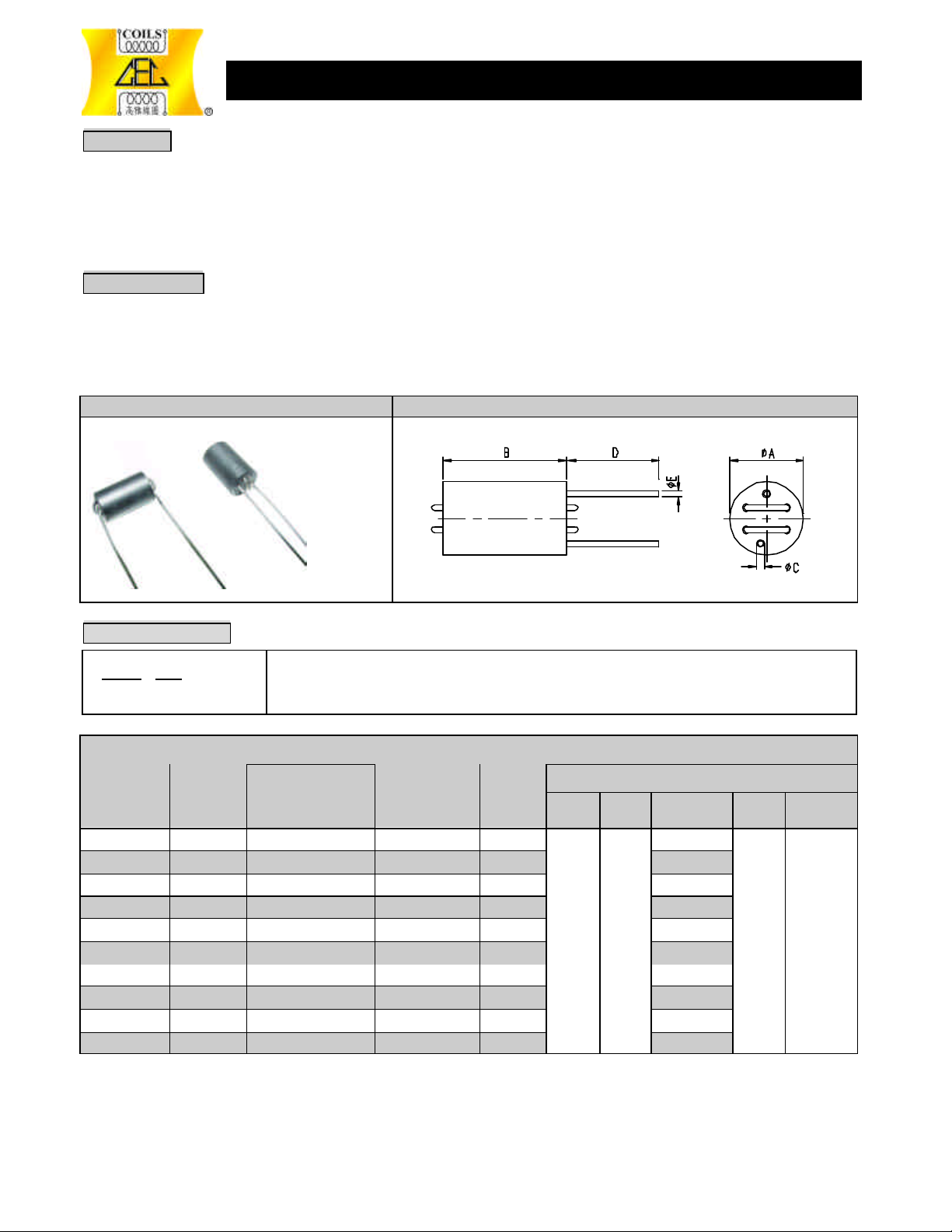

Page 3
110
ix hole beads, is available as beads and wound with tinned copper wire in several winding
Measures against radiated noise from personal computers, microcomputers, peripherals and
T
T
T
T
EMI SUPPRESSORS
電磁干擾 抑制器
FEATURES
l S
configurations.
l Compact; Easy installation.
l Employ high-performance ferrites with superior frequency characteristics.
APPLICATIONS
l
related devices.
l Prevent intrusion of unnecessary signals and radiated emission noise into various interfaces.
Model Dimensions (mm)
CB6A
ORDERING CODE
CB6A - 150
A B
A : Model (Packing in Bulk)
B : Number of turns
Specification table of EMI Suppressors CB6A series
Model
CB6A-150 830260 360 CAF02A 1 ½
CB6A-150 850505 450 CAF01 1 ½
CB6A-200
CB6A-200 850506 650 CAF01 2 T
CB6A-250 830262 710 CAF02A 2½ T
CB6A-250 850507 880 CAF01 2½ T
CB6A-300 830263 850 CAF02A 3 T
CB6A-300 850508 1080 CAF01 3 T
CB6A-2X150 851968 360 CAF02A 2X1½
CB6A-2X150
Sample
No.
830261 490 CAF02A 2 T
851969 450 CAF01 2X1½
Test Instrument: HP-4191A or HP-4395A
※ Specifications other than the above will be furnished upon request.
Impedance
|Z|( Ω) at 23℃
100MHz typ.
Ferrite
Material
Turns
Dimensions (mm)
ØA B ØC D ØE
1.0±0.1
0.8±0.1
S
S
S
S
S
S
6.0
±0.5
10.0
±0.3
1.0±0.1
0.8±0.1
1.0±0.1
0.8±0.1
1.0±0.1
0.8±0.1
1.0±0.1
0.8±0.1
20.0
±2.0
0.5
±0.1
Page 4
111
EMI SUPPRESSORS

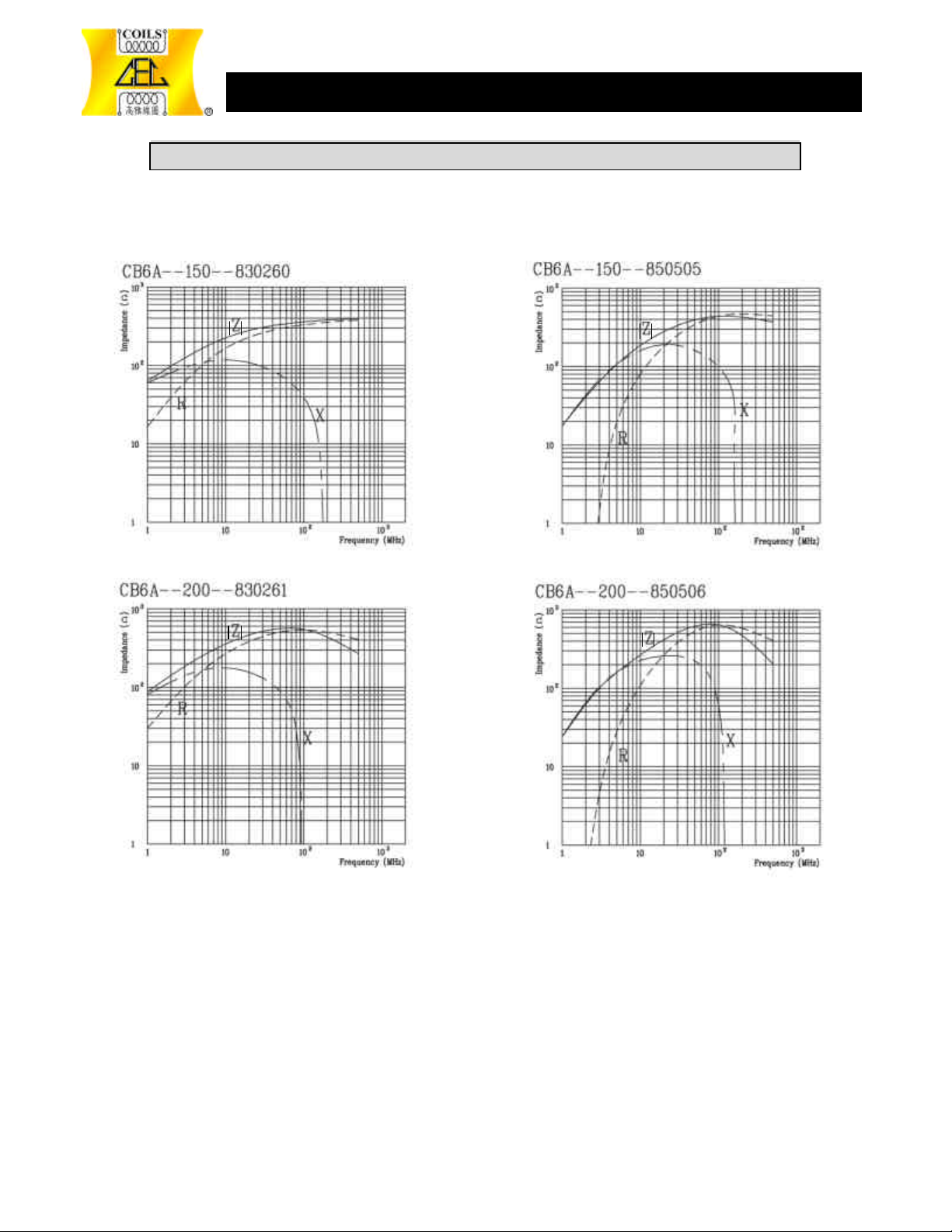

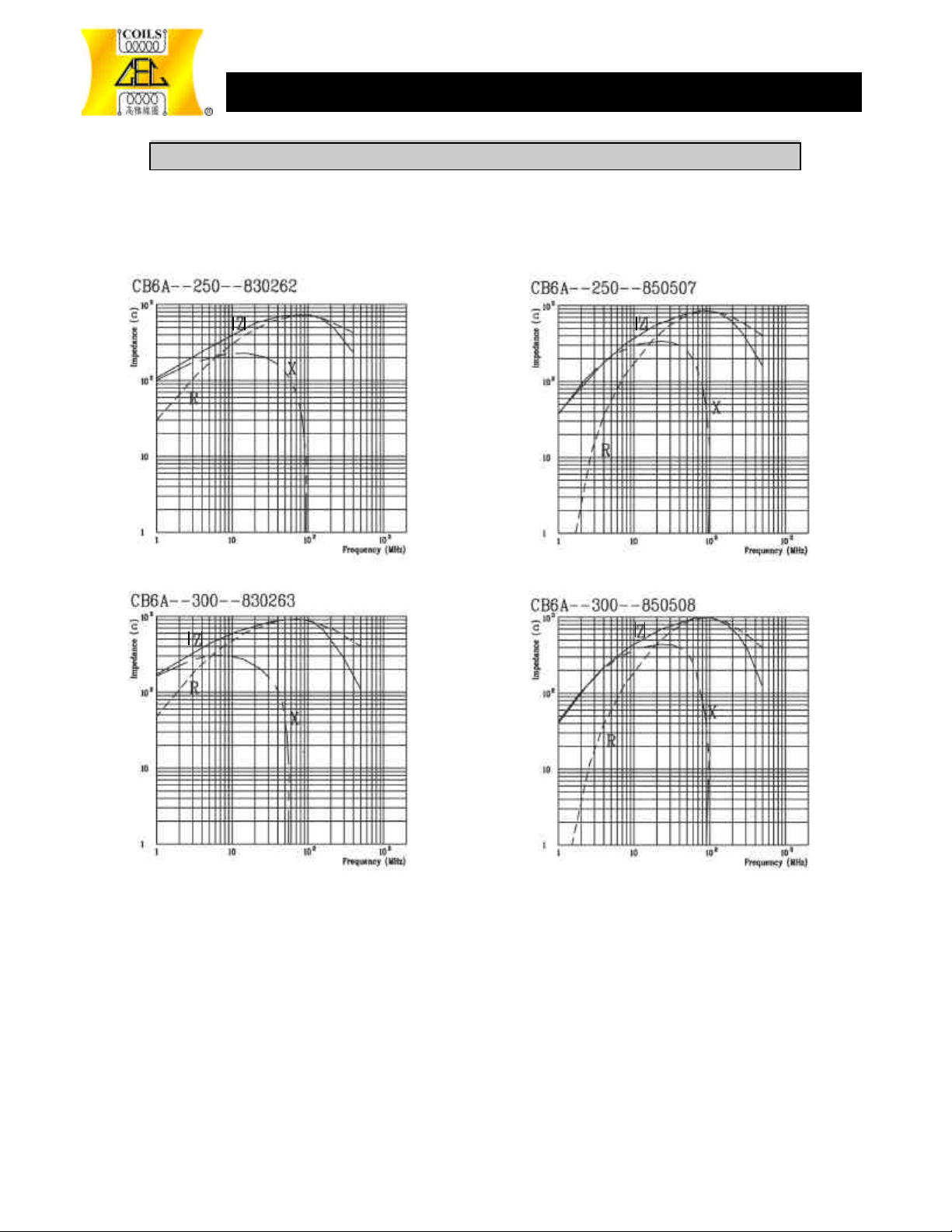

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF CB6A
TYPICAL ELECTRICAL CHARACTERISTICS
|Z| , R, X
※Specifications other than the above will be fu rnished upon request.
FREQUENCY CHARACTERISTICS
VS.
電磁干擾 抑制器
Page 5
112
EMI SUPPRESSORS
IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF CB6A
TYPICAL ELECTRICAL CHARACTERISTICS
|Z| , R, X
※Specifications other than the above will be furnished upon request.
FREQUENCY CHARACTERISTICS
VS.
電磁干擾 抑制器
