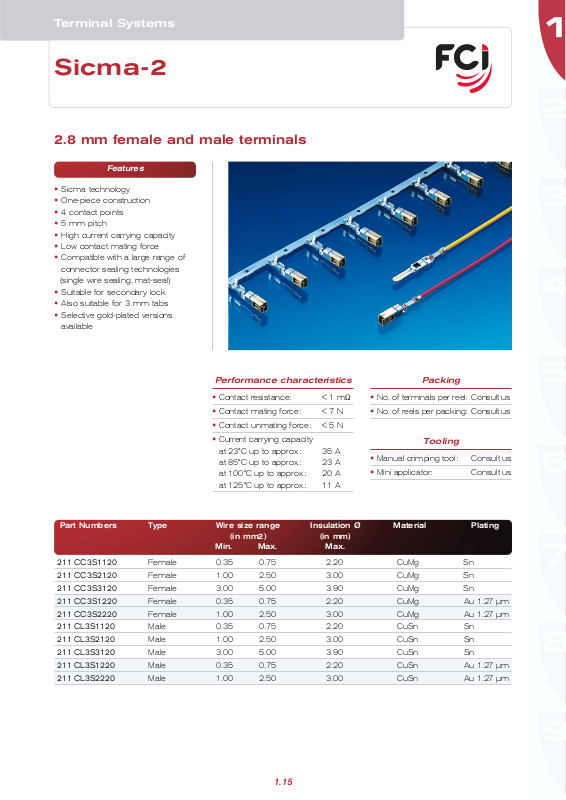

Page 1
Terminal Systems
Sicma-2

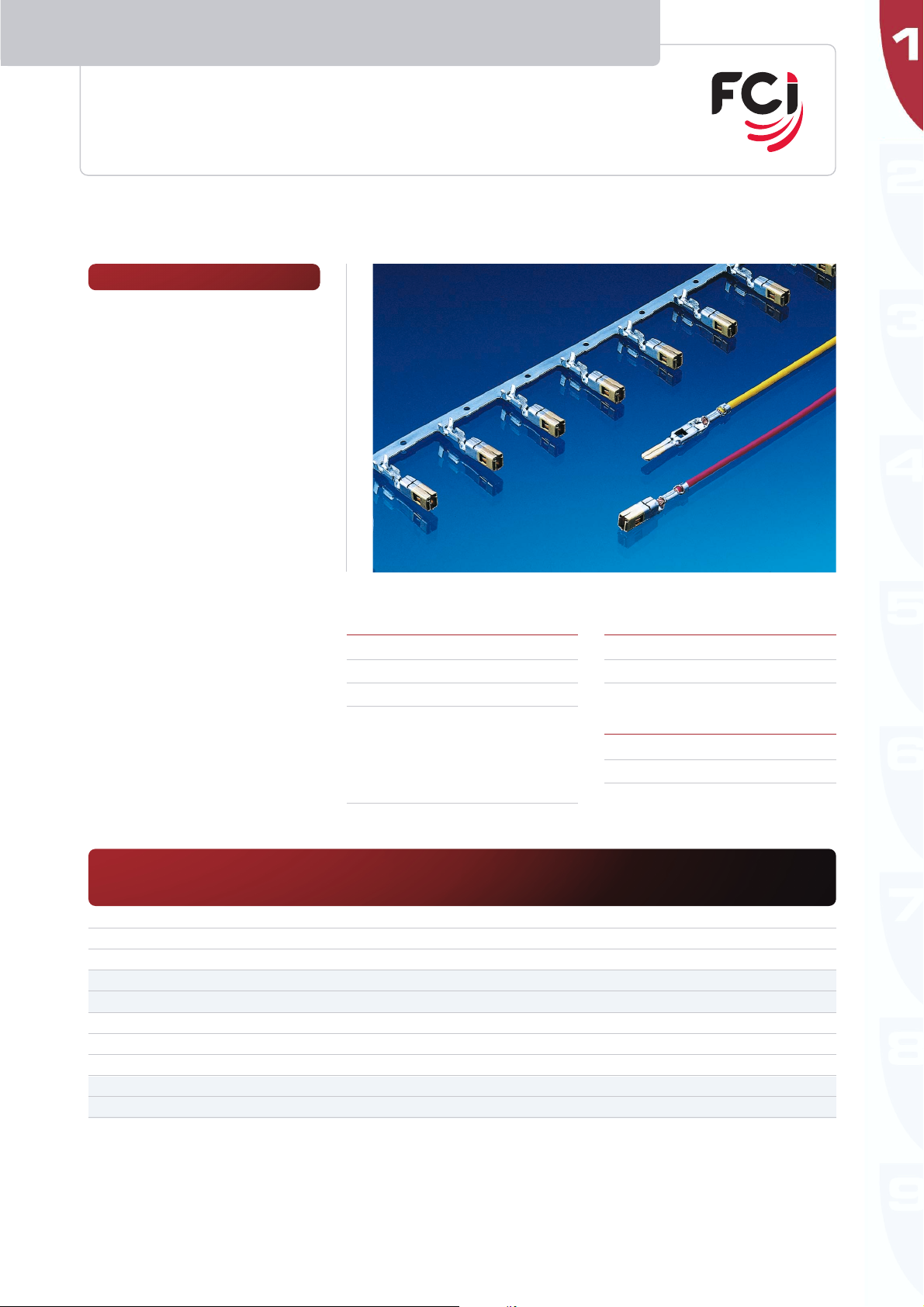

2.8 mm female and male terminals
Performance characteristics
•
Contact resistance: < 1 mΩ
•
Contact mating force: < 7 N
•
Contact unmating force: < 5 N
•
Current carrying capacity
at 23°C up to approx.: 35 A
at 85°C up to approx.: 23 A
at 100°C up to approx.: 20 A
at 125°C up to approx.: 11 A
Packing
•
No. of terminals per reel: Consult us
•
No. of reels per packing: Consult us
Tooling
•
Manual crimping tool: Consult us
•
Mini applicator: Consult us
•
Sicma technology
•
One-piece construction
•
4 contact points
•
5 mm pitch
•
High current carrying capacity
•
Low contact mating force
•
Compatible with a large range of
connector sealing technologies
(single wire sealing, mat-seal)
•
Suitable for secondary lock
•
Also suitable for 3 mm tabs
•
Selective gold-plated versions
available
Part Numbers Type Wire size range Insulation Ø Material Plating
(in mm2) (in mm)
Min. Max. Max.
211 CC3S1120
Female 0.35 0.75 2.20 CuMg Sn
211 CC3S2120
Female 1.00 2.50 3.00 CuMg Sn
211 CC3S3120
Female 3.00 5.00 3.90 CuMg Sn
211 CC3S1220
Female 0.35 0.75 2.20 CuMg Au 1.27 µm
211 CC3S2220
Female 1.00 2.50 3.00 CuMg Au 1.27 µm
211 CL3S1120
Male 0.35 0.75 2.20 CuSn Sn
211 CL3S2120
Male 1.00 2.50 3.00 CuSn Sn
211 CL3S3120
Male 3.00 5.00 3.90 CuSn Sn
211 CL3S1220
Male 0.35 0.75 2.20 CuSn Au 1.27 µm
211 CL3S2220
Male 1.00 2.50 3.00 CuSn Au 1.27 µm
Features
1.15
Page 2

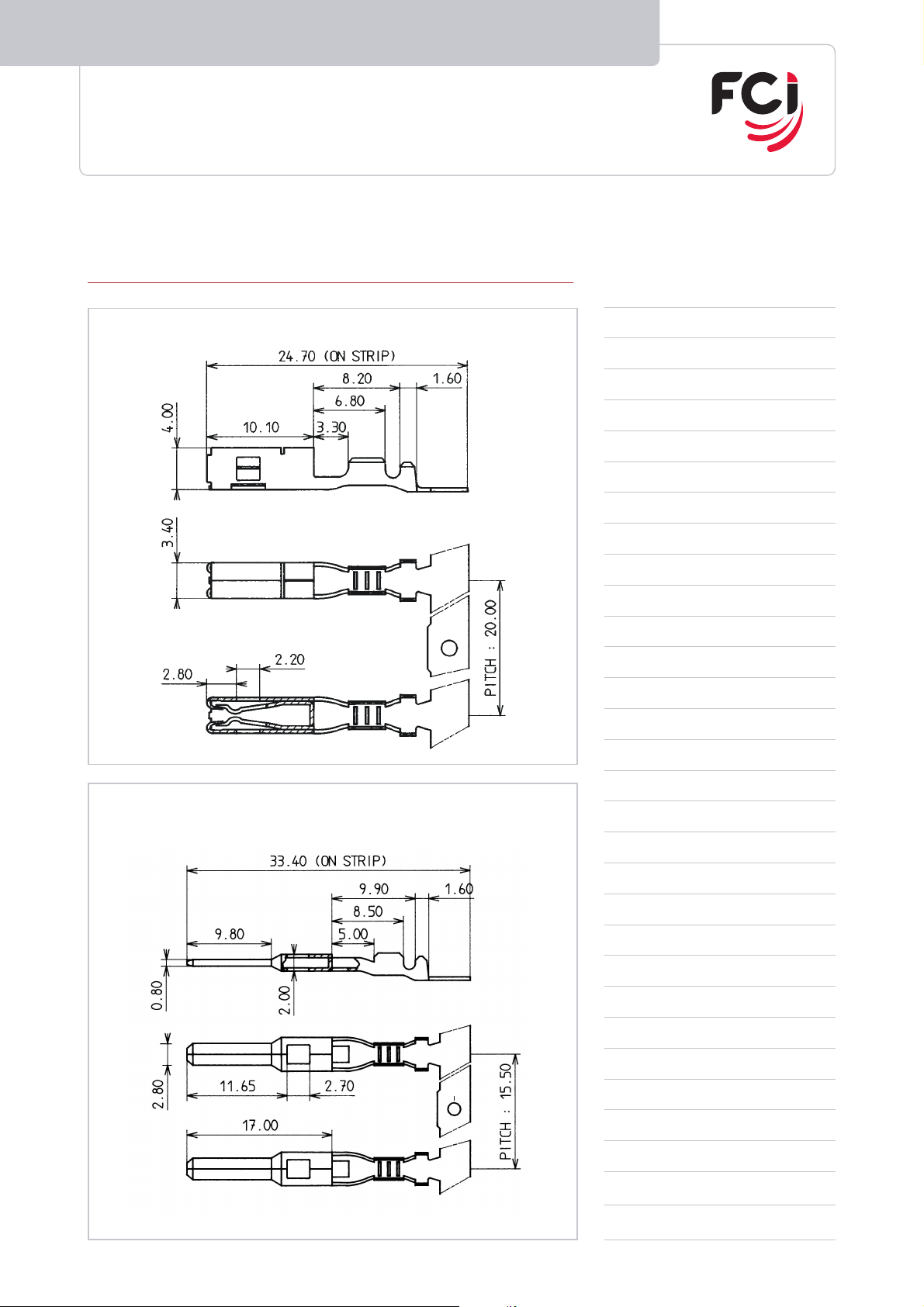

Dimensional characteristics
Terminal Systems
Sicma-2
Notes :
Female terminals
Male terminals
1.16
2.8 mm female and male terminals
