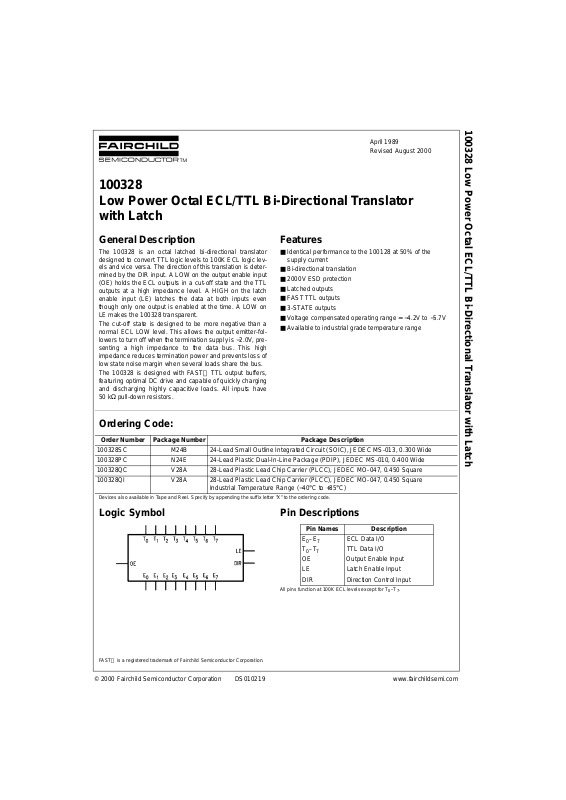

100328 Low Power Octal ECL/TTL Bi-Directional Translator with Latch

100328 Low Power Octal ECL/TTL Bi-Directional Translator

with Latch

General Description

The 100328 is an octal latched bi-directional translator designed to convert TTL logic levels to 100K ECL logic levels and vice versa. The direction of this translation is determined by the DIR input. A LOW on the outp ut enable input (OE) holds the ECL ou tputs in a cut- off state and the TTL outputs at a high imped ance level. A HIGH on the latch enable input (LE) latches the data at both inputs even though only one outpu t is enabled at the time. A LOW on LE makes the 100328 transparent.

The cut-off state is designe d to be more negative than a normal ECL LOW l evel. This allows the output emi tter-followers to turn off when the termination supply is

−2.0V, pre-

senting a high impedance to the data bus. This high impedance reduces termination power and prevents loss of low state noise margin when several loads share the bus.

The 100328 is designed with FAST

 TTL output buffers,

featuring optimal DC drive an d capabl e of quickly cha rging and discharging highly capacitive loads. All inputs have 50 k

Ω pull-down resistors.

Features

■ Identical performance to the 100128 at 50% of the supply current

■ Bi-directional translation

■ 2000V ESD protection

■ Latched outputs

■ FAST TTL outputs

■ 3-STATE outputs

■ Voltage compensated operating range

= −4.2V to −5.7V

■ Available to industrial grade temperature range

Ordering Code:

Devices also availab le in Tape and Reel. Specify by appending th e s uffix let t er “X” to the ordering code.

Logic Symbol Pin Descriptions

All pins function at 100K ECL levels except for T0–T7.

FAST is a registered trademark of Fairc hild Semiconductor Corporation.

Order Number Package Number Package Description

100328SC M24B 24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide 100328PC N24E 24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-010, 0.400 Wide 100328QC V28A 28-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.450 Square 100328QI V28A 28-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.450 Square

Industrial Temperature Range (

−40°C to +85°C)

Pin Names Description

0–E7

ECL Data I/O

0–T7

TTL Data I/O OE Output Enable Input LE Latch Enable Input DIR Direction Control Input

Page 2

www.fairchildsemi.com 2

100328

Connection Diagrams

24-Pin DIP/SOIC

28-Pin PLCC

Truth Table

H = HIGH Voltage Level L = LOW Voltage Level X = Don’t Care Z = High Impedance

Note 1: ECL input to TTL output mode. Note 2: TTL input to ECL output mode. Note 3: Retains data present before LE set HIGH. Note 4: Latch is transparent.

Functional Diagram

Note: LE, DIR, and OE use ECL lo gic levels

Detail

OE DIR LE

ECL TTL

Notes

Port Port

LXLLOW Z

(Cut-Off) L L H Input Z (Note 1)(Note 3) LHHLOWInput

(Note 2)(Note 3)

(Cut-Off) H L L L L (Note 1)(Note 4) H L L H H (Note 1)(Note 4) H L H X Latched (Note 1)(Note 3) H H L L L (Note 2)(Note 4) H H L H H (Note 2)(Note 4) H H H Latched X (Note 2)(Note 4)

Page 3

3 www.fairchildsemi.com

100328

Absolute Maximum Ratings(Note 5) Recommended Operating

Conditions

Note 5: The “Absolute Maximum Ratings” are those value s beyond which

the safety of the dev ice cannot b e guaranteed . The device sh ould not be operated at these limit s. The parametric values defi ned in the Electrical Characteristics tables are not guaranteed at the absolute maximum rating. The “Recomm ended O peratin g Cond itions ” table will defin e the condition s for actual device operation.

Note 6: Either voltage lim it or c urrent limit is sufficient to pro te c t in puts. Note 7: ESD testing conforms to MIL-STD-883, Method 3015.

Commercial Version TTL-to-ECL DC Electrical Characteristics

(Note 8)

= −4.2V to −5.7V, VCC = V

CCA

= GND, TC = 0°C to +85°C, V

TTL

= +4.5V to +5.5V

Note 8: The specified limits represent the “worst case” value for the parameter. Since these values normally occur at the temperature extremes, additional noise immunity and guardbanding can be achieved by decreasin g the al l owable syste m opera ti ng ran ge s. Cond it i ons fo r t estin g sho w n in the tabl es are chosen to guarantee operation under “worst case” conditions.

Storage Temperature (T

STG

) −65°C to +150°C

Maximum Junction Temperature (T

) +150°C

Pin Potential to Ground Pin −7.0V to +0.5V

TTL

Pin Potential to Ground Pin −0.5V to +6.0V

ECL Input Voltage (DC) V

to +0.5V

ECL Output Current

(DC Output HIGH)

−50 mA

TTL Input Voltage (Note 6)

−0.5V to +6.0V

TTL Input Current (Note 6)

−30 mA to +5.0 mA

Voltage Applied to Output

in HIGH State 3-STATE Output

−0.5V to +5.5V

Current Applied to TTL

Output in LOW State (Max) twice the rated I

(mA)

ESD (Note 7)

≥2000V

Case Temperature (T

)

Commercial 0

°C to +85°C

Industrial

−40°C to +85°C

ECL Supply Voltage (V

) −5.7V to −4.2V

TTL Supply Voltage (V

TTL

) +4.5V to +5.5V

Symbol Parameter Min Typ Max Units Conditions

Output HIGH Voltage −1025 −955 −870 mV VIN = V

IH(Max)

or V

IL(Min)

Output LOW Voltage −1830 −1705 −1620 mV Loading with 50Ω to − 2V Cutoff Voltage OE or DIR LOW,

−2000 −1950 mV V

= V

IH(Max)

or V

IL(Min)

Loading with 50Ω to −2V

OHC

Output HIGH Voltage

−1035 mV

Corner Point HIGH V

= V

IH(Min)

or V

IL(Max)

OLC

Output LOW Voltage

−1610 mV

Loading with 50Ω to −2V

Corner Point LOW

Input HIGH Voltage 2.0 5.0 V Over V

TTL

, VEE, TC Range

Input LOW Voltage 0 0.8 V Over V

TTL

, VEE, TC Range

Input HIGH Current 70 µAVIN = +2.7V Breakdown Test 1.0 mA VIN = +5.5V

Input LOW Current −700 µAVIN = +0.5V

FCD

Input Clamp Diode Voltage −1.2 V IIN = −18 mA

VEE Supply Current LE LOW, OE and DIR HIGH

Inputs OPEN

−159 −75 mA VEE = −4.2V to −4.8V

−169 −75 VEE = −4.2V to −5.7V

Page 4

www.fairchildsemi.com 4

100328

Commercial Version (Continued) ECL-to-TTL DC Electrical Characteristics (Note 9)

= −4.2V to −5.7V, VCC = V

CCA

= GND, TC = 0°C to +85°C, CL = 50 pF, V

TTL

= +4.5V to +5.5V

DIP TTL-to-ECL AC Electrical Characteristics (Note 9)

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V, VCC = V

CCA

= GND

Note 9: The specified limits represent the “worst” case value for the parameter. Since these values normally occur at the temperature extremes, additional noise immunity and guardbanding can be achieved by decreasing the all owable syste m opera ti ng r ange s. Co ndi ti ons fo r t est ing shown in the ta ble s are chosen to guarantee operation under “worst case” conditions.

Symbol Parameter Min Typ Max Units Conditions

Output HIGH Voltage 2.7 3.1

IOH = −3 mA, V

TTL

= 4.75V

2.4 2.9 IOH = −3 mA, V

TTL

= 4.50V

Output LOW Voltage 0.3 0.5 V IOL = 24 mA, V

TTL

= 4.50V

Input HIGH Voltage −1165 −870 mV Guaranteed HIGH Signal for All Inputs

Input LOW Voltage −1830 −1475 mV Guaranteed LOW Signal for All Inputs

Input HIGH Current 350 µAVIN = VIH (Max)

Input LOW Current 0.50 µAVIN = VIL (Min)

OZHT

3-STATE Current Output HIGH 70 µAV

OUT

= +2.7V

OZLT

3-STATE Current Output LOW −700 µAV

OUT

= +0.5V

Output Short-Circuit Current −150 −60 mA V

OUT

= 0.0V, V

TTL

= +5.5V

TTL

Supply Current 74 mA TTL Outputs LOW

49 mA TTL Outputs HIGH 67 mA TTL Outputs in 3-STATE

Symbol Parameter

TC = 0°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

TN to E

1.1 3.5 1.1 3.6 1.1 3.8 ns Figures 1, 2

PHL

(Transparent)

PLH

LE to E

1.7 3.6 1.7 3.7 1.9 3.9 ns Figures 1, 2

PHL

PZH

OE to E

1.3 4.2 1.5 4.4 1.7 4.8 ns Figures 1, 2

(Cutoff to HIGH)

PHZ

OE to E

1.5 4.5 1.6 4.5 1.6 4.6 ns Figures 1, 2

(HIGH to Cutoff)

PHZ

DIR to E

1.6 4.3 1.6 4.3 1.7 4.5 ns Figures 1, 2

(HIGH to Cutoff)

SET

Tn to LE 1.1 1.1 1.1 ns Figures 1, 2

HOLD

Tn to LE 1.1 1.1 1.1 ns Figures 1, 2

(H) Pulse Width LE 2.1 2.1 2.1 ns Figures 1, 2

TLH

Transition Time

0.6 1.6 0.6 1.6 0.6 1.6 ns Figures 1, 2

THL

20% to 80%, 80% to 20%

Page 5

5 www.fairchildsemi.com

100328

Commercial Version (Con tinu ed) DIP ECL-to-TTL AC Electrical Characteristics

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V, VCC = V

CCA

= GND, C

= 50 pF

SOIC and PLCC TTL-to-ECL AC Electrical Characteristics

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V

Note 10: Output-to-O utput Ske w is define d as the ab solute valu e of the differen ce betwee n the actua l propaga tion delay for any out puts within the same packaged device. T he specifications a pply to any outputs sw it c hing in the same direc t ion either HIGH-to-LOW (t

OSHL

), or LOW-to-HIGH (t

OSLH

), or in oppo-

site directions both HL and LH (t

OST

). Parameters t

OST

and tps guaranteed by design.

Symbol Parameter

TC = 0°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

En to T

2.3 5.6 2.4 5.6 2.6 5.9 ns Figures 3, 4

PHL

(Transparent)

PLH

LE to T

3.1 7.2 3.1 7.2 3.3 7.7 ns Figures 3, 4

PHL

PZH

OE to T

3.4 8.45 3.7 8.95 4.0 9.7 ns Figures 3, 5

PZL

(Enable Time) 3.8 9.2 4.0 9.2 4.3 9.95

PHZ

OE to T

3.2 8.95 3.3 8.95 3.5 9.2 ns Figures 3, 5

PLZ

(Disable Time) 3.0 7.7 3.4 8.7 4.1 9.95

PHZ

DIR to T

2.7 8.2 2.8 8.7 3.1 8.95 ns Figures 3, 6

PLZ

(Disable Time) 2.8 7.45 3.1 7.95 4.0 9.2

SET

En to LE 1.1 1.1 1.1 ns Figures 3, 6

HOLD

En to LE 2.1 2.1 2.6 ns Figures 3, 4

tPW(H) Pulse Width LE 4.1 4.1 4.1 ns Figures 3, 7

Symbol Parameter

= 0°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

Tn to E

1.1 3.3 1.1 3.4 1.1 3.6 ns Figures 1, 2

PHL

(Transparent)

PLH

LE to E

1.7 3.4 1.7 3.5 1.9 3.7 ns Figures 1, 2

PHL

PZH

OE to E

1.3 4.0 1.5 4.2 1.7 4.6 ns Figures 1, 2

(Cutoff to HIGH)

PHZ

OE to E

1.5 4.3 1.6 4.3 1.6 4.4 ns Figures 1, 2

(HIGH to Cutoff)

PHZ

DIR to E

1.6 4.1 1.6 4.1 1.7 4.3 ns Figures 1, 2

(HIGH to Cutoff)

SET

Tn to LE 1.0 1.0 1.0 ns Figures 1, 2

HOLD

Tn to LE 1.0 1.0 1.0 ns Figures 1, 2

(H) Pulse Width LE 2.0 2.0 2.0 ns Figures 1, 2

TLH

Transition Time 0.6 1.6 0.6 1.6 0.6 1.6 ns Figures 1, 2

THL

20% to 80%, 80% to 20%

OSHL

Maximum Skew Common Edge PLCC Only Output-to-Output Variation 200 200 200 ps (Note 10) Data to Output Path

OSLH

Maximum Skew Common Edge PLCC Only Output-to-Output Variation 200 200 200 ps (Note 10) Data to Output Path

OST

Maximum Skew Opposite Edge PLCC Only Output-to-Output Variation 650 650 650 ps (Note 10) Data to Output Path

Maximum Skew PLCC Only Pin (Signal) Transition Variation 650 650 650 ps (Note 10) Data to Output Path

Page 6

www.fairchildsemi.com 6

100328

Commercial Version (Continued) SOIC and PLCC ECL-to-TTL AC Electrical Characteristics

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V, C

= 50 pF

Note 11: Output-to-Output Skew is defined as the absolu te value of the differenc e between the act ual propaga tion delay for any ou tputs within the same packaged devic e. T he specifications ap ply to any outputs sw it c hing in the same direc t ion either HIGH-to-LOW (t

OSHL

), or LOW-to-HIGH (t

OSLH

), or in oppo-

site directions bot h H L and LH (t

OST

). Parameters t

OST

and tPS guaranteed by design.

Symbol Parameter

TC = 0°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

En to T

2.3 5.4 2.4 5.4 2.6 5.7 ns Figures 3, 4

PHL

(Transparent)

PLH

LE to T

3.1 7.0 3.1 7.0 3.3 7.5 ns Figures 3, 4

PHL

PZH

OE to T

3.4 8.25 3.7 8.75 4.0 9.5 ns Figures 3, 5

PZL

(Enable Time) 3.8 9.0 4.0 9.0 4.3 9.75

PHZ

OE to T

3.2 8.75 3.3 8.75 3.5 9.0 ns Figures 3, 5

PLZ

(Disable Time) 3.0 7.5 3.4 8.5 4.1 9.75

PHZ

DIR to T

2.7 8.0 2.8 8.5 3.1 8.75 ns Figures 3, 6

PLZ

(Disable Time) 2.8 7.25 3.1 7.75 4.0 9.0

SET

En to LE 1.0 1 .0 1.0 ns Figures 3, 4

HOLD

En to LE 2.0 2 .0 2.5 ns Figures 3, 4 tPW(H) Pulse Width LE 4.0 4.0 4.0 ns Figures 3, 4 t

OSHL

Maximum Skew Common Edge PLCC Only

Output-to-Output Variation 600 600 600 ps (Note 11)

Data to Output Path t

OSLH

Maximum Skew Common Edge PLCC Only

Output-to-Output Variation 850 850 850 ps (Note 11)

Data to Output Path t

OST

Maximum Skew Opposite Edge PLCC Only

Output-to-Output Variation 1350 1350 1350 ps (Note 11)

Data to Output Path t

Maximum Skew PLCC Only

Pin (Signal) Transition Variation 950 950 950 ps (Note 11)

Data to Output Path

Page 7

7 www.fairchildsemi.com

100328

Industrial Version PLCC TTL-to-ECL DC Electrical Characteristics

(Note 12)

= −4.2V to −5.7V, VCC = V

CCA

= GND, TC = −40°C to +85°C, V

TTL

= +4.5V to +5.5V

PLCC ECL-to-TTL DC Electrical Characteristics (Note 12)

= −4.2V to −5.7V, VCC = V

CCA

= GND, TC = −40°C to +85°C, CL = 50 pF, V

TTL

= +4.5V to +5.5V

Note 12: The specified lim it s represent the “worst case” valu e f or the parameter. Since th es e values normally o c cu r at the temperature extremes, additio nal noise immunity and guardbanding can be achieved by decreasin g the al l owable syste m opera ti ng ran ge s. Cond it i ons fo r t estin g sho w n in the tabl es are chosen to guarantee operation under “worst case” conditions.

Symbol Parameter

= −40°CTC = 0°C to +85°C

Units Conditions

Min Max Min Max

Output HIGH Voltage −1085 −870 −1025 −870 mV VIN = V

IH(Max)

or V

IL(Min)

Output LOW Voltage −1830 −1575 −1830 −1620 mV Loading with 50Ω to −2V Cutoff Voltage OE or DIR LOW,

−1900 −1950 mV V

= V

IH(Max)

or V

IL(Min)

Loading with 50Ω to −2V

OHC

Output HIGH Voltage

−1095 −1035 mV

Corner Point HIGH VIN = V

IH(Min)

or V

IL(Max)

OLC

Output LOW Voltage

−1565 −1610 mV

Loading with 50Ω to −2V

Corner Point LOW

Input HIGH Voltage 2.0 5.0 2.0 5.0 V Over V

TTL

, VEE, TC Range

Input LOW Voltage 0 0.8 0 0.8 V Over V

TTL

, VEE, TC Range

Input HIGH Current 70 70 µAVIN = +2.7V Breakdown Test 1.0 1.0 mA VIN = +5.5V

Input LOW Current −700 −700 µAVIN = +0.5V

FCD

Input Clamp Diode Voltage −1.2 −1.2 V IIN = −18 mA

VEE Supply Current LE LOW, OE and DIR HIGH

Inputs OPEN

−159 −70 −159 −75 mA VEE = −4.2V to −4.8V

−169 −70 −169 −75 VEE = −4.2V to −5.7V

Symbol Parameter

TC = −40°CTC = 0°C to +85°C

Units Conditions

Min Max Min Max

Output HIGH Voltage 2.7 2.7

IOH = −3 mA, V

TTL

= 4.75V

2.4 2.4 IOH = −3 mA, V

TTL

= 4.50V

Output LOW Voltage 0.5 0.5 V IOL = 24 mA, V

TTL

= 4.50V

Input HIGH Voltage −1170 −870 −1165 −870 mV Guaranteed HIGH Signal for All Inputs

Input LOW Voltage −1830 −1480 −1830 −1475 mV Guaranteed LOW Signal for All Inputs

Input HIGH Current 425 350 µAVIN = VIH (Max)

Input LOW Current 0.50 0.50 µAVIN = VIH (Min)

OZHT

3-STATE Current Output HIGH 70 70 µAV

OUT

= +2.7V

OZLT

3-STATE Current Output LOW −700 −700 µAV

OUT

= +0.5V

Output Short-Circuit Current −150 −60 −150 −60 mA V

OUT

= 0.0V, V

TTL

= +5.5V

TTL

Supply Current 74 74

TTL Outputs LOW 49 49 TTL Outputs HIGH 67 67 TTL Outputs in 3-STATE

Page 8

www.fairchildsemi.com 8

100328

Industrial Version (Continued) PLCC TTL-to-ECL AC Electrical Characteristics

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V

PLCC ECL-to-TTL AC Electrical Characteristics

= −4.2V to −5.7V, V

TTL

= +4.5V to +5.5V, C

= 50 pF

Symbol Parameter

TC = −40°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

Tn to E

1.0 3.3 1.1 3.4 1.1 3.6

Figures 1, 2

PHL

(Transparent)

PLH

LE to E

1.7 3.4 1.7 3.5 1.9 3.7 ns Figures 1, 2

PHL

PZH

OE to E

1.2 4.0 1.5 4.2 1.7 4.6 ns Figures 1, 2

(Cutoff to HIGH)

PHZ

OE to E

1.5 4.5 1.6 4.3 1.6 4.4 ns Figures 1, 2

(HIGH to Cutoff)

PHZ

DIR to E

1.6 4.1 1.6 4.1 1.7 4.3 ns Figures 1, 2

(HIGH to Cutoff)

SET

Tn to LE 2.5 1.0 1.0 ns Figures 1, 2

HOLD

Tn to LE 1.0 1.0 1.0 ns Figures 1, 2 tPW(H) Pulse Width LE 2.5 2.0 2.0 ns Figures 1, 2 t

TLH

Transition Time

0.4 2.3 0.6 1.6 0.6 1.6 ns Figures 1, 2

THL

20% to 80%, 80% to 20%

Symbol Parameter

TC = 0°CT

= 25°CT

= 85°C

Units Conditions

Min Max Min Max Min Max

PLH

En to T

2.3 5.4 2.4 5.4 2.6 5.7 ns Figures 3, 4

PHL

(Transparent) t

PLH

LE to T

3.1 7.4 3.1 7.0 3.3 7.5 ns Figures 3, 4

PHL

PZH

OE to T

3.4 8.3 3.7 8.75 4.0 9.5 ns Figures 3, 5

PZL

(Enable Time) 3.7 9.0 4.0 9.0 4.3 9.75

PHZ

OE to T

3.2 9.0 3.3 8.75 3.5 9.0 ns Figures 3, 5

PLZ

(Disable Time) 3.0 7.5 3.4 8.5 4.1 9.75

PHZ

DIR to T

2.7 8.0 2.8 8.5 3.1 8.75 ns Figures 3, 5

PLZ

(Disable Time) 2.8 7.3 3.1 7.75 4.0 9.0

SET

En to LE 2.5 1.0 1.0 ns Figures 3, 4

HOLD

En to LE 2.3 2.0 2.5 ns Figures 3, 4

tPW(H) Pulse Width LE 4.0 4.0 4.0 ns Figures 3, 4

Page 9

9 www.fairchildsemi.com

100328

Test Circuitry (TTL-to-ECL)

Note:

• R

= 50Ω terminat ion. When an input or ou t put is being m onitored by a scope, Rt is supplied by the scope's 50Ω resistance. W hen an input or output i s not

being monitored, an external 50Ω resista nc e must be applied to serv e as R

• TTL and EC L force signals are broug ht to th e D U T v ia 50Ω coax lines.

• V

TTL

is decoupled to ground with 0.1 µF to ground, VEE is decoupled to ground with 0.01 µF and VCC is connected to ground.

• For ECL input pins, the equivalent fo rce/sense circuitry is o pt ional.

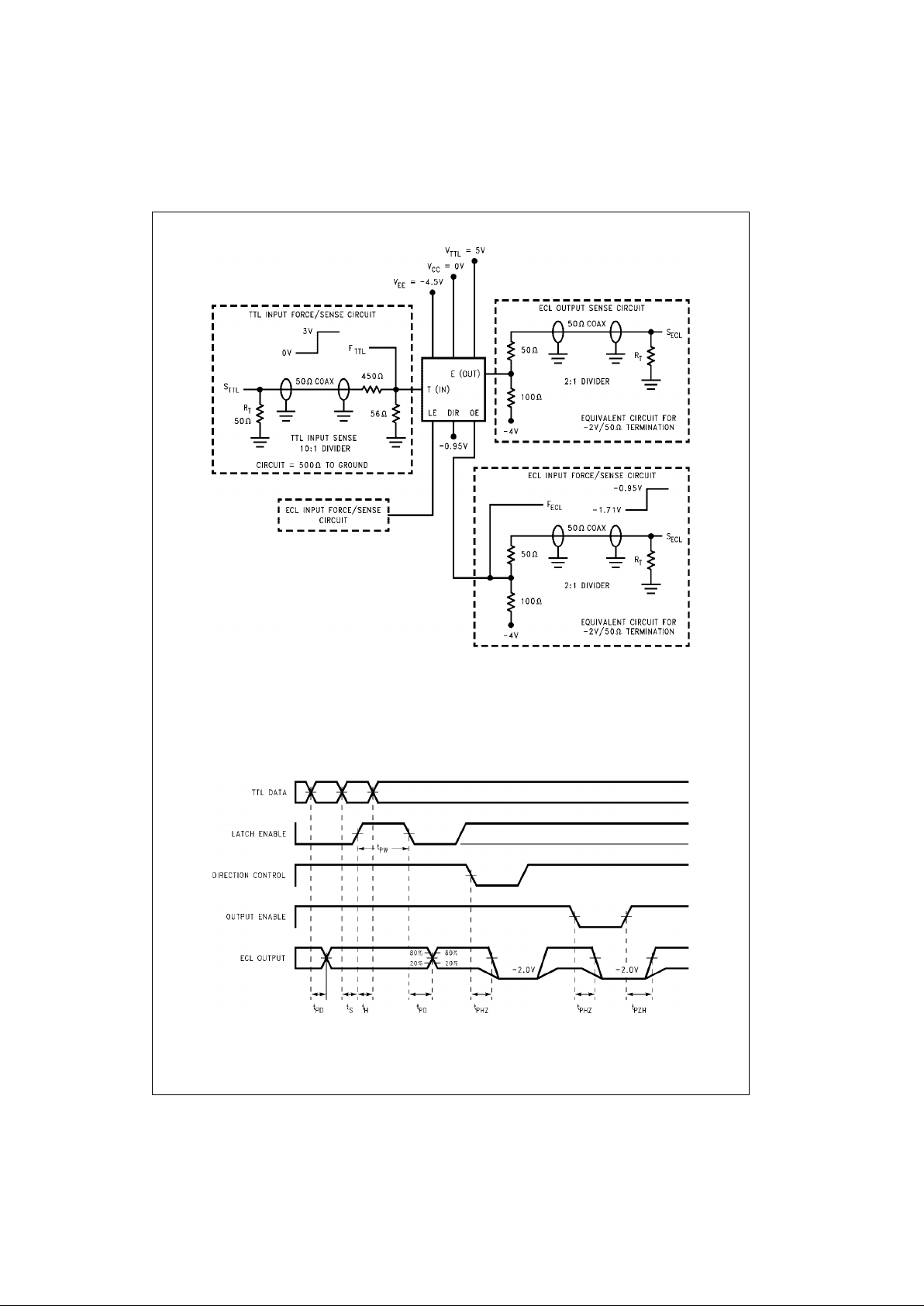

FIGURE 1. TTL-to-ECL AC Test Circuit

Switching Waveforms (T TL-to-ECL)

FIGURE 2. TTL to ECL Transition—Propagation Delay and Transition Times

Page 10

www.fairchildsemi.com 10

100328

Test Circuitry (ECL-to-TTL)

Note:

• R

= 50Ω termination. When an input or output is being monitored by a scope, Rt is supplied by the scope's 50Ω resistance. W hen an input or output i s not

being monitored, an external 50Ω resista nc e m ust be applied to serve as R

• The TT L 3-State pull up switch is co nnected to +7V only for ZL and LZ tests.

• TTL and ECL force signals are brought to the DUT via 50Ω coax lines.

• V

TTL

is decoupled to ground with 0.1 µF, VEE is decoupled to ground with 0.01 µF and VCC is connected to ground.

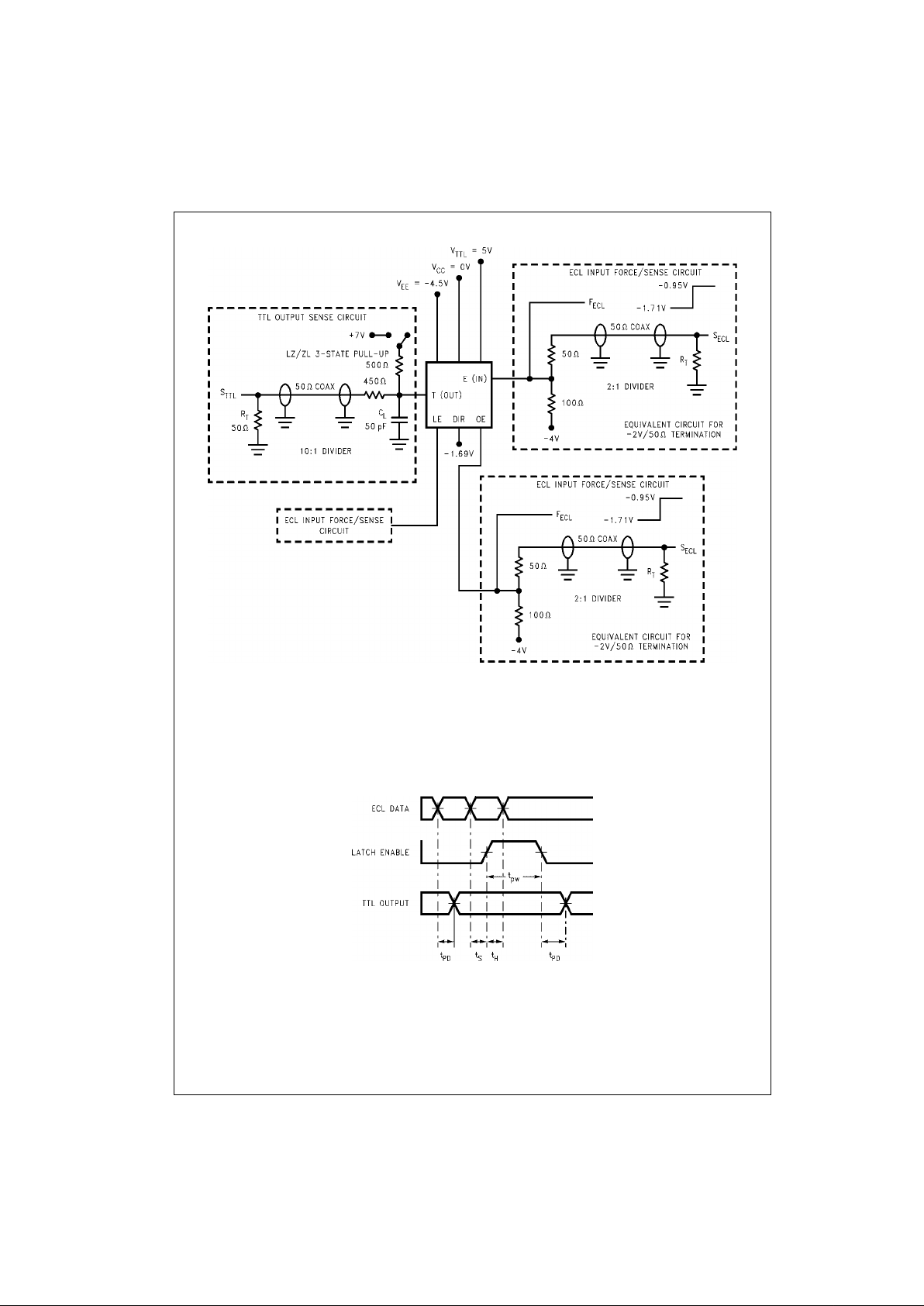

FIGURE 3. ECL-to-TTL AC Test Circuit

Switching Waveforms (ECL -to-TTL)

Note: DIR is LOW, and OE is HIGH

FIGURE 4. ECL-to-TTL Transition—Propagation Delay and Transition Times

Page 11

11 www.fairchildsemi.com

100328

Switching Waveforms (ECL-to-TTL) (Continued)

Note: DIR is LOW, LE is HIGH

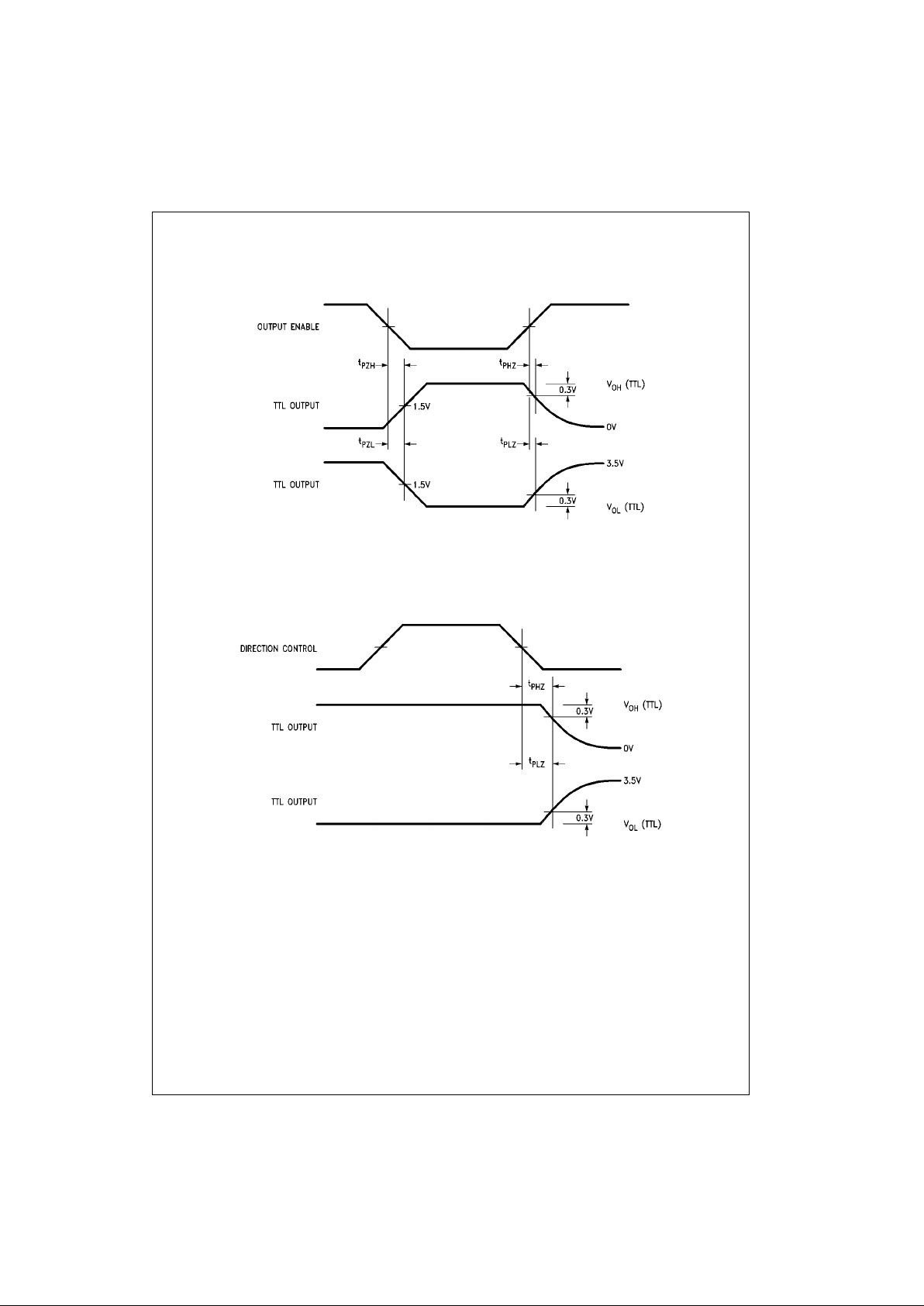

FIGURE 5. ECL-to-TTL T ransition, OE to TTL Output, Enable and Disable Times

Note: OE is HIGH, LE is HIGH

FIGURE 6. ECL-to-TTL Transition, DIR to TTL Output, Disable Time

Page 12

www.fairchildsemi.com 12

100328

Applications

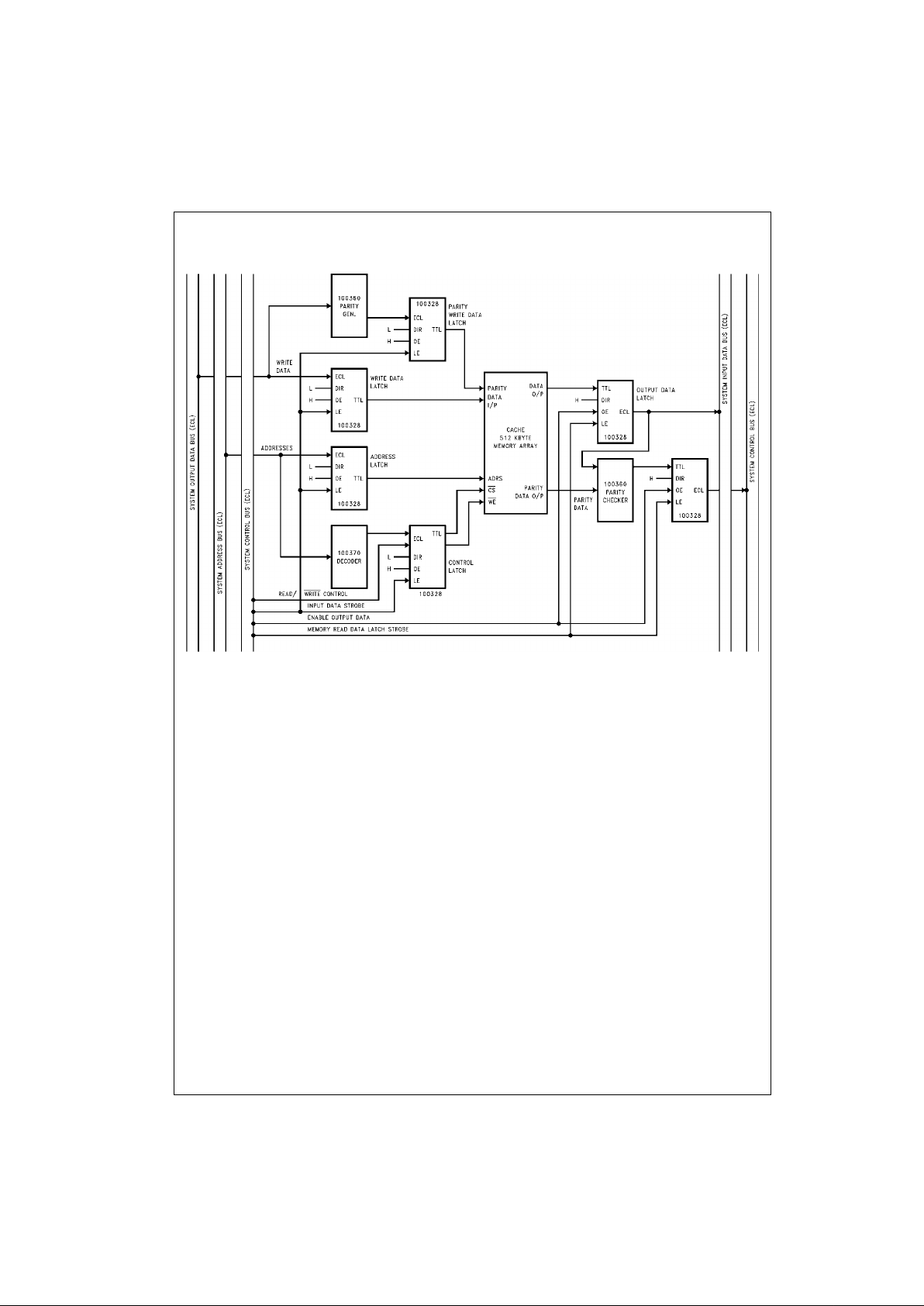

FIGURE 7. Applications Diagram—MOS/TTL SRAM Interface Using 100328 ECL–TTL Latched Tra n slator

Page 13

13 www.fairchildsemi.com

100328

Physical Dimensions inches (millimeters) unless otherwise noted

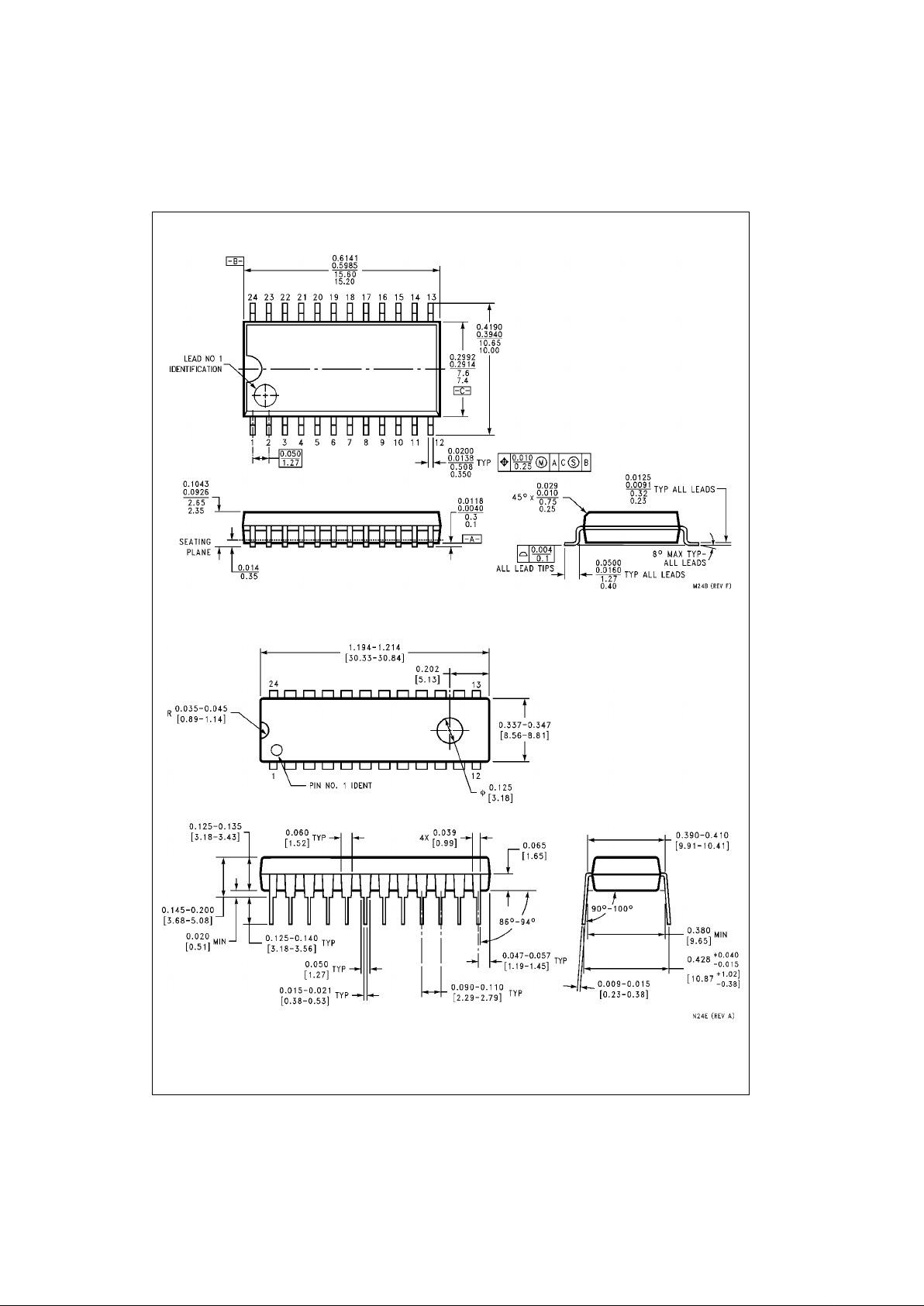

24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide

Package Number M24B

24-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-010, 0.400 Wide

Package Number N24E

Page 14

www.fairchildsemi.com 14

100328 Low Power Octal ECL/TTL Bi-Directional Translator with Latch

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

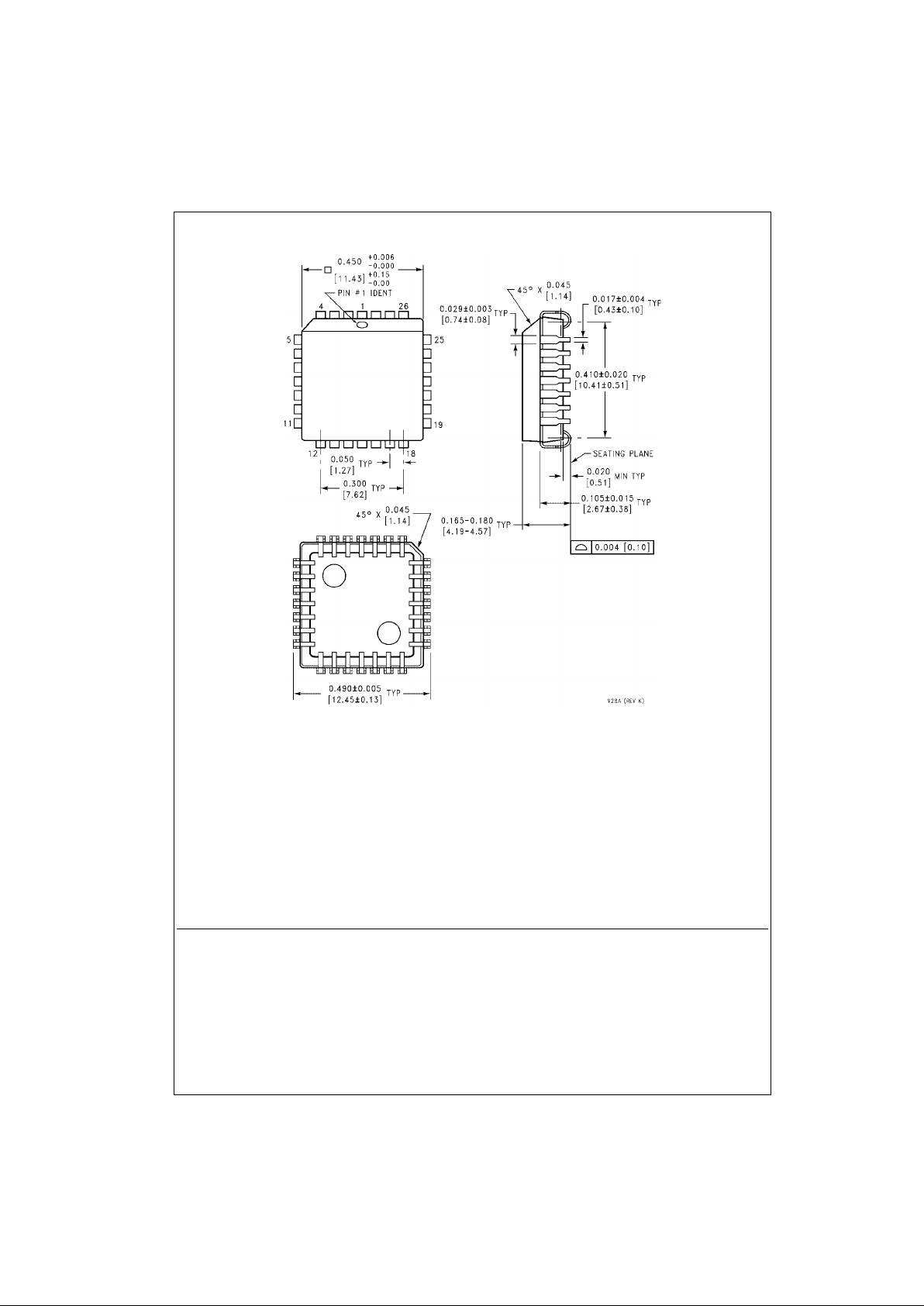

28-Lead Plastic Lead Chip Carrier (PLCC), JEDEC MO-047, 0.450 Square

Package Number V28A

Fairchild does not assume any responsibility for use of any circuitr y described, no circuit patent licenses are implied and Fairchild reserves the right at any time without notice to change said circuitry and specifications.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant inju ry to the user.

2. A critical component in any componen t of a life su pport device or system whose failure t o perform can be reasonably expected to ca use the failure of the life supp ort device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com
