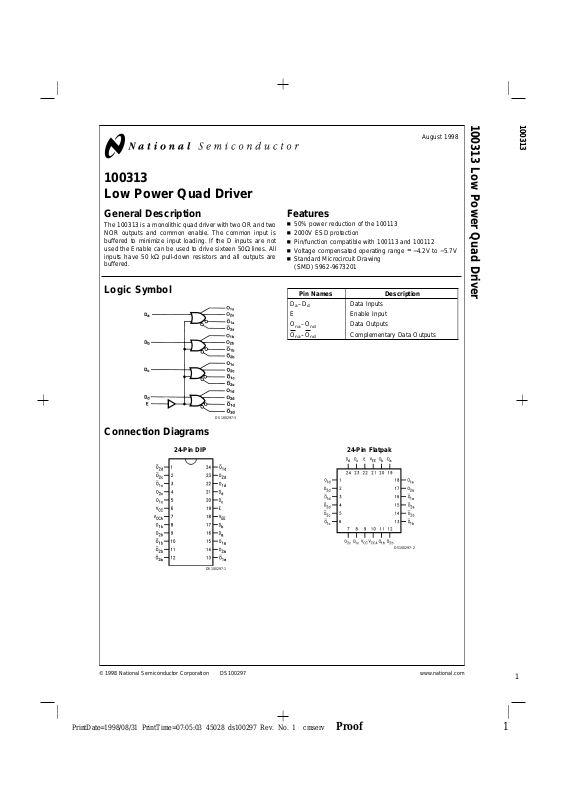

100313
Low Power Quad Driver

General Description

The 100313 is a monolithic quad driver with two OR and two
NOR outputs and common enable. The common input is
buffered to minimize input loading. If the D inputs are not
used the Enable can be used to drive sixteen 50Ω lines. All
inputs have 50 kΩ pull-down resistors and all outputs are
buffered.

Features

n 50%power reduction of the 100113
n 2000V ESD protection
n Pin/function compatible with 100113 and 100112
n Voltage compensated operating range=−4.2V to −5.7V
n Standard Microcircuit Drawing

(SMD) 5962-9673201

Logic Symbol

Pin Names Description

D

a–Dd

Data Inputs
E Enable Input
O

na–Ond

Data Outputs
O

na–Ond

Complementary Data Outputs

Connection Diagrams

DS100297-3

24-Pin DIP

DS100297-1

24-Pin Flatpak

DS100297-2

August 1998

100313 Low Power Quad Driver

100313

© 1998 National Semiconductor Corporation DS100297 www.national.com

1

PrintDate=1998/08/31 PrintTime=07:05:03 45028 ds100297 Rev. No. 1 cmserv

Proof 1

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required,
please contact theNationalSemiconductor Sales Office/
Distributors for availability and specifications.

Storage Temperature (T

STG

) −65˚C to +150˚C

Maximum Junction Temperature (T

J

)

Ceramic +175˚C

V

EE

Pin Potential to Ground Pin −7.0V to +0.5V

Input Voltage (DC) V

EE

to +0.5V
Output Current (DC Output HIGH) −50 mA
ESD (Note 2) ≥2000V

Recommended Operating
Conditions

Case Temperature (TC)

Military −55˚C to +125˚C

Supply Voltage (V

EE

) −5.7V to −4.2V

Note 1: Absolute maximum ratings are those values beyond which the de­vice may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.

Note 2: ESD testing conforms to MIL-STD-883, Method 3015.

Military Version
DC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND, T

C

=

−55˚C to +125˚C

Symbol Parameter Min Max Units T

C

Conditions Notes

V

OH

Output HIGH Voltage −1025 −870 mV 0˚C to +125˚C

−1085 −870 mV −55˚C V

IN

=

V

IH (Max)

Loading with

(Notes 3, 4,

5)

V

OL

Output LOW Voltage −1830 −1620 mV 0˚C to +125˚C or V

IL(Min)

50Ω to −2.0V

−1830 −1555 mV −55˚C

V

OHC

Output HIGH Voltage −1035 mV 0˚C to +125˚C

−1085 mV −55˚C V

IN

=

V

IH (Min)

Loading with

(Notes 3, 4,

5)

V

OLC

Output LOW Voltage −1610 mV 0˚C to +125˚C or V

IL (Max)

50Ω to −2.0V

−1555 mV −55˚C

V

IH

Input HIGH Voltage −1165 −870 mV −55˚C to +125˚C Guaranteed HIGH Signal

(Notes 3, 4,
5, 6)

for All Inputs

V

IL

Input LOW Voltage −1830 −1475 mV −55˚C to +125˚C Guaranteed LOW Signal

(Notes 3, 4,
5, 6)

for All Inputs

I

IL

Input LOW Current 0.50 µA −55˚C to +125˚C V

EE

=

−4.2V

(Notes 3, 4,

5)

V

IN

=

V

IL (Min)

I

IH

Input HIGH Current

Data 350 µA 0˚C to +125˚C
Enable 240 V

EE

=

−5.7V

(Notes 3, 4,

5)

Data 500 µA −55˚C V

IN

=

V

IH (Max)

Enable 340

I

EE

Power Supply Current −65 −20 mA −55˚C to +125˚C Inputs Open (Notes 3, 4,

5)

Note 3: F100K 300 Series cold temperature testing is performed by temperature soaking (to guarantee junction temperature equals −55˚C), then testing immediately
without allowing for the junction temperature to stabilize due to heat dissipation after power-up. This provides “cold start” specs which can be considered a worst case
condition at cold temperatures.

Note 4: Screen tested 100%on each device at −55˚C, +25˚C, and +125˚C, Subgroups 1, 2, 3, 7, and 8.
Note 5: Sample tested (Method 5005, Table I) on each manufactured lot at −55˚C, +25˚C, and +125˚C, Subgroups A1, 2, 3, 7, and 8.
Note 6: Guaranteed by applying specified input condition and testing V

OH/VOL

.

www.national.com 2

PrintDate=1998/08/31 PrintTime=07:05:03 45028 ds100297 Rev. No. 1 cmserv Proof 2

Military Version
AC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND

Symbol Parameter T

C

=

−55˚C T

C

=

+25˚C T

C

=

+125˚C Units Conditions Notes

Min Max Min Max Min Max

t

PLH

Propagation Delay 0.30 2.00 0.30 1.80 0.30 2.30 ns (Notes 7,

8, 10, 11)

t

PHL

Data to Output

t

PLH

Propagation Delay 0.50 2.40 0.60 2.30 0.60 2.70 ns

Figures 1, 2

t

PHL

Enable to Output

t

TLH

Transition Time 0.30 2.00 0.30 1.90 0.30 2.00 ns (Note 10)

t

THL

20%to 80%,80%to
20

%

Note 7: F100K 300 Series cold temperature testing is performed by temperature soaking (to guarantee junction temperature equals −55˚C), then testing immediately
after power-up. This provides “cold start” specs which can be considered a worst case condition at cold temperatures.

Note 8: Screen tested 100%on each device at +25˚C, Subgroup A9.
Note 9: Sample tested (Method 5005, Table I) on each manufactured lot at +25˚C, Subgroup A9, and at +125˚C and −55˚C temperatures, Subgroups A10 and A11.
Note 10: Not tested at +25˚C, +125˚C, and −55˚C temperature (design characterization data).
Note 11: The propagation delay specified is for single output switching. Delays may vary up to 150 ps with multiple outputs switching.

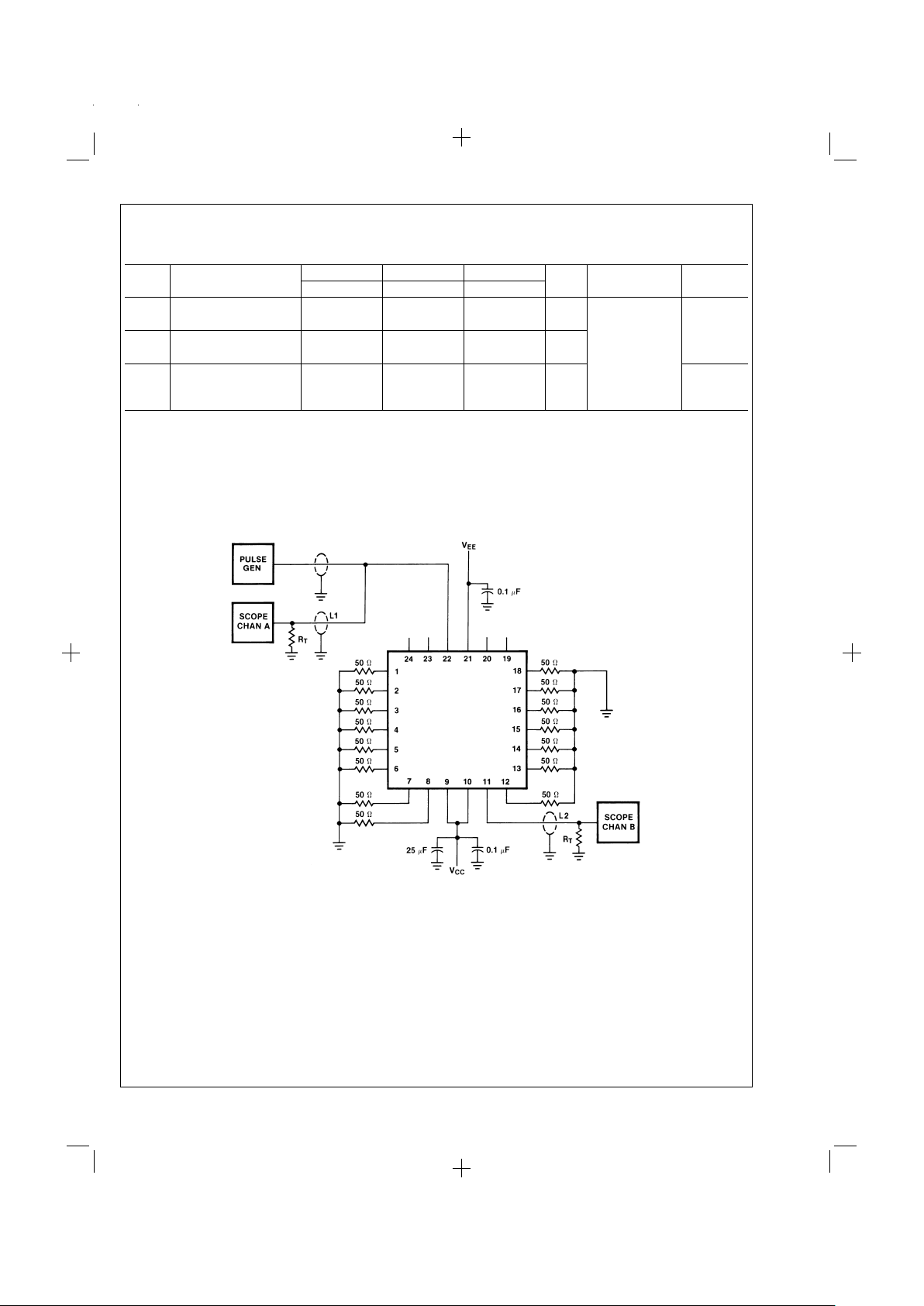

Test Circuitry

DS100297-5

Notes:

V

CC,VCCA

=

+2V, V

EE

=

−2.5V.
L1 and L2=equal length 50Ω impedance lines.
R

T

=

50Ω terminator internal to scope.

Decoupling 0.1 µF from GND to V

CC

and VEE.
All unused outputs are loaded with 50Ω to GND.
C

L

=

Fixture and stray capacitance ≤ 3pF.

Pin numbers shown are for flatpak; for DIP see logic symbol.

FIGURE 1. AC Test Circuit

www.national.com3

PrintDate=1998/08/31 PrintTime=07:05:04 45028 ds100297 Rev. No. 1 cmserv Proof 3

Switching Waveforms

DS100297-6

FIGURE 2. Propagation Delay and Transition Times

www.national.com 4

PrintDate=1998/08/31 PrintTime=07:05:04 45028 ds100297 Rev. No. 1 cmserv Proof 4

Book
Extract
End

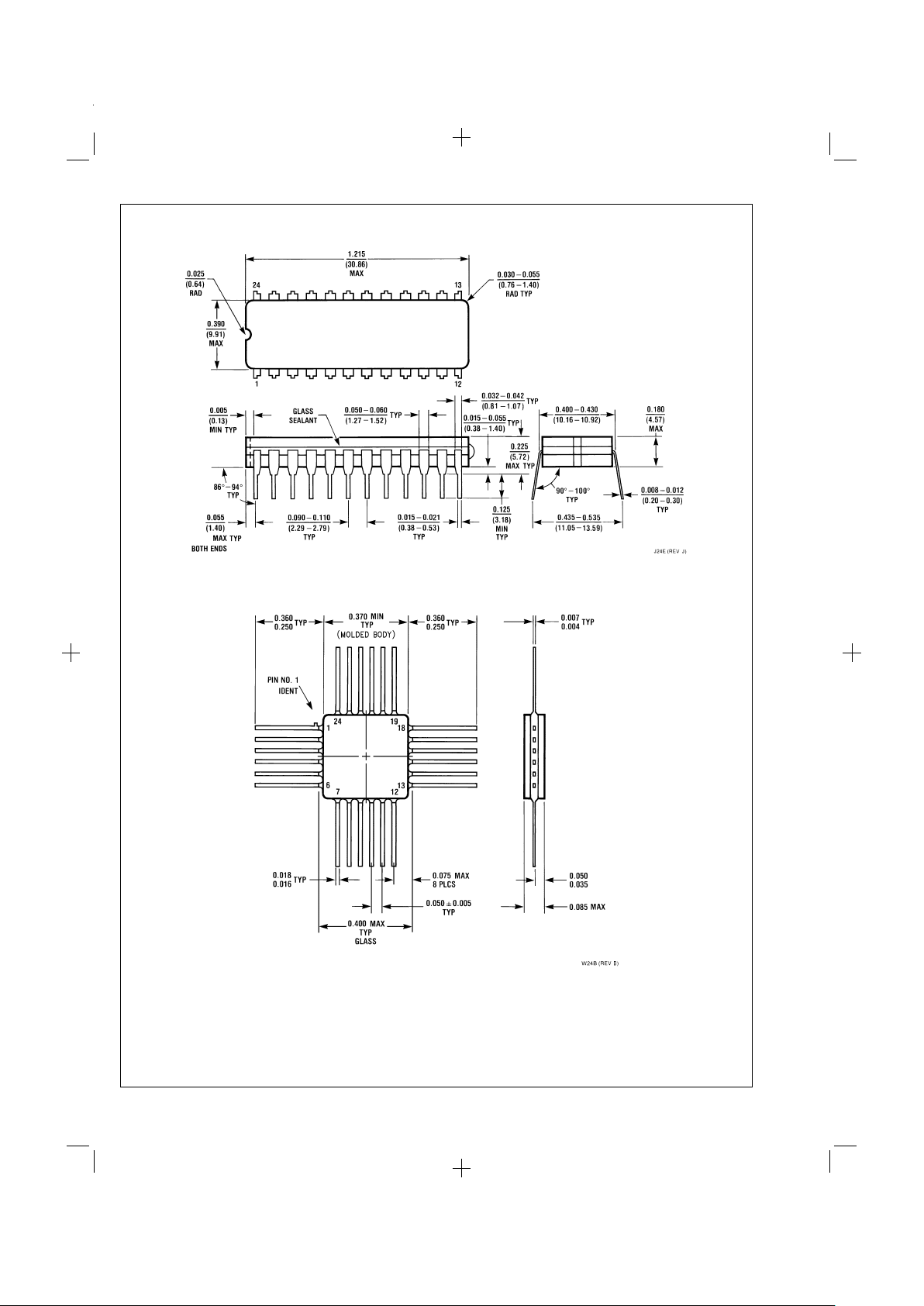

Physical Dimensions inches (millimeters) unless otherwise noted

24-Pin Ceramic Dual-In-Line Package (D)

NS Package Number J24E

24-Pin Quad Cerpak (F)

NS Package Number W24B

www.national.com5

PrintDate=1998/08/31 PrintTime=07:05:04 45028 ds100297 Rev. No. 1 cmserv Proof 5

LIFE SUPPORT POLICY

NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DE­VICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMI­CONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or sys­tems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose fail­ure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.

2. A critical component in any component of a life support
device or system whose failure to perform can be rea­sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
