100304
Low Power Quint AND/NAND Gate

General Description

The 100304 is monolithic quint AND/NAND gate. The Func­tion output is the wire-NOR of all five AND gate outputs. All
inputs have 50 kΩ pull-down resistors.

Features

n Low Power Operation

n 2000V ESD protection
n Pin/function compatible with 100104
n Voltage compensated operating range=−4.2V to −5.7V
n Available to industrial grade temperature range
n Available to Standard Microcircuit Drawing

(SMD) 5962-9153701

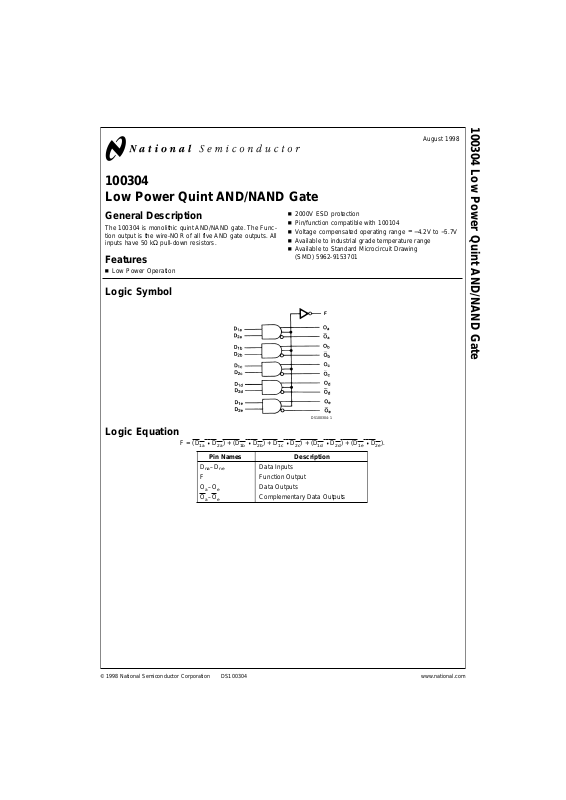

Logic Symbol

Logic Equation

F=(D

1a

•

D2a)+(D

1b

•

D2b)+D

1c

•

D2c)+(D

1d

•

D2d)+(D

1e

•

D2e).

Pin Names Description

D

na–Dne

Data Inputs
F Function Output
O

a–Oe

Data Outputs
O

a–Oe

Complementary Data Outputs

DS100304-1

August 1998

100304 Low Power Quint AND/NAND Gate

© 1998 National Semiconductor Corporation DS100304 www.national.com

Connection Diagrams

24-Pin DIP

DS100304-2

24-Pin Quad Cerpak

DS100304-3

www.national.com 2

Absolute Maximum Ratings (Note 1)

If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.

Above which the useful life may be impaired

Storage Temperature (T

STG

) −65˚C to +150˚C

Maximum Junction Temperature (T

J

)

Ceramic +175˚C

V

EE

Pin Potential to Ground Pin −7.0V to +0.5V

Input Voltage (DC) V

EE

to +0.5V

Output Current (DC Output HIGH) −50 mA

ESD (Note 2) ≥2000V

Recommended Operating
Conditions

Case Temperature (TC)

Military −55˚C to +125˚C

Supply Voltage (V

EE

) −5.7V to −4.2V

Note 1: Absolute maximum ratings are those values beyond which the de­vice may be damaged or have its useful life impaired. Functional operation
under these conditions is not implied.

Note 2: ESD testing conforms to MIL-STD-883, Method 3015.

Military Version
DC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND, T

C

=

−55˚C to +125˚C

Symbol Parameter Min Max Units T

C

Conditions Notes

V

OH

Output HIGH Voltage −1025 −870 mV 0˚C to

+125˚C

−1085 −870 mV −55˚C V

IN

=

V

IH

(Max) Loading with (Notes 3, 4, 5)

V

OL

Output LOW Voltage −1830 −1620 mV 0˚C to or VIL(Min) 50Ω0 to −2.0V

+125˚C

−1830 −1555 mV −55˚C

V

OHC

Output HIGH Voltage −1035 mV 0˚C to

+125˚C

−1085 mV −55˚C V

IN

=

V

IH

(Min) Loading with (Notes 3, 4, 5)

V

OLC

Output LOW Voltage −1610 mV 0˚C to or VIL(Max) 50Ω to −2.0V

+125˚C

−1555 mV −55˚C

V

IH

Input HIGH Voltage −1165 −870 mV −55˚C Guaranteed HIGH Signal (Notes 3, 4, 5, 6)

+125˚C for All Inputs

V

IL

Input LOW Voltage −1830 −1475 mV −55˚C to Guaranteed LOW Signal (Notes 3, 4, 5, 6)

+125˚C for All Inputs

I

IL

Input LOW Current 0.50 µA −55˚C to V

EE

=

−4.2V (Notes 3, 4, 5)

+125˚C V

IN

=

V

IL

(Min)

Input High Current

D

2a–D2e

250 µA 0˚C to

D

1a–D1e

350 +125˚C V

EE

=

−5.7V (Notes 3, 4, 5)

I

IH

V

IN

=

V

IH

(Max)

D

2a–D2e

350 µA −55˚C

D

1a–D1e

500

I

EE

Power Supply Current −75 −25 mA −55˚C to Inputs Open (Notes 3, 4, 5)

+125˚C

Note 3: F100K 300 Series cold temperature testing is performed by temperature soaking (to guarantee junction temperature equals −55˚C), then testing immediately
without allowing for the junction temperature to stabilize due to heat dissipation after power-up. This provides “cold start” specs which can be considered a worst case
condition at cold temperatures.

Note 4: Screen tested 100%on each device at −55˚C, +25˚C, and +125˚C, Subgroups, 1, 2 3, 7, and 8.
Note 5: Sample tested (Method 5005, Table I) on each manufactured lot at −55˚C, +25˚C, and +125˚C, Subgroups A1, 2, 3, 7, and 8.
Note 6: Guaranteed by applying specified input condition and testing V

OH/VOL

.

www.national.com3

AC Electrical Characteristics

V

EE

=

−4.2V to −5.7V, V

CC

=

V

CCA

=

GND

Symbol Parameter T

C

=

−55˚C T

C

=

+25˚C T

C

=

+125˚C Units Conditions Notes

Min Max Min Max Min Max

t

PLH

Propagation Delay 0.30 1.90 0.40 1.80 0.30 2.30 ns

t

PHL

Dna–Dneto O, O (Notes 7, 8, 9)

t

PLH

Propagation Delay 0.80 2.90 0.90 2.80 0.90 3.40 ns

Figures 1, 2

t

PHL

Data to F

t

TLH

Transition Time 0.20 1.80 0.30 1.60 0.20 2.00 ns (Note 10)

t

THL

20%to 80%,80%to 20

%

Note 7: F100K 300 Series cold temperature testing is performed by temperature soaking (to guarantee junction temperature equals −55˚C), then testing immediately
after power-up. This provides “cold start” specs which can be considered a worst case condition at cold temperatures.

Note 8: Screen tested 100%on each device at +25˚C temperature only, Subgroup A9.
Note 9: Sample tested (Method 5005, Table I) on each mfg. lot at +25˚C, Subgroup A9, and at +125˚C and −55˚C temperatures, Subgroups A10 and A11.
Note 10: Not tested at +25˚C, +125˚C, and −55˚C temperature (design characterization data).

Test Circuitry

DS100304-5

Notes:

V

CC,VCCA

=

+2V, V

EE

=

−2.5V
L1 and L2=equal length 50Ω impedance lines
R

T

=

50Ω terminator internal to scope

Decoupling 0.1 µF from GND to V

CC

and V

EE

All unused outputs are loaded with 50Ω to GND
C

L

=

Fixture and stray capacitance ≤ 3pF

FIGURE 1. AC Test Circuit

www.national.com 4

Switching Waveforms

DS100304-6

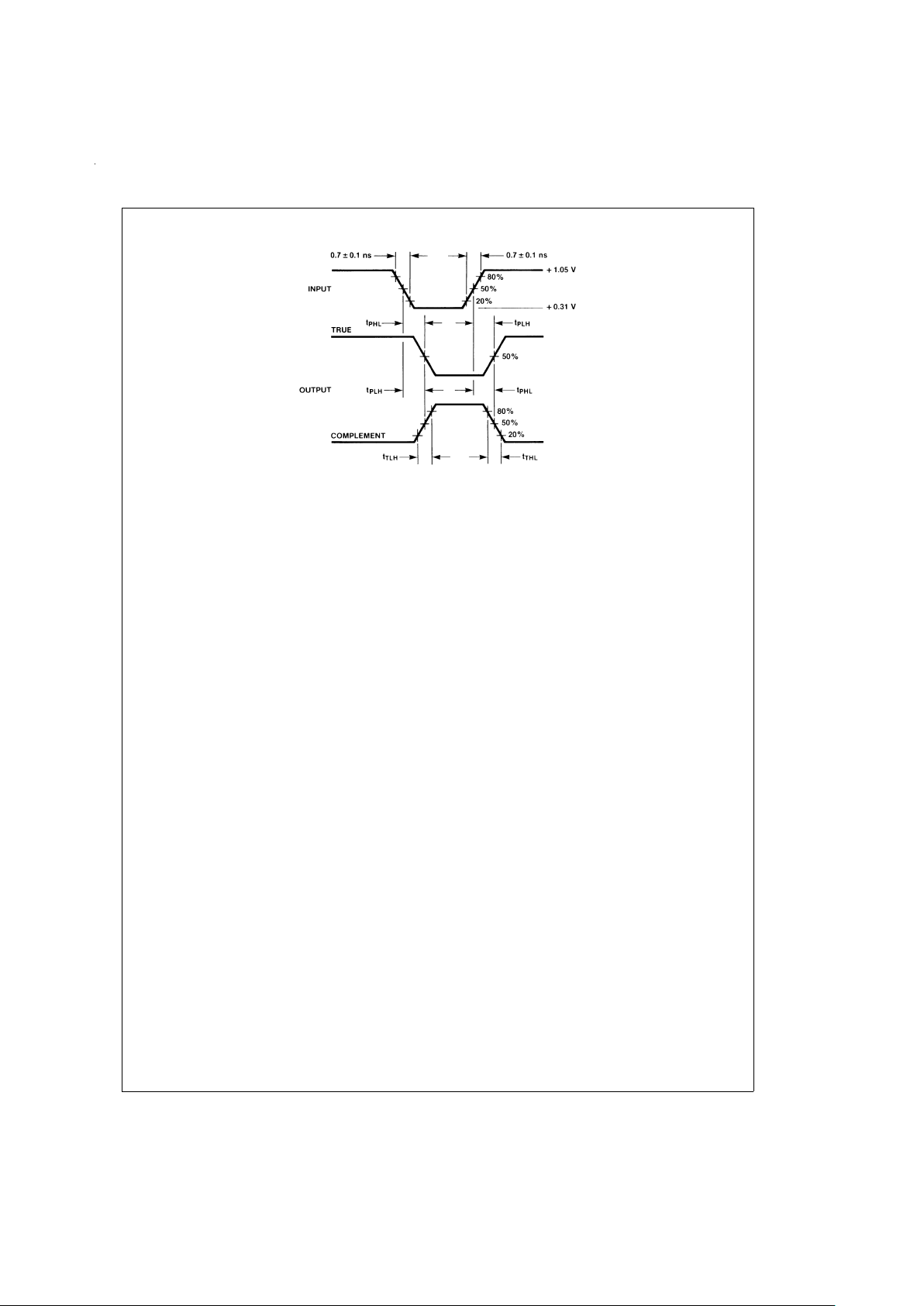

FIGURE 2. Propagation Delay and Transition Times

www.national.com5

6

Physical Dimensions inches (millimeters) unless otherwise noted

24-Pin Ceramic Dual-In-Line Package (D)

NS Package Number J24E

24-Pin Quad Cerpak (F)

NS Package Number W24B

www.national.com7
