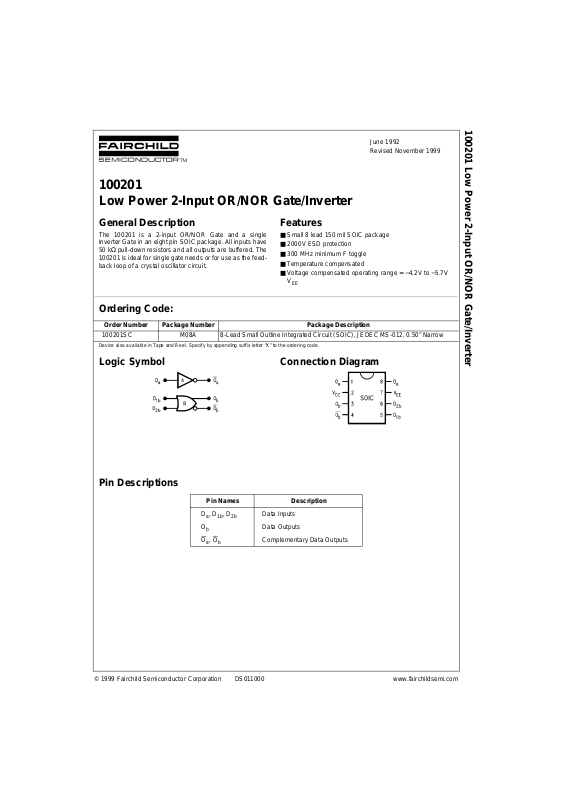

100201 Low Power 2-Input OR/NOR Gate/Inverter
100201
Low Power 2-Input OR/NOR Gate/Inverter
General Description
The 100201 is a 2-input OR/NOR Gate and a single
Inverter Gate in an eight pin SOIC package. All inputs have
50 kΩ pull-down resistors and all outputs are buffered. The
100201 is ideal for single gate needs or for use as the feedback loop of a crystal oscillator circuit.
Features
■ Small 8 lead 150 mil SOIC package
■ 2000V ESD protection
■ 300 MHz minimum F toggle
■ Temperature compensated
■ Voltage compensated operating rang e = −4.2V to −5.7V
V
EE
Ordering Code:
Device also available in Tape and Reel. Specify by appending suffix letter “X” to the ordering code.
Logic Symbol Connection Diagram
Pin Descriptions
Order Number Package Number Package Description
100201SC M08A 8-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.50” Narrow
Pin Names Description
D
a
, D1b, D
2b
Data Inputs
O
b
Data Outputs
O
a
, O
b
Complementary Data Outputs
Page 2
www.fairchildsemi.com 2
100201
Absolute Maximum Ratings(Note 1) Recommended Operating
Conditions
Note 1: The “Absolute Maximum Ratings” are those values beyon d which
the safety of the dev ice cannot be guaranteed. T he device sh ould not be
operated at these limit s. The parametric values defin ed in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recomme nded O peratin g Cond itions ” table will defin e the condition s
for actual device operation.
Note 2: ESD testing conf orm s t o M I L-STD-883, Method 3015.
Commercial Version
DC Electrical Characteristics
(Note 3)
V
EE
= −4.2V to −5.7V, VCC = GND, TC = 0°C to +85°C
Note 3: The specified limits represent the “worst case” value for the parameter. Since these values normally occur at the temperature extremes, additional
noise immunity and guardbanding can be achieved by decreasing the all owable syste m opera ti ng r ange s. Co ndi ti ons fo r t est ing shown in the ta ble s are chosen to guarantee operation under “worst case” condit ions.
SOIC AC Electrical Characteristics
VEE = −4.2V to −5.7V, VCC = GND
Note 4: The propagation dela y sp ec if ied is for single output sw it c hing. Delays may vary up to 100 ps with multiple outputs switching.
Storage Temperature (T
STG
) −65°C to +150°C
Maximum Junction Temperature (T
J
) +150°C
V
EE
Pin Potential to Ground Pin −7.0V to +0.5V
Input Voltage (DC) V
EE
to +0.5V
Output Current (DC Output HIGH) −50 mA
ESD (Note 2) ≥2000V
Operating Temperature (T
C
)0°C to +85°C
Supply Voltage (V
EE
) −5.7V to −4.2V
Symbol Parameter Min Typ Max Units Conditions
V
OH
Output HIGH Voltage −1025 −955 −870 mV
VIN = V
IH(Max)
or V
IL(Min)
Loading with
V
OL
Output LOW Voltage −1830 −1705 −1620 mV 50Ω to −2.0V
V
OHC
Output HIGH Voltage −1035 mV
VIN = V
IH(Min)
or V
IL(Max)
Loading with
V
OLC
Output LOW Voltage −1610 mV 50Ω to −2.0V
V
IH
Input HIGH Voltage −1165 −870 mV Guaranteed HIGH Signal for All Inputs
V
IL
Input LOW Voltage −1830 −1475 mV Guaranteed LOW Signal for All Inputs
I
IL
Input LOW Current 0.50 µA VIN = V
IL(Min)
I
IH
Input HIGH Current 240 µA VIN = V
IH(Max)
I
EE
Power Supply Current −29 −17 −15 mA Inputs OPEN
Symbol Parameter
T
C
= 0°CT
C
= +25°CT
C
= +85°C
Units Conditions
Min Max Min Max Min Max
t
PLH
Propagation Delay
0.4 1.10 0.4 1.15 0.4 1.20 ns
Figure 1Figure 2
t
PHL
Data to Output (Note 4)
t
TLH
Transition Time
0.40 1.20 0.40 1.20 0.40 1.20 ns Figure 1Figure 2
t
THL
20% to 80%, 80% to 20%
Page 3
3 www.fairchildsemi.com
100201
Test Circuitry
Notes:
V
CC
, V
CCA
= +2V, VEE = −2.5V
L1 and L2 = equal length 50Ω impedanc e lines
R
T
= 50Ω terminator internal to scope
Decouplin g 0.1 µF from GND to V
CC
and V
EE
All unused outputs are loaded with 50Ω to GND
C
L
= Fixture and stray capacitance ≤ 3 pF

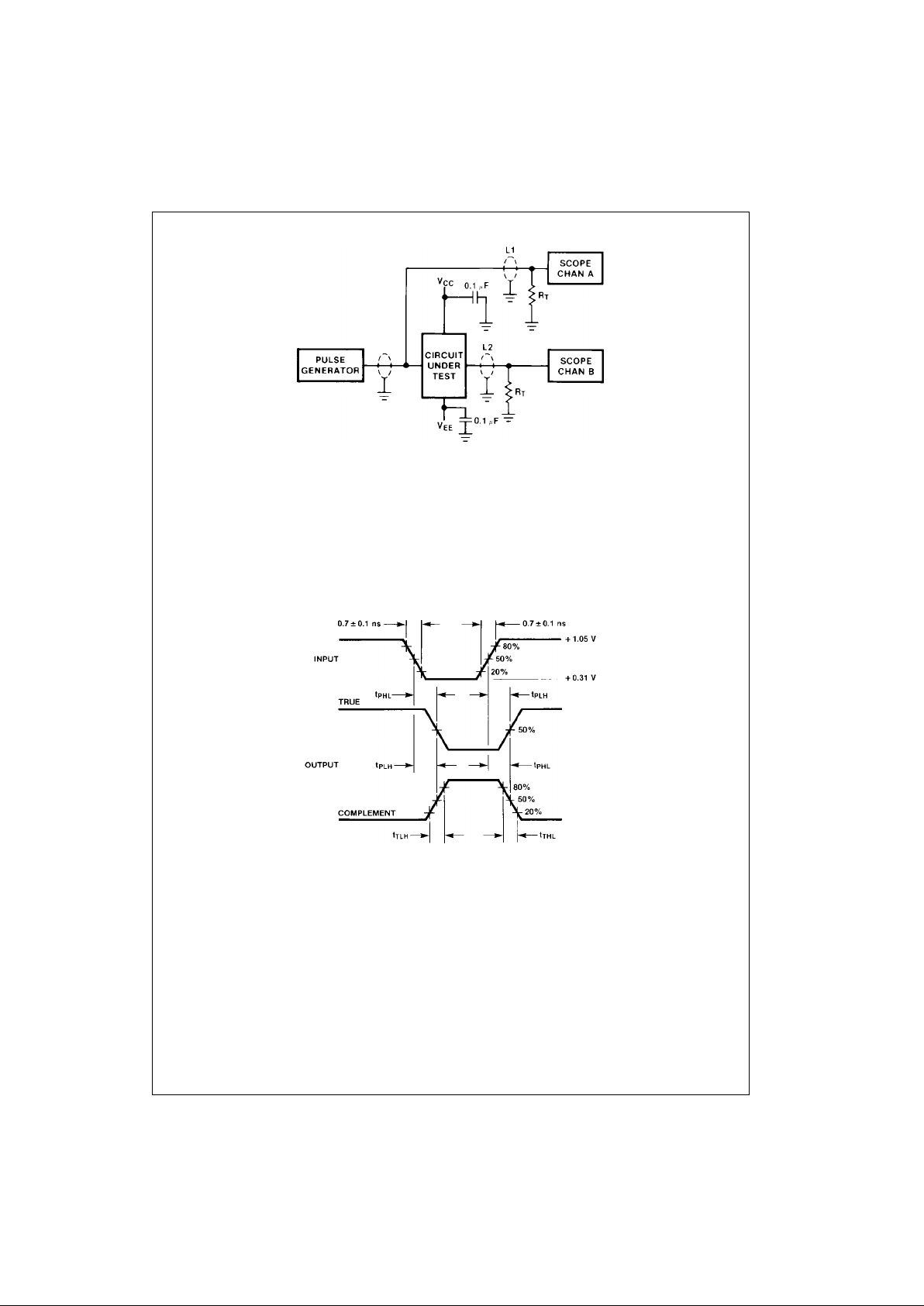

FIGURE 1. AC Test Circuit
Switching Waveforms
FIGURE 2. Propagation Delay and Transition Times
Page 4
www.fairchildsemi.com 4
100201 Low Power 2-Input OR/NOR Gate/Inverter

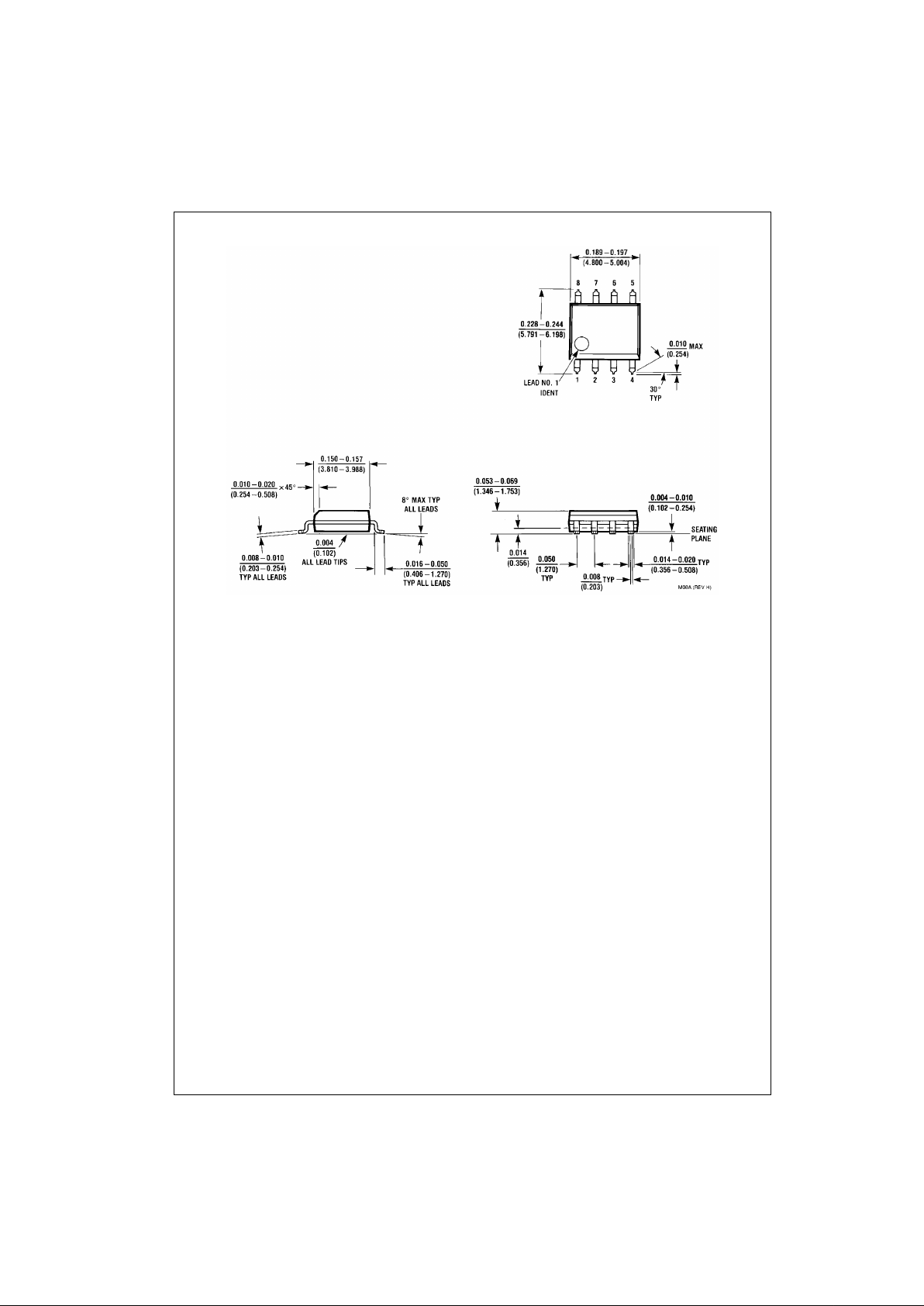

Physical Dimensions inches (millimeters) unless otherwise noted
8-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow
Package Number M08A
