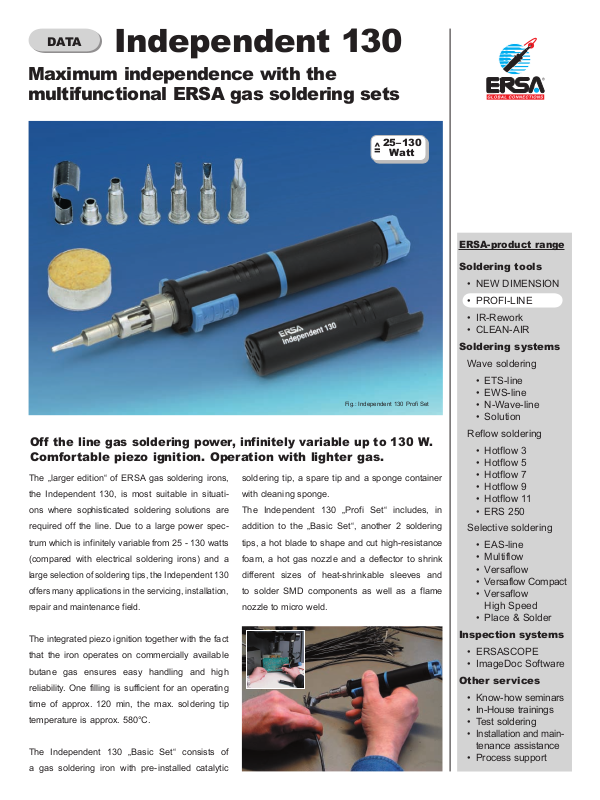

Page 1
DATA
Independent 130
Maximum independence with the
multifunctional ERSA gas soldering sets
25–130
^
=
Watt
Fig.: Independent 130 Profi Set
Off the line gas soldering power, infinitely variable up to 130 W.
Comfortable piezo ignition. Operation with lighter gas.
The „larger edition“ of ERSA gas soldering irons,
the Independent 130, is most suitable in situati-
ons where sophisticated soldering solutions are
required off the line. Due to a large power spec-
trum which is infinitely variable from 25 - 130 watts
(compared with electrical soldering irons) and a
large selection of soldering tips, the Independent 130
offers many applications in the servicing, installation,
repair and maintenance field.
The integrated piezo ignition together with the fact
that the iron operates on commercially available
butane gas ensures easy handling and high
reliability. One filling is sufficient for an operating
time of approx. 120 min, the max. soldering tip
temperature is approx. 580°C.
The Independent 130 „Basic Set“ consists of
a gas soldering iron with pre-installed catalytic
soldering tip, a spare tip and a sponge container
with cleaning sponge.
The Independent 130 „Profi Set“ includes, in
addition to the „Basic Set“, another 2 soldering
tips, a hot blade to shape and cut high-resistance
foam, a hot gas nozzle and a deflector to shrink
different sizes of heat-shrinkable sleeves and
to solder SMD components as well as a flame
nozzle to micro weld.
ERSA-product range
Soldering tools
• NEW DIMENSION
• PROFI-LINE
• IR-Rework
• CLEAN-AIR
Soldering systems
Wave soldering
• ETS-line
• EWS-line
• N-Wave-line
• Solution
Reflow soldering
• Hotflow 3
• Hotflow 5
• Hotflow 7
• Hotflow 9
• Hotflow 11
• ERS 250
Selective soldering
• EAS-line
• Multiflow
• Versaflow
• Versaflow Compact
• Versaflow
High Speed
• Place & Solder
Inspection systems
• ERSASCOPE
• ImageDoc Software
Other services
• Know-how seminars
• In-House trainings
• Test soldering
• Installation and main tenance assistance
• Process support
Page 2
DATA
Independent 130
Maximum independence with the
multifunctional ERSA gas soldering sets
Technical data:
Rating: 25 - 130 W
Heating time: 183°C in approx. 30 sec.
Sold. tip temp.: approx. 580°C max.
Weight: 121 g
Ignition: piezo ignition, operates on
butane gas
Order nos.:
0G13400141 Gas soldering set
Indpendent 130 „Profi Set“
consisting of:
0G130KN Gas soldering iron Independent
130 with chisel-shaped
soldering tip 0G132KN, 2.4 mm
0G132CN Chisel-shaped sold. tip, 1.0 mm
0G132AN Chisel-shaped sold. tip, 3.2 mm
0G132VN Chisel-shaped sold. tip, 4.8 mm
0G132BE Flame nozzle
0G132HE Hot gas nozzle
0G132MN Hot blade
0G132RE
0006 Cleaning sponge
0G156 Sponge container
Order nos.:
0G13400041 Gas soldering set
Deflector to shrink heat-
shrinkable sleeves
Indpendent 130 „Basic Set“
5PE0701-IN130 • subject to changes • © by ERSA
original size
consisting of:
0G130KN Gas soldering iron Independent
130 with chisel-shaped
soldering tip 0G132KN, 2.4 mm
0G132CN Chisel-shaped soldering tip,
1.0 mm
0006 Cleaning sponge
0G156 Sponge container
Accessories:
0G 806 K Gas cartridge, 65 ml
ERSA GmbH
Otto-Schott-Straße 3-7
P.O.Box 1261
97862 Wertheim/Germany
Tel: +49(0)9342/800-0
Fax:+49(0)9342/800-250
e-mail: info@ersa.de
http://www.ersa.de
