Page 1
98

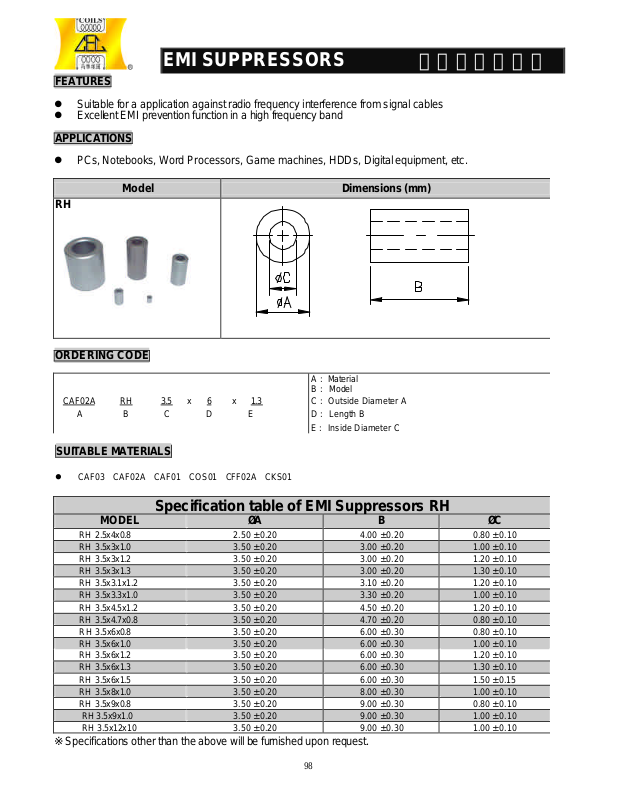

EMI SUPPRESSORS
電磁干擾 抑制器
FEATURES
l Suitable for a application against radio frequency interference from signal cables
l Excellent EMI prevention function in a high frequency band
APPLICATIONS
l PCs, Notebooks, Word Processors, Game machines, HDDs, Digital equipment, etc.

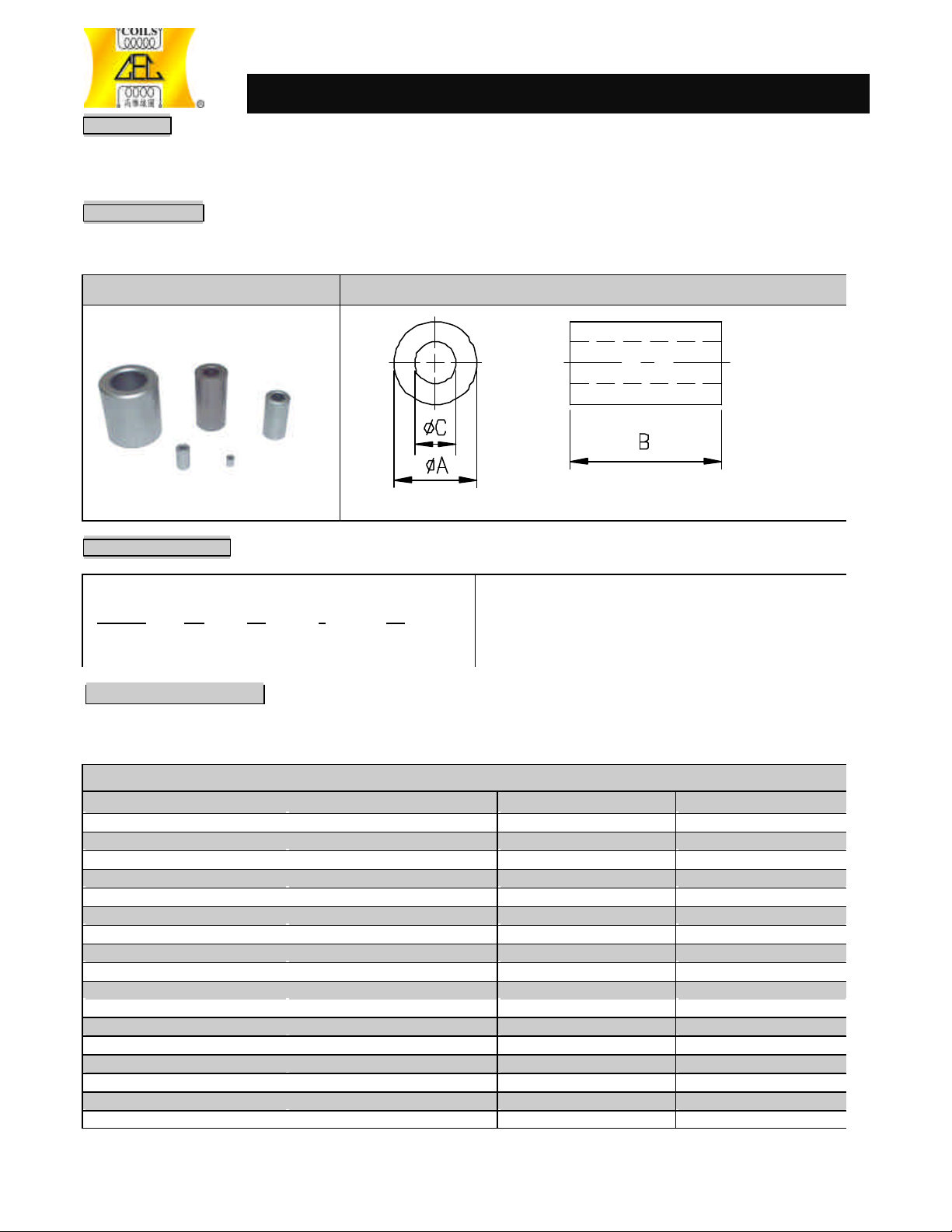

Model Dimensions (mm)
RH
ORDERING CODE
CAF02A RH 3.5 x 6 x 1.3
A B C
D E
A : Material
B : Model
C : Outside Diameter A
D : Length B
E : Inside Diameter C
SUITABLE MATERIALS
l CAF03 CAF02A CAF01 COS01 CFF02A CKS01
Specification table of EMI Suppressors RH
MODEL ØA B ØC
RH 2.5x4x0.8 2.50 ± 0.20 4.00 ± 0.20 0.80 ± 0.10
RH 3.5x3x1.0 3.50 ± 0.20 3.00 ± 0.20 1.00 ± 0.10
RH 3.5x3x1.2 3.50 ± 0.20 3.00 ± 0.20 1.20 ± 0.10
RH 3.5x3x1.3 3.50 ± 0.20 3.00 ± 0.20 1.30 ± 0.10
RH 3.5x3.1x1.2 3.50 ± 0.20 3.10 ± 0.20 1.20 ± 0.10
RH 3.5x3.3x1.0 3.50 ± 0.20 3.30 ± 0.20 1.00 ± 0.10
RH 3.5x4.5x1.2 3.50 ± 0.20 4.50 ± 0.20 1.20 ± 0.10
RH 3.5x4.7x0.8 3.50 ± 0.20 4.70 ± 0.20 0.80 ± 0.10
RH 3.5x6x0.8 3.50 ± 0.20 6.00 ± 0.30 0.80 ± 0.10
RH 3.5x6x1.0 3.50 ± 0.20 6.00 ± 0.30 1.00 ± 0.10
RH 3.5x6x1.2 3.50 ± 0.20 6.00 ± 0.30 1.20 ± 0.10
RH 3.5x6x1.3 3.50 ± 0.20 6.00 ± 0.30 1.30 ± 0.10
RH 3.5x6x1.5 3.50 ± 0.20 6.00 ± 0.30 1.50 ± 0.15
RH 3.5x8x1.0 3.50 ± 0.20 8.00 ± 0.30 1.00 ± 0.10
RH 3.5x9x0.8 3.50 ± 0.20 9.00 ± 0.30 0.80 ± 0.10
RH 3.5x9x1.0 3.50 ± 0.20 9.00 ± 0.30 1.00 ± 0.10
RH 3.5x12x10 3.50 ± 0.20 9.00 ± 0.30 1.00 ± 0.10
※Specifications other than the above will be fu rnished upon request.
Page 2
99
EMI SUPPRESSORS
電磁干擾抑制器
Specification table of EMI Suppressors RH
MODEL ØA B ØC
RH 4x4x1.0
RH 4x6x1.0
RH 4x8x1.0
RH 4x10x1.0
RH 4x3x2
RH 4x4x2
RH 4x6x2
RH 4x8x2
RH 4x10x2
RH 5x6x1.0
RH 5x7x1.0
RH 6x6x1.0
RH 6x10x2.5
RH 6x8x3
RH 7x10x2
RH 7x9.5x5.3
4.00 ± 0.20
5.00 ± 0.20
6.00 ± 0.20
7.00 ± 0.30
4.00 ± 0.20 1.00 ± 0.10
6.00 ± 0.30 1.00 ± 0.10
8.00 ± 0.30 1.00 ± 0.10
10.00 ± 0.30 1.00 ± 0.10
3.00 ± 0.20 2.00 ± 0.20
4.00 ± 0.20 2.00 ± 0.20
6.00 ± 0.30 2.00 ± 0.20
8.00 ± 0.30 2.00 ± 0.20
10.00 ± 0.30 2.00 ± 0.20
6.00 ± 0.30 1.00 ± 0.20
7.00 ± 0.30 1.00 ± 0.20
6.00 ± 0.30 1.00 ± 0.20
10.00 ± 0.40 2.50 ± 0.20
8.00 ± 0.30 3.00 ± 0.20
10.00 ± 0.40 2.00 ± 0.20
9.50 ± 0.30 5.30 ± 0.30
RH 8x9.5x4.5
RH 9.65x7.35x6.35
RH 10x9x5.1
RH 10x14x6
RH 11x9x6
RH 11.8x15x7.3
RH 12x20x5.6
RH 12x25x5.6
RH 13x12.7x7
RH 13x15x7
RH 14.2x28.6x6.7
RH 16x28x9
RH 16x28.5x10.5
RH 17.5x12.7x9.5
RH 17.5x28.5x9.5
RH 18.4x28.5x9.5
8.00 ± 0.30 9.50 ± 0.30 4.50 ± 0.30
9.65 ± 0.30 7.35 ± 0.30 6.35 ± 0.30
9.00 ± 0.30 5.10 ± 0.30
10.00 ± 0.30
14.00 ± 0.40 6.00 ± 0.30
11.00 ± 0.40 9.00 ± 0.30 6.00 ± 0.30
11.80 ± 0.40 15.00 ± 0.40 7.30 ± 0.30
20.00 ± 0.60 5.60 ± 0.30
12.00 ± 0.40
25.00 ± 0.60 5.60 ± 0.30
12.70 ± 0.40 7.00 ± 0.30
13.00 ± 0.40
15.00 ± 0.40 7.00 ± 0.30
14.20 ± 0.40 28.60 ± 0.80 6.70 ± 0.30
28.00 ± 0.80 9.00 ± 0.50
16.00 ± 0.50
28.50 ± 0.80 10.50 ± 0.50
12.70 ± 0.40 9.50 ± 0.50
17.50 ± 0.50
28.50 ± 0.80 9.50 ± 0.50
18.40 ± 0.50 28.50 ± 0.80 9.50 ± 0.50
※
Specifications other than the above will be furnished upon request.
Page 3
100
EMI SUPPRESSORS
電磁干擾 抑制器

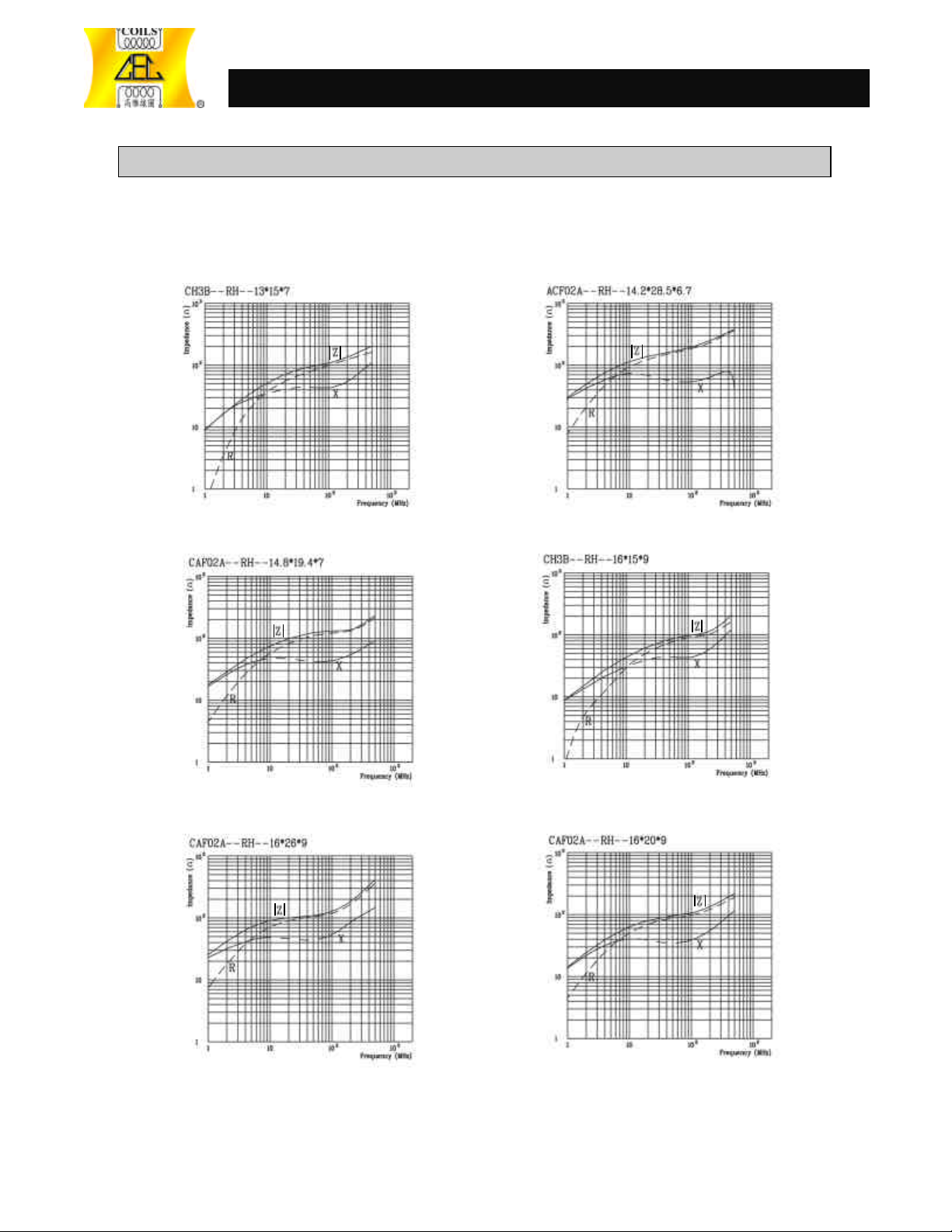

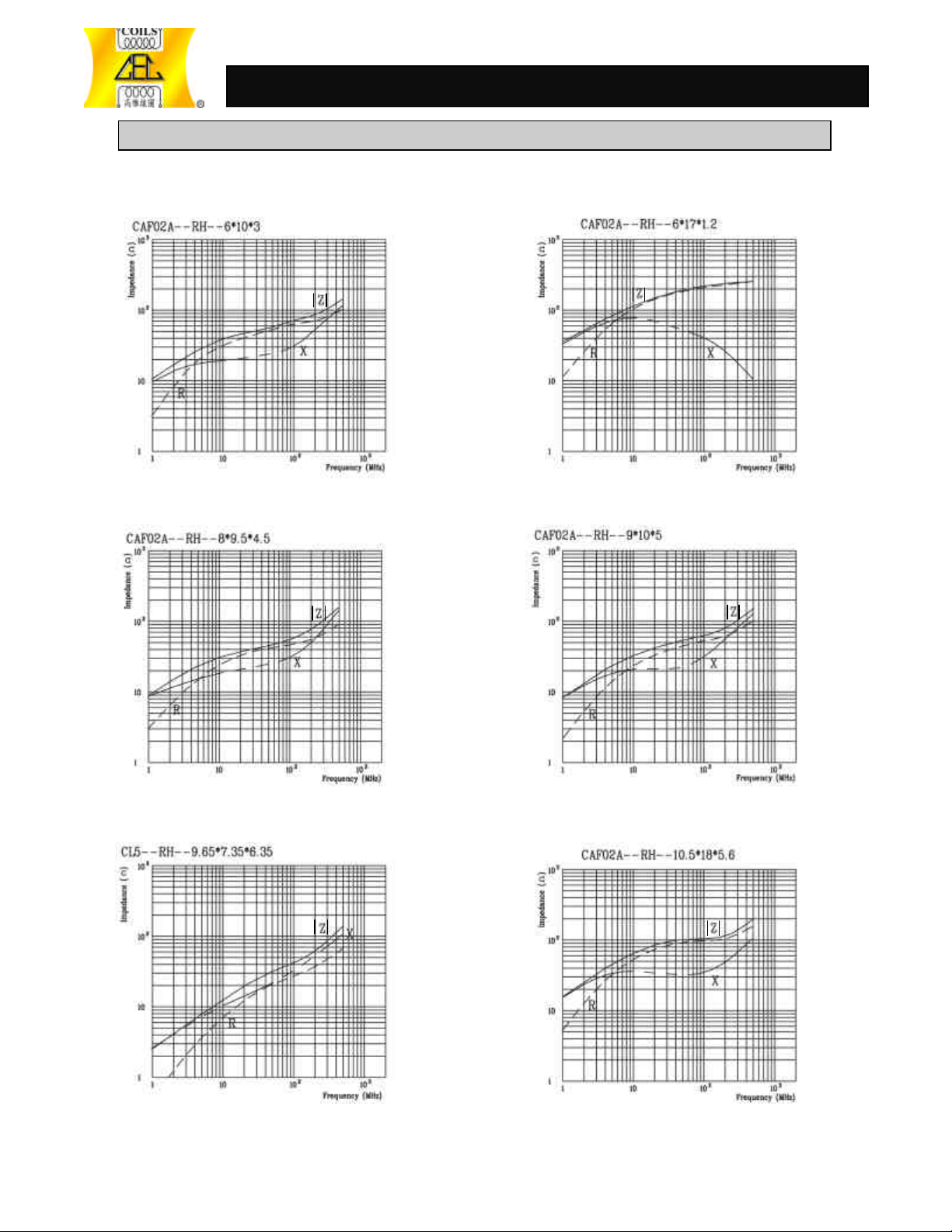

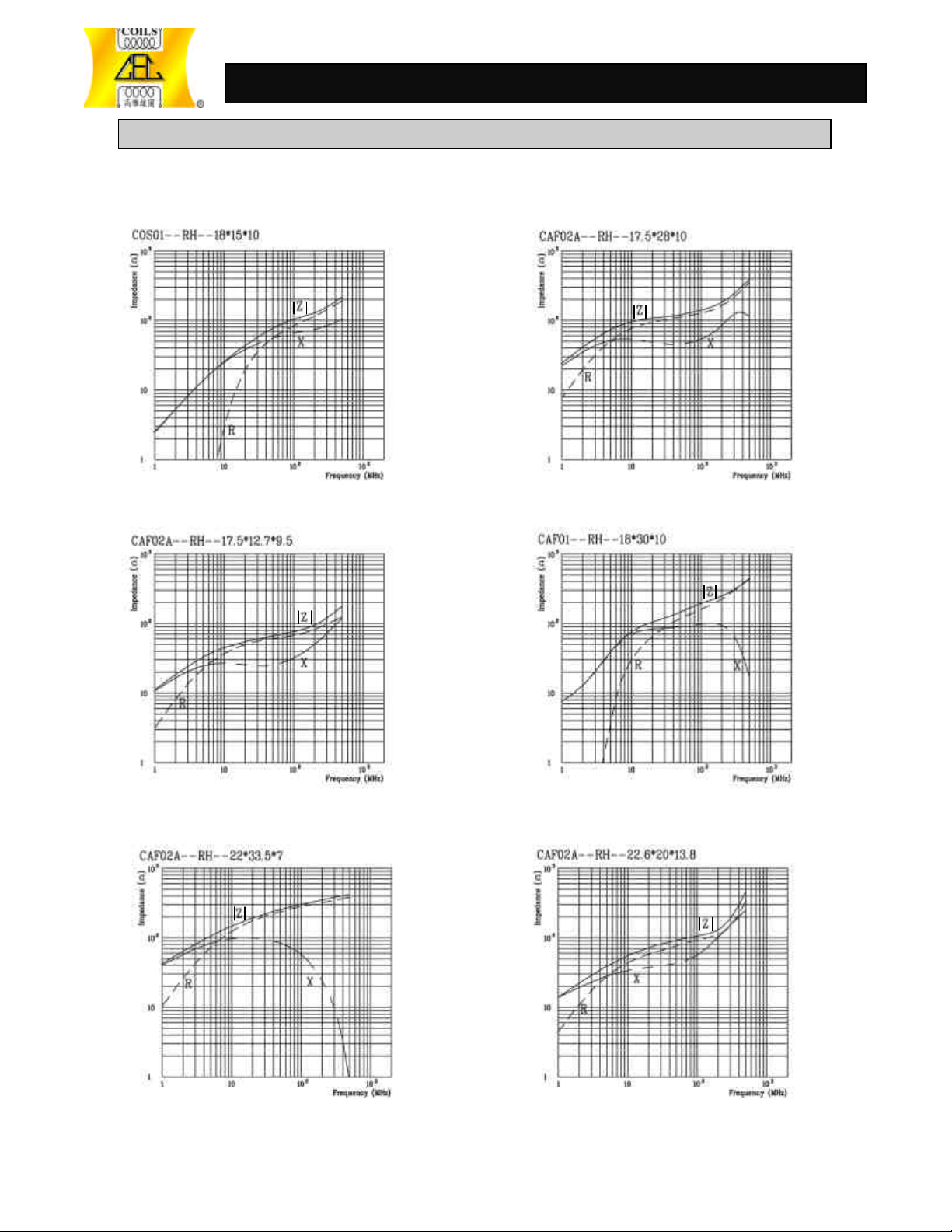

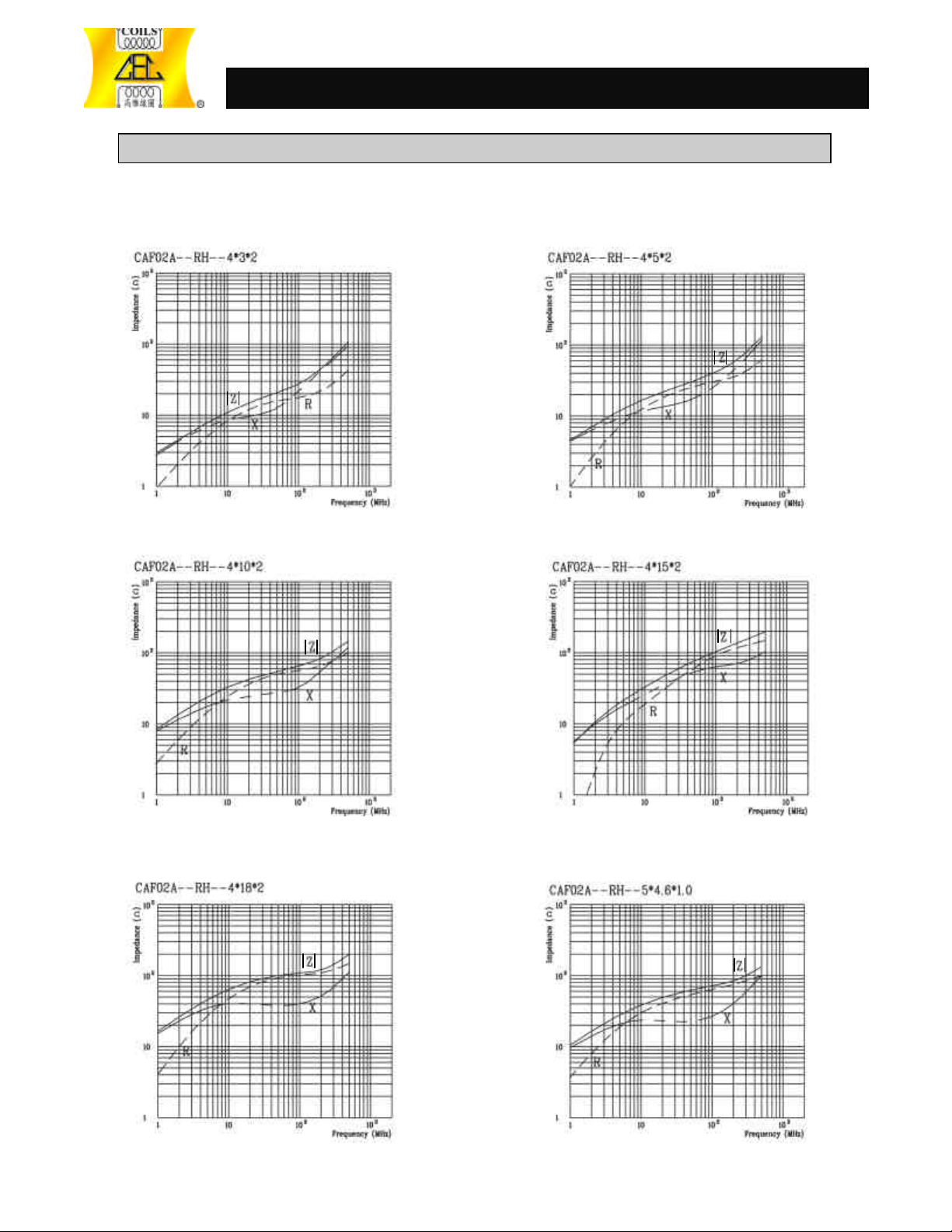

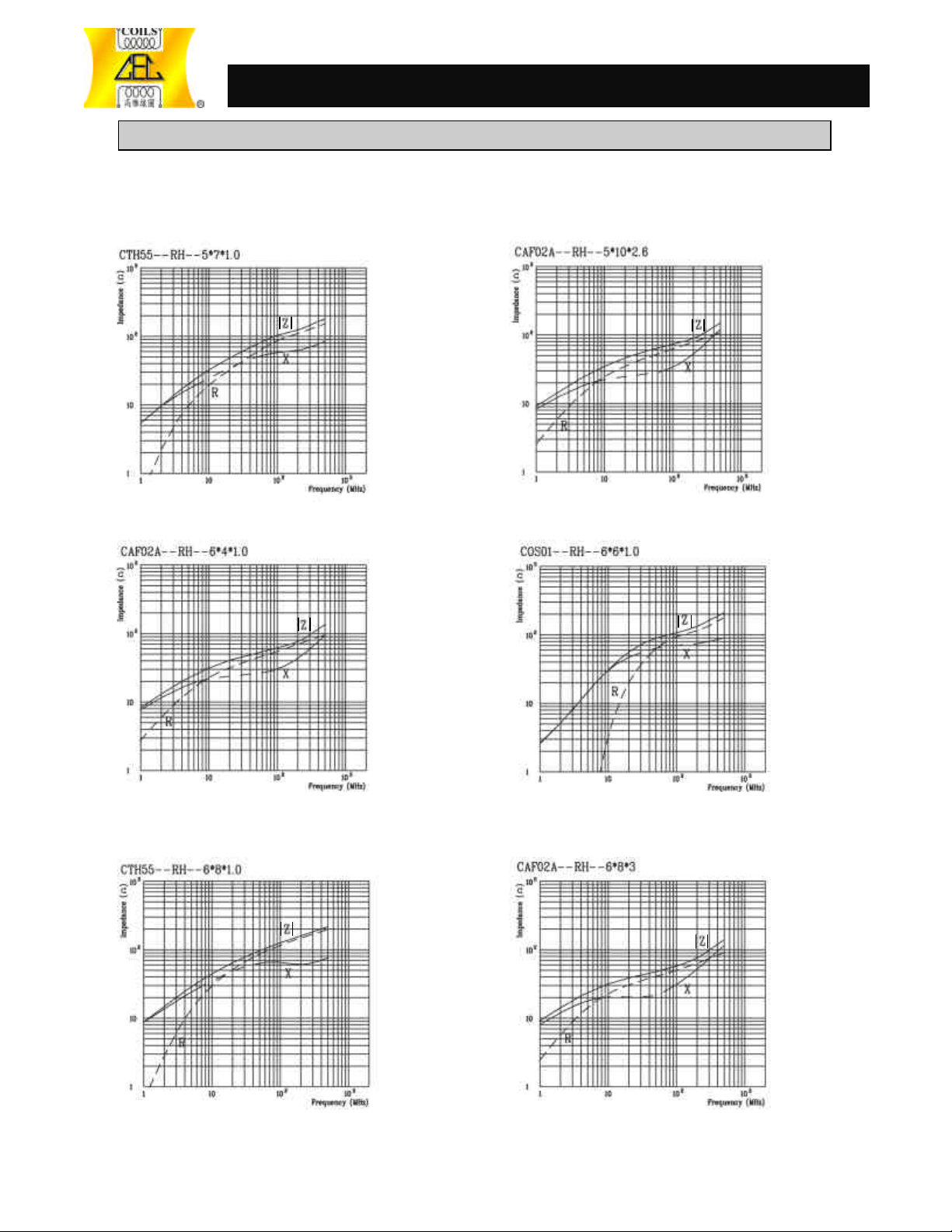

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
Page 4
101
EMI SUPPRESSORS
電磁干擾 抑制器
IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
Page 5
102
EMI SUPPRESSORS
電磁干擾 抑制器
IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
Page 6
103
EMI SUPPRESSORS
電磁干擾 抑制器
IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
Page 7
104
EMI SUPPRESSORS
電磁干擾 抑制器

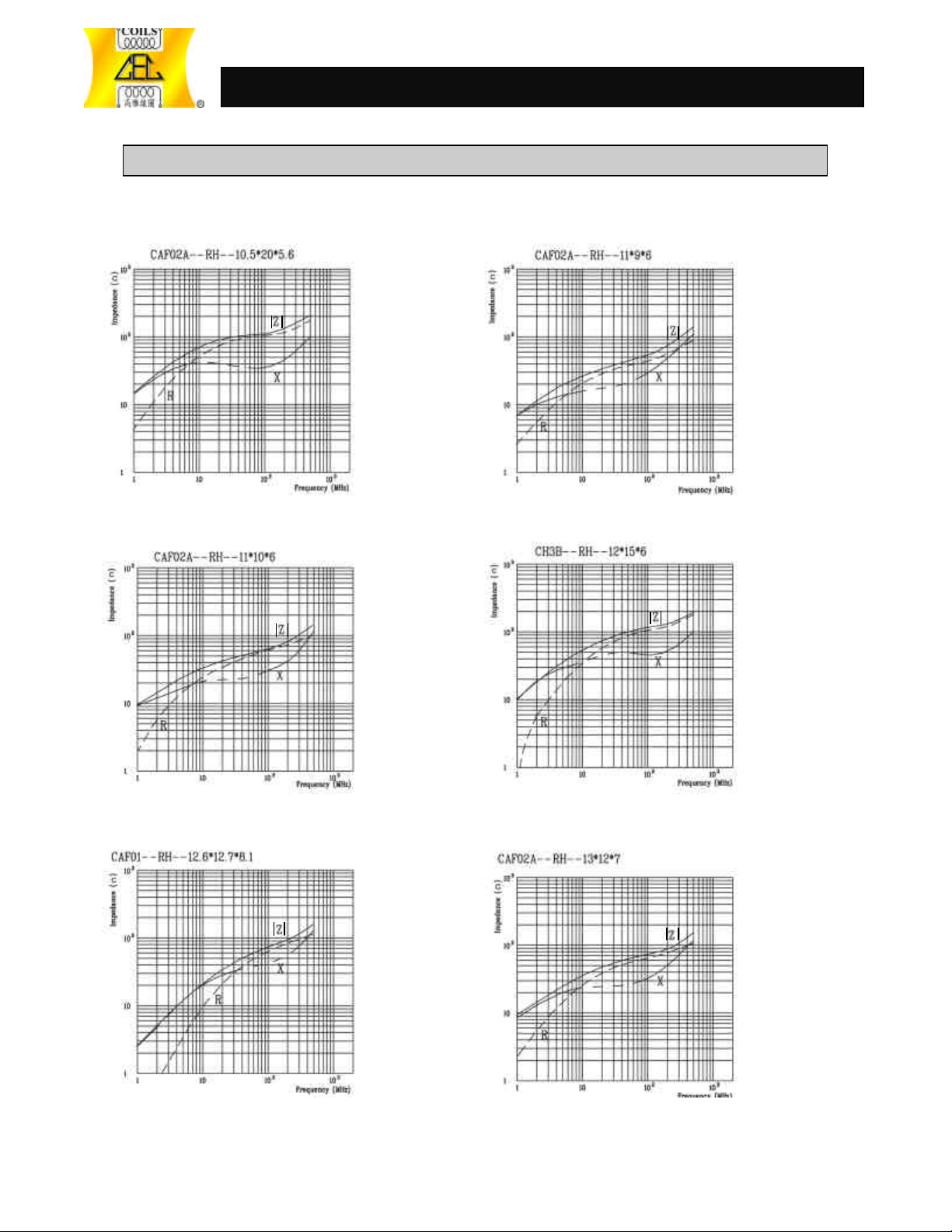

IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
Page 8
105
EMI SUPPRESSORS
電磁干擾抑制器
IMPEDANCE Vs FREQUENCY CHARACTERISTICS OF RH SERIES
TYPICAL ELECTRICAL CHARACTERISTICS
|Z|, R, X
FREQUENCY CHARACTERISTICS
VS.
※Specifications other than the above will be furnished upon request.
